LIVA Z2 User manual

LIVA Z2 SMALL FORM FACTOR PC USER MANUAL
i
Preface
Disclaimer
The information in this document is subject to change without
notice. The manufacturer makes no representations or warranties
with respect to the contents hereof and specifically disclaims any
implied warranties of merchantability or fitness for any particular
purpose. The manufacturer reserves the right to revise this
publication and to make changes from time to time in the content
hereof without obligation of the manufacturer to notify any person
of such revision or changes.
Trademark Recognition
Microsoft, MS-DOS and Windows are registered trademarks of
Microsoft Corp.
MMX, Pentium, Pentium-II, Pentium-III, Celeron are registered
trademarks of Intel Corporation.
Other product names used in this manual are the properties of their
respective owners and are acknowledged.
Copyright
This publication, including all photographs, illustrations and
software, is protected under international copyright laws, with all
rights reserved. Neither this manual, nor any of the material
contained herein, may be reproduced without written consent of
the author.
Version 1.0
Questo manuale d’istruzione è fornito da trovaprezzi.it. Scopri tutte le offerte per ECS LIVA Z2 95-696-MH2130 o cerca il tuo
prodotto tra le migliori offerte di PC Desktop e Workstation

ii
LIVA Z2 SMALL FORM FACTOR PC USER MANUAL
Federal Communications Commission (FCC)
This equipment has been tested and found to comply with the
limits for a Class B digital device, pursuant to Part 15 of the FCC
Rules. These limits are designed to provide reasonable protection
against harmful interference in a residential installation. This
equipment generates, uses, and can radiate radio frequency energy
and, if not installed and used in accordance with the instructions,
may cause harmful interference to radio communications. However,
there is no guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful interference to
radio or television reception, which can be determined by turning
the equipment off and on, the user is encouraged to try to correct
the interference by one or more of the following measures:
•Reorient or relocate the receiving antenna
•Increase the separation between the equipment and the
receiver
•Connect the equipment onto an outlet on a circuit
different from that to which the receiver is connected
•Consult the dealer or an experienced radio/TV
technician for help
Shielded interconnect cables and a shielded AC power cable must
be employed with this equipment to ensure compliance with the
pertinent RF emission limits governing this device. Changes or
modifications not expressly approved by the system’s manufacturer
could void the user’s authority to operate the equipment.

LIVA Z2 SMALL FORM FACTOR PC USER MANUAL
iii
Declaration of Conformity
This device complies with part 15 of the FCC rules. Operation is
subject to the following conditions:
•This device may not cause harmful interference.
•This device must accept any interference received,
including interference that may cause undesired
operation.
Electromagnetic compatibility of multimedia
equipment - Emission requirements
EN 55032
EN 61000-3-2 Electromagnetic Compatibility(EMC)
Part 3-2: Limits-Limits for harmonic current
emissions (equipment input current 16A per
phase)
EN 61000-3-3 Electromagnetic Compatibility(EMC)
Part 3-3: Limits-Limitation of voltage changes,
voltage fluctuations and flicker in public low-
voltage supply systems, for equipment with
rated current 16A per phase and not subject
to conditional connection
EN 55024 Information technology equipment-Immunity
characteristics-Limits and methods of
measurement
EN 60950 Safety for information technology equipment
including electrical business equipment
CE marking






This device is in conformity with the following EC/EMC directives:

iv
LIVA Z2 SMALL FORM FACTOR PC USER MANUAL
Safety Instructions
Your system is designed and tested to meet the latest standards of
safety for information technology equipment. However, to ensure
your safety, it is important that you read the following safety
instructions.
Setting up your system
• Read and follow all instructions in the documentation
before you operate your system.
• Do not use this product near water or a heated source
such as a radiator.
• Set up the system on a stable surface.
• Openings on the chassis are for ventilation. Do not block
or cover these openings. Make sure you leave plenty of
space around the system for ventilation. Never insert
objects of any kind into the ventilation openings.
• Use this product in environments with ambient
temperatures between 0°C and 40°C.
• If you use an extension cord, make sure that the total
ampere rating of the devices plugged into the extension
cord does not exceed its ampere rating.
Attention during use
• Do not step on the power cord or let anything rest on
top of it.
• Do not spill water or any other liquid on your system.
• When the system is turned OFF, a small amount of
electrical currentstill flows. Always unplug all power,
modem, and network cables from the power outlets
before cleaning the system.

LIVA Z2 SMALL FORM FACTOR PC USER MANUAL
v
• If you encounter the following technical problems with
the product, unplug the power cord and contact a
qualified service technician or your retailer.
• The power cord or plug is damaged.
• Liquid has been spilled into the system.
• The system does not function properly even if you
follow theoperating instructions.
• The system was dropped or the cabinet is
damaged.
• The system performance changes.
The warranty does not apply to products that have been
disassembled by users.
Safety cautions and warnings
CAUTION:
Optical drive sold with this system contains a CLASS 1 LASER
PRODUCT.
Optical Drive Safety Information
Invisible laser radiation when open. Do not stare into beam
or view directly with optical instructions.
WARNING:
Makeing adjustments or performing procedures other
than those specified in the user’s manual may result in
hazardous laser exposuer. Do not attempt to disassemble
the optical drive. For your safety, have the optical drive
serviced only by an authorized service provider.

vi
LIVA Z2 SMALL FORM FACTOR PC USER MANUAL
Product disposal notice
IMPORTANT:
Nordic Lithium Cautions (for lithium-ion batteries)
CAUTION:
This symbol if the crossed out wheeled bin indicates that
the product (electrical and electronic equipment) should
not be placed in municipal waste. Check local
regulations for disposal of electronic products.
Danger of explosoin if battery is incorrectly replace only
with the same or equivalent type recommended by the
manufacturer. Dispose of used batteries according to the
manufacturer’s instructions.
Product disposal notice
1. Do not place this product underneath heavy loads or
in an unstable position.
2. Do not use or expose this product around magnetic
fields as magnetic interference may affect the
performance of the product.
3. Do not expose this product to high levels of direct
sunlight, high-humidity or wet conditions.
4. Do not block the air vents to this product or impede
the airflow in any way.

LIVA Z2 SMALL FORM FACTOR PC USER MANUAL
vii
Canadian Department of Communications
This class B digital apparatus meets all requirements of the
Canadian Interference-causing Equipment Regulations.
Cet appareil numérique de la classe B respecte toutes les exigences
du Réglement sur le matériel brouilieur du Canada.
The manual consists of the following:
Describes features of the
PC.
page 1
page 11
Introducing the PC
Provides information on
using the BIOS Setup
Utility.
About the Manual
Chapter 1
Chapter 2
Using BIOS
Describes the
motherboard software.
Chapter 3
Using the Motherboard Software
page 49
Provides basic trouble
shooting tips.
Chapter 4
Troubleshooting
page 61

viii
LIVA Z2 SMALL FORM FACTOR PC USER MANUAL
Memo

LIVA Z2 SMALL FORM FACTOR PC USER MANUAL
vii
TABLE OF CONTENTS
Introducing the PC 1
Introduction....................................................1
Specifications..................................................2
Front and Rear I/O............................................4
Motherboard Components..............................6
Header Pin Definition ....................................9
Chapter 1 1
Chapter 2 11
Using BIOS 11
About the Setup Utility...................................11
The Standard Configuration....................12
Entering the Setup Utility.........................12
Resetting the Default CMOS Value..........13
Using BIOS.....................................................14
BIOS Navigation Keys..............................15
Main Menu............................................16
Advanced Menu......................................17
Chipset Menu..........................................33
M.I.B X(MB Intelligent BIOS X) Menu......37
Boot Menu.............................................39
Security Menu........................................43
Preface i

viii
LIVA Z2 SMALL FORM FACTOR PC USER MANUAL
Exit Menu...............................................45
Updating the BIOS..................................47
Chapter 3 49
Using the Motherboard Software 49
Installing the Windows OS.............................49
Drivers auto-installing under Windows 10.....50
Running Setup........................................51
Manual Installation.......................................54
ECS Utility Software(Intelligent EZ Utility).....54
Windows 10 OS Recovery.............................56
Chapter 4 61
Troubleshooting 61
Troubleshooting and problem solution........61

LIVA Z2 SMALL FORM FACTOR PC USER MANUAL
1
Chapter 1
Chapter 1
Introducing the PC
Introduction
Thank you for choosing LIVA Z2 Small Form Factor PC featuring
GLKM-MINI of great performance and with stylish and flexible de-
sign.
This Small Form Factor PC is based on Intel®SoC N4000 / N4100 /
N5000 Mobile platform. This latest Core-M processor is a multi-core
system-on-a-chip (SoC) that integrates the next generation Intel®
processor core, graphics, memory, and I/O interfaces into one solu-
tion. One M.2 slot is for extending usage. It implements three Type-
A USB 3.0 ports and one Type-C USB 3.0 port.
It supports DDR4 up to 8 GBDual-channel SO-DIMM memory.

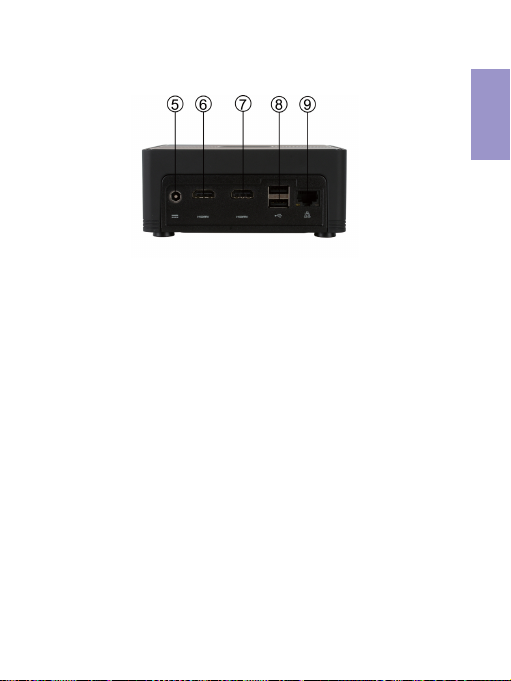

The system is equipped with a set of I/O ports at the rear panel,
including one DC_IN port (19V), one HDMI 2.0 port, one HDMI 1.4
port, two USB 2.0 ports, one Giga LAN connector.

2
LIVA Z2 SMALL FORM FACTOR PC USER MANUAL
Chapter 1
Rear Panel I/O
CPU/Chipset
• Support DDR4 up to 8GB
- Dual-channel DDR4 SDRAM SO-DIMM
Memory
• 1 x M.2 slot (supports 2230 WiFi card)
• 1 x 2.5” HDD
• Support eMMC 32 GB/64 GB
Expansion
Storage
•Intel
®SoC N4000 / N4100 / N5000
Specifications
Note:
ID design and specification may vary, please refer
to actual goods you purchase.
Slots
• Support IEEE 802.11 a/b/g/n/ac and
Bluetooth 4.2
Wireless
• 1 x DC_IN port (19V only)
• 1 x Giga LAN connectors
• 1 x HDMI 2.0 port
• 1 x HDMI 1.4 port
• 2 x USB 2.0 ports

LIVA Z2 SMALL FORM FACTOR PC USER MANUAL
3
Chapter 1
• 3 x Type-A USB 3.0 ports and 1 x Type-C USB
3.0 port*
• 1 x Power On/Off button
•1 x Audio combo jack
• 1 x 2-pin Front LED header (optional)
• 1 x 2-pin battery connector
• 1 x 3-pin CPU Cooling Fan connector
• 1 x 4-pin Digital Microphone connector
• 1 x M.2 slot
• 1 x HDD connector (SATA_CONN)
• 1 x LED light
Internal I/O
Connectors &
Headers
Power Supply • Adapter DA-65C19, 19V, 3.42A, 65W
Dimension • 132mm x 118mm x 56.4mm
VESA • 100mm x 100mm
WARNING:
Please realize that there is a certain risk involved with
overclocking, including adjusting the setting in the BIOS, or
using the third-party overclocking tools. Overclocking may
affect your system stability, or even case damage to the
components and devices of your system. It should be done
at your own risk and expense. We are not responsible for
possible damage casesd by overclocking.
*Note:
The Type-C USB 3.0 port of this model is used for data
transmission only, it can not be used for DC-in power
supply and video output.

4
LIVA Z2 SMALL FORM FACTOR PC USER MANUAL
Chapter 1
Front and Rear I/O
1. Power Button Use this button to power on/off the
system.
Note:
ID design and specification may vary, please refer
to actual goods you purchase.
Connect your Type-A USB 3.0 devices
to these ports.
2. Type-A USB 3.0 Ports
Connect your Type-C USB 3.0 device
to this port.
3. Type-C USB 3.0 Port*
*Note:
The Type-C USB 3.0 port of this model is used for data
transmission only, it can not be used for DC-in power
supply and video output.

LIVA Z2 SMALL FORM FACTOR PC USER MANUAL
5
Chapter 1
4. Combo Audio Jack
(Line out & Mic in)
Connect a microphone or speaker to
the combo audio jack.
Connect the RJ-45 jack to the LAN
ports for Network connecting.
9. Giga LAN Port
You can connect the display device to
the HDMI 1.4 port.
6. HDMI 1.4 Port
Connect the DC_IN port to the power
adapter.
5. 19V DC_IN Port
8. USB 2.0 Ports Use the USB 2.0 port to connect USB
2.0 device.
You can connect the display device to
the HDMI 2.0 port.
7. HDMI 2.0 Port

6
LIVA Z2 SMALL FORM FACTOR PC USER MANUAL
Chapter 1
Motherboard Components

LIVA Z2 SMALL FORM FACTOR PC USER MANUAL
7
Chapter 1

8
LIVA Z2 SMALL FORM FACTOR PC USER MANUAL
Chapter 1
Table of Motherboard Components
LABEL COMPONENTS
1. SoC Intel®SoC N4000 / N4100 / N5000
2. BAT Battery
3. BT Battery connector
4. CPU_FAN 3-pin CPU cooling fan connector
5. M2_2230 M.2 slot supports WiFi card
6. SATA_CONN HDD connector
7. LED1 LED light
8. PWR_BTN Power On/Off button
9. F_LED Front LED header (optional)
10. USB3F1~3 Front USB 3.0 ports (Type-A)
11. USB3F4 Front USB 3.0 port (Type-C)
12. DIMM1~2 Dual-channel DDR4 SDRAM SO-DIMM
13. AUDIO_JACK Audio jack
14. DMIC 4-pin Digital microphone connector

LIVA Z2 SMALL FORM FACTOR PC USER MANUAL
9
Chapter 1
BT (Battery)
CPU_FAN
Header Pin Definition
DMIC
+VBAT GND

10
LIVA Z2 SMALL FORM FACTOR PC USER MANUAL
Chapter 1
Memo
