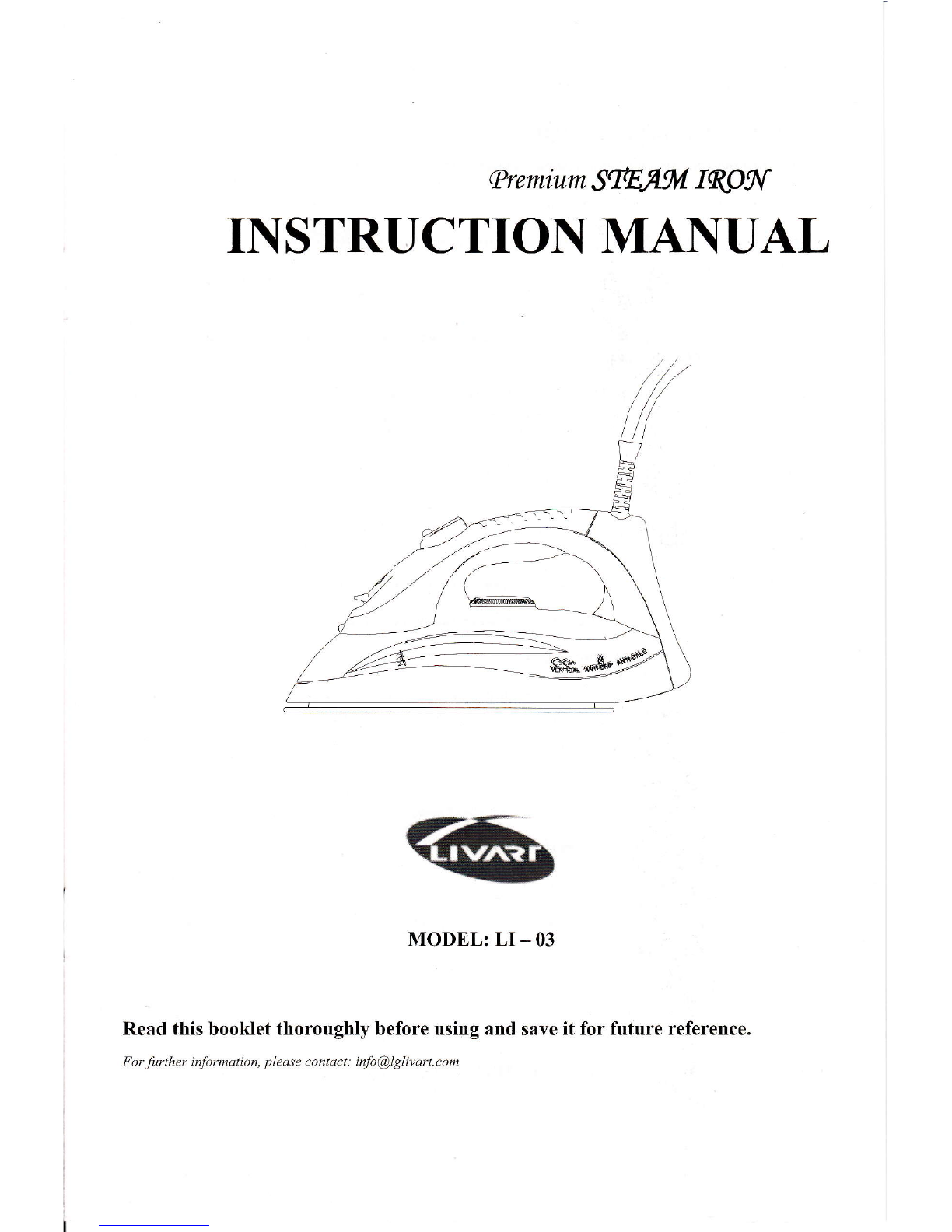

Livari LI-03 User manual

(Pr
emium SttEAgrl IKOt\t
INSTRUCTION MANUAL
MODEL: LI - 03
Read this booklet thoroughly before using and save it for future reference.
For further informqtion, please contact : info@lglivart. com

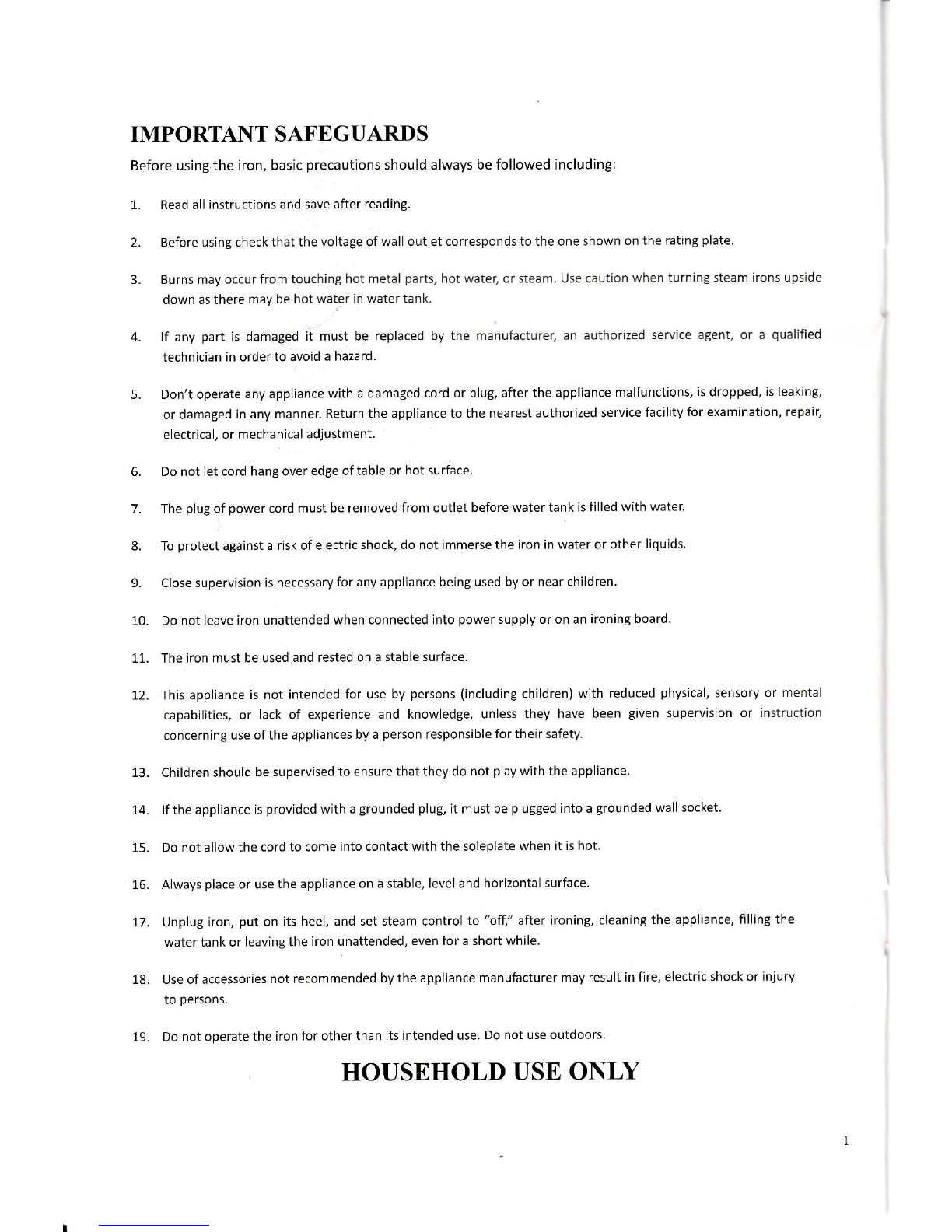

IMPORTANT SAFEGUARDS
Before using the iron, basic precautions should always be followed including:
1. Read all instructions and save after reading.
2. Before using check that the voltage of wall outlet corresponds to the one shown on the rating plate.
3. Burns may occur from touching hot metal parts, hot water, or steam. Use caution when turning steam irons upside
down as there may be hot water in water tank.
4. lf any part is damaged ii must be replaced by the manufacturer, an authorized seruice agent, or a qualified
technician in order to avoid a hazard.
5. Don't operate any appliance with a damaged cord or plug, after the appliance malfunctions, is dropped, is leaking,
or damaged in any manner. Return the appliance to the nearest authorized service facility for examination, repair,
electrical, or mechanical adjustment.
6. Do not let cord hang over edge of table or hot surface.
7. The plug of power cord must be removed from outlet before water tank is filled with water
8. To protect against a risk of electric shock, do not immerse the iron in water or other liquids.
9. close supervision is necessary for any appliance being used by or near children.
10. Do not leave iron unattended when connected into power supply or on an ironing board,
1L. The iron must be used.and rested on a stable surface.
12. This appliance is not intended for use by persons (including children) wlth reduced physical, sensory or mental
capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction
concerning use of the appliances by a person responsible for their safety.
13. children should be supervised to ensure that they do not play with the appliance.
14. lfthe appliance is provided with a grounded plu8, it must be plugged into a grounded wall socket.
15. Do not allow the cord to come into contact with the soleplate when it is hot.
16. Always place or use the appliance on a stable, level and horizontal surface.
17. Unplug iron, put on its heel, and set steam control to "ofli' after ironing, cleaning the appliance, filling the
water tank or leaving the iron unattended, even for a short while.
18. Use of accessories not recommended by the appliance manufacturer may result in fire, electric shock or injury
to persons.
19. Do not operate the iron for other than its intended use. Do not use outdoors.
HOUSEHOLD USE ONLY

KNOWYOUR STEAM IRON
LED display
Steam shot button
Variable steam button
Spraying water button
360;6ord brushing
rest (no shown)
Water tank inlet
Nozzle
lndicator
Temperature dial
tank Soleillate
Steam shot button
Pressing the button instantly provides a powerful shot of steam to eliminate stubborn wrinkles.
Spray button
Pressing the button instantly provides a fine mist spray to dampen hard-to-iron fabrics.
Variable steam button
Select desired steam output for each garment by moving button. Select the "O" position, for dry-ironing.
Water tank inlet
Fill water tank through here. Ensure that level does not pass "MAX" level (250m1 / 1 cup).
Nozzle / Spraying Water Outlet
When pressing spray button, water is instantly sprayed from this outlet.
3600 cord bushing
Cord bushing allows free-movement of power cord in any direction with great maneuverability when ironing.
Temperature dial
Turn the dial to set ironing temperature based on the garment to be ironed
lndicator
When indicator light is illuminated, the iron is heating up; it will go out when it has reached selected temperature.
The light cycles on and off during ironing as the iron operates to maintain the desired temperature.
Soleplate
The stainless steel soleplate can be heated and used by pressing against the garment.
Heel rest
Heel rest keeps the iron stable on the ironing board
LED Display
Displays the temperature of the soleplate. After plugging the display will show the room's temperature and as the
soleplate heats to the desired temperature, the numbers will begin to increase accordingly.

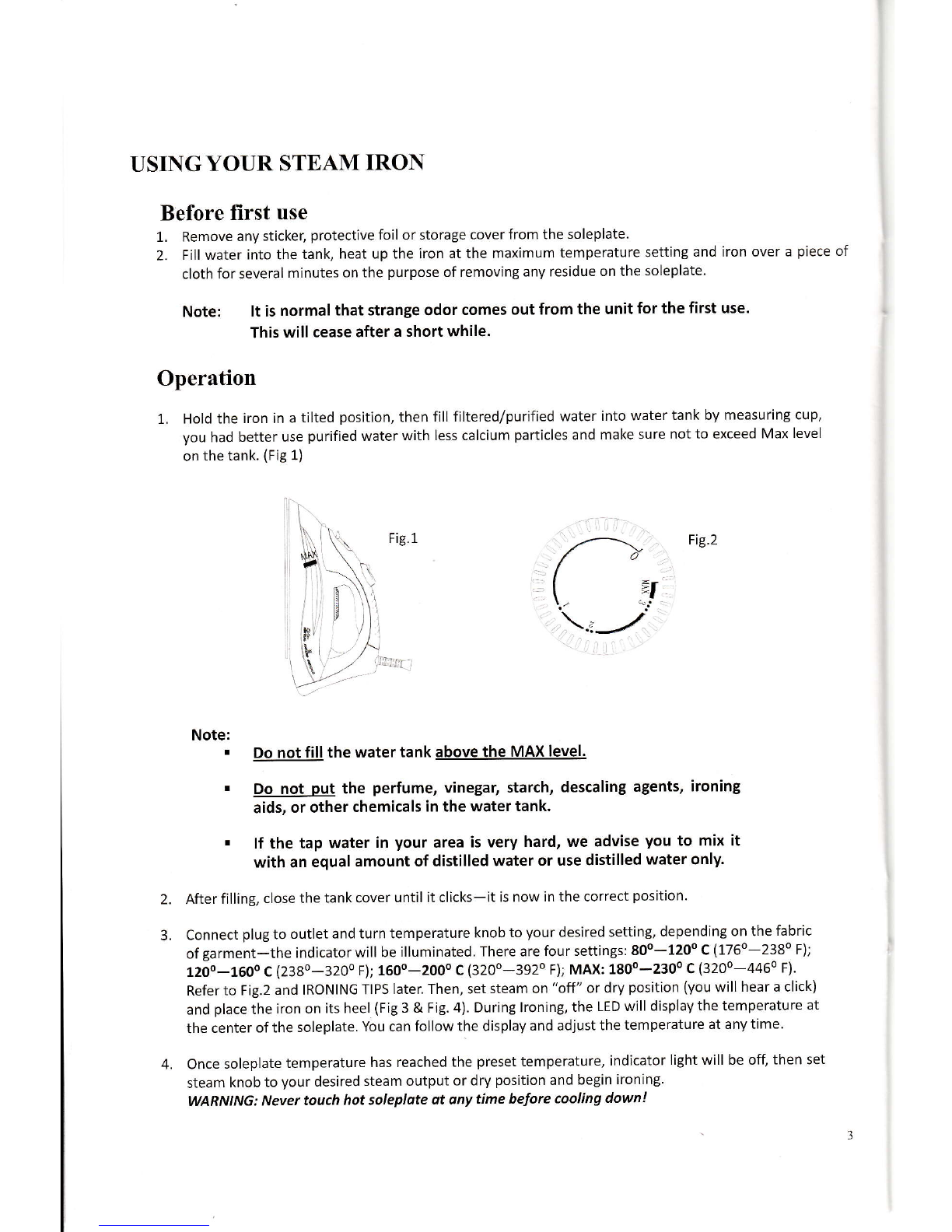

USINGYOUR STEAM IRON
Before first use
1. Remove any sticker, protective foil or storage cover from the soleplate.
2. Fill water into the tank, heat up the iron at the maximum temperature setting and iron over a piece o{
cloth for several minutes on the purpose of removing any residue on the soleplate.
Note: lt is normal that strange odor comes out from the unit for the first use.
This will cease after a short while.
Operation
1. Hold the iron in a tilted position, then fill filtered/purified water into water tank by measuring cup,
you had better use purified water with less calcium particles and make sure not to exceed Max level
on the tank. (Fig 1)
Fig.1
i'\ ir..
iJl \'
F _\-,
" \\-
:\
[] r\
'$, 'l
,,F l--
\'-
,,-.-.--\ Fig.2
( o=,
\.,j'
3.
Note:
. Do not fill the water tank above the MAX level.
. Do not put the perfume, vinegar, starch, descaling agents, ironing
aids, or other chemicals in the water tank.
. lf the tap water in your area is very hard, we advise you to mix it
with an equal amount of distilled water or use distilled water only.
After filling, close the tank cover until it clicks-it is now in the correct position.
Connect plug to outlet and turn temperature knob to your desired setting, depending on the fabric
of garment-the indicator will be illuminated. There are four settings: 80o-120o c (1760-2380 F);
1200-1600 C (2380-3200 F); 1500-2000 c (3200-3920 F); MAX: 1800-2300 c (3200-4460 F).
Refer to Fig.2 and lRoNlNG TtPS later. Then, set steam on"off" or dry position (you will hear a click)
and place the iron on its heel (Fig 3 & Fig. a). During lroning, the LED will display the temperature at
the center of the soleplate. You can follow the display and adjust the temperature at any time.
Once soleplate temperature has reached the preset temperature, indicator light will be off, then set
steam knob to your desired steam output or dry position and begin ironing.
WARNTNG: Never touch hot soleplate dt ony time belore cooling down!

[,,
l*y' \
I -\\-
I ll '\\
I$l ' t):
,\r')/ou*
Dry position
Fig.3 Fig.4
7.
Press spray button a couple oftimes to moisten the laundry if necessary, before spraying make sure
that there is enough water in water tank.
Steam shot function is best used at max temperature, as it helps remove stubborn creases. Wait a
while before using steam shot button again to avoid splattering.
"Steam shot" can also be applied when holding the iron in a vertical position, so this is useful for
removing creases from hung clothes, curtains, etc.
The iron has an anti-drip function: if ironing garments for a long time, soleplate temperature will
drop, the iron will stop producing steam automatically and no water will come out of the soleplate.
Automatic Shut-off
ln order to avoid fire hazard, the iron has a safe, automatic shut-off function that turns the iron off,
in case the iron is left unattended. lf the function is activated, the iron will flash the indicator light
and bells will be heard. lf any of the following conditions are met, the shut-off will activate:
. When ironing horizontally, the iron has been kept motionless for 15-30 seconds
. When ironing vertically, the iron has been kept motionless for about 8-15 minutes
lf either of the above has occurred, move the iron or turn the temperature dial to "O" and reset the
temperature. The iron will continue operating normally.
CLEANING AND MAINTENANCE
After ironing
1. Disconnect power supply and empty the water left in water tank.
2. To dry soleplate: Reconnect power supply and disconnect after indicator light goes off
3. Let the iron completely cool down, then wipe flakes and any other deposits on the soleplate with a
damp cloth or a non-abrasive (liquid) cleaner.
WARNING:
. Never touch hot soleplate at any time before it has cooled down !
' To keep the soleplate smooth, you should avoid hard contact with metal obiects.
. Nev€r use a scouring pad, vinegar or other chemicals to clean the soleplate.
6.

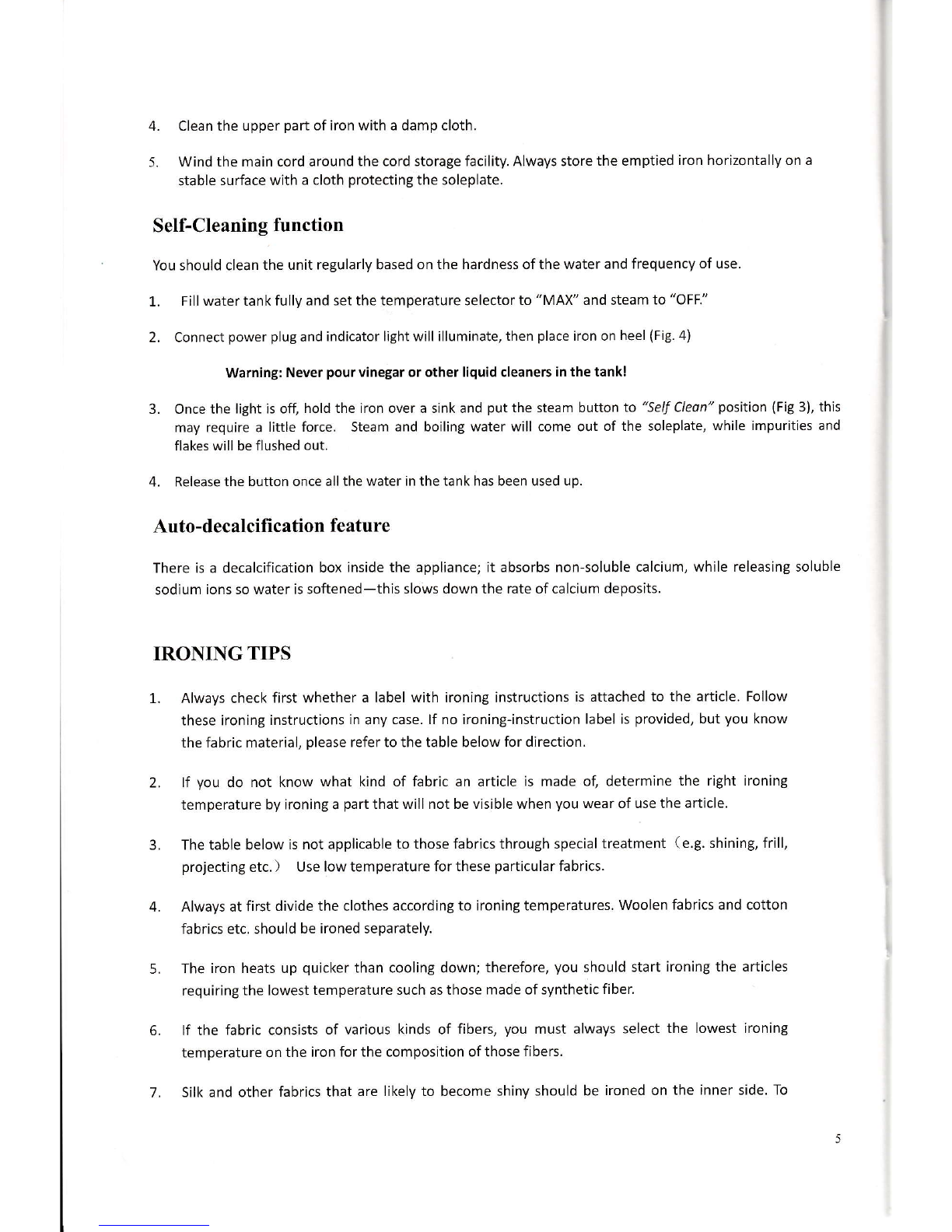

4. Clean the upper part of iron with a damp cloth.
5. Wind the main cord around the cord storage facility. Always store the emptied iron horizontally on a
stable surface with a cloth protecting the soleplate.
Self-Cleaning function
You should clean the unit regularly based on the hardness ofthe water and frequency of use.
1. Fill water tank fully and set the temperature selector to "MAX" and steam to "OFF."
2. Connect power plug and indicator light will illuminate, then place iron on heel (Fig.4)
Warning: Never pour vinegar or other liquid cleaners in the tank!
3. Once the light is off, hold the iron over a sink and put the steam button to "Self Cleon" position (Fig 3), this
may require a little force. Steam and boiling water will come out of the soleplate, while impurities and
flakes will be flushed out.
4. Release the button once all the water in the tank has been used up.
Auto-decalcifi cation feature
There is a decalcification box inside the appliance; it absorbs non-soluble calcium, while releasing soluble
sodium ions so water is softened-this slows down the rate of calcium deposits.
IRONINGTIPS
1. Always check first whether a Iabel with ironing instructions is attached to the article. Follow
these ironing instructions in any case. lf no ironing-instruction label is provided, but you know
the fabric material, please refer to the table below for direction.
2. lf you do not know what kind of fabric an article is made ol determine the right ironing
temperature by ironing a part that will not be visible when you wear of use the article.
3. The table below is not applicable to those fabrics through special treatment (e.g. shining, frill,
projecting etc. ) Use low temperature for these particular fabrics.
4. Always at first divide the clothes according to ironing temperatures. Woolen fabrics and cotton
fabrics etc. should be ironed separately.
5. The iron heats up quicker than cooling down; therefore, you should start ironing the articles
requiring the lowest temperature such as those made of synthetic fiber.
6. lf the fabric consists of various kinds of fibers, you must always select the lowest ironing
temperature on the iron for the composition of those fibers.
7. Silk and other fabrics that are likely to become shiny should be ironed on the inner side. To

prevent staining, do not spray water straight on silk or other delicate fabrics.
Velvet and other textures that rapidly become shiny should be ironed in one direction with light
pressure applied. Keep the iron moving at all times.
Pure wool fabrics (100% wool) may be ironed with the iron set a steam position. Preferably set
steam control to the maximum position and use a dry cloth as a mat.
Never iron over zip, rivet in the cloth. This will damage the soleplate.
Additional table
Svmbol F abric Temp. Variable
steam
Steam
shot
Self
Cleaning Spray
il_, _,, Synthetic
fibers/silk
U
!
I
:
i
aa
i
aaa
MAY
xxx{
Wool ./ x^/ {
Cotton
Linen {{{ {
Note:
The s1mbol means: This article cannot be ironed!
Note: "r/"stands for being able to use.
"x"stands for being NOT being able to use.
ENVIRONMENTALLY FRIENDLY DISPOSAL
You con help protect the environment!
Please remember to respect^the local regulations:
hand in the non-working electrical appliances to
an appropriate waste dlsposal Center.
