Livart LV-401 User manual

LI\Z\:If
Super Combi Pan
USER,S MANUAL
<6 Lt\z\:rr
Read this manual carefully before using the
appliance and save it for future reference.
O Table of Contents
lmportant Safety lnstructions --------- ---' 2
lmportant Safety lnstructions - - - - - - - - - - - - - 3
Maintenances / FAQ ------------------'6
Descriptions '----'"--7

-Read all instrrctior,rs be*ore using this aBpliance-
I Check that the appliance and all attachments have not been damaged in
transit before first-time use.
I Do not operate any appliance with a damaged cord or plug or after the
appliance malfunctions or has been damaged in any manner. Return the
appliance to the nearest authorized service facility for examination,
repair or adjustment.
I To disconnect, turn control dial 'OFF', then remove the plug from wall
outlet. After the appliance becomes cool completely, then start cleaning
it. Unplug from outlet when not in use.
I The use of accessory attachments not recommended by the appliance
manu[acturer may cause injuries.
I Do not use outdoors.
I Do not immerse Power cord, plug and main body in water or other liquid
to protect against electric shock.
I If the appliance has been out of order, contact the nearest authorized
service facility. A qualified service personnel must do the repair
I This appliance should be operated from the type of power indicated on
the rating label(attached on the appliance). To prevent an electrical
overload condition, remove all other plugs from the outlet.
I Do not operate the appliance in the presence of explosive or flammable
fumes, near clothing, curtains and other flammable materials.
o

. lmportant Safety lnsfructions ,
I The temperature of accessible surface may be high when the appliance
is operating and the surface will be still very hot after turn-off. Do not
touch hot surface. Use handles and knobs. And wait enough to 1et the
appliance cool before cleaning.
I Do not use this appliance on an unstabie table, any slippery place, and
on a tablecloth unprotected against heat.
I Close supervision is necessary when the appliance is used near children.
\\ihen operating or storing the appliance, keep out of reach of children.
I Do not 1et the cord hang over edge of table or counter, or touch hot
surface.
I Extreme caution must be used when moving the appliance Let it cool
completely and use handles.
I Do not use this appliance for other than intended use.
I The appliance is not intended for use by young children or infirm
persons without supervision.
I Young children should be supervised to ensure that they do not play
with the appliance.
I WARNING : Charcoal or similar combustible fuels must not be used with
this appliance.
Save this instruction book for future reference.
- Household use only -
o

I Key Features r
1. Removing fat and oil
Sloped and ridged grill surface designed for fat-channel-away and
smokeless cooking.
2. Detachable Plates
Grill plate, fry pan and grease reservoir can be separated and
convenient to wash after use.
And these Grill and Griddle units are dishwasher-safe.
3. Non-stick coated surface of aluminum die-cast plate
Aluminum die-cast plates for high heat-efficiency and Non-stick
coating.
4. Convenient grease reservoir
Grease reservoir, protected by two-fold heat blocking boards above,
lets you enjoy grilling without pouring water into it.
5. Slim gridiron on the grill
Well-done pork or beef can be put on the gridiron for keeping-warm i
and fats are removed again for healthier results. I
I
6. Electric wire holder
Designed specially for easy keeping of electric wire on the bottom of
the body.
@

How to use
Plug into a standard electrical outlet.Before inserting the plug f..,-,)
into the power socket, it must be checked that the voltage -+ I " I
shown on the plate (located on the bottom of the appliance) --"2^lt I
corresponds to the main vottage at the power socket. $ffi--
Check if a Grease Reservoir is inserted properly in the body before
cooking. and put the fry pan (or grill plate ) on the main body
according to your cooking choice.
* There is no problem on both directions of the fry pan
when it is put on the body. But please make sure to put
the direction mark of -> which js a carved stamp on the grjll
the direction of Temperature Control panel of the body.
Set the lever to OFF position of Temperature Control panel,
check the using voltage again and plug into a standard
electrical outlet properry
Set Temperature Control Lever to a proper cookjng posrtion
according to your cooking choice, and you can see that
the lamp is on to heat. ( Fix the Gridiron into the Gridiron,s
fixing hole completely when you use Grill plate. )
You need pre-heating for several minutes. And during cooking,
the lamp is automatically turning on and off to maintain proper
temperature and to prevent overheating. And lt is recommended
to coat some Oil on the cooking pan in order to protect coating
plate's edge to
surface for long-life use and not to stick foods on coating surface of pin.
Please cover the glass cover when you cook boiled dishes.
When finished cooking, turn temperature control lever to OFF
and then unplug.
After washing cooking pan, dry it completely. And roll wire to
Electric Wire holder.
*Note that it is limjted the capacity of Grease Reservoir.
(Oil capacity for a time ; Pork Roast / around 2.4 - 3.0Kgs)
o

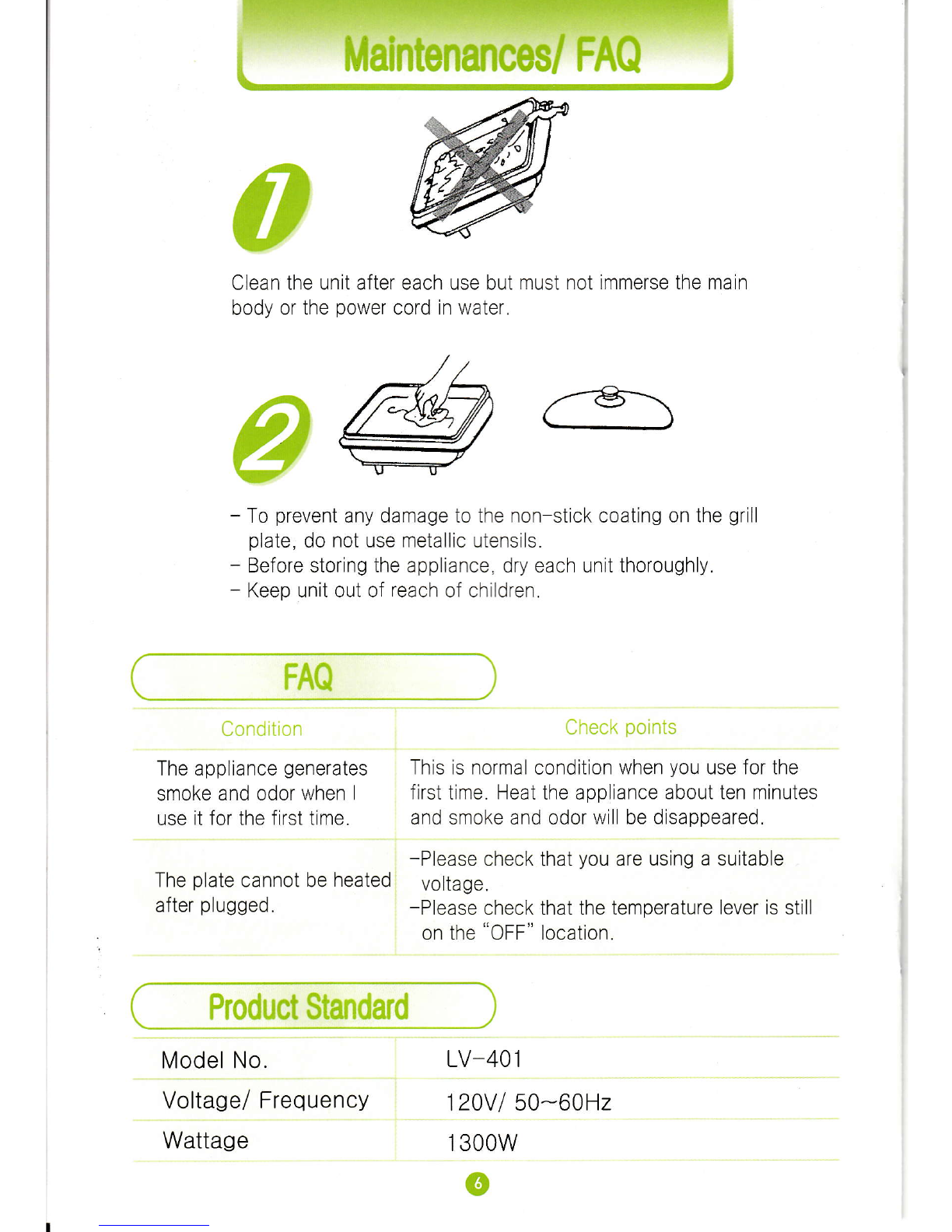

Clean the unit after each use but must not immerse the main
body or the power cord in water.
- To prevent any damage to the non-stick coating on the grill
plate, do not use metallic utensils.
- Before storing the appliance, dry each unit thoroughly.
- Keep unit out of reach of children.
FAQ
Condition
The appliance generates
smoke and odor when I
use it for the first time.
The plate cannot be heated
after plugged.
Check points
This is normal condrtron when you use for the
first time. Heat the appliance about ten minutes
and smoke and odor will be disappeared.
-Please check that you are using a suitable
voltage.
-Please check that the temperature lever is still
on fne ull- locatron.
Product Standard
Model No.
Voltage/ Frequency
Wattage
LV-401
120V1 50-60H2
I 300w
o

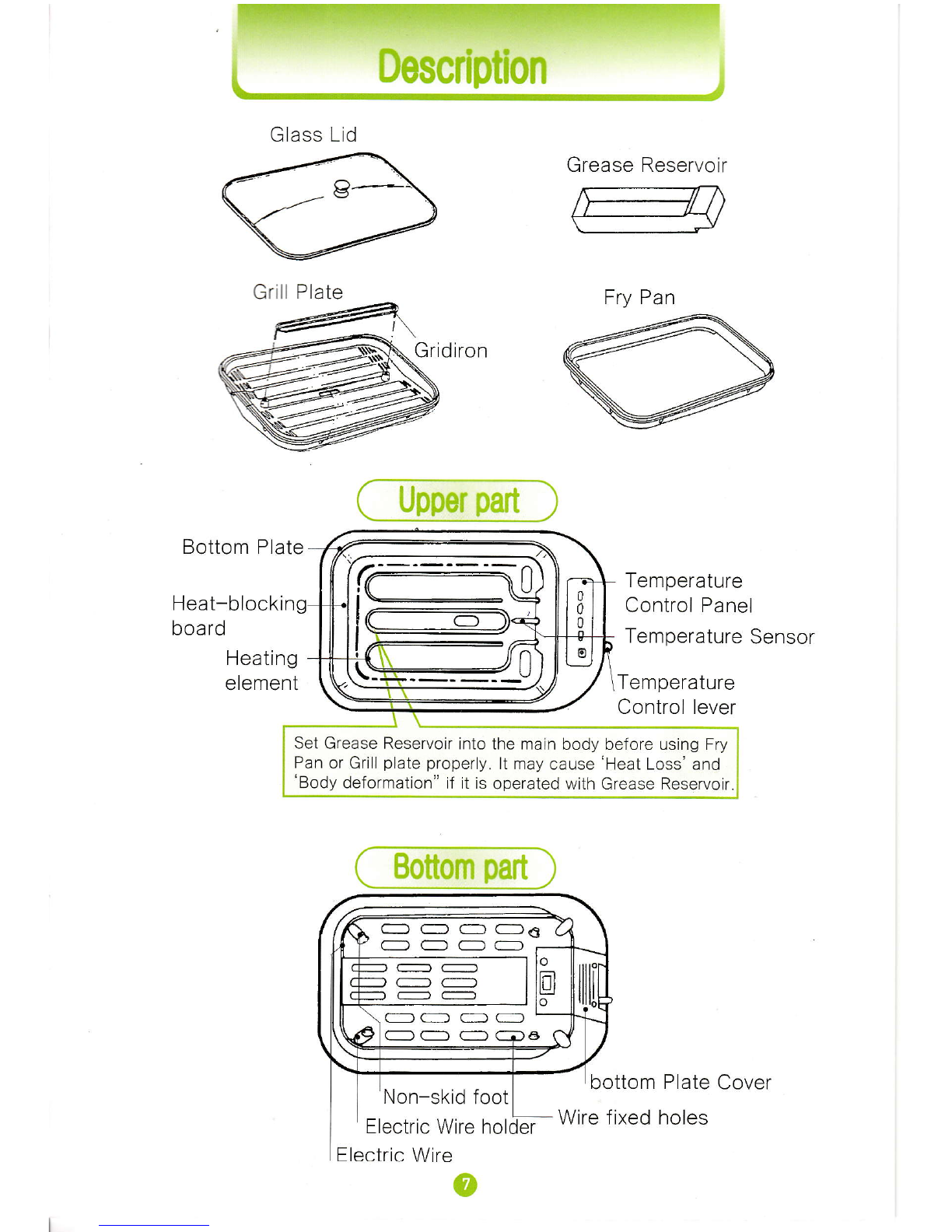

Glass Lid
LDescription
Grease Reservoir
Bottom Plate
Heat-blocki
boardHeating
element
Upper part
Bottom part
Temperature
Control Panel
Temperature Sensor
Temperature
Control lever
boitom Plate Cover
Non-skid foot
Electric Wire holder
Grill Plate Fry Pan
fffi0
Set Grease Reservoir into the main body before using Fry
Pan or Grill plate properly. lt may cause 'Heat Loss' and
'Body deformation" if it is operated with Grease Reservoir.
cf-c:lo
o(=o(-
(-C]= GO
(- c:f (- G6
Electric Wire
Wire fixed holes

I Warranty t
We manufactured this appliance with all our heart and warrant
each of our product will be free from defects in material and
workmanship for a period of one year from the date of purchase,
if the appliance is properly used and installed
Extent of limited warranty
- We are not responsible for
1) Damage due to accident, misuse, neglect, lack of reasonable
care or usage not in accordance with instruction manual.
2) Damage from unauthorized service of any type.
Warranty sevice
- To obtain warranty service, you may contact the retail location
where it was purchased.
LG-LIVART,INC.
21 10 S, Tubeway Ave, Commerce, CA 90040
T el : 877 -260- 4949, Fax [phone]
www.lglivart.com
