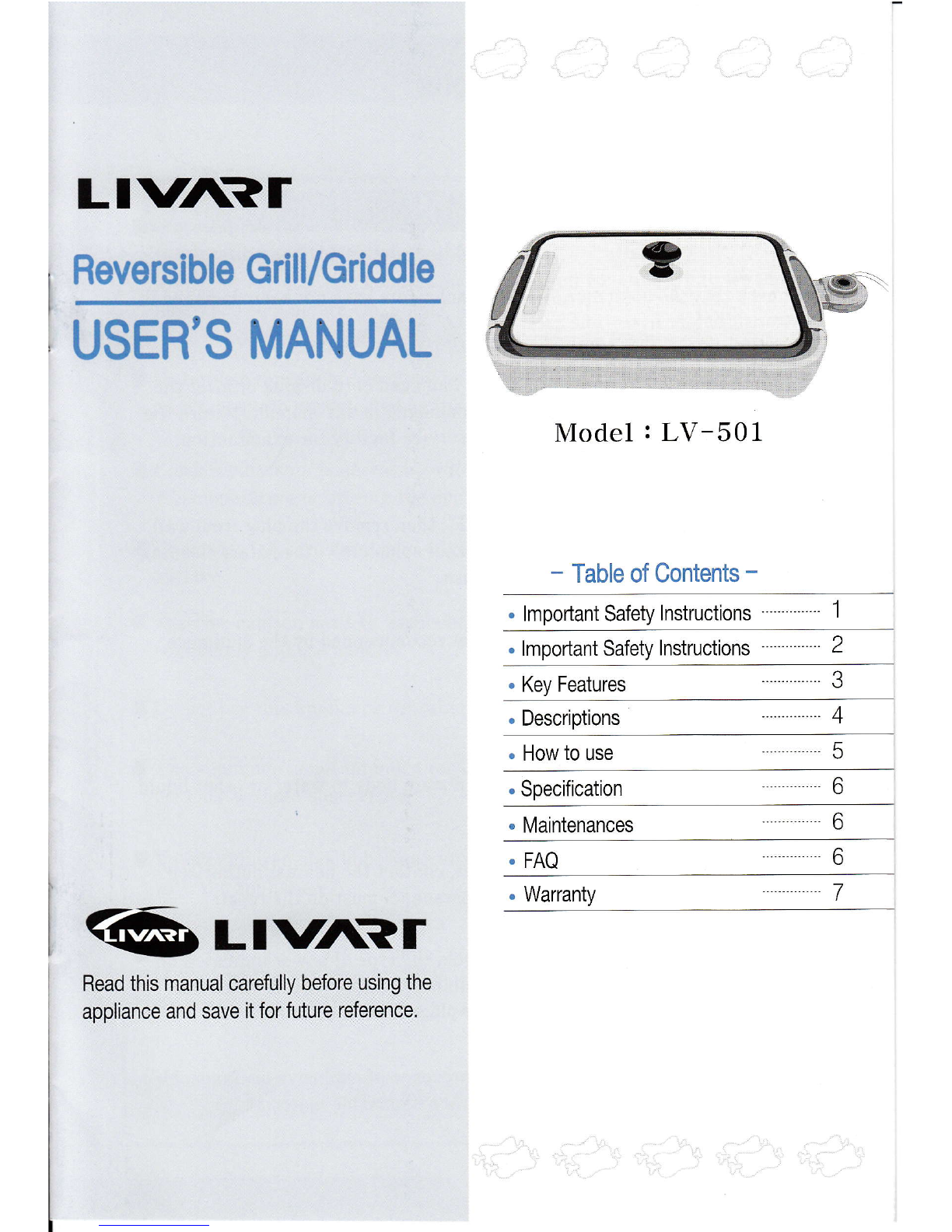

Livart LV-501 User manual

LI\ZR[
Reversible Grill/Griddle
USER,S MANUAL
<6Ll\rzRr
Read this manual carefully before using the
appliance and save it for future reference.
Model: LV-501
- Table of Contents -
. lmportant Safety lnstructions 1
. lmportant Safety lnstructions
. Key Features
. Descriptions
. Howto use
. Specification
. Maintenances
. FAQ
. Warranty 7

-

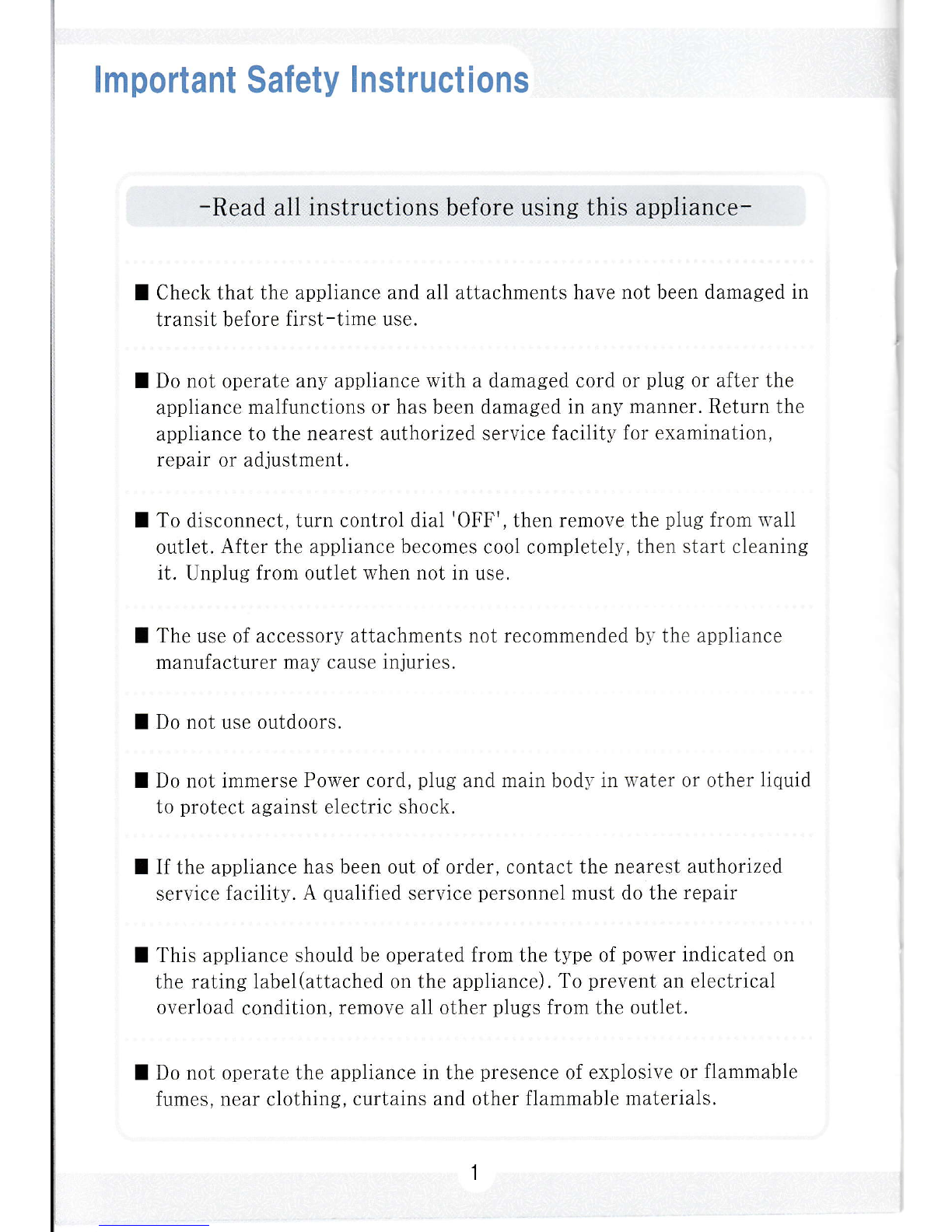

lmportant Safety Instructions
-Read all instructions before using this appliance-
I Check that the appliance and all attachments have not been damaged in
transit before first-time use.
I Do not operate any appliance with a damaged cord or plug or after the
appliance malfunctions or has been damaged in an), manner. Return the
appliance to the nearest authorized service facility for examination,
repair or adjustment.
I To disconnect, turn control dial 'OFF', then remove the plug from rvall
outlet. After the appliance becomes cool completely, 11,.n start cleaning
it. Unplug from outlet when not in use.
I The use of accessory attachments not recommended b:- the appliance
manulacturer may cause injuries.
I Do not use outdoors.
I Do not immerse Power cord, plug and main bod). in lvater or other liquid
to protect against electric shock.
I If the appliance has been out of order, contact the nearest authorized
service facility. A qualified service personnel must do the repair
I This appliance should be operated from the type of power indicated on
the rating label(attached on the appliance). To prevent an electrical
overload condition, remove all other plugs from the outlet.
I Do not operate the appliance in the presence of explosive or flammable
fumes, near clothing, curtains and other flammable materials.

I The temperature of accessible surface may be high when the appliance
is operating and the surface will be still very hot after turn-off. Do not
touch hot surface. Use handles and knobs. And wait enough to let the
appliance cool before cleaning.
I Do not use this appliance on an unstable table, any slippery place, and
on a tableclolh unprotected against heat.
I Close supervision is necessary when the appliance is used near children.
When operating or storing the appliance, keep out of reach of children.
I Do not let the cord hang over edge of tabie or counter, or touch hot
surface.
I Extreme caution must be used when moving the appliance Let it cool
completely and use handles.
I Do not use this appliance for other than intended use.
I The appliance is not intended for use by young chrldren or infirm
persons without supervision.
I Young children should be supervised to ensure that they do not play
with the appliance.
I WARNING : Charcoal or similar combustible fuels must not be used with
this appliance.
Save this instruction book for future reference.
- Household use only -

Key Features
1) It is the reversible Grill & Griddle pan developed with
Korea high technology. ( Korea Patent No. 0-0617937 ) .
2) It has two different cookins pans on both sides such as {
"Grill" and "Griddle" . So you can enjoy Grill and Griddle
cooking with one according to your cooking choice.
3) It has the built-in heater inside of the reversible pan, so,
it can heat the reversible pan without losing heat-power.
It can save electric power economically by using less
electric power.
4) It is excellent in keeping 'Conservation of energy' and
'Thermal efficiency' because it is made of Thickness
Die-Casting Pan.
5) It coats 'Non-stick coating' on the reversible pan, so
it is strong intensity and there is no getting scorched and
stick to its pan during cooking.
6) It is so easy to wash and use the grease reservoir clearly
because it is designed as 'drawer type'
7) It is so safe and easy to separate pan which has heat-
resistant holders from the main body and it is designed to ,
fall oil into the grease Reservoir easily by having the big
tilt angle when the grill pan is used.

Descriptions
* Lid hotder
Glass Lid
Connection Part for
Temperature Controller
Griddle
Temperature Controller
Grease Reservoir Power plug
Electric wire
protection plate
against heat
lFront sidel lBack sidel
lMain bodyl

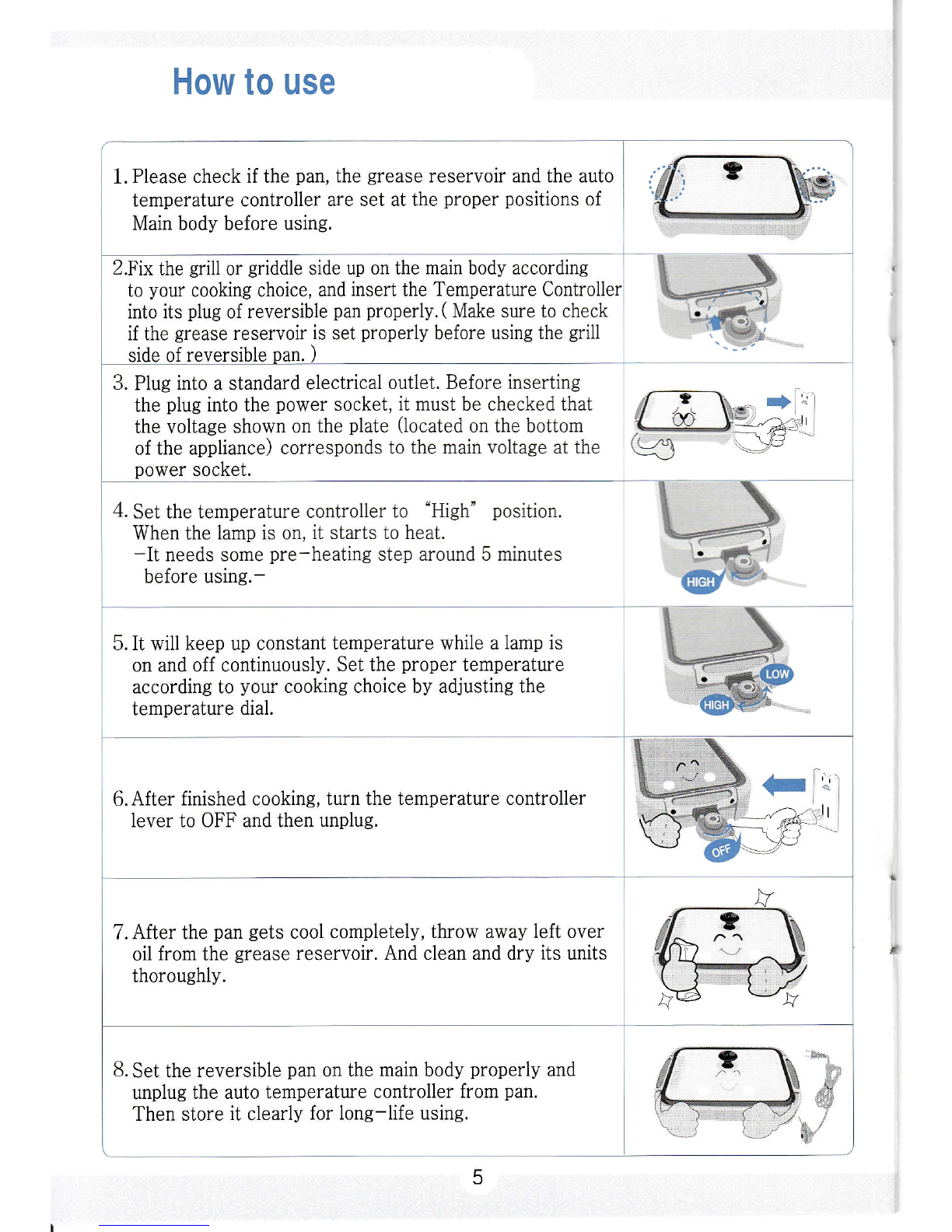

How to use
1. Please check if the pan, the grease reservoir and the auto
temperature controller are set at the proper positions of i
Main body before using.
2.Fix the grill or griddle side up on the main body according
to your cooking choice, and insert the Temperature Controller
into its plug of reversible pan properly.( Make sure to check
if the grease reservoir is set properly before using the grill
3. Plug into a standard electrical outlet. Before inserting
the plug into the power socket, it must be checked that
the voltage shown on the plate (located on the bottom
of the appliance) corresponds to the main voltage at the
power socket.
4. Set the temperature controller to "High'
When the lamp is on, it starts to heat.
*It needs some pre-heating step around 5
before using.-
position.
minutes :'\\
61
l\W,
5. It will keep up constant temperature while a lamp is
on and off continuously. Set the proper temperature
according to your cooking choice by adjusting the
temperature dial.
6.After finished cooking, turn the temperature controller
lever to OFF and then unplug. €li:ll l
au:au:iiau:iiau:i]
;:.;:b,,:..:r:,
,:,;:;.:,?.:,,
7. After the pan gets cool completely, throw away
oil from the grease reservoir. And clean and dry
thoroushly.
B. Set the reversible pan on the main body properly
unplug the auto temperature controller from pan.
Then store it cleariy for long-life using.
left over
its units
X:'
ga*
w'
and

Specification / Maintenances & FAQ
Specif ication
Maintenances
1. Clean the units after each use but do not
body and the power cord in water.
2. To prevent damage to the coating on the
Griddle pan, do not use metallic utensils.
soft cloth for cleaning.
immerse the main
Reversible Grill &
Use a sponge or
3. Before storing the appliance, dry each unit thoroughly.
4. Keep out of reach of children.
FAQ
Condition Check points
The appliance generates
smoke and odor when I
use it for the first time.
This is normal condition when you use for the
first time. Heat the appliance about ten minutes
and smoke and odor willbe disappeared.
The plate cannot be
heated after plugged.
- Please check that you are using a suitable
voltage.
- Please check that the temperature lever is
sti11 on the "0FF' Iocation.
oltage/Frequenc L20Yl50-60H2 Cooking Space 14.5X9.3X1.8 inches
Wattage 1100w Size 19X11X5,5 inches
Power length l.2M Weieht 9lbs

Warranty
We manufactured this appliance with all our heart and warrant
each of our product will be free from defects in material and
workmanship for a period of one year from the date of purchase,
if the appliance is properly used and installed
Extent of limited warranty
- We are not responsible for
1) Damage due to accident, misuse, neglect, lack of reasonable
care or usage not in accordance with instruction manual.
2) Damage from unauthorized service of any type.
Warranty sevice
- To obtain warranty service, you may contact the retail location
where it was purchased.
LG-LIVART,INC.
21 10 S, Tubeway Ave, Commerce, CA 90040
f el : 877 - 260 - 4949, Fax [phone]
www.lglivart.com
