Lloydspharmacy LTD1 User manual

User Manual
Model LTD1
Replacement Gel Pads
Founded in 1998 Action on Pain is a national charity providing support and advice for those affected by chronic
pain.We produce a range of informative booklets as well as operating PainLine - our telephone helpline providing
practical and confidential advice. In addition Action on Pain operates a Mobile Information Unit which visits
locations across the U.K. One of our major roles is to lobby politicians in order to raise the quality and availability
of pain management services within U.K. healthcare.Above allAction on Pain has developed a good reputation for
the quality of the services it provides particularly for the emphasis we place on promoting the positive side of
living with chronic pain.
Why not visit our website at www.action-on-pain.co.uk or call PainLine on 0845 6031593 between
10am-4pm Monday to Friday.
Available accessories
Dual Channel TENS
Digital Pain Reliever
Approved by
RCN 1088789
Approved by
RCN 1088789

1
2
3
4
5 - 6
7 - 9
10 - 11
12
13
14
15
16
17
Introduction
Parts
Features
General Warnings and Safety
Using your Dual Channel TENS Digital Pain Reliever
Programme Selection
Gel Pad Positioning
Battery Information
Specification
Troubleshooting
Maintenance and Cautions
Warranty
Contents

1
2
3
4
5 - 6
7 - 9
10 - 11
12
13
14
15
16
17
Introduction
Parts
Features
General Warnings and Safety
Using your Dual Channel TENS Digital Pain Reliever
Programme Selection
Gel Pad Positioning
Battery Information
Specification
Troubleshooting
Maintenance and Cautions
Warranty
Contents
2
Thank you for purchasing the Lloydspharmacy Dual Channel TENS Digital Pain Reliever (Model LTD1).
The Dual Channel TENS Digital Pain Reliever is effective in relieving pain.
TENS stands for Transcutaneous Electrical Nerve Stimulation.
TENS is recognised as a safe and highly effective method of relieving pain. TENS is now regularly
recommended by doctors, physiotherapists and pharmacists throughout the UK. Before using,
please read all the instructions in this user manual carefully and keep it safe for future reference.
?djheZkYj_ed
M^oYedi_Z[hZ_]_jWbfW_dh[b_[\5
Pain is a warning signal; we need these signals to tell us that something may be wrong with our
body. Without it, we may not know that parts of our body might be damaged, thereby damaging
them further. However, once we have identified damage, pain serves little purpose. In the case of
chronic, regular pain it can significantly interfere with daily activities and the quality of life.
>emZe[iJ;DImeha5
TENS works by passing harmless electrical signals into the body from its pads. This relieves pain
in two ways:
Firstly, it blocks the body’s pain signals which are normally transmitted from the area of
damage through the nerve fibres to the brain - TENS interrupts these pain signals.
Secondly, TENS stimulates the body’s production of endorphins – its own natural painkillers.

3
7Xekj:kWb9^Wdd[bJ;DI
:_]_jWbFW_dH[b_[l[h
FWhji
C7?DKD?JF7HJI
Main Unit Gel pads x 4Cables x 2
OUTPUT PLUG SOCKETS
(CHANNELS A & B)
LCD SCREEN
REMAINING MASSAGE
TIME DISPLAY
TIME DISPLAY DOT
(FLASHES ONCE PER SECOND)
MODE DISPLAY
OUTPUT INTENSITY
DISPLAY
UP BUTTON
CHANNEL B
SELECTION BUTTON
OUTPUT
INTENSITY
BUTTON
MODE
BUTTON
CHANNEL A
SELECTION
BUTTON
DOWN
BUTTON
ON/OFF
BUTTON

3
7Xekj:kWb9^Wdd[bJ;DI
:_]_jWbFW_dH[b_[l[h
FWhji
C7?DKD?JF7HJI
Main Unit Gel pads x 4Cables x 2
OUTPUT PLUG SOCKETS
(CHANNELS A & B)
LCD SCREEN
REMAINING MASSAGE
TIME DISPLAY
TIME DISPLAY DOT
(FLASHES ONCE PER SECOND)
MODE DISPLAY
OUTPUT INTENSITY
DISPLAY
UP BUTTON
CHANNEL B
SELECTION BUTTON
OUTPUT
INTENSITY
BUTTON
MODE
BUTTON
CHANNEL A
SELECTION
BUTTON
DOWN
BUTTON
ON/OFF
BUTTON
4
2 output channels
Ea ch outpu t channel can be adjusted independently
 8 mode settings to provide different pain relief and massage effects
8 output intensities to suit different parts of the body and pain
Touch control buttons and large LCD display making the unit user friendly
4 gel pads
Automatic therapy time setting for 15 minutes
A safe and effective method of relieving pain
Simple to use
Can be used alongside drug therapy
Lightweight and portable
Can also be used as a massager to help relax you
<[Wjkh[i
M^WjYedZ_j_ediYWdJ;DI^[bfh[b_[l[5
TENS provides pain relief for a number of different pain conditions, including:
Back Pain
Sciatica
Sports strains and sprains
Almost all muscle related injuries
Use the Dual Channel TENS Digital Pain Reliever for at least 15 minutes a day, however, you may need
to wear it for longer to initially gain pain relief. If you wear the unit for longer periods then check your
skin where the gel pads have been placed to ensure your skin does not become sore. Please ask your
local Lloydspharmacist for advice about any specific condition.
8[\eh[ki_d]j^[:kWb9^Wdd[bJ;DI:_]_jWbFW_dH[b_[l[h"fb[Wi[h[WZj^[_dijhkYj_edi_dYbkZ[Z_dj^_i
ki[hcWdkWbYWh[\kbbo$

5
Before you start:
Please carefully read and understand the following warnings and cautions to ensure the safe and correct
use of this device and to prevent injury.
• Make sure the batteries are installed correctly.
• Connect the cable to the gel pads and then connect to the unit (see page 7 for more details).
• Attach the gel pads around the area of pain. Please see section ‘Gel Pad Positioning’ for details of
where to place the pads (page 11).
• Do not use the gel pads if they are scratched or damaged in any way.
The Dual Channel TENS Digital Pain Reliever is a medical device that has been subject to stringent testing.It is
safe to use for most people, with the following exceptions:
• People with pacemakers, pulse regulators or any other implanted medical devices.
• People with heart rhythm problems.
• Cancer patients, people with diabetes or epilepsy should seek advice from their consultant or doctor before
use.
• The use of the device must be supervised by an able adult of sound mind.
• People with inflammation, acute diseases, or infectious skin wounds.
• NOT SUITABLE FOR USE DURING PREGNANCY OR LABOUR. Please ask your Lloydspharmacist about other
drug free pain relief during pregnancy.
• Not suitable for children under 16 years of age.
• Patients must consult their doctor before using this device if receiving any physical therapy or suffering from
any of the following:
º Acute diseases
º Heart diseases or heart rhythm problems
º A fever
º Abnormal blood pressure
º Skin conditions including broken or damaged skin and people with loss of feeling in areas of the body
General Warnings and Safety

5
Before you start:
Please carefully read and understand the following warnings and cautions to ensure the safe and correct
use of this device and to prevent injury.
• Make sure the batteries are installed correctly.
• Connect the cable to the gel pads and then connect to the unit (see page 7 for more details).
• Attach the gel pads around the area of pain. Please see section ‘Gel Pad Positioning’ for details of
where to place the pads (page 11).
• Do not use the gel pads if they are scratched or damaged in any way.
The Dual Channel TENS Digital Pain Reliever is a medical device that has been subject to stringent testing.It is
safe to use for most people, with the following exceptions:
• People with pacemakers, pulse regulators or any other implanted medical devices.
• People with heart rhythm problems.
• Cancer patients, people with diabetes or epilepsy should seek advice from their consultant or doctor before
use.
• The use of the device must be supervised by an able adult of sound mind.
• People with inflammation, acute diseases, or infectious skin wounds.
• NOT SUITABLE FOR USE DURING PREGNANCY OR LABOUR. Please ask your Lloydspharmacist about other
drug free pain relief during pregnancy.
• Not suitable for children under 16 years of age.
• Patients must consult their doctor before using this device if receiving any physical therapy or suffering from
any of the following:
º Acute diseases
º Heart diseases or heart rhythm problems
º A fever
º Abnormal blood pressure
º Skin conditions including broken or damaged skin and people with loss of feeling in areas of the body
General Warnings and Safety
6
• Do not use the device with an electrocardiograph meter (ECG) or any other medical apparatus.
• Do not use the device with any topically applied creams or ointments etc.
• Do not place gel pads on the head,face,throat,back of neck,heart, chest area, eyes, oral cavity, sexual organs
or onto the spine or bones.
• Do not use on scarred areas following surgery for at least 10 months after the operation.
• Do not use on or around an area of the body with skin disease, damage or inflammation.
• Do not use on a wet body.
• Do not use on stomach muscles within 90 minutes of eating.
• Pregnant women, people with leprosy, people with chronic alcoholism should not use this product.
• For treatment of pain control, muscle injuries or rehabilitation,this device should be used under close
supervision and direction of your doctor or professional therapist.
• The unit must be turned off before moving the gels pads to different parts of the body.
• Keep the unit out of the reach of children.
• Do not use the device in the bathroom or in any other area of high humidity as this may cause an
uncomfortable intense stimulation.
• Do not use the device whilst driving or operating any other mechanical equipment.
• Do not use the device whilst sleeping.
• Avoid contact of the gel pads with anything made of metal, such as belts or necklaces.
• The device has no AP or APG protection.
AP: Flammable anaesthetic proof mixtures with air.
APG: Flammable anaesthetic proof mixtures with oxygen or nitrous oxide.
• Do not insert the gel pad cables into any other socket other than the socket of the device as instructed, as
this may lead to an electric shock.
• Do not disassemble, repair or modify the device in any way as this may lead to malfunctioning or an incident.
• An attempted repair by unauthorised persons invalidates the warranty.
Please stop using the Dual ChannelTENS Digital Pain Reliever immediately if you notice any reddening of your skin,
if you feel any discomfort or feel unwell. Seek medical advice.Improper use of the Dual ChannelTENS Digital Pain
Reliever can lead to harm and damage. For safe use of the product, please note the following safety instructions:
General Warnings and Safety

7
Using your Dual Channel TENS Digital Pain Reliever
How to connect the gel pads to the output cable:
Please note:
Each gel pad is pre-fixed with a cord-socket and protected by a transparent film. Conn ect the output cable
via the cord-socket. Remove the layer of film and place that side of gel pad to the skin. Press to ensure adhesion.
Preparation before using the unit
1. This unit requires 4 x AAA batteries (not included).
2. To insert/replace batteries, remove the battery compartment cover at the back of the unit and
insert the batteries, observing correct polarity. Replace the battery compartment cover securely.
3. Attach the gel pads to the output cables and insert into the respective sockets, channel A and
channel B.
4. Attach the gel pads to the area of pain. Please read section ‘Ge l Pad Positioning’ carefully to understand
where to place the pads.
• Never stick the gel pads to each other.
• K eep the gel pads clean and do not expose to heat or direct sunlight.
• If the gel pads do not attach or are dirty, wipe with a damp, lint free cloth or replace with new ones.
Do not clean the pad or adhesive gels with any chemical. Replacement pads are available from your
local Lloydspharmacy.
• Place the pads on intact skin only. Do not place on cuts or damaged skin.
• The unit should only be used on one person at a time.
• Replace the transparent film on the gel pads when not in use.
IMPORTANT NOTE:When removing the gel pads from the skin, peel off from one corner of the gel pad.
DO NOT pull the cord-socket or cable to remove.

7
Using your Dual Channel TENS Digital Pain Reliever
How to connect the gel pads to the output cable:
Please note:
Each gel pad is pre-fixed with a cord-socket and protected by a transparent film. Conn ect the output cable
via the cord-socket. Remove the layer of film and place that side of gel pad to the skin. Press to ensure adhesion.
Preparation before using the unit
1. This unit requires 4 x AAA batteries (not included).
2. To insert/replace batteries, remove the battery compartment cover at the back of the unit and
insert the batteries, observing correct polarity. Replace the battery compartment cover securely.
3. Attach the gel pads to the output cables and insert into the respective sockets, channel A and
channel B.
4. Attach the gel pads to the area of pain. Please read section ‘Ge l Pad Positioning’ carefully to understand
where to place the pads.
• Never stick the gel pads to each other.
• K eep the gel pads clean and do not expose to heat or direct sunlight.
• If the gel pads do not attach or are dirty, wipe with a damp, lint free cloth or replace with new ones.
Do not clean the pad or adhesive gels with any chemical. Replacement pads are available from your
local Lloydspharmacy.
• Place the pads on intact skin only. Do not place on cuts or damaged skin.
• The unit should only be used on one person at a time.
• Replace the transparent film on the gel pads when not in use.
IMPORTANT NOTE:When removing the gel pads from the skin, peel off from one corner of the gel pad.
DO NOT pull the cord-socket or cable to remove.
8

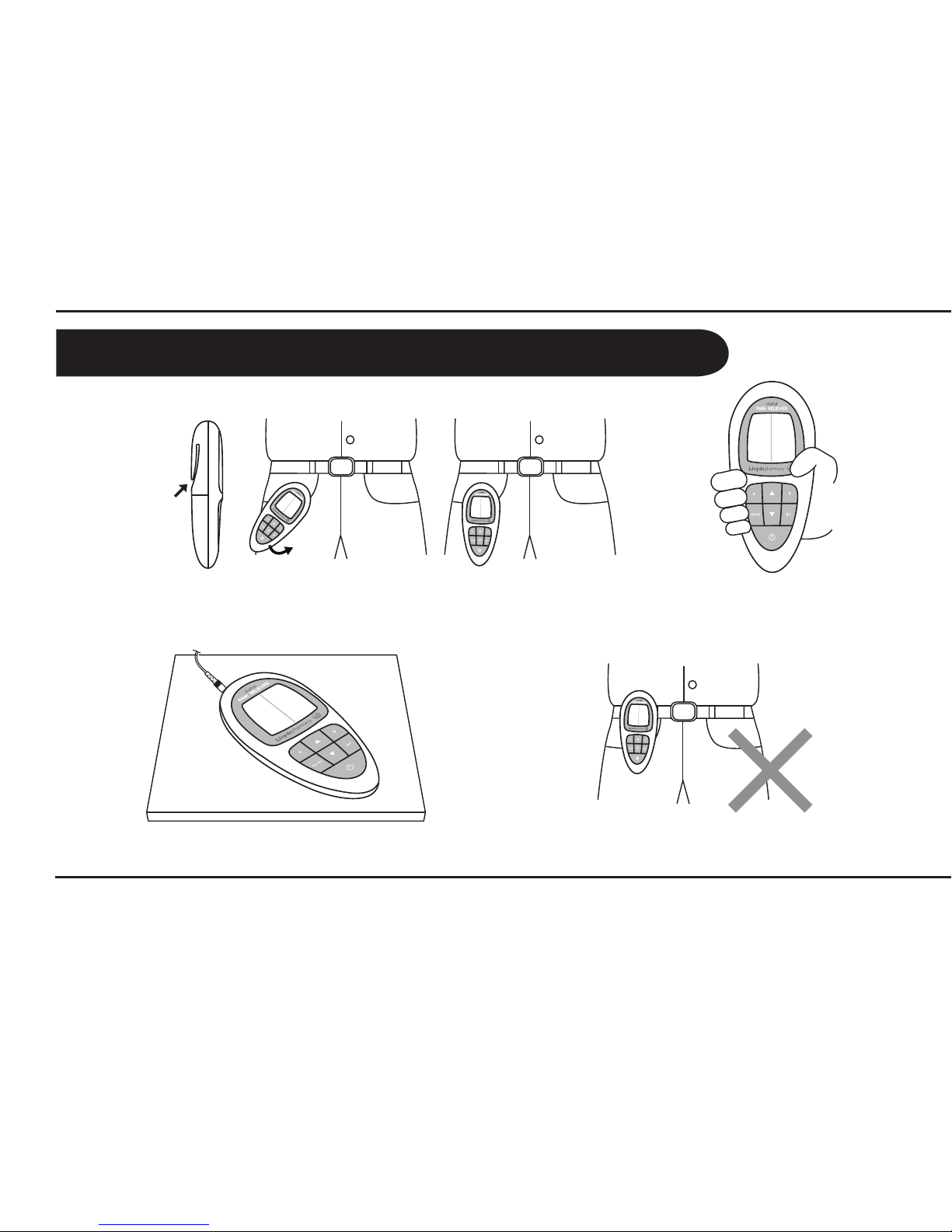

On table
On hand
Clip on pocket
Not designed for belt
Clip here
Using your Dual Channel TENS Digital Pain Reliever

9
Please ensure the gel pads are correctly attached and placed on the desired area before switching the unit on.
1: Press the “ON/OFF” button to switch the unit on.
2: Press the “A” button to select channel A.“CHANNEL A” will be displayed on the left hand side of the
LCD.When “CHANNEL A” is displayed, the mode and intensity settings on this channel can be chosen.
3: Press the “B” button to select channel B.“CHANNEL B” will be displayed on the right hand side of the
LCD. When “CHANNEL B” is displayed, the mode and intensity settings on this channel can be chosen.
Please note, channel A and B have to be set independently.They cannot be set up at the same time. If you want
to use both channels together, set channel A mode and intensity, this will start immediately.Then set channel B
mode and intensity (channel A cycle will finish before channel B).
4: To choose a mode setting, press the “mode” button. The LCD will display on either the left hand side
or right hand side of the LCD, depending on whether channel A or channel B has been chosen. The “ ”
or “ ” buttons can be used to choose the desired mode setting.
5: To choose an intensity setting, press the “int” button. The LCD will display on either the left hand side
or right hand side of the LCD, depending on whether Channel A or channel B has been chosen. The “ ”
or “ ” buttons can be used to choose the desired intensity setting.
6: Press the “ ” button to move up by one level when choosing your mode or intensity settings on the
selected channel. (There are 8 modes and 8 levels of intensities to choose from- 1 being the lowest
intensity, 8 being the highest intensity).
7:Press the “ ” button to move down by one level when choosing your mode or intensity settings on
the selected channel.
Using your Dual Channel TENS Digital Pain Reliever

9
Please ensure the gel pads are correctly attached and placed on the desired area before switching the unit on.
1: Press the “ON/OFF” button to switch the unit on.
2: Press the “A” button to select channel A.“CHANNEL A” will be displayed on the left hand side of the
LCD.When “CHANNEL A” is displayed, the mode and intensity settings on this channel can be chosen.
3: Press the “B” button to select channel B.“CHANNEL B” will be displayed on the right hand side of the
LCD. When “CHANNEL B” is displayed, the mode and intensity settings on this channel can be chosen.
Please note, channel A and B have to be set independently.They cannot be set up at the same time. If you want
to use both channels together, set channel A mode and intensity, this will start immediately.Then set channel B
mode and intensity (channel A cycle will finish before channel B).
4: To choose a mode setting, press the “mode” button. The LCD will display on either the left hand side
or right hand side of the LCD, depending on whether channel A or channel B has been chosen. The “ ”
or “ ” buttons can be used to choose the desired mode setting.
5: To choose an intensity setting, press the “int” button. The LCD will display on either the left hand side
or right hand side of the LCD, depending on whether Channel A or channel B has been chosen. The “ ”
or “ ” buttons can be used to choose the desired intensity setting.
6: Press the “ ” button to move up by one level when choosing your mode or intensity settings on the
selected channel. (There are 8 modes and 8 levels of intensities to choose from- 1 being the lowest
intensity, 8 being the highest intensity).
7:Press the “ ” button to move down by one level when choosing your mode or intensity settings on
the selected channel.
Using your Dual Channel TENS Digital Pain Reliever
10
Programme Selection
FOR:
PROGRAM
SELECTION
DURATION
(mins)
MODE
FUNCTION
PROGRAM
15
TAPPING
(SLOW)
1
PAIN RELIEF
15
TAPPING
(FAST)
2
PAIN RELIEF
15
VIBRATING
(SLOW)
3
PAIN RELIEF/MASSAGE
15
VIBRATING
(MEDIUM)
4
PAIN RELIEF/MASSAGE
15
VIBRATING
(FAST)
5
PAIN RELIEF/MASSAGE
15
KNEADING
(SLOW)
6
PAIN RELIEF/MASSAGE
15
KNEADING
(FAST 1)
7
PAIN RELIEF/MASSAGE
158
KNEADING
(FAST 2) PAIN RELIEF/MASSAGE
One of the following symbols will be displayed in the LCD, depending on which mode setting is chosen.

11
Programme Selection
• The output intensity will be displayed on the LCD as a number from 1 – 8.(1 is the lowest and 8 is the
highest).
• The unit has a memory function - if a particular mode setting is chosen then it will remain on that mode
even when the unit is switched off and switched back on. (Note: the time and intensity will be set to the
default 15 and 0 respectively).
• When the intensity mode is chosen (1-8) the time setting function starts to work. It can be seen as the
flashing dot on the LCD display and flashes once per second.
• When the device is on and the mode setting or intensity is changed, it will not affect the timer which will
continue to count down the remaining time. When the mode setting is changed the intensity will default
to 0. The device will turn off automatically when the set time has elapsed (15 minutes).
• When the treatment cycle has finished remove the gel pads carefully from the skin.
Important note: When removing the gel pads from the skin, peel off from one corner of the pad. DO NOT
pull the cord socket or cable to remove as this may lead to injuries or malfunctioning.
What can I treat?
The Dual Channel TENS Digital Pain Reliever can treat many different types of pain. Following are diagrams of
where to place the gel pads for the most common forms of pain. For other areas of pain, place the electrodes
on either side of the area. Never place the electrodes on the head, face, throat, back of the neck, chest area,
eyes, oral cavity, sexual organs or onto the spine or bones.
Caution:
• Affix the gel pads so that they do not overlap one another and are approximately 4-6 inches apart.
• Be sure not to move the gel pads to another part of your body without turning off the power first.

11
Programme Selection
• The output intensity will be displayed on the LCD as a number from 1 – 8.(1 is the lowest and 8 is the
highest).
• The unit has a memory function - if a particular mode setting is chosen then it will remain on that mode
even when the unit is switched off and switched back on. (Note: the time and intensity will be set to the
default 15 and 0 respectively).
• When the intensity mode is chosen (1-8) the time setting function starts to work. It can be seen as the
flashing dot on the LCD display and flashes once per second.
• When the device is on and the mode setting or intensity is changed, it will not affect the timer which will
continue to count down the remaining time. When the mode setting is changed the intensity will default
to 0. The device will turn off automatically when the set time has elapsed (15 minutes).
• When the treatment cycle has finished remove the gel pads carefully from the skin.
Important note: When removing the gel pads from the skin, peel off from one corner of the pad. DO NOT
pull the cord socket or cable to remove as this may lead to injuries or malfunctioning.
What can I treat?
The Dual Channel TENS Digital Pain Reliever can treat many different types of pain. Following are diagrams of
where to place the gel pads for the most common forms of pain. For other areas of pain, place the electrodes
on either side of the area. Never place the electrodes on the head, face, throat, back of the neck, chest area,
eyes, oral cavity, sexual organs or onto the spine or bones.
Caution:
• Affix the gel pads so that they do not overlap one another and are approximately 4-6 inches apart.
• Be sure not to move the gel pads to another part of your body without turning off the power first.
12
Gel Pad Positioning
Legs and Feet
For other areas of
pain, place the gel
pads around the
area of pain 4 - 6
inches apart
(approximately).
Lower back Upper back
NOTE: DO NOT PLACE ON SPINE

13
Battery Information
1. Please use 4 x AAA batteries in the unit (not included).
2. Remove the batteries if the product is not in use for long periods of time.
3. Do not mix old and new batteries or different types of batteries.
4.Warning: If batteries leak and come into contact with the skin or eyes, wash immediately
with copious amounts of water.
5. Batteries must be handled by an adult. Keep batteries out of the reach of children.
6. Only batteries of the same or equivalent type as recommended are to be used.
7. Do not use rechargeable batteries. Non-rechargeable batteries are not to be recharged.
8. Remove exhausted batteries from the unit.
9. Supply terminals are not to be short circuited.
10. Dispose of batteries safely according to battery manufacturer’s instructions.
BACK
BATTERY COVER
AAA
AAA

13
Battery Information
1. Please use 4 x AAA batteries in the unit (not included).
2. Remove the batteries if the product is not in use for long periods of time.
3. Do not mix old and new batteries or different types of batteries.
4.Warning: If batteries leak and come into contact with the skin or eyes, wash immediately
with copious amounts of water.
5. Batteries must be handled by an adult. Keep batteries out of the reach of children.
6. Only batteries of the same or equivalent type as recommended are to be used.
7. Do not use rechargeable batteries. Non-rechargeable batteries are not to be recharged.
8. Remove exhausted batteries from the unit.
9. Supply terminals are not to be short circuited.
10. Dispose of batteries safely according to battery manufacturer’s instructions.
BACK
BATTERY COVER
AAA
AAA
14
If[Y_\_YWj_ed
•Power Source: DC: 6.0V 4 x AAA batteries (not included)
•Frequency: 4~128Hz
•Band width: 60-200µs
•Output current: Max.30mA±20%
•Output voltage: 40V(P-P) by 500 load±20%
•Size: 60(w) mm x 140 (h) mm x 26 (d) mm (approx.)
•Operating conditions: 5ºC~40ºC; < 80%RH
•Storage conditions: -20ºC~55ºC; < 95%RH
•Auto time setting: 15 minutes
•Weight: 86g
•Output intensity level adjustment: 1-8 (8 levels)
•Mode selection: 8 settings

15
Troubleshooting
Problem Check points Possible solution
The unit does not switch on
No output stimulus/sensation
Are the batteries exhausted? Replace the batteries.
Are both gel pads stuck on the skin
properly? Re-attach the gel pads correctly.
Are the gel pads overlapped? Separate and stick them to the skin
again (at lease 4-6 inches apart).
Are the gel pads dirty? Clean the gel pads with a damp, lint
free cloth.
Is intensity too weak? Use a higher intensity level.
Are both gel pads positioned properly? Change the position of the gel pads.
Are the batteries installed correctly? Insert the batteries observing correct
polarity.
Is the cable properly connected? Firmly connect the cable.
Have you removed the transparent
protective film from the gel pads? Remove the protective film.
Output stimulus/sensation is weak
The skin becomes red and/or you feel
a stabbing pain
Output current stops during therapy
Is the intensity too high? Choose a lower intensity or different
program.
Are you using the pads on the same
site every time? Re-position the pads. If at any time you
feel pain or discomfort stop use
immediately.
Are the gel pads too dry? Please gently wipe with a damp, lint
free cloth and then re-apply.
Are both gel pads stuck onto the skin
properly? Ensure the pads are stuck securely on the skin.
Are the gel pads dirty? Please clean the gel pad using a damp,
lint free cloth.
Is the surface of the gel pads scratched? Please replace them with new gel pads.
Have the batteries been exhausted? Please replace them with new batteries.
Are the cables disconnected? Turn off the power and connect the cables.
Have the gel pads come off the skin? Turn off the power and stick the gel
pads firmly to the skin.

15
Troubleshooting
Problem Check points Possible solution
The unit does not switch on
No output stimulus/sensation
Are the batteries exhausted? Replace the batteries.
Are both gel pads stuck on the skin
properly? Re-attach the gel pads correctly.
Are the gel pads overlapped? Separate and stick them to the skin
again (at lease 4-6 inches apart).
Are the gel pads dirty? Clean the gel pads with a damp, lint
free cloth.
Is intensity too weak? Use a higher intensity level.
Are both gel pads positioned properly? Change the position of the gel pads.
Are the batteries installed correctly? Insert the batteries observing correct
polarity.
Is the cable properly connected? Firmly connect the cable.
Have you removed the transparent
protective film from the gel pads? Remove the protective film.
Output stimulus/sensation is weak
The skin becomes red and/or you feel
a stabbing pain
Output current stops during therapy
Is the intensity too high? Choose a lower intensity or different
program.
Are you using the pads on the same
site every time? Re-position the pads. If at any time you
feel pain or discomfort stop use
immediately.
Are the gel pads too dry? Please gently wipe with a damp, lint
free cloth and then re-apply.
Are both gel pads stuck onto the skin
properly? Ensure the pads are stuck securely on the skin.
Are the gel pads dirty? Please clean the gel pad using a damp,
lint free cloth.
Is the surface of the gel pads scratched? Please replace them with new gel pads.
Have the batteries been exhausted? Please replace them with new batteries.
Are the cables disconnected? Turn off the power and connect the cables.
Have the gel pads come off the skin? Turn off the power and stick the gel
pads firmly to the skin.
16
CW_dj[dWdY[WdZ9Wkj_edi
97KJ?EDIH;=7H:?D=I7<;JO

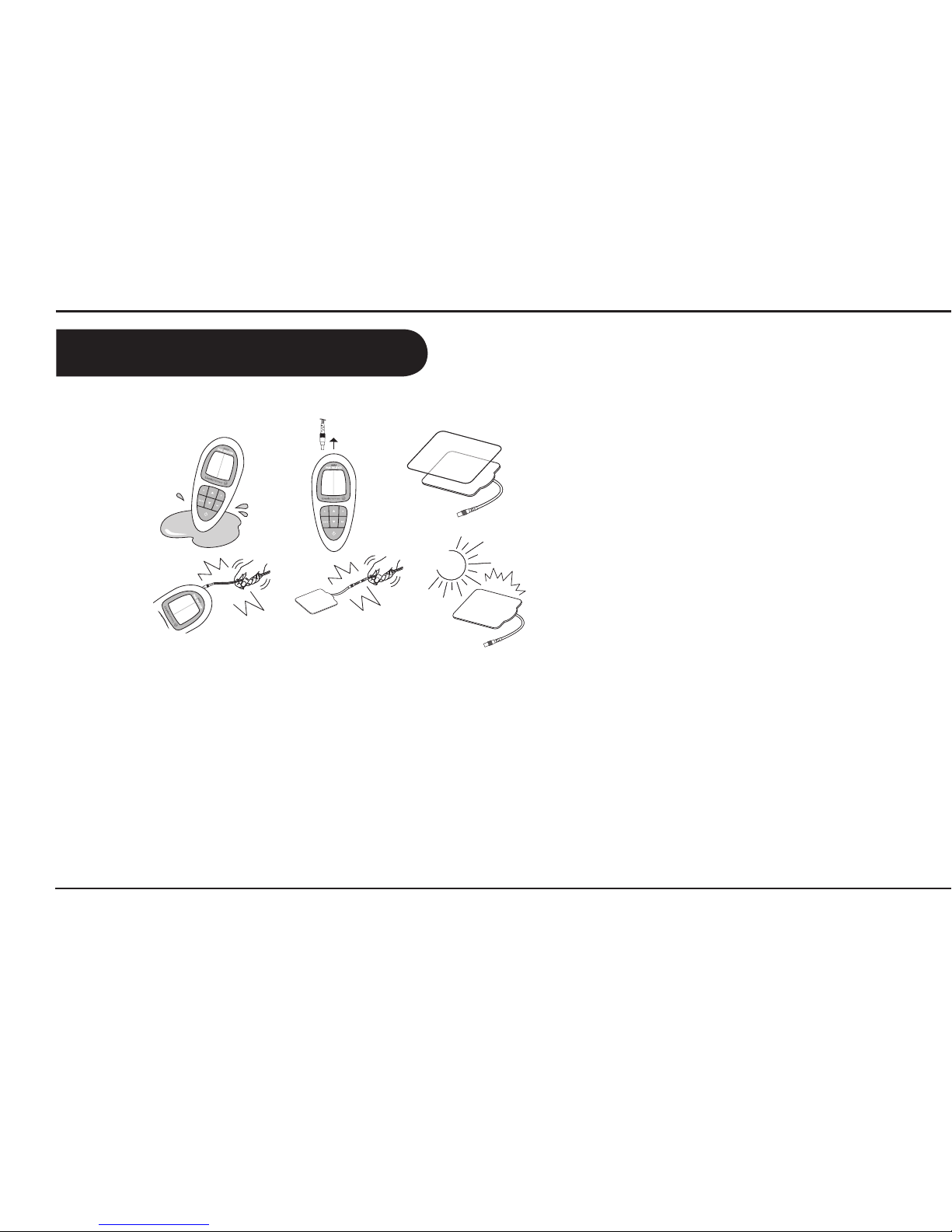

• Do not immerse device in water or any liquid. Do not drop device or throw it from a height.
• After using the device, please remove output plug from output socket and re-attach the pads
to the protective transparent film.
• Always use the protective film when pads are not in use.
• Do not twist or pull the output cables.
• Do not use any chemical to clean the main unit or gel pads. In case you need to clean them,
please wipe with a damp, lint free cloth.
• Do not let the pads dry out or expose to sunlight.
• Keep the pads clean.

17
MWhhWdjo
This product is guaranteed for a period of one year from the date of purchase against
mechanical and electrical manufacturing defects.There are no user serviceable parts
inside the instrument. Any attempted repair by unauthorised persons invalidates the
warranty.This does not affect your statutory rights.
Harvard Medical Devices Ltd.
Unit 1301-2, 13th Floor, Railway Plaza,
39 Chatham Road South, Tsimshatsui,
Kowloon, Hong Kong.
Kinetik Medical Devices Ltd.
Made in P.R.C
www.lloydspharmacy.com
Harvard House, The Waterfront, Elstree Road,
Elstree, Herts WD6 3BS, UK

17
MWhhWdjo
This product is guaranteed for a period of one year from the date of purchase against
mechanical and electrical manufacturing defects.There are no user serviceable parts
inside the instrument. Any attempted repair by unauthorised persons invalidates the
warranty.This does not affect your statutory rights.
Harvard Medical Devices Ltd.
Unit 1301-2, 13th Floor, Railway Plaza,
39 Chatham Road South, Tsimshatsui,
Kowloon, Hong Kong.
Kinetik Medical Devices Ltd.
Made in P.R.C
www.lloydspharmacy.com
Harvard House, The Waterfront, Elstree Road,
Elstree, Herts WD6 3BS, UK
User Manual
Model LTD1
Replacement Gel Pads
Founded in 1998 Action on Pain is a national charity providing support and advice for those affected by chronic
pain.We produce a range of informative booklets as well as operating PainLine - our telephone helpline providing
practical and confidential advice. In addition Action on Pain operates a Mobile Information Unit which visits
locations across the U.K. One of our major roles is to lobby politicians in order to raise the quality and availability
of pain management services within U.K. healthcare.Above allAction on Pain has developed a good reputation for
the quality of the services it provides particularly for the emphasis we place on promoting the positive side of
living with chronic pain.
Why not visit our website at www.action-on-pain.co.uk or call PainLine on 0845 6031593 between
10am-4pm Monday to Friday.
Available accessories
Dual Channel TENS
Digital Pain Reliever
Approved by
RCN 1088789
Approved by
RCN 1088789
