Preparing for Your New Portable Spa
Pre-DeliveryChecklist...............................1
Planning the Best Location . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
Preparing a Good Foundation . . . . . . . . . . . . . . . . . . . . . . . . . 2
Clearance for Service Access . . . . . . . . . . . . . . . . . . . . . . . . . 3
Electrical Service Stub-up . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Getting the Spa Into Your Yard
Check the Dimensions of Your New Spa . . . . . . . . . . . . . . . . 6
PlantheDeliveryRoute .............................6
SpecialCircumstances...............................6
Electrical Requirements
240 Volt Electrical Installation . . . . . . . . . . . . . . . . . . . . . . . . 7
Testing the GFCI Breaker . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

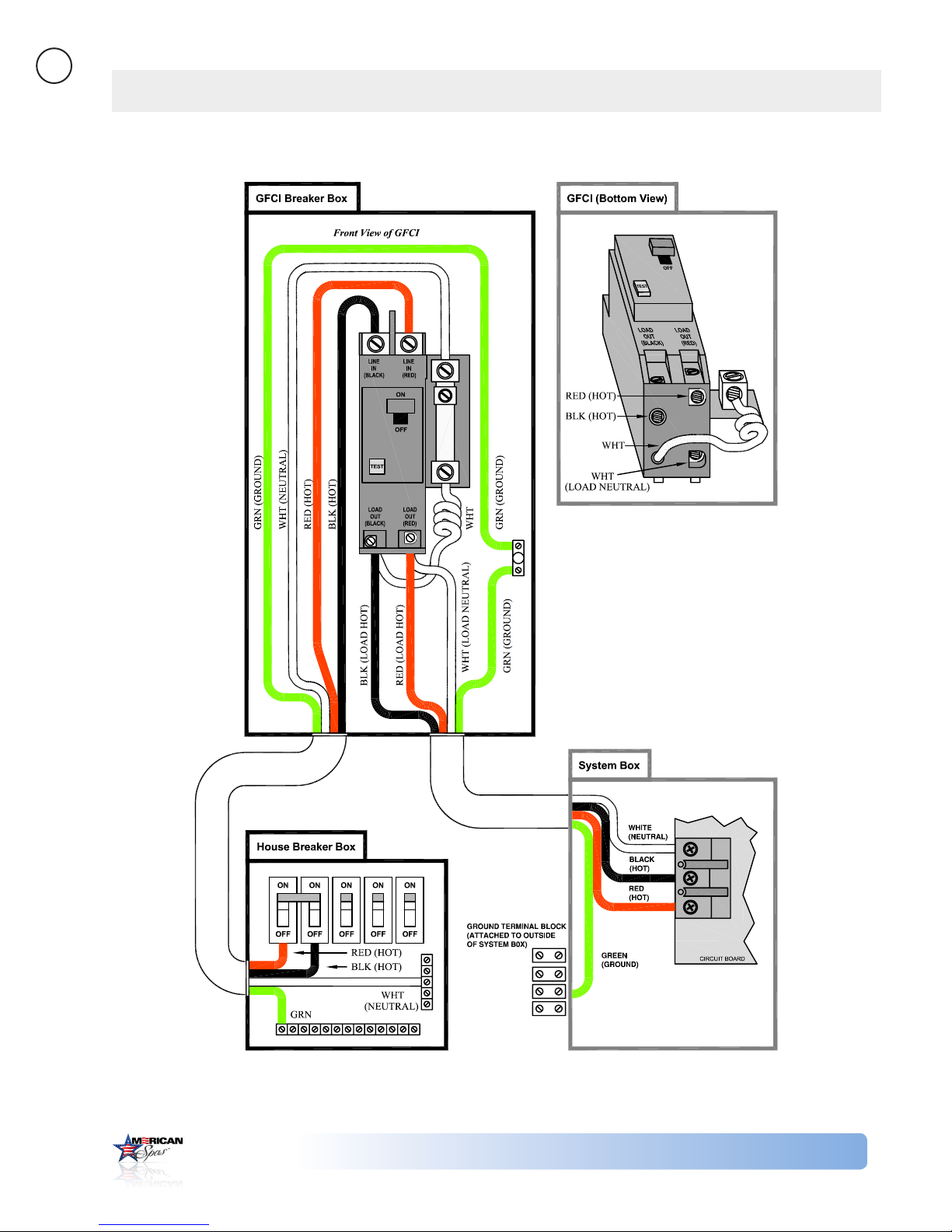

GFCIWiringDiagram ...............................8
NEOWiringDiagram................................9
Spa Technical Specications
ImperialUnits....................................10
MetricUnits......................................10
Table of Contents

LocatingYour Spa
1
American Spa Pre-delivery Guide
LTR50001107, Rev. G
Most cities and counties require permits for exterior
construction and electrical circuits. In addition, some
communities have codes requiring residential barriers
such as fencing and/or self-closing gates on property
to prevent unsupervised access to the property by
children. Your dealer can provide information on which
permits may be required and how to obtain them prior
to the delivery of your spa.
Before Delivery
Plan your delivery route
Choose a suitable location for the spa
Lay a 5 - 8 cm concrete slab
Install dedicated electrical supply
After Delivery
Place spa on slab
Connect electrical components
Pre-Delivery Checklist
Planning the Best Location
Safety First
Consider How You Will Use Your Spa
Plan for Your Environment
Consider Your Privacy
Provide a View with Your Spa
Keep Your Spa Clean
Allow for Service Access
Do not place your spa within 10 feet (3 m) of
overhead power lines.
How you intend to use your spa will help you
determine where you should position it. For example,
will you use your spa for recreational or therapeutic
purposes? If your spa is mainly used for family
recreation, be sure to leave plenty of room around
it for activity. If you will use it for relaxation and
therapy, you will probably want to create a specic
mood around it.
If you live in a region where it snows in the winter
or rains frequently, place the spa near a house
entry. By doing this, you will have a place to change
clothes and not be uncomfortable.
In a cold-weather climate, bare trees won’t provide
much privacy. Think of your spa’s surroundings
during all seasons to determine your best privacy
options. Consider the view of your neighbors as well
when you plan the location of your spa.
Think about the direction you will be facing when
sitting in your spa. Do you have a special landscaped
area in your yard that you nd enjoyable? Perhaps
there is an area that catches a soothing breeze
during the day or a lovely sunset in the evening.
In planning your spa’s location, consider a location
where the path to and from the house can be kept
clean and free of debris.
Prevent dirt and contaminants from being tracked
into your spa by placing a foot mat at the spa’s
entrance where the bathers can clean their feet
before entering your spa.
Make sure the spa is positioned so that access to
the equipment compartment and all side panels will
not be blocked.
Many people choose to install a decorative structure
around their spa. If you are installing your spa with
any type of structure on the outside, such as a
gazebo, remember to allow access for service. It is
always best to design special installations so that
the spa can still be moved, or lifted off the ground.
Preparing for Your New Portable Spa

LocatingYour Spa
2
American Spa Pre-delivery Guide
LTR50001107, Rev. G
Important: See pages 4 and 6 for planning the
stub-up location before the foundation is laid.
Your spa needs a solid and level foundation. The area
that it sits on must be able to support the weight of the
spa, with water and the occupants who use it. If the
foundation is inadequate, it may shift or settle after the
spa is in place, causing stress that could DAMAGE
YOUR SPA SHELL AND FINISH.
Damage caused by inadequate or improper
foundation support is not covered by the
warranty. It is the responsibility of the spa
owner to provide a proper foundation for
the spa.

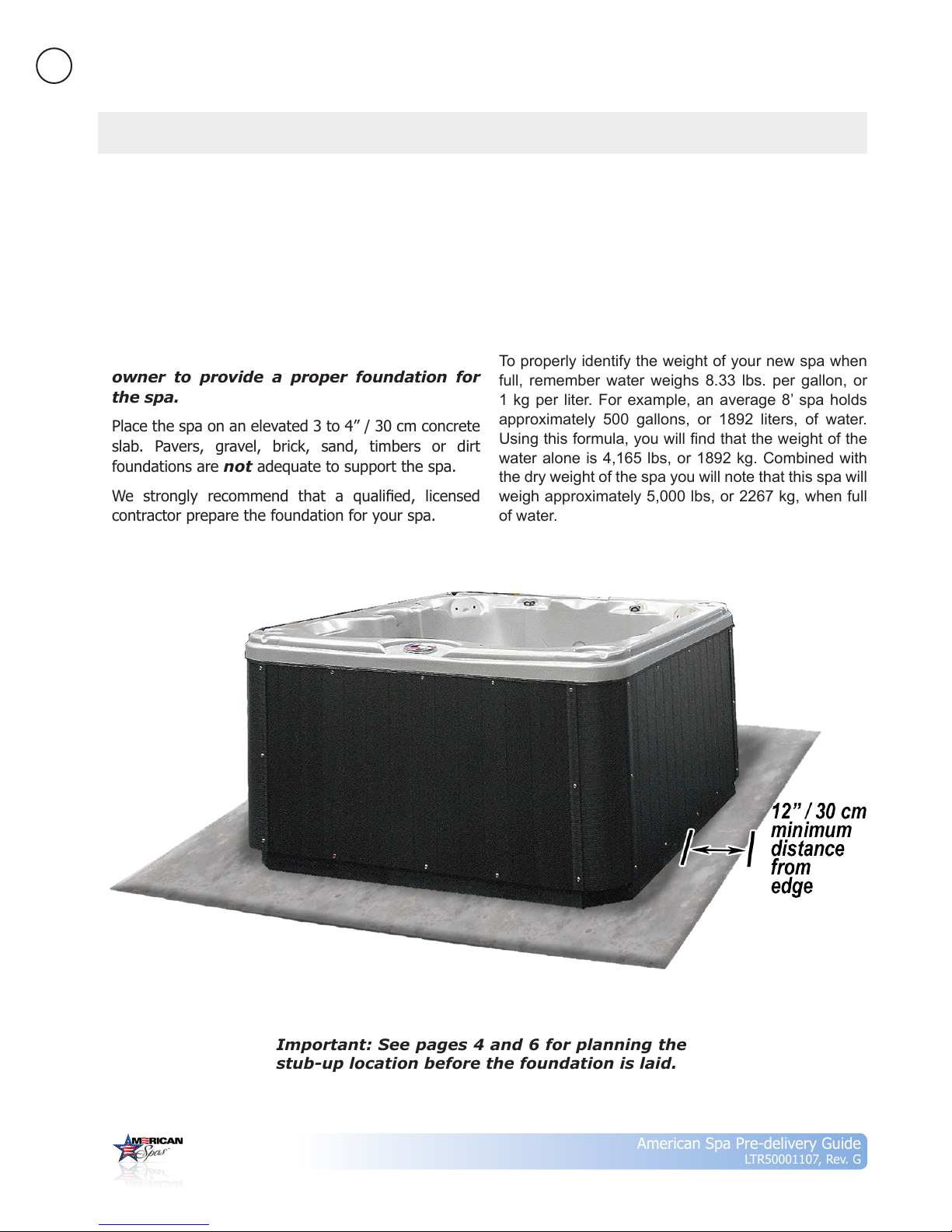

Place the spa on an elevated 3 to 4” / 30 cm concrete
slab. Pavers, gravel, brick, sand, timbers or dirt
foundations are not adequate to support the spa.
We strongly recommend that a qualied, licensed
contractor prepare the foundation for your spa.
If you are installing the spa indoors, pay close attention
to the ooring beneath it. Choose ooring that will not
be damaged or stained.
If you are installing your spa on an elevated wood deck
or other structure, it is highly recommended that you
consult a structural engineer or contractor to ensure
the structure will support the weight of 150 pounds per
square foot (732 kg / m2).
To properly identify the weight of your new spa when
full, remember water weighs 8.33 lbs. per gallon, or
1 kg per liter. For example, an average 8’ spa holds
approximately 500 gallons, or 1892 liters, of water.
Using this formula, you will nd that the weight of the
water alone is 4,165 lbs, or 1892 kg. Combined with
the dry weight of the spa you will note that this spa will
weigh approximately 5,000 lbs, or 2267 kg, when full
of water.
Preparing a Good Foundation

LocatingYour Spa
3
American Spa Pre-delivery Guide
LTR50001107, Rev. G
While you are planning where to locate your spa, you need to determine how much access you will need for
service.
American Spas require access to the front of the spa for periodic service. For this reason, the spa should never
be placed in a manner where the front is permanently blocked. Examples include placing the front of the spa
against a building, structural posts or columns, or a fence.
If you are planning to enclose or surround your spa with a deck, make sure there is access for service or repair.
Clearance for Service Access
Front of Spa

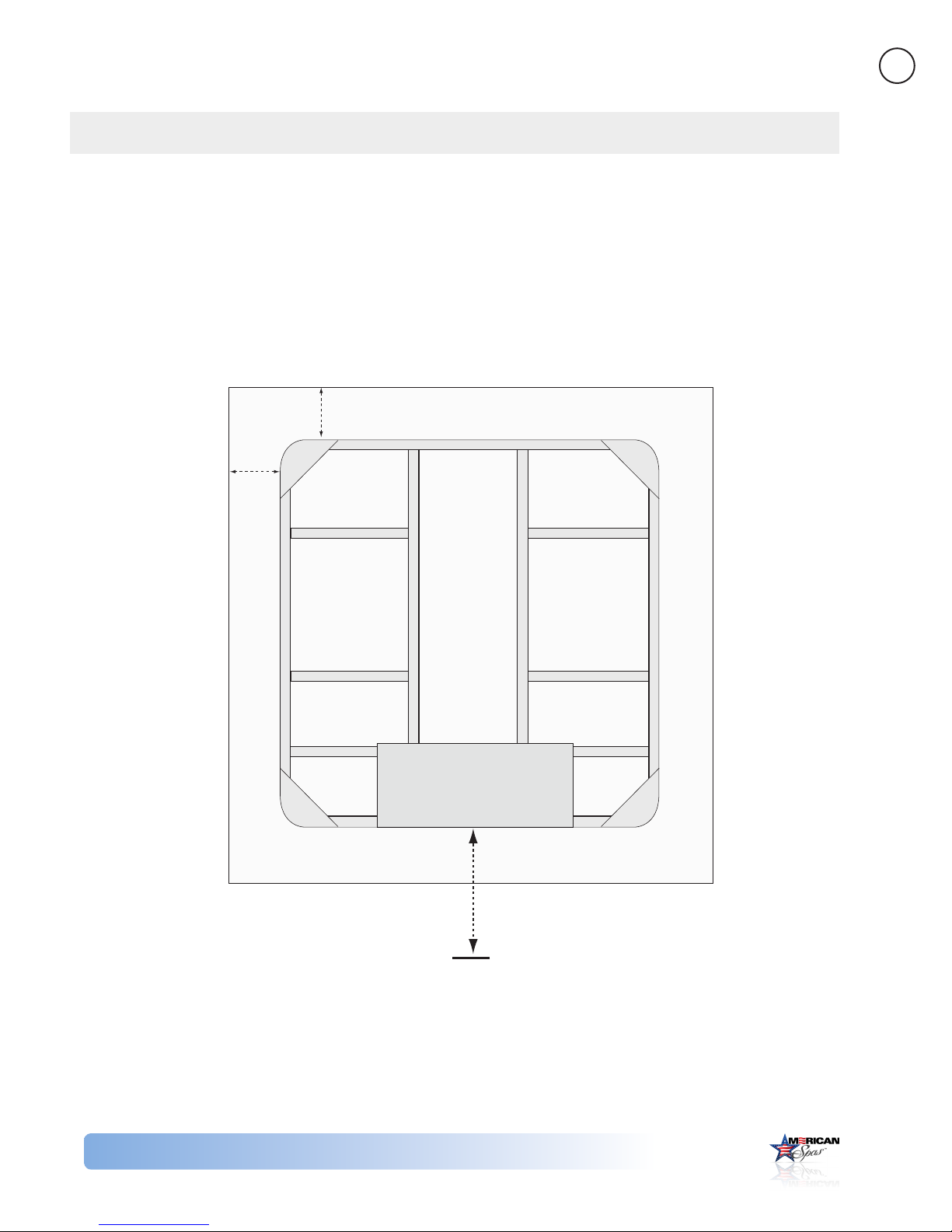

1’ minimum distance from
edge of concrete slab
Not to scale
Top View of Spa Frame
on Concrete Slab
Equipment Pack
Platform
Minimum of 3 feet clearance
to provide access to equipment area

LocatingYour Spa
4
American Spa Pre-delivery Guide
LTR50001107, Rev. G
The location of the electrical service cable is a decision each spa owner needs to decide. Running the electrical
cable lay on top of the slab is visually unappealing and can present a trip hazard.
Most spa owners prefer to bury electrical conduit before the slab is laid and run the cable up through the slab.
The location of the conduit in the concrete slab is called the stub-up.
You will need to have a contractor lay down a concrete slab before the spa is delivered (as described on page
2). The stub-up needs to be located directly next to the cabinet as shown in the gures below.
The spa installer or electrician will need to drill a hole in the spa cabinet approximately 5” to 10” up from the
concrete slab. This will be where the conduit will enter the spa equipment area.
Use rigid pipe and a metal elbow outside the spa. You can use ex pipe inside the equipment area to run the
electrical wire from the elbow to the control box.

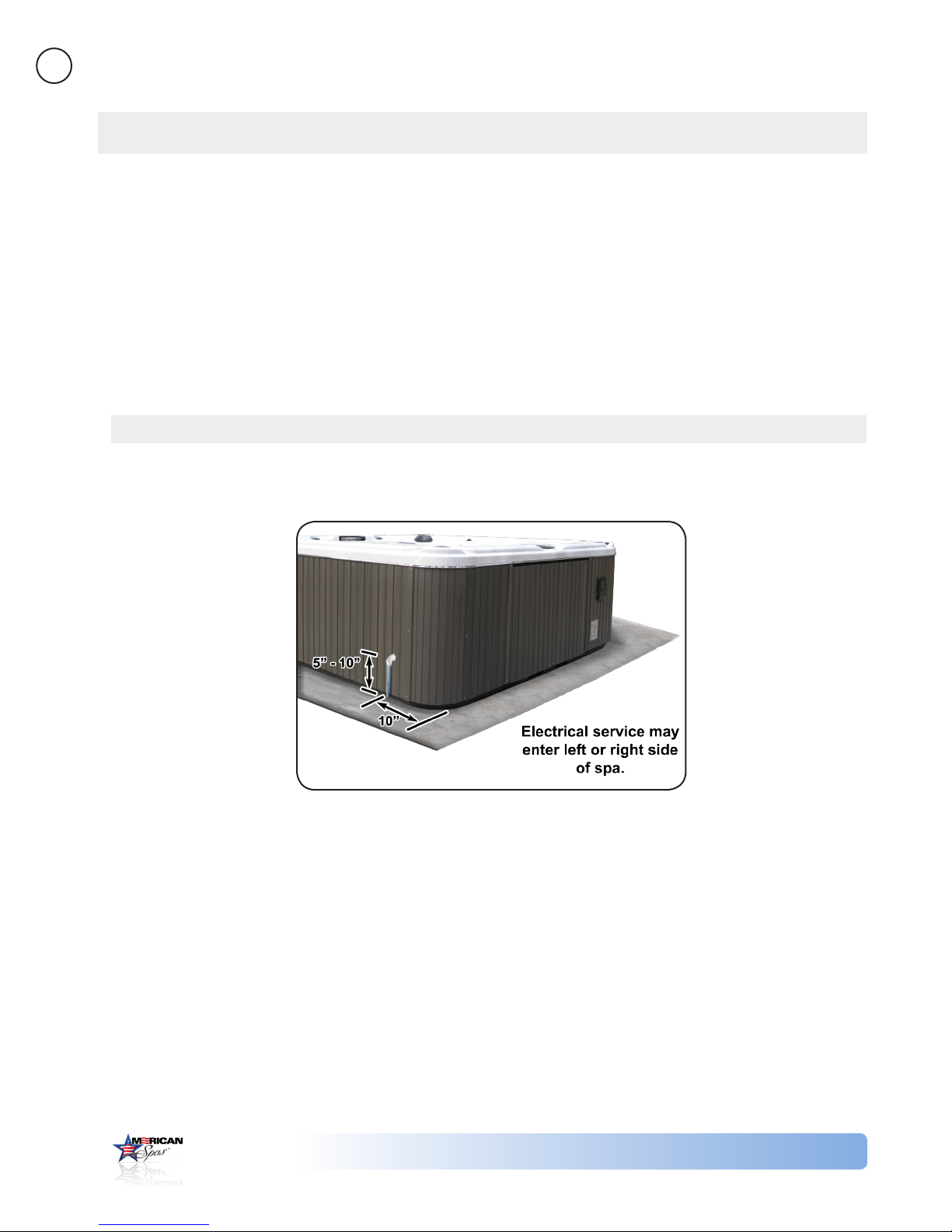

The stub-up for should be approximately 10” back from the front of the spa and no higher than 10” above the
concrete slab. It can be placed on either the left or right side of the spa.
Electrical Service Stub-up
Square Spas

LocatingYour Spa
5
American Spa Pre-delivery Guide
LTR50001107, Rev. G
The stub-up for triangular spas can be hidden behind the corner on one side. It can be seen only when you
face the rear of the spa (as shown in the gure below). The stub-up should be approximately 10” back from
the front of the spa and no higher than 10” above the concrete slab. It can be placed on either the left or
right side of the spa.
The stub-up for round spas can be hidden slightly behind the curvature of the spa on the left side (as it is
viewed from the back). The stub-up should be no higher than 10” above the concrete slab.
Triangular and Round Spas

Getting the Spa IntoYourYard
6
American Spa Pre-delivery Guide
LTR50001107, Rev. G
Getting the Spa Into Your Yard
Check the Dimensions of Your New Spa
Plan the Delivery Route
Special Circumstances
The specication chart on page 9 lists your spa’s model and its dimension as it sits on the delivery cart. During
delivery, the spa must remain on the delivery cart at all times. Compare the dimensions to the width of the gates,
sidewalks, and doorways along the delivery route. It may be necessary for you to remove a gate or partially
remove a fence in order to provide an unobstructed passageway to the installation location.
Consider the following when planning your delivery
route:
• Check the width of gates, doors and sidewalks to
make sure your spa will pass through unobstructed.
You may have to remove a gate or part of a fence
to allow for adequate width clearance.
• Are there low roof eaves, overhanging branches
or rain gutters that could be an obstruction to
overhead clearance?
• 8’ spas need at least 42” wide gate and 9’ height
clearance.
• If the delivery route will require a 90º turn, check
the measurements at the turn to ensure the spa
will t.
• Are there protruding gas meters, water meters
or A/C units on your home which will cause
obstructions along the delivery path to your yard?
• Are there stairs in your delivery route? If so, you
must consult your spa dealer prior to delivery to
make adequate preparations.
The use of a crane for delivery and installation may become necessary if you are unable to provide an adequate
delivery route. It is used primarily to avoid injury to your spa, your property or to delivery personnel. Your spa
dealer may be able to assist you with the arrangements. If your spa delivery requires the use of a crane, the
cost of a crane is generally not included in the standard delivery service.

Electrical Installation
7
American Spa Pre-delivery Guide
LTR50001107, Rev. G
All 240V spas must be permanently connected (hard
wired) to the power supply. See the wiring diagram
on page 8.
These instructions describe the only acceptable
electrical wiring procedure. Spas wired in any
other way will void your warranty and may
result in serious injury.
When installed in the United States, the electrical
wiring of this spa must meet the requirements of NEC
70 and any applicable local, state, and federal codes.
The electrical circuit must be installed by an
electrical contractor and approved by a local
building or electrical inspector.
Failure to comply with state and local codes
may result in re or personal injury and will be
the sole responsibility of the spa owner.
The power supplied to the spa must be on a dedicated
GFCI protected circuit as required by NEC 70 with no
other appliances or lights sharing the power.
Use copper wire with THHN insulation. Do not use
aluminum wire.
Use the table below and on the next page to determine
your GFCI and wiring requirements.
Wires that run over 100 feet must increase wire gauge
to the next lower number. For example: A normal 50
amp GFCI with four #6 AWG copper wires that run
over 100 feet would require you to go to four #4 AWG
copper wires.
Control System GFCI Required Wires Required
VS300 One 40 amp GFCI Four #8 AWG copper wires
240 Volt Electrical Installation
Testing the GFCI Breaker
GFCI and Wiring Requirements
Electrical Requirements
Test the GFCI plug prior to rst use and periodically when the spa is powered. To test the GFCI plug version,
follow these instructions. (Spa should already be plugged in and operational.)
1. Press the TEST button on the GFCI. The GFCI will trip and the spa will stop operating.
2. Press the RESET button on the GFCI. The GFCI will reset and the spa will turn back on.
The spa is now safe to use.

Electrical Installation
8
American Spa Pre-delivery Guide
LTR50001107, Rev. G
GFCI Wiring Diagram

Electrical Installation
9
American Spa Pre-delivery Guide
LTR50001107, Rev. G
NEO Wiring Diagram

Spa Technical Specications
10
American Spa Pre-delivery Guide
LTR50001107, Rev. G
All sizes on this chart represent outside dimensions. Due to our continuous improvements, specications, size
and pricing are subject to change without prior notice.
Imperial Units
Model
Width
(inches)
Length
(inches)
Height
(inches)
Capacity
(gallons)
Dry Weight
(pounds)
Filled Weight
(pounds)
AM-511RS 78 round 36 300 350 2855
AM-628TS 72 72 36 130 600 1685
AM-630LS 84 74 36 337 600 3407
AM-730LS 84 84 36 425 800 4340
AM-730BS 84 84 36 425 800 4340
Metric Units
Model
Width
(cm)
Length
(cm)
Height
(cm)
Capacity
(liters)
Dry Weight
(kg)
Filled Weight
(kg)
AM-511RS 199 round 92 1336 159 1293
AM-628TS 183 183 92 492 272 764
AM-630LS 213 188 92 1275 272 1545
AM-730LS 213 213 92 1609 363 1969
AM-730BS 213 213 92 1609 363 1969
Spa Technical Specications

Spa Technical Specications
11
American Spa Pre-delivery Guide
LTR50001107, Rev. G

Spa Technical Specications
12
American Spa Pre-delivery Guide
LTR50001107, Rev. G

Spa Technical Specications
13
American Spa Pre-delivery Guide
LTR50001107, Rev. G

LTR50001107, Rev. G
8/9/17
CONTACT INFORMATION
For customer service, please contact your
authorized dealer immediately. If you need
additional information and/or assistance,
contact:
LMS Customer Service Department
1462 East Ninth Street
Pomona, CA 91766.
Toll Free: 1-800-225-7727
Fax: [phone]
