Lncoon JM-C41 User manual

JM-C41 GPS Tracker
(4G Version)
Email: [email protected]
Website: www.lncoon.com
Tracking Platform: Lncoon

Catalogue
JM-C41 GPS Tracker ........................................................................................................................................... 1
(4G Version) .......................................................................................................................................................... 1
Tracking Platform: Lncoon .............................................................................................................................. 1
Part I - Product Introduction .......................................................................................................................... 3
1.1 Product Schematic .................................................................................................................................... 3
(1) Power Status (Red) ............................................................................................................................... 4
(2) GNNS Status (Blue) ................................................................................................................................5
(3) Celluar Status (Green) ......................................................................................................................... 5
Part II - Specification & Features ................................................................................................................. 6
Part III - Product Installation ....................................................................................................................... 11
3.1 Device Installation ...................................................................................................................................11
(1) Check Device ...................................................................................................................................... 11
Confirm whether the appearance of the equipment is good and whether the relevant
accessories are complete. .....................................................................................................................11
3.2 Install Sim Card .........................................................................................................................................11
(1) Prepare the Right Size of Sim Card ................................................................................................ 11
(2) Insert the Sim Card into Device ...................................................................................................... 11
3.3 Wiring Diagram ......................................................................................................................................... 12
(4) Product wiring diagram .................................................................................................................... 18
3.5 Motorcycle Installation Position .........................................................................................................21
3.6 Car Installation Position ........................................................................................................................ 21
Part IV - Device Setting ............................................................................................................................ 22
4.1 APN Setting ................................................................................................................................................. 22
(1) Automatically Matched ................................................................................................................... 22
(2) By SMS Command .............................................................................................................................. 23
APN,apnname# ................................................................................................................................................ 23
4.2 Server Configure .......................................................................................................................................23
(1) By SMS Command .............................................................................................................................. 23
Part V - Platform Operation ......................................................................................................................... 24
5.1 Register & Login Into Platform ............................................................................................................ 25
Part VI - Troubleshooting .............................................................................................................................. 29
Part VII - Get The Help ................................................................................................................................... 31
If any problem .................................................................................................................................................... 31

Part I - Product Introduction
1.1 Product Schematic
1.2 Product Accessories
No.
Name
Quantity
Unit
Remark
1
Device
1
piece
2
Power Cable
1
piece
1M length
3
Relay
1
set
4
User Manual
1
piece
Power Swtich
Power Indicator
GPS Indicator
GSM Indicator
SIM Slot
Back Cover

1.3 Interface Definition
1.4 LED Indication
(1) Power Status (Red)
Status
Meaning
On for 0.3s, Off for 0.3s
Low Power
On for 1s, Off for 0.3s
Fully Charged
On for 0.1s, Off for 0.3s
Working Normally
Solid On
Charging (Higher priority than
the status of low power)
Off
Battery is exhausted / Internal
Failure
V+
V-
ACC
Relay
Red
Black
Orange
Yellow
Anode ( 9-90V )
Negative
ACC Detection
Oil&Power Cut

(2) GNNS Status (Blue)
Status
Meaning
On for 0.3s, Off for 0.3s
Searching GNSS Signal
Solid On
Positioned
Off
GNSS module is in sleep mode
or not working
(3) Celluar Status (Green)
Status
Meaning
On for 0.3s, Off for 0.3s
Network Initializing
On for 1s, Off for 0.3s
Receiving signal normally
On for 0.1s, Off for 0.3s
Network Connected
Solid On
Calling
Off
No signal received/ No SIM
card detected

Part II - Specification & Features
2.1 Product Specification
Item
Specifications
Network
4G & 2G
Frequency
FDD: B1/B3/B5/B7/B8/B20
TDD: B34/B38/B39/B40/B41
GSM: 900/1800MHz
Accuracy
< 10 meters CEP
Relay
Optional
TTFF(open sky)
Avg.hot start ≤1sec
Avg.cold start ≤32sec
Indicator
GPS(Blue), Cellular(Green),Power(Red)
Battery
60mAh, 3.7V Li-Polymer Battery
Voltage
9-90V
Temperature
-20℃to +70℃
Dimension
9.0（L）*4.3（W）* 1.0（H）cm
Weight
53.8g

2.2 Product Features
Normally the operation path is List -> Device -> Command
Functions
Operation Path
Power Cut
Off Alarm
Setting By
4 Ways
1. Platform
2. Plaform+SMS
3. Platform+Call
4. Platform+SMS+Call
Overspeed
Alarm
Setting By
2 Ways
1. Platform
2. Plaform+SMS

Vibration
Alarm
Setting By:
Upload Way /
Vibration Numbers /
Detection Time /
Delay to enable
alarm / Alarm
Vibration
Vibration
Sensitivity
Ranges:1-5
The smaller value the
more sensitive

Remote
Control
Fuel & Power cut off or
restore
SOS
Calling
Setting
Allow 3 numbers to
receive help
information

ACC
On/Off
Alarm
Setting
Driving
Behavior
Alarm
Sharp
accelerate/decelerat
e alarm, Sharp Turn
alarm, collide alarm,
rollover alarm

Part III - Product Installation
3.1 Device Installation
(1) Check Device
Confirm whether the appearance of the equipment is good
and whether the relevant accessories are complete.
3.2 Install Sim Card
(1) Prepare the Right Size of Sim Card
Choose Micro SIM card with access to GPRS and SMS
(2) Insert the Sim Card into Device
Before installing or removing the SIM card, you must switch off




the device
Note: the SIM card cannot be installed reversely and the GPRS
service is activated,as well as the sufficient charges.
3.3 Wiring Diagram

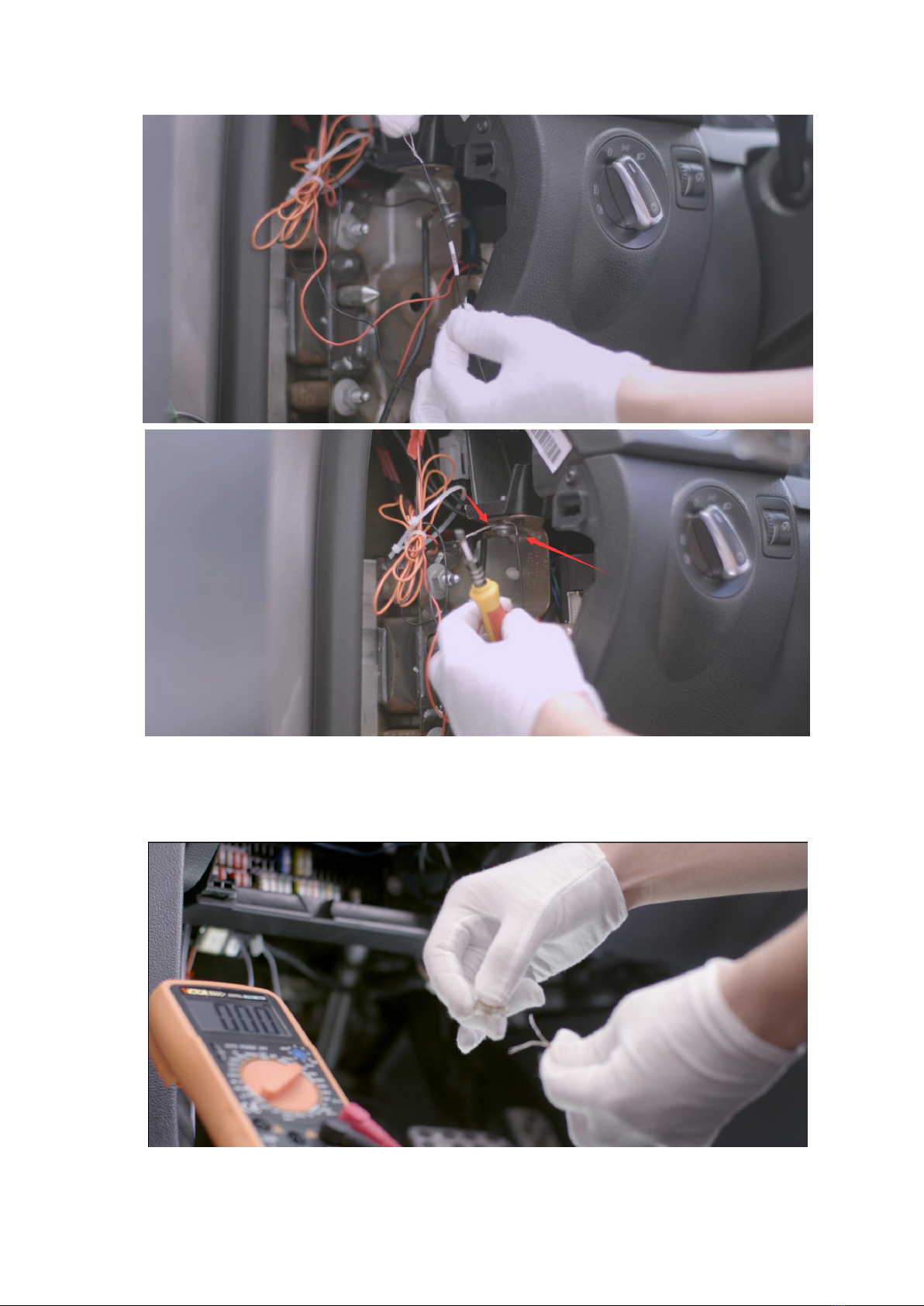

(1) Power Wiring: Use a multimeter to find the
battery positive and negative por leads
A. Get ground wire (Black), connect it to C41 Black wire
SIM Card Slot
Power Switch
Back Cover

B. Find the constant power of the car in the fuse box,
connect it to C41 Red Wire

C. After correctly connect power and ground cable,
the tracker device C41 will power on
(2) ACC Wiring: Use a multimeter to find the ACC line,
the judgment method
A. When ACC is off, the voltage is 0.00V like below
B. When ACC is on, the voltage is 12V or above like below

C. After picking out the ACC fuse, then connect it to the C41
ACC orange wire

(3) Relay Wiring: Petrol / Electricity Cut Off , relay is
needed if you wish disconnect petrol supply
A. First find the oil pump power wire and use the scissors to cut it
off like below
B. Then connect relay white wire(85) and green wire(87a)
together to the pump power input end

C. Next connect relay green wire (30) to the pump power
output end
D. Finally connect relay yellow wire(86) to the C41 yellow wire

(4) Product wiring diagram

Mounted on Headlights
( priority position )
3.4 Electric Vehicle Installation Position
Under the Pedal
