USER AND INSTALLATION MANUAL
FOR
GAS STOCK POT RANGE
Model: 162012

Großküchengeräte für Profis
LOCHER Großküchen-Geräte GmbH, Katlsberger Str. 3, 87471 Durach | [e-mail] | wwww.locher.info
2
GAS STOCK POT RANGE
CONTENT
1. GENERAL...............................................................................................3
2. INTENDED USE .....................................................................................3
3. SAFETY INSTRUCTIONS IN CASE OF MALFUNCTION.......................3
4. TECHNICAL DATA ................................................................................3
5. DIMENSIONS........................................................................................4
6. OPERATING INSTRUCTIONS...............................................................4
6.1. PLACING THE APPLIANCE................................................................. 4
6.2. INSTALLATION ................................................................................4
6.3. GAS SUPPLY CONNECTION...............................................................5
6.4. EXHAUSTING FUMES........................................................................5
6.5. POWER REGULATION .......................................................................5
6.6 ADJUSTING THE AIR SUPPLY .............................................................5
7. CLEANING.............................................................................................6
8. POSITIONING .......................................................................................6
9. WARRANTY CONDITIONS ..................................................................7
10. DISPOSAL OF THE APPLIANCE .........................................................7

Großküchengeräte für Profis
LOCHER Großküchen-Geräte GmbH, Katlsberger Str. 3, 87471 Durach | [e-mail] | wwww.locher.info
3
1. GENERAL
Thank you for purchasing gas stock pot range from us. Please, read the instructions in
this handbook carefully: they contain important information regarding proper,
efficient and safe installation, operation and maintenance of the appliance. Keep this
handbook in a safe place where it is readily available for consultation by all users of
the appliance.
This appliance must be installed in accordance with the manufacturer’s instructions
and all local regulations, and it must be connected to the gas supply exclusively by a
licensed specialist. Persons responsible for using this appliance must be appropriately
trained for its operation.
In the case of faults or incorrect operation, switch off the appliance. The periodical
check of function prescribed in this handbook must be carried out in compliance with
the relevant instructions. The appliance must be serviced by a technically qualified
person authorized by the manufacturer and using exclusively genuine original spare
parts when a replacement is necessary.
2. INTENDED USE
This appliance is designed for professional purposes and can be operated by
qualified personall only. The appliance is intended for the use in gastronomy and
catering establishment for cooking and heating soups, tea, etc. in cooking dishes like
cooker pots or sauce pots. This appliance is made of chromium-nickel steel STN
17 241 type AISI 304 and type AISI 430.
3. SAFETY INSTRUCTIONS IN CASE OF MALFUNCTION
In the event of failure or malfunction, disconnect the appliance from gas supply. Call
service immediately.
4. TECHNICAL DATA
Power regulation:Gas valve
Protection: Thermoswitch fuse (thermal fusing device)
Power: 12 kW
Supply: Pipe ½, external (outer) screw

Großküchengeräte für Profis
LOCHER Großküchen-Geräte GmbH, Katlsberger Str. 3, 87471 Durach | [e-mail] | wwww.locher.info
4
5. DIMENSIONS
Total dimensions 500 x 500 x 450 mm
Burner: 1
Total weight: 17 kg
Adjustable range for height of feet: 45 mm

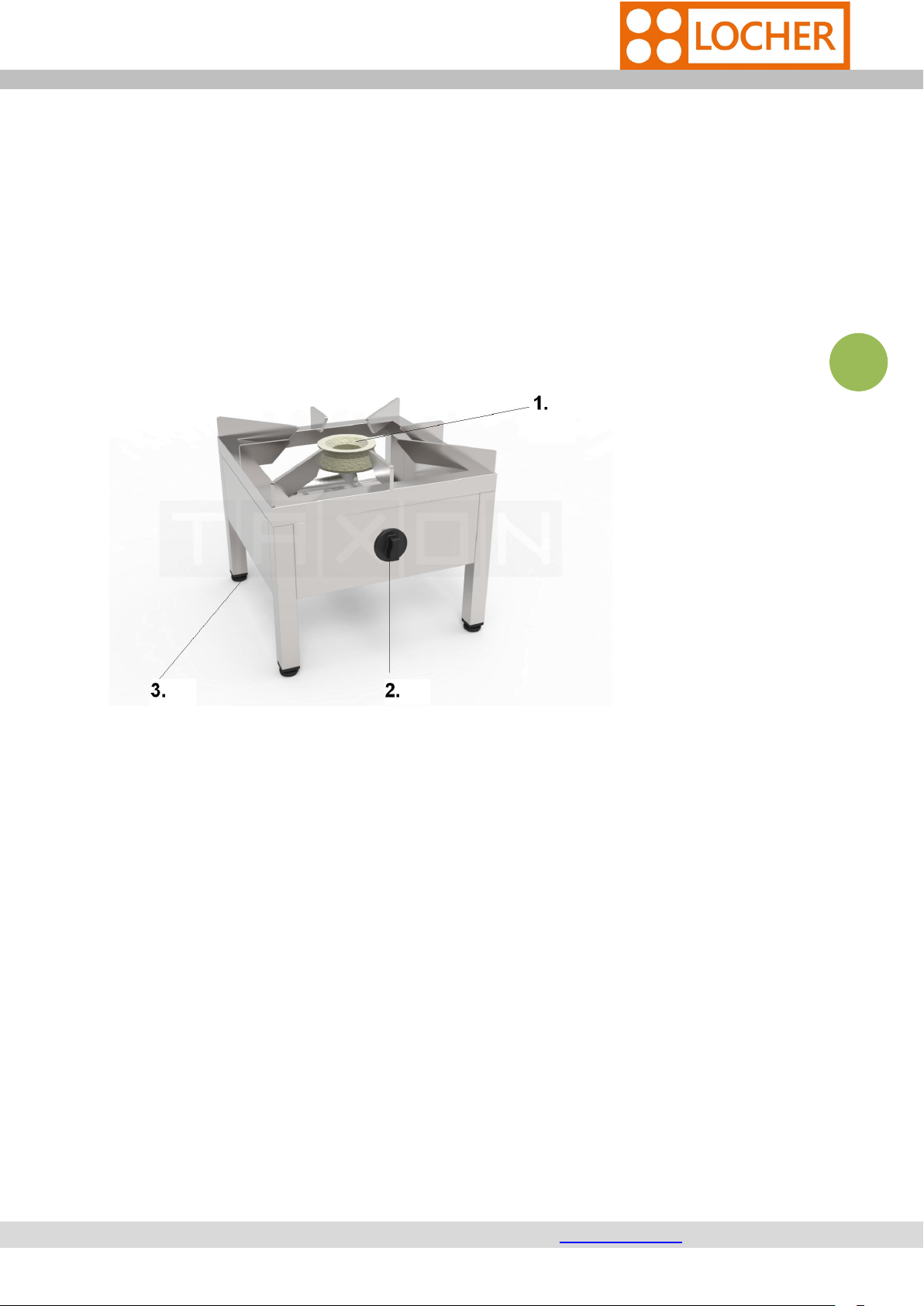

Gas stock pot range 162012
1 – Burner
2 – Power regulation
3 – Height – adjustable feet
6. OPERATING INSTRUCTIONS
6.1. PLACING THE APPLIANCE
Gas stock pot range must be placed in a well aired room. Pay attention to the stability
in order to prevent tilting/rollover of the appliance. It is necessary to keep min. 20 cm
distance from the wall or neighbouring appliances. Consider the precautions against
high temperatures influence – e.g., coating the installation elements by heat-resistant
tiles etc. Before connecting the appliance to gas supply, check the consistency of
information from technical label with the gas type, which you are using.
6.2. INSTALLATION
Mounting, installation and service must by carried out by a licensed technician.

Großküchengeräte für Profis
LOCHER Großküchen-Geräte GmbH, Katlsberger Str. 3, 87471 Durach | [e-mail] | wwww.locher.info
5
6.3. GAS SUPPLY CONNECTION
The inlet hose may be connected to 3/8" G or 1/2" G outlet on the appliance either
firmly or exchangeably (in this case a connector in accord with legal regulation must
be used). When flexible hoses made of stainless steel are used for connection, these
must comply with the applicable legal regulations.
After connecting the appliance to a gas system, check for leaks using specific gas leak
detector (spray).
6.4. EXHAUSTING FUMES
This appliance is not intended for connection to gas fumes exhausting duct. They
must derive gas fumes into the appropriate fume hoods or similar structures, which
are connected to functional chimneys or lead the fume gases directly into the air. If
such systems are not available, a digestorium may be used, which exhalates burned
gasses directly into the air, if its capacity is in accord with set requirements. This
appliance must provide air exchange necessary for helth protection of personell.
6.5. POWER REGULATION
There are two possible power types:
-nominal, marked on a product card
-lowered.
For nominal power, use the jets located on the appliance.
The pressure of incoming gas must be set as follows:
in the range 18 - 22,5 mbar for methane,
in the range 27 to 37 mbar for propane-butane.
It is not allowed to use the appliance with other settings of gas. If you wish to carry
out further power control, you can do so with the aid of gasometer according to
volumetric method. In general, the control of correct jet function is sufficient.
6.6ADJUSTING THE AIR SUPPLY
Air supply may be set using the air regulator, which serves to adjust the color of the
flame, which influences the function of the appliance. Air regulator is located on
Venturi tube, which comes out of the bottom part of burner. Orange coloration of the
flame indicates incorrect setting - this can possibly derogate pots and cooking dishes;
in this case the air regulator should be open more to allow more air supply.

Großküchengeräte für Profis
LOCHER Großküchen-Geräte GmbH, Katlsberger Str. 3, 87471 Durach | [e-mail] | wwww.locher.info
6
7. CLEANING
Before carrying out any cleaning or maintenance operations, let the appliance cool
out. Maintenance is necessary also for air regulator, which consists of 3 parts; these
must be separated, and their ventilation holes must be cleaned.
Caution!
The appliance must be turned off during the cleaning (switch to the position “0”)! This
appliance may never be cleaned by water stream. Cleaning with the aid of pressure
cleaners is prohibited. Do not use wire wool pads or steel brushes. Use only health-
safe cleaners intended for cleaning stainless steel appliances.
Caution!
Risk of burns! The appliance may be hot even after switching off!
8. POSITIONING
We recommend adjusting the stability of the appliance by adjustable feet, if
necessary (e.g., the appliance jiggles). Revolving the adjustable part (cap) of the foot,
maximal stability may be achieved, assuring the correct function of the appliance.
To adjust the heigth (up to + 45
mm), revolve this part.

Großküchengeräte für Profis
LOCHER Großküchen-Geräte GmbH, Katlsberger Str. 3, 87471 Durach | [e-mail] | wwww.locher.info
7
9. WARRANTY CONDITIONS
Warranty for this appliance is provided only when all instructions for installation,
operation and maintenance are respected.
Warranty does not apply for the damage caused by: natural disaster, incorrect usage,
non-professional installation or manipulation, change or mechanical injury.
10. DISPOSAL OF THE APPLIANCE
The appliance was made of recyclable material and does not contain any dangerous
or toxic substances. The appliance is fully in accord with local regulations in the place
of its origin. Packing material should be separated according to material and
disposed at specialized collecting sites. Please, respect the prescriptions and rules
about nature protection.
