Lochinvar Knight XL 400 Guide

OKBX-USER Rev A
Outdoor Knight XL
User’s Information Manual
Models: 400 - 801
Save this manual for future reference.
This manual must only be used by
a qualified heating installer / service
technician. Read all instructions,
including this manual and the
Outdoor Knight XL Service Manual,
before installing. Perform steps in
the order given. Failure to comply
could result in severe personal
injury, death, or substantial property
damage.
WARNING

2
Hazard definitions
The following defined terms are used throughout this manual to bring attention to the presence of hazards of various risk levels or
to important information concerning the life of the product.
DANGER
WARNING
CAUTION
CAUTION
NOTICE
DANGER indicates an imminently hazardous situation which, if not avoided, will result in death or serious
injury.
WARNING indicates a potentially hazardous situation which, if not avoided, could result in death or serious
injury.
CAUTION indicates a potentially hazardous situation which, if not avoided, may result in minor or moderate
injury.
CAUTION used without the safety alert symbol indicates a potentially hazardous situation which, if not
avoided, may result in property damage.
NOTICE indicates special instructions on installation, operation, or maintenance that are important but not
related to personal injury or property damage.
Contents
HAZARD DEFINITIONS..................................................... 2
PLEASE READ BEFORE PROCEEDING......................... 3
1. PREVENT COMBUSTION AIR CONTAMINATION ..... 4
2. MAINTENANCE SCHEDULE ....................................... 5
Maintenance Procedures................................................... 6
Boiler Must Be Serviced and Maintained .................... 6
Check Boiler Area......................................................... 6
Check Pressure Temperature Gauge........................... 6
Check Vent Piping........................................................ 6
Check Air Piping........................................................... 6
Check Relief Valve....................................................... 6
Check Condensate Drain System ............................. 6-7
Check Air Vents............................................................ 8
Test Low Water Cutoff (if installed).............................. 8
Reset Button (low water cutoff).................................... 8
Check Boiler Piping (gas and water)............................ 8
Operate Relief Valve .................................................... 8
Shut Boiler Down.......................................................... 8
3. OPERATING INSTRUCTIONS..................................... 9
4. SMART SYSTEM CONTROL MODULE
SMART SYSTEM Control Module................................... 10
Access Modes ............................................................ 10
Saving Parameters..................................................... 10
Adjusting Parameters ................................................. 10
Temperature Settings............................................ 10-11
Status Display Screens ......................................... 12-14
Notes................................................................................ 15
Revision Notes.................................................. Back Cover

Outdoor Knight XL User’s Information Manual
Please read before proceeding
The Outdoor Knight Boiler Installation
and Operation Manual along with the
Outdoor Knight Boiler Service Manual
are for use only by a qualified heating
installer/service technician. Refer only
to this User’s Information Manual for
your reference. Improper installation,
adjustment, alteration, service or
maintenance can cause property damage,
personal injury (exposure to hazardous
materials) or loss of life. Installation
and service must be performed by a
qualified installer, service agency or the
gas supplier (who must read and follow
the supplied instruction before installing,
servicing, or removing this boiler. This
boiler contains materials that have been
identified as carcinogenic, or possibly
carcinogenic, to humans).
Failure to adhere to the guidelines on this
page can result in severe personal injury,
death, or substantial property damage.
Boiler service and maintenance –
• To avoid electric shock, disconnect electrical supply
before performing maintenance.
• To avoid severe burns, allow boiler to cool before
performing maintenance.
Boiler operation –
• Do not block flow of combustion or ventilation air to
the boiler. This boiler is equipped with a control which
will automatically shut down the boiler should air or
vent be blocked. If vent or air blockage is easily
accessible and removable, remove it. The boiler should
attempt to restart. If blockage is not obvious or cannot
be removed, have the boiler and system checked by a
qualified service technician.
• Should overheating occur or gas supply fail to shut off,
do not turn off or disconnect electrical supply to the
circulator. Instead, shut off the gas supply at a location
external to the appliance.
• Do not use this boiler if any part has been under water.
The possible damage to a flooded appliance can be
extensive and present numerous safety hazards. Any
appliance that has been under water must be replaced.
Boiler water –
• Thoroughly flush the system (without boiler
connected) to remove sediment. The high-efficiency
heat exchanger can be damaged by build-up or
corrosion due to sediment.
• Do not use petroleum-based cleaning or sealing
compounds in the boiler system. Gaskets and seals in
the system may be damaged. This can result in
substantial property damage.
• Do not use “homemade cures” or “boiler patent
medicines”. Serious damage to the boiler, personnel,
and/or property may result.
• Continual fresh make-up water will reduce boiler life.
Mineral buildup in the heat exchanger reduces heat
transfer, overheats the stainless steel heat exchanger,
and causes failure. Addition of oxygen carried in by
makeup water can cause internal corrosion. Leaks in
boiler or piping must be repaired at once to prevent
makeup water.
Freeze protection fluids –
• NEVER use automotive antifreeze. Use only inhibited
propylene glycol solutions, which are specifically
formulated for hydronic systems. Ethylene glycol is
toxic and can attack gaskets and seals used in hydronic
systems.
When calling or writing about the boiler
– Please have the boiler model and serial
number from the boiler rating plate.
Consider piping and installation when
determining boiler location.
Any claims for damage or shortage in
shipment must be filed immediately
against the transportation company by
the consignee.
Factory warranty (shipped with unit) does
not apply to units improperly installed or
improperly operated.
3
NOTICE
WARNING
NOTICE
Do NOT install the appliance where it will
be exposed to freezing temperatures.
WARNING

1 Prevent combustion air contamination
4
If the boiler combustion air inlet is located
in a laundry room or pool facility, for
example, these areas will always contain
hazardous contaminants.
To prevent the potential of severe personal
injury or death, check for areas and
products listed in Table 1 before installing
the boiler or air inlet piping.
If contaminants are found, you MUST:
• Remove contaminants permanently.
—OR—
• Relocate air inlet and vent
terminations to other areas.
WARNING
WARNING
Products to avoid:
Spray cans containing chloro/fluorocarbons
Permanent wave solutions
Chlorinated waxes/cleaners
Chlorine-based swimming pool chemicals
Calcium chloride used for thawing
Sodium chloride used for water softening
Refrigerant leaks
Paint or varnish removers
Hydrochloric acid/muriatic acid
Cements and glues
Antistatic fabric softeners used in clothes dryers
Chlorine-type bleaches, detergents, and cleaning solvents
found in household laundry rooms
Adhesives used to fasten building products and other similar
products
Areas likely to have contaminants
Dry cleaning/laundry areas and establishments
Swimming pools
Metal fabrication plants
Beauty shops
Refrigeration repair shops
Photo processing plants
Auto body shops
Plastic manufacturing plants
Furniture refinishing areas and establishments
New building construction
Remodeling areas
Garages with workshops
Table 1 Corrosive Contaminants and Sources
WARNING If the boiler combustion air inlet is located
in any area likely to cause contamination,
or if products which would contaminate
the air cannot be removed, you must have
the combustion air and vent re-piped
and terminated to another location.
Contaminated combustion air will damage
the boiler, resulting in possible severe
personal injury, death, or substantial
property damage.
Pool and laundry products and common household
and hobby products often contain fluorine or chlorine
compounds. When these chemicals pass through the boiler,
they can form strong acids. The acid can eat through the
boiler wall, causing serious damage and presenting a possible
threat of flue gas spillage or boiler water leakage into the
building.
Please read the information listed in Table 1. If contaminating
chemicals will be present near the location of the boiler
combustion air inlet, have your installer pipe the boiler
combustion air and vent to another location, per the Outdoor
Knight Boiler Installation and Operation Manual.
Outdoor Knight XL User’s Information Manual

2 Maintenance schedule
5
WARNING Follow the maintenance procedures given throughout this manual. Failure to perform the service and
maintenance or follow the directions in this manual could result in damage to the boiler or system,
resulting in severe personal injury, death, or substantial property damage.
Owner maintenance
(see the Outdoor Knight XL User’s Information
Manual for instructions)
Daily • Check boiler area
•Check pressure/temperature
gauge
Monthly
•Check air and vent termination
screens
• Check relief valve
• Check condensate drain system
Periodically •Test low water cutoff (if used)
• Reset button (low water cutoff)
Every
6 months
•Check boiler piping (gas and
water) for leaks
• Operate relief valve
End
of season
months
•Shut boiler down (unless boiler
used for domestic hot water)
Service technician
(see the following pages for instructions)
General:
• Address reported problems
• Inspect interior; clean and vacuum if
necessary;
• Clean condensate trap and fill with fresh
water
•Check for leaks (water, gas, flue,
condensate)
• Verify flue and air passage ways in good
condition and sealed tight
•Check system water pressure/system
piping/expansion tank
• Check control settings
•Check ignition and flame sense
electrodes (sand off any deposits; clean
and reposition)
• Check wiring and connections
• Perform start-up checkout and
performance verification per Section 10.
• Flame inspection (stable, uniform)
• Flame signal (at least 10 microamps at
high fire)
•Clean the heat exchanger if flue
temperature is more than 54°F (30°C)
above return water temperature.
If combustion or performance
indicate need:
• Clean heat exchanger
•Remove and clean burner using
compressed air only
• Clean the blower wheel
ANNUAL START-UP
Outdoor Knight XL User’s Information Manual

2 Maintenance schedule
6
Eliminate all system or boiler leaks.
Continual fresh makeup water will
reduce boiler life. Minerals can build
up in sections, reducing heat transfer,
overheating heat exchanger, and causing
heat exchanger failure. Leaking water
may also cause severe property damage.
1. Inspect all water and gas piping and verify to be leak
free.
2. Look for signs of leaking lines and correct any problems
found.
3. Contact a qualified service technician if problem
persists.
Check all piping for leaks
WARNING
Outdoor Knight XL User’s Information Manual
Maintenance procedures
Boiler must be serviced and maintained
WARNING The boiler must be inspected and started
annually at the beginning of the heating
season by a qualified service technician. In
addition, the maintenance and care of the
boiler designated on page 5 of this manual
and explained on pages 6 through 8 must
be performed to assure maximum boiler
efficiency and reliability. Failure to service
and maintain the boiler and system could
result in equipment failure, causing possible
severe personal injury, death, or substantial
property damage.
NOTICE The following information provides detailed
instructions for completing the maintenance
items listed in the maintenance schedule on
page 5. In addition to this maintenance,
the boiler must be serviced and started up
at the beginning of each heating season by a
qualified service technician.
Check boiler area
WARNING To prevent potential of severe personal
injury, death, or substantial property damage,
eliminate all materials discussed below from
the boiler vicinity and the vicinity of the
boiler combustion air inlet. If contaminants
are found:
Remove products immediately from the
area. If they have been there for an extended
period, call a qualified service technician to
inspect the boiler for possible damage from
acid corrosion.
If products cannot be removed, immediately
call a qualified service technician to
re-pipe vent and air piping and locate
vent termination/air intake away from
contaminated areas.
1. Combustible/flammable materials -- Do not store
combustible materials, gasoline or any other flammable
vapors or liquids near the boiler. Remove immediately if
found.
2. Air contaminants -- Products containing chlorine or
fluorine, if allowed to contaminate the boiler intake air,
will cause acidic condensate in the boiler. This will cause
significant damage to the boiler if allowed to continue.
Read the list of potential materials listed in Table 1A on
page 4 of this manual.
Check pressure/temperature gauge
1. Make sure the pressure reading on the boiler pressure/
temperature gauge does not exceed 24 psi (165.5 kPa).
Higher pressure may indicate a problem with the
expansion tank.
2. Contact a qualified service technician if problem
persists.
Check relief valve
1. Inspect the boiler relief valve and the relief valve
discharge pipe for signs of weeping or leakage.
2. If the relief valve often weeps, the expansion tank may
not be working properly. Immediately contact your
qualified service technician to inspect the boiler and
system.
Check condensate drain system
1. Inspect the condensate drain line, condensate PVC
fittings and condensate trap.
Fill condensate trap with water
1. Remove the PVC cap retaining screw from the PVC cap
(FIG. 2-1).
2. Remove the 2" PVC cap with the switch located at
the top of the trap (FIG. 2-1).
3. Fill with fresh water until the water begins to pour out of
the drain.
4. Replace the cap. Press the cap onto the trap until the cap
makes contact with the drain.
5. Replace the retaining screw.

2 Maintenance schedule (continued)
7
Figure 2 Condensate Disposal
Outdoor Knight XL User’s Information Manual
3. Fill with fresh water until the water begins to pour out
of the drain.
4. Replace the cap. Press the cap onto the trap until the
cap makes contact with the drain.
5. Replace the retaining screw.
WARNING The condensate trap (FIG. 2-1) must
be filled with water during all times
of boiler operation to avoid flue gas
emission from the condensate drain line.
Failure to fill the trap could result in
severe personal injury or death.
PVC TEE ASSEMBLY
(FACTORY SUPPLIED)
TO FLOOR
DRAIN
2” PVC CAP WITH
BLOCKED DRAIN SWITCH
RETAINING
SCREW
CONDENSATE FROM
HEAT EXCHANGER
Figure 2-1 Condensate Trap
Condensate disposal
1. This boiler is a high efficiency appliance that produces
condensate.
2. The side of the boiler has a 1/2 inch PVC union for
connection of a 1/2 inch PVC pipe (FIG. 2-2).
3. Slope condensate tubing down and away from the
boiler into a drain or condensate neutralizing filter.
Condensate from the Knight XL will be slightly acidic
(typically with a pH from 3 to 5). Install a neutralizing
filter if required by local codes. Call your qualified
service technician to inspect the boiler and system.
A Neutralizer Kit is available from the factory (Kit 3087
for Models 400 - 501 and Kit 30002 for Models 601 -
801). Call your qualified service technician to install.
4. Install the 1/2 inch PVC tee assembly (shipped with the
unit) as shown in FIG. 2-2. Call your qualified service
technician to inspect the boiler and system.
5. Leave the top of the 1/2 inch tee OPEN. This is needed
as a vacuum break.
6. Do not expose condensate line to freezing temperatures.
7. Use only plastic tubing or piping as a condensate drain
line (FIG. 2-2).
Use materials approved by the authority
having jurisdiction. In the absence of
other authority, PVC and CPVC pipe
must comply with ASTM D1785 or D2845.
Cement and primer must comply with
ASME D2564 or F493. For Canada use
CSA or ULC certified PVC or CPVC pipe,
fittings, and cement.
8. A condensate removal pump is required if the boiler is
below the drain. When installing a condensate pump,
select one approved for use with condensing boilers
and furnaces. The pump should have an overflow
switch to prevent property damage from condensate
spillage. Call your qualified service technician to inspect
the boiler and system.
NOTICE
NOTICE To allow for proper drainage on large
horizontal runs, a second line vent may
be required and tubing size may need to
increase to 1 inch.
The condensate line must remain
unobstructed, allowing free flow of
condensate. If condensate is allowed to
freeze in the line or if the line is obstructed
in any other manner, condensate can exit
from the boiler tee, resulting in potential
water damage to property. Call your
qualified service technician to inspect
the boiler and system.
1/2" PVC
TEE ASSEMBLY
(FACTORY SUPPLIED)
NEUTRALIZER KIT
FLOOR DRAIN OR
DRAIN PAN
1/2" PVC UNION
(FACTORY SUPPLIED)

2 Maintenance schedule
8
WARNING Have leaks fixed at once by a qualified
service technician. Failure to comply could
result in severe personal injury, death, or
substantial property damage.
Operate relief valve
1. Before proceeding, verify that the relief valve outlet has
been piped to a safe place of discharge, avoiding any
possibility of scalding from hot water.
WARNING To avoid water damage or scalding due
to valve operation, a metal discharge
line must be connected to the relief
valve outlet and run to a safe place of
disposal. This discharge line must be
installed by a qualified heating installer
or service technician in accordance with
the instructions in the Outdoor Knight
Boiler Installation and Operation Manual.
The discharge line must be terminated
so as to eliminate possibility of severe
burns or property damage should the valve
discharge.
2. Read the boiler pressure/temperature gauge to make
sure the system is pressurized. Lift the relief valve
top lever slightly, allowing water to relieve through
the valve and discharge piping.
3. If water flows freely, release the lever and allow the valve
to seat. Watch the end of the relief valve discharge pipe
to ensure that the valve does not weep after the line has
had time to drain. If the valve weeps, lift the seat again to
attempt to clean the valve seat. If the valve continues to
weep afterwards, contact your qualified service
technician to inspect the valve and system.
4. If water does not flow from the valve when you lift the
lever completely, the valve or discharge line may be
blocked. Immediately shut down the boiler, following
the operating instructions on page 9 of this manual. Call
your qualified service technician to inspect the boiler and
system.
Shut boiler down (unless boiler is used
for Domestic Water)
1. Follow “To Turn Off Gas to Appliance” on page 9 of this
manual.
2. Do not drain the system unless exposure to freezing
temperatures will occur.
3. Do not drain the system if it is filled with an antifreeze
solution.
4. DO NOT shut down boilers used for domestic water
heating, they must operate year-round.
Check air vents
1. Reference FIG. 3 below.
2. Visually inspect vent to make sure that no leaks are
present.
3. If there is leaking, tighten the pin valve.
4. If the leak continues, replace the air vent.
3. Replace the front access door.
Test low water cutoff (if installed)
1. If the system is equipped with a low water cutoff, test the
low water cutoff periodically during the heating season,
following the low water cutoff manufacturer’s
instructions.
Reset button (low water cutoff)
1. Testing the low water cutoff shuts the unit off. Press the
RESET button on the low water cutoff to turn the unit
back on.
Check boiler piping (gas and water)
1. Remove the boiler front access door and perform a gas
leak inspection per steps 1 through 7 of the Operating
Instructions on page 9. If gas odor or leak is detected,
immediately shut down the boiler following the
procedures on page 9. Call a qualified service technician.
2. Visually inspect for leaks around water piping.
Also inspect the circulators, relief valve, and fittings.
Immediately call a qualified service technician to repair
any leaks.
Figure 3 Manual Air Vent
MANUAL
AIR VENT VALVE
Outdoor Knight XL User’s Information Manual

9
3 Operating instructions
Outdoor Knight XL User’s Information Manual
FOR YOUR SAFETY READ BEFORE OPERATING
WARNING: If you do not follow these instructions exactly, a fire or explosion
may result causing property damage, personal injury, or loss of life.
A. This appliance does not have a pilot. It is
equipped with an ignition device which
automatically lights the burner. Do not try
to light the burner by hand.
B. BEFORE OPERATING smell all around
the appliance area for gas. Be sure to
smell next to the floor because some gas
is heavier than air and will settle on the
floor.
WHAT TO DO IF YOU SMELL GAS
'RQRWWU\WROLJKWDQ\DSSOLDQFH
'RQRWWRXFKDQ\HOHFWULFVZLWFKGR
not use any phone in your building.
,PPHGLDWHO\FDOO\RXUJDVVXSSOLHUIURPD
neighbor’s phone. Follow the gas supplier’s
instructions.
C. Use only your hand to turn the gas control knob.
Never use tools. If the handle will not turn by
hand, don’t try to repair it, call a qualified service
technician. Force or attempted repair may result
in a fire or explosion.
D. Do not use this appliance if any part has been
under water. Immediately call a qualified
service technician to inspect the appliance and
to replace any part of the control system and
any gas control which has been under water.
,I\RXFDQQRWUHDFK\RXUJDVVXSSOLHUFDOO
the fire department.
1. STOP! Read the safety information
above on this label.
2. Set the thermostat to lowest setting.
3. Turn off all electric power to the
appliance.
4. This appliance is equipped with an
ignition device which automatically lights
the burner. Do not try to light the burner
by hand.
5. Remove top cover.
6. Turn gas shutoff valve counterclockwise
to “OFF”. Handle will be perpendicular to
pipe. Do not force.
7. Wait five (5) minutes to clear out any gas.
If you then smell gas, STOP! Follow “B”
in the safety information above on this label.
If you don’t smell gas, go to next step.
8. Turn gas shutoff valve clockwise to “ON”.
Handle will be parallel to pipe.
9. Install top cover.
10. Turn on all electric power to appliance.
11. Set thermostat to desired setting.
12. If the appliance will not operate, follow the
instructions “To Turn Off Gas To Appliance” and
call your service technician or gas supplier.
1. Set the thermostat to lowest setting.
2. Turn off all electric power to the appliance
if service is to be performed.
3. Remove top cover.
4. Turn gas shut off valve counterclockwise to
“OFF”. Handle will be perpendicular to pipe.
Do not force.
5. Install top cover.
LBL2284 REV -
TO TURN OFF GAS TO APPLIANCE
OPERATING INSTRUCTIONS

4 SMART SYSTEM control module
10
Outdoor Knight XL User’s Information Manual
Outdoor Knight XL control module
NAVIGATION DIAL

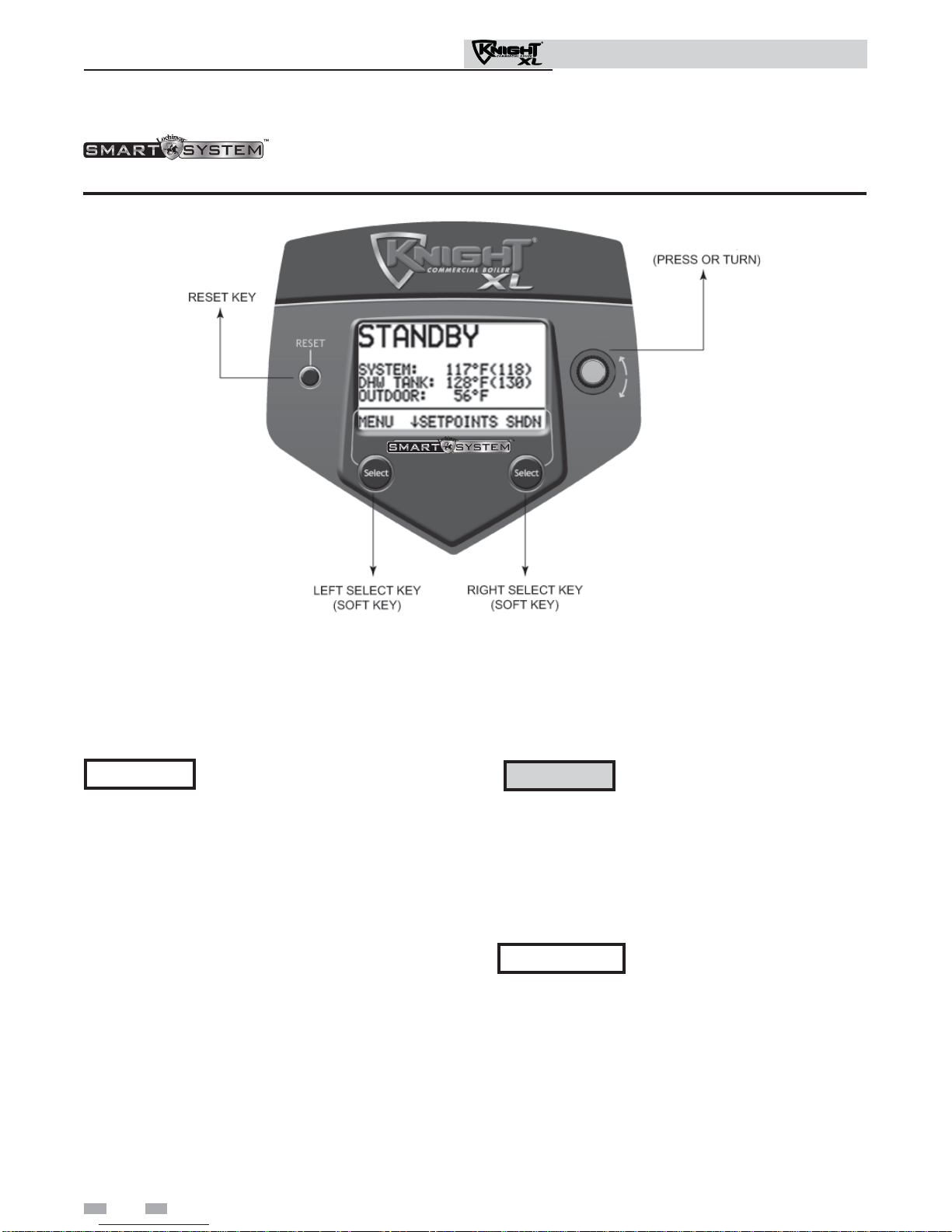

Figure 4-1 Control Panel
Use the control panel (FIG. 4-1) to set temperatures, operating conditions, and monitor boiler operation.
The information on the bottom of the display shows the functions of the two SELECT keys (on either corner), and the
NAVIGATION dial (in the center):
MENU = Left SELECT Key
SETPOINTS = NAVIGATION Dial - Pressing Down
SHDN = Right SELECT Key
Access modes
User
The user can adjust space heating and tank target temperatures
by pressing the NAVIGATION dial when “SETPOINTS” is
flashing at the bottom of the display. The user can adjust the
date and time, temperature units, and night setback override
(if active) by pressing the LEFT SELECT [MENU] key for
5 seconds. When the user password “0000” appears, then
press the RIGHT SELECT [SAVE] key (do not change the
password).
Installer
Most parameters are available only to the installer, accessible
only by entering the installer password, see the Knight XL
Service Manual.
Saving parameters
Press the RIGHT SELECT [SAVE] key one time to return to
the parameter listing. Press the RIGHT SELECT [HOME]
key again to store the new settings and return to the Status
Screen.
Adjusting parameters
CAUTION Before changing parameters, note the
settings so that the unit can be returned
to its original operating parameters.
The control uses an internal clock for the night setback
feature and for logging of events. For these features to
work properly, the clock must be set when the boiler is first
installed or any time the boiler has been powered off for
more than four (4) hours. This parameter must be accessed
to set the clock.
NOTICE The internal clock does not adjust for
Daylight Savings Time and therefore,
will require a manual adjustment.
To set the clock, access the clock menu as described in the
User section. Rotate the NAVIGATION dial (if needed)
until the arrow (>) is pointing to “TIME & DATE”. Press the
NAVIGATION dial once. If the date and time are incorrect,
press the NAVIGATION dial again. The hours value will
begin flashing. Rotate the NAVIGATION dial until the hour
and AM/PM values are correct. Press the NAVIGATION
dial again. The minutes value will begin flashing. Rotate
the NAVIGATION dial to adjust the minutes. Repeat this
procedure to adjust the month, date and year. Save the
new settings as described in the Saving Parameters section
(this page).
Please note that the brackets ([]) denote
screen status.
NOTICE

11
4 SMART SYSTEM control module (continued)
Outdoor Knight XL User’s Information Manual
Manual and auto reset high limit set points
The set points used by the Manual Reset High Limit and the
Auto Reset High Limit are adjustable through the display. To
access these settings, press the NAVIGATION dial once, then
press the LEFT SELECT [LIMITS] key once. The two settings
appear. Rotate the NAVIGATION dial as needed so the arrow
(>) points to the limit setting you wish to adjust. Press the
NAVIGATION dial once. The value of that setting will begin
to flash. Rotate the NAVIGATION dial to change the value
to the desired set point. Press the RIGHT SELECT [SAVE]
key to save the new value, or the LEFT SELECT [EXIT] key to
leave the set point at the original value. The other high limit
setting may then be changed using the same procedure, if
desired. When finished, press the RIGHT SELECT [HOME]
key to store the new settings, or the LEFT SELECT [EXIT] key
to return to the Space Heating and DHW Set Points Menu.
Night Setback Override
Any Night Setback On trigger currently active or scheduled
within the next seven (7) days can be skipped. To skip a
trigger, rotate the NAVIGATION dial until the arrow (>) is
next to the trigger you wish to skip. Press the NAVIGATION
dial once. “SK” will appear next to that trigger to indicate
that it will be skipped. You can restore an upcoming trigger
by selecting that trigger, and pressing the NAVIGATION dial
again. The “SK” next to that trigger will disappear.
To save any changes and return to the Home Screen, press
the RIGHT SELECT [HOME] key. To return to the Status
Screen without saving the changes, press the LEFT SELECT
[EXIT] key.
Temperature Units
The control can be configured to display temperature in
either °F or °C. This parameter can be changed by the user
or the installer by accessing the Temperature Units parameter.
The default is °F. To change the temperature units, access
the clock menu as described in the User section (this page).
Rotate the NAVIGATION dial until the arrow (>) is pointing
to “TEMPERATURE UNIT °F”. Press the NAVIGATION
dial once. The temperature unit will begin to flash. Rotate
the NAVIGATION dial until the desired temperature unit
is shown. Save the new setting as described in the Saving
Parameters section (page 10).
There are three (3) individual user set points for better zone
control. These are listed as SH1 Set Point through SH3 Set
Point. If multiple set points are calling for heat the highest set
point has priority. The range is SH Minimum Set point to SH
Maximum Set point (32°F (0°C) - 190°F (88°C)). The default
is 125°F (52°C).
By installing a tank sensor, the SMART SYSTEM control can
perform the tank thermostat function. The SMART SYSTEM
control automatically detects the presence of this sensor, and
generates a DHW call for heat when the tank temperature
drops 6°F (-14°C) below the tank set point differential (Tank
Set point Differential parameter), and finishes the call for heat
when the tank temperature reaches tank set point + offset.
This parameter can be changed by the installer by accessing the
DHW Tank Set point parameter. The temperature range of this
parameter is 68°F (20°C) to 190°F (88°C). The default value is
125°F (52°C).
Press the NAVIGATION dial once. A menu will appear
showing the SH1, SH2, SH3, and DHW Set Points. Rotate
the NAVIGATION dial until the arrow (>) is pointing to the
setting you wish to change. Press the NAVIGATION dial again.
The value of the selected setting will begin to flash. Rotate the
NAVIGATION dial to adjust the value. Save the new setting as
described in the Saving Parameters section (page 10).
Space heating (SH1, SH2, SH3) and tank set points
CAUTION Mixing valves are required for the
protection of any low temperature loops.

12
Status Display Screens
Section Display Description
A
(Boiler Status
Bar)
STANDBY The unit has not received a call for heat from a remote thermostat nor
has it received a call for heat from a DHW thermostat.
START The unit has begun a burn cycle and is checking all safety circuits.
PREPURGE The unit has initiated a prepurge period on a call for heat.
IGNITION The unit has begun a spark period to ignite the main burner.
The unit has fired and is running at the displayed percentage.
POSTPURGE
The call for heat has been satisfied and the unit runs the fan for an
additional postpurge period to clear the combustion chamber and
vent system of residual flue products.
SHUTDOWN The unit has been placed in the OFF position.
The controlled temperature has exceeded its set point and its offset.
BLOCKED The unit has detected a condition that has temporarily interrupted
the current call for heat.
B
(Call for Heat
Indicators)
Room Thermostat 1 has a call for heat.
Room Thermostat 2 has a call for heat.
Room Thermostat 3 has a call for heat.
The tank thermostat or sensor has a call for heat.
Indicates which room thermostat demand shows priority.
The unit is being controlled by a 0 - 10V BMS signal.
The member unit is supplying heat while in Cascade Mode.
A
C
D
B
F
E
(BOILER
STATUS)
(OPERATIONAL
INFORMATION)
(LEFT SELECT
KEY)
(RIGHT SELECT KEY)
(NAVIGATION DIAL)
(CALL FOR
HEAT)
Figure 5 Status Display Screen
%
4 SMART SYSTEM control module
Outdoor Knight XL User’s Information Manual

4 SMART SYSTEM control module (continued)
13
Status Display Screens (cont’d)
Section Display Description
C
(Operational
Information)
SYSTEM: The temperature read by the system supply sensor (if connected).
TANK: The temperature read by the tank sensor (if connected).
OUTDOOR: The temperature read by the outdoor sensor.
INLET TEMP: The temperature read at the inlet to the heat exchanger.
OUTLET TEMP: The temperature read at the outlet of the heat exchanger.
DELTA T: The temperature difference between the inlet and the outlet of the
heat exchanger.
FLUE TEMP: The temperature read by the flue sensor.
FLAME CURRENT: The current measured by the flame sense circuit.
FAN SPEED: The speed of the combustion blower.
BOILER PUMP: The status of the boiler pump output.
SYSTEM PUMP: The status of the system pump output.
DHW PUMP: The status of the DHW pump output.
BMS VOLTAGE: The voltage received from a BMS system.
BLR PUMP OUTPUT: The speed signal sent to a variable speed boiler pump in percent.
SYS PUMP INPUT: The speed signal received from a variable speed system pump control.
RATE OUTPUT: A 0 - 10V signal indicating the firing rate of the boiler.
SH RUN HOURS: The total hours of operation in the Space Heating Mode.
SH CYCLES: The total burner cycles in the Space Heating Mode.
DHW RUN HOURS: The total hours of operation in the DHW Mode.
DHW CYCLES: The total burner cycles in the DHW Mode.
LAST 10 FAULTS NO:* The last 10 lockouts.
NIGHT SETBACK Shows the next Night Setback trigger (if active).
Outdoor Knight XL User’s Information Manual

14
4 SMART SYSTEM control module
Status Display Screens (cont’d)
Section Display Description
D
(LEFT SELECT
key function)
MENU Press and hold the LEFT SELECT key for 5 seconds to enter the Menu
Screen.
EXIT Press the LEFT SELECT key to exit the current screen or setting.
YES Press the LEFT SELECT key to confirm that the boiler needs to
shutdown.
LIMITS Press the LEFT SELECT key to enter the screen that allows you to
adjust the limit settings.
HOME Press the LEFT SELECT key to return to the Status Screen and upload
parameter changes.
SKIP Press the LEFT SELECT key when in the Night Setback Screen to
access the Night Setback Skip Screen.
E
(NAVIGATION
Dial Function)
Turning the NAVIGATION dial will select the next or previous Status
Screen.
Pressing the NAVIGATION dial will show the next fault, NSB (Night
Setback) trigger, or ramp delay setting.
Pressing the NAVIGATION dial will select the setting indicated by
the cursor.
Pressing the NAVIGATION dial will display the Set Points Screen.
Turning the NAVIGATION dial will move the cursor up or down.
Turning the NAVIGATION dial will increase or decrease the current
setting.
F
(RIGHT SELECT
key function)
SHDN Press the RIGHT SELECT key to turn the boiler OFF.
ON Press the RIGHT SELECT key to turn the boiler ON.
NO Press the RIGHT SELECT key to cancel the shutdown operation.
SAVE Press the RIGHT SELECT key to save the current change.
HOME Press the RIGHT SELECT key to return to the Status Screen and
upload parameter changes.
Outdoor Knight XL User’s Information Manual

Notes
15
Outdoor Knight XL User’s Information Manual

Revision Notes: Revision A (ECO C11234) initial release.
OKB-USER Rev A
10/12
