Logic LCD8W18 Parts list manual

8kg Condenser Tumble
Dryer
Instruction / Installation Manual
LCD8W18
Logik Condenser Tumble Dryer LCD8W18 Manual.indd 1Logik Condenser Tumble Dryer LCD8W18 Manual.indd 1 16/09/2021 16:1816/09/2021 16:18

Logik Condenser Tumble Dryer LCD8W18 Manual.indd 2Logik Condenser Tumble Dryer LCD8W18 Manual.indd 2 16/09/2021 16:1816/09/2021 16:18

Contents
Safety Warnings...................................................................................................................................4
Unpacking............................................................................................................................................9
Installing Your Dryer .........................................................................................................................10
Choosing the Right Location for Your Dryer........................................................................................................ 10
Moving and Installing .......................................................................................................................11
Moving the Dryer from One Location to Another............................................................................................. 11
Levelling the Dryer........................................................................................................................................................ 11
Connecting to the Mains Supply ............................................................................................................................. 11
Product Overview..............................................................................................................................12
The unit ............................................................................................................................................................................. 12
Control Panel .................................................................................................................................................................. 13
Preparation ........................................................................................................................................14
Preparing to Tumble Dry Laundry........................................................................................................................... 14
Organising Laundry...................................................................................................................................................... 14
Selecting the Programme........................................................................................................................................... 15
Energy Consumption Values ..................................................................................................................................... 15
Dry Programme Setting ....................................................................................................................16
First Time Use.................................................................................................................................................................. 16
Selecting a Drying Cycle ............................................................................................................................................. 16
Tips for Optimum Drying............................................................................................................................................ 16
Cancelling a Programme ............................................................................................................................................ 17
Pausing a Cycle............................................................................................................................................................... 17
Removing Laundry and Switching O................................................................................................................... 17
Emptying the Water Tank............................................................................................................................................ 18
Setting the Child Lock.................................................................................................................................................. 18
Switching the Child Lock o...................................................................................................................................... 18
Adding the Delicate Option to a Programme ..................................................................................................... 19
Setting a Delay Timer................................................................................................................................................... 19
Switching the Beep o ................................................................................................................................................ 19
Maintenance – Cleaning the Dryer...................................................................................................20
Cleaning the Drum........................................................................................................................................................ 20
Cleaning the Exterior of your Dryer........................................................................................................................ 20
Cleaning the Door Seal and Window ..................................................................................................................... 20
Cleaning the Lint Filter ................................................................................................................................................ 20
Cleaning the Condenser ............................................................................................................................................. 21
Cleaning the Humidity Sensor.................................................................................................................................. 21
Hints and Tips ....................................................................................................................................22
Product Fiche .....................................................................................................................................24
Specications.....................................................................................................................................25
Logik Condenser Tumble Dryer LCD8W18 Manual.indd 3Logik Condenser Tumble Dryer LCD8W18 Manual.indd 3 16/09/2021 16:1816/09/2021 16:18

4
Safety Warnings
For your continued safety and to reduce the risk of injury or electric shock,
read all instructions carefully before using the unit and keep them for
future reference. Please follow all the safety precautions listed below.
Retain this manual. Include this manual if you pass the unit onto a third
party.
WARNING!
• Never allow large loads to remain in the dryer after each drying cycle
ends.
• Softener sheets can cause a waxy build-up on the lint lter. Wash the lint
lter in warm soapy water and dry it completely before replacing it in the
dryer.
• Do not leave damp items in a warm or hot dryer. Start the drying cycle
immediately and keep the exhaust opening clutter free.
• Do not climb on the dryer. You may hurt yourself or damage the dryer.
• If you will not be using the dryer for a while, such as when you go on
holiday, turn o the electricity supply to the dryer and remove the plug
from the socket.
• Never stop a tumble dryer before the end of the drying cycle unless all
items are quickly removed and spread out so that the heat is dissipated.
• Never store plastic, paper or clothing that may burn or melt on top of the
dryer during operation.
• Keep ammable substances well away from the dryer – for example
kerosene, gasoline, benzene, paint thinner and alcohol, or clothing
soaked with these. They may cause an explosion or a re.
• All airways (including wall vents) must be kept free from blockages.
• Never use the dryer without the lint lter.
• Do not place heavy or wet items on top of the product.
• Do not spill any liquid on the appliance, it may cause damage. Clean up
any accidental spillages immediately.
Logik Condenser Tumble Dryer LCD8W18 Manual.indd 4Logik Condenser Tumble Dryer LCD8W18 Manual.indd 4 16/09/2021 16:1816/09/2021 16:18

5
Installation
• Check that the voltage marked on the rating label matches your mains
voltage.
• The appliance must be placed on a at stable surface (not on a carpet)
and should not be subjected to excessive vibrations or any impact.
• Do not install your dryer anywhere that is exposed to high humidity,
water or the weather. If you do, it may cause an electric shock, re, failure
or deterioration.
• Your tumble dryer should NOT be located next to a gas hob, cooker,
heater, or eye-level grill as ames from the burners could cause damage
to your machine.
• DO NOT operate the dryer in an enclosed environment, ensure the dryer
is adequately ventilated.
• Do not stack the tumble dryer on top of other appliances.
• Any electrical work required to install the appliance should be carried
out by a qualied person.
• Failure to install, maintain and/or operate the dryer according to the
manufacturer’s instructions may result in conditions which can lead to
personal injury and/or property damage.
• The exhaust air must not be discharged into a ue that is used to extract
fumes from an appliance burning gas or other fuels.
• The appliance must not be installed behind a lockable door, a sliding
door or a door with a hinge on the opposite side to that of the tumble
dryer, in such a way that a full opening of the tumble dryer door is
restricted.
• Do not use a mains plug adapter or extension cable. It may overheat and
cause a re.
• Do not operate this dryer until you are sure the dryer has been installed
according to the INSTALLATION INSTRUCTIONS, and installation and
grounding are in compliance with all local codes and/or other applicable
codes and requirements.
• Before the appliance is removed from service or discarded, remove the
door of the drying compartment.
Logik Condenser Tumble Dryer LCD8W18 Manual.indd 5Logik Condenser Tumble Dryer LCD8W18 Manual.indd 5 16/09/2021 16:1816/09/2021 16:18

6
Caring for Laundry
• The dryer must only be used for its intended purpose.
• Always observe the rules for drying garments. If in doubt, do NOT tumble
dry.
• Take particular care that woolen articles are NOT dried in a tumble dryer
unless they are labelled ‘Superwash’,‘Machine Washable’ or have the ‘May
be tumble dried’ symbol. If in any doubt, do not dry wool in the machine.
Unlike other materials, the mechanism of wool shrinkage is irreversible,
i.e. it will not stretch back to its original size and shape.
• Do not dry water-proof sheets or clothing. These may cause dryer failure,
which could lead to injury, or damage to the laundry or to the dryer.
• Items such as foam rubber (latex foam), shower caps, waterproof textiles,
rubber backed articles and clothes or pillows tted with foam rubber
pads should not be dried in the tumble dryer.
• Fabric softeners, or similar products, should be used as specied by the
fabric softener instructions.
• Do not dry unwashed items in the tumble dryer.
• Do not attempt to dry dripping wet articles.
• Do not overload the dryer with laundry. Drying results may be
unsatisfactory.
• Be careful not to get your laundry caught in the door when you close it.
This could damage your laundry.
• Always check and remove objects such as nails, pins, coins, clips, etc.
Cigarette lighters, in particular, present a hazard that can be avoided by
this process. They could damage your laundry or the dryer.
• Do not dry articles that have been previously cleaned in, washed
in, soaked in, or spotted with gasoline, dry cleaning solvents, other
ammable, or explosive substances as they give o vapours that could
ignite or explode.
• Items that have been soiled with substances such as cooking oil,
acetone, alcohol, petrol, kerosene, spot removers, turpentine, waxes and
wax removers should be washed in hot water with an extra amount of
detergent before being dried in the tumble dryer.
Logik Condenser Tumble Dryer LCD8W18 Manual.indd 6Logik Condenser Tumble Dryer LCD8W18 Manual.indd 6 16/09/2021 16:1816/09/2021 16:18

7
General Use
• This appliance is for normal, indoor, household, domestic use only.
• The maximum mass of dry textile material to be used in the appliance is
8kg.
• Make sure the mains plug is pushed rmly in the socket. A loose
connection may overheat and cause electrical shock or a re.
• Check the mains plug regularly for dirt. If dirt accumulates on the mains
plug, it could cause a re. To prevent this, unplug the cable and clean the
mains plug with a dry rag.
• If you disconnect the mains plug, hold onto the mains plug not the
cable. Pulling the cable may cause an electric shock or a re.
• Do not touch the laundry inside the dryer, not until the drum has
completely stopped. Even if the drum is spinning at low speed it can
cause an injury. Take particular care of children.
• Do not operate the dryer with any guards and/or panels removed.
• Never attempt to operate this appliance if it is damaged, malfunctioning,
has missing or broken parts, including a damaged mains cable or plug.
• Do not bypass any safety devices.
• Do not touch the mains lead or mains plug with wet hands. It may cause
an electric shock.
• The nal part of a tumble dryer cycle occurs without heat (cool down
cycle) to ensure that the items are left at a temperature that ensures that
the items will not be damaged.
• This appliance can be used by children aged from 8 years and above
and persons with reduced physical, sensory or mental capabilities or
lack of experience and knowledge if they have been given supervision
or instruction concerning use of the appliance in a safe way and
understand the hazards involved. Children shall not play with the
appliance. Cleaning and user maintenance shall not be made by children
without supervision.
• Children of less than 3 years should be kept away unless continuously
supervised.
CAUTION: WHEN THE DRYER IS IN USE AVOID
TOUCHING THE REAR OF THE DRYER AS IT MAY
BE HOT.
Logik Condenser Tumble Dryer LCD8W18 Manual.indd 7Logik Condenser Tumble Dryer LCD8W18 Manual.indd 7 16/09/2021 16:1816/09/2021 16:18

8
Cleaning & Maintenance
• Clean the lint lter before and after every load.
• Clean the condenser every 30 drying cycles or once a month.
• If the supply cord is damaged, it must be replaced by the manufacturer,
its service agent or similarly qualied persons in order to avoid a hazard.
• Keep all the area surrounding exhaust openings free from accumulation
of dust, lint and dirt. An obstructed opening may reduce airow and
eciency.
• Do not use the dryer if industrial chemicals have been used for cleaning.
• Do not pour water directly onto any part of the dryer. It may cause a
short circuit or electric shock.
• Keep burning objects, such as candles or cigarettes, away from the dryer.
They may cause a re or damage.
• The interior of the machine and exhaust duct should be cleaned
periodically by qualied service personnel.
• Do not dismantle, repair or modify the dryer. The dryer could
malfunction and cause a re or injury. If service is required, contact a
qualied service agent.
IT IS HAZARDOUS FOR ANYONE OTHER THAN AUTHORISED
SERVICE PERSONNEL TO CARRY OUT SERVICING OF REPAIRS
WHICH INVOLVE THE REMOVAL OF COVERS.
TO AVOID THE RISK OF AN ELECTRICAL SHOCK DO NOT
ATTEMPT REPAIRS YOURSELF.
Logik Condenser Tumble Dryer LCD8W18 Manual.indd 8Logik Condenser Tumble Dryer LCD8W18 Manual.indd 8 16/09/2021 16:1816/09/2021 16:18

9

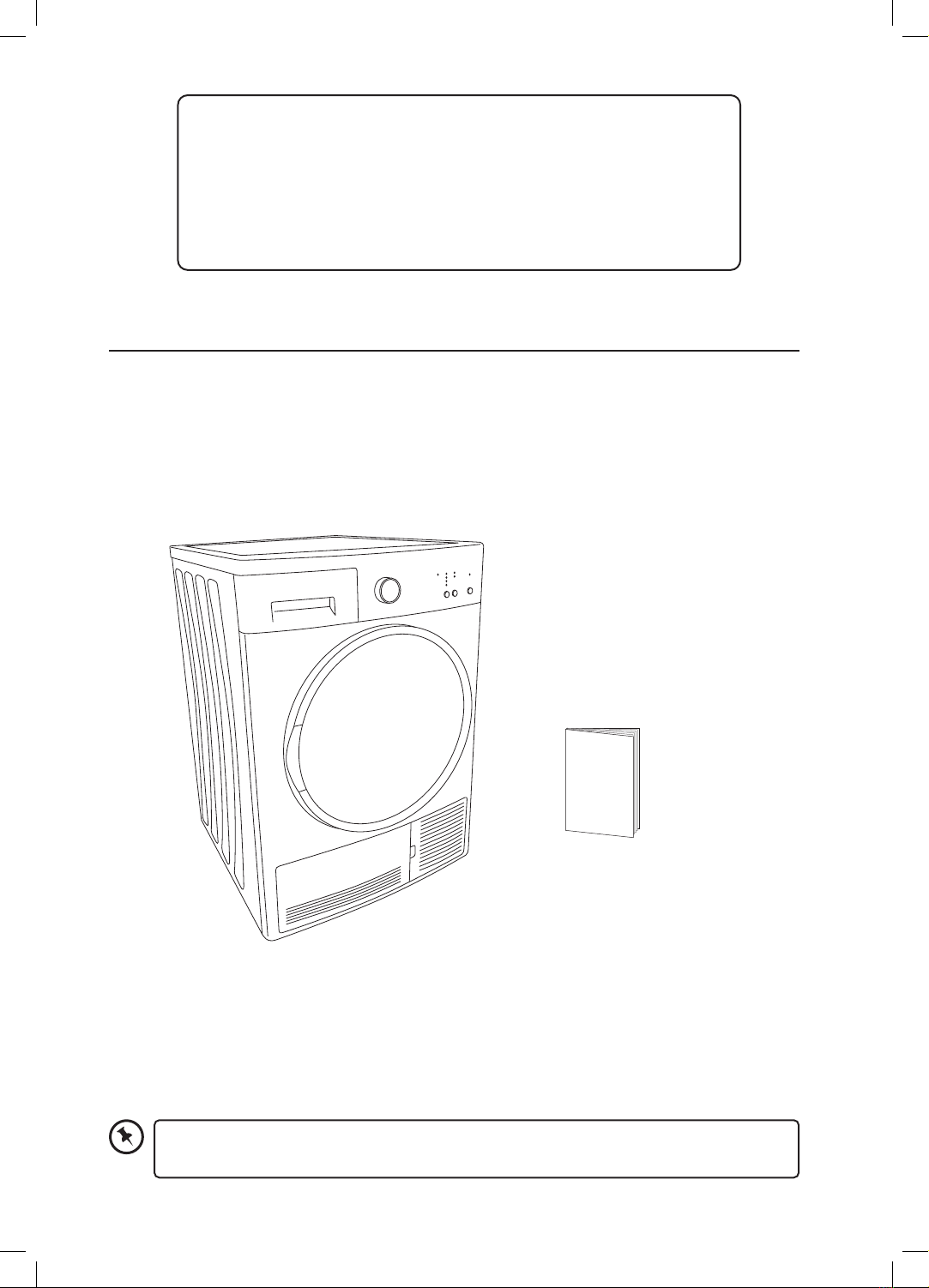

Unpacking
Remove all items from the packaging. Retain the packaging. If you dispose of it please do so
according to local regulations.
The following items are included:
The Main Unit
Instruction Manual
Instruction
Manual
Thank you for purchasing your new product.
We recommend that you spend some time reading this instruction
manual in order that you fully understand all the operational features it
oers.
Read all the safety instructions carefully before use and keep this
instruction manual for future reference.
If items are missing or damaged please contact Partmaster (UK only).
Tel: [phone] for assistance.
Logik Condenser Tumble Dryer LCD8W18 Manual.indd 9Logik Condenser Tumble Dryer LCD8W18 Manual.indd 9 16/09/2021 16:1816/09/2021 16:18

INSTALLATION
10
Installing Your Dryer
Please read and follow the instructions carefully.
• In addition to the instructions mentioned here, special regulations of the relevant
power supply companies may apply. If in doubt, have the dryer connected by a qualied
technician.
• The dryer is heavy - caution when lifting it. Do not lift by projecting components
(e.g. dryer door).
• Lay hoses and cables in such a way that there is no risk of tripping over them.
Choosing the Right Location for Your Dryer
• Make sure there is enough space for your dryer.
• Install your dryer on a at, stable surface to avoid excessive vibrations and noise.

Sloping
surface
Unstable Bumpy
surface
• Do not install your dryer in direct sunlight. If this appliance is installed in an unheated cold
room, the optimum ambient storage temperature must be 5°C or above. If placed below
this temperature, the appliance performance will be considerably aected and in some
instances may not even operate until the ambient temperature rises above 5°C.
• Start by tilting the dryer backwards.
• One person should stand behind it, holding the rear of the top panel. The other person
should grip the bottom feet at the front.
• Do not touch the door opening button (door handle) while holding.
• Check that you have all the required accessories for installation.
• Entrust the installation of the dryer to a qualied technician.
An additional space of (30mm) is required at the rear of the dryer.
Two or more people are required to move the dryer.
Logik Condenser Tumble Dryer LCD8W18 Manual.indd 10Logik Condenser Tumble Dryer LCD8W18 Manual.indd 10 16/09/2021 16:1816/09/2021 16:18
