Logitech Z-2300 User manual

Setup

Installation

Instalación

Logitech®

Z-2300

Z-2300 Manual_AMR.id 5/12/04, 10:16 AM1

About your Logitech® Z-2300 Speaker System

English

Safety

English

• Read these instructions.

• Keep these instructions.

• Heed all warnings.

• Follow all instructions.

• Unplug the speakers from the computer and from

the electrical outlet before cleaning them with a

dry cloth.

• Install in accordance with the manufacturer’s

instructions.

• Place the speakers in a stable location so they will

not fall causing damage to the speakers or bodily

harm.

• Do not use the speakers near water, and do not

immerse them in any liquid or pour any liquid on

them.

• Do not block the openings in the speaker

cabinets, never push objects into speaker vents or

slots because of fire or electric shock hazards, and

provide sufficient space around the speakers for

proper ventilation.

• Do not install near any heat sources such as

radiators, heat registers, stoves, or other apparatus

(including amplifiers) that produce heat.

• Do not defeat the safety purpose of the polarized

plug. A polarized plug has two blades with one

wider than the other. The wide blade is provided

for your safety. If the provided plug does not

fit into your outlet, consult an electrician for

replacement of the obsolete outlet.

• Operate the speakers only from the low level

audio line out jack of the computer or of an audio

device.

• Protect the power cord from being walked on

or pinched particularly at plugs, convenience

receptacles, and the point where they exit from

the apparatus.

• No naked flame sources, such as lighted candles,

should be placed on the apparatus.

• Only use attachments/accessories specified by the

manufacturer.

• For added protection during lightning storms,

unplug the speakers from the electrical outlet and

turn off the computer.

• Unplug this apparatus when unused for long

periods of time.

• Servicing is required when the apparatus has

been damaged in any way, such as when the

power-supply cord or plug has been damaged,

liquid has been spilled or objects have fallen into

the apparatus, the apparatus has been exposed

to rain or moisture, does not operate normally, or

has been dropped.

• Refer all servicing to qualified service personnel.

• The speakers should be disconnected from the

mains by placing the power/standby switch in the

standby position and unplugging the power cord

of the speakers from the AC mains receptacle.

• The socket-outlet shall be installed near the

equipment and shall be easily accessible.

WARNING:

TO REDUCE THE RISK OF FIRE OR ELECTRIC

SHOCK, DO NOT EXPOSE THIS APPARATUS TO

RAIN OR MOISTURE.

IMPORTANT SAFETY INFORMATION

CAUTION

ELECTRIC SHOCK HAZARD

volume

bass

–+

volume

bass

–+

Thank you for purchasing the Z-2300 speaker system from Logitech. Your Z-2300 speakers are easy to use and produce

great sound. To discover more Logitech products, or if you have questions about your Z-2300 speakers, visit us on the

web at www.logitech.com.

volume

bass

–+

volume

bass

–+

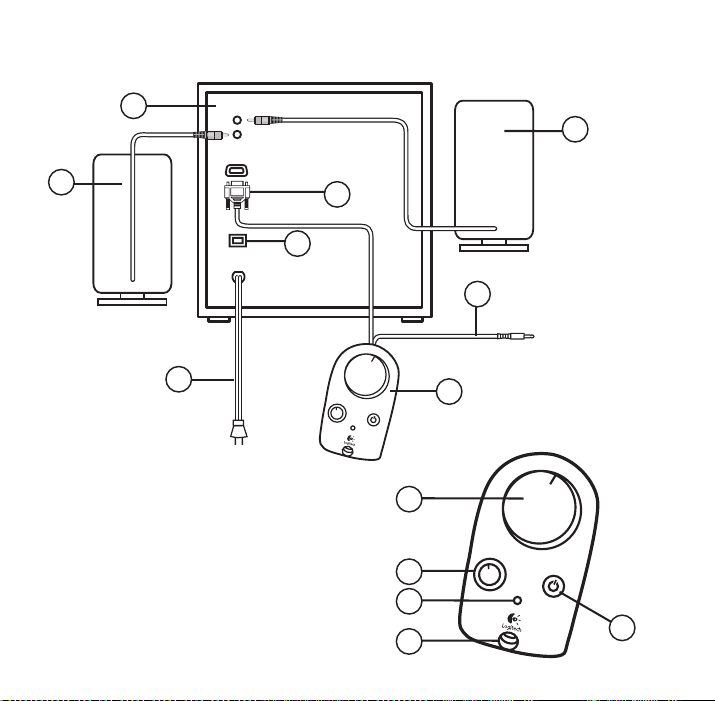

1. Subwoofer

2. Right speaker

3. Power cord

4. Wired remote control

5. Audio input cable to PC — green plug

6. Left speaker

7. D-sub plug

8. Power/Standby switch

A. System volume

B. Subwoofer volume

C. Power LED

D. Headphone jack

E. Power/Standby button

Z-2300 Manual_AMR.id 5/12/04, 10:16 AM2-3

About your Logitech® Z-2300 Speaker System

English

Safety

English

• Read these instructions.

• Keep these instructions.

• Heed all warnings.

• Follow all instructions.

• Unplug the speakers from the computer and from

the electrical outlet before cleaning them with a

dry cloth.

• Install in accordance with the manufacturer’s

instructions.

• Place the speakers in a stable location so they will

not fall causing damage to the speakers or bodily

harm.

• Do not use the speakers near water, and do not

immerse them in any liquid or pour any liquid on

them.

• Do not block the openings in the speaker

cabinets, never push objects into speaker vents or

slots because of fire or electric shock hazards, and

provide sufficient space around the speakers for

proper ventilation.

• Do not install near any heat sources such as

radiators, heat registers, stoves, or other apparatus

(including amplifiers) that produce heat.

• Do not defeat the safety purpose of the polarized

plug. A polarized plug has two blades with one

wider than the other. The wide blade is provided

for your safety. If the provided plug does not

fit into your outlet, consult an electrician for

replacement of the obsolete outlet.

• Operate the speakers only from the low level

audio line out jack of the computer or of an audio

device.

• Protect the power cord from being walked on

or pinched particularly at plugs, convenience

receptacles, and the point where they exit from

the apparatus.

• No naked flame sources, such as lighted candles,

should be placed on the apparatus.

• Only use attachments/accessories specified by the

manufacturer.

• For added protection during lightning storms,

unplug the speakers from the electrical outlet and

turn off the computer.

• Unplug this apparatus when unused for long

periods of time.

• Servicing is required when the apparatus has

been damaged in any way, such as when the

power-supply cord or plug has been damaged,

liquid has been spilled or objects have fallen into

the apparatus, the apparatus has been exposed

to rain or moisture, does not operate normally, or

has been dropped.

• Refer all servicing to qualified service personnel.

• The speakers should be disconnected from the

mains by placing the power/standby switch in the

standby position and unplugging the power cord

of the speakers from the AC mains receptacle.

• The socket-outlet shall be installed near the

equipment and shall be easily accessible.

WARNING:

TO REDUCE THE RISK OF FIRE OR ELECTRIC

SHOCK, DO NOT EXPOSE THIS APPARATUS TO

RAIN OR MOISTURE.

IMPORTANT SAFETY INFORMATION

CAUTION

ELECTRIC SHOCK HAZARD

volume

bass

–+

volume

bass

–+

Thank you for purchasing the Z-2300 speaker system from Logitech. Your Z-2300 speakers are easy to use and produce

great sound. To discover more Logitech products, or if you have questions about your Z-2300 speakers, visit us on the

web at www.logitech.com.

volume

bass

–+

volume

bass

–+

1. Subwoofer

2. Right speaker

3. Power cord

4. Wired remote control

5. Audio input cable to PC — green plug

6. Left speaker

7. D-sub plug

8. Power/Standby switch

A. System volume

B. Subwoofer volume

C. Power LED

D. Headphone jack

E. Power/Standby button

Z-2300 Manual_AMR.id 5/12/04, 10:16 AM2-3

Specifications and Warranty

English

Setup and Operation

English

Setting up your Logitech® Z-2300 speakers

Important: For your safety, set up the system before plugging it into a power source.

1. Before attaching the cables to the subwoofer, position the two satellite speakers on either side of your computer.

Depending on where you place your speakers, adjust them to direct the sound toward you. For best sound quality,

place the subwoofer on the floor beneath your desk. Be sure to allow a minimum of 6 inches around all sides of

subwoofer for adequate ventilation. Place the remote control within easy reach.

2. Connect the D-Sub plug from the remote control to the subwoofer as shown on the previous page. Carefully align

the pins before inserting the plug.

3. A. If you have a PC:

• Plug the green audio input cable from the remote control into the speaker output on your PC.

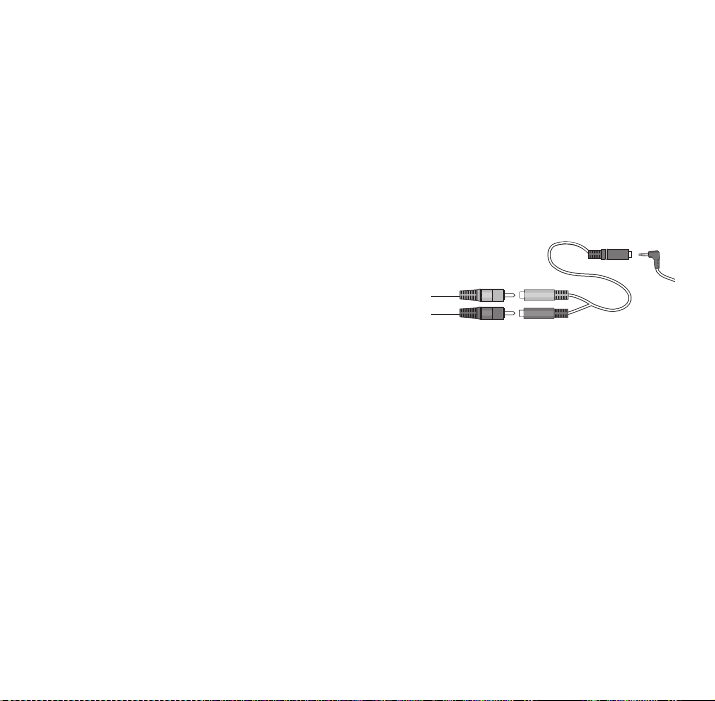

B. If you have a video game console (PlayStation®, PlayStation®2, Xbox™, or GameCube®):

• Connect the green plug from the audio input cable to the

green jack on the included game console adapter.

• Connect the red and white RCA audio cables from your

video game console to the RCA audio jacks on the game

console adapter.

4. Plug the subwoofer’s power cord into an electrical outlet.

Enjoying your Logitech® Z-2300 speakers

Access these controls on the remote control:

Power/Standby

Toggles between power on and standby mode.

System Volume

Adjusts the overall system volume.

Bass

Adjusts the bass level of the subwoofer.

Headphone Jack

When headphones are used with your Z-2300 system, the speakers will mute automatically for private listening.

Headphone volume is controlled by the system volume knob on your remote control pod.

Specifications

• Total RMS Power: 200 Watts

Satellites: 80 watts RMS (2 x 40 w) into 8 ohms at 1 kHz at 10% THD (total harmonic distortion)

Subwoofer: 120 watts RMS into 8 ohms at 100Hz at 10% THD (total harmonic distortion)

• Total Peak Power: 400 Watts at <10% THD

• System THD: Better than 0.05% THD before clipping

• Signal to noise ratio: @ 1kHz >100dB

• Frequency response: 35 Hz - 20 kHz

• Driver Size: 2.5” polished aluminum phase plug drivers, 8” long-throw with 6th order bass reflex

enclosure subwoofer

• Speaker dimensions:

Satellites: (H) 6.75” x (W) 3.5” x (D) 6”

Subwoofer: (H) 11” x (W) 11” x (D) 15”

Limited Warranty

Logitech warrants that any hardware product accompanying this documentation shall be free from significant defects in material and

workmanship for a period of two (2) years from the date of purchase. Logitech’s limited warranty is nontransferable and is limited to

the original purchaser. This warranty gives you specific legal rights, and you may also have other rights which vary under local laws.

Remedies. Logitech’s entire liability and your exclusive remedy for any breach of warranty shall be, at Logitech’s option, to: (a) repair or

replace the hardware, provided that the hardware is returned to the point of purchase or such other place as Logitech may direct, with

a copy of the sales receipt, or (b) refund the price paid. Any replacement hardware will be warranted for the remainder of the original

warranty period or thirty (30) days, whichever is longer. These remedies are void if failure of the hardware has resulted from accident,

abuse, or misapplication, or any unauthorized repair, modification or disassembly. Upon request from Logitech, you must prove the

date of original purchase of the hardware by a dated bill of sale or dated itemized receipt.

Disclaimer of warranty. the warranties expressly set forth in this agreement replace all other warranties. Logitech AND ITS SUPPLIERS

expressly disclaim all other warranties, including, but not limited to, the implied warranties of merchantability and fitness for a

particular purpose and noninfringement of third-party rights with respect to the HARDWARE. No Logitech dealer, agent, or employee

is authorized to make any modification, extension, or addition to this warranty. Some jurisdictions do not allow limitations on how long

an implied warranty lasts, so the above limitation may not apply to you.

Limitation of liability. In no event will Logitech or its suppliers be liable for any costs of procurement of substitute products or services,

lost profits, loss of information or data, or any other special, indirect, consequential, or incidental damages arising in any way out of the

sale of, use of, or inability to use any logitech product or service, even if Logitech has been advised of the possibility of such damages.

In no case shall Logitech’s AND ITS SUPPLIERS’ TOTAL liability exceed the actual money paid for the LOGITECH product OR SERVICE

GIVING RISE TO THE LIABILITY. Some jurisdictions do not allow the exclusion or limitation of incidental or consequential damages, so

the above limitation or exclusion may not apply to you. The above limitations will not apply in case of personal injury where and to the

extent that applicable law requires such liability.

registered. All other trademarks are the property of their respective owners. Logitech assumes no responsibility for any errors that may

appear in this manual. Information contained herein is subject to change without notice.

Z-2300 Manual_AMR.id 5/12/04, 10:16 AM4-5
