Longse LIC120SSP User manual

LIC120SSP Color Camera
Weatherproof IR Color Camera
Model Number
User Guide LIC120SHP 1
Weatherproof IR Color Camera LIC120SHP 1
Franchiser：
Notes:Before providing power for the
camera, please read this User Guide in
detail!
Do not attempt to disassemble the camera.
If the camera can not work, please contact
local franchiser or our company.
LIC120SSP
1/3" SONY EXview HAD CCD II
NTSC:976(H)×494(V),PAL:976(H)x582(V)
700 TV Line
0.001 Lux
52dB
2:1 interface
Internal, Negative sync.
NTSC: 1/60s~1/100,000s, PAL: 1/50s~1/100,000s
0.45
120 Meters (with ￠42X4 PCS Infrared LED)
Under 10Lux by CDS
CDS AUTO Control
1Vpp, 75Ω
Auto
DC12V(+/-10%)/1500mA
5‐50mm Manual Zoom Lens
230(W)x180(H)x115(D)
2100
-30~+60℃ RH95% MAX
-10~+45℃ RH95% MAX
Specification
Packing List
No Name
2.
1.
Model
Pick up Element
Effective Picture Elements
(H×V)
Horizontal Resolution
Minimum Illumination
S/N Ratio
Scanning System
Synchronous System
Auto Electronic Shutter
Gama Characteristic
IR Distance
IR Status
IR Power On
Video Output
Auto Gain Control
Power/Current
Lens
Dimension (mm)
Weight (g)
Storage Temperature
Operating Temperature

INTRODUCTION
Congratulations on your purchase of this product.
This User Guide suits LIC120SHP product. We adopt the
latest SONY technical of sensor and driver. The most
attractive characteristics are small and easy hidden, suits
the elevator and corridor. In addition, it owns the
characters of high definition and stability, strong anti-
jamming, rich and real color. Fixing and using this model
are convenient too. It is very good for you to apply to your
CCTV system.
Please read this instruction manual carefully to
ensure proper use of the product.

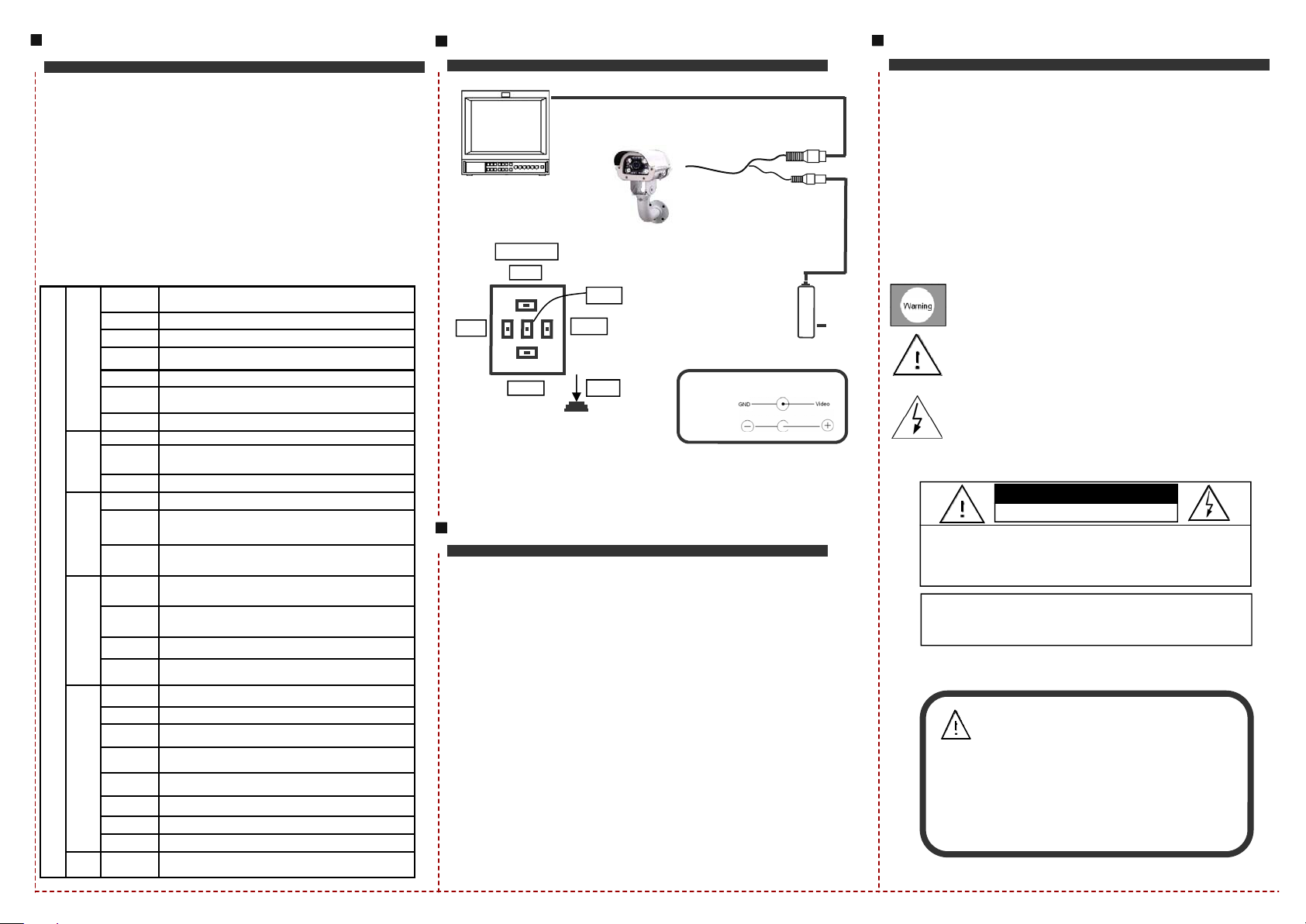

CONNECTING
BRIEF OF PRODUCT
* Sensor (CCD)
Adopt SONY 1/3" CCD Sensor.
* Auto Gain Control (AGC)
Built-in auto gain control (AGC) circuit. The color camera
can get high definition picture in low Lux condition.
* Scanning Mode
NTSC or PAL mode.
* Water Resistance
IP66.
* OSD SETTING
DC12V Power Supply
Monitor
LIC120SHP
TROUBLE AND SOLUTION
Link wire rule：
Power
Video
Note:
● Please note the camera’s operating temperature and its using
environment requirement. Avoid using the camera at too high or
too low temperatures. The operating temperature is -30~+60℃.
(Recommendatory operating temperature is -10~+45℃.)
● Never make the camera face the sun or bright object.
Otherwise, it will damage the CCD.
● Do not mount the camera near by the radiator or heater.
1. No Picture after providing power
. May be the power supply voltage abnormity, please check the power
supply voltage and pole whether exactitude.
. Please check all the connecting cable and monitors whether be connected
correctly or not.
2. The picture level direction have flowing interference ripples
. May be caused by the power supply AC ripples, it need filter the wave of the
power supply.
. Check the monitor and peripheral equipments used.
3. The picture background color changes continuously
. The fluorescent lamp’s electromagnetic field cause color roll. This is proper
phenomenon of the cameras.
. Reduce the fluorescent lamp numbers or increase the distance between the
camera and the fluorescent lamps can improve it.
. Use power supply external sync. camera can solve it.
4. The picture smear too mass
. The power supply’s voltage unstable.
. Connecting cables not connect correctly or have high impedance.
To prevent fire or shock hazarded. Do not expose the unit
The symbol is intended to alert the user to the presence of
The symbol is intended to alert the user to the presence of
to rain or moisture.
important operating and maintenance (servicing)
Instructions in the literature accompanying the appliance.
uninsulated ‘dangerous voltage’ within the product’s
enclosure that may be of sufficient Magnitude to constitute
a risk of electric shock to persons.
Video
DC12V
CAUTION:
CAUTION: TO REDUCE THE RISK OF ELECTRIC
SHOCK
DO NOT REMOVE COVER OR BACK NO USER
SERVICEABLE PARTS INSIDE. REFER SERVICING
RISK OF ELECTRIC. DO NOT OPEN
CAUTION: TO PREVENT ELECTRIC SHOCKS AND RISK OF
FIRE HAZARDS, DO NOT USE OTHER THAN
SPECIFIED POWER SOURCE.
OSD
SET
AE
mode
Standard AE
SWDR Level :0~8, DWDR: On/Off
BLC Level : Auto/Low/Middle/High
HLC Set range, Level : Low/Middle/High, Mask grayscale:1~6
Face AE Frame : Off/On ,Sensitivity : 0~11
Face
auto zoom
Frame:Off/On, Sensitivity : 0~11, Warning trigger :High/Low/
Off, Warning seconds
Demist Level : Auto/Low/Middle/High
Color
adjust
AWB AWB,ATW,F/A,U30,CWF,D50,D65,D75
Brightness:0~99,Color-Red:0~99,Color-Green:0~99,Color-
Blue:0~99,Contrast:0~99,Saturation:0~99
CR suppress Off, On
Adjust
Day & Night Off, On, Auto, Ext
Digital slow
shutter
Auto,1/50,
(1/60),1/100,1/250,1/500,1/2000,1/5000,1/10000,1/100000,1x
,2x,3x,4x,5x,6x,7x,8x,16x,32x,64x,128x,256x
3D-NR: 0~3, 2D-NR-1: 0~32, 2D-NR-2: 0~32, Sharpen:
0~32, FC-suppress: 0~15, Blemish compensation: 0~3
Intellige
nt
Face
detectoin
Switch: Off/On, Frame: Off/On, Sensitivity: 0~11, Warning
trigger: High/Low/Off, Warning seconds: 0~65535
Motion
detection
Switch: Off/On, Set range, Sensitivity: -2~2, Warning trigger:
High/Low/Off, Warning seconds: 0~65535
D-Zoom D-Zoom: 1~256, Tilt: -100~100, Pan: -100~100
Privacy mask Opacity: 0~3, Mask select :1~8, Set mask area, Switch: Off/
On, Mask color: 0~65535
System
setting
Lens Manual/DC-Indoor/DC-Outdoor
IR input level High/Low
Smart IR
control Off/On
Camera ID 0~255
Baud rate 1200/2400/4800/9600/19200/38400/57600/115200/230400/
460800
AC Freq 50Hz, 60Hz
Language English, Francais, Espanol,Pyccknn, Chinese
Show ID/Icon show icon, show ID, show ID/Icon, Off
Informa
tion
Version
information
MENU
UP
DOWN
RIGHT
LEFT
PRESS
KEY BOARD
