Longshine LCS-C824MC User manual

User’s Manual
Gigabit Multi-mode SX
to
Single Mode LX Converter

COPYRIGHT
All rights reserved. No part of this publication may be reproduced,
stored in a retrieval system, or transmitted in any form or by any
means, whether electronic, mechanical, photo copying, recording
or otherwise, without the prior written permission of the publisher.
FCC WARNING
This equipment has been tested and found to comply with the
limits for class A device, pursuant to part 15 of FCC rules. These
limits are designed to provide reasonable protection against
harmful interference in a commercial installation. This equipment
generates, uses and can radiate radio frequency energy and, if not
installed and used in accordance with the instructions, may cause
harmful interference to radio communication. Operation of this
equipment in a residential area is likely to cause harmful
interference, in which case, the user will be required to correct the
interference at the user’s own expense.

Table of Contents
1. Introduction
Product Overview ............................. 1
Features ............................. 4
Specifications ............................. 5
Package Contents ............................. 6
2. Installation
SC Connector ............................. 7
Positioning of Converters ............................. 9
3. LED Indicators
LED Indicators ............................. 12
A. Appendix
Internal Power Supply ............................. 13
Coverter Mounting ............................. 14
Cable ............................. 13

1
Introduction
Product Overview
The Gigabit Multi-mode to Single Mode Converter range is primarily
designed for network or data installations that require extended
fiber distances between 850nm & 1300nm fiber mediums. Used
individually or in conjunction with other converters, the fiber cable
distances can now be greatly increased.
These Converters have been designed to support SC fiber optic
connectors for Multi-mode and Single-mode configurations. It can
also be adapted to used ST, MT-RJ and WDM type connectors,
thereby widening its application across different types of networks.
This flexibility allows the converter to easily connect to a Gigabit
network using the existing connectors and fibers found in today’s
networking environments.
At full-duplex, these converters can create potential distances of
up to 30km with single mode to single mode fiber between two
respective nodes. This media converter is designed for simple 'plug-
n-go' installation into a Gigabit network environment.

Features
lComplies with IEEE 802.3z standard
lSupports Multi-mode & Single Mode fiber
lExtends fiber distance of up to 10km per
segment (max. possible distance of 30km with converter
situated in the middle of two segments)
lCompatible with other Gigabit Multi-mode to Single Mode
devices
lStatus LEDs for power & link to
easily monitor network activity
lInternal and external power supply options
lFCC Class A & CE approved

Specifications
Standard: IEEE 802.3z
Connector: ST, SC, MT-RJ and WDM for Multi-mode and
Single Mode applications
Max. Distance: Gigabit: Multi-mode 220m (62.5 µm)
500m (50 µm)
Single Mode 10km (9 µm)
Unit LEDs: Power - Green- illuminates for normal
operation
Port LEDs: Link - Green- illuminates when receiving link
pulses
Power: External power supply, 12VDC at 0.8A
(please see Appendix A - Internal Power
Supply)
Temperature: Operating: 0 to 70OC
Storage: -20 to 70OC
Humidity: Operating: -10% to 90%RH
Storage: - 5% to 90%RH
Emissions: FCC Part 15 of Class A & CE Approval
Dimensions: 110 x 68 x 23 mm (LxWxH)
(please see Appendix A - Internal Power
Supply)

Package Contents
lOne Converter
lOne AC adapter (external power supply)
lOne power cord (internal power supply)
lFour self-adhesive pads
lOne user’s manual

2
Installation
To successfully install your converter, please refer to the following
procedures:
lFiber Connector Plugs
lConverter Configurations
Fiber Connector Plugs
This converter uses industry standard fiber connectors that are
factory fitted with protective rubber plugs. The plugs ensure that the
connectors are kept clean by protecting them from outside
environments.
The optimum transfer of data is achieved through the use of clean
and dust free connectors - insert the protective plugs at times when
the converter is not in use.

Converter Configurations
The following diagrams are possible configurations that will expand
the physical distance of a Gigabit. They are especially suitable for
campus or premise backbones applications.

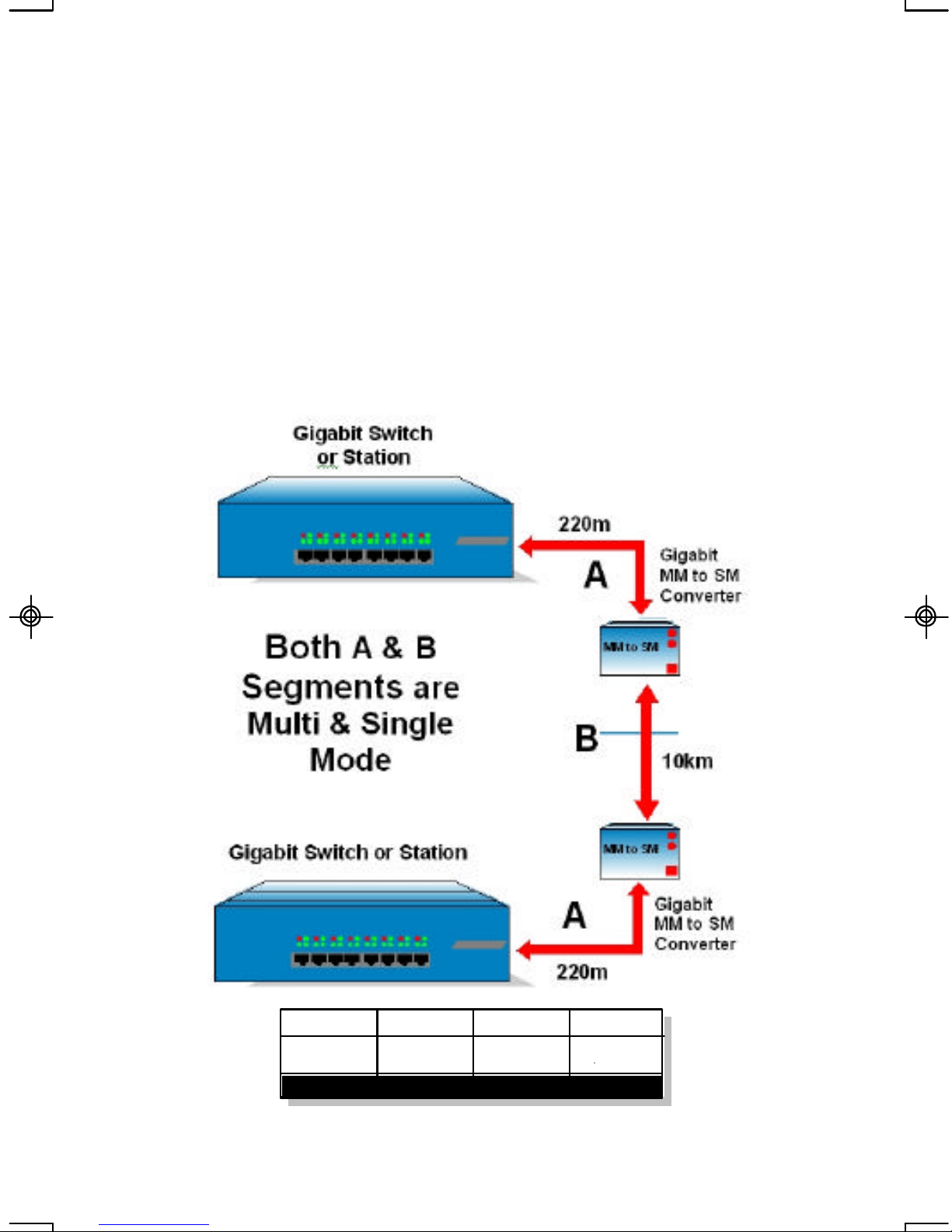

Example 1
Multi-mode to Single Mode
Total A +B
10.44km
m
km
Fiber Mode
850/1300nm
Segment A
440m
Segment B
10 km
Above Distances Based on Full-Duplex Operation

Example 2
Single Mode to Single Mode
TotalA +B
30 km
Fiber Mode
850/1300m
Segment A
20 km
Segment B
10 km
Above Distances Based on Full-Duplex Operation

3
LED Indicators
This converter has several LEDs to enable you to determine the
status of the converter and the connection across your network.
They are as follows:
PWR Power – Green– illuminates to indicates
normal operation
LNK Link– Green– illuminates when receiving
link pulses from compliant
devices

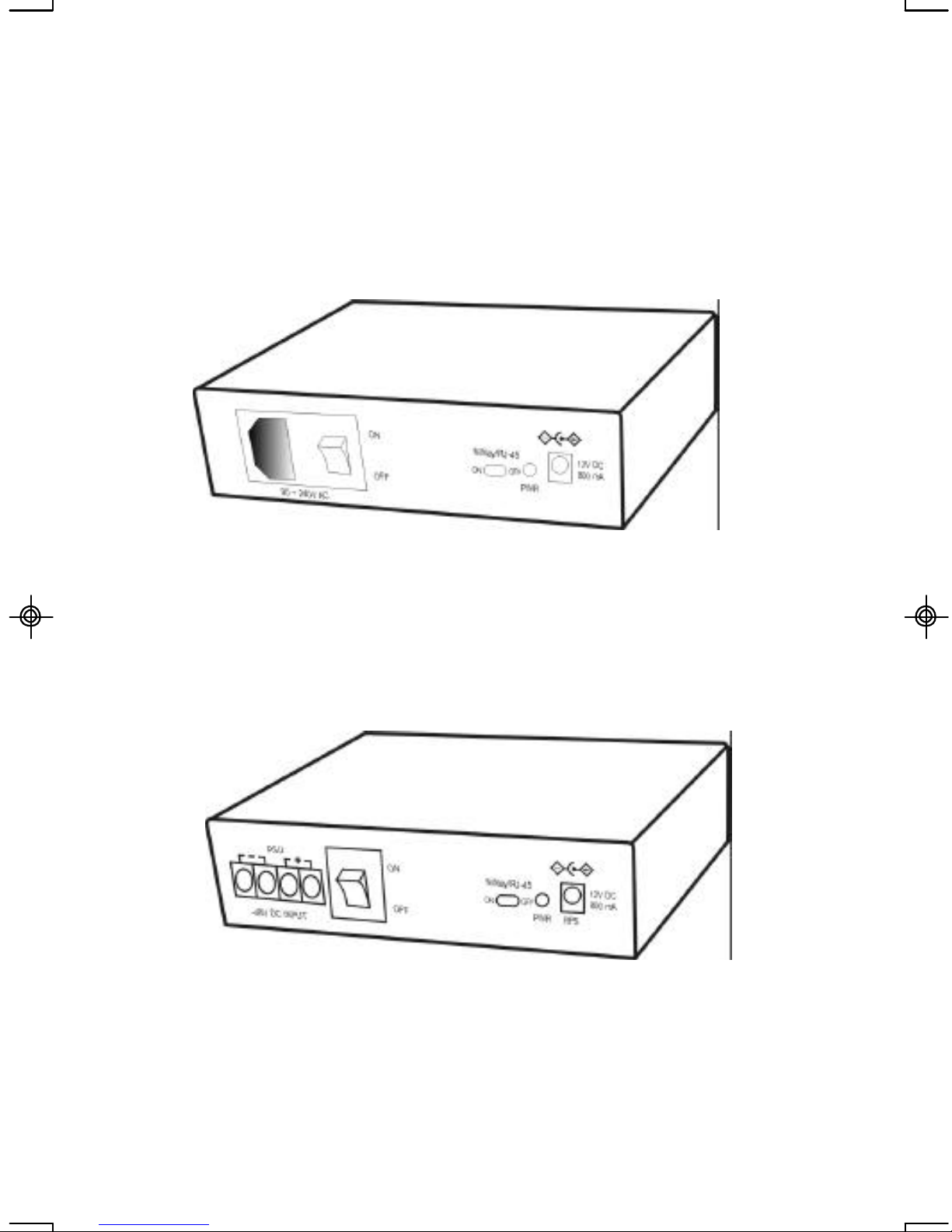

Rear View of Converter with AC Power Supply
Power: 90 - 240V AC (Optional 12V Adapter)
Dimensions: 109 x 174 x 44.3 mm (LxWxH)
Rear View of Converter with DC Power Supply
Power: -48V DC (Optional 12V Adapter)
Dimensions: 109 x 174 x 44.3 mm (LxWxH)
Appendix A
Internal Power Supply Models

Appendix B
Converter Mounting
This converter can be placed in any location that will make its
installation convenient. If you place the converter on a horizontal
surface or on top of existing networking equipment, please affix the
four rubber pads included in the package.
This converter can also be mounted on a vertical surface. Simply
use the underside of the unit as a template to measure and mark
out the position of the holes on to the surface where the unit is to
be installed. Then use two screws to mount the converter firmly in
place.
Please exercise caution when using power tools. Also, install this
unit away from damp or wet locations, or in close proximity to very
hot surfaces. These types of environments can have a detrimental
effect on the converter and cables. An ideal location is a lightly
cooled place such as a typical equipment room.

Appendix C
Cables
The following are some recommendations as to what you should
and should not do when installing cables. Remember - cables are
the deciding factor in network performance.
24mm
6mm
Try to
maintain
a bend
radius of
(min.) 4x
the diameter
of the cable
for UTP and
100x for fiber.
Try not to
allow the
cable to
twist too
much -this
creates a
strain on
the internal
cables.
Place cable ties
at regular
intervals -do
not over tighten
cable ties -try
to avoid using
with fiber.
Do not stretch
the cable
especially on
corners, in
vertical cable
trays and when
spanning long
distances.

Pin 1TD+ Pair 2White/Orange
Pin 2TD-Pair 2Orange/White
Pin 3RX+ Pair 3White/Green
Pin 4N/A Pair 1Blue/White
Pin 5N/A Pair 1White/Blue
Pin 6RX-Pair 3Green/White
Pin 7N/A Pair 4Brown/White
Pin 8N/A Pair 4Brown/White

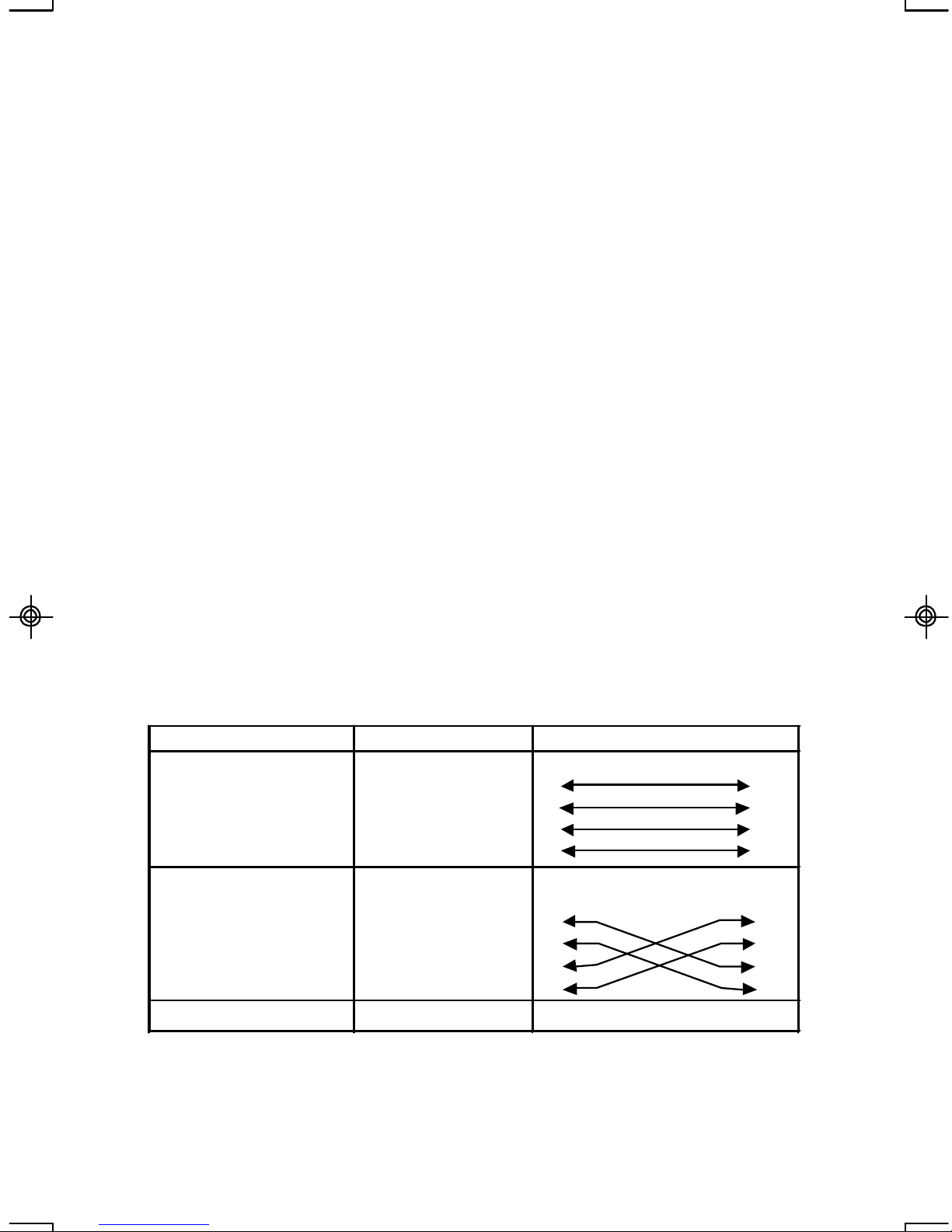

Application Cable Type Application
Converter
to
Converter
or
Network Adapter
Straight-through
Cable
Converter Hub
1 1
22
33
66
Converter
to
Switch
Cross-Over
Cable
Converter Converter
1 1
22
33
66
Appendix D
About RJ-45 Cables
When connecting your network devices, use standard Category 3
eight-way cables for 10Base-T configurations and Category 5 cable
for 100Base-TX and 1000Base-TX. The pin assignments are as
follows:
