LORD R1 User manual

User manual
Návod k obsluze
Návod na obsluhu
TOTAL NOFROST FRIDGE
CHLADNIČKA S FUNKCÍ NOFROST
CHLADNIČKA S FUNKCIOU NOFROST
R1

2
Dear customer:
Thank you for purchasing this device. To ensure that you get the best results from your
new appliance, read the simple instructions in this brochure.
Please ensure that the packing material is disposed of in accordance with the current
environmental requirements.
When disposing of any equipment please contact your local waste disposal
department for advice on safe disposal.
This appliance must be only used for its intended purpose. This appliance is intended
to be used in household.

3
CONTENT
SAFETY INFORMATION ................................................................................................4
OVERVIEW ...................................................................................................................11
INSTALLATION.............................................................................................................12
Space Requirement..............................................................................................................................12
Positioning...............................................................................................................................................12
Location....................................................................................................................................................12
Electrical connection ...........................................................................................................................12
Door Reversibility..................................................................................................................................13
Easy open handle installation...........................................................................................................17
Space requirement ...............................................................................................................................18
Levelling the unit ..................................................................................................................................18
USER .............................................................................................................................19
Using the Control Panel......................................................................................................................19
DAILY USE ....................................................................................................................21
First use.....................................................................................................................................................21
Daily use ...................................................................................................................................................21
Helpful hints and tips...........................................................................................................................22
Cleaning....................................................................................................................................................23
Replace the lamp...................................................................................................................................23
Troubleshooting....................................................................................................................................24

4

SAFETY INFORMATION
In the interest of your safety and to ensure the correct use, before
installing and rst using the appliance, read this user manual
carefully, including its hints and warnings. To avoid unnecessary
mistakes and accidents, it is important to ensure that all people
using the appliance are thoroughly familiar with its operation and
safety features. Save these instructions and make sure that they
remain with the appliance if it is moved or sold, so that everyone
using it through its life will be properly informed on appliance use
and safety.
For the safety of life and property keep the precautions of these
user’s instructions as the manufacturer is not responsible for
damages caused by omission.
Children and vulnerable people safety
• Thisappliancecanbeusedbychildrenagedfrom8yearsand
above and persons with reduced physical, sensory or mental
capabilities or lack of experience and knowledge if they have
been given super vision or instruction concerning use of the
appliance in a safe way and understand the hazards involved.
• Childrenagedfrom3to8yearsareallowedtoloadandunload
this appliance.
• Childrenshouldbesupervisedtoensurethattheydonotplay
with the appliance.
• Cleaningandusermaintenanceshallnotbemadebychildren
unless they are aged from 8 years and above and supervised.
• Keepallpackagingwellawayfromchildren.Thereisriskof
suocation.
• Ifyouarediscardingtheappliancepulltheplugoutofthe
socket, cut the connection cable (as close to the appliance as
you can) and remove the door to prevent playing children to
suer electric shock or to close themselves into it.

5
• Ifthisappliancefeaturingmagneticdoorsealsistoreplacean
older appliance having a spring lock (latch) on the door or lid, be
sure to make that spring lack unusable before you discard the
old appliance. This will prevent it from becoming a death trap for
a child.
General safety

WARNING!Keepventilationopenings,intheappliance
enclosure or in the built-in structure, clear of obstruction.

WARNING! Do not use mechanical devices or other means to
accelerate the defrosting process, other than those recommended
by the manufacturer.

WARNING! Do not damage the refrigerant circuit.

WARNING! Do not use other electrical appliances (such as ice
cream makers) inside of refrigerating appliances, unless they are
approved for this purpose by the manufacture.

WARNING! Do not touch the light bulb if it has been on for a
long period of time because it could be very hot.*

WARNING! When positioning the appliance, ensure the supply
cord is not trapped or damaged.

WARNING! When positioning the appliance, ensure the supply
cord is not trapped or damaged.
• Donotstoreexplosivesubstancessuchasaerosolcanswitha
ammable propellant in this appliance.
• Therefrigerantisobutane(R-600a)iscontainedwithinthe
refrigerant circuit of the appliance, a natural gas with a high
level of environmental compatibility, which is nevertheless
ammable.
• Duringtransportationandinstallationoftheappliance,be
certain that none of the components of the refrigerant circuit
become damaged.
- avoid open ames and sources of ignition
- thoroughly ventilate the room in which the appliance is
situated

6
• Itisdangeroustoalterthespecicationsormodifythisproduct
in any way. Any damage to the cord may cause a short circuit,
re and/or electric shock.
• Thisapplianceisintendedtobeusedinhouseholdandsimilar
applications such as
- sta kitchen areas in shops, oces and other working
environments;
- farm houses and by clients in hotels, motels and other
residential type environments;
- bed and breakfast type environments;
- catering and similar non-retail applications.

WARNING! Any electrical components(plug, power cord,
compressor and etc.) must be replaced by a certied service agent
or qualied service personnel.

WARNING! The light bulb supplied with this appliance is a
“special use lamp bulb” usable only with the appliance supplied.
This“special use lamp”is not usable for domestic lighting.*
• Powercordmustnotbelengthened.
• Makesurethatthepowerplugisnotsquashedordamagedby
the back of the appliance. A squashed or damaged power plug
may overheat and cause a re.
• Makesurethatyoucancometothemainsplugoftheappliance.
• Donotpullthemainscable.
• Ifthepowerplugsocketisloose,donotinsertthepowerplug.
There is a risk of electric shock or re.
• Youmustnotoperatetheappliancewithoutthelamp.
• Thisapplianceisheavy.Careshouldbetakenwhenmovingit.
• Donotremovenortouchitemsfromthefreezercompartment
if you hands are damp/wet, as this could cause skin abrasions or
frost/freezer burns.
• Avoidprolongedexposureoftheappliancetodirectsunlight.

7
Daily use
• Donotputhotontheplasticpartsintheappliance.
• Donotplacefoodproductsdirectlyagainsttherearwall.
• Frozenfoodmustnotbere-frozenonceithasbeenthawedout.
• Storepre-packedfrozenfoodinaccordancewiththefrozenfood
manufacture, s instructions.
• Appliance,smanufacturesstoragerecommendationsshouldbe
strictly adhered to. Refer to relevant instructions.
• Donotplacecarbonatedofzzydrinksinthefreezer
compartment as it creates pressure on the container, which may
cause it to explode, resulting in damage to the appliance.
• Icelolliescancausefrostburnsifconsumedstraightfromthe
appliance.
To avoid contamination of food, please respect the following
instructions
• Openingthedoorforlongperiodscancauseasignicantincrease
of the temperature in the compartments of the appliance.
• Cleanregularlysurfacesthatcancomeincontactwithfoodand
accessible drainage systems.
• Cleanwatertanksiftheyhavenotbeenusedfor48h;ushthe
water system connected to a water supply if water has not been
drawn for 5 days.
• Storerawmeatandshinsuitablecontainersintherefrigerator,so
that it is not in contact with or drip onto other food.
• Two-starfrozen-foodcompartments(iftheyarepresentedinthe
appliance) are suitable for storing pre-frozen food, storing or
making ice-cream and making ice cubes.
• One-,two-andthree-starcompartments(iftheyarepresentedin
the appliance) are not suitable for the freezing of fresh food.
• Iftheapplianceisleftemptyforlongperiods,switcho,defrost,
clean, dry and leave the door open to prevent mount developing
within the appliance.

8
Care and cleaning
• Beforemaintenance,switchotheapplianceanddisconnect
the mains plug from the mains socket.
• Donotcleantheappliancewithmetalobjects.
• Donotusesharpobjectstoremovefrostfromtheappliance.
Use a plastic scraper.
• Regularlyexaminethedrainintherefrigeratorfordefrosted
water. If necessary, clean the drain. If the drain is blocked, water
will collect in the bottom of the appliance.
Installation
Important! For electrical connection carefully follow the
instructions given in specic paragraphs.
• Unpacktheapplianceandcheckiftherearedamagesonit.
Do not connect the appliance if it is damaged. Report possible
damages immediately to the place you bought it. In that case
retain packing.
• Itisadvisabletowaitatleastfourhoursbeforeconnectingthe
appliance to allow the oil to ow back in the compressor.
• Adequateaircirculationshouldbearoundtheappliance,lacking
this leads to overheating. To achieve sucient ventilation follow
the instructions relevant to installation.
• Whereverpossiblethespacersoftheproductshouldbeagainst
a wall to avoid touching or catching warm parts (compressor,
con-denser) to prevent possible burn.
• Theappliancemustnotbelocatedclosetoradiatorsorcookers.
• Makesurethatthemainsplugisaccessibleaftertheinstallation
of the appliance.
Service
• Anyelectricalworkrequiredtodotheservicingoftheappliance
should be carried out by a qualied electrician or competent
person.

9
• ThisproductmustbeservicedbyanauthorizedServiceCenter,
and only genuine spare parts must be used.
Energy saving
• Don’tputhotfoodintheappliance;
• Don’tpackfoodclosetogetherasthispreventsaircirculating;
• Makesurefooddon’ttouchthebackofthecompartment(s);
• Ifelectricitygoeso,don’topenthedoor(s);
• Don’topenthedoor(s)frequently;
• Don’tkeepthedoor(s)openfortoolongtime;
• Don’tsetthethermostatonexceedingcoldtemperatures;
• Someaccessaries,suchasdrawers,canberemovedtogetlarger
storage volume and lower energy consumption.
Environment Protection
This appliance does not contain gasses which could damage the
ozone layer, in either its refrigerant
circuit or insulation materials. The appliance shall not be discarded
together with the urban refuse and rubbish. The insulation
foam contains ammable gases: the appliance shall be disposed
according to the appliance regulations to obtain from your local
authorities. Avoid damaging the cooling unit, especially the heat
exchanger. The materials used on this appliance marked by the
symbol

are recyclable.

10
The symbol on the product or on its packaging indicates
that this product may not be treated as household waste.
Instead it should be taken to the appropriate collection
point for the recycling of electrical and electronic
equipment.Byensuringthisproductisdisposedofcorrectly,you
will help prevent potential negative consequences for the
environment and human health, which could otherwise be caused
by inappropriate waste handling of this product. For more detailed
information about recycling of this product, please contact your
local council, your household waste disposal service or the shop
where you purchased the product.
Packaging materials
The materials with the symbol are recyclable. Dispose the
packaging in a suitable collection
containers to recycle it.
Disposal of the appliance
1. Disconnect the mains plug from the mains socket.
2. Cut o the mains cable and discard it.

WARNING! During using, service and disposal the appliance,
please pay attention to symbol similar as left side, which is located
on rear of appliance (rear panel or compressor) and with yellow or
orange color. It’s risk of re warning symbol. There are ammable
materials in refrigerant pipes and compressor.
Please be far away re source during using, service and disposal.

11

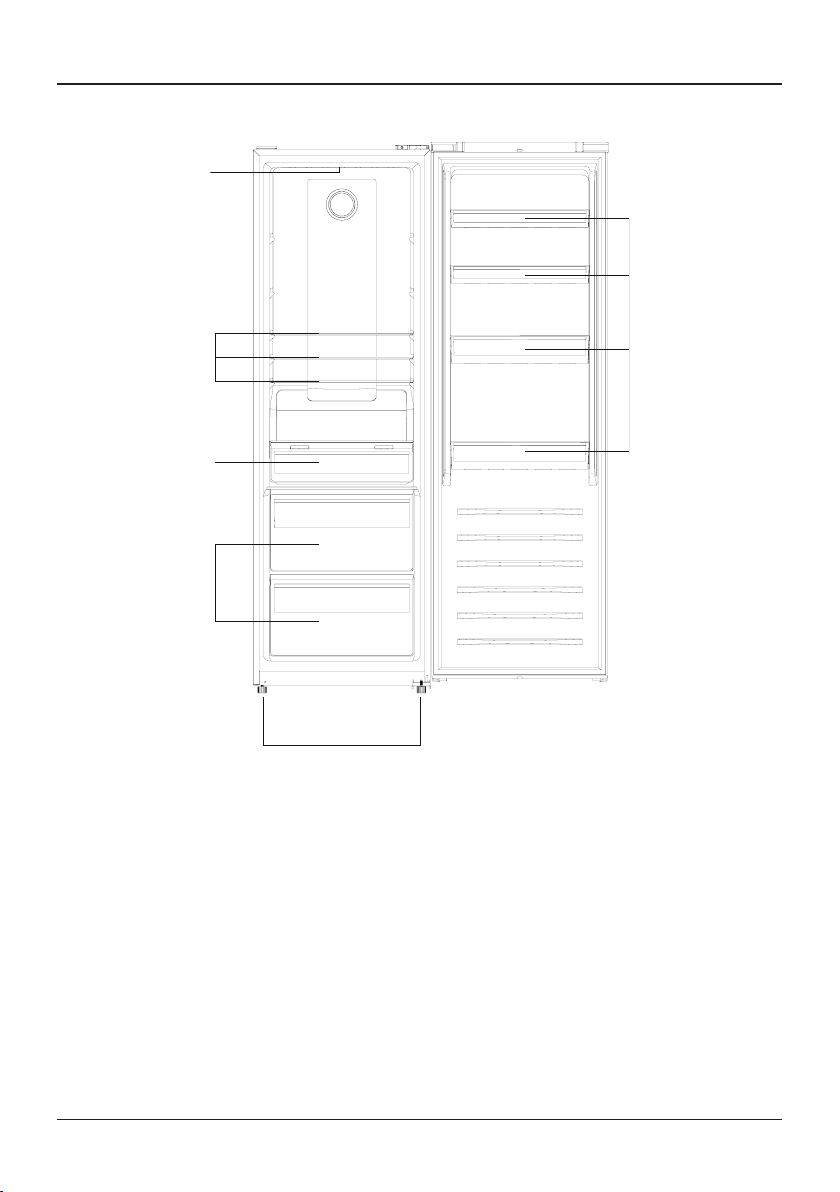

OVERVIEW
Balconies
LED Light
Shelves
Chiller box
Crisper boxes
Leveling Feet
Note: Above picture is for reference only. Real appliance might be dierent..

12
INSTALLATION
Space Requirement
• Selectalocationwithoutdirectexposuretosunlight;
• Selectalocationwithenoughspacefortherefrigeratordoorstoopeneasily;
• Selectalocationwithlevel(ornearlylevel)ooring;
• Allowsucientspacetoinstalltherefrigeratoronaatsurface;
• Allowclearancetotheright,left,backandtopwheninstalling.Thiswillhelpreduce
power consumption and keep your energy bills lower.
• Keepatlest10mmgapattwosidesandback.
Positioning
Install this appliance at a location where the ambient temperature corresponds to
climate class indicated on the rating plate of the appliance:
For refrigerating appliances with climate class:
- SN: extended temperate: this refrigerating appliance is intended to be used at
ambienttemperaturesrangingfrom10°Cto32°C;
- N: temperate: this refrigerating appliance is intended to be used at ambient
temperaturesrangingfrom16°Cto32°C;
- ST: subtropical: this refrigerating appliance is intended to be used at ambient
temperaturesrangingfrom16°Cto38°C;
- T: tropical: this refrigerating appliance is intended to be used at ambient
temperaturesrangingfrom16°Cto43°C;
Location
The appliance should be installed well away from sources of heat such as radiators,
boilers, direct sunlight etc. Ensure that air can circulate freely around the back of
the cabinet. To ensure best performance, if the appliance is positioned below an
overhanging wall unit, the minimum distance between the top of the cabi-net and
thewallunitmustbeatleast100mm.Ideally,however,theapplianceshouldnotbe
positioned below overhanging wall units. Accurate leveling is ensured by one or more
adjustablefeetatthebaseofthecabinet.

WARNING! NIt must be possible to disconnect the appliance from the mains power
supply; the plug must therefore be easily accessible after installation.
Electrical connection
Beforepluggingin,ensurethatthevoltageandfrequencyshownontheratingplate
correspond to your domestic power supply. The appliance must be earthed. The power
supply cable plug is provided with a contact for this purpose. If the domestic power
supply socket is not earthed, connect the appliance to a separate earth in compliance
with current regulations, consulting a qualied electrician. The manufacturer declines
all responsibility if the above safety precautions are not observed. This appliance
complies with the E.E.C. Directives.

13
Door Reversibility
Beforereversingthedoor,pleasebepreparedbelowtoolsandmaterial:straight
screwdriver, cross screwdriver, spanner and the components included in the poly bag:
Easy open
handle
×1
Handle Cover ×2 Screw ×2 Left Aid-Closer ×1 Left Top Hinge
Cover ×1
1. Remove upper wire box covers.
2. Unscrew right top hinge cover, and disconnect connectors of door switch and
display.

14
3. Unscrew and remove the top hinge, and then remove the door.
4. Remove the right aid-closer, and take out left aid-closer from accessories bag and
install it at left side.
5. Unscrewthebottomhinge,andremovetheadjustablefootfromtheleftsidetothe
right side.
6. Unscrewandmovethebottomhingepinfromtherightsidetotheleftside,then
install the bottom hinge on the left side of the appliance.

15
7. Unscrew and move the top hinge pin from bottom side to upper side. Remove door
switch from right hinge cover and then install it in left hinge cover which is placed
in accessory bag
8. Unscrew and move the top decorative cover on the left side, and install it on the
right side.
9. Install the door, and then move the connecting wires from right side to left side.

16
10.Installthetophingetotheleftside,pleaseslightlyadjustthetophingewhile
installing to make sure gasket is well sealed.
11. Connect connectors of door switch and display, and install the left top hinge cover.
12. Install the upper wire box covers to the right side.

17

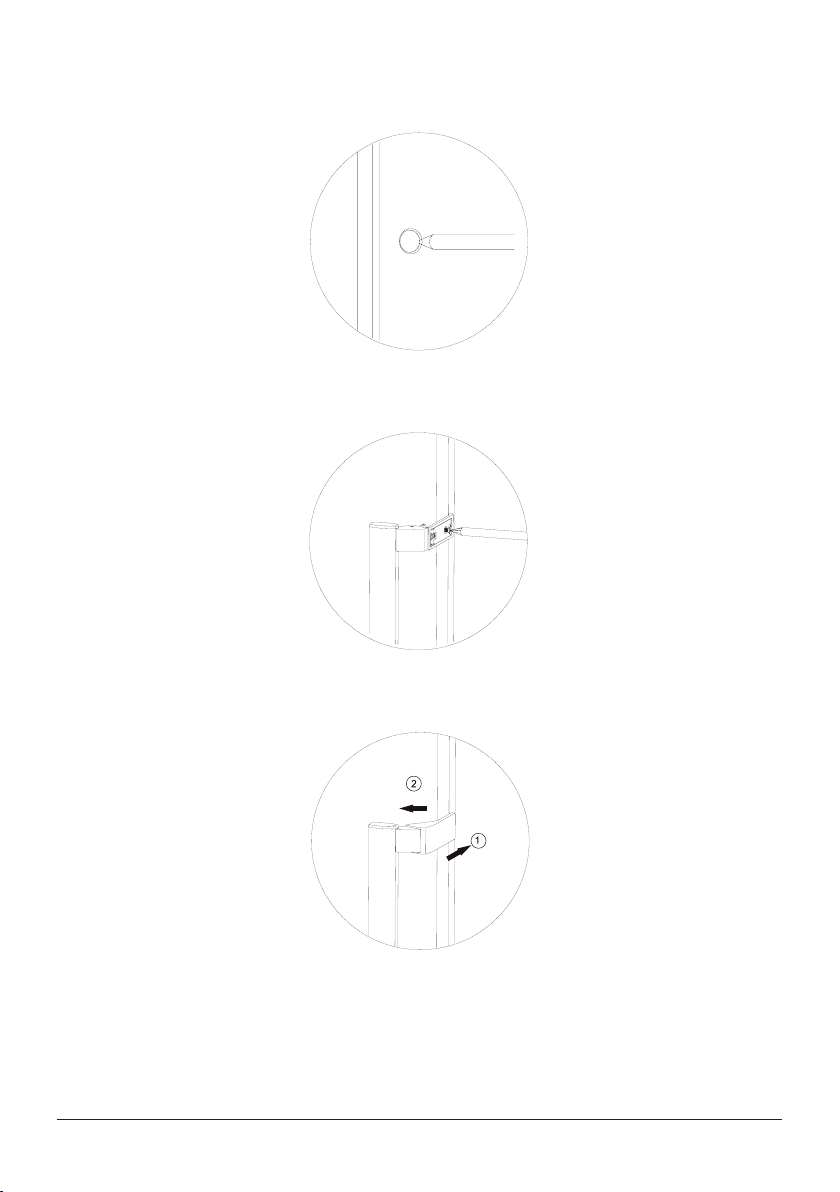

Easy open handle installation
1. Remove the screw hole covers.
2. Take out the easy open handle which is placed in crisper drawer, and install it.
3. Install the easy open handle covers.

18

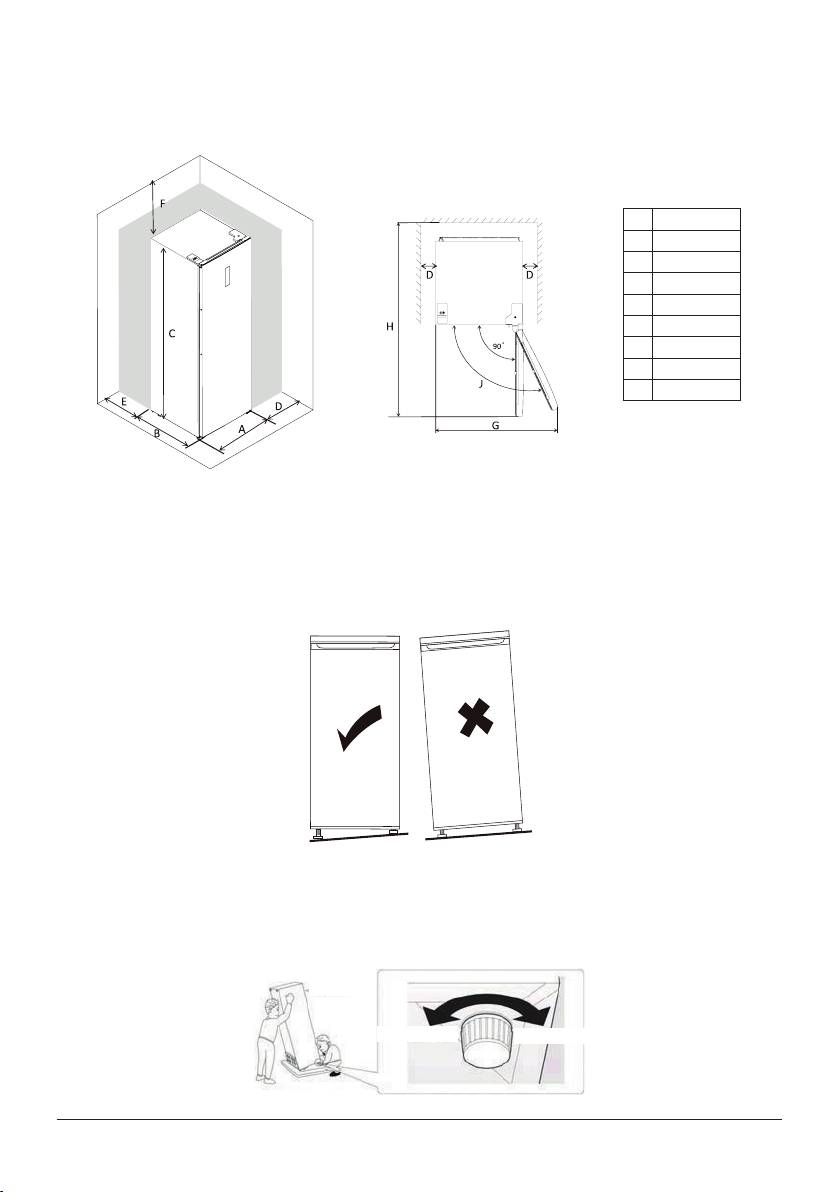

Space requirement
• Keepenoughspaceofdooropen.
• Itisadvisabletokeepatleast10mmgapatallsides.
A 595
B 660
C 1851
D min = 10
E min = 50
F min = 50
G 835
H 1323
J 115°
Note: this refrigerating appliance is not intended to be used as built-in appliance.
Levelling the unit
Todothisadjustthetwolevellingfeelatfrontoftheunit.
If lhe unit is not level, the doors and magnetic seal alignments will
not be covered properly.
Doors
Lengthen Shorten

19
USER
Using the Control Panel

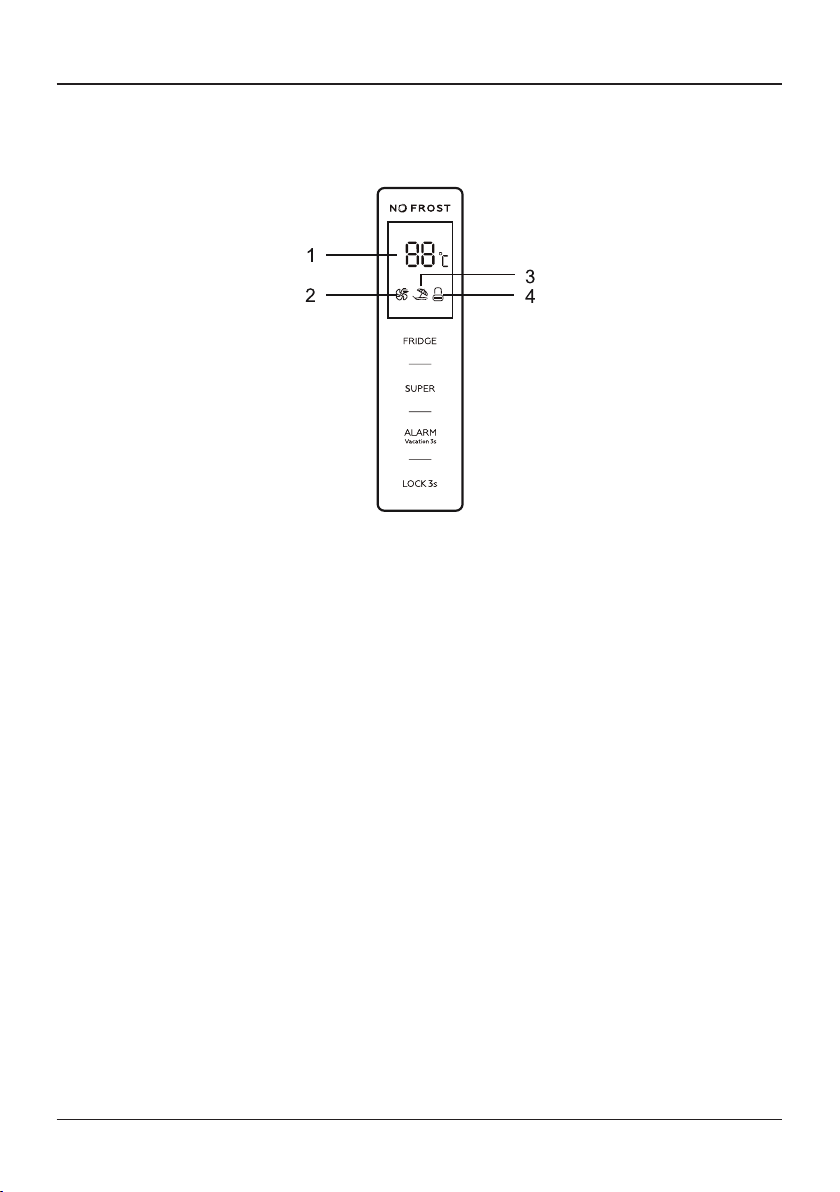

User interface introduction
Operation Interface
FRIDGE: Temperature control of the appliance
SUPER: Select and deselect super mode control
ALARM/VACATION: Clear door opening alarm, select and deselect Vacation mode
LOCK: Locking and unlocking
LED Display
1. Display window for preset temperature
2. Super mode icon
3. Vacation mode icon
4. Locking and unlocking icon
Illustration of the buttons
All buttons are valid only in unlocking status. Short beep after per touching of buttons
FRIDGE: Temperature control of the appliance
• Availableonlyforuserdenedmode.Followmethodsbelowtodeselectsupermode
and Vacation mode, and then user dened mode is selected.

20
SUPER: select and deselect super mode
• Press“SUPER” button to select super mode. After 5 seconds ashing of super mode
icon, super mode is selected.
• Whensupermodeisselected,supermodeiconwilllighton,anddisplaywindowwill
show2°C.Insupermode,touching“FRIDGE” button, super mode icon will ash 3
times, but fridge temperature can not be changed.
• ToexitSupermode,
- Press “SUPER” button to deselect Super mode,
- Orafter50hoursofsupermodewithoutanyoperation,therefrigeratorwill
automatically stop it and enter to previous setting.
Warning: In super mode, noise of the appliance may be slightly higher than normal
running.
ALARM/VACATION: clear door opening alarm, select and deselect Vacation mode
• Shorttouching“ALARM/VACATION”button to clear door opening alarm.
• Touching“ALARM/VACATION” button for 3 seconds to select Vacation mode. After 5
seconds ashing of Vacation mode icon, Vacation mode is selected.
• WhenVacationmodeisselected,Vacationmodeiconwilllighton,anddisplay
window will show 17 C.
• InVacationmode,“FRIDGE”button will not respond to any touching.
• Shorttouching“SUPER”button can exit Vacation mode and enter super mode.
• Touching“ALARM/VACATION” button for 3 seconds to deselect Vacation mode.
LOCK: Locking and Unlocking
• Touching“LOCK” button for 3 seconds to lock the control panel, then the locking
and unlocking icon will be .
• Inlockingstatus,touchanybutton,thelockingandunlockingiconwillash3times.
• Touching“LOCK”buttonfor3secondstounlockthecontrolpanel,thenthelocking
and unlocking icon will be .
• Inunlockingstatus,allbuttonsareavailable.
• Ifnooperationin25seconds,thecontrolpanelwillbelockedautomatically.
Door opening alarm
• Ifthedoorkeepsopeningfor90seconds,dooropeningalarmsounds.
• Closethedoortostopthedooropeningalarm.
• Orshorttouching“ALARM/VACATION”button to clear door opening alarm.
