Solstice Pod Clamp and VESA Adapter- 0400 and 0401

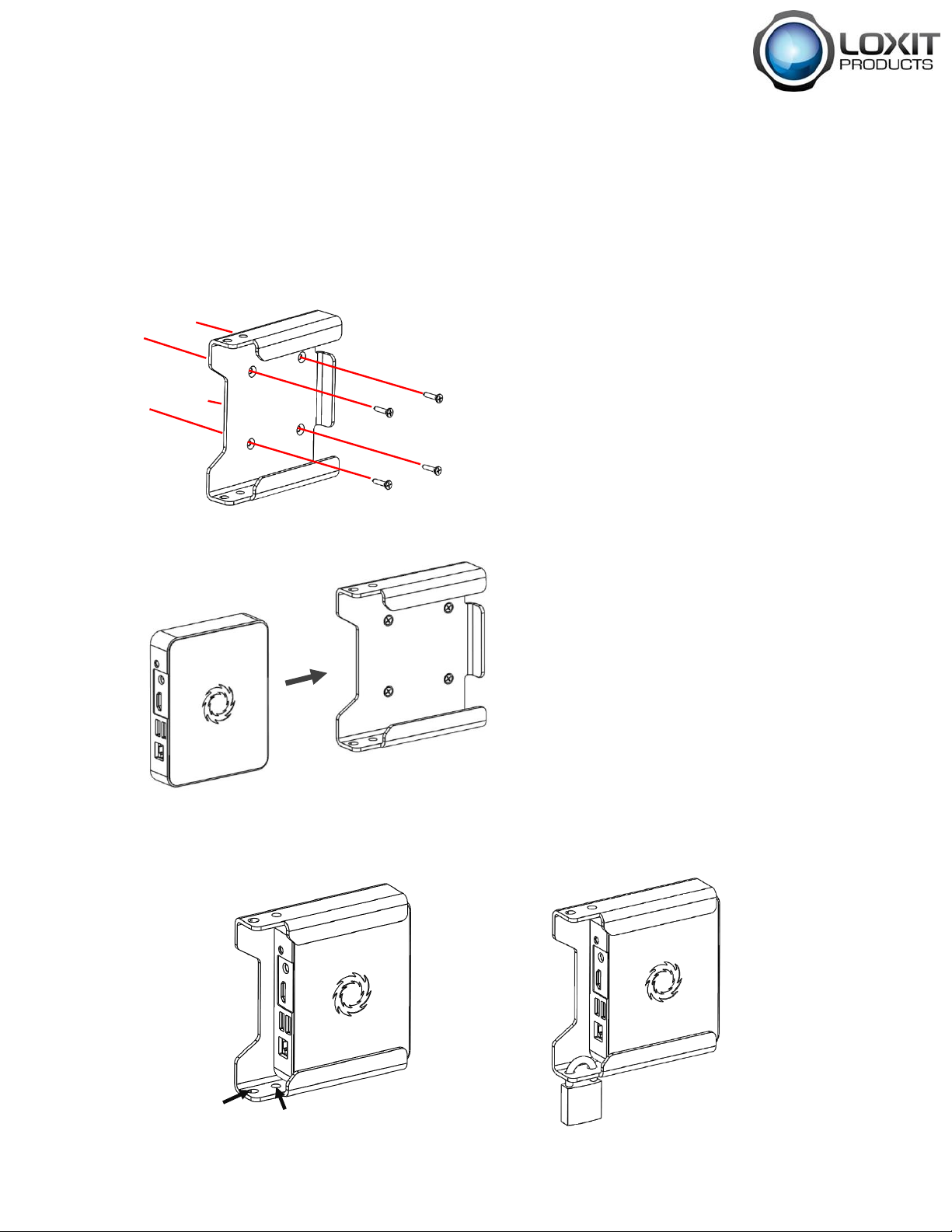

1. The Solstice pod mount has a 75*75mm hole pattern for wood screws up to
No.8 or fixings up to 4mm in size. Select appropriate fixings for the surface the
mount will be attached to and fix the mount to the surface using four fixings.
Wall mounting
*The fixings must be countersunk and
should not protrude into the mount.
2. Slide the Solstice pod into the mount, the outputs should face the direction shown.
A
B
3. To secure the Solstice pod, hook the padlock in through the outer hole (A) and
then move the padlock loop so it passes through the second hole (B), once in
place close the padlock.

Loxit Limited, First Avenue, Poynton Industrial Estate, Poynton, Cheshire, UK. SK12 1YJ
www.loxit.com ꞁ [email protected]m ꞁ [phone]
Mounting to screen mount- Please note the adapter (0041) is an optional extra

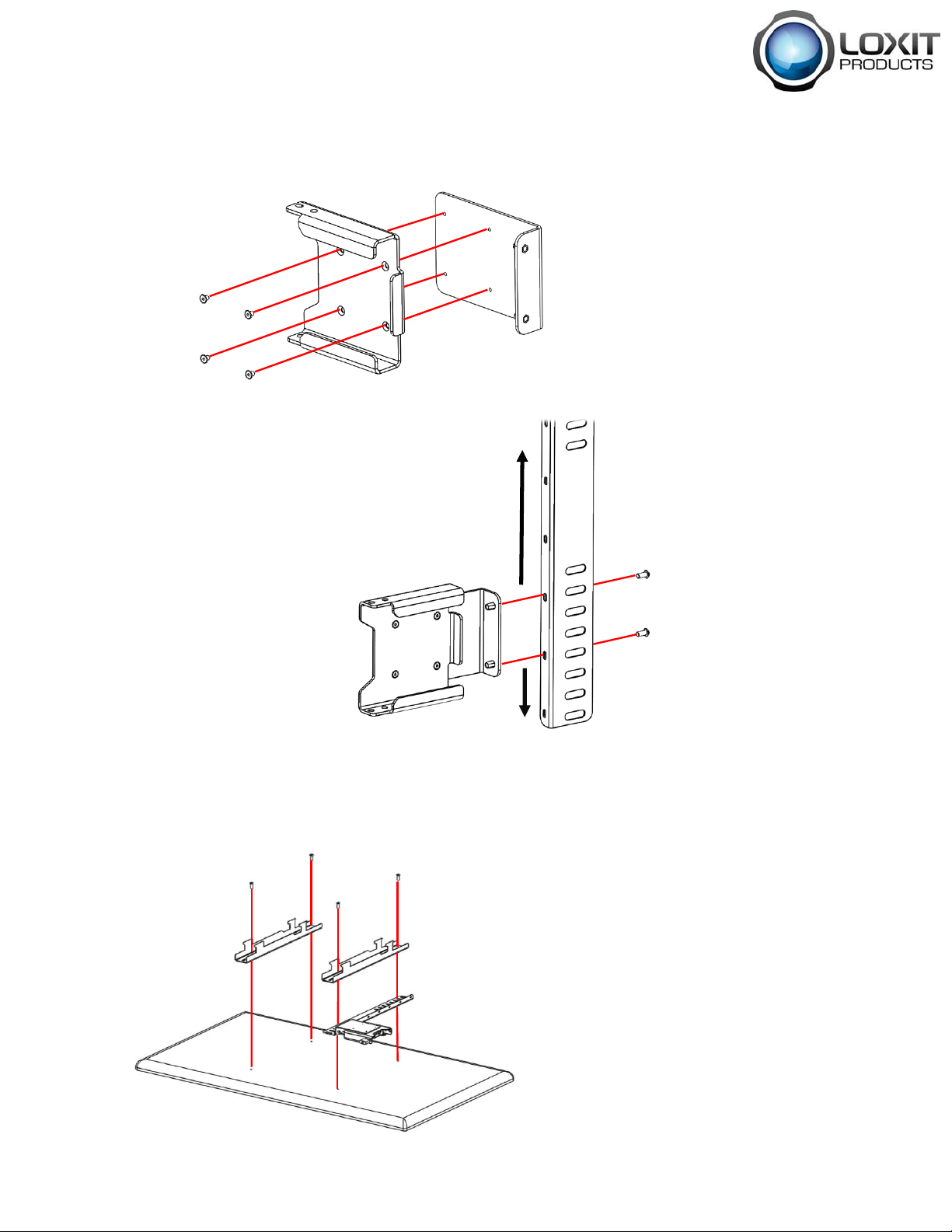

1. Fix the Solstice pod mount to the L-bracket using four M4*6mm csk bolts.
2. The adapter and Solstice Pod mount can be
bolted to the VESA mount adapter at seven
different points.
3. The VESA adapter can be mounted on the left or right side and should be mounted
sandwiched between the screen and mount brackets. If necessary washers should be
used to evenly space the mount brackets. The screen mount brackets should prevent
access to the L-bracket fixing bolts when positioned correctly.

Loxit Limited, First Avenue, Poynton Industrial Estate, Poynton, Cheshire, UK. SK12 1YJ
www.loxit.com ꞁ [email protected]m ꞁ [phone]

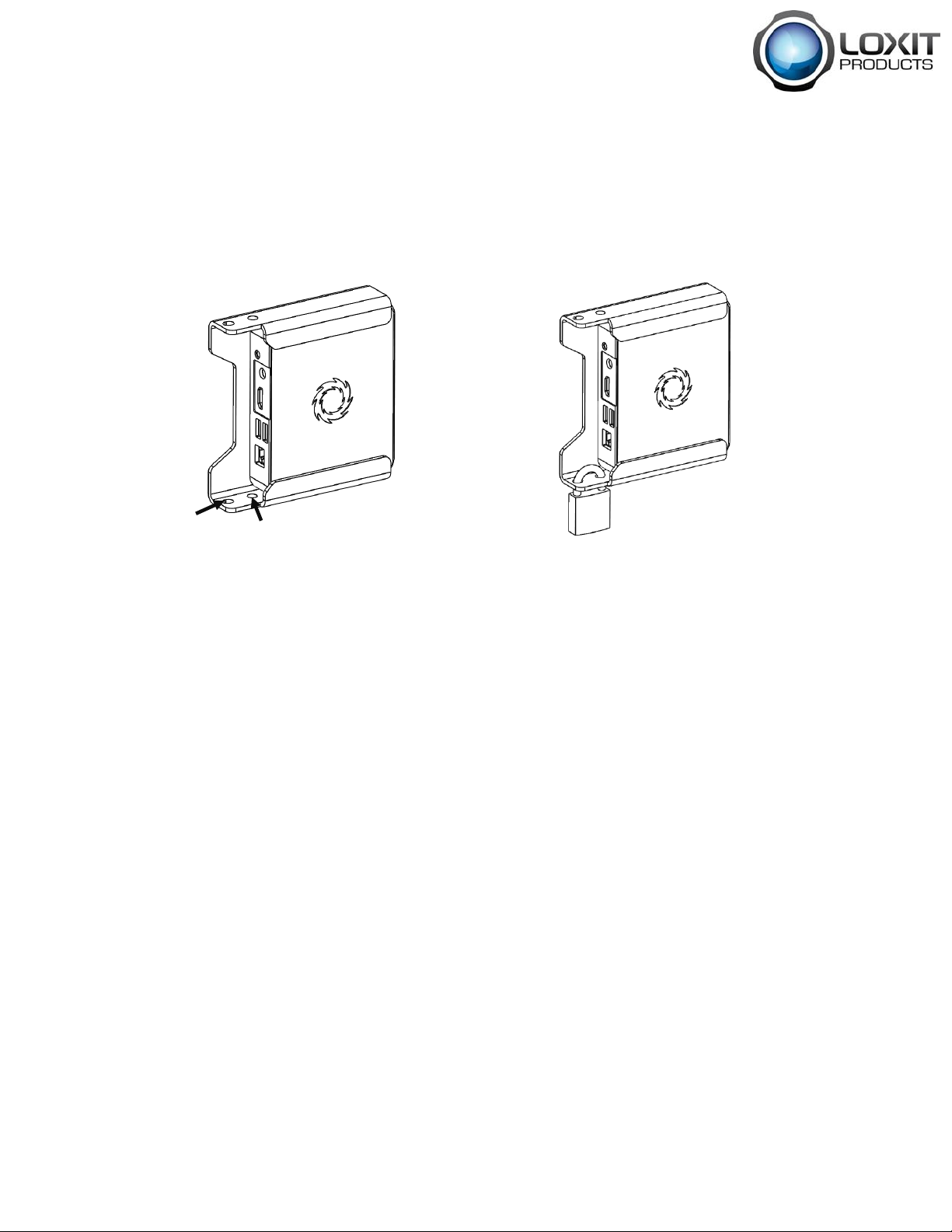

4. Slide the Solstice pod into the mount. To secure the Solstice pod, hook the padlock
in through the outer hole (A) and then move the padlock loop so it passes through
the second hole (B), once in place close the padlock.
A
B
5. The screen should now be installed as per the mount bracket
manufacturer’s instructions.
