USER MANUAL
Professional Light Systems for
Health, Sports, Fitness & Vitality
ENHANCE PERFORMANCE
ACCELERATE RECOVERY
INTELLIGENT LIGHT THERAPY

CONTENTS
Introduction
2
Warnings & Cautions
3
Testing & Checking your Device
5
Products
6
Getting Started LS XP3 & LS XP6 Port Controllers
7
Getting Started LS XP1 Port Rechargeable
9
Maintenance
11
Warranty
12
Specifications
14
ENHANCE PERFORMANCE
ACCELERATE RECOVERY
INTELLIGENT LIGHT THERAPY

3
INTRODUCTION
LS PRO LIGHT SYSTEMS PRODUCT DESCRIPTION
Congratulations on choosing LS PRO Systems to support your Sports, Health
and Vitality needs. Your LS PRO Light System is a specially designed therapeutic
healing device, delivering 880nm in infrared light, 660nm in red light and
465nm in blue light wavelengths to the body’s tissue resulting in therapeutic
effects.
The LS PRO therapy time can be controlled by the user and supports up to
9 LS PRO pads, which can be used simultaneously or individually to suit the
user’s needs.
LS PRO CONTROLLERS
> LS XP1 – 1 Port Rechargeable
> LS XP3 – 3 Port Personal
> LS XP6 – 6 Port Professional
LS PRO NEOPRENE FLEXI PADS CAN INTERACT WITH ALL
CONTROLLERS ABOVE
> LSG 264 General Pad – red and infrared diodes
> LSG 264B General Pad – blue and infrared diodes
> LSH 155 Head Cap – red and infrared diodes
> LSL 132 Local Pad – red and infrared diodes
> LSL 132B Local Pad – blue and infrared diodes
> LSF 104 Face Pad – red and blue diodes
> LST 90 Target Pad – red and infrared diodes
> LSB 80 Boot Pad – red and infrared diodes
> LSP 200 PEMF/Light Combo Pad – red and infrared diodes
INDICATION FOR USE
The LS PRO Systems products are designed to apply LED (light-emitting diode)
light with associated gentle therapeutic warmth in the red, infrared and blue
wavelengths of light to the user, which increases circulation and relaxes muscles.
Users may expect benefits such as temporary relief of muscle spasm; relief to
minor muscle and joint aches, pain and stiffness.
2
[e-mail] TEL: [phone]

WARNINGS & CAUTIONS
WARNINGS
> Do not stare directly into the diodes or the lights’ reflection in a mirror
as that could cause temporary irritation of the eyes. Prolonged exposure
to the light with the naked eye could harm your eyes.
> Keep the equipment away from children and pets.
THE LS PRO LIGHT SYSTEM IS AN ELECTRICAL DEVICE. TO
AVOID ELECTRIC SHOCK ADHERE TO THE FOLLOWING
> Do not drop your device in water or liquids.
> Do not wash electrical parts with water or liquids.
> Do not directly touch the device or connect power with wet hands.
> Do not apply or touch the device to wet or damp skin.
> Do not pull, carry or lift the device by its cord. If the cord to your
product is damaged do not use the device.
> Do not use the device if it has been dropped, left outside or has
encountered water or liquids.
> Do not use on or near heated surfaces.
> Do not operate this device in areas where it could be exposed to
flammable or combustible products or where vapors may be present.
Explosion or fire may occur.
> This device is not to be used by disabled, sleeping or unconscious persons.
REPAIRS
> Do not modify or attempt to modify or repair this equipment. There are
no user-serviceable parts.
> If this equipment is modified in anyway, appropriate inspection must be
taken to ensure continued safe use.
> Please contact customer service on 321-987-9424 or email
[email protected] if you have any concerns with the usage
of your device.
TEL: [phone] [e-mail]
3

CAUTIONS
If you are taking any medications or products which make you sensitive
to light, we recommend that you consult your doctor or physician prior
to use. Some medications, such as for colds, allergies, pain medicine and
drugs to treat infections might cause light sensitivity (See Testing for Light
Sensitivity on page 5).
> Do not use the device on open wounds, as heat may increase
circulation and cause bleeding.
> This device contains neoprene. If you are or believe yourself to be
allergic to neoprene, do not use this product without first consulting
a physician.
> Do not use this device in combination with liniments, salves, ointments
or balms that contain heat-producing ingredients as a skin burn
could occur.
Consult your doctor prior to using if you are:
> Pregnant
> Are taking drugs known to cause sensitivity of skin to light
> Have any suspicious or cancerous lesions
> Recently had a steroid injection or use topical steroids
1. Do not use this device on infants.
2. If you experience discomfort or have a concern about use of the device,
stop use immediately and contact your doctor.
3. Use indoors only.
4. Use supplied power supply only.
5. Unplug from outlet when not in use to avoid tripping hazards.
6. Do not unplug by pulling directly onto the cord. Grasp the plug itself,
not the cord when unplugging from the outlet.
7. Do not exceed 40 minutes of use in one therapy session.
4
[e-mail] TEL: [phone]

TESTING & CHECKING YOUR DEVICE
TESTING FOR LIGHT SENSITIVITY
Before starting your first therapy session, we recommend that you check for light
sensitivity. You only need to do this once to test if you are sensitive to light by
turning on your device, then placing the LS light therapy pad on your forearm.
Keep the LS light therapy pad in place for 2 minutes and once finished set the LS
light therapy pad aside.
Check forearm after 2-5 minutes to see if any reaction has taken place.
If you see any redness or a rash contact our customer service team via
321-987-9424 or [e-mail]
CHECKING YOUR DEVICE
Your product is designed to last for many years with normal and proper use.
It has been monitored and tested to FDA regulations during its manufacturing
process. When the device is working properly, the LEDs should emit light from
the LS light therapy pads on the underside*.
* Note. Infrared diodes are at the invisible end of the light spectrum, as long as
the visible red and/or blue lights are lit on the pad, then the infrared lights are
working too.
DO NOT look directly into the light. Shine the light onto the palm of your hand
to see if the LS light therapy pads are working.
If the LS light therapy pad does not emit any light, please contact our customer
service team on 321-987-9424 or email [e-mail] and
one of our team members will be available to help you.
TEL: [phone] [e-mail]
5

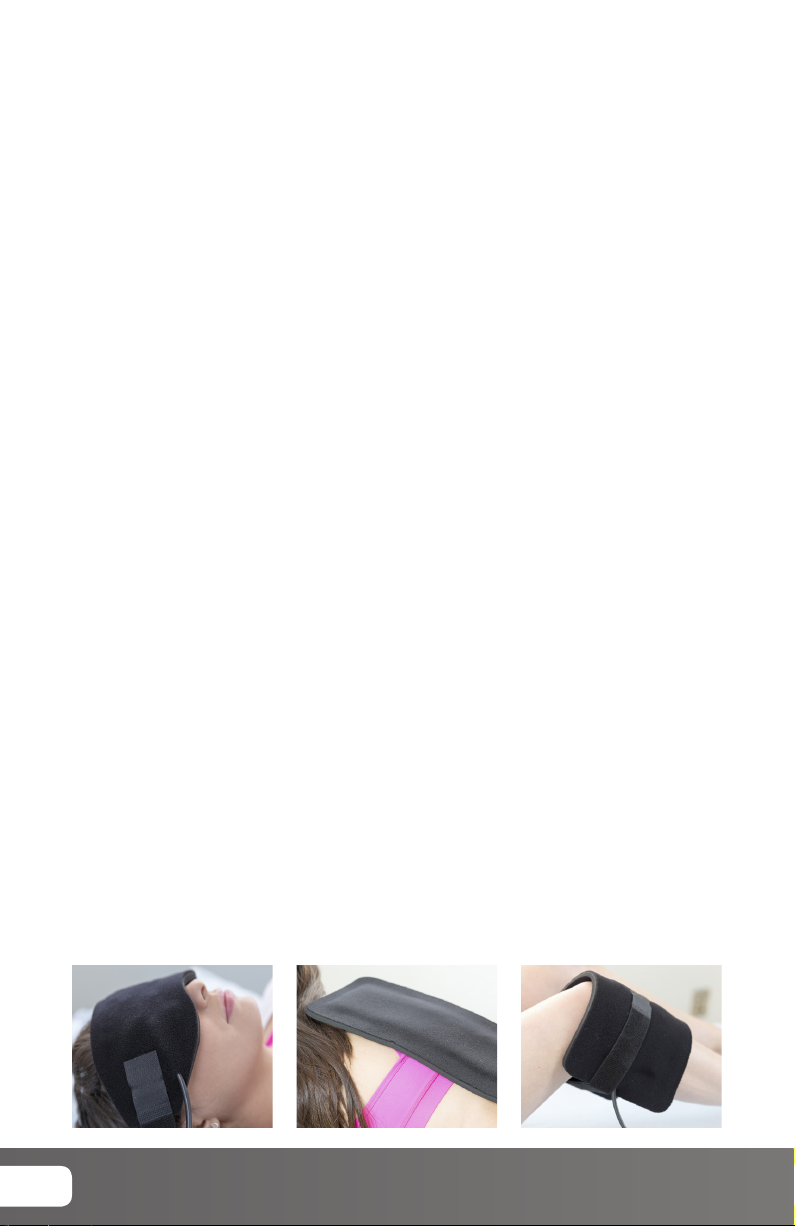

SIMPLE EXAMPLES OF PAD PLACEMENT

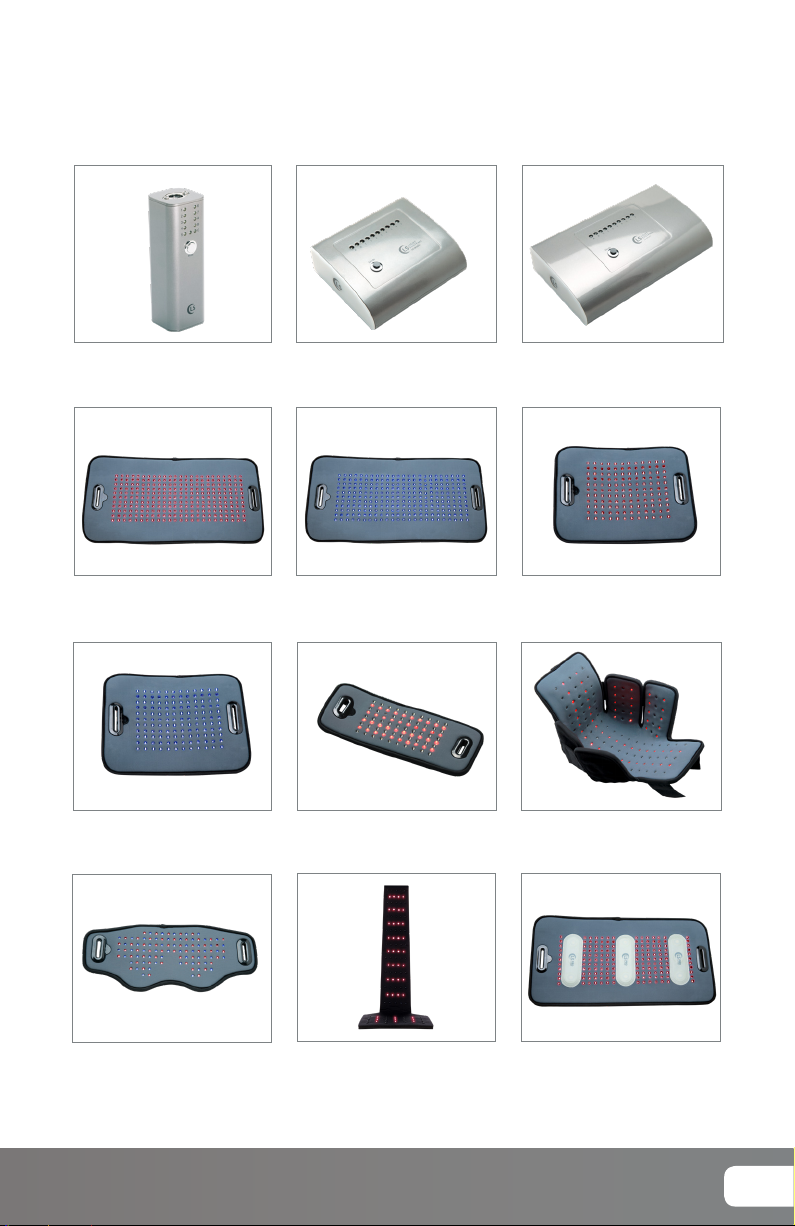

LS PRO SYSTEM PRODUCTS
6
[e-mail] TEL: [phone]
LSP 200 PEMF/Light Combo
LS XP1 Port Rechargeable LS XP3 Port Personal LS XP6 Port Professional
LSG 264 General Pad (Red)
LSL 132B Local Pad (Blue) LST 90 Target Pad
LSH 155 Head Cap
LSF 104 Face Pad LSB 80 Boot Pad
LSG 264B General Pad (Blue) LSL 132 Local Pad (Red)

TEL: [phone] [e-mail]
7

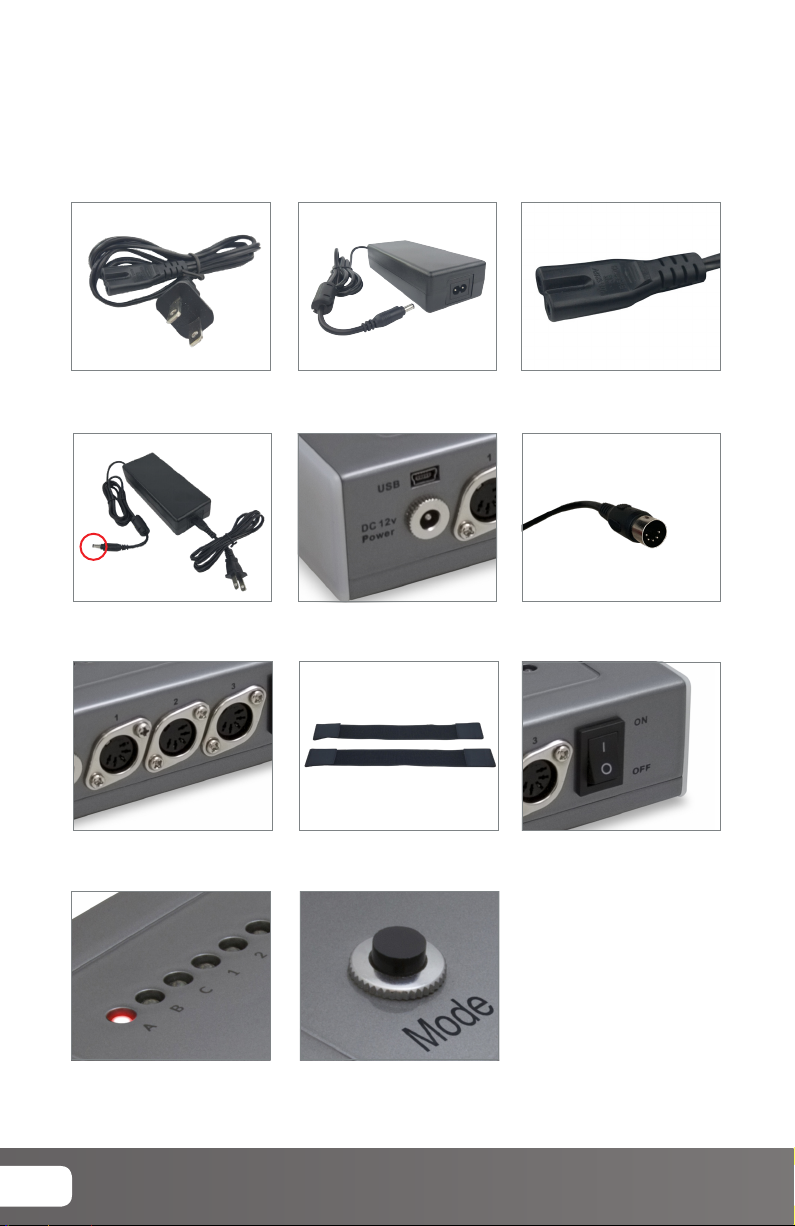

LS XP3 & LS XP6 PORT
OPERATIONAL PICTURES
3. Two Pin Male Adapter
9. Power Switch
5. DC Power Input
7. 5 Pin Light Pad Ports
6. 5 Pin Plug
11. Mo de B utt o n 10. LED Mode Indicator
1. Power Cable 2. Power Adapter/Connector
8. Velcro strip
4. Power Cable & Adapter
A

GETTING STARTED
LS XP3 & LS XP6 PORT CONTROLLERS
The LS PRO System comes with everything needed to start your light therapy
experience. For the best results please read this manual completely before you
start using your LS PRO System.
The LS PRO System may be used multiple times per day, with a recommended
therapy session for 20 to 40 mins. Your LS XP3 or LS XP6 Port Controllers
automatically switch off after a 20 min session. An immediate second 20 min
session works by moving the pad/s to different areas of the body.
Open all your products and check you have everything listed on the
product check sheet.
POWERING ON
(ONLY USE THE BLACK POWER ADAPTOR)
1. Locate Black Power Cable (fig. 1) and Black Power Adaptor (fig. 2).
2. Connect the two by plugging the two-pin male adaptor (fig. 3) into the Power
Adaptor (fig. 2).
3. Assembled Power Cable & Adaptor complete should look like (fig. 4). Connect
Power to the wall socket.
4. Plug the male connector (red circled fig. 4) into the DC Power Input on the back
of your controller (fig. 5).
5. Proceed by plugging in your choice of pad/s using 5 pin plug (fig. 6) pushed into
the 5 pin port on the back of your controller (fig. 7).
6. Secure your light pads to the desired area of the body with Velcro straps
provided (fig. 8).
7. Switch on the power to your controller (fig. 9), this may be followed by a beep
and the LED Mode Indicator display should light up (fig. 10).
8. Choose your desired setting by pressing the mode button (fig. 11) repeatedly
(see simplified frequency guide).
9. Relax and enjoy the session.
8
[e-mail] TEL: [phone]

TEL: [phone] [e-mail]
9
10. Power/Mode Button
5. DC Power Input
8. 5 Pin Light Pad Port 7. 5 Pin Plug 9. Velcro Strap
12. Splitter
11. LED Mode Indicator
4. Power Cable/Charger
1. Power Cable
3. Two Pin Male Adapter
2. Power Charger/Connector
LS XP1 PORT RECHARGEABLE
OPERATIONAL PICTURES
6. Charging indicator
B

10
[e-mail] TEL: [phone]
GETTING STARTED
LS XP1 PORT RECHARGEABLE
The LS PRO System comes with everything needed to start your light therapy
experience. For the best results please read this completely before you start using
your LS XP1 Port Recharageable. The LS PRO System may be used multiple times
per day, with a recommended therapy session for 20 to 40 mins. Your LS XP1 Port
Recharageable automatically switches off after a 20 min session. An immediate second
20 min session works by moving the pad/s to different areas of the body. Open all your
products and check you have everything listed on the product check sheet.
POWERING ON
TO CHARGE (ONLY USE THE WHITE POWER CABLE/CHARGER)
1. Locate White Power Charger Cable (fig. 1) and White Charger Adaptor (fig. 2).
2. Connect the two by plugging the two-pin male adaptor (fig. 3) into the Charger
Adaptor (fig. 2).
3. Assembled Charger complete should look like (fig. 4).
4. Connect White Power cable to the wall socket.
5. Plug the male connector (red circled fig. 4) into the DC Power Input on the back of
your 1 Port Rechargeable (fig. 5).
6. A flashing light circled (fig. 6) indicates that the unit is charging. Full charge takes
approx. 3 hours.
7. The unit is fully charged when the charging indictor light stays on constantly.
8. Do not attempt to use the 1 Port Rechargeable for therapy while it is charging,
always remove the charger for use.
9. You are now ready to use your 1 port Rechargeable.
TO USE
10. Proceed by pushing your choice of pad/s using 5 pin plug (fig. 7) into the 5 pin port
on the top of your controller (fig. 8).
11. Secure your light pads to the desired area of the body with Velcro straps provided
(fig. 9).
12. Press the power/mode button on your controller (fig. 10), this may be followed by a
beep and the LED Mode Indicator display should light up (fig. 11).
13. Choose your desired setting by pressing the power/mode button (fig. 10)
repeatedly (see simplified frequency guide).

TEL: [phone] [e-mail]
11
UPGRADE SPLITTER
> The LS PRO Upgrade Splitter (fig. 12) allows you to add a second pad to the 1 Port
Rechargeable.
> Push the 5 pin male plug of the splitter into the 5 pin port on top of the
Rechargeable Controller (fig. 8).
> Push the 5 pin male adaptor from the pad/s into the 5 pin ports on the splitter.
CAUTION
The splitter cannot be used with the PEMF/Light Combo Pad.
NOTE ON CHARGING
> Ideally let the battery completely run down when possible.
> If charging overnight, you cannot overcharge the unit.
> Battery life can last from 1 hour to 4 hours depending on number and type of
pads used.
MAINTENANCE
CLEANING
> Turn off your LS PRO System by switching the power switch to the off position
by pushing the mode button on the front of the LS XP1 Port rechargeable
> Unplug the charger at the power wall outlet
> Clean LEDs with a non alcoholic wipe or medical grade hydrogen peroxide
wipe, making sure the device and pads are dry before using
> Avoid the use of any harsh cleaners or bleaches as this may damage
your device
DISPOSAL INSTRUCTIONS
This symbol on the device or packaging indicates that this device may not be
disposed of with your other household waste. This device requires disposal via
your designated collection point for the recycling of electrical and electronic
equipment. Recycling your waste equipment at the time of disposal will help
to conserve natural resources and ensure that it is recycled in a manner that
protects human health and the environment.

EQUIPMENT CLASSIFICATION
> Class BF Patent Applied Part
> Ordinary Equipment
> Equipment is not suitable for use with flammable anesthetics or topicals
> Complies with EMC Standard IEC 60601-1-2
> Complies with Medical Electrical Equipment Safety Standard 60601-1
WARRANTY
PLEASE LOG ON TO WWW.LSPROSYSTEMS.COM
TO ACTIVATE YOUR WARRANTY
Your LS PRO System comes with a 1 year factory warranty and warrants against
defects in materials or workmanship from LSProSystems LLC. Items that are
damaged, abused or have general wear and tear are not covered under the
warranty and may be charged at their regular repair rates.
WARRANTY TERMS
ANY ATTEMPT TO SELF-SERVICE YOUR DEVICE, UNLESS INSTRUCTED
IN WRITING BY LS PRO SYSTEMS CUSTOMER SERVICE WILL VOID
YOUR WARRANTY.
Your LS products are warranted by LS PRO Systems LLC against defects in
materials or workmanship for a total of 1 year from the date of purchase or
receiving the products. If this device is determined to be defective, LS PRO
Systems will repair or replace it at no charge during its warranty period (shipping
to and from the customer is not charged during the first year of the warranty).
After the warranty period has finished, the user must pay for all parts and
labor charges. If the device is repaired or replaced, either within or outside the
warranty period, LS PRO Systems reserves the right to provide parts in different
colors to the original device.
12
[e-mail] TEL: [phone]

TEL: [phone] [e-mail]
13
WARRANTY CONTINUED
This warranty does not cover damage caused by acts of god, misuse,
negligence, accidents, modification of, or to, any of the parts of this device. This
warranty does not cover damage due to improper operation or maintenance,
connection to improper voltage supplies, or attempted repair by anyone other
than LS PRO Systems certified service personnel. This warranty is void if the
device is tampered with.
To obtain warranty service, please call LS PRO Systems customer service on 321-
987-9424 or email [e-mail] to request an authorization
number. We ask that you deliver the product with its original packaging or
packaging equivalent to its original packaging for protection, together with your
name and address to: LS PRO Systems LLC, 4150 Lake Washington Rd.
Melbourne, FL 32934.
Governing Law: this Agreement is governed by and must be construed under
the laws of the state of Florida, without regard to choice of law principles. You
agree to submit yourself to the personal jurisdiction of the courts in the state of
Florida.
General terms: if any part of this Agreement is held invalid or unenforceable,
that part is interpreted consistent with applicable laws as nearly as possible
to reflect the original intentions of the parties and the rest of this Agreement
remains in full force and effect.
DISCLAIMER
This product is not intended to diagnose, cure or prevent disease or illnesses.
LS PRO Systems makes no claims, representation or guarantees regarding the
ability of this product to cure any physical, medical or psychological condition.
A qualified health professional should always be consulted prior to use and with
regards to any condition requiring medical attention or contraindications.

Type BF Applied Part
Refer to instruction
Serial Number
RF Interference
Degree of
Moisture resistance
European Conformity
Power On/Off
WEEE
Warning
Caution
SPECIFICATIONS
TECHNICAL INFORMATION
Model Number:
Note:
Only use power supply provided
This device has no user serviceable parts
Power Input: 100 – 240Vac
Power Output: 24Vdc, 10A
Operating Temperature: 0°C to +40°C (32°F – 104°F)
Relative Humidity: < 85%
Storage Temperature Range: -30°C to +55°C (-22°F to +130°F)
Wavelength:
465nm Blue +/- 10nm visible light
660nm Red +/- 10nm visible light
880nm Infrared +/- 10nm non-visible light
UDI label and serial number – on the
underside of controller
14
[e-mail] TEL: [phone]

[e-mail]
TEL: [phone] INTELLIGENT LIGHT THERAPY
