LS tractor LW3163B Product manual

OM 0472SB-A
Rev0 08-18
O
OP PE ER RA AT TO OR R’ ’S S A AN ND D
A
AN ND D P PA AR RT TS S M MA AN NU UA AL L
L
LW W3 31 16 63 3B B- 6 63 3" " S Sn no ow wb bl lo ow we er r
Requires LSR0022 Subframe &
LSR0023 DRIVE KIT
FOR XG30 SERIES TRACTORS

INTRODUCTION
OM 0472SB-A [1]
TO THE PURCHASER
All products are designed to give safe, dependable
service if they are operated and maintained
according to instructions. Read and understand
this manual before operation, and keep it in
your files for further reference.
This manual has been prepared to assist the owner
and operators in the safe operation and suitable
maintenance of the equipment. The information is
applicable to products at the time of manufacture
and does not include modifications made
afterwards.
Read and understand this operator's manual before
attempting to put equipment into service.
Familiarize yourself with the operating instructions
AND ALL THE SAFETY RECOMMENDATIONS
contained in this manual and those labeled on the
equipment and on the machine. Follow the safety
recommendations and make sure that those with
whom you work follow them.
TO THE DEALER
Give this manual to the owner upon delivery of the
equipment.
TO THE PURCHASER AND THE DEALER
Illustrations
The illustrations may not necessarily reproduce the
full detail and the exact shape of the parts or depict
the actual models, but are for reference only.
Direction Reference
All references to right and left, forward or rearward
are from the operator seat.
To assist your dealer in handling your needs, please record hereafter the model number and serial
number of your equipment and machine. It is also advisable to supply them to your insurance
company. It will be helpful in the event that equipment or machine is lost or stolen
MODEL:_________________________________________________________________________
SERIAL NUMBER:_________________________________________________________________
DATE OF PURCHASE:______________________________________________________________
DEALER NAME:___________________________________________________________________
DEALER TELEPHONE NUMBER:_____________________________________________________

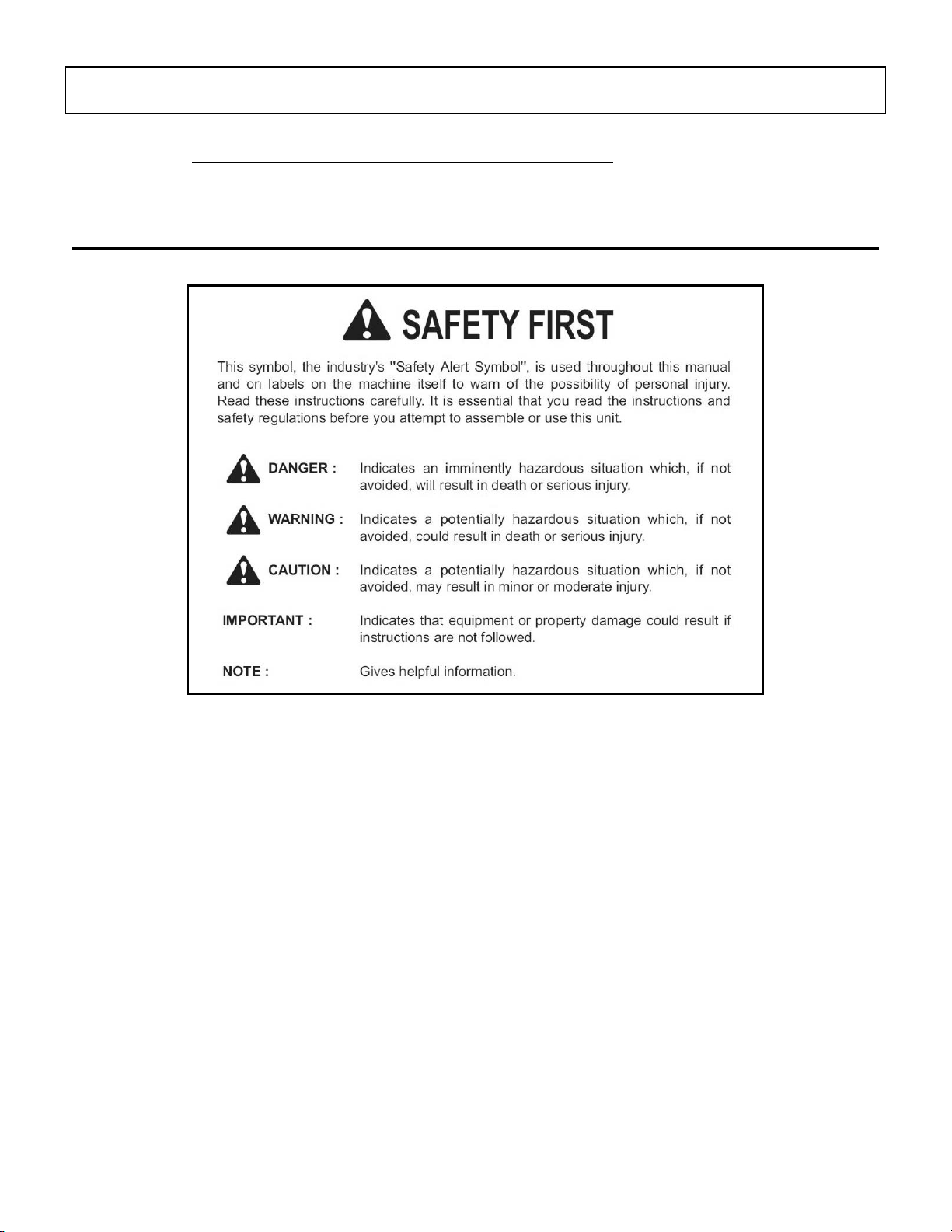

INTRODUCTION
OM 0472SB-A [2]
All products are designed to give safe, dependable service if they are operated and maintained according
to instructions. Read and understand this manual before operation. It is the owner's responsibility to
be certain anyone operating this product reads this manual, and all other applicable manuals, to become
familiar with this equipment and all safety precautions. Failure to do so could result in serious personal
injury or equipment damage. If you have any questions, consult your dealer.

TABLE OF CONTENT
OM 0472SB-A [3]
INTRODUCTION ...................................................................................................................................1
TABLE OF CONTENT............................................................................................................................3
SAFETY INFORMATION .......................................................................................................................5
GENERAL SAFETY INFORMATION- Pictograms..................................................................................7
SPECIFICATION ....................................................................................................................................9
SAFETY DECALS ................................................................................................................................10
ASSEMBLY...........................................................................................................................................11
Snowblower Assembly.................................................................................................................11
Snowblower Assembly.................................................................................................11
Installation of the Chute...............................................................................................11
Snowblower Installation...............................................................................................12
Detaching Snowblower from Male Quick Hitch............................................................................13

TABLE OF CONTENT
OM 0472SB-A [4]
OPERATION.........................................................................................................................................14
General Preparation ....................................................................................................................15
Engine Speed..............................................................................................................15
Increasing Traction and Stability.................................................................................15
Engaging the Drive Mechanism ..................................................................................15
Deflector Adjustment...................................................................................................16
Skid Shoe Adjustment ................................................................................................16

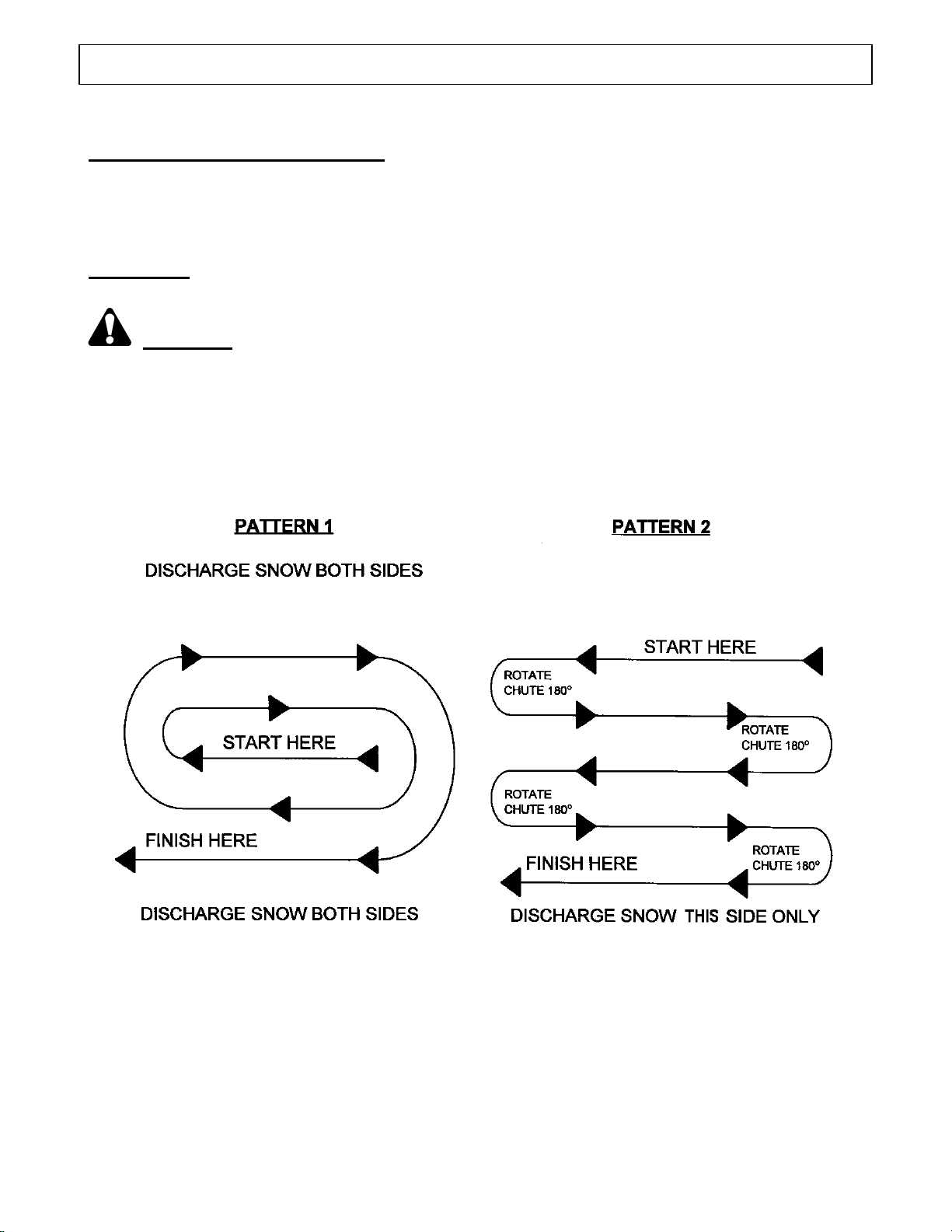

Snow Removal Methods..............................................................................................................17
MAINTENANCE....................................................................................................................................18
Shear Bolts ..................................................................................................................18
Auger Repositioning.....................................................................................................18
Gearbox and Reduction Box........................................................................................19
Oil Level – Oil Filling....................................................................................................19
Oil Change...................................................................................................................19
Lubrication ...................................................................................................................................20
PARTS..................................................................................................................................................21
Introduction .................................................................................................................................21
Chute with Hydraulic Rotation......................................................................................................22
Snowblower Assembly - Front .....................................................................................................24
Snowblower Assembly - Back......................................................................................................26
Reduction Box Assembly "COMER" identification ......................................................................28
Reduction Box Assembly "4500146S" identification....................................................................29
Worm Gearbox Assembly "CK067" identification.........................................................................30
Worm Gearbox Assembly "4500137S" identification...................................................................31
Driveline Female Half...................................................................................................................32
TORQUE SPECIFICATION TABLE .....................................................................................................33

SAFETY INFORMATION
OM 0472SB-A [5]
Children
Tragic accidents can occur if the operator is
not alert to the presence of children. Children
are generally attracted to machines and the
work being done. Never assume children will
remain where you last saw them
1. Keep children out of the operating area and
under the watchful eye of another
responsible adult.
2. Be alert and turn machine off if children
enter the work area.
3. Before and when backing, look behind for
small children.
4. Never carry children while operating the
machine. They may fall off and be seriously
injured or interfere with the safe operation of
the machine.
5. Never allow children to play on the machine
or attachment even when the machine is
turned off.
6. Never allow children to operate the machine
even under adult supervision.
7. Use extra care when approaching blind
corners, shrubs, trees, or other obstructions
that might hide children from sight.
Before Operation
1. Read and understand both the machine
AND implement operator's manual
before using the snowblower. Know how
to operate all controls and how to stop
the unit and disengage the controls
quickly. Lack of knowledge can lead to
accidents.
2. Park the machine/implement on level
ground, set the parking brake, lower the
implement to the ground, place all
control levers in neutral, shut off the
engine and remove the ignition key and
allow the rotating parts to stop BEFORE
making any implement adjustments,
repairs or inspections.
3. Keep clear of all rotating parts. Do not
put hands or feet under, or into
snowblower and subframe with engine
running.
4. For your safety, do not work under any
hydraulically supported machine elements, they
may creep down, suddenly drop or be
accidentally lowered. Do not use loader, quick
hitch, or an implement as a jack for servicing.
5. Do not operate the machine/implement that is
defective or has missing parts. Make sure that
all recommended maintenance procedures are
completed before operating the unit.
6. Keep the machine/implement clean. Snow, dirt
or ice build-up can lead to malfunction or
personal injury from thawing and refreezing in
garage. Inspect and clean every rotating parts.
7. Do not modify or alter this implement or any of
its components, or any implement function
without first consulting your dealer. The
manufacturer will not claim responsibility for
fitment of unapproved parts and/or accessories
and any damages as a result of their use.
8. Verify that all machine/implement safety
protective devices are in place. Shields, guards
and covers must be correctly installed at all
times. When necessary to remove these for
servicing, cleaning, or repair work, they must be
reinstalled immediately.
9. Always make sure all implement components
are properly installed and securely fastened.
10.Check that all machine/implement drivelines are
in good working order.
11.Check for moving parts excessive wear
regularly. ALWAYS USE GENUINE PARTS
WHEN REPLACEMENT PARTS ARE
REQUIRED.
12.Prior to operation, clear work area and mark all
curbs, pipes, etc. that cannot be moved.
13.Inspect the machine/implement after striking
any foreign object to assure that all
machine/implement parts are safe and secure
and not damaged.
14.Handle fuel with care, as it is highly flammable.
Use approved fuel container.
15.Never add fuel to a running engine or a hot
engine.
16. Fill fuel tank outdoors with extreme care. Never
fill fuel tank indoors. Replace fuel cap securely
and wipe up spilled fuel. Always refuel using a
properly grounded system.

SAFETY INFORMATION
OM 0472SB-A [6]
17. Check all machine controls regularly and
adjust where necessary. Make sure that the
brakes are evenly adjusted. Periodically
check all nuts and bolts for tightness,
especially wheel hub and rim nuts.
18. Make sure the machine is counterweighted
and has tire chains for better traction and
stability as recommended by your dealer.
Weights provide the necessary balance to
improve stability, traction and steering. Use
only those recommended by your dealer.
19. Prolonged exposure to loud noise can cause
impairment or loss of hearing. Wear a
suitable hearing protective device such as
earmuffs or earplugs to protect against
objectionable or uncomfortable noises..
During Operation
1. Never allow anyone to operate the machine
and implement until they have read the
manuals completely and are thoroughly
familiar with their basic operation. Lack of
operating knowledge can lead to accidents.
2. Do not allow anyone to ride on the
machine/implement at any time. The only
one allowed is the operator that MUST sit
in the driver seat.
3. Never allow anyone near the work area.
The debris that can be thrown could cause
serious personal injuries.
4. Never stand alongside of the implement
while the engine is running.
5. Never operate the implement without safety
protective devices in place. All
machine/implement shields, guards and
covers must be correctly installed at all
times.
6. Keep clear of all rotating parts. Do not put
hands or feet under, or into the implement
with engine running.
7. If the implement starts to vibrate
abnormally, disengage the PTO, stop the
engine immediately and check for cause.
Excessive vibration is generally a sign of
trouble.
8. Park the machine/implement on level ground,
place the transmission in neutral, set the parking
brake, disengage the driving system, lower the
equipment to the ground, place all levers
including auxiliary control levers in neutral, shut
off the engine and remove the ignition key
BEFORE LEAVING THE MACHINE.
9. Always drive the machine at speeds compatible
with safety, especially when operating over
rough ground, crossing ditches, slippery surface
or when turning.
10. Operate only with good visibility and during
daylight hours, or when the area is well lit with
bright artificial light.
11. Do not run the engine indoors except when
starting engine and transporting attachment in or
out of building. Carbon monoxide gas is
colorless, odorless and deadly.
12. Exercise extreme caution when operating on or
crossing a gravel drive, walks, or roads. Stay
alert for hidden hazards or traffic.
13. Use extra caution when backing up.
14. Operate up and down (not across) intermediate
slopes. Avoid sudden starts and stops. Drive
machine backwards up steeper slopes with the
implement off. Then operate as you travel down
the slope.
15. Never park the machine on a steep slope. Do
not attempt to operate on steep slopes. If
operating on slopes is necessary, exercise
extreme caution when changing direction.
16. Disengage power to implement when
transporting or when not in use

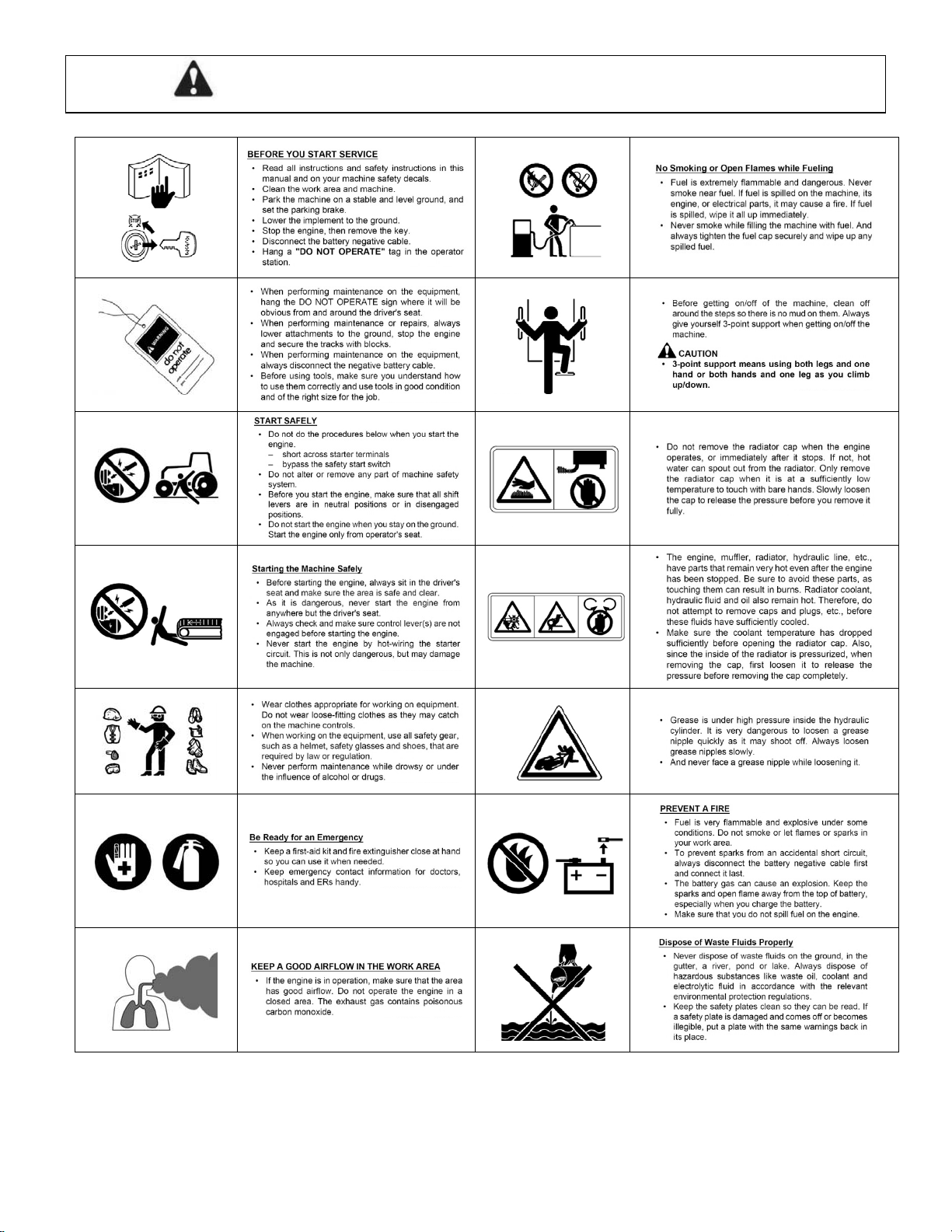

GENERAL SAFETY INFORMATION
OM 0472SB-A [7]

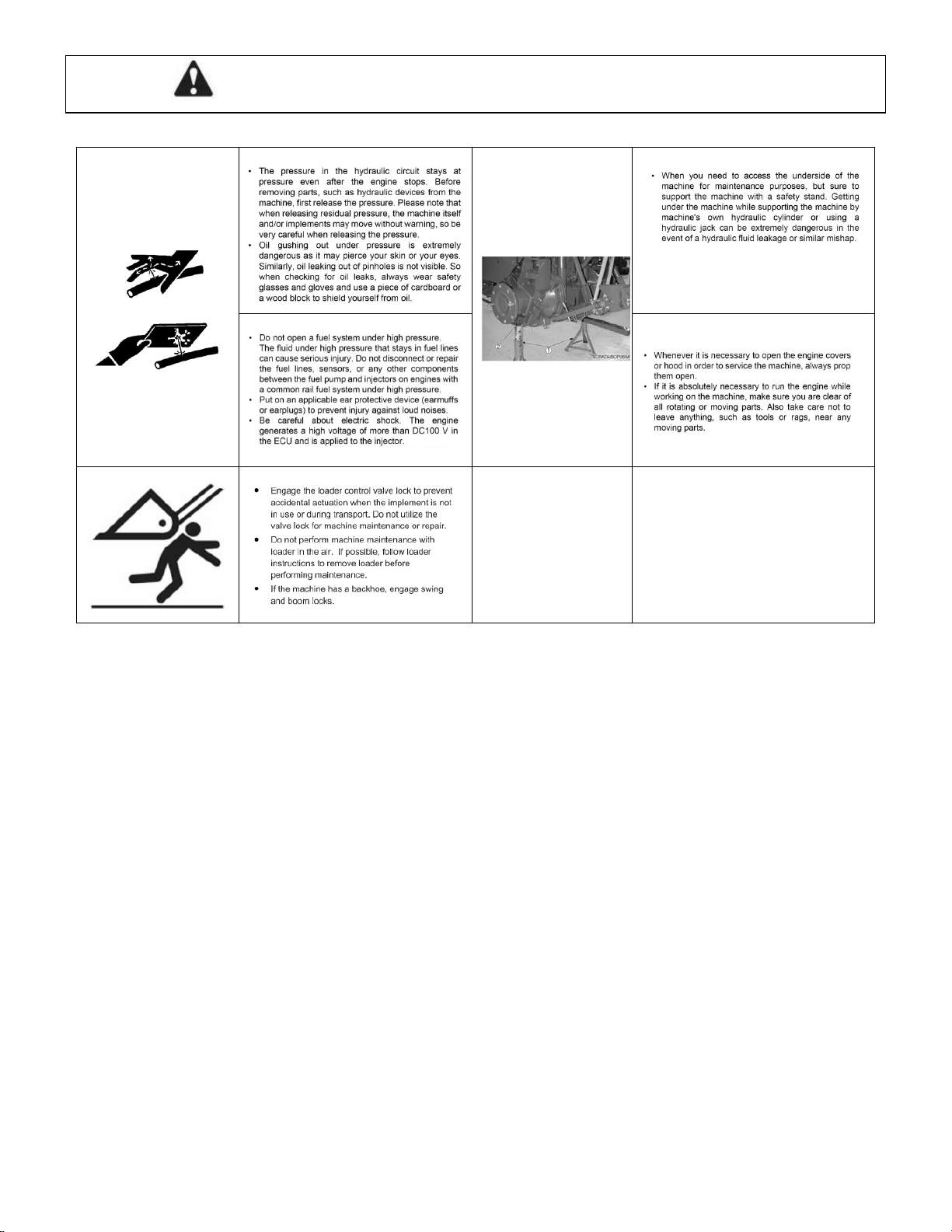

GENERAL SAFETY INFORMATION
OM 0472SB-A [8]
(1) Safety stand
(2) Secure point for safety stand

SPECIFICATION
OM 0472SB-A [9]
Features and Specifications LW3163B
Input rotation (from driver's seat) Clockwise
Overall width (with side extensions) 63"
Overall height (without chute) 24"
Overall length 34"
Cutting width 68"
Cutting height 23"
Frame thickness 12 Ga.
Side thickness 3/16"
Impeller back housing thickness 12 Ga.
Impeller side housing thickness 12 Ga.
Number of phases 2
Primary drive Driveline 6RW serial
Gear box Ratio 2.92@1 (1 3/8"-6 splines)
Impeller drive Gear box T281A ratio 1:1
Auger drive Worm gear
Auger diameter 13 3/4"
Auger pitch 16"
Impeller diameter 17 5/8"
Number of blades on impeller 4
Chute position Right
Chute rotation Manual
Chute type Two part chute
Adjustable deflector Yes. Hydraulic or electric in opt.
Adjustable heavy skid shoes Yes, 3 positions, 0",1/2",1"
Replaceable cutting edge Yes
Number of shear bolts on auger 1 ( 5/16" NC, GR. 5 hex. bolt)
Number of shear bolts on impeller 2 ( 5/16" NC, GR. 5 hex. bolt)
Hitch system Quick hitch system "C" type
Approx. shipping weight 500 lbs
Overall package size 68" x 41 1/2" x 29 3/4" height

SAFETY LABELS
OM 0472SB-A [10]
IMPORTANT: Keep all decals clean and legible. Replace all
missing, illegible, or damaged decals.
IMPORTANT: Decal placement locations shown are
approximate; decals should not be placed in a location where
the operator’s field of view is impeded and should not cover
any portion of other decals installed in the same vicinity.
INSTALLING OR REPLACING DECALS: Thoroughly clean
the area where decal is to be placed using mild soap and
water. Allow the surface to fully dry. Remove the backing
from the decal, exposing the adhesive surface. Apply the
decal to the recommended position shown in the diagram
below and smooth out any bubbles.
2500329
657762
2500785
2500842
655683
657761
LW3163
2501035
LS TRACTOR
2500879
657763

ASSEMBLY
OM 0472SB-A [11]
Figure 1
SNOWBLOWER ASSEMBLY
The snowblower is assembled at the factory, however, the chute must be assembled.
Installation of the Chute (Figure 1)
1. Figure 1: Remove the chute (item 1) and
the rotation bushing (item 4) from the crate.
2. Figure 1: Remove the three retaining plates
(items 2-3), the four spacers (item 5), and
the gear guard (item 9) by unscrewing the
ten bolts (items 6-10). Keep the parts close
at hand.
3. Figure 1: Grease the retaining plates
(items 2-3) and the top of the rotation
bushing (item 4) before installing them on
the snowblower.
4. Figure 1: Install the bushing (item 4), then
the chute (item 1), align the eight spacers
(items 5 & 13) with the eight holes on the
housing and secure using the retaining
plates (items 2-3) placing them as
illustrated and the eight 5/16"NC x 1 1/2"
bolts (item 6), lockwashers (item 7) and
nuts (item 8).
5. Figure 1a: Rotate the hydraulic motor
(item 1) so the gear teeth (item 2) connect
as much as possible with the gear teeth of
the chute (item 3). Tighten the bolts
(item 4) at 10 ft-lb (13 N-M).
6. Figure 1: Place the gear guard (item 9) on
top of gear; lock in place with two 1/4" NC
X 3/4" bolts (item 10), lockwashers
(item 11) and nuts (item 12).
Figure 1a

ASSEMBLY
OM 0472SB-A [12]

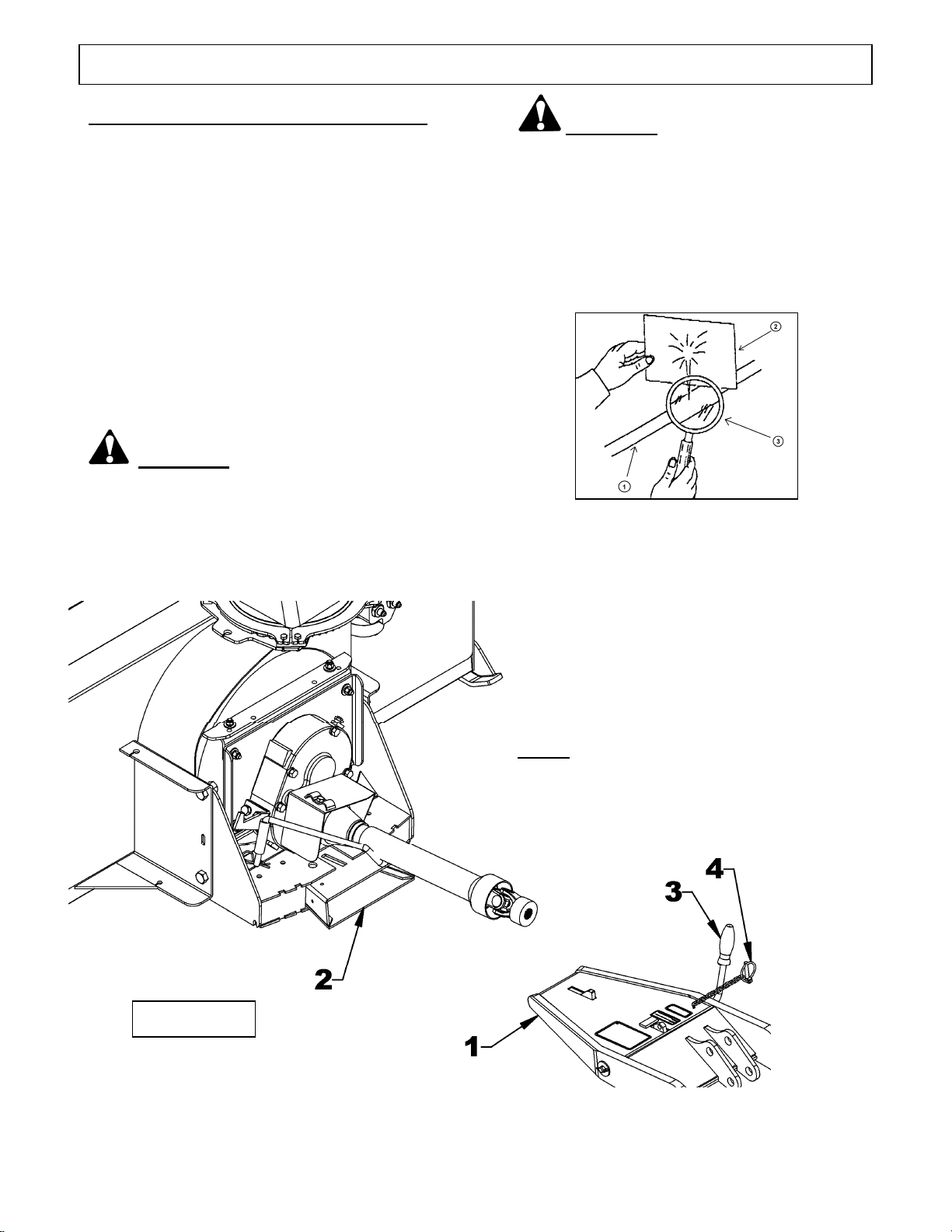

Figure 2
Snowblower Installation (Figures 2-3)
1. Figure 2: With the driveline placed on its
support, carefully drive in tractor inserting
male hitch (item 1) all the way into female
hitch (item 2).
2. Turn off tractor engine, set parking brake
and remove the ignition key.
3. Figure 2: Push the hitch lever (item 3)
forward to lock position and secure latch
with the linchpin (item 4).
4. Remove the driveline from its storage
support and secure it to its bracket. Attach
the driveline quick connect yoke to the
tractor PTO shaft.
WARNING: This shaft turns at very
high RPM. If the collar is not locked to the
shaft at tractor end, or if the yoke at the
blower end is not secured properly, the
driveline can fly loose with great force
capable of causing serious injury or death.
WARNING
To avoid serious personal injury:
Escaping hydraulic/diesel fluid under
pressure can penetrate the skin causing
serious injury.
•Do not use your hands to check for
leaks. Use a piece of cardboard or paper
to search for leaks.
(1) Hydraulic line
(2) Cardboard
(3) Magnifying glass
•Stop engine and relieve pressure before
connecting or disconnecting lines.
•Tighten all connections before starting
engine or pressurizing lines.
If any fluid is injected into the skin, obtain
medical attention immediately or gangrene
may result.
NOTE: If hydraulic hoses are already
identified with colored plastic rings,
connect attachment hoses to matching
color female couplers on hydraulic
control valve.

ASSEMBLY
OM 0472SB-A [13]
Figure 3
5. Release pressure from hydraulic system by
moving the control valve lever in all
directions.
6. Figure 3: Connect the two hydraulic hoses
(item 1) from the hydraulic motor to the
tractor quick couplers. Refer to the dust cap
color for the appropriate connection.
7. Figure 3: Fasten the hoses to the driveline
guard with a hose clamp (item 2) and secure
with a 3/8"NC x 1"lg hex. bolt and a 3/8/NC
nylon insert lock nut (items 3-4), making
sure to leave some free hose on the left side
of the tractor to prevent tension when the
snowblower is raised or lowered to its
maximum.
DETACHING SNOWBLOWER FROM
MALE QUICK HITCH
(Figures 2-3)
1. Set snowblower in float position, turn engine
off, set parking brake and remove ignition
key.
2. Remove linchpin (item 4) from male hitch
latch and place male hitch lever (item 3)
rearward to unlock position.
3. Disconnect driveline from tractor. Set
driveline on its support rod, remove the
support hairpin, turn the support rearward
and reinstall the hairpin.
4. Release hydraulic pressure by moving
control valve in all directions.
5. Disconnect the hydraulic hoses of the tractor
female couplers and place the dust caps on
the couplers.
6. Slowly back the tractor away from the
snowblower.

OPERATION
OM 0472SB-A [14]
GENERAL PREPARATION
1. Read the operator's manual carefully before
using the tractor and snowblower. Be
thoroughly familiar with the controls and
proper use of the equipment. Know how to
stop the unit and disengage the controls
quickly.
2. Wear adequate winter outer garments while
operating the equipment.
3. Make sure the snowblower is clear of snow
and other material before engaging the
snowblower.
4. Make sure the auger and fan operate freely.
5. Check the oil level in the reduction box and
gear box and if necessary, add AGMA 5EP
extreme pressure oil, SAE 80W90 gear oil or
equivalent.
6. Check the two shear bolts, one on the fan
and one on the driving shaft for proper
tightness.
7. Adjust the skid shoes so the snowblower
runs leveled.
8. Before engaging the snowblower drive,
always have the engine running at idle.
9. Operate the snowblower at maximum
engine RPM.
Engine Speed
1. Start the tractor engine. Let the engine warm
up at least one minute before engaging the
drive mechanism then increase speed
gradually.
2. Make sure the snowblower head is properly
positioned and engage the drive mechanism.
3. Adjust the ground speed according to
conditions. For maximum power, run engine
at or near full throttle.
IMPORTANT : Use full RPM power when
removing wet, sticky snow. Low RPM power
will tend to clog the chute.
WARNING : To avoid serious personal
injury: Do not use your hands to unclog the
chute. Use a 36" (925mm) stick or board. Do
not attempt to unclog the chute while engine
is running. If the chute is clogged, shut off
the tractor engine, remove the key and allow
the rotating parts to stop before removing the
snow from the chute.
Increasing Traction and Stability
The use of approved tire chains and wheel
weights or rear weights is recommended for
extra traction and stability, especially when
operating in snow and/or on slippery surfaces.
See your dealer for details
Engaging the Drive Mechanism
Refer to the tractor's operating manual for
instructions.

OPERATION
OM 0472SB-A [15]
WARNING: To avoid serious
personal injury: Make sure tractor engine
and snowblower come to a complete stop
and tractor drive mechanism is
disengaged BEFORE making any
adjustments.
Deflector Adjustment
The deflector angle must be set according to
the distance the snow must be thrown. To
adjust the angle:
•Turn the chute to the left as far as
possible.
•Loosen the two deflector knobs on the
side and adjust the deflector at the
appropriate angle.
•Tighten the knobs.
Skid Shoe Adjustment
(Figure below)
Adjust the snowblower so that the skid shoes
run level and according to the surface
conditions so that stones are not thrown with
the snow. Adjust both skid shoes to the same
height to keep the cutting edge level and adjust
upwards for smooth surfaces.
Loosen skid shoe bolts and adjust according to
instructions below, and securely tighten bolts:
Clearance between cutting edge and surface:
•Level paved surface:Insert bolts in bottom holes
•Uneven or gravel surface: Insert bolts to the
required distance: 1/2" - center hole
1" - upper hole

OPERATION
OM 0472SB-A [16]
SNOW REMOVAL METHODS
When removing snow, do not use the snowblower as a dozer blade to push snow. Let the snowblower
work its way through deep drifts. If the speed of your tractor is too fast, the snowblower may become
overloaded and clog. For best results, raise the snowblower and remove a top layer of snow. A
second pass with the snowblower will remove the remaining snow.
IMPORTANT: Use full RPM power when removing wet, sticky snow. Low RPM power will tend to clog
the chute.
WARNING: To avoid serious personal injury: Do not use hands or feet to unclog chute.
Do not attempt to clear clogged chute of snow while tractor engine is running. If the chute
clogs, disengage the PTO shaft, shut off the tractor engine, set the parking brake, lower
snowblower to the ground, place transmission in neutral, remove the ignition key, wait for all
movement to stop, and then clear the snow from the chute.
A definite pattern of operation is required to thoroughly clean the snow area. These patterns will avoid
throwing snow in unwanted places as well as eliminating a second removal of snow
Where it is possible to throw the snow to the
left and right (above), as on a long driveway, it
is advantageous to start in the middle. Plow
from one end to the other, throwing snow to
both sides without changing the direction of the
discharge guide
If the snow can only be thrown to one side of
the driveway or sidewalk (above), start on the
opposite side. At the end of the first pass,
rotate the discharge guide 180 degrees for the
return pass. At the end of each succeeding
pass, rotate the discharge guide 180 degrees
to maintain direction of throw in the same area.

MAINTENANCE
OM 0472SB-A [17]
MAINTENANCE
ALWAYS USE GENUINE PARTS WHEN REPLACEMENT PARTS ARE REQUIRED
WARNING to avoid serious
personal injury:
•Before cleaning, adjusting or repairing
the snowblower: bring the tractor to a
complete stop, disengage the PTO,
apply parking brake lower the
implement shut off the engine and
remove the ignition key.
•Never park the tractor inside a building
where an open flame or sparks are
present. Allow the engine to cool down
before storing in any enclosure.
•Run the snowblower a few minutes after
blowing snow to prevent freeze up of
auger and fan.
•Provide adequate blocking before
working under the snowblower when in
raised position.
Shear Bolts
1. Always use special grade 5 extended bolts
on fan and special grade 5 grooved shear
bolts on the auger sections as shown on
decal (BER2500842) shown below.
2. Check shear bolts at frequent intervals for
proper tightness to be sure the
snowblower is in safe working condition.
Auger Repositioning
After shear bolt breakage on one of the augers,
make sure to reposition the augers as shown
on the figure below.

MAINTENANCE
OM 0472SB-A [18]
Gearbox and Reduction Box
When servicing either the gearbox or the
reduction box, the sealing of the casing must
be restored. To do so, apply a layer of silicone
to the casing before closing it. Allow the
silicone to cure for at least 24 hours before
filling it with oil.
Oil Level – Oil Filling (Figure below)
To check oil level: Remove oil level plug, check
if the oil is flush with the plug. If not, remove
the oil filler plug and fill until the oil flows
through the oil level plug hole. Reinstall both
plugs.
Oil Change (Figure below)
Change the oil in the gearbox and in the
reduction box once a year.
1. Remove oil filler plug.
2. Remove oil change plug and let oil flow
through until only small drops are coming
out.
3. Reinstall oil change plug and remove oil
level plug. Fill gearbox/ reduction box with
SAE 80W90 oil, AGMA 5EP extreme
pressure oil or equivalent, until oil reaches
oil level plug. Reinstall oil level plug, then
oil filler plug.
NOTE: For reduction box, take the lower oil
change plug.
