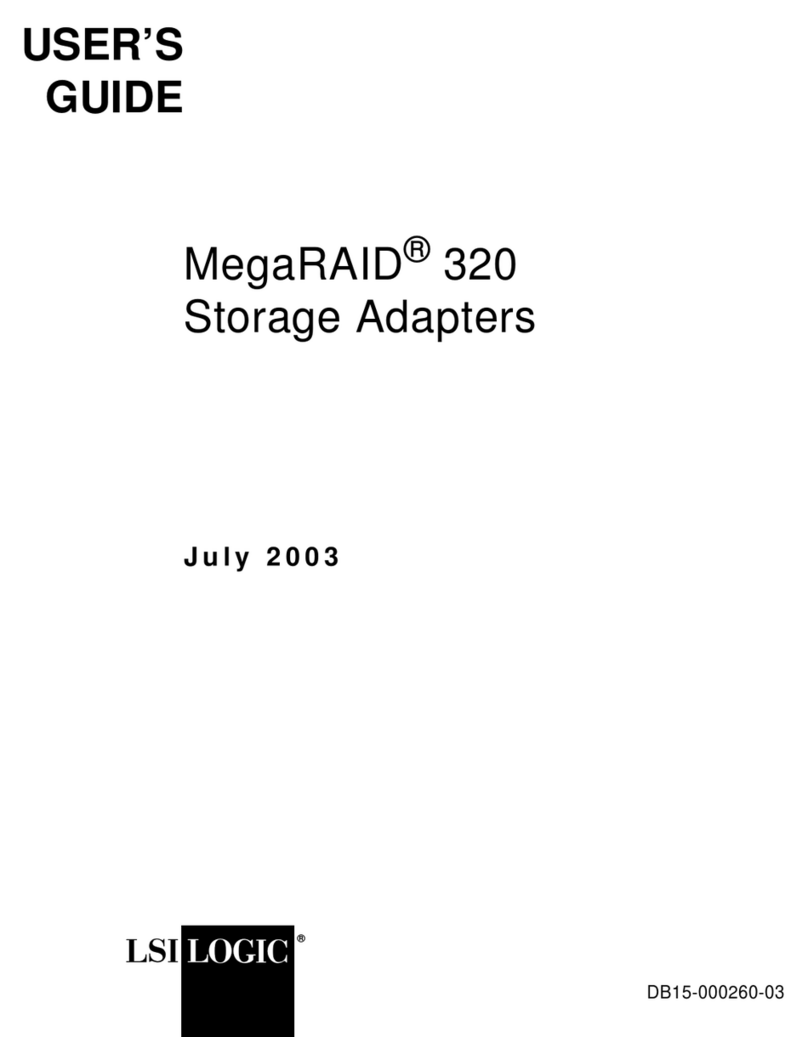

LSI MegaRAID 320 User manual

80-00143-01 Rev. B
MegaRAID®320
Storage Adapters
USER’S
GUIDE
March 2008

ii
Copyright © 2003-2008 by LSI Corporation. All rights reserved.
LSI products are not intended for use in life-support appliances, devices, or
systems. Use of any LSI product in such applications without written consent of
the appropriate LSI officer is prohibited.
Purchase of I2C components of LSI Corporation, or one of its sublicensed
Associated Companies, conveys a license under the Philips I2C Patent Rights to
use these components in an I2C system, provided that the system conforms to
the I2C standard Specification as defined by Philips.
Document 80-00143-01 Rev. B, March 2008. This document describes the
current version of the LSI Corporation MegaRAID 320 Storage Adapters and will
remain the official reference source for all revisions/releases of these products
until rescinded by an update.
LSI Corporation reserves the right to make changes to any products herein at
any time without notice. LSI does not assume any responsibility or liability arising
out of the application or use of any product described herein, except as expressly
agreed to in writing by LSI; nor does the purchase or use of a product from LSI
convey a license under any patent rights, copyrights, trademark rights, or any
other of the intellectual property rights of LSI or third parties.
Copyright © 2003-2008 by LSI Corporation. All rights reserved.
TRADEMARK ACKNOWLEDGMENT
LSI, the LSI logo design, Fusion-MPT, and MegaRAID are trademarks or
registered trademarks of LSI Corporation. Microsoft, Windows, and Windows NT
are registered trademarks of Microsoft Corporation. Novell and NetWare are
registered trademarks of Novell Corporation. UNIX and UnixWare are registered
trademarks of The Open Group. SCO is a registered trademark of Caldera
International, Inc. Linux is a registered trademark of Linus Torvalds. PCI-X is a
registered trademark of PCI SIG. All other brand and product names may be
trademarks of their respective companies.
CD
To receive product literature, visit us at http://www.lsi.com.
For a current list of our distributors, sales offices, and design resource
centers, view our web page located at
http://www.lsi.com/contacts/index.html

MegaRAID 320 Storage Adapters User’s Guide iii
Copyright © 2003-2008 by LSI Corporation. All rights reserved.
Preface
This book is the primary reference and user’s guide for the LSI
MegaRAID®320 Storage Adapters. It contains complete installation
instructions for these adapters and includes specifications for them.
The MegaRAID 320 Storage Adapter family consists of the following:
•MegaRAID 320-1 PCI SCSI Disk Array Controller
•MegaRAID 320-2 PCI SCSI Disk Array Controller
•MegaRAID 320-2E PCI Express SCSI Disk Array Controller
•MegaRAID 320-2X PCI-X SCSI Disk Array Controller
•MegaRAID 320-4X PCI-X SCSI Disk Array Controller
For details on how to configure the Storage Adapters, and for an
overview of the software drivers, see the MegaRAID Configuration
Software User’s Guide.
Audience
This document assumes that you have some familiarity with RAID
controllers and related support devices. The people who benefit from this
book are:
•Engineers who are designing a MegaRAID 320 Storage Adapter into
a system
•Anyone installing a MegaRAID 320 Storage Adapter in their RAID
system

iv Preface
Copyright © 2003-2008 by LSI Corporation. All rights reserved.
Organization
This document has the following chapters and appendixes:
•Chapter 1, Overview, provides a general overview of the
MegaRAID 320 series of PCI-to-SCSI Storage Adapters with RAID
control capabilities.
•Chapter 2, Hardware Installation, describes the procedures for
installing the MegaRAID 320-1, -2, -2E, -2X, and -4X Storage
Adapters.
•Chapter 3, MegaRAID 320 Storage Adapter Characteristics,
provides the characteristics and technical specifications for the
MegaRAID 320-1, 320-2, 320- 2E, 320-2X, and 320-4X Storage
Adapters.
•Chapter 4, Installing and Configuring Clusters, explains how to
implement clustering to enable two independent servers to access
the same shared data storage.
•Appendix A, Glossary of Terms and Abbreviations, lists and
explains the terms and abbreviations used in this manual.
Related Publications
MegaRAID Configuration Software User’s Guide, Document No.
DB15-000269-01 (on the MegaRAID Universal Software Suite CD
included with the MegaRAID 320 Storage Adapter)
MegaRAID Device Driver Installation User’s Guide, Document No.
DB11-000018-02 (on the MegaRAID Universal Software Suite CD
included with the MegaRAID 320 Storage Adapter)

Preface v
Copyright © 2003-2008 by LSI Corporation. All rights reserved.
Safety Instructions
Use the following safety guidelines to help protect your computer system
from potential damage and to ensure your own personal safety.
When Using Your Computer System – As you use your computer
system, observe the following safety guidelines:
Caution: Do not operate your computer system with any cover(s)
(such as computer covers, bezels, filler brackets, and
front-panel inserts) removed:
•To help avoid damaging your computer, be sure the voltage selection
switch on the power supply is set to match the alternating current
(AC) power available at your location:
– 115 volts (V)/60 hertz (Hz) in most of North and South America
and some Far Eastern countries such as Japan, South Korea,
and Taiwan
– 230 V/50 Hz in most of Europe, the Middle East, and the Far East.
Also be sure your monitor and attached peripherals are electrically
rated to operate with the AC power available in your location.
•To help avoid possible damage to the system board, wait 5 seconds
after turning off the system before removing a component from the
system board or disconnecting a peripheral device from the computer.
•To help prevent electric shock, plug the computer and peripheral
power cables into properly grounded power sources. These cables
are equipped with 3-prong plugs to ensure proper grounding. Do not
use adapter plugs or remove the grounding prong from a cable. If
you must use an extension cable, use a 3-wire cable with properly
grounded plugs.
•To help protect your computer system from sudden, transient
increases and decreases in electrical power, use a surge suppressor,
line conditioner, or uninterruptible power supply.
•Be sure nothing rests on your computer system’s cables and that the
cables are not located where they can be stepped on or tripped over.
•Do not spill food or liquids on your computer. If the computer gets
wet, consult the documentation that came with it.

vi Preface
Copyright © 2003-2008 by LSI Corporation. All rights reserved.
•Do not push any objects into the openings of your computer. Doing so
can cause fire or electric shock by shorting out interior components.
•Keep your computer away from radiators and heat sources. Also, do
not block cooling vents. Avoid placing loose papers underneath your
computer; do not place your computer in a closed-in wall unit or on
a rug.
When Working Inside Your Computer –
Notice: Do not attempt to service the computer system yourself,
except as explained in this guide and elsewhere in
LSI Logic documentation. Always follow installation and
service instructions closely.
1. Turn off your computer and any peripherals.
2. Disconnect your computer and peripherals from their power sources.
Also disconnect any telephone or telecommunications lines from
the computer.
Doing so reduces the potential for personal injury or shock.
Also note these safety guidelines:
•When you disconnect a cable, pull on its connector or on its
strain-relief loop, not on the cable itself. Some cables have a
connector with locking tabs; if you are disconnecting this type of
cable, press in on the locking tabs before disconnect the cable. As
you pull connectors apart, keep them evenly aligned to avoid bending
any connector pins. Also, before you connect a cable, make sure
both connectors are correctly oriented and aligned.
•Handle components and cards with care. Don’t touch the
components or contacts on a card. Hold a card by its edges or by its
metal mounting bracket. Hold a component such as a
microprocessor chip by its edges, not by its pins.
Protecting Against Electrostatic Discharge – Static electricity can
harm delicate components inside your computer. To prevent static
damage, discharge static electricity from your body before you touch any
of your computer’s electronic components, such as the microprocessor.
You can do so by touching an unpainted metal surface, such as the metal
around the card-slot openings at the back of the computer.

Preface vii
Copyright © 2003-2008 by LSI Corporation. All rights reserved.
As you continue to work inside the computer, periodically touch an
unpainted metal surface to remove any static charge your body may have
accumulated. In addition to the preceding precautions, you can also take
the following steps to prevent damage from electrostatic discharge (ESD):
•When unpacking a static-sensitive component from its shipping
carton, do not remove the component from the antistatic packing
material until you are ready to install the component in your
computer. Just before unwrapping the antistatic packaging, be sure
to discharge static electricity from your body.
•When transporting a sensitive component, first place it in an
antistatic container or packaging.
•Handle all sensitive components in a static-safe area. If possible, use
antistatic floor pads and workbench pads.

viii Preface
Copyright © 2003-2008 by LSI Corporation. All rights reserved.

MegaRAID 320 Storage Adapters User’s Guide xv
Copyright © 2003-2008 by LSI Corporation. All rights reserved.
Contents
Chapter 1
Overview
1.1 Overview 1-1
1.1.1 Operating System Support 1-3
1.1.2 Technical Support 1-3
1.2 Features 1-4
1.2.1 Memory 1-4
1.2.2 Connectors 1-4
1.2.3 RAID Features 1-4
1.2.4 Drive Roaming 1-5
1.2.5 Drive Migration 1-6
1.3 Hardware 1-6
Chapter 2
Hardware Installation
2.1 Requirements 2-1
2.2 Quick Installation 2-2
2.3 Detailed Installation 2-3
2.4 SCSI Device Cables 2-9
2.4.1 Internal SCSI Cables 2-9
2.4.2 External SCSI Cables 2-10
2.4.3 Connecting Internal SCSI Devices 2-11
2.4.4 Connecting External SCSI Devices 2-13
2.5 Replacing a Failed Controller with Data in the TBBU 2-15
2.6 After Installing the Storage Adapter 2-16

xvi Contents
Copyright © 2003-2008 by LSI Corporation. All rights reserved.
Chapter 3
MegaRAID 320 Storage Adapter Characteristics
3.1 MegaRAID 320 Storage Adapter Family 3-1
3.1.1 Single-Channel Storage Adapter 3-2
3.1.2 Dual-Channel Storage Adapters 3-4
3.1.3 Quad-Channel Storage Adapter 3-10
3.2 MegaRAID 320 Storage Adapter Characteristics 3-12
3.3 Technical Specifications 3-12
3.3.1 Storage Adapter Specifications 3-13
3.3.2 Array Performance Features 3-15
3.3.3 Fault Tolerance 3-16
3.3.4 Electrical Characteristics 3-17
3.3.5 Thermal and Atmospheric Characteristics 3-17
3.3.6 Safety Characteristics 3-17
Chapter 4
Installing and Configuring Clusters
4.1 Overview 4-1
4.2 Benefits of Clusters 4-2
4.3 Installing and Configuring Your System as Part of
a Cluster 4-2
4.4 Driver Installation Instructions under Microsoft
Windows 2000 Advanced Server 4-4
4.4.1 Network Requirements 4-4
4.4.2 Shared Disk Requirements 4-5
4.5 Installing the Peer Processor Device in a Windows
Cluster 4-6
4.6 Installing SCSI Drives 4-12
4.6.1 Configuring the SCSI Devices 4-12
4.6.2 Terminating the Shared SCSI Bus 4-12
4.7 Installing Clusters under Windows 2000 4-13
4.7.1 Installing the Microsoft Windows 2000
Operating System 4-14
4.7.2 Setting Up Networks 4-14
4.7.3 Configuring the Cluster Node Network Adapter 4-15
4.7.4 Setting Up the First Node in Your Cluster 4-16
4.7.5 Configuring the Public Network Adapter 4-17

Contents xvii
Copyright © 2003-2008 by LSI Corporation. All rights reserved.
4.7.6 Verifying Connectivity and Name Resolution 4-18
4.7.7 Verifying Domain Membership 4-19
4.7.8 Setting Up a Cluster User Account 4-20
4.7.9 Setting Up Shared Disks 4-21
4.7.10 Configuring Shared Disks 4-21
4.7.11 Assigning Drive Letters 4-22
4.7.12 Verifying Disk Access and Functionality 4-23
4.7.13 Installing Cluster Service Software 4-24
4.7.14 Configuring Cluster Disks 4-27
4.7.15 Validating the Cluster Installation 4-33
4.7.16 Configuring the Second Node 4-34
4.7.17 Verifying Installation 4-35
4.8 Installing Clusters under Windows Server 2003 4-36
4.8.1 Cluster Service Software Installation 4-36
4.8.2 Installation Checklist 4-36
4.8.3 Shared Disk Requirements 4-38
4.8.4 Steps for Configuring the Shared Disks
under Windows Server 2003 4-39
4.8.5 Cluster Service Installation Steps 4-45
4.8.6 Validating the Cluster Installation 4-55
4.8.7 Configuring the Second Node 4-58
Appendix A
Glossary of Terms and Abbreviations
Customer Feedback

xviii Contents
Copyright © 2003-2008 by LSI Corporation. All rights reserved.

Contents xvii
Copyright © 2003-2008 by LSI Corporation. All rights reserved.
Figures
2.1 Inserting the MegaRAID 320 Card in a PCI Slot 2-4
2.2 Inserting the MegaRAID 320-2E Card in a
PCI-Express Slot 2-5
2.3 Terminating an Internal SCSI Disk Array 2-8
2.4 SCSI Cable – 68-Pin High Density with Terminator 2-10
2.5 SCSI Cable – 68-Pin High Density without Terminator 2-10
2.6 SCSI Cable – 68-Pin VHDCI to 68-Pin VHDCI 2-10
2.7 SCSI Cable – 68-Pin VHDCI to 68-Pin HD 2-10
2.8 SCSI Cable – 68-Pin HD to 68-Pin HD 2-11
2.9 Connecting an Internal SCSI Cable to Host Adapter 2-11
2.10 Connecting Multiple Internal SCSI Devices 2-12
2.11 Connecting One External SCSI Device 2-13
2.12 Connecting Multiple External SCSI Devices 2-14
3.1 MegaRAID 320-1 Card Layout 3-2
3.2 MegaRAID 320-2 Card Layout 3-4
3.3 MegaRAID 320-2E Card Layout 3-6
3.4 MegaRAID 320-2X Card Layout 3-8
3.5 MegaRAID 320-4X Card Layout 3-10
4.1 Found New Hardware Wizard Dialog Box 4-7
4.2 Search and Installation Options 4-8
4.3 Hardware Type Dialog Box 4-9
4.4 Hardware Device Manufacturer and Model 4-10
4.5 Device Driver Dialog Box 4-11
4.6 Network and Dial-up Connections Screen 4-15
4.7 Create or Join a Cluster Dialog Box 4-25
4.8 User Account and Password Validation 4-26
4.9 Add or Removed Managed Disks Screen 4-27
4.10 Configure Cluster Networks Dialog Box 4-28
4.11 Network Connections Dialog Box 4-29
4.12 Network Connections Dialog Box 4-30
4.13 Internal Cluster Communication Dialog Box 4-31
4.14 Cluster IP Address Dialog Box 4-32
4.15 Cluster Service Confirmation 4-33
4.16 Cluster Administrator Screen 4-35
4.17 Computer Management Screen 4-39
4.18 Initialize and Convert Disk Wizard 4-40

xviii Contents
Copyright © 2003-2008 by LSI Corporation. All rights reserved.
4.19 Disk Management Screen 4-41
4.20 Select Partition Type Screen 4-42
4.21 Final Partition Wizard Screen 4-43
4.22 Computer Management 4-44
4.23 Cluster Administrator Screen 4-46
4.24 New Server Cluster Wizard Screen 4-47
4.25 Cluster Name and Domain Screen 4-48
4.26 Select Computer Screen 4-49
4.27 Configuration Analysis Screen 4-50
4.28 IP Address Screen 4-51
4.29 Cluster Service Account Screen 4-52
4.30 Proposed Cluster Configuration Screen 4-53
4.31 Creating the Cluster Screen 4-54
4.32 Selecting Properties in Cluster Administrator 4-55
4.33 Setting the Network Priority 4-56
4.34 Private Properties 4-58
4.35 Validating Cluster Administration on the
Cluster Administrator 4-59
4.36 Open Connection to Cluster Window 4-60
4.37 Select Computers Dialog Box 4-61
4.38 Cluster Service Account Dialog Box 4-62
4.39 Cluster Administrator Screen 4-63

Contents xix
Copyright © 2003-2008 by LSI Corporation. All rights reserved.
Tables
1.1 MegaRAID 320 Storage Adapter Comparisons 1-6
2.1 Target IDs 2-6
3.1 MegaRAID 320-1 Headers and Connectors 3-3
3.2 MegaRAID 320-2 Headers and Connectors 3-5
3.3 MegaRAID 320-2E Headers and Connectors 3-7
3.4 MegaRAID 320-2X Headers and Connectors 3-9
3.5 MegaRAID 320-4X Headers and Connectors 3-10
3.6 Storage Adapter Characteristics 3-12
3.7 Storage Adapter Specifications 3-13
3.8 Array Performance Features 3-15
3.9 MegaRAID 320 Fault Tolerance Features 3-16
3.10 Maximum Power Requirements 3-17
4.1 Nodes and Storage Devices 4-13
4.2 Example IP Addresses 4-19
4.3 Nodes and Storage Devices 4-45

xx Contents
Copyright © 2003-2008 by LSI Corporation. All rights reserved.

MegaRAID320 Storage Adapters User’s Guide 1-1
Copyright © 2003-2008 by LSI Corporation. All rights reserved.
Chapter 1
Overview
This section provides a general overview of the MegaRAID 320 series of
PCI-to-SCSI Storage Adapters with RAID control capabilities. It consists
of the following sections.
•Section 1.1, “Overview”
•Section 1.2, “Features”
•Section 1.3, “Hardware”
1.1 Overview
The MegaRAID 320 Storage Adapters are high-performance intelligent
PCI-to-SCSI host adapters with RAID control capabilities. MegaRAID
320 Storage Adapters provide reliability, high performance, and fault-
tolerant disk subsystem management. They are an ideal RAID solution
for the internal storage of workgroup, departmental, and enterprise
systems. MegaRAID 320 Storage Adapters offer a cost-effective way to
implement RAID in a server.
MegaRAID 320 Storage Adapters are available with one, two, or four
SCSI channels. There are two versions of the MegaRAID 320-1 Storage
Adapter. The following are descriptions of the adapters:
•The MegaRAID 320-1 Storage Adapter (single-channel) has one
LSI53C1020 controller chip that controls one SCSI channel. The
Storage Adapter has one very high-density cable interconnect
(VHDCI) 68-pin external SCSI connector and one high-density cable
interconnect (HDCI) 68-pin internal SCSI connector.

1-2 Overview
Copyright © 2003-2008 by LSI Corporation. All rights reserved.
•The MegaRAID 320-2 Storage Adapter (dual-channel) has one
LSI53C1030 controller chip that controls two SCSI channels. The
Storage Adapter has two VHDCI 68-pin external SCSI connectors
and two HDCI 68-pin internal SCSI connectors.
•The MegaRAID 320-2E (Express) Storage Adapter has one 80332
processor that controls two SCSI channels. The Storage Adapter has
two UHDCI 68-pin external SCSI connectors and two HDCI 68-pin
internal SCSI connectors. Note that the MegaRAID 320-2E is a
PCI-Express controller.
•The MegaRAID 320-2X Storage Adapter (dual-channel) has one
LSI53C1030 controller chip that controls two SCSI channels. The
Storage Adapter has two VHDCI 68-pin external SCSI connectors
and two HDCI 68-pin internal SCSI connectors. Note that the
MegaRAID 320-2X is a PCI-X controller.
•The MegaRAID 320-4X Storage Adapter (quad-channel) has two
LSI53C1030 controller chips that control the four SCSI channels. The
Storage Adapter has four VHDCI 68-pin external SCSI connectors
and two HDCI 68-pin internal SCSI connectors. Note that the
MegaRAID 320-4X is a PCI-X controller.
The MegaRAID 320 Storage Adapters support a low-voltage differential
(LVD) or a single-ended (SE) SCSI bus. With LVD, you can use cables
up to 12 meters long. Throughput on each SCSI channel can be as high
as 320 Mbytes/s.
PCI, PCI-X, and PCI-Express are I/O architectures designed to increase
data transfers without slowing down the central processing unit (CPU).
You can install the MegaRAID 320 PCI and PCI-X Storage Adapters in
PCI-X computer systems with a standard bracket type. With these
adapters in your system, you can connect SCSI devices over a SCSI bus.
PCI-Express goes beyond the PCI specification in that it is intended as
a unifying I/O architecture for various systems: desktops, workstations,
mobile, server, communications, and embedded devices.
Note: For Ultra320 SCSI performance, you must connect only
LVD devices to the bus. Do not connect a high voltage
differential (HVD) device to the controller. Do not mix SE
with LVD devices, or the bus speed will be limited to the
slower SE (Ultra SCSI) SCSI data transfer rates.

Overview 1-3
Copyright © 2003-2008 by LSI Corporation. All rights reserved.
1.1.1 Operating System Support
The MegaRAID 320 Storage Adapters support major operating systems,
such as Windows®(2000, Server 2003, and XP), Red Hat®Linux,
SuSe®Linux, Novell®NetWare®, SCO OpenServer®, and UnixWare®.
Other software support ensures data integrity by intelligently testing the
network before completing negotiation.
Note: The MegaRAID 320 Storage Adapters do not support the
Windows NT®operating system.
The MegaRAID 320 Storage Adapters use Fusion-MPT™ architecture for
all major operating systems for thinner drivers and better performance.
Refer to the MegaRAID Device Driver Installation User’s Guide for driver
installation instructions.
1.1.2 Technical Support
For assistance installing, configuring, or running a MegaRAID 320 RAID
controller or obtaining a driver for an operating system other than the
ones already listed in Section 1.1.1, “Operating System Support,” contact
LSI Technical Support:
For assistance in installing, configuring, or running your SAS RAID
controller, contact LSI Technical Support.
Phone Support:
1-800-633-4545 (North America)
Web Site:
http://www.lsi.com/support

1-4 Overview
Copyright © 2003-2008 by LSI Corporation. All rights reserved.
1.2 Features
The following sections describe the features of the LSI MegaRAID 320
Storage Adapters.
1.2.1 Memory
The memory features include:
•64 Mbytes of synchronous dynamic random access memory
(SDRAM) integrated on the board on the MegaRAID 320-1
•Support for up to 256 Mbytes of SDRAM; a 128- or 256-Mbyte DIMM
can be installed on the MegaRAID 320-2 and 320-4X
•Support for up to 256 Mbytes of SDRAM; a 256-Mbyte DIMM can be
installed on the MegaRAID 320-2X
•Support for up to 512 Mbytes of double data rate (DDR) SDRAM; a
128-, 256-, or 512-Mbyte DIMM can be installed on the
MegaRAID 320-2E
•Support for a 64-bit PCI host interface for the MegaRAID 320-2, 320-
2E, 320-2X, and 320-4X (note that the 320-2X and -4X are PCI-X
controllers and the 320-2E is a PCI Express controller.)
1.2.2 Connectors
The MegaRAID 320 connector features include:
•One internal and one external SCSI connector for the
MegaRAID 320-1
•Two internal and two external SCSI connectors for the
MegaRAID 320-2, 320-2E, and 320-2X
•Two internal and four external SCSI connectors for the
MegaRAID 320-4X
1.2.3 RAID Features
The MegaRAID 320 RAID controllers support the following RAID features:
•Support for RAID levels 0, 1, 5, 10, and 50
