LTIME BUSPAD BP-10 User manual

-
BUS CLOUD ENTERTAINMENT SYSTEM
INTELLIGENT TERMINAL
BP-9/BP-10 User's Manual
All rights reserved.

L o v e t o S e e a n d H e a r
W o n d e r f u l J o u r n e y

Tables of Contents
Ⅰ .Product Introduction
4
Ⅱ. Use Safety Tips 4
III . Basic Configuration
5
3.1 Hardware Configuration
3.2 Software Configuration
IV . Device Descriptions
6
4.1 BP-9/BP-10 Appearance Function Icons
V . Installation instructions
7
5.1 Rear Seat Installation
5.2 Front Seat Installation
5.3 Equipment Installation and Wiring Diagram
VI . Application Software
11
6.1 Main Interface
6.2 Settings for Connection to the Cloud System
6.3 Movie Interface
6.4 Music Interface
6.5 Game Interface
6.6 News Interface
6.7 Internet Interface
6.8 E-book Interface
6.9 About Us Interface
6.10 Play U Disk Multimedia Content
VII. Frequently Asked Questions
14
VIII. Warranty and Customer Service
14

BUS CLOUD ENTERTAINMENT SYSTEM INTELLIGENT
TERMINAL
BUSPAD
4
Ⅰ. Product Introduction Ⅱ. Use Safety Tips
The BP-9 (9-inch) and BP-10 (10.1-inch) intelligent terminals are an
important part of LTIME's Bus Cloud Entertainment System (BCES). The
device is a car-level tablet that provides entertainment and Internet
experience to the passengers in the system.
LTIME's newly developed Bus Cloud Entertainment System (BCES) can be
widely used in the mobile passenger service industry such as buses,
cruises and high-speed trains.
The system consists of a powerful “cloud management back-end”, “on-
board server” and multiple “customized on-board tablets”. Passengers can
use our customized car tablet or mobile terminal
(mobile phones, home tablets) to connect to network via the server and
realize entertainment and communication sharing.
Wireless connection technology is used between all kinds of intelligent
terminals and on-board servers, on-board servers and cloud management
backgrounds. Each on-board server has a built-in high-capacity solid state
drive and 3G/4G internet module,
supporting up to 60 passengers to simultaneously stream multimedia
information (movies, music, photos, e-books, and advertisements, etc.)
stored on the server, or surf the Internet. Each takes what he needs and
does not interfere with each other, greatly improving passenger
satisfaction, enhancing the company's image and obtaining advertising
and many other benefits. All multimedia materials and advertisements can
be remotely managed through the cloud background, updated in real time
and dynamically monitored, or updated via a USB flash drive, which is
easy to operate and easy to use.
The on-board entertainment system products produced by the
company are widely used in passenger transportation industries such as
passenger cars, cruises and high-speed trains. Since the product is used
in a public environment, it is the responsibility of the operator to carefully
read the “Use Safety Tips” in this manual and the information about the
correct use of the product before the device is put into use,
and to post the safety bulletin in a prominent position in the use
environment to notice all passengers, so as to avoid accidents.
1. Even though the product has passed related crash tests before
sale, during driving, passengers should first fasten their seat belts to
avoid more serious collisions with the terminal device installed on the
back of the seat during sudden suspension or other accidents.
2. All equipment should not be flooded and used in an ultra-high
temperature, humid or dusty environment beyond the operating
temperature range of this product.
3. It is strictly forbidden to tap the intelligent terminal display and
other parts.
4. Since it is a public product, the audio output must be connected
to the earphones. The earphones are provided by the operator or
provided by the passengers. All the earphones that are standard for
mobile phones can be used on our terminal equipment.
5. The product peripheral interface, socket hole and other parts
cannot be inserted or filled with foreign objects, otherwise, the adverse
consequences will be regarded as human damage, and the company will
not assume any responsibility for such damage.
6. Do not disassemble the product yourself. Do not use alcohol,
thinner or benzene liquid to scrub the surface of the product.
The pictures used in the manual are for reference only! The
company reserves the right to improve the product. Product
specifications and design are subject to change without notice

BUS CLOUD ENTERTAINMENT SYSTEM INTELLIGENT
TERMINAL
BUSPAD
5
III. Basic Configuration
3.1 Hardware Configuration
CPU
A33
A33
Memory
1G
1G
Hard disk
Camera
8G
8G
Front camera, 300,000 pixels
Touchscreen
8G
Front camera, 300,000 pixels
10.1-inch multi-point capacitive touch screen
Display
resolution
WiFi Standard
earphone jack
9-inch multi-point capacitive touch
screen
1024*600
IEEE 802.11ac/a/n/b/g
Dual3.5MM earphone jack
SD slot
1024*600
IEEE 802.11ac/a/n/b/g
Dual3.5MM earphone jack
YES
Hard disk
Camera
YES
8G
Front camera, 300,000 pixels
Touchscreen
8G
Front camera, 300,000 pixels
10.1-inch multi-point capacitive touch screen
Display
resolution
WiFi Standard
earphone jack
9-inch multi-point capacitive touch
screen
1024*600
IEEE 802.11ac/a/n/b/g
Dual3.5MM earphone jack
3.2 Software Configuration
BP-9 (9") / BP-10 (10.1")
Operating
system Browser
Video
Audio
Pictures
Android 4.4
Google Chrome
MKV(H.264HP),RMVB,FLV,MP4,AVI,MPEG-1/2
MP3,WAV,OGG,ACC
PNG,JPEG,BMP,GIF
Configuration description
BP-10(10.1")
BP-9 (9")
Configuration description

BUS CLOUD ENTERTAINMENT SYSTEM INTELLIGENT
TERMINAL
BUSPAD
6
IV. Device Descriptions
4.1 BP-9 / BP-10 Appearance Function Icons
Front view Right view
Camera
Reset
butto
Back
Radiator grille
Power cord
SD slot
Earphone jack
Reduce
brightnes
s
Reduce
volume
USB interface
Increase
brightness
Back/Stand
b
Radiator grille
Increase
volume
switch MINI
USB
Earphone Jack: 3.5-inch universal earphone jack
Reduce brightness: tap to reduce screen brightness
Increase brightness: tap to increase screen brightness
Return/Standby: tap to return to the previous step; press and
hold to standby, short press to wake up
Increase volume: tap to increase volume
Reduce volume: tap to reduce the volume
USB interface: support U disk, mobile hard disk; support mobile
phone charging
Reset button: short press to restore system to factory setting
SD card slot: support system software upgrade via SD card
MINI USB interface: support system software upgrade via USB
Reading light: highlight white light
Reading light switch: control reading light on and off
Front view
Bottom view
Right view
Bottom
view
(Figure 1)
Reading
light
interface
Display area

BUS CLOUD ENTERTAINMENT SYSTEM INTELLIGENT
TERMINAL
BUSPAD
7
V. Installation instructions
5.1 Rear seat installation: Bus rear seat intelligent terminal installation steps
HUB to the terminal power cord
HUB (Power distribution unit)
HUB to the terminal
power interfacex2
4PAviation female
Red spare
Black spare
HUB power cord 黑B
红A
(Figure 2)
Intelligent
terminal
Iron plate
Rear seat plastic frame
Adjustable angle 0-50degrees

BUS CLOUD ENTERTAINMENT SYSTEM INTELLIGENT
TERMINAL
BUSPAD
8
5.2 Front seat installation: Bus front seat intelligent terminal installation steps
Front seat plastic frame can be adjusted for 60 degrees
Adjustable angle 0-50
degrees
The shake can be adjusted to the left or right for 180 degrees
4 fixing screws
(Figure 3)
Intelligent terminal Iron plate Front seat plastic
frame

BUS CLOUD ENTERTAINMENT SYSTEM INTELLIGENT
TERMINAL
BUSPAD
10
5.3 Equipment Installation and Wiring Diagram
The cloud
server is installed in the middle of the car or in the middle of the rack. The WIFI antenna cannot be covered
by metal objects.
HUB
HUB
Cloud server HUB to the terminal
power cord
HUB to the
terminal power
cord
Rear
seat
terminal
Front seat terminal
Front seat bracket mounting base
he trace length of the HUB to all terminals is 1.65 meters GND
(Figure 4)
Key control switch
+24V DC
Front button control switch/ACC+24V
Side view
Top view

BUS CLOUD ENTERTAINMENT SYSTEM INTELLIGENT
TERMINAL
BUSPAD
11
VI. Application Software

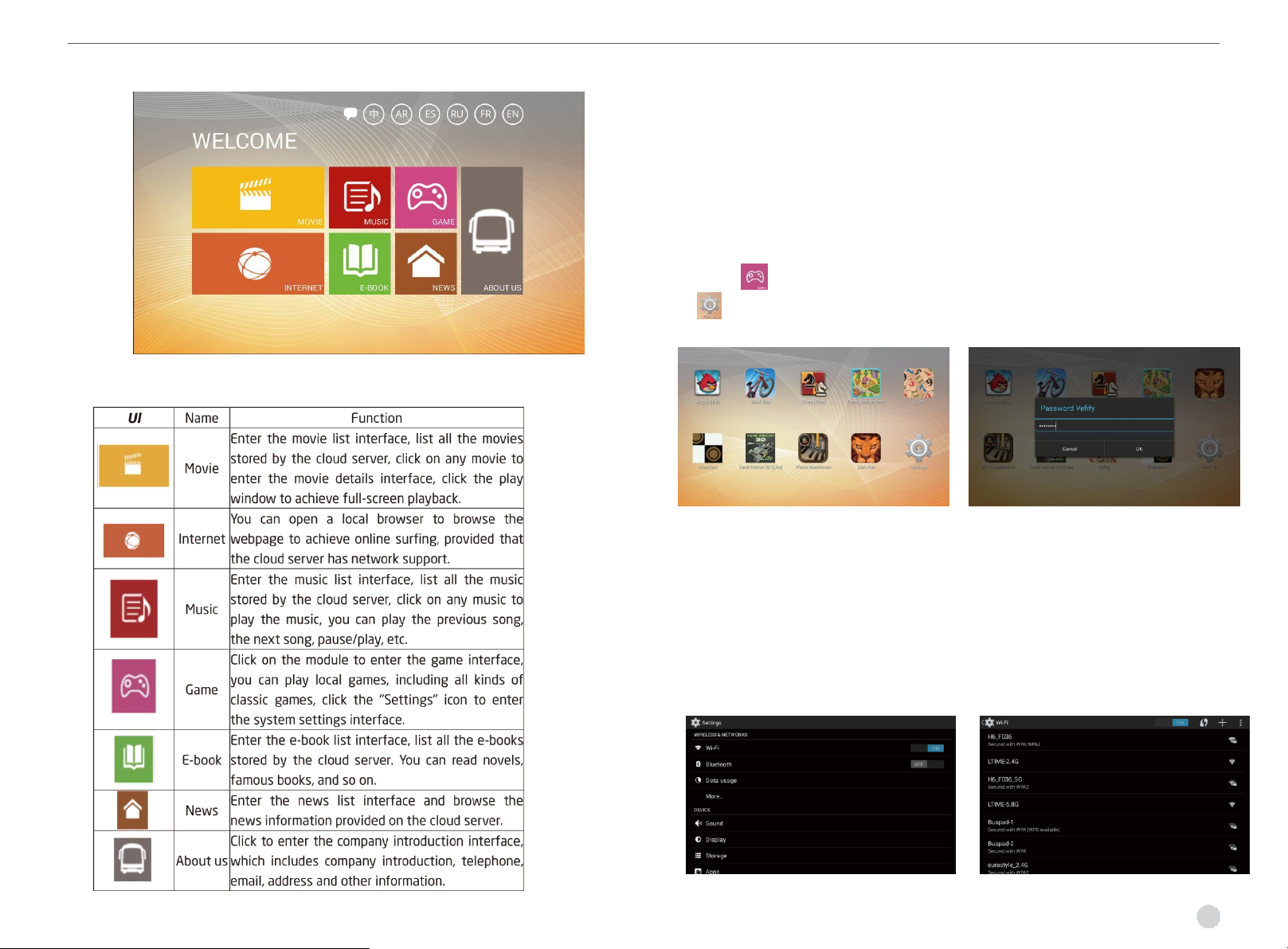

6.1 Main Interface
6.2 Settings for Connection to the Cloud System
After the system is installed, the smart device needs to be configured with
the necessary WIFI connection before the intelligent terminal device is used for
the first time.
The WIFI setting method is as follows:
1). Turn on the system power switch to provide power to all devices in the system;
2). When the smart terminal device starts up, enter the main interface, click the
game icon ), enter the game interface (as shown in Figure 7), click the setting
icon ), to pop up the password input box (Figure 8), input the password:
28812090 , and click "OK";
(图5)
(Figure 6) (Figure 7)
3).After the correct password is input, enter the terminal setting
interface (as shown in Figure 9), click the WIFI option (as shown
in Figure 9), select the WIFI name: LTIME-2.4G or LTIME-5.8G,
click to connect, then the smart terminal device is successfully
connected to the system server. The connection can be operated
according to the function of the main interface of the smart
terminal.。(Figure 8) (Figure 9)

BUS CLOUD ENTERTAINMENT SYSTEM INTELLIGENT
TERMINAL
BUSPAD
12

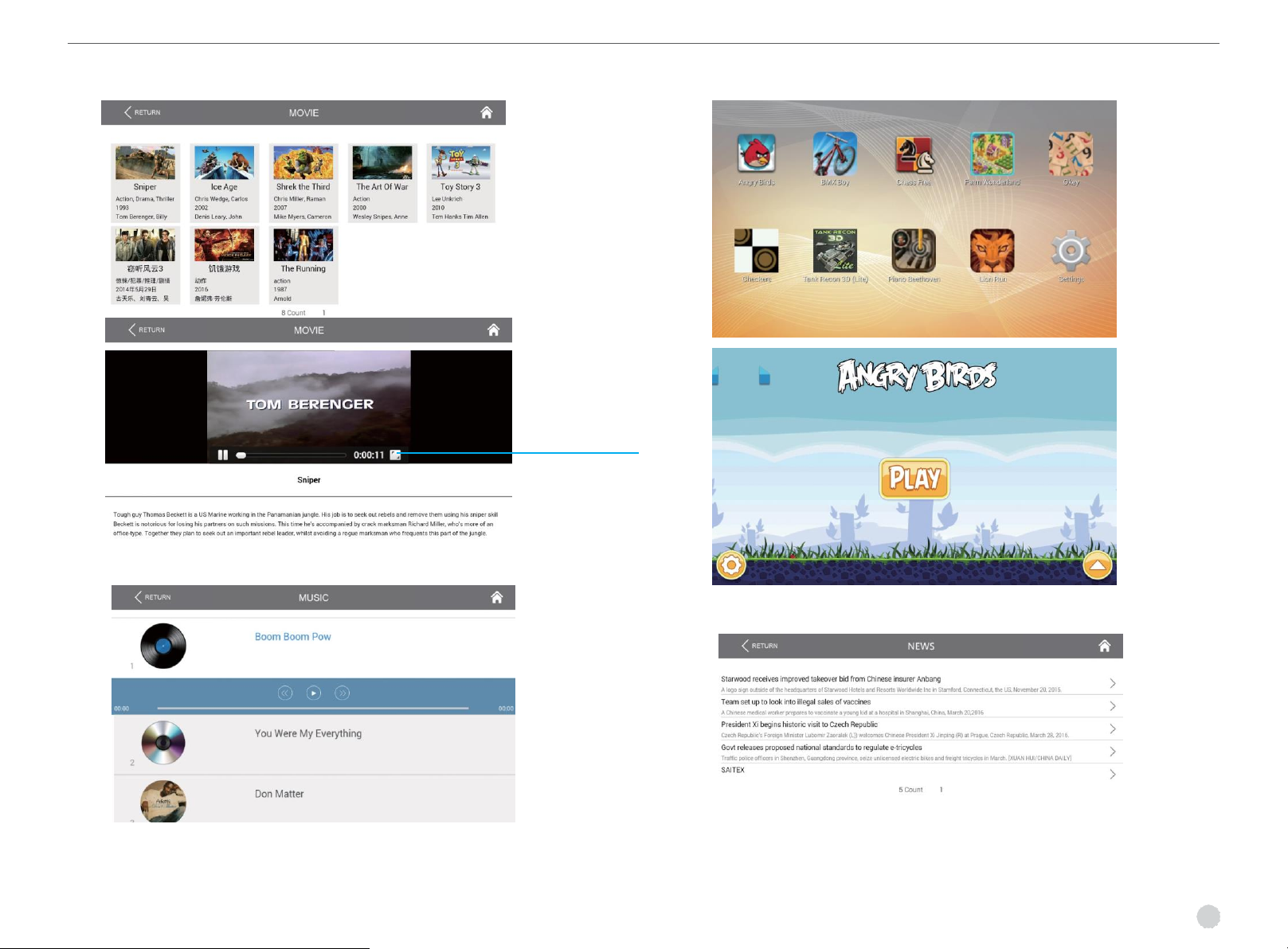

6.3 Movie Interface
6.4 Music Interface
6.5 Game Interface
6.6 News Interface
(Figure 13)
(Figure 14)
(Figure 15)
(Figure 10)
(Figure 11)
(Figure 12)
Click to play in full screen

BUS CLOUD ENTERTAINMENT SYSTEM INTELLIGENT
TERMINAL
BUSPAD
13

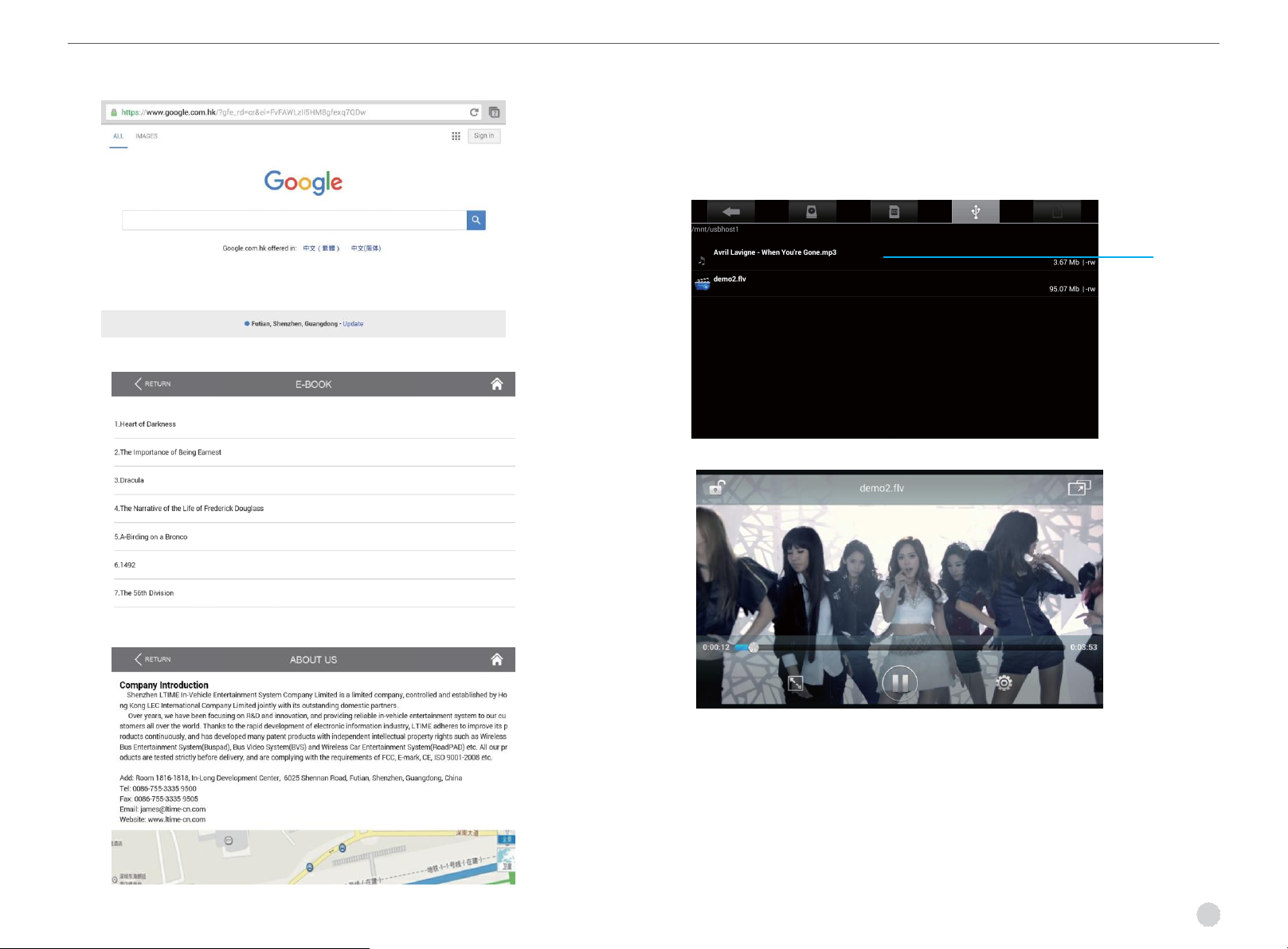

6.7 Internet Interface
6.8 E-book Interface
6.9 About Us Interface
6.10 Play U Disk Multimedia Content
After inserting the USB flash drive into the terminal panel USB interface,
the screen will automatically go to the following interface. At this point you can
click on the media content in the list to play it 。
Music
Videos
(Figure 17)
(Figure 18)
(Figure 16)
(Figure 19)
(Figure20)

BUS CLOUD ENTERTAINMENT SYSTEM INTELLIGENT
TERMINAL
BUSPAD
14
VII. Frequently Asked Questions VIII. Warranty and Customer Service
1. The application in the smart terminal click interface does not
respond
First click the back button to return to the main interface. If still no
response, press the reset button to restart.
2. Movies, music cannot play Enter the settings interface, check
whether the terminal's WIFI is set correctly and connected.
3. Online network video cannot be played or the playing picture is
abnormal
If the online network video cannot be played or the playing picture
is abnormal, please check whether the firmware version supports
the online website video version. If not, please download the latest
firmware version through our official website, or request the
relevant firmware download address, tools and tutorials from our
engineering and technical support center through telephone or
technical service email.
Warranty period
1. The warranty period is one year from the date of purchase. This
product is for in-vehicle use only, please use it correctly according
to the instructions in this manual.
2. If the device does not work properly due to abnormal use
factors such as physical damage or water ingress, it is not covered
by the warranty.
After-sales support
1. In the case of general problems involving device installation,
commissioning, maintenance and management, please contact the
device manufacturer engineering and technical support department
or notify the local after-sales service unit. Technicians will provide
consulting services or technical support free of charge according to
customer requirements to maximize customer satisfaction.
LTIME Engineering and Technology Support Center:
Contact Info: [phone]
Technical Service Email: [e-mail]

深圳市阿尔泰车载娱乐系统有限公司
SHENZHEN LTIME IN-VEHICLE ENTERTAINMENT SYSTEM CO., LTD.
L o v e t o S e e a n d H e a r
W o n d e r f u l J o u r n e y

ltime-cn.com
VER. 2016.12.08
