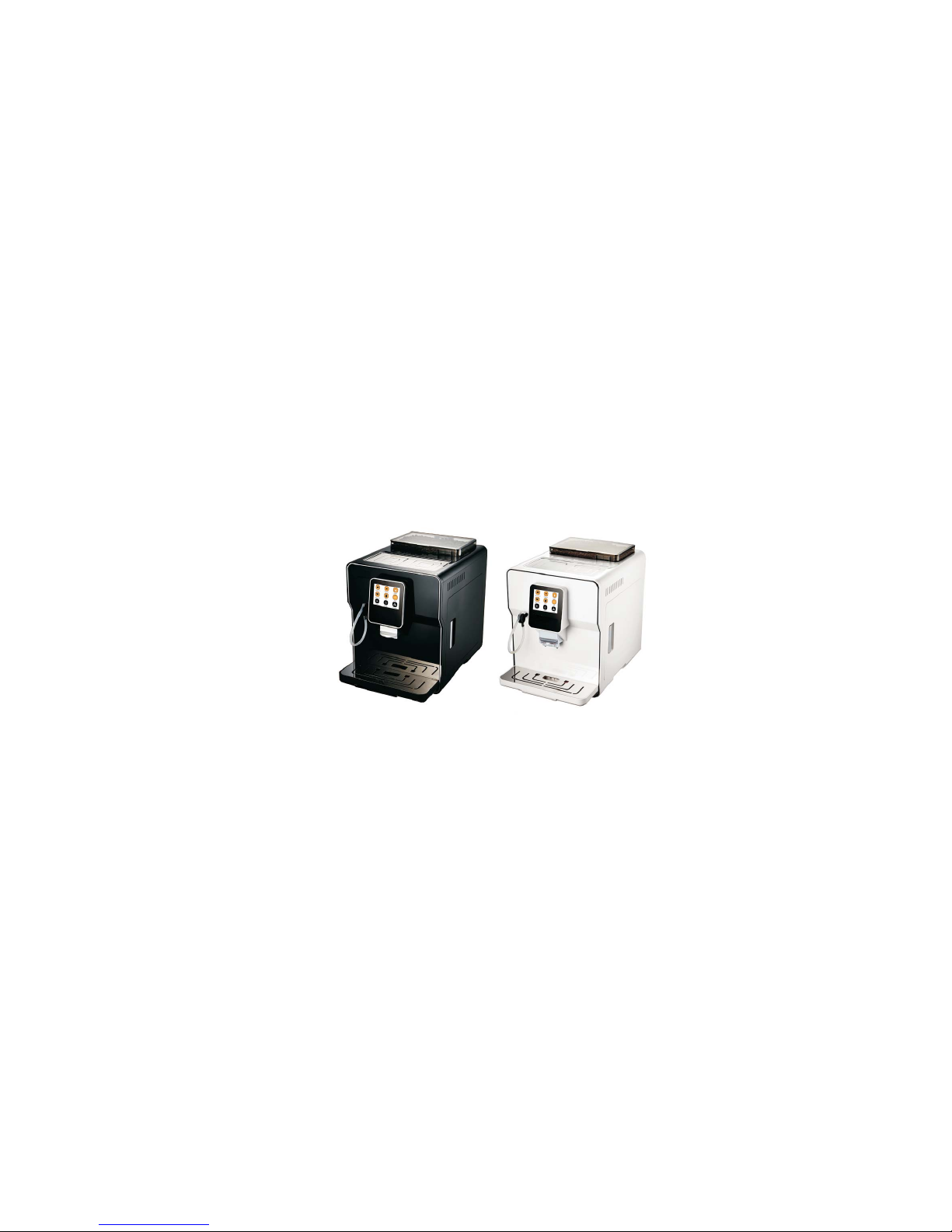

Lucaffe Raffaello Latte PRO User manual

Fully Automatic Coffee Machine
Instruction Manual

2
1
3
4
7
Adjusting knob
coarse
fine
15
5
6
9
10
8
14
9
11
12
13
1.
5.
Drip tray
2.Coffee spout
3.Milk frother
4.Water tank
Left door
11.Right door
12.Brewing unit
13.Waste bin
14.Grinder adjustment switch
15.Milk frother control
6.Power cord
7.Control panel
8.Filler funnel lid
9.Filler funnel for ground coffee
10.Bean tank

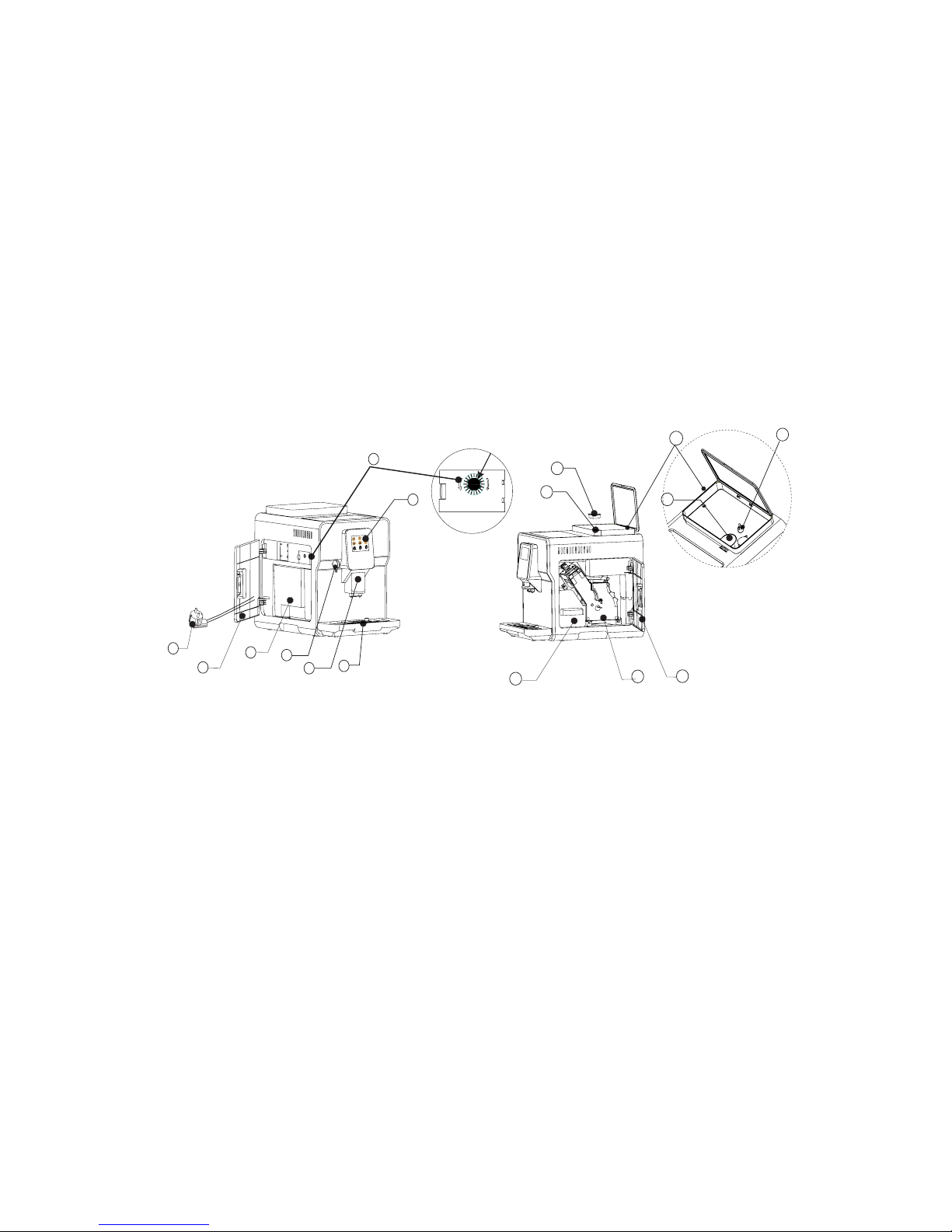

Parts description

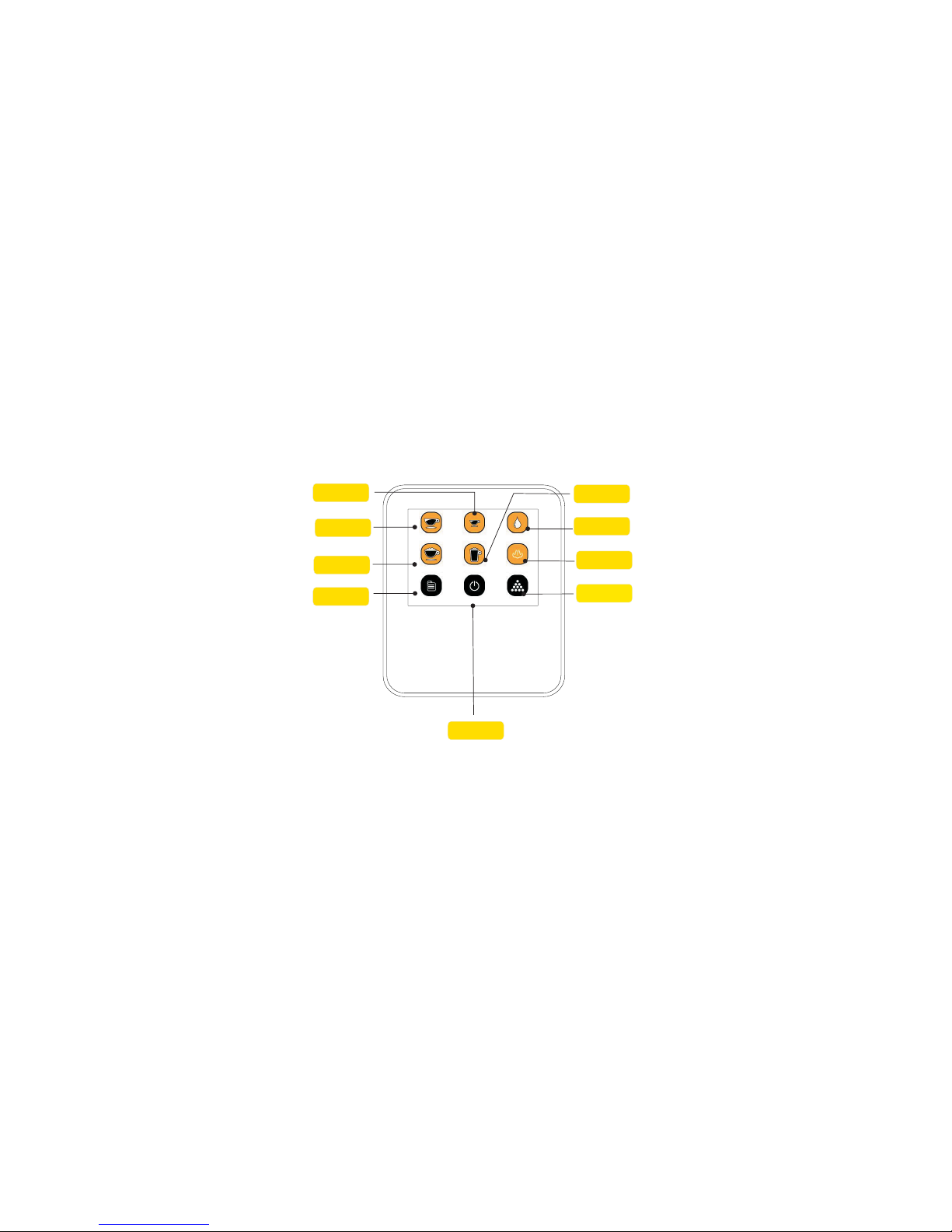

Control panel induction
AMERICANO
ESPRESSO WATER
MILK
CAPPUCCINO LATTE
MENU POWER POWDER
Cappuccino
Power
Americano
Setting
Espresso
Hotwater
Milk foam
Add powder
Latte

IMPORTANT SAFEGUARDS
When using electrical appliances, basic safety precautions should always be followed, including the
following:
1.Read all instructions.
2.Do not touch hot surfaces. Use handles or knobs.
3.To protect against fire, electric shock and injury to persons do not immerse cord, plugs, or appliance in
water or other liquid.
4.Close supervision is necessary when the appliance is used near children.
5.Unplug form outlet when not in use and before cleaning. Allow to cool before putting on or taking off parts,
and before cleaning the appliance.
6.Do not operate any appliance with a damaged cord or plug or after the appliance malfunctions, or has been
damaged in any manner. Return appliance to the nearest authorized service facility for examination, repair
or adjustment.
7.The use of accessory attachments not recommended by the appliance manufacturer may result in fire,
electric shock or injury to persons.
8.Do not use outdoors.
9.Do not let cord hang over edge of table or counter, or touch hot surfaces.
10.Do not place on or near a hot gas or electric burner ,or in a heated oven.
11.Always attach plug to appliance first, then plug cord into wall outlet. To disconnect ,turn any control to
“off”,then remove plug from wall outlet.
12.Do not use appliance for other than intended use.
13.Save these instructions.
SAVE THESE INSTRUCTIONS CAUTION
This appliance is for household or commercial use only . Any servicing , other than cleaning and user
maintenance , should be performed by an authorized service center. Do not immerse machine in water . To
reduce the risk of fire or electric shock, do not disassemble the machine. There are no parts inside the
machine serviceable by the user. Repair should be done by authorized service personnel only.

1.Check voltage to be sure that the voltage indicated on the nameplate corresponds with your voltage.
2.Never use warm or hot water to fill the water tank. Use cold water only.
3.Keep your hands and the cord away from hot parts of the appliance during operation.
4.Never clean with scrubbing powders or harsh cleaners. Simply use a soft damp cloth with water.
5.For optimal taste of your coffee, use purified or bottled water. Periodic descaling is still recommended
every 2-3 months. Descaling powders can be purchased at www.prontocoffeemachines.com
6.Do not use caramelized or flavored coffee beans.
INSTRUCTIONS FOR THE POWER SUPPLY CORD
SAFETY INSTRUCTIONS
INTENDED USE
A. A short power-supply cord ( or
detachable power-supply cord ) is to be provided to reduce risk resulting from becoming entangled in or
tripping over a longer cord.
B. Longer detachable power-supply cords or -- extension cords are available and may used if care is exercised
in their use.
C. If a long detachable power-supply cord or extension cord is used:
1.The marked electrical rating of the detachable power-supply cord or extension cord should be at least as
great as the electrical rating of the appliance
2.If the appliance is the grounded type, the extension cord should be a grounding-type 3-wire cord, and
3.The longer cord should be arranged so that it will not drape over the counter top or table top where it can
be pulled on by children or tripped over.
Read the user manual carefully before using the appliance and save it for future reference.
Never allow water to come into contact with any of the electrical parts of the machine: Danger of shout
circuit! Steam and hot water may cause burning! Never direct the hot water jet towards body parts: Danger
of burning!
The coffee machine is intended for domestic use only. Do not make any technical changes or use the machine
for unauthorized purposes since this would create serous hazards! The appliance is not to be use by persons
(including children) with reduced physical, mental or sensory abilities or with scarce experience and /or

expertise, unless they are supervised by a person responsible for their safety, or they are instructed by this
person on how to properly use the machine.
Prevent children from playing with the machine. Children are not aware of the risks related to electrical
household appliance. Do not leave the machine packaging materials within the reach of children.
Never direct the jet of hot steam and/or hot water towards yourself or others Danger: of burning!
For best use, it is recommended to :
Choose a safe, level surface, where there will be no danger of overturning the appliance or being injury;
. Choose a location that is sufficiently well-it, clean and near an easily reachable socket;
. Provide for a minimum distance from the sides of the machine as shown in the illustration;
. While switching on or off the machine, we suggest placing an empty glass under the dispensing spout.
Do not keep the machine at temperatures below 0 degree . Frost may damage the machine. Do not use the
coffee machine outdoors. In order to prevent its housing from melting or being damaged, do not place the
POWER SUPPLY-POWER CORD
FOR THE SAFETY OF OTHERS
DANGER OF BURNS
MACHINE LOCATION-SUITABLE LOCATION FOR OPERATION AND MATENANCE
Only connect the machine to a suitable socket. The socket to
which the machine is connected must be:
- Compatible with the type of plug installed on the machine;
- Sized to comply with the data on the tag attached to the appliance;
- Connected to an efficient earth system
Never use the coffee machine if the power cord is defective or damaged. If the power cord is damaged, it
must be replaced by the manufacturer or by its authorized service center.
Do not pass the power cord around corners, over sharp edges or over hot objects and keep it away from oil.
Do not use the power cord to carry or pull the coffee machine.
Do not pull out the plug by the power cord or touch it with wet hands. Do not let the power cord hang freely
from tables or shelves.

machine on very hot surfaces and close to open flames.
In case of failure, problems or a suspected fault resulting from the falling of the machine, immediately
remove the plug from the socket. Never attempt to operate a faulty machine.
For further information on troubleshooting and service, please refer to the “troubleshooting” and “service”
chapters of the user manual.
In case of fire, use carbon dioxide (Co2)
extinguishers. Do not use water or dry powder extinguishers.
NEVER remove the drip tray when the machine is on. Wait for a couple of minutes after turning on/off , as
the machine will be carrying out a rinse/self-cleaning cycle (see section “rinse/self-cleaning cycle”)
Fill the tank only with fresh, non-sparkling water. Hot water or any other liquid may damage the tank and/or
the machine. Do not operate the machine without water. Make sure there is enough water in the tank.
Only coffee beans must be put into the coffee bean tank. round coffee, instant coffee or any other object is
CLEANING AND STORING THE MACHINE
MALFUNCTION
FIRE SAFETY PRECAUTIONS
PRELIMINARY OPERATIONS
Keep the machine at its best, clean and store it
properly. Since the machine uses natural ingredients of brew beverages (coffee beans, water, milk,
etc.),some residues of ground coffee or condensed water could be present on its supporting surface. For this
reason we recommend to periodically clean both the visible parts of the machine and the area beneath it.
Before storing the machine we strongly recommend to clean it:
- Water left in the tank and/or in the water circuit for several days should not be consumed. If the machine
is going to remain inactive for a long time, dispense water as described in the “hot water”section.
- Turn off the power button and clean the machine. Finally, remove the plug from the socket. Wait for the
machine to cool down.
Never immerse the machine in water! Store it in a dry place, out of the reach of children. Keep it protected
from dust and dirt. It is strictly forbidden to tamper with the internal parts of the machine.

Only coffee beans must be put into the coffee bean tank. round coffee, instant coffee or any other object is
put the coffee bean tank, may damage the machine.
Warning! The grinder adjustment knob, which is placed inside the coffee bean tank, must be turned with the
coffee grinder adjustment key only when the coffee grinder is working. Do not put any material other than
coffee beans into the tank. Do not pour ground and /or instant coffee into bean tank.
Warning! The coffee grinder contains moving parts that may be dangerous. Therefore, do not insert -
ADJUSTABLE COFFEE GRINDERS
COFFEE BREWING USING COFFEE POWDER
HOT WATER DISPENSING
BREW CLEANING WITH COFFEE OIL REMOVE
BREW LUBRICATION
GENERAL CLEANING
fingers
and/or other objects. In case of malfunction, turn off the appliance by pressing the power button and
remove the plug from the socket before carrying out any other type of operation inside the coffee bean tank.
Do not pour coffee beans when the coffee grinder is working.
Warning: Add only coffee powder to the compartment. Other substances and objects may cause severe
damages to the machine. Such damages will not be covered by warranty.
Warning! At the beginning, short spouts of hot water may come out: Risk of burning. The device may reach
high temperatures: Do not touch it with bare hands.
Do not immerse the machine in water. Do not wash any of its parts in the dishwasher. Do not use sharp
objects or harsh chemical products(solvents)for cleaning. Use a soft, dampened cloth to clean the machine.
Do not dry the machine and/or its parts using a microwave and/ or standard oven.
Warning: The coffee oil remover is to be used for cleaning only and does not have a descaling function. For
descaling use the descaling solution and follow the procedure described in the “descaling”chapter.
Please bear in mind that failure to lubricate the brew every month may prevent your appliance from

working properly. Repair is not covered by warranty.
If electrical appliances are disposed of in landfills or dumps, hazardous substances can leak into the groundwater and
get into the food chain, damaging your health and well-being .
When replacing old appliances with new ones, the retailer is legally obligated to take back your old appliance for
disposals at least free of charge
1. Unpack the machine;
2. Remove the water tank. Fill it with fresh drinking water;
3. Fill the coffee beans;
4. Insert the power plug into the wall socket.
5. Press the “power” icon;
6. Allow the Machine to Warm up
7. The machine is now ready for use and will be in the Standby mode.
DESCALING
DISPOSAL
FIRST INSTALLATION
Not doing this will ultimately make your appliance stop working properly, and in this case repair is not
covered by warranty..
Warning! Never drink the descaling solution or any products dispensed until the cycle has been carried out
to the end. Never use vinegar as a descaling solution.
Meaning of crossed out wheeled dustbin:
Do not dispose of electrical appliances as unsorted municipal waste, use separate collection facilities.
Contact you local government for information regarding the collection systems available.

90%

MAKING AMERICANO
1. Adjust the height of the dispensing spout
2. Press the Americano icon to brew Americano style Coffee
AMERICANO
ESPRESSO WATER
MILK
CAPPUCCINO LATTE
MENU POWER POWDER

MAKING ESPRESSO
1. Adjust the height of the dispensing spout
2. Press the espresso icon to brew an espresso style coffee
AMERICANO
ESPRESSO WATER
MILK
CAPPUCCINO LATTE
MENU POWER POWDER

AMERICANO
ESPRESSO WATER
MILK
CAPPUCCINO LATTE
MENU POWER POWDER
MAKING HOT WATER
1. Place the cup below the dispensing spout
2. Press the hot water icon, the machine will start to disperse hot water
3. Once you have your desired amount of the hot water, press the icon to stop

MAKING CAPPUCCINO
1. Insert the milk frother into the machine
2. Place the milk hose into the milk (we recommend using pure milk)
3. Press the CAPPUCCINO icon, the machine will start to make a cappuccino
4. Once you have reached your desired amount of milk you can press the icon to stop the process
AMERICANO
ESPRESSO WATER
MILK
CAPPUCCINO LATTE
MENU POWER POWDER
CAPPUCCINO

MAKING LATTE
1. Insert the milk frother into the machine
2. Place the milk hose into the milk (we recommend using pure milk)
3. Press the LATTE icon, the machine will start to make a LATTE
4. Once you have reached your desired amount of milk you can press the icon to stop the process
AMERICANO
ESPRESSO WATER
MILK
CAPPUCCINO LATTE
MENU POWER POWDER
LATTE

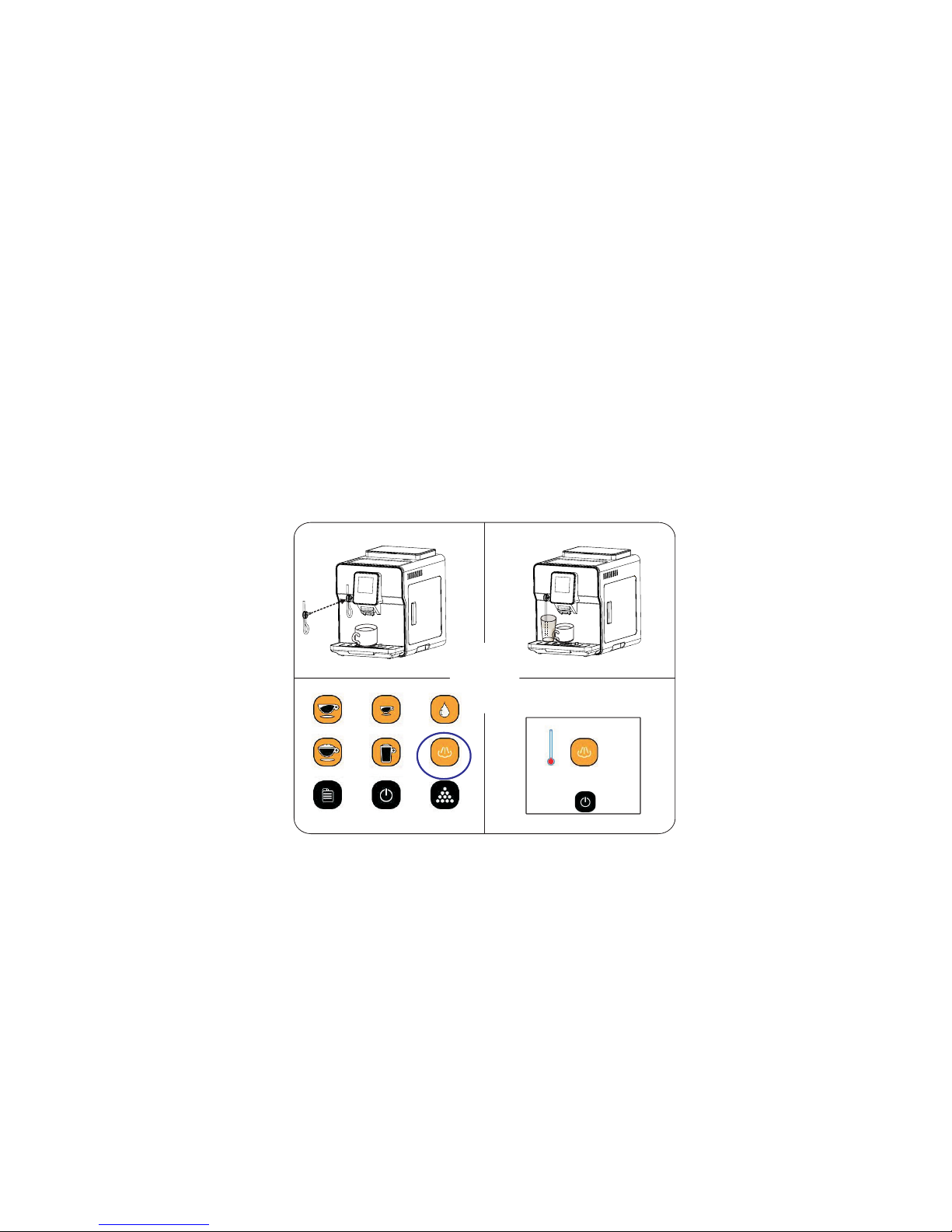

MAKING HOT MILK/MILK FOAM
1. Insert the milk frother into the machine
2. Place the milk hose into the milk (we recommend using pure milk)
3. Press the MILK icon, the machine will start to add the milk into your cup
4. Once you have reached your desired amount of milk you can press the icon to stop the process
AMERICANO
ESPRESSO WATER
MILK
CAPPUCCINO LATTE
MENU POWER POWDER
MILK

MILK FOAM CONTROL
Open the left door and you can see the milk frother control.
The quality of the milk foam will depend on the milk you use and the temperature of the milk.
When frothing the milk please make sure you turn the milk frother control counter clockwise if it is not in the
correct position the milk will not foam up as much. If there is only steam please adjust the control clockwise.
Make sure you clean the milk frother device after use to avoid any blockages.

ADJUST COFFEE GRINDER
The grinder adjustment knob, which is placed inside the coffee bean tank, must be turned with the
coffee grinder adjustment key only when the coffee grinder is in operation. Do not put any material
other than coffee beans into the tank. Do not pour ground and /or instant coffee into bean tank.
NEVER use coffee beans that have been stored in a freezer.
When making a coffee, if the coffee flow is very slow (powder is too fine) press and turn the
adjustment button, clockwise to set the grinder to a coarse setting.
When making a coffee, If the coffee flow is very fast and very light in color (powder is too coarse),
press the adjustment button, clockwise to adjust the grinder to a fine setting.
fine
coarse

MENU FOR CUSTOMIZATION AND MAINTENANCE
PRESS MENU ICON
A. Americano settings: The machine will first disperse coffee
followed by hot water. (to reduce the amount of caffeine) You
can adjust the flow of the espresso coffee, the temperature, the
grams of the beans and the flow of hot water. Once you have
programmed your preference press exit to save your new
setting.
1.Coffee parameter setting
40ml 10g
90
W50ml
C
40ml 10g
90
L.P.
C
B. Espresso settings: you can choose the flow of the espresso
coffee, the coffee temperature, the grams of the coffee beans,
low pressure or high pressure (low and high pressure are the
functions of the pump). In order to get a cup of aroma coffee we
recommend the use of high pressure). Once you have
programmed your preference press the exit icon to store your
new settings.

C. Cappuccino settings: You can choose the flow of the espresso
coffee, the temperature, the grams of the coffee beans and the
amount of time to froth the milk. Once you have programmed
your preference press the exit icon to store your new settings.
40ml 10g
90
35S
C
D. Latte settings: You can choose the flow of the espresso coffee,
the temperature, the grams of the coffee beans and the amount
of time to froth the milk. Once you have programmed your
preference press the exit icon to store your new settings.
40ml 10g
90
35S
C
2. Descaling
A. Pour the descaling solution
B. Fill the water tank with fresh water (add the descaling powder
into the water tank)
C. Press the icon, to start descaling
D. The descaling solution will be dispensed at intervals
E. The machine has concluded the cycle
F. After the water used out, take out the water tank and fill will
the fresh water again
G. The machine starts the rinse cycle
H. Once the machine has completed the rinse cycle it will return
back to standby mode
