luceco LUXBAND Manual

RGB 3
WARRANTY
year
standard
IP65
RATED
30,000
HOURS
PART CODE: LTK5MRGB
WATTAGE: 15W per metre
LUXBAND
5M IP65 LED STRIP KIT RGB 16 COLOUR
Tech Help Line
UK - 0845 194 7584
Non UK - [phone]
Visit our website at
Luceco is a registered trade mark of Nexus Industries Ltd.
Supplied by
BG Electrical Ltd
Stafford Park 1 TF3 3BD ENGLAND www.luceco.uk
LTKV2MB2015
1
2
3
4
SCALE 2.250
SCALE 2.000
Installation & Operating Instructions
NOTE – To comply with regulations, installation must be carried out by suitably
qualified competent person and in accordance with the current IEE Wiring
Regulations (BS7671) and Building Regulations. A copy of the instructions must
be left for the user/maintenance engineer for future reference.
For non-UK, please refer/consult local requirements
ENSURE ELECTRICAL SUPPLY IS DISCONNECTED/
ISOLATED BEFORE COMMENCING INSTALLATION
• Suitable for use with mains voltage 100-240V 50/60Hz
• Mounting surface must be smooth and clean
• When installing more than one kit note that matching colour sequences are not
possible without additional equipment
• Note the connection from the LED driver to the IR controller is only rated at IP40
therefore additional protection maybe required
ASSEMBLY AND INSTALLATION:
1. The LED driver must be installed within 400mm of the first strip.
2. Connect the driver to the mains observing the correct polarity Live (Brown),
Neutral (Blue) and Earth (Green &Yellow).
3. A suitable junction box shall be used to protect mains connections.
4. The LED driver is connected to the LED IR controller with a push fit connection,
the IR receiver picks up the signal from the remote control supplied.
5. The LED strip is the connected to the LED IR via a push fit connection and secured
with threaded screw connection. (FIG1)
CUTTING AND CONNECTING STRIPS:
6. The LED strip has cut marks located every 50-100mm denoted by bronze coloured
marks, measure the length of strip required and cut with a pair of scissors or
cutters on the nearest mark. (FIG 2)
7. The kit is supplied with straight connectors and flexible connectors which can be
used to change the direction of the strip. (FIG 3)
8. The end of the strip and any joints must be covered by the rubber covers supplied.
(FIG 4)
9. IMPORTANT to maintain the IP rating rubber covers must be sealed using the
tube of silicone supplied.

Tech Help Line
UK - 0845 194 7584
Non UK - [phone]
Visit our website at
Luceco is a registered trade mark of Nexus Industries Ltd.
Supplied by
BG Electrical Ltd
Stafford Park 1 TF3 3BD ENGLAND www.luceco.uk
LTKV2MB2015
Environmental Protection W.E.E.E (Wheelie Bin Symbol for EU ONLY)
This symbol is known as the “crossed-out” wheelie Bin Symbol”. When this symbol is marked on a product or battery, It means that it should not be disposed of
with your general household waste. Some chemicals contained within electrical/electronic products or batteries can be harmful to health and the environment.
Only dispose of electrical/electronic/battery items in separate collection schemes, which cater for the recovery and recycling of materials contained within.
Your co-operation is vital to ensure the success of these schemes and for the protection of the environment.
United Kingdom Guarantee
For other territories and for further information, please see www.luceco.uk for details
Products are protected by guarantee for a period of 3 year guarantee, from date of purchase against defects in material and workmanship (unless otherwise stated).
Should a product fail to perform as described within the guarantee period it will be repaired or replaced with the same or equivalent product by Luceco, free of
charge provided that you: (1) return the product to us with shipping charge prepaid, (2) provide us with proof of the original date of purchase and (3) quote our return
authorization number.
Repaired or replaced products will be returned to you with shipping charges prepaid. Replacement products may be refurbished or contain refurbished materials. If in
our sole discretion, we are unable to repair or replace a defective product, we will refund the purchase price of the product.
This guarantee will not apply if in our judgment, the product fails due to damage in shipment, handling, storage, accident, abuse or misuse, or if it has been used in a
manner not conforming to our product instructions, has been modified in any way, or has any serial number removed or defaced. Repair or attempted repair will void
this guarantee. Our maximum liability under the terms of this guarantee is limited to the purchase price of the product covered by the guarantee.
The guarantee is given under English Law. If any part of this guarantee is deemed unenforceable (including any provision in which we exclude our liability to you) the
enforceability of any other parts of the guarantee will not be affected. These terms do not reduce your statutory rights.
For Non-UK please contact Local Luceco Office for details. THESE TERMS AND CONDITIONS ARE SUBJECT TO CHANGE WITHOUT PRIOR NOTICE.
Eventually, you may want to replace this fitting;
LED
L
N
IR
Controller
Load
Power
Remote receiver
Driver
10.The strip has a self-adhesive back, to mount remove the backing and firmly press onto the surface. Bridge pieces can then be used to
secure the strip in place.
11.With the LED strip installed turn on the power and operate as required.
USING THE REMOTE:
The remote supplied can be used to dim the strip up and down and switch on and off. To set the colour select one of the static colours or one
of four sequences.
The below table shows the button layout on the Infa red remote and covers all options available.

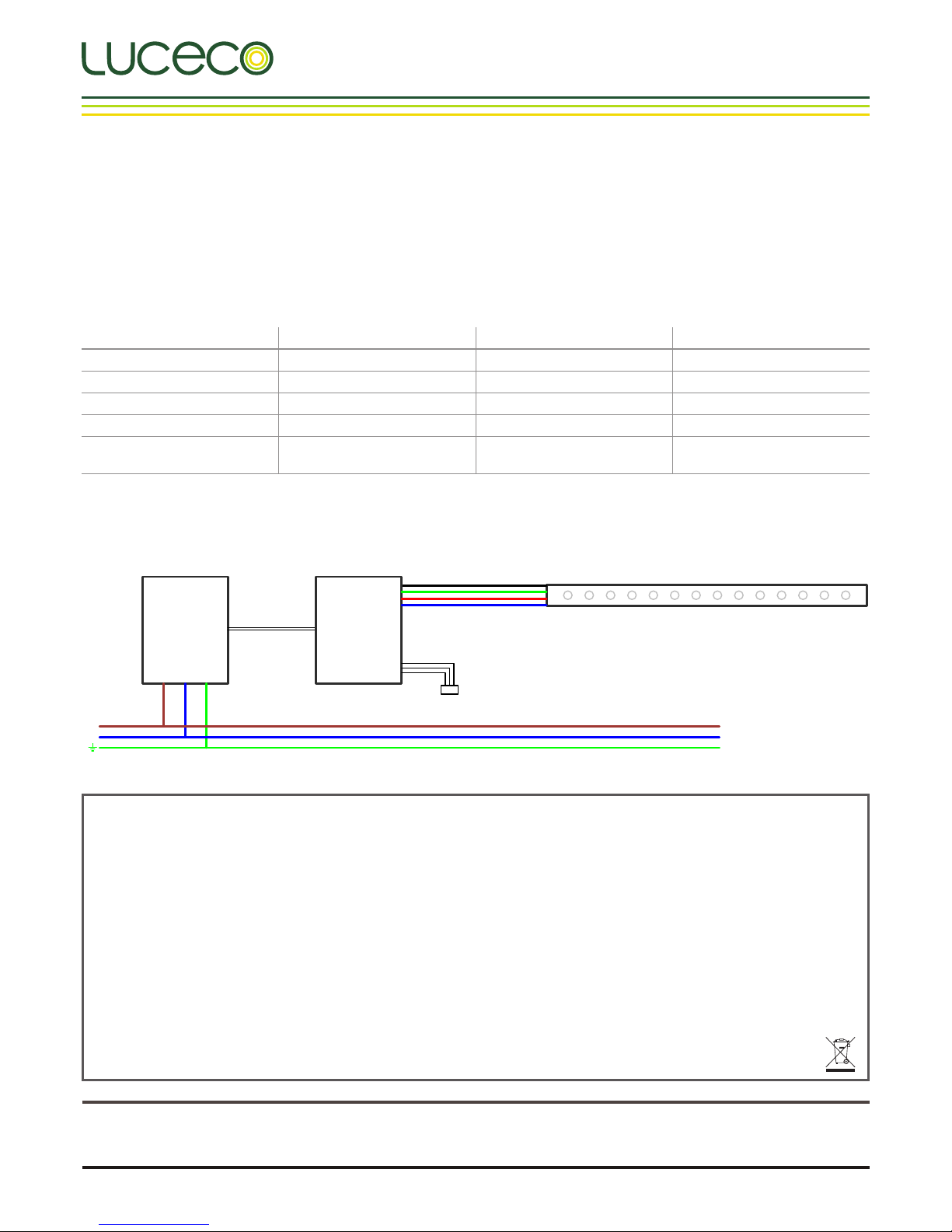

WIRING DIAGRAM:
Dim up Dim down Off On
Static red Static green Static blue Static white
Static orange Static light green Static deep blue 7-colour changing quickly
Static deep yellow Static cyan Static brown All colour’s changing gradually
Static yellow Static light blue Static pink 7-colour‘s changing gradually
Static light yellow Static pale blue Static purple Red, green,
blue changing quickly
Installation & Operating Instructions
