LUTEC 7297801012 User manual

1
IMPORTANT,
RETAIN FOR FUTURE REFERENCE:
READ CAREFULLY

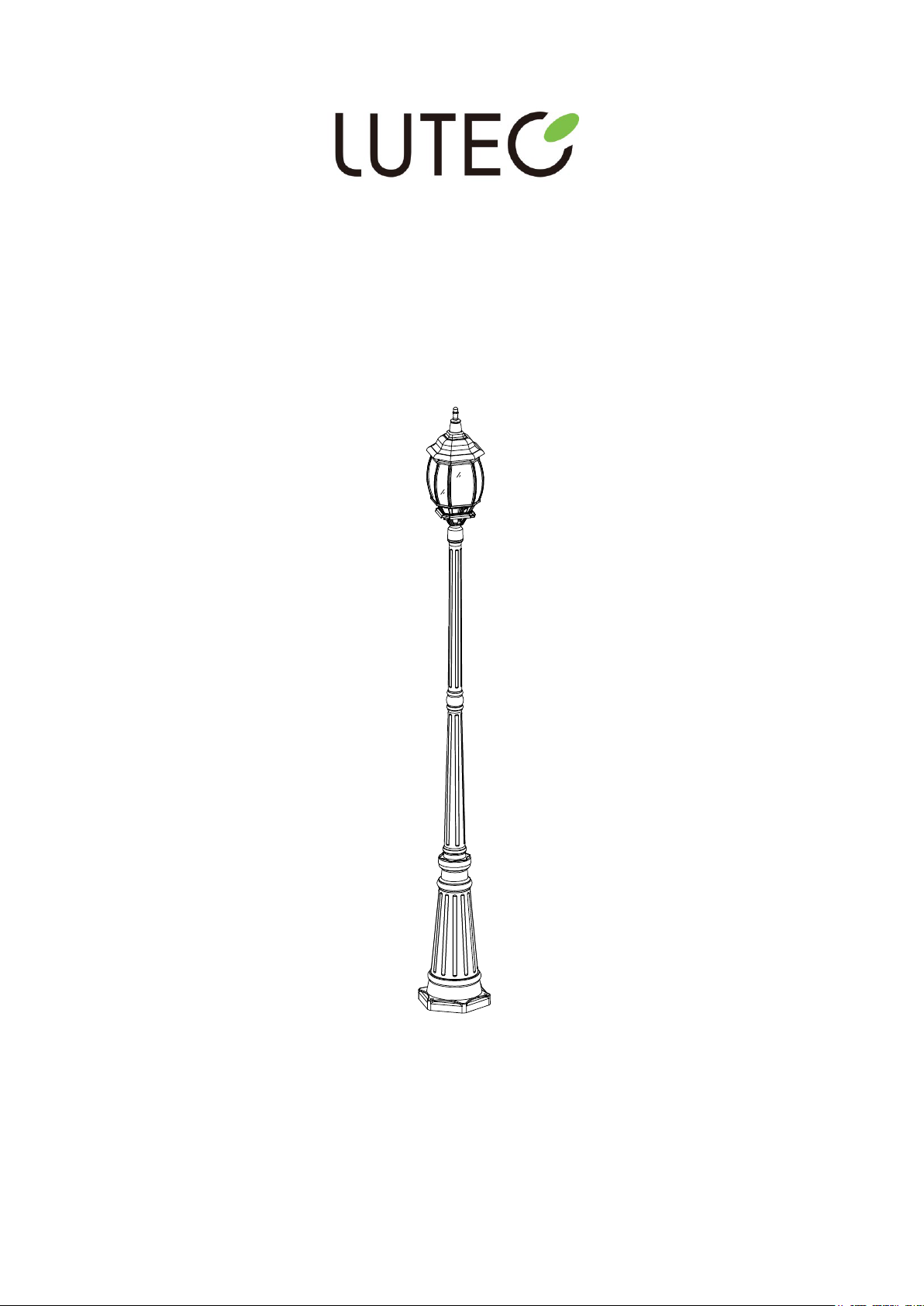

POST LANTERN
Owners Manual
MODEL #
7297801012

2
PACKAGE CONTENTS
PART
DESCRIPTION
QUANTITY
A
Cover
1
B
Fixture
1
C
Top Pole
1
D
Middle Pole
1
E
Base
1
A
D
E
C
B

PREPARATION
Before beginning to assemble or install lighting fixture, make sure all parts are present. Compare
parts with package contents list and hardware contents list. If any part is missing or damaged, do
not attempt to assemble, install or operate the product.
Estimated Assembly Time: 30 minutes
Tools Required for Assembly (not included): Flathead Screwdriver, Phillips Screwdriver, Pliers,
Electrical Tape, Wire Cutters, Safety Glasses, Ladder, Wire Stripper, 1/2 in. Wrench, 1/2 in. Ring
Spanner, Electric Drill.
3
HARDWARE CONTENTS (not shown actual size)
SAFETY INFORMATION
Please read and understand this entire manual before attempting to assemble, operate or install
the product.
●Turn off electricity at main fuse box (or circuit breaker box) before beginning installation by
removing fuse (or switching off circuit breaker).
●Be careful not to damage or cut the wire insulation (covering) during fixture installation. Do not
permit wires to contact any surface having a sharp edge. To do so may damage or cut the wire
insulation, which could cause serious injury or death from electric shock.
CAUTION:
●All electrical connections must be in agreement with local codes, ordinances or the National
Electric Code (NEC). Contact your municipal building department to learn about your local codes,
permits and/or inspections.
●Risk of fire — most dwellings built before 1985 have supply wire rated for 140F. Consult a
qualified electrician before installation.
●Do not connect this fixture to an electrical system that does not provide a means for equipment
grounding. Never use a fixture in a two-wire system that is not grounded. If you are not sure your
lighting system has a grounding means, do not attempt to install this fixture. Contact a qualified,
licensed electrician for information with regards to proper grounding methods as required by the
local electrical code in your area.
●If a dimmer control switch is used with this fixture, obtain professional advice to determine the
correct type and electrical rating required.
AA
BB
CC
DD
EE
WARNING:
Expansion Bolt
Qty. 3
Hexagon Screw
Qty. 3
Positioning
Paper
Qty. 1
Wrench
Qty. 1
Wire Nut
Qty. 5

Insert bulbs (not included). Use 60-watt max. E12
incandescent bulbs.
4
2.
3. Replace the cover (A) on the fixture (B) with the previously
removed screws.
4. Pass the wire through the top pole (C), and then turn
the top pole counterclockwise into the fixture (B).
3
4
2
ASSEMBLY INSTRUCTIONS
1. Remove the preassembled screws with a Phillips
screwdriver (not included) to detach the cover (A)
from the fixture (B).
1
B
A
B
A
C
B
Note: CFLs and LEDs are recommended for this item.

Remove the preassembled nuts and washers from the
expansion bolts (AA). Then put the expansion bolts (AA) into
the drill holes.
Hardware Used
Expansion Bolt x 3
AA
C
7. Use the positioning paper (CC) to drill three holes on the
ground.
Hardware Used
Positioning Paper x 1
CC
Wrench x 1
Hardware Used
Hexagon Screw x 3
BB
DD
Rotate the top pole (C) clockwise onto the middle pole (D).
6.
8.
7
8
6
5. Secure the middle pole (D) to the base (E) with the hexagon
screws (BB) by using the wrench (DD).
5
E
D
5
BB
D
C
CC
AA

CARE AND MAINTENANCE
To clean, unplug lamp and wipe with a damp, non-abrasive cloth.
TROUBLESHOOTING
PROBLEM
POSSIBLE CAUSE
CORRECTIVE ACTION
The light will not go on.
1. No power.
2. Fixture may be wired
incorrectly.
3. Switch may be wired
incorrectly.
1. Make sure lamp fixture is
plugged in and power is on.
2. Check wiring.
3. Check wiring.
Fuse blows or circuit trips
when fixture is turned on.
Crossed wires or power
wire is grounding out.
Consult a certified electrician.
The fixture shakes in high
winds.
The screws and
nuts may
be secured incorrectly.
Make sure the screws and
nuts were secured tightly.
9. Connect bare ground wire from the base (E) to the ground
wire coming from the ground by twisting a wire nut (EE) onto
bare ends of the wires. Connect white wire from the base (E)
to the white wire coming from the ground by twisting a wire
nut (EE) onto bare ends of the wires. Connect the black wire
from the base (E) to the black wire coming from the ground
by twisting a wire nut (EE) onto the bare ends of the wires.
Secure the wire nuts (EE) with electrical tape.
10. With the help of another person, align the holes on base (E)
with the expansion bolts and carefully place the pole
assembly over the positioning paper. Secure assembly with
washers and nuts removed in step 8.
9
0
Hardware Used
Wire Nut
x 3
EE
EE
6
10

3-YEAR LIMITED WARRANTY
If this product fails due to a defect in materials or workmanship within three (3) years from the date
of purchase, return it along with proof of date of purchase and it will be replaced with the same or
comparable model free of charge.
This warranty is void if damage or defect has resulted from accident, abuse, misuse or faulty repair.
This warranty gives you specific legal rights and you may have other rights that vary from state to
state.
IN NO EVENT WILL LIABILITY EXTEND TO ANY CONSEQUENTIAL, SPECIAL, INCIDENTAL
OR INDIRECT DAMAGES OF ANY KIND ARISING OUT OF THE USE OR MISUSE OF THIS
PRODUCT. SOME STATES DO NOT ALLOW THE EXCLUSION OR LIMITATION OF
INCIDENTAL OR CONSEQUENTIAL DAMAGES SO THE ABOVE EXCLUSION OR LIMITATION
MAY NOT APPLY TO YOU.
LUTEC USA LLC:
149B Houston Rd Troutman NC 28166
Ningbo UTEC Electric Co.,LTD
CN8, Far East Industry Park, Yuyao, China
www.lutec.com
ser[email protected]
Please call our Customer Service line at 877-714-8669
for assistance Monday - Friday 9 a.m. to 5 p.m. EST
