Luxibel LXMH10004 User manual

LXMH10004

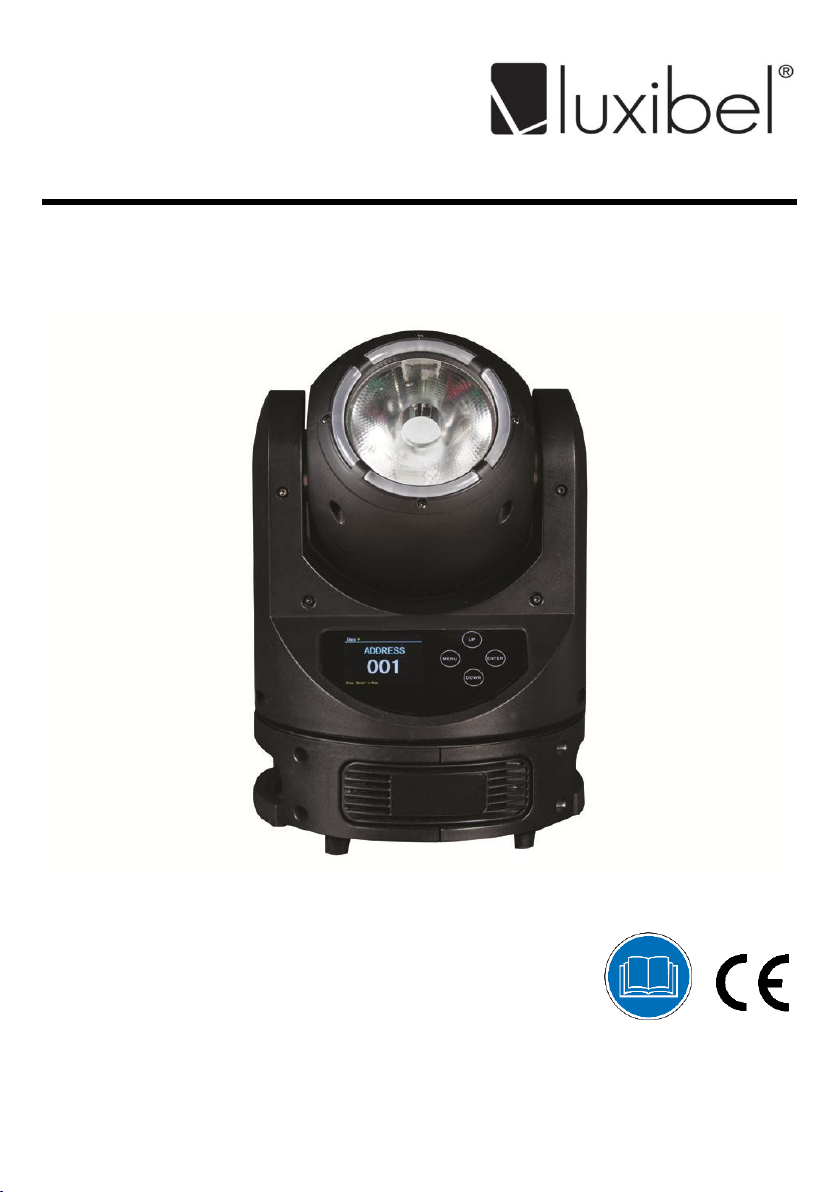

LED BEAM MOVING HEAD 60 W RGBW
USER MANUAL

LXMH10004
V. 01 –05/04/2016 2 ©Velleman nv

LXMH10004
V. 01 –05/04/2016 3 ©Velleman nv
USER MANUAL
1. Introduction
To all residents of the European Union
Important environmental information about this product
This symbol on the device or the package indicates that disposal of the device after its lifecycle
could harm the environment. Do not dispose of the unit (or batteries) as unsorted municipal
waste; it should be taken to a specialized company for recycling. This device should be returned
to your distributor or to a local recycling service. Respect the local environmental rules.
If in doubt, contact your local waste disposal authorities.
Thank you for choosing Luxibel®! Please read the manual thoroughly before bringing this device into
service. If the device was damaged in transit, do not install or use it and contact your dealer.
2. Safety Instructions
Be very careful during the installation: touching live wires can cause life-threatening
electroshocks.
Always disconnect mains power when device not in use or when servicing or
maintenance activities are performed. Handle the power cord by the plug only.
Indoor use only. Keep this device away from rain, moisture, splashing and dripping
liquids. Never put objects filled with liquids on top of or close to the device.
Keep this device away from children and unauthorized users.
Caution: device heats up during use.
Do not stare directly at the light source, as this may cause
epileptic seizure in sensitive people
temporarily loss of sight (flash blindness)
permanent (irreversible) eye damage.
There are no user-serviceable parts inside the device. Refer to an authorized dealer for
service and/or spare parts.
Respect a minimum distance of 0.5 m between the device’s light output and any
illuminated surface.
This is a Safety Class 1 device. It is therefore essential that the device be earthed. Have
a qualified person carry out the electric connection.
Make sure that the available voltage does not exceed the voltage stated in the specifications of this
manual.
Do not crimp the power cord and protect it against damage. Have an authorised dealer replace it if
necessary.
Use an appropriate safety cable to fix the device (e.g. VDLSC7N or VDLSC8N).
Install the device at a minimal distance of 0.5 m from flammable and explosive objects or
substances.
The maximum ambient temperature is 40 °C. Do not operate the device at higher temperatures.

LXMH10004
V. 01 –05/04/2016 4 ©Velleman nv
3. General Guidelines
Refer to the Velleman®Service and Quality Warranty on the last pages of this manual.
Keep this device away from dust and extreme temperatures. Make sure the ventilation
openings are clear at all times. For sufficient air circulation, leave at least 1" (± 2.5 cm)
in front of the openings.
Protect this device from shocks and abuse. Avoid brute force when operating the device.
Familiarise yourself with the functions of the device before actually using it. Do not allow operation
by unqualified people. Any damage that may occur will most probably be due to unprofessional use
of the device.
All modifications of the device are forbidden for safety reasons. Damage caused by user modifications
to the device is not covered by the warranty.
Only use the device for its intended purpose. All other uses may lead to short circuits, burns,
electroshocks, lamp explosion, crash, etc. Using the device in an unauthorised way will void the
warranty.
Damage caused by disregard of certain guidelines in this manual is not covered by the warranty and
the dealer will not accept responsibility for any ensuing defects or problems.
Mechanical wear and LEDs are not covered by warranty.
A qualified technician should install and service this device.
Do not switch the device on immediately after it has been exposed to changes in temperature.
Protect the device against damage by leaving it switched off until it has reached room temperature.
This device is designed for professional use on stage, in discos, theatres, etc. The device should only
be used indoors with an alternating current of 100-240 V~, 50/60 Hz.
Lighting effects are not designed for permanent operation: regular operation breaks will prolong their
lives.
Use the original packaging if the device is to be transported.
Product images are for illustrative purposes only.
Keep this manual for future reference.
4. Mounting and Connection
Choose a suitable mounting spot. Mount the device in the desired angle using the included bracket.
Connect the power cord to the mains. Disconnect after use.
4.1 Mounting the Device
Have the device installed by a qualified person, respecting EN 60598-2-17 and all other applicable norms.
The carrying construction must be able to support 10 times the weight of the device for 1 hour
without deforming.
The installation must always be secured with a secondary attachment e.g. a safety cable.
Never stand directly below the device when it is being mounted, removed or serviced. Have a
qualified technician check the device once a year and once before you bring it into service.
Install the device in a location with few passers-by that is inaccessible to unauthorised persons.
Overhead mounting requires extensive experience: calculating workload limits, determining the
installation material to be used… Have the material and the device itself checked regularly. Do not
attempt to install the device yourself if you lack these qualifications as improper installation may
result in injuries.
For truss mounting, use an appropriate clamp (not incl.) and fit an M10 bolt through the centre of the
(folded) bracket.
Adjust the desired inclination angle via the mounting bracket and tighten the bracket screws.
Make sure there is no flammable material within a 0.5 m radius of the device.
Have a qualified electrician carry out the electric connection.
Connect the device to the mains with the power plug. All devices must be powered directly off a
grounded switched circuit. Do not connect to a dimmer pack.

LXMH10004
V. 01 –05/04/2016 5 ©Velleman nv
The device has a power output to supply power to another device. When connecting several devices
in a daisy chain via this output, make sure that the total current does not exceed the power line’s
nominal current. Use power cables with an adequate section.
The installation has to be approved by an expert before the device is taken into service.
1. Install the clamp onto the Omega bracket.
2. Install the clamp-bracket assembly onto the device.
3. Install the assembly onto an appropriate truss and fasten. Secure with a secondary safety rope.
4.2 Connecting the Device
Power
Connect the device to the mains with the power plug.
Power all devices directly off a grounded switched circuit.
Do not connect the device to a rheostat or dimmer circuit, even when using the rheostat or dimmer
channel solely for 0 % to 100 % switching.
Have a qualified electrician carry out the electric connection.
DMX-512 Connection

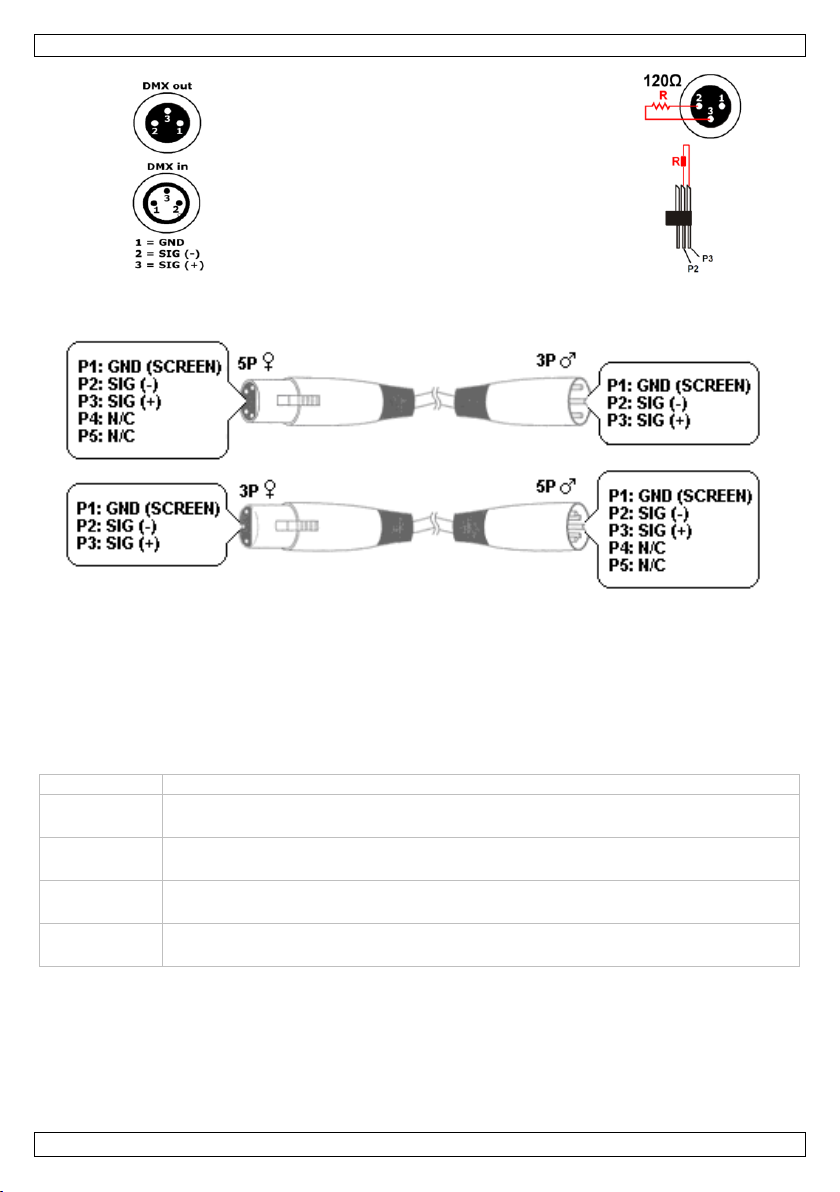

When applicable, connect an XLR cable to the female XLR output of a controller (not incl.) and the
other side to the male XLR input of the device. Multiple devices can be linked through serial linking.
The linking cable shall be a dual core, screened cable with XLR input and output connectors.
A DMX terminator is recommended for installations where the DMX cable has to run a long distance or is
in an electrically noisy environment (e.g. discos). The terminator prevents corruption of the digital
control signal by electrical noise. The DMX terminator is simply an XLR plug with a 120 Ω resistor
between pins 2 and 3, which is then plugged into the XLR output socket of the last device in the chain.

LXMH10004
V. 01 –05/04/2016 6 ©Velleman nv
terminator
How to turn the controller line from 3-pins into 5-pins (plug and socket).
5. Operation
The device can be used in the following modes:
stand-alone mode
master/slave mode
with a DMX-512 controller.
5.1 Control Panel
Access the control panel functions using the four panel buttons located around the display:
Button
Function
MENU
access the menu
return to a previous menu option
ENTER
select menu option
store the current menu or option within the menu
UP
scroll through the menu options in ascending order
increase value
DOWN
scroll through the menu options in descending order
decrease value

LXMH10004
V. 01 –05/04/2016 7 ©Velleman nv

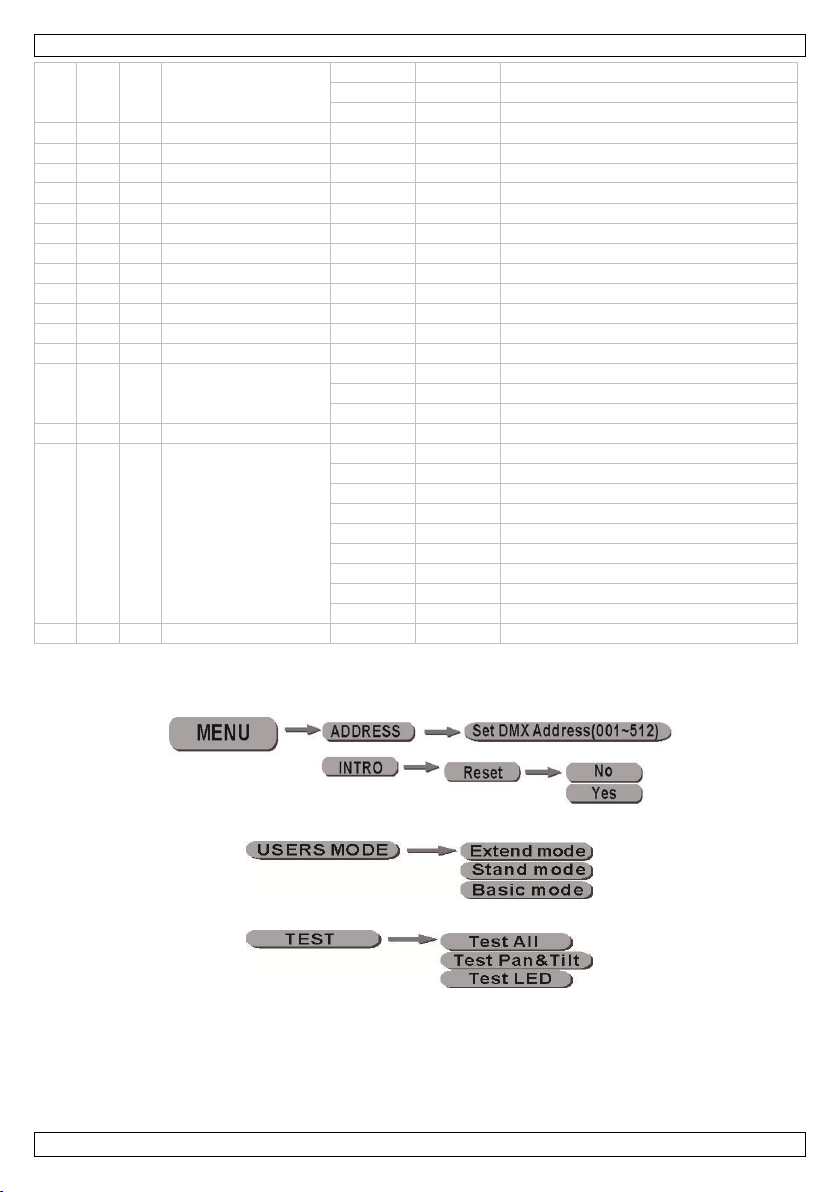

Menu
5.2 Stand-Alone Mode
The device starts running in stand-alone mode after connection to the mains. This mode allows you to
use the device without controller.
1. Connect the device to the mains to switch it on.
2. Press MENU to enter the menu.
3. Select an option with UP or DOWN and press ENTER to confirm.
5.3 Master/Slave Mode
Notes
The master/slave mode allows for connecting several devices to a single master device in a daisy chain.
All slave devices will then work synchronously with the master device.
Configure all slave units before connecting the master unit to the daisy chain.
The maximum number of slave units you can connect to a master unit is 9.

LXMH10004
V. 01 –05/04/2016 8 ©Velleman nv
Slave units:
1. Connect the DMX input from your slave device to the DMX output of the previous device in the chain.
2. Connect the slave device to the mains to switch it on.
3. Press MENU to enter the menu.
4. Select the slave mode with UP or DOWN and press ENTER to confirm.
5. Repeat these steps for all slave units.
Master unit
1. Connect the master device to the mains to switch it on.
2. Press MENU to enter the menu.
3. Select the master mode with UP or DOWN and press ENTER to confirm.
4. Set the master unit to work in one of the running modes.
5. Connect the master unit as the first unit in the chain by connecting the DMX output of the master
device to the DMX input of the first slave unit.
5.4 DMX Mode
The DMX mode allows you to control the device with any universal DMX controller.
All DMX-controlled devices need a digital start address so that the correct device responds to the
signals. This digital start address is the channel number from which the device starts to “listen” to
the DMX controller. The same starting address can be used for a whole group of devices or an
individual address can be set for every device.
When all devices have the same address, all the units will “listen” to the control signal on one
particular channel. In other words: changing the settings of one channel will affect all devices
simultaneously. If you set individual addresses, each device will “listen” to a separate channel
number. Changing the settings of one channel will only affect the device in question.
To set the device to work with a DMX controller:
1. Press MENU to enter the menu.
2. Use UP and DOWN to select the user mode and press ENTER.
3. Press MENU until <Address> is displayed and press ENTER.
4. Use UP and DOWN to set the DMX start address and press ENTER.
Start addresses
Use the table below to define the correct address. The table shows the settings for units 1 to 3. Apply the
same principle for the other units. Example:
channel mode
1st unit
2nd unit
3rd unit
highest start address
15
start address
1
16 (1 + 15)
31 (16 + 15)
498
channel
1 - 15
16 - 30
31 - 45
DMX Channel Values
channel
function
from
to
description
Ba
St
Ex
1
1
1
pan
0
255
8-bit pan movement
2
2
pan fine
0
255
16-bit pan fine movement
2
3
3
tilt
0
255
8-bit tilt movement
4
4
tilt fine
0
255
16-bit tilt fine movement
3
5
5
speed
0
225
speed, slow > fast
226
235
blackout
236
255
no function
4
6
6
continuous pan
0
127
no function
128
189
forwards pan, slow > fast
190
193
no rotation
194
255
backwards pan, slow > fast

LXMH10004
V. 01 –05/04/2016 9 ©Velleman nv
5
7
7
continuous tilt
0
127
no function
128
189
forwards tilt, slow > fast
190
193
no rotation
194
255
backwards tilt, slow > fast
6
8
8
red
0
255
red from 0-100 %
7
9
9
green
0
255
green from 0-100 %
8
10
10
blue
0
255
blue from 0-100 %
9
11
11
white
0
255
white from 0-100 %
10
12
12
strobe
0
31
LED off
32
63
LED on
64
95
strobe, slow > fast
96
127
LED on
128
159
pulse effect in sequence
160
191
LED on
192
223
random strobe, slow > fast
224
255
LED on
11
13
13
dimmer
0
255
from 0-100 %
12
14
14
0
7
no function
8
39
red > yellow
40
71
yellow > green
72
103
green > cyan
104
135
cyan > blue
136
167
blue > magenta
168
199
magenta > red
200
231
red > white
232
255
crossfading colours, slow > fast
13
15
15
colour presets
0
4
no function
5
9
white 2700k
10
14
white 3200k
15
19
white 4200k
20
24
white 5600k
25
29
white 6500k
30
34
white 8000k
35
39
yellow
40
44
magenta
45
49
cyan
50
54
salmon
55
59
turquoise
60
64
light green
65
69
steel blue
70
74
orange
75
79
straw
80
84
pale lavender
85
89
pink
90
94
red
95
99
green
100
104
blue
105
109
white
110
255
reserved
14
16
16
colour dimmer
0
255
from 0-100 %

LXMH10004
V. 01 –05/04/2016 10 ©Velleman nv
15
17
17
reset
0
79
no function
80
54
all motor reset
85
255
no function
18
red LED 1
0
255
red from 0-100 %
19
green LED 1
0
255
green from 0-100 %
20
blue LED 1
0
255
blue from 0-100 %
21
red LED 2
0
255
red from 0-100 %
22
green LED 2
0
255
green from 0-100 %
23
blue LED 2
0
255
blue from 0-100 %
24
red LED 3
0
255
red from 0-100 %
25
green LED 3
0
255
green from 0-100 %
26
blue LED 3
0
255
blue from 0-100 %
27
red LED 4
0
255
red from 0-100 %
28
green LED 4
0
255
green from 0-100 %
29
blue LED 4
0
255
blue from 0-100 %
30
strobe
0
31
LED off
32
250
strobe from 0-20 kHz
251
255
LED on
31
dimmer
32
colour macro
0
7
no function
8
38
colour macro 1
39
69
colour macro 2
70
100
colour macro 3
101
131
colour macro 4
132
162
colour macro 5
163
193
colour macro 6
194
224
colour macro 7
225
255
colour macro 8
33
colour macro speed
0
255
speed, slow > fast
6. Other Functions
6.1 Resetting the Device
6.2 Choosing the Channel Mode
6.3 Test Procedure

LXMH10004
V. 01 –05/04/2016 11 ©Velleman nv
6.4 Detailed Setting
6.5 General Info
7. Cleaning and Maintenance
All screws should be tightened and free of corrosion.
The housing, the lenses, the mounting supports and the installation location (e.g. ceiling, suspension,
trussing) should not be deformed, modified or tampered with; e.g. do not drill extra holes in
mounting supports, do not change the location of the connections…
Mechanically moving parts must not show any signs of wear and tear.
The electric power supply cables must not show any damage. Have a qualified technician maintain
the device.
Disconnect the device from the mains prior to maintenance activities. Let the device cool down.
Wipe the device regularly with a moist, lint-free cloth. Do not use alcohol or solvents.
Do not immerse the device in any liquid.
There are no user-serviceable parts, apart from the fuse.
Contact your dealer for spare parts if necessary.
Replacing the Fuse
Only replace the fuse by a fuse of the same type and rating.
1. Before replacing the fuse, unplug the mains lead.
2. Unscrew the fuse holder with an appropriate screwdriver.
3. Remove the old fuse and install the new fuse in the fuse holder.
4. Place the fuse holder back in the housing and tighten it.
8. Technical Specifications
power supply.........................................................................100-240 V~, 50/60 Hz
power consumption .......................................................................................480 W
LED source
ultra-bright Osram RGBW LED 60 W
8x 0.5 W RGB LED (four extra individual control LED rings on the head)
pan .................................................................................... continuous pan rotation
tilt........................................................................................continuous tilt rotation
motor ................................................................................. tri-phase stepper motor
beam angle .................................................................................................... 4.5°
protocol .................................................................................................... DMX512

LXMH10004
V. 01 –05/04/2016 12 ©Velleman nv
DMX channels
basic mode .....................................................................................15 channels
standard mode................................................................................17 channels
extended mode ...............................................................................33 channels
control mode
DMX512
sound activation
auto
master-slave
dimmer.................................................................................. 0-100% liner dimmer
PWM speed .............................................................................. 1500 Hz, flicker free
fans .............................. super quite fans with adjustable speed based on temperature
LCD display ............................................................................ reverses 180 degrees
dimensions
weight .........................................................................................................5.1 kg
Use this device with original accessories only. Velleman nv cannot be held responsible in the
event of damage or injury resulting from (incorrect) use of this device. For more info
concerning this product and the latest version of this manual, please visit our website
www.luxibel.com. The information in this manual is subject to change without prior notice.
© COPYRIGHT NOTICE
The copyright to this manual is owned by Velleman nv. All worldwide rights reserved. No part
of this manual may be copied, reproduced, translated or reduced to any electronic medium or otherwise
without the prior written consent of the copyright holder.

Velleman® Service and Quality Warranty
Since its foundation in 1972, Velleman® acquired extensive experience in the electronics world
and currently distributes its products in over 85 countries.
All our products fulfil strict quality requirements and legal stipulations in the EU. In order to
ensure the quality, our products regularly go through an extra quality check, both by an
internal quality department and by specialized external organisations. If, all precautionary
measures notwithstanding, problems should occur, please make appeal to our warranty (see
guarantee conditions).
General Warranty Conditions Concerning Consumer Products (for EU):
• All consumer products are subject to a 24-month warranty on production flaws and defective
material as from the original date of purchase.
• Velleman® can decide to replace an article with an equivalent article, or to refund the retail
value totally or partially when the complaint is valid and a free repair or replacement of the
article is impossible, or if the expenses are out of proportion.
You will be delivered a replacing article or a refund at the value of 100% of the purchase price
in case of a flaw occurred in the first year after the date of purchase and delivery, or a
replacing article at 50% of the purchase price or a refund at the value of 50% of the retail
value in case of a flaw occurred in the second year after the date of purchase and delivery.
• Not covered by warranty:
- all direct or indirect damage caused after delivery to the article (e.g. by oxidation, shocks,
falls, dust, dirt, humidity...), and by the article, as well as its contents (e.g. data loss),
compensation for loss of profits;
- consumable goods, parts or accessories that are subject to an aging process during normal
use, such as batteries (rechargeable, non-rechargeable, built-in or replaceable), lamps, rubber
parts, drive belts... (unlimited list);
- flaws resulting from fire, water damage, lightning, accident, natural disaster, etc.…;
- flaws caused deliberately, negligently or resulting from improper handling, negligent
maintenance, abusive use or use contrary to the manufacturer’s instructions;
- damage caused by a commercial, professional or collective use of the article (the warranty
validity will be reduced to six (6) months when the article is used professionally);
- damage resulting from an inappropriate packing and shipping of the article;
- all damage caused by modification, repair or alteration performed by a third party without
written permission by Velleman®.
• Articles to be repaired must be delivered to your Velleman® dealer, solidly packed
(preferably in the original packaging), and be completed with the original receipt of purchase
and a clear flaw description.
• Hint: In order to save on cost and time, please reread the manual and check if the flaw is
caused by obvious causes prior to presenting the article for repair. Note that returning a non-
defective article can also involve handling costs.
• Repairs occurring after warranty expiration are subject to shipping costs.
• The above conditions are without prejudice to all commercial warranties.
The above enumeration is subject to modification according to the article
(see article’s manual).
Made in PRC
Imported by Velleman nv
Legen Heirweg 33, 9890 Gavere, Belgium
www.velleman.eu
