Luxinup 32 Operating instructions

Luxinup
 
Ambient Lighting Technologies






UserandMaintenanceManual

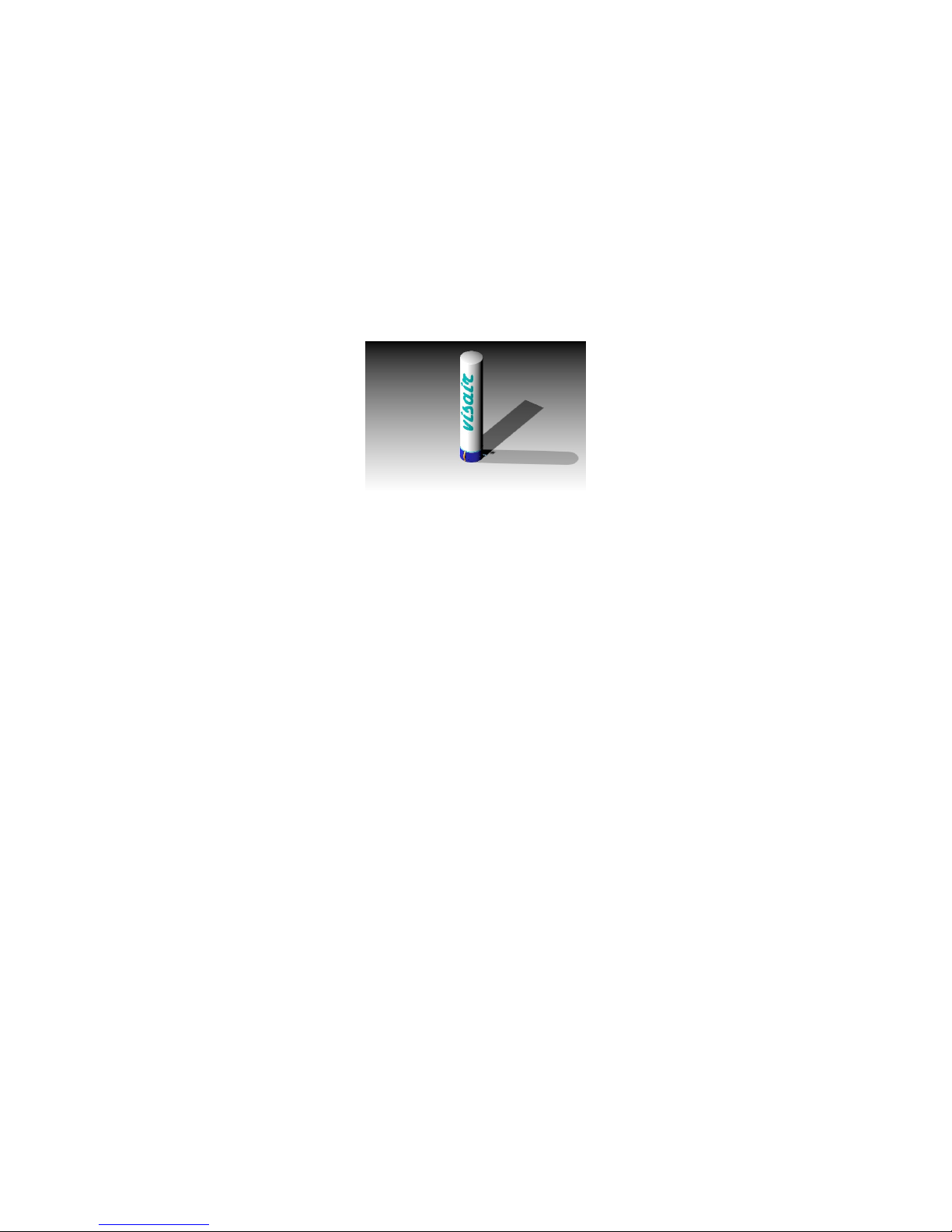

Luxinup is an inflatable device radiatingasoftlight.Idealtocreateambienceatpartiesandotherevents,it
canalsobeusedforadvertising.
Thealuminiumbasehousestheself‐inflatingandlightingsystemaswellasthesyntheticfabricbody,which,
uponswitchingon,inflatesitselfupwardsinabout40seconds.
Thesyntheticfabricisanti‐fireandself‐extinguishing,washableat30°.
Luxinup is12voltpowered.Inabsenceofelectriccableconnection,itsinternalleadbatterygrantsan
autonomyrangingfrom10to60minutes,basedonthelightingmodechosenandthebatterycondition.
Luxinup is equipped with an IP67 external feeder, that feeds and recharges the internal battery.

Readthemanualbeforeuse

DonotpositionLuxinupclose to heating sources or flames.
NonotpositionLuxinuponinclinedsurfaces.
WARNING:Luxinup is ‘wind sensitive’, therefore is should not be positioned close to roads or areas travelled by
vehicles of any sort.
DonotpositionLuxinuponwetsurfaces.
Intheeventofrain,switchLuxinupoff and carefully dry it up before replacing it.

DonotpositionLuxinupclose to bushes, plants with thorns or sharp objects.
DonotplaceobjectsofanysortonLuxinup.
Inordertoavoidthegrowthofmouldinsidetheinflatablefabric,carefullystoreLuxinupindryplaces.
DonotalterthecableconnectingtoLuxinup.
Ifusedonabeach,placeatraybelowLuxinup’sbase,toavoidthesandfrombeingsuckedup.


Installation

1OpenthepackingandtakeLuxinup out
2PlaceLuxinuponthechosensurface,makingsureitisflat.
3Unbuttonthetopofthefabric.




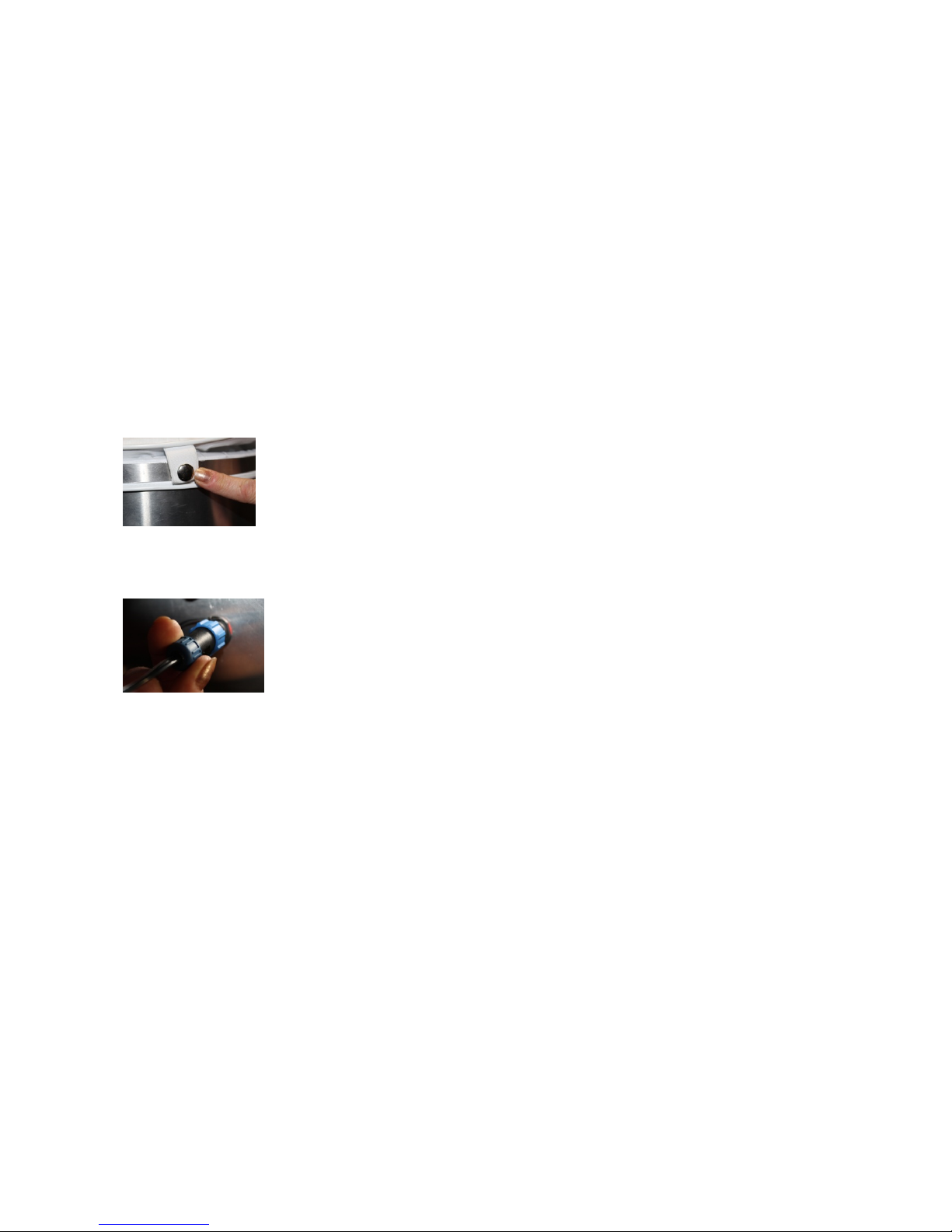

4InserttheplugandconnectthejacktoLuxinup’saluminiumbase.

5Pressthelightingswitchonthealuminiumbaseforaboutfour(4)seconds.Thefanwillbeoperatedand
thefabricwillstartinflatingandstretching.Delicatelyhelpthisoperationwithyourhands.Afterabout
30secondstheLEDlightingwillbeactivated.
Pressingtheswitchasecondtimewillactivatethelightingofthelaser(ifincluded).
Toenhancethelasereffect,werecommendturningoffthemainlightswiththeremotecontrolortheWiFi,
ifavailable.
Toswitchonthelightsinalltheirfunctions,usetheremotecontrolinequipmentortheWiFi,ifavailable.

CAUTION
EithertheremotecontrolortheWiFicanbeused:oneinhibitstheother.






Instructionsfortheuseoftheremotecontrol

1Removethefilmprotectingthebattery.


2Fromadistancenotsuperiorto2metres,directtheremotecontroltowardsthebaseofLuxinup;press
theredbuttonONandselectthedesiredfunctions.

3Remotecontrolfunctions
Regulationoflightintensity,whenfixedcoloursorwhiteareused,inthepre‐seteffectsmayincreaseor
decreasethespeedofexecution.

Pre‐seteffects
Theremotecontrolallowstheselectionofspecialeffectsandlightworks.

Choiceofcolours:red,green,blueandwhite.


4Toonlyturnoffthelights,presstheblackbuttonOFFontheremotecontrol.



5Luxinupwillstillbeinflated,butnotlightened.

Turningoff

ToturnLuxinupoff,holdtheswitchpressedforaboutsix(6)seconds.
Theautomaticturningoffwillstart:insequence,thelightswillgooff,afterten(10)secondstheinflating
fanwillbedeactivatedandfinally,thedeflatingfanwillbestarted.Thewholeprocesswilltakeaboutthree
(3)minutes.
Donottrytoputthefabricawayinsidethebasebeforethedeflationhasended.
Holdthefabricupwhiletheairispushedout.Whenthedeflationiscomplete,replacethefabricinsidethe
base.
Buttonthetopofthefabrictoblockit.


Washingandmaintenance

To clean the fabric, only use a neutral detergent.  Spray on the part, let it act and remove with a damp
cloth.Letthefabricdryandreplaceitinsidethebase.Donotmachinewash.
OnceayeartakeyourLuxinup toanauthorizedcentreforthenecessarycheckandinternalcleaning.

Fabricmending

Intheeventofpunctureordamageofthefabric,usetheoriginalmendingkit,compliantwiththedevice’s
featuresandrequirements.
Werecommendusingouroriginalmendingkitsonly.Thiswayyoucanguaranteethedevice’slongterm
highqualityperformance.


CAUTION
IfLuxinupisconnectedtotheWiFi,theremotecontrolDOESNOTwork.

WiFi

IfLuxinupisequippedwithWiFi,youcanconnectwithyoursmartphone.
Firstly,downloadtheMagicHomeAppthroughtheQRCodethatyouwillfindontheWiFimanualorfrom
thePlay/AppStore.
AccesstheWiFifromyoursmartphone,turnLuxinup onandwaitthirty(30)seconds.
OnyourWiFilisttheoptionLEDnetwillbevisualized:connect.
Oncetheoperationiscompleted,opentheMagicHomeApp:thefollowingscreenwillappear.
ClickonDirectConnectandthefollowingscreenwillappear.



Clickbrieflyon“longpresstomodify”.
Apopupmenuwillappear,fortheselectionofthecoloursandofallotherLEDfunctions.
WiFiconnectiontoarouterformorethanoneLuxinup
TakingforgrantedyouhavedownloadedtheMagicHomeApp,firstofallyoumustdirectlyconnect–as
previouslyindicated–withoneLuxinup atatime.
OnceyouareconnectedtoLuxinup with your smartphone, you must select the router to which the
Luxinup WiFimustconnect.
ToperformthisoperationyoumustopentheMagicHomeAppandclickon‘Setting’.
Ascreenwillappear,showingtheroutercodetowhichyouwishtoconnecttheLuxinupWiFi.
ClickonthechosenrouterandinsertthePassword(ifrequested).Thefollowingscreenswillappear.
 

RepeattheprocessforeveryLuxinupthatyouwishtoconnecttotherouter,soastobeabletocontrol
themoneatatimeorallsimultaneously.
Whenindoubt,checktheenclosedWiFimanual.

InformationonDisposal

The packaging protects the device from possible damages that may incur during transportation.  It is
made of non‐polluting materials and can therefore be recycled. Todisposeofthepackagingnolonger
needed,pleasecontacttherecyclefacilitynearesttoyou.

Disuseddevice

The disused device still contains precious components, among which the lead battery.  We therefore
recommendtoreturnthedevicetothevendorortoarecyclefacility.Forinformationonproperrecycling
and/orwastedisposal,pleasecontactthevendororthelocalauthority.


Warrantee

TothisdeviceareappliedthewarrantyconditionsestablishedbyourlocalimporterinYourNation.The
dealer is at your disposal for any possible information.  The warranty is valid only if accompanied by
regularreceiptorotherdocumentreleaseduponpurchasebythevendor.


SafetyPrecautions

Thisdeviceiscompliantwiththeapprovedtechnicalspecificationsandsafetyrulesinforce.
Itcannotbeusedbychildrenorpeoplewithreducedphysicalabilities.

Correctuse
Connectthedevicesolelyaspertheinstructionsgiven.
Donotuseforanyaimotherthanitsmainfunction.
Donotusethedeviceifdamaged.Incaseofanomaly,unplugalljacksfeedingthedevice.
Anyservicingorcomponentreplacementmustbeperformedsolely by the authorized technical
assistance.
Thedisuseddevicemustimmediatelybemadeinoperative,andsubsequentlydisposedofincompliance
withtherelevantregulationsinforce.

Equipment
Luxinup complete of self-inflating and lighting system, fabric fixedandreplacedinsideitsbase.
IP67 external feeder
Remotecontrolforlightsswitch‐onandcontrol.
Kittomendpossiblefabricpunctures.


Optionalaccessories

°WiFi
°HighpotencyLED
°Customizedlogotobejuxtaposed
°Customizedlogooninflatablefabric
°Bag


Generalfeatures
Luxinup 32
Size:32X19cm340h
Weight4,7Kg
12voltdc
45w

Luxinup 46
Size:46X19cm260h
Weight4,7Kg

12voltdc
72w
Luxinup HP Sphere
Size:46X19cm220diameter
Weight4,7Kg
12voltdc
72w


QRcodeMagicHome
