Luxli CNS-40B User manual

Thank you for choosing Luxli.
The Luxli Constructor Large Block is part of our Constructor series—a
fun, versatile modular system that allows you mix and match LED
building blocks to shape and expand your lighting for any situation.
Providing powerful and portable illumination,the Large Daylight Block
features a 160-bulb bicolor LED panel, icker-free dimmability, and
compatibility with multiple battery types.With the twin light-adjustment
dials and the included lters, you can adjust your light to match any
environment, making the Constructor series a smart, exible choice
for photographers and videographers alike.

Specications
Light source 160 LEDs (80 × 5400 K and 80 × 3200 K)
Power source Sony L-series or Sony M-series battery
Panasonic D-28 battery (adapter plate included)
6 × AA batteries (adapter included)
DC power
Dimensions 5"× 1.5"× 3.5"(12.7 × 3.8 × 8.9 cm)
Weight 7.4 oz (209 g)

Precautions
• Do not attempt to disassemble,repair, or perform any unauthorized
modications on this device.
• Do not handle with wet hands, immerse in liquids, or expose to
water and rain. Electric shock or re may result.
• This device contains small parts which may pose a choking hazard.
Keep out of reach of children.
• Do not operate this device in the presence of ammable gas or
vapor.
• Do not use this product if it emits smoke or a strange odor.
Disconnect the power source immediately to avoid personal injury,
and contact the place of purchase.
• Observe caution when handling batteries; use only batteries
approved by the manufacturer of this product.

• Batteries are prone to leakage when fully discharged.To avoid
damaging this product, be sure to remove batteries when leaving
the product unattended.
• Do not stare or gaze at the LED panel for prolonged periods while
the device is on.
• Do not cover the ventilation grille found at the rear of device when
in operation, and ensure the light is cool before storing.
• Do not use or leave this device in conditions of extreme heat, severe
cold, or high humidity.
• The unit will display a decrease in brightness when the battery runs
low. Be sure to replace battery when necessary.
• Please dispose of used batteries, packing, and old devices in
accordance with appropriate environmental regulations.

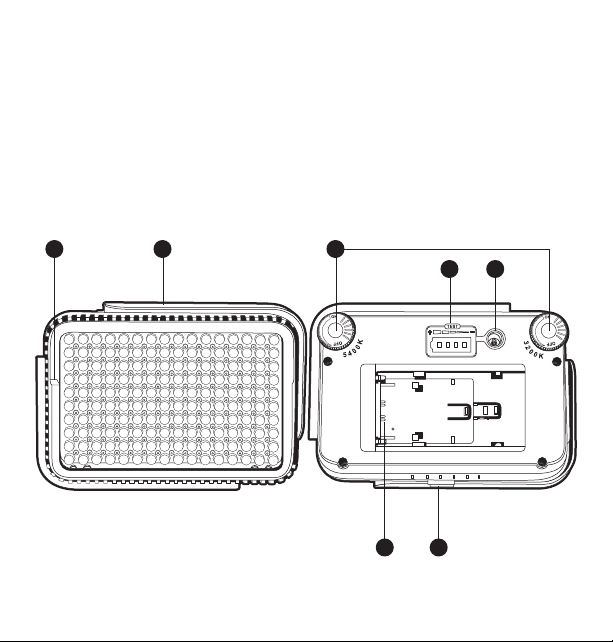

Overview
Front
1. Filter insertion slot
2. Quick-mount wing clips
Back:
3. Power and dimming wheels
4. Battery meter
5. DC power input
6. Battery mounting area
7. Threading mount
1 2
4 5
6 7
3

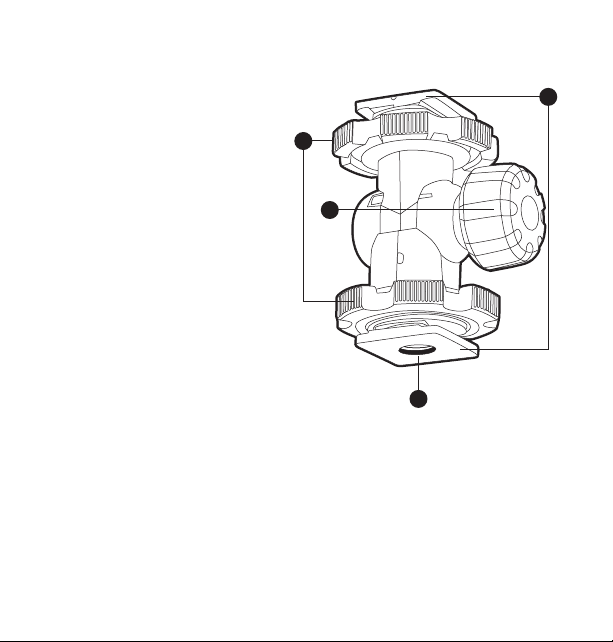

Detachable shoe mount
1. Cold shoe mounts
2. Locking rings
3. Locking Knob
4. 1/4"-20 threading mounts
Also Included
• Magenta, cool blue, and
neutral diffusion lters
• Panasonic D16 battery
adapter
• NP-F 6×AA battery adapter
• User manual
1
4
2
3

Powering the device

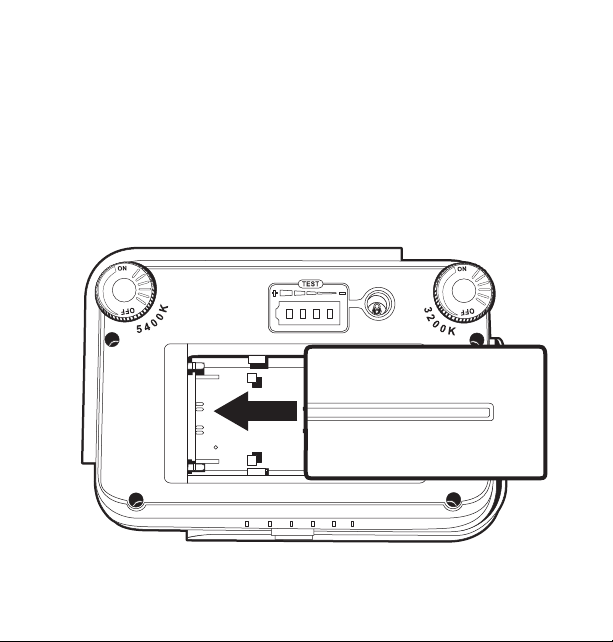

Mounting batteries and adapter plates
Place the battery or adapter plate in the mounting area, aligning the
conductor contacts of the battery with the metal prongs of the light
unit. Lock it into place by sliding it leftward until it clicks.

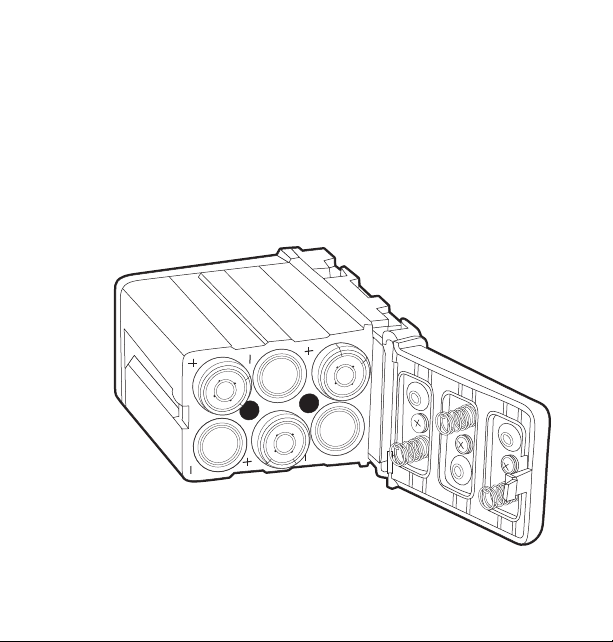

Using AA batteries
Insert 6 AA batteries into the NP-F 6×AA battery adapter.The positive
and negative signs indicate the correct orientations.Close the battery
hatch and mount the adapter onto the light unit.

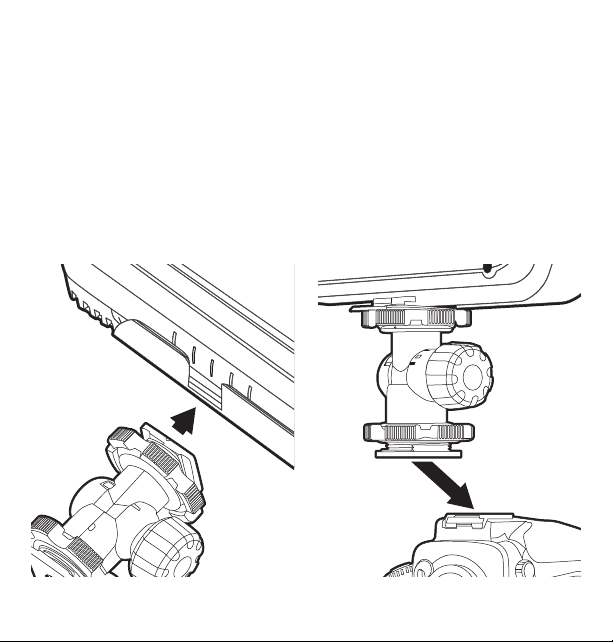

Mounting the shoe
1. Loosen the locking ring on the cold shoe mount without the 1/4"-20
threading mount and slide it into the slot at the bottom of the light
unit.Tighten the locking ring rmly to secure the shoe in place.
2. Use the cold shoe mount with the 1/4"-20 threading mount to
secure the unit on a camera or light stand.

Adjusting the light

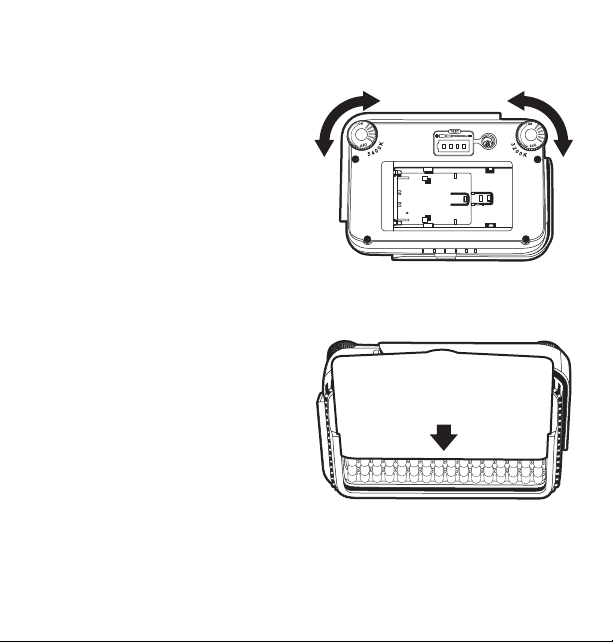

Dimming
Rotate the power and dimming
wheels until the desired effect
is achieved. Turning up the left
wheel will result in a cooler light,
while turning up the right wheel
will result in a warmer light. By
adjusting the two dials, you can
achieve any color temperature
between 3200 and 5400 K.
Mounting the lters
To install the diffusion or color
filters, slide the filter into the
insertion slot on the top of the
light unit.

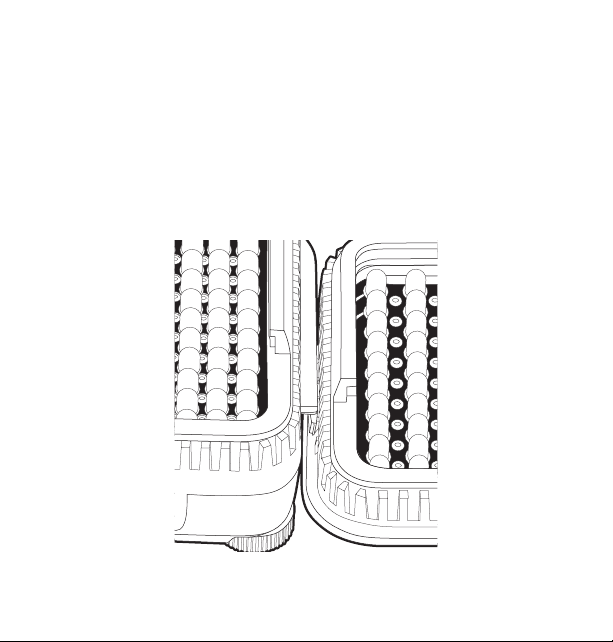

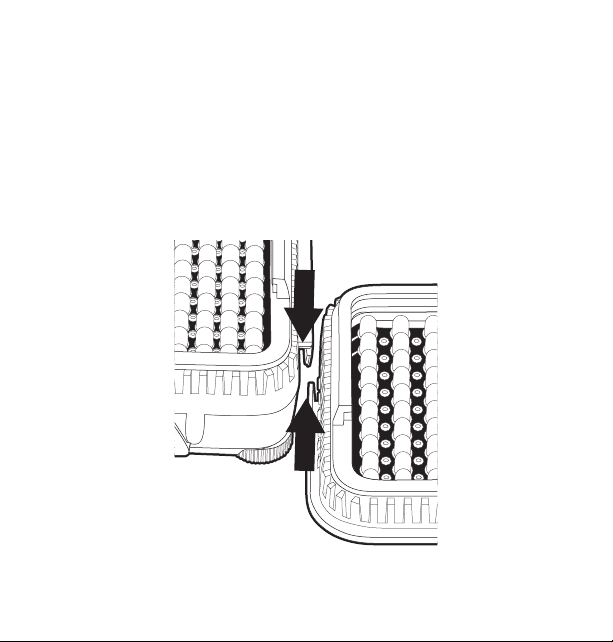

Connecting Constructor blocks
1. Arrange two blocks side by side, either vertically or horizontally.Both
blocks must be facing the same direction in the same orientation.

2. Fasten them together by sliding one light’s quick-mount wing
clip into the wing clip of the other until the two units are ush
and centered with each other. Additional units can be added
as desired.

One-Year Limited Warranty
This LUXLI product is warranted to the original purchaser to be free
from defects in materials and workmanship under normal consumer
use for a period of one (1) year from the original purchase date or
thirty (30) days after replacement,whichever occurs later.The warranty
provider’s responsibility with respect to this limited warranty shall be
limited solely to repair or replacement, at the provider’s discretion, of
any product that fails during normal use of this product in its intended
manner and in its intended environment. Inoperability of the product
or part(s) shall be determined by the warranty provider. If the product
has been discontinued, the warranty provider reserves the right to
replace it with a model of equivalent quality and function.
This warranty does not cover damage or defect caused by
misuse, neglect, accident, alteration, abuse, improper installation
or maintenance. EXCEPT AS PROVIDED HEREIN, THE WARRANTY
PROVIDER MAKES NEITHER ANY EXPRESS WARRANTIES NOR ANY IMPLIED
WARRANTIES,INCLUDING BUT NOT LIMITED TO ANY IMPLIED WARRANTY
OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE.This
warranty provides you with specic legal rights, and you may also
have additional rights that vary from state to state.

To obtain warranty coverage, contact the Luxli Customer Service
Department to obtain a return merchandise authorization (“RMA”)
number, and return the defective product to Luxli along with the RMA
number and proof of purchase. Shipment of the defective product is
at the purchaser’s own risk and expense.
For more information or to arrange service, visit www.luxlilight.com or
call Customer Service at 212-594-2353.
