LUXO Circus LED User manual

Circus LED
User manual

English
Our products are subject to the Directive
2012/19/EU (Waste Electrical and
Electronic Equipment - WEEE) and should at
the end of their lifespan always be collected
separately and brought to the appropriate
collection point in your community or region.
Norsk
Våre produkter er underlagt direktiv
2012/19/EU (Waste Electrical and
Electronic Equipment - WEEE) og skal etter
endt levetid leveres til mottak for slikt avfall
eller til en forhandler av slikt avfall.
Eesti
Meie toodete kohta kohaldatakse
2012/19/EU WEEE (elektri-ja
elektroonikaseadmetest tekkinud jäätmete)
direktiivi ning nad peavad olema
eluea lõppedes eraldi kokku kogutud
ning toimetatud piirkonna jäätmete
vastuvõtupunkti.
Nederlands
Onze producten zijn onderworpen aan de
Richtlijn 2012/19/EU (Waste Electrical and
Electronic Equipment - WEEE) en moeten
aan het einde van hun levensduur apart
ingezameld en naar het juiste inzamelpunt
gebracht worden in uw gemeente of regio.
Dansk
Vores produkter er underlagt direktiv
2012/19/EU (Waste Electrical and
Electronic Equipment - WEEE) og skal efter
endt levetid leveres til modtagere for sådan
type affald eller til en forhandler af sådan
affald.
Svenska
Våra produkter omfattas av direktivet
2012/19/EU (Waste Electrical and
Electronic Equipment – WEEE) och skall
vid slutet av sin livsängd alltid samlas in
och levereras till återvinningsstation i din
kommun eller region.
Deutsch
Unsere Produkte unterliegen der Richtlinie
2012/19/EU (Waste Electrical and
Electronic Equipment - WEEE) und sollten
am Ende ihrer Lebensdauer immer getrennt
gesammelt und an einem entsprechenden
Sammelpunkt in Ihrer Gemeinde oder
Region entsorgt werden.
Suomi
Tuote kuuluu elektronisten laitteiden
jätteenkäsittelyä (WEEE) koskevan direktiivin
2012/19/EU piiriin ja elinkaaren lopussa
oleva tuote tulee toimittaa asiaankuuluvaan
keräyspisteeseen.
2

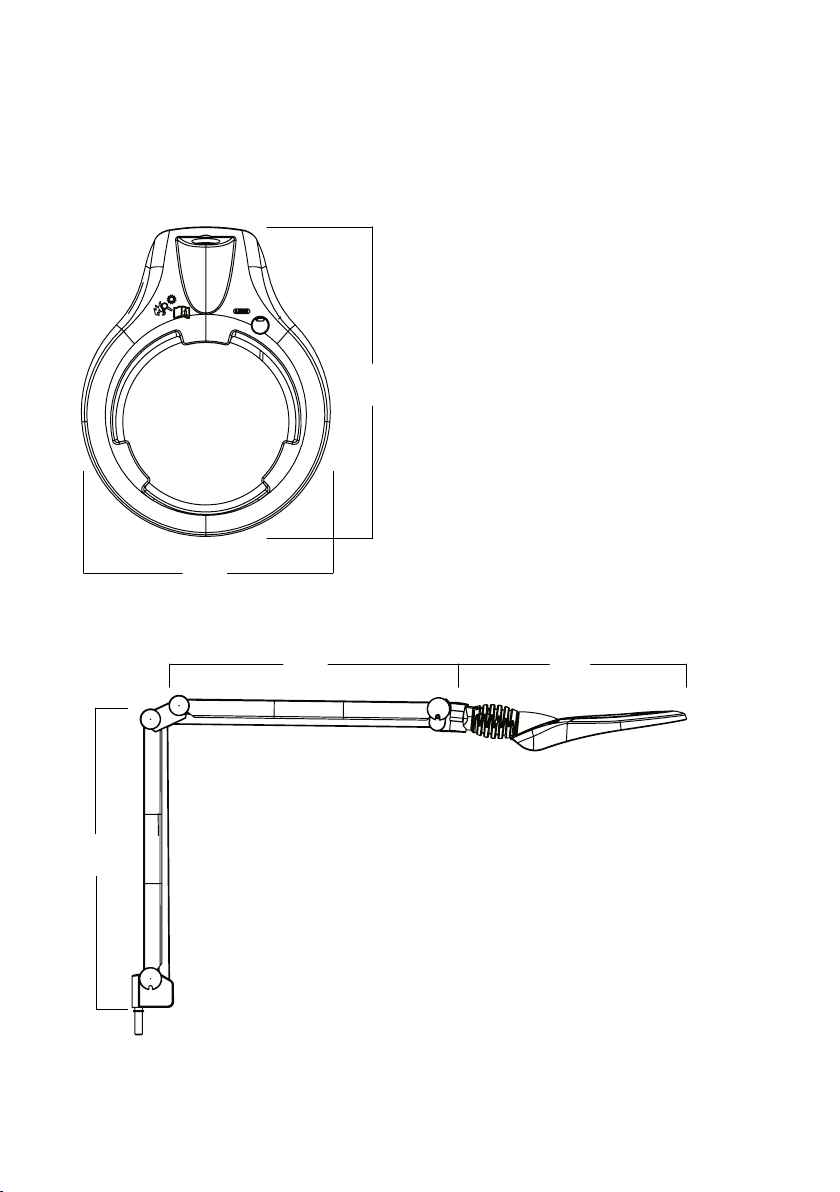

500 400
500
245
310
Circus LED
This product contains a spring loaded arm. In order to avoid
damage or possible injury, first mount table bracket or floor stand.
Insert product and remove protective plastic sleeve or rubber band,
and carefully unfold the product.
Use only brackets supplied by Glamox or a Glamox representative.
Glamox cannot guarantee the lifetime and functionality if third part
accessories are used.
Instructions for use in your local language, please visit www.glamox.com
3

Circus LED
General information
This luminaire is intended for use as a general purpose examination luminaire, only for diagnosis, NOT for surgical use. If the product is used
during treatment there should be NO contact with the patient. This product is not designed and approved for home use. Optimum working
distance between the light source and illuminated object or surface, using a standard lamp, is 28 cm with 3.5D lens and 20 cm with 5D lens.
Installation
This product contains a spring loaded arm. In order to avoid damage or possible injury, first mount table bracket or floor stand. Insert product
into table bracket or floor stand and remove protective plastic sleeve or rubber band, and carefully unfold the product. Place the supply cable
so it not will be damaged. Always use enclosed table bracket, optional floor stand.
Accessories
BRK025205 Trolley *
SPA025674 Extra weight Trolley
BRK014904 AH-CLA
SPD025980 Sp Suction lens 4D
SPD025979 Sp Suction lens 6D
S P D 0 2 6119 Sp Suction lens 10D
*Trolley must always be used with extra weight
Luxo cannot guarantee the lifetime and functionality if third party accessories are used.
Cleaning
Regular cleaning of luminaires is essential for optimal lighting. Luminaires are cleaned in a de-energized state. Electrical components and
connections should not be exposed to water or moisture. Be aware that LED luminaires are sensitive to electrostatic discharge (ESD). Cleaning
intervals are normally consistent with those planned during the project planning. Luminaires can be cleaned with a neutral detergent (pH 7).
The detergent is mixed in lukewarm water. The mixture is then applied with a microfiber cloth, sponge or similar. Afterwards, soap residues
should be removed using a soft clean microfiber cloth dampened with water. Do not spray cleaning solutions directly onto the luminaires
as residual detergent may collect in the cover, reflector or optical components, and be difficult to remove later. Organic solvent based and
strongly alkaline detergents should be avoided, as they can damage components in the short and long term. This applies particularly to
components made from various plastics. If disinfectant cleaning of light is required, disinfectant detergents should be applied with a sponge or
similar.
Maintenance
Cleaning of product is the only maintenance needed. No requirements on frequency of cleaning other than when the products get degraded
functions on movements or light. There are no parts requiring special inspection or maintenance on the product.
Spare parts
S P A 0 26 011 Cable 3x0.75+/3,0m BS1363A White
SPA026708 Cable 3x0.75+/3,0m Schuko White
SPA026709 Cable 3x18 AWG/3,0m NA White
SPA026706 AC/DC converter 24V class I
SPA026710 Fuse T1.25AH/250V
Discription to exchange spare parts will be supplied upon request to service personell.
Transportation
The product should be set in transportation mode when moved. Fold upper arm down in parallel with the lower arm, and secure them together
with a rubber band or strips.
4

Circus LED
Troubleshooting for qualified electrical fitters and other similarly qualified personnel
• Replaces the fuses
- Remove the lamp from mains supply.
- Loosen the screw holding the bottom lamp cover
- Exchange fuses
- Place bottom cover, and tighten the screw
• Replaces the mains cable
- Instruction for changing cable will be shipped with the spare part
If there should arise other problems please contact your local Glamox representative
Classification
5
Model Circus LED
Medical class Class I
Protection reliability Must not exceed 0.5 mA
Power supply 100-240VAC 50/60 Hz
Power consumption Max 40VA
Protection against risk of explosion Not protected
Protection against liquid penetration Not protected
Degree of mobility Mobile mounted on trolley
Type of approval MEDICAL
Safety test in line with EN60601-1:2012
EMC test in line with EN60601-1-2:2014
Primary fuse IEC 127-5X20mm, 2xT1.25AH 250V,
CSA/UL certified for the North American Market
Operating life 50000 Hours (L70B50)
Central illuminance 399 lx at 1m
Light field diameter d10 = 2740mm, d50 =1120mm
Colour rendering index Ra 93.2
Correlated colour temperature
of radiation emitted CCT
3787K
Chromaticity co-ordinates X=0.3892, Y=0.3791

Symbol explanations:
Do not throw away. Electronic waste.
The product must be recycled
Self declaration symbol
Approved by Nemko
Attention, read instructions before use
Sun protection for illuminated magnifiers
The glass in illuminated magnifiers can if exposed to strong
direct sunlight provide a source of unwanted concentrated
heat. The product should therefore not be placed in direct
sunlight without sun protection being used.
Stand by switch, on/off and dimming of the product.
Applicable only for North American market.
Warning:
• Avoid spilling liquid on the product.
• Have minimum 400 Lux light, when reading the labels on the product
• The switch disengages the low voltage to the lamp only. To disconnect the mains supply, unplug the plug from the socket outlet.
• To avoid risk of electric shock, this equipment must only be connected to a supply main with protective earth.
• Position the product so that it’s easy to disconnect the device when the product is used as isolation means.
• To terminate operation, turn the product off with the switch. For storage, unplug the device and fold the arm together.
• If the light is to bright, dim down the product to an acceptable level.
• The power cable must be supplied by Glamox and only be replaced by a qualified electrical fitter, approved by Glamox.
• Any repairs of the arm must be performed by Glamox or Glamox approved personnel. The arm contains high tensions springs.
• Do not modify this equipment without authorization of the manufacturer, any changes without authorization will do that approval
does not apply.
• When abnormal use Glamox declines all responsibilities.
• This product complies to IEC/EN 60601-1-2, electromagnetic compatibility for medical devices. Electromagnetic or other interference
between this equipment and other devices should not occur. In the event of interference, please move the equipment’s apart from each
other, minimum 30 cm.
• This ME EQUIPMENT could cause risk of reciprocal interference during specific investigations or treatments.
• The product is not intended for use in areas where there is a risk of explosion.
• Users of this form of lighting should be aware that the manufacturer of the product can only accept liability for the lighting when
maintenance, repairs or changes are carried out by the manufacturer or by companies which the manufacturer has approved to carry
out such work, and when components that influence the safety or EMC of the lighting are replaced with original spare parts.
Disposal
Disposal the product at a special collection centre for recycling of electronic and waste.
Environmentally conditions
Transport and storage
Ambient temperature .................................................................... -20° C to 70° C
Moisture content ................................................................10 % to 92 % (keep dry)
Atmospheric pressure ............................................................ 500hPa til 1060hPa
Operate
Ambient temperature ....................................................................... 5° C to 40° C
Moisture content ................................................................................ 30 % to 75 %
Atmospheric pressure ..................................... 700hPa to 1060hPa, Max 3000m
6
Circus LED

7

Please refer to our websit
e
for information about
our 5-year warranty.
Please visit our web site for contact information
www.glamox.com
© Glamox February 2018 Item No 05-900-724-00 Doc. No: BRU303-0125 Rev 1
Manufactured by:
Glamox AS
Birger Hatlebakks veg 15
NO-6405 Molde, Norway
