LYINTL M-170E User manual

User Manual
Outdoor Network Horn Speaker
M-170E
Http://www.lyintl.com

About the User Manual
This User Manual is available and effective upon completion of development of the
outdoor network horn speaker. The User Manual includes product description, matters
needing attentions in use, instructions on system connection, instructions on use of
product and technical specifications of the terminal. Please read this User Manual
carefully before connection, installation and use and operate in accordance with
corresponding instructions in the Manual.
This symbol on the rear panel indicates matters needing attentions, please use or
operate the product in accordance with corresponding instructions.
Please keep this User Manual in good custody for future use.
PoE—V1.0
Facture 2020-7-27
Http://www.lyintl.com
M-170E

CONTENTS
Introduction......................................................................................................................................... 1
Product Overview.............................................................................................................................. 1
Product Features............................................................................................................................... 1
Product Information........................................................................................................................... 2
Side View...................................................................................................................................... 2
Front View.....................................................................................................................................2
Rear View......................................................................................................................................3
Mounting Bracket View............................................................................................................... 3
Connection and Installation..............................................................................................................4
Connection Diagram................................................................................................................... 4
Installation Instruction................................................................................................................. 4
System Connection Diagram........................................................................................................... 5
Connection Diagram......................................................................................................................... 6
Terminal Function Table....................................................................................................................6
Operating Instructions on Terminal Settings on the Host............................................................ 7
IP Address Settings..................................................................................................................... 7
Specifications..................................................................................................................................... 8
Packing List........................................................................................................................................ 8
Http://www.lyintl.com
M-170E

1
Introduction
Thank you for purchasing our products. All products have been rigorously tested before leaving the
factory, abide by the quality of commitment. This product is widely used in schools, gymnastics, square
venues, parks, parking lots, railway stations, airports, villas, shopping malls and other places, which is
the ideal choice for public address.
In order to facilitate your installation, commissioning and use of this product, please read the manual
carefully before installation
Product Overview
The product is a network active horn speaker supporting network broadcast intercom system. It cam
support the international standard SIP protocol and accept broadcasts and calls from LAN and WAN. It
can be quickly deployed to the place where you need with only one network cable, and is easy to install.
With wide sound diffusion angle, it can realize super reproduction of voice and music.
Product Features
10/100M self-adaptive, support DHCP/static IP, support LAN and WAN;
Support SIP2.0 (RFC3261) and related RFC;
Support narrowband encoding: G.711a/u; broadband encoding: G.722;
Supported audio format: MP3, WAV, FLAC, etc.;
Can play the background music, emergency paging and alarm signal from the host system;
Adopt high-quality ABS plastic, high dynamic range speaker unit, more clear and brighter sound;
Comply with IEC 268-5 Power Handling Capacity (PHC) standard; can work continuously for 100
hours at rated power; pass Simulated Acoustic Feedback Exposure (SAFE) test; can withstand
twice the rated power in a short time, ensuring the high reliability of the horn speaker under extreme
conditions, prolonging the service life, significantly reducing the chance of failure or performance
degradation;
Support PoE power supply;
Equipped with mounting brackets for easy installation;
All-weather design, applicable to indoors and outdoors in different occasions.
Http://www.lyintl.com
M-170E

2
Product Information
Side View

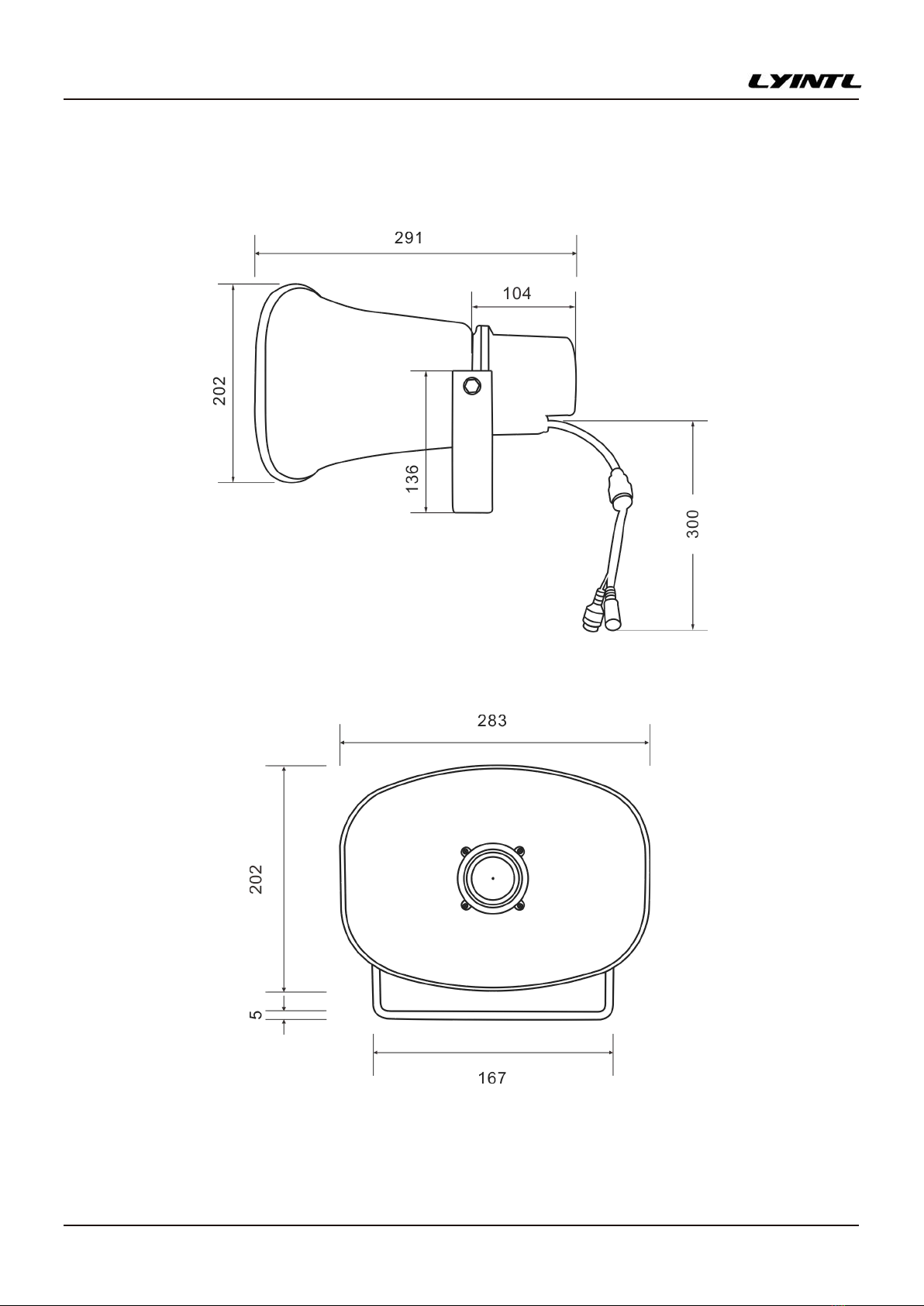

Unit: mm
Front View
Http://www.lyintl.com
M-170E

3
Rear View
Mounting Bracket View
Http://www.lyintl.com
M-170E

4
Connection and Installation
Connection Diagram
Installation Instruction
The bracket can be rotated at various angles. First tighten the nut to fix the bracket, and then secure the
screws into the mounting holes and fix them on the wall.
Http://www.lyintl.com
M-170E

5

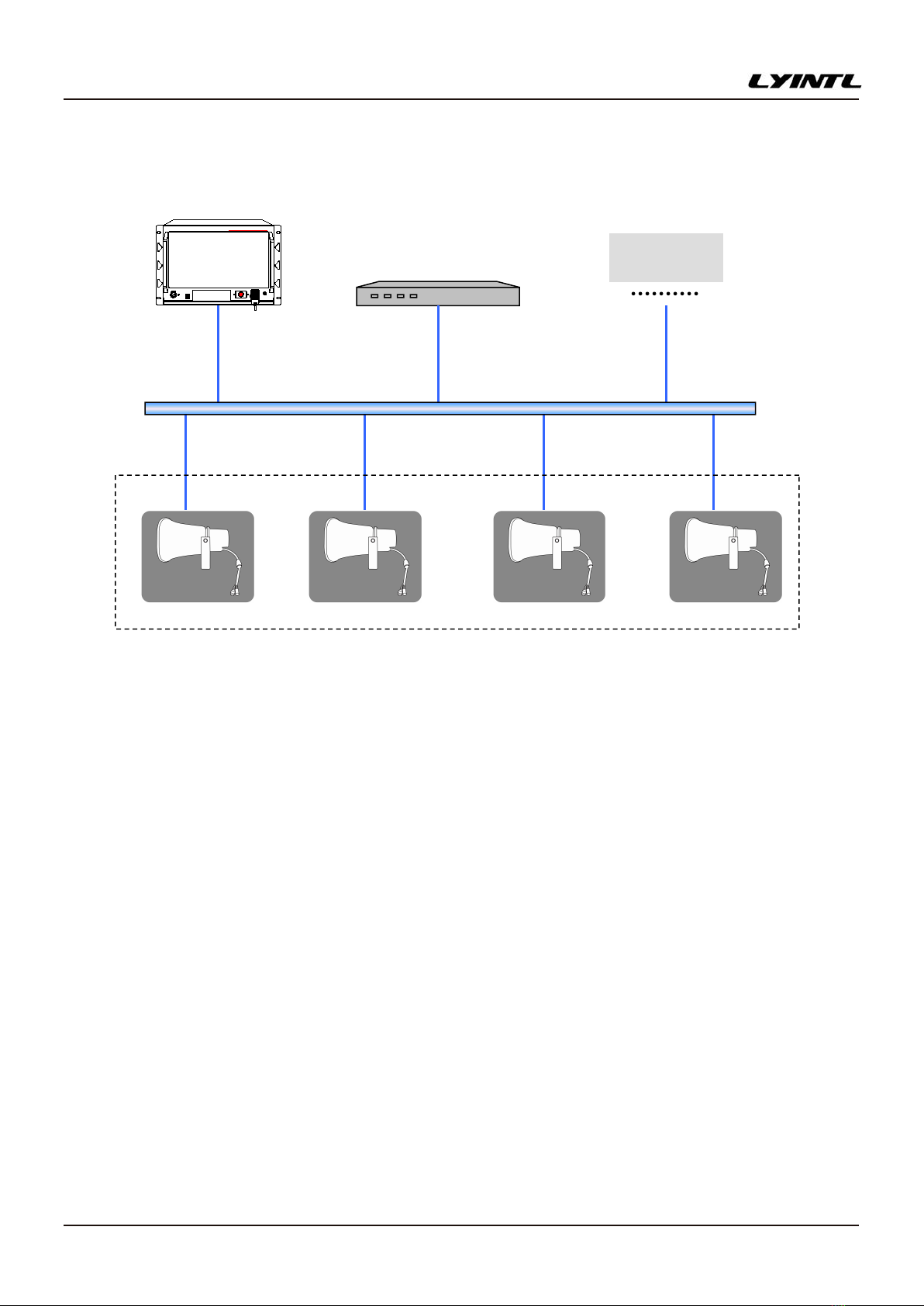

System Connection Diagram
Note:
①The diagram above only provides general instructions on application of the outdoor network horn
speaker. Please refer to the User Manual of the Network Control Host for connection of the whole
system.
②The diagram above is for reference only. Please refer to system connection diagram for detailed
information.
③The outdoor network horn speaker must be connected to the system via a network switch, on which
corresponding address must be configured to realize connection to the host.
Control host
POWER
OFF ON
USB
NETWORK PUBLIC ADDRESS CENTRE
EMC MIC
FULL ALARMING
COMPACT DISC DRIVER
Other networks or
devices
Other device
以 太 网
终端
Ethernet
Horn Speaker Horn Speaker Horn Speaker Horn Speaker
Http://www.lyintl.com
M-170E

6
Connection Diagram
To ensure the normal operation of the entire system, a router must be mounted in
the network where the device is connected.
Terminal Function Table
Item Function and Symbol Name
Network Port Network port input RJ45
Power Input DC24V + Positive
- Negative
POWER
OFF ON
USB
NETWORK PUBLIC ADDRESS CENTRE
EMC MIC
FULL ALARMING
COMPACT DISC DRIVER
Network PA System
Http://www.lyintl.com
M-170E

7
Operating Instructions on Terminal Settings on the Host
IP Address Settings
The speaker can be customized to modify network parameters. Please read this chapter carefully for
custom settings of network parameters:
Method 1:
1. Modify the IP address of the host/computer, requiring that the IP address of the host/computer
and the speaker must be on the same network segment. For example, when the IP address of
the speaker is 192.168.40.5, the IP address of the host/computer should be configured to
192.168.40.XX (Note: The IP conflict can be not present in IP settings);
2. Enter the IP address of the speaker on the IE browser for modification after connecting the
host/computer and the speaker (User name: admin, password: admin).
Method 2:
1．Access to the host software “Settings” -> “System maintenance” -> “Device maintenance”.
2．Find the IP address marked on the speaker label, select and click “Modify IP”.

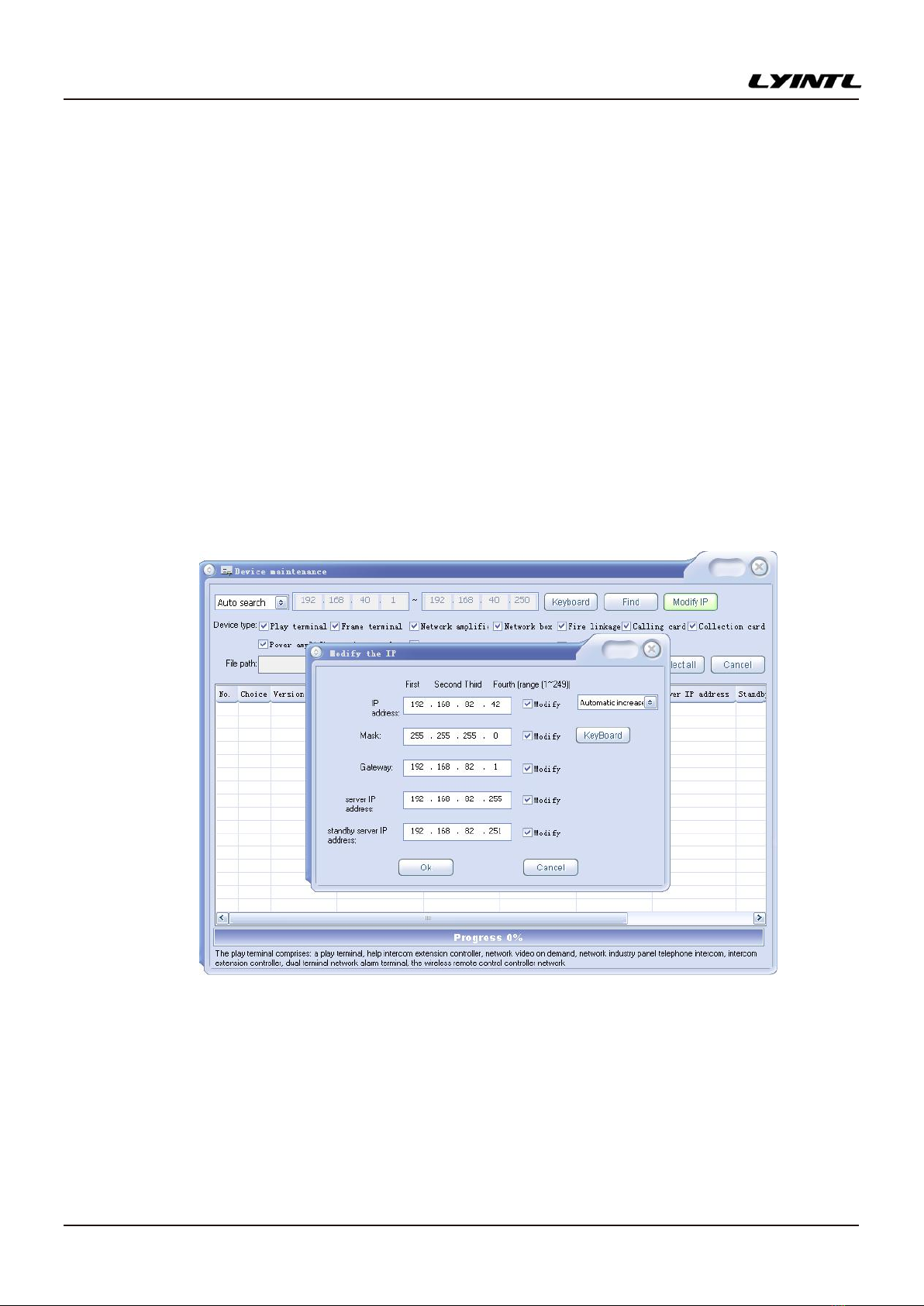

3．As shown below, modify the parameters and click OK to see “Success” on the interface.
Http://www.lyintl.com
M-170E

8
Specifications
Packing List
No. List Quantity
1 Network Horn Speaker 1
2 User Manual 1
3 Warranty Card 1
4 Certificate 1
Item Parameters
Amplifier
OUT
Rated Power (RMS) 15W 8Ω
SNR ≥70dB
Freq. Resp. 350Hz-10KHz
Speaker
Unit Driver 2.5"
Sensitivity 105dB±2dB
MAX. SPL. 117dB±2dB
Freq. Resp. 350Hz-10KHz
Distortion ≥1%
Power Voltage PoE+(IEEE 802.3at) / DC24V 2A (Standby)
Others
Network Interface RJ45（10/100M）
Supported Protocol
DHCP, TCP/IP, UDP, ICMP, IGMP (multicast),
802.1x, HTTP, HTTPS, FTP, DNS, DDNS,
RFC3261, RTP, RTSP, RTCP, UPnP.
Power Interface 24V/2A
Package Dimensions
(L×H×D) 630x510x335mm(4 pcs)
Machine Dimensions
(L×H×D) 285x205x291mm
Net Weight 1.9kg
Gross Weight 10.8kg(4 pcs)
Http://www.lyintl.com
M-170E

©丨The technical data will be subject to changes without notices.
Http://www.lyintl.com
