Lynx L124REFC User manual
MAKE THE MOST OF YOUR
CARE & USE/INSTALLATION
L124REFC
OUTDOOR REFRIGERATOR / FREEZER
2CARE AND USE/INSTALLATION
NOTE
!CAUTION
Warnings and safety instructions appearing in this guide
are not meant to cover all possible conditions and situa-
tions that may occur. Common sense, caution, and care
must be exercised when installing, maintaining, or operat-
ing this appliance.
Recognize Safety Symbols,
Words, and Labels.
CAUTION-Hazards or unsafe practices which could result
in personal injury or property / product damage.
NOTE-Important information to help assure a problem free
installation and operation.
CONTENTS
Safety information ...............................................................2
Unpacking your appliance ..................................................3
Warranty registration ......................................................3
Installing your appliance ......................................................4
Cabinet clearances .........................................................4
Leveling the appliance ....................................................4
Electrical connection ......................................................5
Installing the water supply ...................................................6
Optional ice-maker operation ..............................................7
Product dimensions ...........................................................8
Using your Electronic control ............................................10
6KHOYLQJFRQ¿JXUDWLRQV1
Shelf removal ...................................................................12
Care and cleaning .............................................................13
Long term storage/winterization ...................................13
Energy saving tips ............................................................16
Stainless steel maintenance .............................................17
Obtaining service .............................................................17
Troubleshooting.................................................................18
Troubleshooting ice-maker ..............................................19
!WARNING
WARNING - You can be killed or seriously injured if
you do not follow these instructions.
!WARNING
State of California Proposition 65 Warning:
This product contains one or more chemicals known
to the State of California to cause cancer.
!WARNING
State of California Proposition 65 Warning:
This product contains one or more chemicals known
to the State of California to cause birth defects or
other reproductive harm.
Death or serious injury could result if...
Important Safety Instructions
Contents
Warranty ...........................................................................20
3
CARE AND USE/INSTALLATION
NOTE
!CAUTION
!WARNING
EXCESSIVE WEIGHT HAZARD
Use two or more people to move product.
Failure to do so can result in personal injury.
Your appliance has been packed for shipment with all parts
that could be damaged by movement securely fastened.
Remove internal packing materials and any tape holding in-
ternal components in place. The owners manual is shipped
inside the product in a plastic bag along with the warranty
registration card, and other accessory items.
Important
Keep your carton and packaging until your appliance has
been thoroughly inspected and found to be in good condi-
tion. If there is damage, the packaging will be needed as
proof of damage in transit. Afterwards please dispose of all
items responsibly.
Note to Customer
This merchandise was carefully packed and thoroughly
inspected before leaving our plant. Responsibility for its
safe delivery was assumed by the retailer upon acceptance
of the shipment. Claims for loss or damage sustained in
transit must be made to the retailer.
DO NOT RETURN DAMAGED MERCHANDISE TO THE
MANUFACTURER - FILE THE CLAIM WITH THE
RETAILER.
If the appliance was shipped, handled, or stored in other
than an upright position for any period of time, allow the ap-
pliance to sit upright for a period of at least 24 hours before
plugging in. This will assure oil returns to the compressor.
Plugging the appliance in immediately may cause damage
to internal parts.
UNPACKING YOUR APPLIANCE
Figure 1
!WARNING
WARNING - Help Prevent Tragedies
Child entrapment and suffocation are not problems of
the past. Junked or abandoned refrigerators are still
dangerous - even if they sit out for "just a few hours".
If you are getting rid of your old refrigerator, please
follow the instructions below to help prevent acci-
dents.
Before you throw away your old refrigerator or
freezer:
• Take off the doors or remove the drawers.
• Leave the shelves in place so children may not
easily climb inside.
!WARNING
WARNING - Dispose of the plastic bags which can
be a suffocation hazard.
Warranty Registration
It is important you send in your warranty registration card
immediately after taking delivery of your appliance or you
can register online at:
www.lynxgrills.com/support/registration
The following information will be required when registering
your appliance.
Service/Model Number
Serial Number
Date of Purchase
Dealer’s name and address

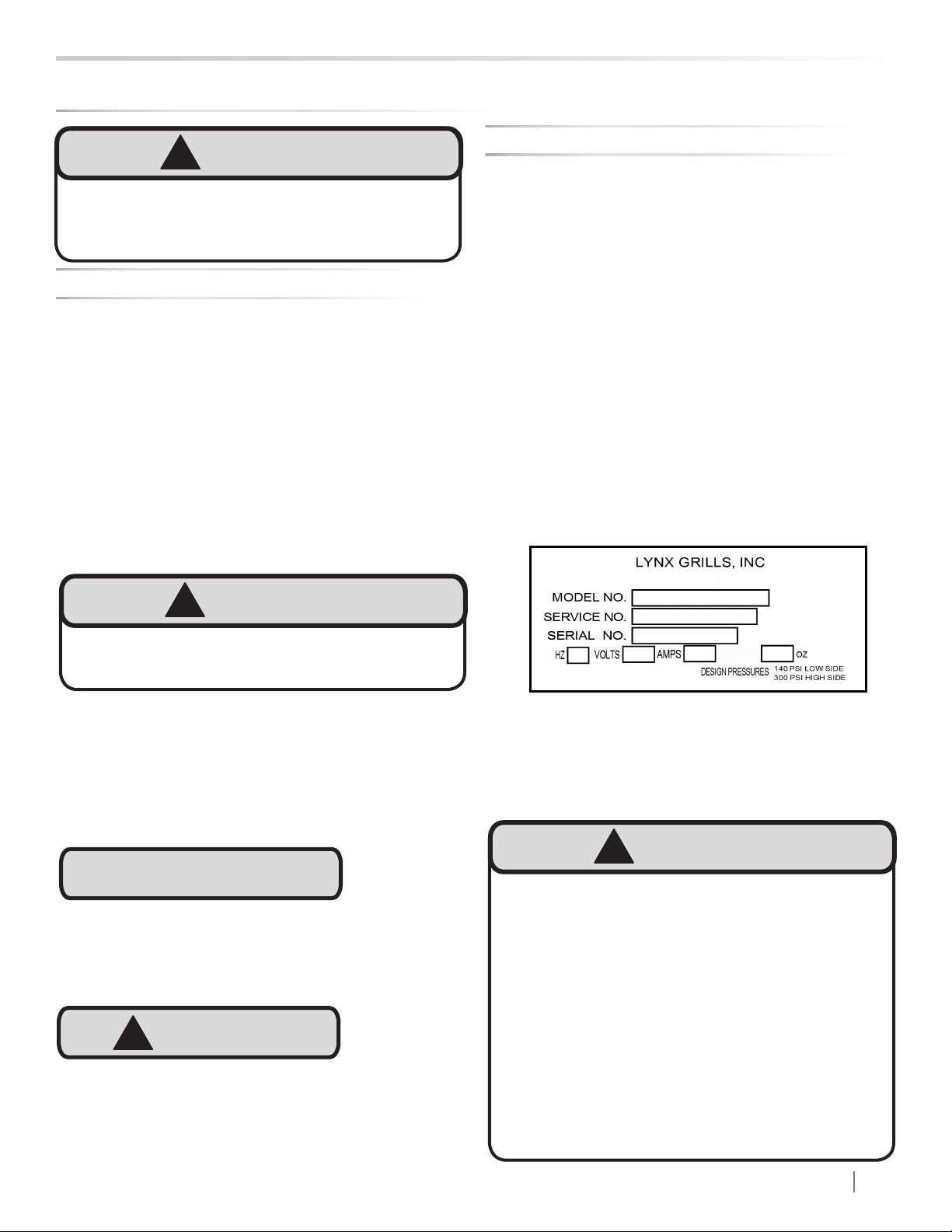

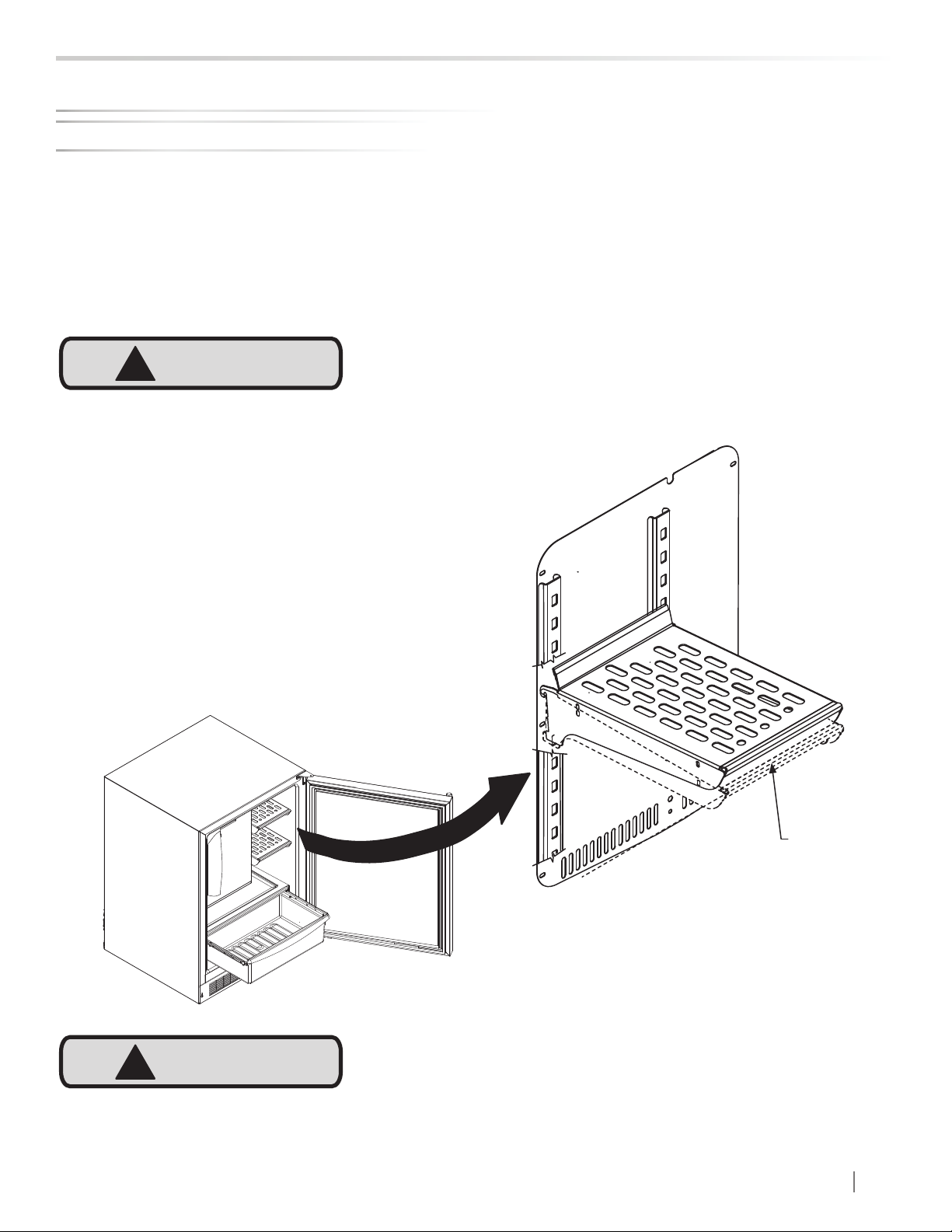

The service/model number and serial number can be found
on the serial plate which is located inside the cabinet on
the left side near the top. (See Figure 1).
Remove Interior Packaging
Greenwood, MS 38930
R600A
XXXXXXXXXXX
4CARE AND USE/INSTALLATION
!CAUTION
Do not obstruct the front grille. The openings within the
IURQWJULOOHDOORZDLUWRÀRZWKURXJKWKHFRQGHQVHUKHDWH[-
FKDQJHU5HVWULFWLRQVWRWKLVDLUÀRZZLOOUHVXOWLQLQFUHDVHG
energy usage and loss of cooling capacity. For this reason
it is important this area not be obstructed and the grille
openings kept clean. Lynx Grills does not recommend the
XVHRIDFXVWRPPDGHJULOOHDVDLUÀRZPD\EHUHVWULFWHG
(See Figure 2).
Rear
Leveling
Legs
Figure 2
Front Leveling
Legs
Front Grille,
keep this area
open.

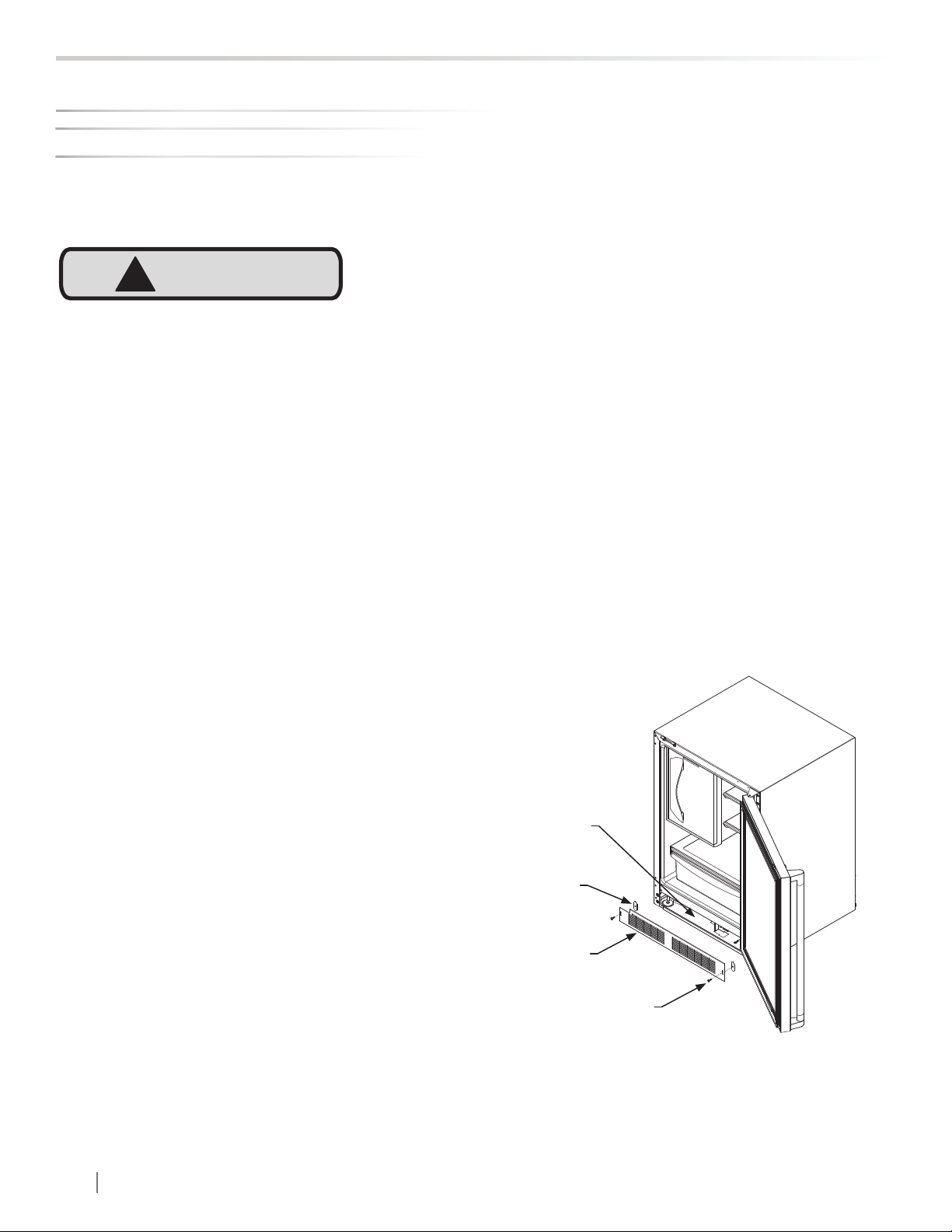

Adjustable legs at the front and rear corners of the appli-
DQFHVKRXOGEHVHWVRWKHXQLWLV¿UPO\SRVLWLRQHGRQWKH
ÀRRUDQGOHYHOIURPVLGHWRVLGHDQGIURQWWREDFN7KH
overall height of your appliance may be adjusted between
the minimum, 333»4" (85.7 cm), by turning the leveling leg in
(CW ඟ) and the maximum, 343»4" (88.3 cm) by turning the
leveling leg out (CCW ඞ.
To adjust the leveling legs, place the appliance on a solid
VXUIDFHDQGSURWHFWWKHÀRRUEHQHDWKWKHOHJVWRDYRLG
VFUDWFKLQJWKHÀRRU:LWKWKHDVVLVWDQFHRIDQRWKHUSHUVRQ
lean the appliance back to access the front leveling legs.
Raise or lower the legs to the required dimension by turning
the legs. Repeat this process for the rear by tilting the appli-
ance forward using caution. On a level surface check the
appliance for levelness and adjust accordingly.
The front grille screws may be loosened and the grille ad-
justed to the desired height. When adjustment is complete
tighten the two front grille screws. (See Figure 5).
INSTALLING YOUR APPLIANCE
Select Location
The proper location will ensure peak performance of your
appliance. We recommend a location where the unit will
be out of direct sunlight and away from heat sources. To
HQVXUH\RXUSURGXFWSHUIRUPVWRVSHFLILFDWLRQVWKHUHFRP-
mended installation location temperature range is from 55
to 1°F (13to °C).
Cabinet Clearance
Ventilation is required from the bottom front of the appli-
ance. Keep this area open and clear of any obstructions.
Adjacent cabinets and counter top can be installed around
the appliance as long as the front grille remains unobstruct-
ed.
Front Grille
Leveling Legs
5
CARE AND USE/INSTALLATION
NOTE
Figure 3
Figure 4
Do not remove
ground prong
Electrical Connection
INSTALLING YOUR APPLIANCE
Front grille
Front grille screw
Figure 5
Electrical Shock Hazard
• Do not use an extension cord with this appliance.
They can be hazardous and can degrade product
performance.
• This appliance should not, under any circumstanc-
es, be installed to an un-grounded electrical supply.
• Do not remove the grounding prong from the power
cord. (See Figure 3).
• Do not use an adapter. (See Figure 4 ).
• Do not splash or spray water from a hose on the
appliance. Doing so may cause an electrical shock,
which may result in severe injury or death.
!WARNING
A grounded 115 volt, 15 amp dedicated circuit is required.
This product is factory equipped with a power supply
cord that has a three-pronged, grounded plug. It must be
plugged into a mating grounding type receptacle in accor-
dance with the National Electrical Code and applicable lo-
cal codes and ordinances (see Figure 6). If the circuit does
not have a grounding type receptacle, it is the responsibility
and obligation of the customer to provide the proper power
supply. The third ground prong should not, under any cir-
cumstances, be cut or removed.
Figure 6
Ground Fault Circuit Interrupters (GFCI) are prone to nui-
sance tripping which will cause the appliance to shut down.
GFCI’s are generally not used on circuits with power equip-
ment that must run unattended for long periods of time, un-
less required to meet local building codes and ordinances.
6CARE AND USE/INSTALLATION
Figure 7a
•'RQRWXVHDQ\WKUHDGVHDOHUVRQWKHVHZDWHUOLQH¿W-
tings.
• Reverse osmosis, softened water, and de-ionized water
are not recommended as they will adversely affect the
quality of the ice.
Water
Supply
Line
service
loop
Figure 7
Back view of
ice machine
NOTE
NOTE
!CAUTION
Water line from water valve
to ice-maker
INSTALLING THE WATER SUPPLY
MODEL LM24RFEFC WITH OPTIONAL ICE-MAKER KIT
An optional ice-maker kit (part number S42418151) is avail-
able for model LN24REFC which includes all of the neces-
sary parts for installation. The kit can be obtained from Lynx
Grills customer service by calling (888)-289-5969.
Observe and follow all local building codes when installing
this appliance.
Use 1»4" copper tubing for your water supply which is avail-
able at any local hardware or plumbing supply store. Bend
the 1»4" copper tubing to suit your installation being sure not
to kink the tubing. Purchase enough copper tubing length
and coil it behind the unit to form a "service loop" which will
allow the appliance to be pulled out from the installation for
servicing or cleaning. Connect the copper tubing to the "top
side" of a cold water pipe to prevent the ice-maker from
plugging with sediment.
A shutoff valve is recommended on the water supply line to
ease servicing the appliance. NOTE: A SELF-PIERCING
TYPE VALVE IS NOT RECOMMENDED as they are prone
to clogging with sediment which will create pressure drop
reducing the water supply to the unit.
Connect the copper tubing water supply to the brass union
ZLWKWKHFRPSUHVVLRQQXW¿WWLQJSURYLGHG6HH)LJXUH
Water pressure must be at a minimum of 20 psi for proper
operation and a maximum of 120 psi.
Make certain all water connections are watertight after in-
stallation. Form the tubing so that it will not vibrate against
the cabinet body or kink when your appliance is set in posi-
tion.
Brass union for
1»4" copper tubing
Connect water
supply here
Water Supply
7
CARE AND USE/INSTALLATION
NOTE

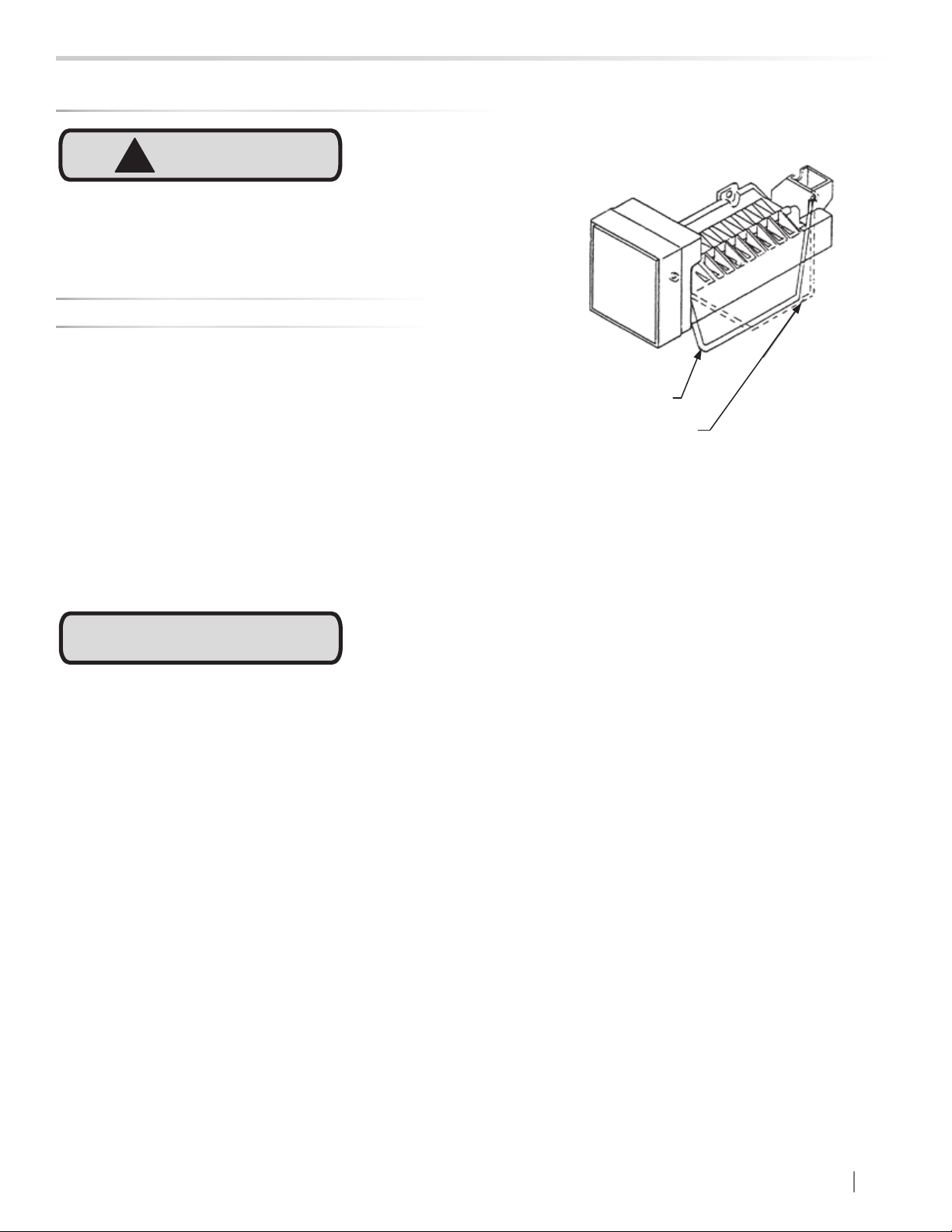

• The unit must be installed level for proper ice-maker
operation.
• The shutoff arm wire must be down in its lowest posi-
tion for the ice-maker to operate. (See Figure 8).
• When the freezer section and ice-maker unit has suf-
¿FLHQWO\FRROHGWKHLFHPDNHUZLOOKDUYHVWLFHFXEHV
automatically.
• When the ice bucket is full, the ice-maker will automati-
cally shut off.
• You may manually stop the ice-maker by raising the
shut off arm to the locking position at the up most posi-
tion. (See Figure 8).
Arm down, ice-maker
will operate
Arm up, stops operation
Figure 8
OPTIONAL ICE-MAKER OPERATION
!CAUTION
The water supply to the ice-maker must be turned on prior
to turning the ice-maker on. Failure to do so will cause
rapid dry cycling of the ice-maker mold heater resulting in
temperature control issues in the freezer compartment.
It is recommended the ice-maker is shut off when remov-
ing the bucket, or ice may be dispensed onto the freezer
FRPSDUWPHQWÀRRU
If the ice is not used regularly, it will clump together with
time. For best ice results, discard ice in the bin as required
and allow the ice-maker to make a new fresh batch of ice.
Shut-off the ice-maker by raising the shut-off arm before
removing the bucket.
Ice-maker operation
8CARE AND USE/INSTALLATION
MODEL
ROUGH-IN OPENING DIMENSIONS CABINET DIMENSIONS
"A" "B" "C" "D" "E" "F" "G" "H" "J"
L124REFC 24"
(61 cm)
**34" to 35"
(86.4 to 88.9 cm) *237»8"
(60.7 cm)
333»4" to 343»4"
(85.7 to 88.3 cm)
2323»32"
(60.2 cm)
263»4"
(67.9 cm)
4613»32"
(117.9 cm)
263»4"
(67.9 cm)
"A"
"B"
"C"
"D"
"E" Figure 9
Figure 9a
PRODUCT DIMENSIONS
Figure 10
If necessary to gain clearance inside the rough-in
opening a hole can be cut through the adjacent cabi-
net and the power cord routed through this hole to a
power outlet. Another way to increase the available
opening depth is to recess the power outlet into the
rear wall to gain the thickness of the power cord plug.
Not all recessed outlet boxes will work for this applica-
tion as they are too narrow, but a recessed outlet box
equivalent to Arlington #DVFR1W is recommended for
this application, (see Figure 10).
9
CARE AND USE/INSTALLATION
MODEL
PRODUCT DATA
ELECTRICAL
REQUIREMENTS #
PRODUCT
WEIGHT
L124REFC 115V/60Hz/15A 140 lbs
(63.6 kg)
"F"
"D"
"E"
"H"
"J"
"G"
5»8"
(1.6 cm)
Figure 11
211»2"
(54.6cm)
PRODUCT DIMENSIONS
* Depth dimension of rough-in opening may vary depending
on each individual installation. To recess entire door "F" di-
mension plus 1" (2.5 cm) for thickness of power cord plug.
** Minimum rough-in opening required is to be larger than
the adjusted height of the cabinet.
# A grounded 15 amp dedicated circuit is required. Follow
all local building codes when installing electrical and appli-
ance.
Control Function Guide
Function Command Notes
ON/OFF Press and hold for 5 seconds. Unit will immediately turn ON or OFF.
Adjust Temperature Press or and release.
When the display is ashing, press or to adjust the set
point temperature. Note: temperature displayed is the actual
temperature inside unit.
Toggle Between oF / oC Hold and for 5 seconds. The display will change units.
Leave Interior Light On Press and release to leave interior light on for
12 hours; press again to deactivate.
After 12 hours, factory default is restored; light will turn on when
door is open.
Enable Sabbath Mode Press and hold for 5 seconds and release.
The oF / oC symbol will ash briey after 5 seconds. Interior
light and display will go dark and remain so until user resets
mode - unit continues to operate.
Disable Sabbath Mode Press and release. Display and interior light return to normal operation.
Temperature displayed reects actual temperature inside unit. If the
temperature displayed is dierent than selected, the unit is progressing
towards the selected temperature. Time to reach set point varies based
upon ambient temperature, temperature of product loaded, door
openings, etc. Lynx Grills recommends allowing the unit to reach set
points before loading.
NOTE
Figure 12
Electronic control
Door Alert Notication
When the door is left open for more than 5 minutes:
• will appear in display
• Close door to reset
10 CAREANDUSE/INSTALLATION
USING YOUR ELECTRONIC CONTROL
High/Low Temp. Notifications
When the compartment temperature exceeds the control setting
for an extended amount of time:
•“HH” will appear in display (High Temp)
•“LL” will appear in display (Low Temp)
Contact service dept. for further instructions.
11CARE AND USE/INSTALLATION

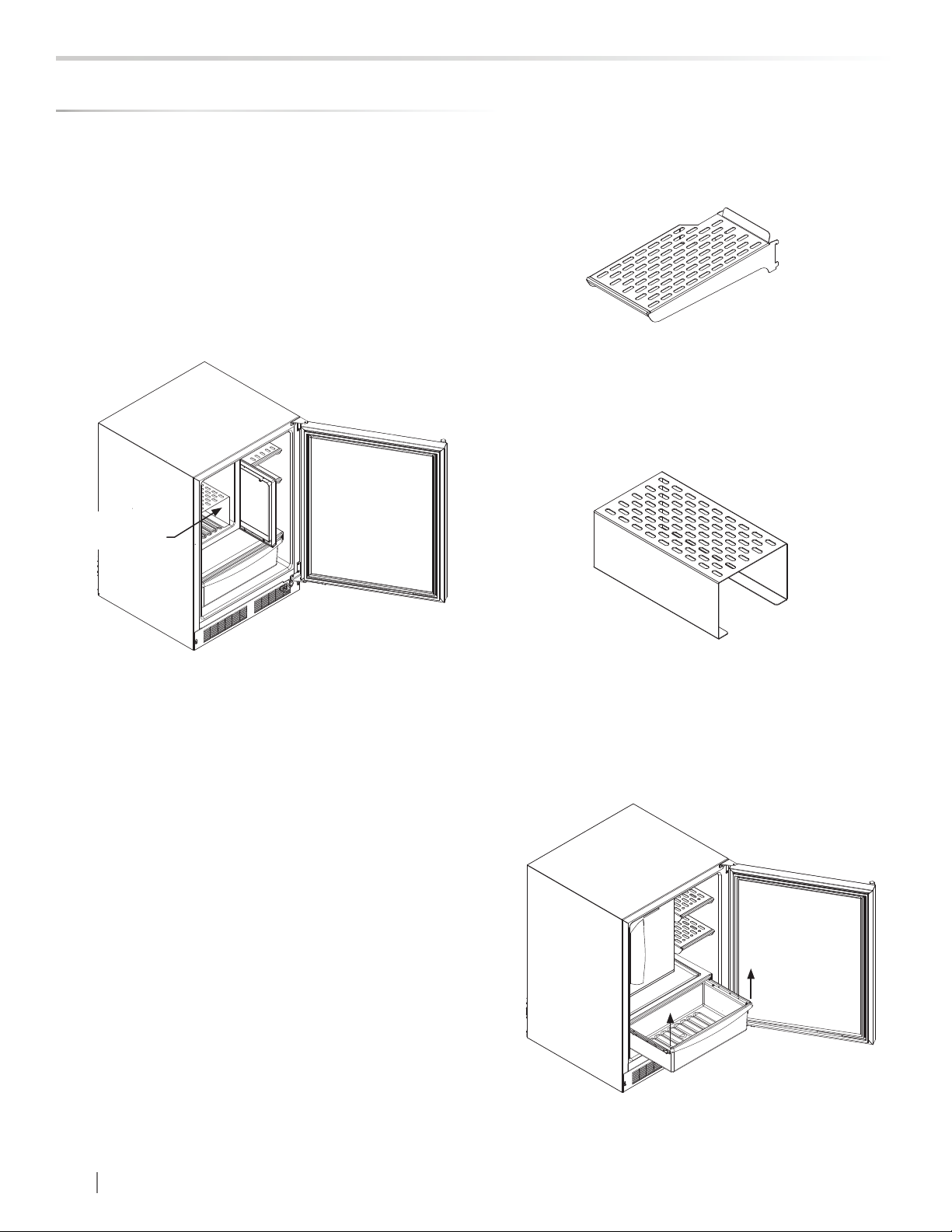

SHELVING CONFIGURATIONS
Refrigerator / Freezer
24" (61 cm) wide see Figure 13:
Refrigerator:
(2) Half width cantilever adjustable shelf.
see Figure 14
)XOOZLGWK¿[HGSRVLWLRQJODVVVKHOI
(1) Roller glide clear crisper drawer
Freezer:
(1) Fixed position metal shelf, see Figure 15.
Figure 13
To remove the crisper :
Pull out until it stops. Lift up on the front of the pan, and
remove it from the frame.
Figure 14
Freezer
compartment
Figure 15
Freezer shelf
Figure 16
12
CARE AND USE/INSTALLATION
SHELF REMOVAL
Remove stored product from the shelf. Do not try to remove
a loaded shelf from the appliance. Grasp the shelf front with
both hands, rotate the front upward and lift out. (See Figure
17a). To install a shelf insert the shelf in the appliance and
insert the top hooks into the shelf support slots and drop
the shelf down so the hooks drop over the bottom of the
slots.
Make sure your cantilever shelf is secure on the shelf sup-
ports by pressing down on the shelf before loading.
!CAUTION
!CAUTION
Never try to move a loaded shelf, remove everything from
the shelf before moving. Use both hands when moving the
shelf.
Grasp the shelf
by the front with both
hands and rotate the
front of the shelf up,
then lift the shelf up
and remove the shelf
from the shelf ladders.
Figure 17
Figure 17a
To Add or Remove a Shelf
13CARE AND USE/INSTALLATION
!CAUTION
CARE AND CLEANING
%HVXUHWKDWQRWKLQJREVWUXFWVWKHUHTXLUHGDLUÀRZRSHQ-
ings in front of the cabinet. At least once or twice a year,
brush or vacuum lint and dirt from the front grille area (see
page 4).
SHOCK HAZARD: Disconnect electrical power from the
appliance before cleaning with soap and water.
The painted cabinet can be washed with either a mild soap
and water and thoroughly rinsed with clear water. NEVER
use abrasive scouring cleaners.
Wash interior compartment with mild soap and water. Do
NOT use an abrasive cleaner, solvent, polish cleaner or
undiluted detergent.
1. Avoid leaning on the door, you may bend the door
hinges or tip the appliance.
2. Exercise caution when sweeping, vacuuming or mop-
ping near the front of the appliance. Damage to the
grille can occur.
3. Periodically clean the interior of the appliance as
needed.
4. Periodically check and/or clean the front grille as
needed.
If a power failure occurs, try to correct it as soon as pos-
sible. Minimize the number of door openings while the
power is off so as not to adversely affect the appliance's
temperature.
All models use LED lamps to illuminate the interior of the
appliance. This component is very reliable, but should one
IDLOFRQWDFWDTXDOL¿HGVHUYLFHWHFKQLFLDQIRUUHSODFHPHQW
of the LED.
1. Time to Winterize, when the daily low ambient tempera-
ture is at or below 38°F (3.3°C).
!CAUTION
Operation of the unit at ambient temperatures below the
recommended Winterization temperature will void your war-
ranty.
2. Turn unit off, (see page 10)
3. Remove all contents.
4. If necessary, move the unit so you can gain access to
the rear of the product.
5. Unplug the unit from the power outlet.
6. It is also recommended that the power to the outlet be
turned-off if the circuit is not required for other items
during the Winter season.
7. When cleaning unit pay particular attention to any
cracks and crevices that may have accumulated dirt
and debris.
8. Remove the front toe-grille, (see Figure 18), and use a
brush and vacuum to clean dirt and debris from be-
neath the unit.
9. Thoroughly clean the toe-grille and re-install on the
unit. (See Figure 18).
10. Remove the rear access cover, (see Figure 19), and
use a brush and vacuum to clean dirt and debris from
the machine compartment.
11. Thoroughly clean the rear access cover and re-install
on the unit.
12. Wipe down all interior surfaces with anti-bacterial
cleaner to be followed with clean rinse water to remove
any residual chemicals which could cause staining. Do
not use any abrasive cleaners or scouring pads.
13. Leave the door open and allow to completely dry out
before closing the door.
14.
15.
Thoroughly clean the door gasket with anti-bacterial
cleaner to be followed with clean rinse water to remove
any residual chemicals.
Thoroughly clean the exterior with a cleaner approved
for stainless steel. Do not use any abrasive cleaners or
scouring pads. See "Stainless Steel Maintenance" on
page 17.
16. Any mounting hardware / fasteners that are showing
signs of corrosion should be replaced.
• If the plastic defrost drain pan located under the
compressor contains water, use a sponge to
remove as much water as possible.
Front Grille
Cabinet
Interior
Care of Appliance
In the Event of a Power Failure
Light Assembly Replacement
Long Term Storage/Winterization
(LN24REFC refrigerator freezer):
14
CARE AND USE/INSTALLATION
CARE AND CLEANING
1. If stored outside, it is recommended that the unit again
be thoroughly inspected per the storage instructions
above to address any dirt or debris from the weather
and/or animals/insects.
2. Connect the unit to electrical power.
3. 7XUQXQLWRQDQGFRQ¿UP\RXUGHVLUHGFRQWUROVHWWLQJV
4. Allow 24-hrs for the unit to stabilize before loading
contents.
Figure 18
Grille
Spacer
Clean out
behind
grille
Figure 19
Soak up
water from
plastic drain
pan if
necessary
Clean out
debris
Remove screws
around perimeter
of access cover.
17. Once the exterior has been thoroughly cleaned, you
may want to apply a coating of car wax to help protect
against spotting from moisture, dirt, and debris that
may accumulate on the surfaces during the Winteriza-
tion period.
18. Do not place a cover on the unit, as this can trap con-
densation.
After completion of the above, you may choose to store the
unit indoors, although this is not required.
Remove screw from
each end of grille
Access cover
Start-Up After Long-Term Storage
15CARE AND USE/INSTALLATION
!CAUTION
Operation of the unit at ambient temperatures below the
recommended Winterization temperature will void your war-
ranty.
2. Raise the bail arm of the ice maker ( see Figure 8 on
page 7) to stop ice production.
3. Turn the water supply to the unit off.
4. If necessary, move the unit so you can gain access to
the rear of the product.
5. 'LVFRQQHFWWKHZDWHUVXSSO\OLQHIURPWKHZDWHU¿OO
valve located on the back of the unit, (see page 6).
6. Be sure the exterior water supply line is drained or
blown out to prevent freezing and cracking of the sup-
ply line.
7. We recommend a cap be placed on the water supply
line to prevent dirt and insects from plugging the line.
8. Empty the ice bucket and replace the ice bucket in unit.
9. Lower the ice maker bail arm to allow the unit to oper-
ate until ice is dispensed from ice maker to empty the
ice maker mold.
10. Raise the bail arm and remove the ice bucket and
clean thoroughly with warm water and dish soap.
11. Turn unit off to defrost ice storage compartment, see
page 10).
12. Unplug the unit from the power outlet.
13. It is also recommended that the power to the outlet is
turned-off if the circuit is not required for other items
during the winter season.
14. When cleaning the unit pay particular attention to any
cracks and crevices that may have accumulated dirt
and debris.
15. Remove the front toe-grille, (see Figure 20), and use a
brush and vacuum to clean dirt and debris from be-
neath the unit.
16. Thoroughly clean the toe-grille and re-install on the
unit. (See Figure 20).
17. Remove the solenoid cover and 3 screws. (see Figure
21). Remove the rear access cover, (see Figure 21),
and use a brush and vacuum to clean dirt and debris
from the machine compartment.
18. Disconnect the plastic water line from the bottom of the
solenoid valve (see Figure 21a) and drain. Reconnect
the water line.
1. Time to Winterize, when the daily low ambient tempera-
ture is at or below 38°F (3.3°C).
Figure 20
Grille
Spacer
Clean out
behind
grille
Remove screw from
each end of grille
19. Thoroughly clean the rear access cover and re-install
on the unit.
20. Wipe down all interior surfaces with anti-bacterial
cleaner to be followed with clean rinse water to remove
any residual chemicals which could cause staining. Do
not use any abrasive cleaners or scouring pads.
21. Leave the door open and allow to completely dry out
before closing the door.
22. Thoroughly clean the door gasket with anti-bacterial
cleaner to be followed with clean rinse water to remove
any residual chemicals.
23. Thoroughly clean the exterior with a cleaner approved
for stainless steel. Do not use any abrasive cleaners or
scouring pads. See "Stainless Steel Maintenance" on
page 20.
24. Any mounting hardware / fasteners that are showing
signs of corrosion should be replaced.
25. Once the exterior has been thoroughly cleaned, you
may want to apply a coating of car wax to help protect
against spotting from moisture, dirt, and debris that
may accumulate on the surfaces during the Winteriza-
tion period.
• If the plastic defrost drain pan located under the
compressor contains water, use a sponge to
remove as much water as possible.
CARE AND CLEANING
Long Term Storage/Winterization
(LN24REFC, with optional ice maker):
16
CARE AND USE/INSTALLATION
!CAUTION
The water supply to the ice-maker must be turned on prior
to turning the ice-maker on. Failure to do so will cause
rapid dry cycling of the ice-maker mold heater resulting in
temperature control issues in the freezer compartment.
CARE AND CLEANING AND ENERGY SAVING TIPS
Figure 21 Clean out
debris
Remove screws
around perimeter
of access cover.
Soak up
water from
plastic drain
pan if
necessary
Access cover
Solenoid
cover and
3 screws
To disconnect the water outlet line: Push up on the white
collar and pull the plastic water line from the bottom of the
water valve.
To reconnect the water outlet line: Simply insert the plas-
tic tubing into the white collar and push until it stops (about
1»2", 12 mm, of water line will enter the valve).
White
collar
Plastic outlet
water line
Figure 21a
1. If stored outside, it is recommended that the unit again
be thoroughly inspected per the storage instructions
above to address any dirt or debris from the weather
and/or animals/insects.
2. Connect the unit to electrical power and the water sup-
ply.
3. 7XUQXQLWRQDQGFRQ¿UP\RXUGHVLUHGFRQWUROVHWWLQJV
4. Allow 24-hrs for the unit to stabilize before loading
contents.
The following suggestions will minimize the
cost of operating your refrigeration appliance.
1. Do not install your appliance next to a hot appliance
(cooker, dishwasher, etc.), heating air duct, or other
heat sources.
2. Install product out of direct sunlight.
3. Ensure the front grille vents at front of appliance be-
neath door are not obstructed and kept clean to allow
ventilation for the refrigeration system to expel heat.
4. Plug your appliance into a dedicated power circuit. (Not
shared with other appliances).
5. When initially loading your new product, or whenever
large quantities of warm contents are placed within
refrigerated storage compartment, minimize door
openings for the next 12 hours to allow contents to pull
down to compartment set temperature.
6. Maintaining a relatively full storage compartment will
require less appliance run time than an empty compart-
ment.
7. Ensure door closing is not obstructed by contents
stored in your appliance.
8. Allow hot items to reach room temperature before plac-
ing in product.
9. Minimize door openings and duration of door openings.
10. Use the warmest temperature control set temperature
that meets your personal preference and provides the
proper storage for your stored contents.
11. When on vacation or away from home for extended pe-
riods, set the appliance to warmest acceptable tem-
perature for the stored contents.
12. Set the control to the “off” position if cleaning the
appliance requires the door to be open for an extended
period of time.
Energy saving tips
Start-Up After Long-Term Storage
17 CARE AND USE/INSTALLATION
Background
Care & Cleaning
If Service is Required
Choosing a Cleaning Product
STAINLESS STEEL MAINTENANCE
OBTAINING SERVICE
Stainless steel does not stain, corrode, or rust as easily as
ordinary steel, but it is not stain or corrosion proof. Stain-
less steels can discolor or corrode if not maintained prop-
erly.
Stainless steels differ from ordinary carbon steels by the
amount of chromium present. It is this chromium that
SURYLGHVDQLQYLVLEOHSURWHFWLYH¿OPRQWKHVXUIDFHFDOOHG
FKURPHR[LGH7KLVSURWHFWLYHFKURPHR[LGH¿OPRQWKH
surface can be damaged or contaminated, which may
result in discoloration, staining, or corrosion of the base
metal.
Routine cleaning of the stainless steel surfaces will serve to
greatly extend the life of your product by removing contami-
nants. This is especially important in coastal areas which
can expose the stainless to severe contaminants such as
halide salts, (sodium chloride).
It is strongly recommended to periodically inspect and thor-
oughly clean crevices, weld points, under gaskets, rivets,
bolt heads, and any locations where small amounts of liquid
could collect, become stagnant, and concentrate contami-
nates. Additionally, any mounting hardware that is showing
signs of corrosion should be replaced.
Frequency of cleaning will depend upon the installation
location, environmental, and usage conditions.
The choice of a proper cleaning product is ultimately that
of the consumer, and there are many products from which
to choose. Depending upon the type of cleaning and the
degree of contamination, some products are better than
others.
7\SLFDOO\WKHPRVWHIIHFWLYHDQGHI¿FLHQWPHDQVIRUURXWLQH
cleaning of most stainless steel products is to give the sur-
faces a brisk rubbing with a soft cloth soaked in warm water
and a gentle detergent, or mild mixture of ammonia. Rub-
bing should, to the extent possible, follow the polish lines of
the steel, and always insure thorough rinsing after cleaning.
Although some products are called "stainless steel clean-
ers," some may contain abrasives which could scratch the
VXUIDFHFRPSURPLVLQJWKHSURWHFWLYHFKURPHR[LGH¿OP
and some many contain chlorine bleach which will dull,
tarnish or discolor the surface if not completely removed.
After the stainless surfaces have been thoroughly cleaned,
a good quality car wax may be applied to help maintain the
¿QLVK
Stainless steel products should never be installed, or stored
in close proximity to chlorine chemicals.
Whichever cleaning product you chose, it should be used
in strict accordance with the instructions of the cleaner
manufacturer.
NOTE
•,IWKHSURGXFWLVZLWKLQWKH¿UVW\HDUZDUUDQW\SHULRG
please contact your dealer or call Lynx Grills Customer
Service at 888.289.5969 for directions on how to obtain
warranty coverage in your area.
•,IWKHSURGXFWLVRXWVLGHWKH¿UVW\HDUZDUUDQW\SHULRG
Lynx Grills Customer Service can provide recommen-
dations of service centers in your area.
• In all correspondence regarding service, be sure to give
the service/model number, serial number, and proof of
purchase.
• Try to have information or description of nature of the
problem, how long the appliance has been running, the
room temperature, and any additional information that
may be helpful in quickly solving the problem.
• Table "A" is provided for recording pertinent information
regarding your product for future reference.
For Your Records
Date of Purchase
Dealer’s name
Dealer’s Address
Dealer’s City
Dealer’s State
Dealer’s Zip Code
Appliance Serial Number
Appliance Service/Model Number
Date Warranty Card Sent (Must be
within 10 days of purchase).
Table A
18
CARE AND USE/INSTALLATION
In the unlikely event you lose cooling in your unit, do not
unplug the product from the electric supply, but do call
DTXDOL¿HGVHUYLFHWHFKQLFLDQLPPHGLDWHO\,WLVSRVVLEOH
that the loss of cooling capacity is a result of excessive
frost build-up on the evaporator cooling coil. In this case,
removing power to the unit will result in the melting of this
excessive quantity of ice, which could generate melt water
that exceeds the capacity of the defrost drain system and
could result in water damage to your home. The end-user
will be ultimately responsible for any water damage caused
by prematurely turning the unit off without appropriately
managing the excess water run-off.
• Never attempt to repair or perform maintenance on
the appliance until the main electrical power has been
disconnected. Turning the appliance control "OFF"
does not remove electrical power from the unit's wiring.
• Replace all parts and panels before operating.
!WARNING
Electrocution Hazard
TROUBLESHOOTING
Before You Call for Service
If the appliance appears to be malfunctioning, read through
WKLVPDQXDO¿UVW,IWKHSUREOHPSHUVLVWVFKHFNWKHWURXEOH-
shooting guide below. Locate the problem in the guide and
refer to the cause and its remedy before calling for service.
The problem may be something very simple that can be
solved without a service call. However, it may be required
WRFRQWDFW\RXUGHDOHURUDTXDOL¿HGVHUYLFHWHFKQLFLDQ
Problem Possible Cause Remedy
Appliance not cold enough
(See “Adjusting the temperature" on page 10
• Control set too warm
• Content temperature not stabilized.
• Excessive usage or prolonged door open-
ings.
•$LUÀRZWRIURQWJULOOHEORFNHG
• Door gasket not sealing properly.
• Adjust temperature colder. Allow 24 hours
for temperature to stabilize.
• Allow temperature to stabilize for at least
24 hours.
•$LUÀRZPXVWQRWEHREVWUXFWHGWRIURQW
grille. See “clearances” on page 4.
• Replace door gasket.
Appliance too cold
(See “Adjusting the Temperature” on page 10
• Control set too cold
• Door gasket not sealing properly.
• Adjust temperature warmer. Allow 24 hours
for temperature to stabilize.
• Replace door gasket.
No interior light. • Failed LED light assembly or light switch. • &RQWDFWDTXDOL¿HGVHUYLFHWHFKQLFLDQ
Light will not go out when door is closed • Door not activating light switch.
• Failed light switch
• Appliance not level, level appliance, (See
page 4, “leveling legs”)
•&RQWDFWDTXDOL¿HGVHUYLFHWHFKQLFLDQ
Noise or Vibration • Appliance not level
• Fan hitting tube obstruction.
• Level appliance, see “Leveling Legs” on
page 4.
•&RQWDFWDTXDOL¿HGVHUYLFHWHFKQLFLDQ
Appliance will not run. • Appliance turned off
• Power cord not plugged in.
• No power at outlet.
• Turn appliance on. See “Starting your ap-
pliance” on page 10.
• Plug in power cord.
• Check house circuit.
!CAUTION
NOTE
Your product has an automatic defrost feature that utilizes
an electric heater element. Periodically during defrost you
may observe the following:
• Water dripping and running sounds as a result of the
frost melt.
• Sizzling and popping sounds from water dripping on
the heater element.
• A faint reddish glow in the freezer compartment from
the electric heater element.
These are all “normal” operating characteristics related to
refrigeration product incorporating automatic defrost. They
do not represent any product fault or safety issue.
19 CARE AND USE/INSTALLATION
Problem Possible Cause Remedy
Unit operates but produces little or no
ice.
• The unit has just been started and
it has been less than 24 hours.
• Water supply is not turned on.
• Inadequate water pressure to unit.
• The ice-maker shut off arm is in
the uppermost / off position.
• Freezer section has not reached
temperature.
• Thermostat control set too warm.
•&RQGHQVHUIDQDLUÀRZLVUHVWULFW-
ed.
• Room and/or water temperature is
too warm.
• The water pressure is to low.
• Typical ice production is 6 to 7
pounds per day. Allow for the
freezer section to reach tempera-
ture and the ice-maker to cycle
and accumulate ice.
• Turn on water supply to the unit.
• Water pressure to the unit must be
at a minimum of 20 psi.
• When the ice-maker shut off arm
is in the uppermost position, the
ice-maker is off. Flip the shut off
arm down to turn on the ice maker.
• Allow the freezer section to reach
temperature.
• Turn the temperature control to a
higher number to allow the unit to
run colder. Allow 24 hours be-
fore readjusting the temperature
control.
• Make certain the grille in front of
the unit is free and open for air cir-
culation. Clean grille as required.
• Move the unit to an area where
ambient temperature is below
115°F. The unit should not be
placed next to a heat source such
as an oven. Check for cold water
connection.
• The water supply line is kinked.
• Sediment build-up in supply line.
Small ice cubes • Water input may require adjust-
ment.
• Due to differing water pressures,
the ice-maker water input may
require adjustment. Contact a
TXDOL¿HGVHUYLFHWHFKQLFLDQ
Ice cubes are sticking together. • Ice consumption is low.
• Hollow ice cubes with liquid cen-
ters that break when dispensed
into the bucket.
• Ice will stick together if stored for
long periods of time.
• Ice-maker malfunction, call for
service.
TROUBLESHOOTING OPTIONAL ICE-MAKER
HOUSEHOLD PRODUCT WARRANTY
UNDERCOUNTER REFRIGERATOR / BEVERAGE CENTER WARRANTY
ONE YEAR FULL WARRANTY
Undercounter refrigerators / Beverage Centers and all of their component parts, except as detailed below*†, are warranted to be free from defective materials or
workmanship in normal residential use for a period of one (1) year from the date of original retail purchase. Lynx, warrantor, agrees to repair or replace, at its
option, any part which fails or is found to be defective during the warranty period.
*FULL NINETY (90) DAY COSMETIC WARRANTY: Product is warranted to be free from cosmetic defects in materials or workmanship (such as scratches on
stainless steel, paint/porcelain blemishes, etc.) for a period of ninety (90) days from the date of original retail purchase or closing date for new
construction, whichever period is longer. Any defects must be reported to the selling dealer within ninety (90) days from date of original retail purchase.
Lynx uses high quality processes and materials available to produce all color finishes. However, slight color variation may be noticed because of the
inherent differences in painted parts and porcelain parts as well as differences in kitchen lighting, product locations, and other factors. Therefore, this
warranty does not apply to color variation attributable to such factors.
†FULL NINETY (90) DAY WARRANTY IN “RESIDENTIAL PLUS” APPLICATIONS: Lynx products are designed and certified for residential use only. They are
not intended for use in commercial applications. Lynx products should only be used in accordance to national and local codes. Lynx is not responsible
for property damage or injury resulting from use in a commercial application. To support the manufacturing quality of its appliance’s Lynx will provide a
full 90 day warranty for products used in “Residential Plus “applications. This “Residential Plus” warranty applies to applications where use of the product
extends beyond residential use but is in compliance with national and local code. In some jurisdictions these applications are zoned as residential.
Examples of, but not limited to, such applications covered by this warranty are bed and breakfasts, fire stations, private clubs, churches, condominium/
apartment common areas etc. Under this "Residential Plus" warranty, the product, its components and accessories are warranted to be free from
defective material or workmanship for a period of ninety (90) days from the date of original retail purchase. Lynx warranter agrees to repair or replace, at
its option, any part which fails or is found to be defective during the warranty period. This warranty covers parts and labor. This warranty excludes use of
the product in all commercial locations such as restaurants, food service locations and institutional food service locations.
FIVE YEAR LIMITED WARRANTY ON SEALED REFRIGERATION PARTS AS LISTED
Any sealed refrigeration system component, aslisted below,which fails due to defective materials or workmanship in normal household use during the second
through the fifth year from the date oforiginal retail purchase will be repaired or replaced, free of charge for the part itself, with the owner paying all other costs,
including labor.
Sealed Refrigeration System Components: Compressor, Evaporator, Condenser, Connecting Tubing, Dryer/Strainer
WARRANTY TERMS
This warranty extends to the original retail purchaser of the product warranted hereunder and to each transferee owner of the product during the term ofthe
original purchaser's warranty. The warranty is transferable by the original retail purchaser via home sale only. Ifatransferee owner isunable to provide proof of
purchase from the original purchaser and the product has not been previously registered, the production date ofthe product, located in the serial number of the
product, will serve asthe effective warranty start date.
The activation date of the warranty begins from the date oforiginal retail purchase. In the case of new product purchase via building development sales, activation
begins from the earlier date of either certificate of occupancy or 24months from date of manufacture. Note date of manufacture is identified by serial tag on
product.
This warranty does not cover units purchased as b-stock, liquidation, salvage, seconds, refurbished, as-is, used products.
This warranty shall apply toproducts purchased in the United States and Canada. Products must be purchased in the country where service is requested. Warranty
service must beperformed by a Lynx authorized service agency or representative. Warranty shall not apply to damage resulting from abuse, accident, natural
disaster, lossof electrical power to the product for any reason, alteration, improper installation, improper operation, or repair service of the product by anyone
other than a Lynx authorized service agency or representative. This warranty does not apply to commercial usage. Warrantor is not responsible for consequential or
incidental damage whether arising outof breach of warranty, breach ofcontract orotherwise. Some jurisdictions do not allow the exclusion or limitation of
incidental orconsequential damages, if so,the above limitations do notapply toyou.
Owner shall be responsible for proper installation, providing normal care and maintenance, providing proof ofpurchase upon request, and making the product
reasonably accessible for service. Ifthe product or oneofitscomponent parts contains a defect ormalfunction during the warranty period, after a reasonable
number of attempts by the warrantor to remedy the defects or malfunctions, the owner is entitled to either a refund or replacement, at the warrantor’s discretion
of the product or its component part or parts. Warrantor’s liability on any claim of any kind, with respect to the goods or services covered hereunder, shall in no
case exceed the price of the goods orservice or part thereof which gives rise to the claim.
WARRANTY SERVICE
Under the terms of this warranty, service must be performed by a Lynx authorized service agent or representative. Service will be provided during normal business
hours.Labor performed atovertime or premium rates shall not becovered by the warranty. To obtain warranty service contact Lynx Customer Care at
1-888-289-5969.Please have model number, serial number, and date oforiginal purchase available when calling. IMPORTANT: Retain proof oforiginal purchase to
establish warranty period. The return of the owner registration card is not a condition of warranty coverage. You should, however, return the owner registration card
so Lynx cancontact you should any question ofsafety arise which could affect you.Any implied warranties of merchantability and fitness applicable tothe above
described and stainless steel parts are limited in duration to the period ofcoverage of the applicable express written limited warranties setforth above. Some
jurisdictions do not allow limitations on how long an implied warranty lasts, if so,the above limitations may not apply to you. This warranty gives you specific legal
rights, and you may also have other rights which may vary from jurisdiction to jurisdiction.
Specifications subject to change without notice.
20 WARRANTY
Table of contents
Other Lynx Refrigerator manuals
