Lytx Sf series User manual

Page 1 of 51

(North America Edition)

Lytx®SF-Series Event Recorder

Installation Instructions

(North America Edition)

Last updated: 4/1/2019

THE DEVICE SHOULD BE INSTALLED AND MAINTAINED BY QUALIFIED TECHNICIANS. Only a properly qualified technician

should install and maintain the SF-Series device. Any electrical work should be performed only by an ASE (minimum T6

& L2), MECP or equivalent certified technician with an expertise in installing and troubleshooting advanced vehicle

onboard components including multiplexed circuits. Lytx, Inc. disclaims all responsibility for any damages arising from

improper installation and maintenance of the SF-Series device.

This guide is protected as confidential and proprietary information of Lytx, Inc. Copying and use of this guide for any

purpose other than installing SF-Series in vehicles of Lytx, Inc.’s customers is expressly prohibited. Information

contained in this guide was in effect as of the date set forth above and is subject to change without notice or liability.

Lytx, Inc. reserves the right to revise the information presented or to discontinue the production of parts described at any

time.

Page 2 of 51

(North America Edition)

Contents

Safety Instructions 4

Installation Safety Warnings 4

Driver Safety Warnings 4

Adherence to Applicable Local, State and Federal Laws 5

USA Federal Communications Commission (FCC) Notice 5

Canada – Industry Canada Notice 6

Suppliers Declaration of Conformance 7

Device Installation Overview 8

What’s Covered in the Installation Procedures 8

Installation Warnings 8

Before You Begin 8

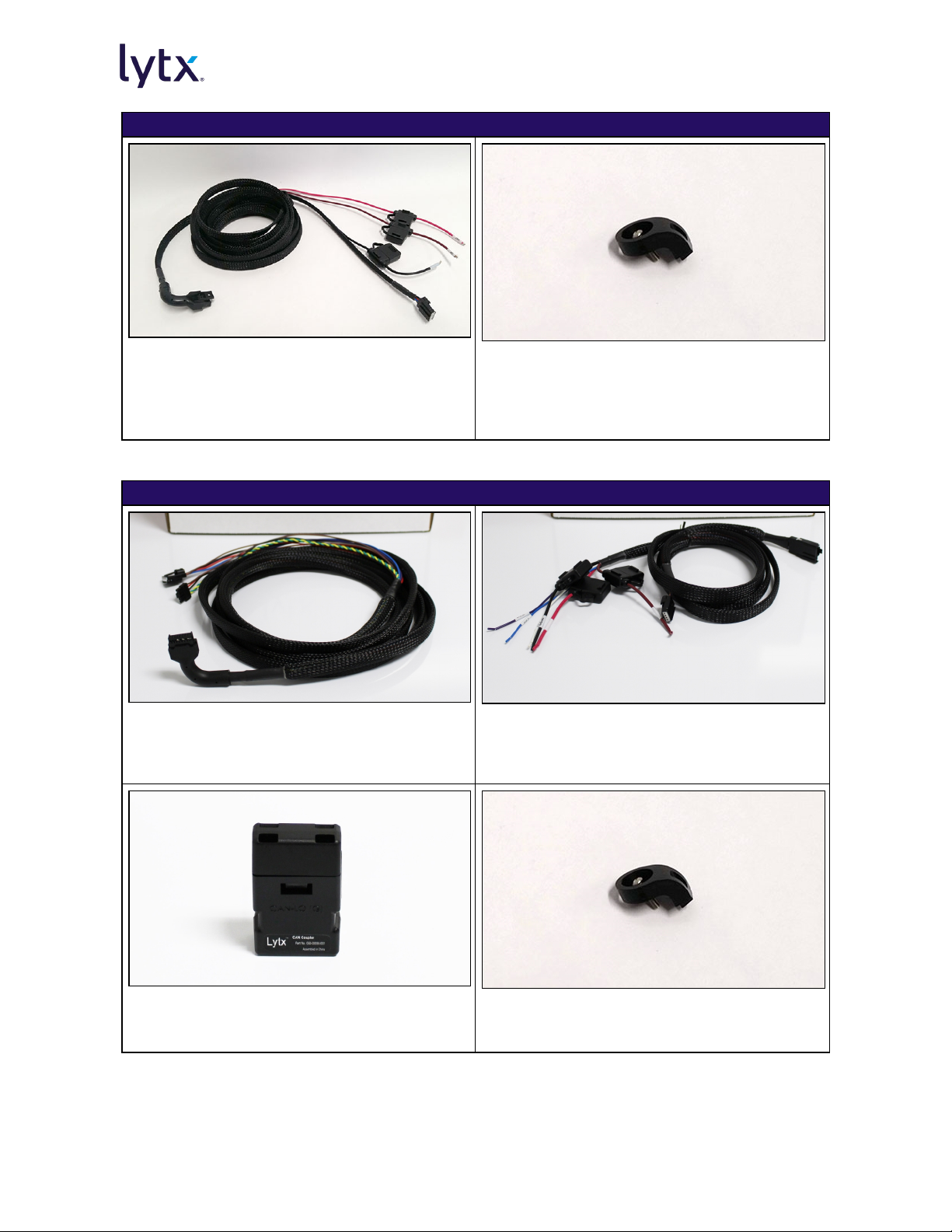

Materials 9

Required Tools 11

Optional Tools 11

Optional Parts 11

Device Overview 12

Download and Install the Lytx Installation Tool 12

System Requirements for the Lytx Installation Tool 13

Instructions for Download and Installation 13

SF-Series Installation Procedures 15

Mount the Bracket and Event Recorder 15

Review Mounting Location Guidelines 16

Prepare the Mounting Location 18

Attach the Bracket and Event Recorder 19

Connect Electrical Wiring 19

Wiring Safety Warnings 20

Electrical Connection Overview Diagram 21

Wiring and Wire Termination Suggestions 23

Basic Event Recorder Electrical Connections 25

Connect to the Vehicle J1939 Network 27

Connect Turn Signals and Brake Inputs (ER-SF300 devices only) 28

Route the Device Power Cable 29

Run Testing and Complete Installation 30

Test Event Creation and Upload 31

Test Wire Connections and Settings in the Lytx Installation Tool 31

Camera Measurements (ER-SF300 devices only) 32

Initiate Diagnostic Mode 33

Complete Installation 34

Conduct Final Checks 34

Installation of Optional Parts 36

Overhead Mounting Bracket Installation Procedures 36

Page 3 of 51

(North America Edition)

Materials 36

Attach the Overhead Mounting Bracket and Event Recorder 36

Extended Mounting Arm Installation Procedures 38

Materials 38

Mounting Arm Overview 38

Alternative Mounting Locations 38

Installation Instructions 39

Remote Push Button Installation Procedures 40

Materials 41

Mount the Remote Push Button 41

Assign the Input in the Lytx Installation Tool 41

Maintenance & Troubleshooting 42

Maintenance 42

Troubleshooting Installation Issues 42

Troubleshooting Issues After Installation 45

Initiate Diagnostic Mode 46

Troubleshooting in Diagnostic Mode 47

Uninstalling the Device 49

Materials 49

Instructions 49

Contact Technical Support 51

Page 4 of 51

(North America Edition)

Safety Instructions

Installation Safety Warnings

Read and follow the instructions and precautions in this guide and all documents referenced

in this guide when installing this device. Always refer to the vehicle manufacturer’s service

manual for proper installation and wiring of any aftermarket devices, including the SF-Series

device. Failure to do so may result in property damage and/or personal injury.

WARNING:Park the vehicle on a level surface before beginning any maintenance or install-

ation. Block the wheels to prevent the vehicle from moving. Never work under a vehicle

supported only by jacks as jacks can slip and fall over.

WARNING:All wires that carry electrical current to the Lytx device must be fused. Failure to

fuse the power, ground, and ignition wires can lead to serious personal injury and/or prop-

erty damage. If any wires or cables containing fuses/fuse boxes need to be cut or otherwise

shortened, always be certain to replace such fuses/fuse boxes or install new ones.

WARNING:Wire Protection: Take all necessary measures to protect all wire runs through a

metal surface with a grommet or other device and all wire runs outside the vehicle cab with

a loom. Always protect against wire fatigue and harness abrasion by properly attaching

wires at closely spaced intervals, while avoiding contact with sharp edges or doing anything

else that might result in exposed wires. All wires should be secured with tie wraps at least

every one foot (30 cm/300 mm) or less. Do not over-tighten any tie wraps.

EXPLOSION HAZARD: Do not disconnect equipment unless power has been removed and the

area is known to be non-hazardous.

WARNING:Substituting or supplementing components may impair suitability and perform-

ance. If you are missing any components contact Lytx Technical Support Center at

925.732.4246 or email support@lytx.com.

WARNING:Wear safe eye protection to prevent serious eye injury when you perform vehicle

maintenance or service.

Driver Safety Warnings

WARNING: In order to reduce the potential danger of injuries, the driver and front passenger

must always be correctly seated with seat belts correctly fastened when operating the

vehicle.

DISCLAIMER:The Lytx Event Recorder is a driver aid only, not a substitute for a safe,

conscientious driver. The Lytx Event Recorder cannot compensate for a driver who is

distracted, inattentive or impaired by fatigue, drugs or alcohol. Whether or not the Lytx Event

Recorder is in use, it is always the responsibility of the driver to take appropriate corrective

action. Never wait for the device to provide a warning before taking measures to avoid an

accident. Failure to do so can result in serious personal injury or death or severe property

damage.

Page 5 of 51

(North America Edition)

Always, it is the driver’s responsibility to:

lUse safe driving techniques

lExercise proper judgment

lMaintain a safe speed and distance between vehicles

lTake measures to avoid an accident

lComply with all applicable laws and regulations

WARNING: In certain conditions, including inclement weather, low visibility, certain road

conditions (including poor lane markings, construction zones, dirt roads, heavy or complic-

ated traffic, and curvy and winding roads), the Lytx Event Recorder may have limited to no

functionality. The Lytx Event Recorder may not detect certain objects such as motorcyclists,

bicyclists or pedestrians even in the most ideal conditions. Always keep the lens and view of

the Lytx Event Recorder unobstructed and properly calibrated so as not to inhibit function.

Driving in certain conditions or any interference with the Lytx Event Recorder can result in

false, few or no warnings. The driver must always monitor traffic and surroundings and take

measures to avoid an accident; failure to do so can result in serious personal injury or death

or severe property damage.

WARNING: If the Lytx Event Recorder is not functioning properly at any time, please contact

your supervisor and have the device inspected immediately to correct the issue. Whether or

not the Lytx Event Recorder is functioning, it is the driver’s responsibility to maintain vehicle

control; failure to do so can result in serious personal injury or death or severe property

damage.

CAUTION: While cleaning the device or the vehicle cab, do not apply compressed air or

cleaning solutions (such as Windex) to the Lytx device. Usage of these products may cause

damage to the device.

WARNING: The optional livestream feature may have an approximate delay of 10 seconds.

Livestream should never be used to assist the driver in operating the vehicle. The driver is

responsible for the safe operation of the vehicle at all times and must always take measures

to avoid a collision.

Adherence to Applicable Local, State and Federal Laws

WARNING: Some countries/regions/jurisdictions have adopted, or may in the future adopt,

laws that prohibit objects from being mounted on a vehicle’s windshield or other locations in

a vehicle. You are responsible for complying with such laws, and Lytx, Inc. does not accept

responsibility for your failure to do so.

USA Federal Communications Commission (FCC) Notice

This device complies with part 15 of the FCC Rules. Operation is subject to the following two

conditions: (1) This device may not cause harmful interference, and (2) this device must

accept any interference received, including interference that may cause undesired operation.

Page 6 of 51

(North America Edition)

CAUTION: Changes or modifications to this product not expressly approved by Lytx, Inc. could

void the user's authority to operate this equipment.

NOTE: This equipment has been tested and found to comply with the limits for a Class B

digital device, pursuant to part 15 of the FCC Rules. This equipment generates, uses, and can

radiate radio frequency energy and, if not installed and used in accordance with the instruc-

tions, may cause harmful interference to radio communications.

It is recommended that the antenna must not be co-located or operating in conjunction with

any other antenna or radio transmitter.

CAUTION:Exposure to Radio Frequency Radiation. To comply with FCC RF exposure compli-

ance requirements, for mobile configurations, a separation distance of at least 20 cm must

be maintained between the antenna of this device and all persons. This device must not be

co-located or operating in conjunction with any other antenna or transmitter.

Canada – Industry Canada Notice

This device complies with Industry Canada license-exempt RSS standard(s). Operation is

subject to the following two conditions: (1) This device may not cause harmful interference,

and (2) this device must accept any interference received, including interference that may

cause undesired operation.

This Class B digital apparatus complies with Canadian ICES-003.

Cet appareil est conforme aux normes RSS exemptes de licence d'Industrie Canada. Son util-

isation est soumise aux deux conditions suivantes: (1) Cet appareil ne doit pas causer

d'interférences nuisibles et (2) cet appareil doit accepter toute interférence reçue, y compris

les interférences susceptibles de provoquer un fonctionnement indésirable.

Cet appareil numérique de la classe B est conforme à la norme NMB-003 du Canada.

CAUTION:Exposure to Radio Frequency Radiation.To comply with RSS 102 RF exposure

compliance requirements, for mobile configurations, a separation distance of at least 20 cm

must be maintained between the antenna of this device and all persons. This device must not

be co-located or operating in conjunction with any other antenna or transmitter.

Pour se conformer aux exigences de conformité 102 RSS RF exposition, pour des config-

urations mobiles, une distance de séparation d'au moins 20 cm doit être maintenue entre

l'antenne de cet appareil et toutes les personnes. Cet appareil ne doit pas être co-localisés

ou fonctionnant en conjonction avec une autre antenne ou transmetteur.

Page 7 of 51

(North America Edition)

Suppliers Declaration of Conformance

We, Lytx, Inc., hereby declare that the

product listed below, to which this Declar-

ation of Conformity relates, is in

conformity with the Standards and other

Normative Documents listed below:

Manufacturer’s Name & Address:

Lytx, Inc.

9785 Towne Centre Drive

San Diego, CA 92121 USA

Declares that the following product:

Product Name: Video Event Recorder

Product Model:

lER-SF1 (DC-6000-001)

lER-SF64 (DC-6000-001)

lER-SF300 (DC-6000-030)

The product specified above carries the

marking, by complying with the essential

requirements and provisions. Conformity

is based upon the following standards:

Manufacturer’s Contact:

Lytx, Inc.

9785 Towne Centre Drive

San Diego, CA 92121 USA

Phone Number: (858) 430-4000

Fax Number: (858) 430-4001

EMC & Radio:

CFR Title 47 FCC Part 15, Subpart B and C,

Class B

Industry Canada ICES-003, Class B

Industry Canada RSS-Gen

Industry Canada RSS-210 (applicable only to

cellular modem variant)

Industry Canada RSS-247

Mexico IFETEL

Mexico NOM-001-SCFI-1993

Page 8 of 51

(North America Edition)

Device Installation Overview

What’s Covered in the Installation Procedures

The following instructions are for installation of the Lytx SF-Series event recorder with

optional ECM connectivity for ECM data collection. These instructions cover these sections:

1. Mounting of the device using the standard method

2. Electrical connections and cable routing

3. Testing

These instructions also cover installation of these optional parts:

lOverhead Mounting Bracket

lExtended Mounting Arm

lRemote Push Button

Installation Warnings

THE DEVICE SHOULD BE INSTALLED AND MAINTAINED BY QUALIFIED TECHNICIANS. Only a

properly qualified technician should install and maintain the SF-Series device. Any electrical

work should be performed only by an ASE (minimum T6 & L2), MECP or equivalent certified

technician with an expertise in installing and troubleshooting advanced vehicle onboard

components including multiplexed circuits. Lytx, Inc. disclaims all responsibility for any

damages arising from improper installation and maintenance of the SF-Series device.

THIS GUIDE IS NOT A SUBSTITUTE FOR A QUALIFIED TECHNICIAN.

THE DEVICE SHOULD NOT INTERFERE WITH THE VEHICLE’S COMPUTER SYSTEMS. The SF-

Series device interfaces with the vehicle’s computer systems to capture data for safety

analysis. However, it should not interfere with any of the vehicle’s computer systems. If there

is a malfunction of the vehicle’s computer systems after installation, contact Lytx Technical

Support Center at 925.732.4246 or email support@lytx.com immediately. Lytx recommends

that you do not drive the vehicle until the malfunction is resolved. Lytx, Inc. disclaims all

responsibility for any damages arising from improper installation and maintenance of the

SF-Series device.

Before You Begin

1. Read and understand all instructions and procedures provided for the vehicle and the

SF-Series device. This guide must be read in conjunction with the vehicle manu-

facturer’s service manual, the Mounting Regulations, all instructions and procedures

issued by Lytx, Inc., and any applicable federal, state, provincial and local laws that

prohibit mounting devices on vehicle’s windshield or other locations in a vehicle.

Page 9 of 51

(North America Edition)

2. Read and observe all warnings, cautions, and safety notices in the instructions and

procedures. They provide information to avoid serious personal injury, damage to

components or both.

3. Follow the vehicle’s maintenance, service, installation and diagnostic guidelines

provided by the manufacturer of the vehicle.

4. Check for laws or regulations that prohibit objects from being mounted on a vehicle’s

windshield or other locations in a vehicle. You are responsible for complying with such

laws and regulations, and Lytx, Inc. does not accept responsibility for your failure to do

so.

5. Use special tools and safety equipment to avoid serious personal injury and damage to

components.

Materials

The following materials are included in your SF-Series Event Recorder kit:

SF-Series unit Standard mounting bracket

Two (2) T-27 security Torx screws

One (1) T-8 security Torx screw

Alcohol wipe

Page 10 of 51

(North America Edition)

For standard, power-only installations:

Non-ECM, Device Power Only Cable with

inline fuses:

Red and Black wires = 5-amp fuses

Brown wire = 1-amp fuse

Tamper Prevention Clip

For installations including J1939 and/or ActiveVision connections:

Device Power Cable Vehicle Interface Cable with inline fuses:

Red and Black wires = 5-amp fuses

Brown wire = 1-amp fuse

J1939 CAN Coupler

Only included in kits for J1939 networks

Tamper Prevention Clip

Page 11 of 51

(North America Edition)

If you are missing any materials, contact the Lytx Technical Support Center at 925.732.4246

or email support@lytx.com to obtain the necessary materials before beginning installation.

Supplementing or substituting shipped materials could impair suitability and performance.

Required Tools

In addition to all guides and reference documents that you should read before beginning

installation, the following tools are required for installation:

lWire cutter

lWire crimper

lVoltmeter or multimeter

lVehicle panel removal tool

lFlat-blade screwdriver

lCable ties

lPhillips screwdriver

lElectric tape

lTape measure

lMarking pen

lT-27 security Torx bit

lT-8 security Torx bit

lMicro USB cable

lVehicle manufacturer recommended tools

Consult the vehicle’s maintenance, service, installation, and diagnostic guidelines provided by

the manufacturer of the vehicle for any additional tools needed.

Optional Tools

The following tools are not required for installation but can be helpful:

lCordless driver

lAdd-a-circuits or vehicle-specific connectors

lGrommets and looms

lFlashlight

lPaper towels/shop towel

lUtility knife

lVehicle-specific panel clips

lHeating torch

lHeat shrink

lSoldering iron

lSolder

lSelf-amalgamating tape

Optional Parts

The following optional parts may be purchased from Lytx:

lOverhead Mounting Bracket

lExtended Mounting Arm

lRemote Push Button (Standard)

lClamshell Security Cover (Both Lenses)

lPower Cable Extension (20-ft)

Page 12 of 51

(North America Edition)

Device Overview

ER-SF1 and ER-SF64 devices:

1. Interior-facing lens

2. Microphone

3. LED status lights

4. Manual record buttons

5. Serial number (on side of

device)

6. Exterior-facing lens

7. Micro-USB port

8. Device Power Cable port

9. SIM card port

ER-SF300 devices:

1. Interior-facing lens

2. Microphone

3. Ambient light sensor

4. LED status lights

5. Manual record buttons

6. Serial number (on side of

device)

7. Exterior-facing lens

8. Micro-USB port

9. Device Power Cable port

10. SIM card and SD card port

Download and Install the

Lytx Installation Tool

The Lytx Installation Tool is a software wizard that walks you through device testing step-by-

step at the end of installation. If this tool hasn't already been downloaded and installed on

your laptop prior to device installation, follow the steps below.

Page 13 of 51

(North America Edition)

Obtain the Job File

In addition to downloading and installing the Lytx Installation Tool, you must also obtain

the correct job file prior to device installation. Obtain this from the client's Imple-

mentation Services Specialist.

System Requirements for the Lytx Installation Tool

Before installation, ensure your laptop meets these minimum requirements:

lOperating System: Windows 8 or newer

lHard drive space: 256 MB

lUSB port

Instructions for Download and Installation

1. Using the Internet Explorer browser, log into the DriveCam Online® portal. In the upper-

right corner, click on Learning Center.

2. Go to My Learnings. Then go to My Learning Paths.

3. Browse and find the learning path, Lytx Installation Tool. Press Start.

Page 14 of 51

(North America Edition)

4. Browse and find the course for "Lytx Installation Tool Download". Press Register. Then

press Start.

5. Download the installation file to your computer.

6. Open the file. Follow the prompts to install the tool.

Page 15 of 51

(North America Edition)

SF-Series Installation Procedures

Installation of the SF-Series event recorder consists of these main sections. Each section

has its own subsections as well:

Mount the Bracket and Event Recorder 15

Connect Electrical Wiring 19

Run Testing and Complete Installation 30

Pre-Installation Check

Before beginning the installation, turn the vehicle on. Verify that no Check Engine lights,

error codes, or warnings appear on the gauge console, dashboard, or vehicle display. It

may be necessary to cycle through displayed messages or screens to verify.

If any Check Engine lights, error codes, or warnings appear, report these to the site

contact before proceeding.

Mount the Bracket and Event Recorder

WARNING: Before mounting the bracket and event recorder, consult the vehicle

manufacturer's recommendations and any applicable federal, state, provincial and local

laws that restrict mounting devices on a vehicle’s windshield or other locations in a

vehicle.

Mounting the bracket and event recorder consists of these subsections:

1. Review Mounting Location Guidelines

a. Mounting Location Recommendations and Restrictions

2. Prepare the Mounting Location

3. Attach the Bracket and Event Recorder

Alternative Mounting Methods

The subsections, "Prepare the Mounting Location" on page18 and "Attach the Bracket

and Event Recorder" on page19, cover the recommended standard windshield mounting

method only. However, if windshield mounting is not possible/permitted in the vehicle

or jurisdiction, alternative mounting methods are available. For instructions on altern-

ative mounting methods, please review the mounting location guidelines and see "Install-

ation of Optional Parts" on page36.

Page 16 of 51

(North America Edition)

Review Mounting Location Guidelines

CAUTION: An improperly positioned event recorder can reduce program effectiveness.

The event recorder should be mounted in a location that provides an unobstructed view of

the driver and the road in front of the vehicle.

1. Interior-facing Lens View: Should

span from the outside shoulder of the

driver to the outside shoulder of a

front seat passenger. If possible, it

should show the lap band of the seat-

belt.

2. Exterior-facing Lens View

a. Should be inside the path of the

wiper blades.

b. Should capture a clear view of

everything in front of the vehicle,

beginning as close to the front of

the vehicle as possible without

cutting off the horizon.

To use the event recorder to temporarily

gauge the best position, first loosen the

Torx screws so the event recorder can

rotate in the bracket. Then hold it up to the

windshield.

Page 17 of 51

(North America Edition)

Mounting Location Recommendations and Restrictions

WARNING: Some countries/regions have adopted laws that restrict locations where

objects can be attached to the vehicle windshield. Always refer to any applicable

federal, state, provincial and local laws that concern mounting devices on vehicle wind-

shields or other locations in a vehicle before choosing a mounting location.

The figures below provide guidelines for mounting the event recorder on the vehicle wind-

shield that work within the regulations set forth by the U.S. Department of Transportation,

Federal Motor Carrier Safety Administration (FMCSA)*.

*The FMCSA regulations allow the event recorder to be mounted not more than 100 mm (4

inches) below the upper edge of the area swept by the windshield wipers or not more than

175 mm (7 inches) above the lower edge of the area swept by the windshield wipers,

provided that the event recorder is located outside the driver’s sight lines to the road and

highway signs and signals. See 49 C.F.R. § 393.60(e).

Page 18 of 51

(North America Edition)

Prepare the Mounting Location

CAUTION: To mount the device, the air temperature must be at least 50°F (10°C). The

ideal temperature range is 70-100°F (21-38°C).

CAUTION: Do not use a heat torch to heat up the windshield or adhesive on the bracket

as this may reduce bracket adherence. If additional heat is required, use the vehicle

heating system for the windshield.

CAUTION: Steps 1-3, cleaning the area and drying it, are critical to prevent the bracket

from falling off later.

CAUTION: Do not peel the backing from the bracket's adhesive in this section.

1. Apply isopropyl alcohol on the windshield mounting area and dry it off with a clean

cloth, removing any debris. This is the area behind the rear view mirror on the

passenger side or the equivalent area if there is no rear view mirror (see below).

2. Clean the mounting area again with the

Lytx-supplied alcohol wipe.

3. Wait 2 minutes for the mounting area to

air dry before applying the device

bracket. Do not dry it with a cloth.

4. Following the mounting location

guidelines above, hold the assembly in

place and trace the outline of the

bracket on the windshield with a marker.

Make sure the traced guide marks are

level.

5. Remove the event recorder from the mounting bracket.

6. Check the fit of the bracket against the windshield. If the windshield is curved, you may

gently bend the bracket so it lies flush against the glass.

Best practice: Select a surface location with minimal curvature.

7. Check again to make sure you’ve selected the best mounting location.

a. Sit in the driver’s seat while holding the device up. Make sure it doesn’t block the

driver’s view of the road.

b. Turn on the wipers and rotate mirrors, sun visors, and other objects near the

device to make sure they cannot block either lens.

Page 19 of 51

(North America Edition)

Attach the Bracket and Event Recorder

CAUTION: The adhesive is very sticky. Once applied, it will not easily come off. Take care

to attach the bracket to the mounting location properly.

CAUTION: Do not apply excessive pressure as it may cause the windshield to break.

CAUTION: After removing the backing from the bracket's adhesive, apply the bracket to

the windshield immediately. If you leave the adhesive exposed for too long, it may be

compromised.

1. Remove the backing from the adhesive side of

the bracket. Carefully attach the bracket to the

windshield.

a. Place the left edge of the bracket against

the windshield, aligned with the marks,

and make sure it is level.

b. Press the bracket firmly against the wind-

shield starting at the left and pressing

downward to the right.

2. Check from outside the vehicle for large air

bubbles under the bracket. If you find any:

a. Apply additional pressure to the bracket.

b. Slide a pin between the bracket and wind-

shield to let out the air.

3. Wait 10 minutes to allow the bracket's adhesive to bond.

4. Place the event recorder in the bracket.

5. Adjust the event recorder so it hangs vertically (plumb).

See Figure C.

6. Secure the event recorder in the bracket using the two T-

27 Torx screws.

Connect Electrical Wiring

Connecting the electrical wiring consists of these subsections:

Wiring Safety Warnings 20

Electrical Connection Overview Diagram 21

Wiring and Wire Termination Suggestions 23

Basic Event Recorder Electrical Connections 25

Page 20 of 51

(North America Edition)

Connect to the Vehicle J1939 Network 27

Connect Turn Signals and Brake Inputs (ER-SF300 devices only) 28

Route the Device Power Cable 29

Wiring Safety Warnings

WARNING:Only approved wire connection methods are recommended. Refer to the vehicle

manufacturer’s service manual to determine if soldering, sealing crimp connections, Add-A-

Circuit, Posi-Tap, sealing butt connections, or OEM connections to open connection ports are

approved. Never use plier tap products such as insulation displacement connectors (i.e.

ScotchLoc connectors) when installing the SF-Series.

WARNING:Never wire the SF-Series device in a manner that shares a connection with

another aftermarket product in the vehicle. Independent connections should always be used.
