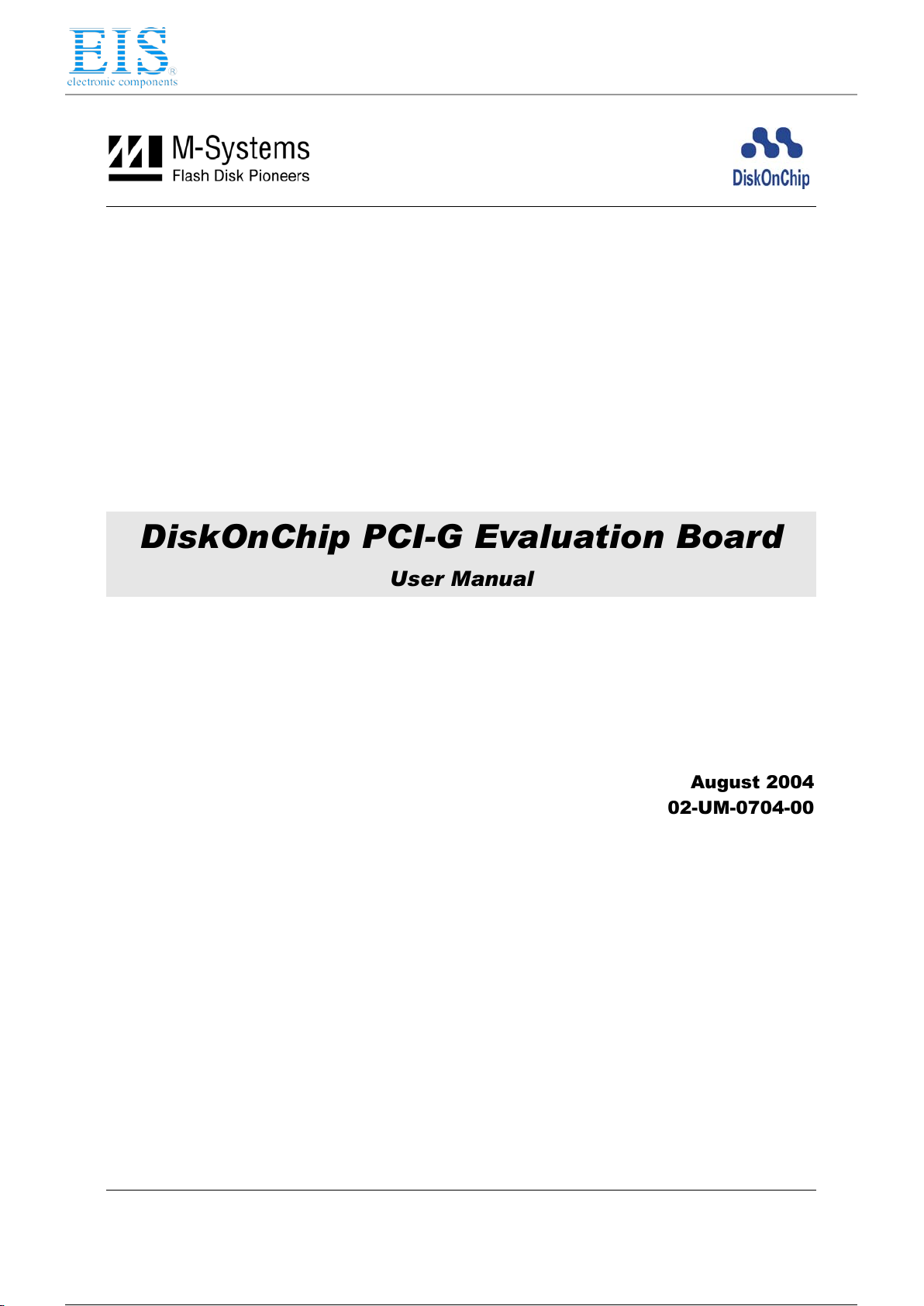

DiskOnChip PCI-G Evaluation Board
User Manual
August 2004
02-UM-0704-00
2 / 13
2 / 13

Distributor of SanDisk: Excellent Integrated System Limited
Datasheet of BGA9X12-ZIF-ADPT - SOCKET ADAPTER BGA TO 32DIP
Contact us: [email protected] Website: www.integrated-circuit.com
2 User Manual DiskOnChip PCI-G Evaluation Board 02-UM-0704-00
DOCUMENT CONTROL INFORMATION
DCO No.:
Title Name Date
Issued by: DiskOnChip R&D Hardware Engineer, Mobile Division Ilan Kozer August 3, 2004
Approved by: DiskOnChip Product Manager, Embedded Division Liran Lanir August 3, 2004
3 / 13
3 / 13

Distributor of SanDisk: Excellent Integrated System Limited
Datasheet of BGA9X12-ZIF-ADPT - SOCKET ADAPTER BGA TO 32DIP
Contact us: [email protected] Website: www.integrated-circuit.com
3 User Manual DiskOnChip PCI-G Evaluation Board 02-UM-0704-00
TABLE OF CONTENTS
1. Introduction ........................................................................................................................... 4
1.1. Supported Devices ......................................................................................................... 4
1.2. Features ......................................................................................................................... 4
2. PCI-G EVB Package Contents.............................................................................................. 5
3. System Requirements .......................................................................................................... 5
4. PCI-G EVB Board Contents.................................................................................................. 6
4.1. Determining the Base Address....................................................................................... 6
4.2. Selecting the Voltage ..................................................................................................... 6
4.3. Locking Protected Areas ................................................................................................7
4.4. Working in 16-Bit Mode..................................................................................................7
5. Installing and Configuring the PCI-G EVB.......................................................................... 8
5.1. Installing DiskOnChip as an Additional Disk Drive.........................................................8
5.2. Using the PCI-G EVB as a Boot Device (DOS)..............................................................8
5.3. Identifying DiskOnChip on the PCI-G EVB..................................................................... 9
5.4. Reformatting DiskOnChip............................................................................................... 9
6. Additional Software Utilities .............................................................................................. 10
6.1. DOS .............................................................................................................................10
6.2. Using PMC Connectors................................................................................................ 10

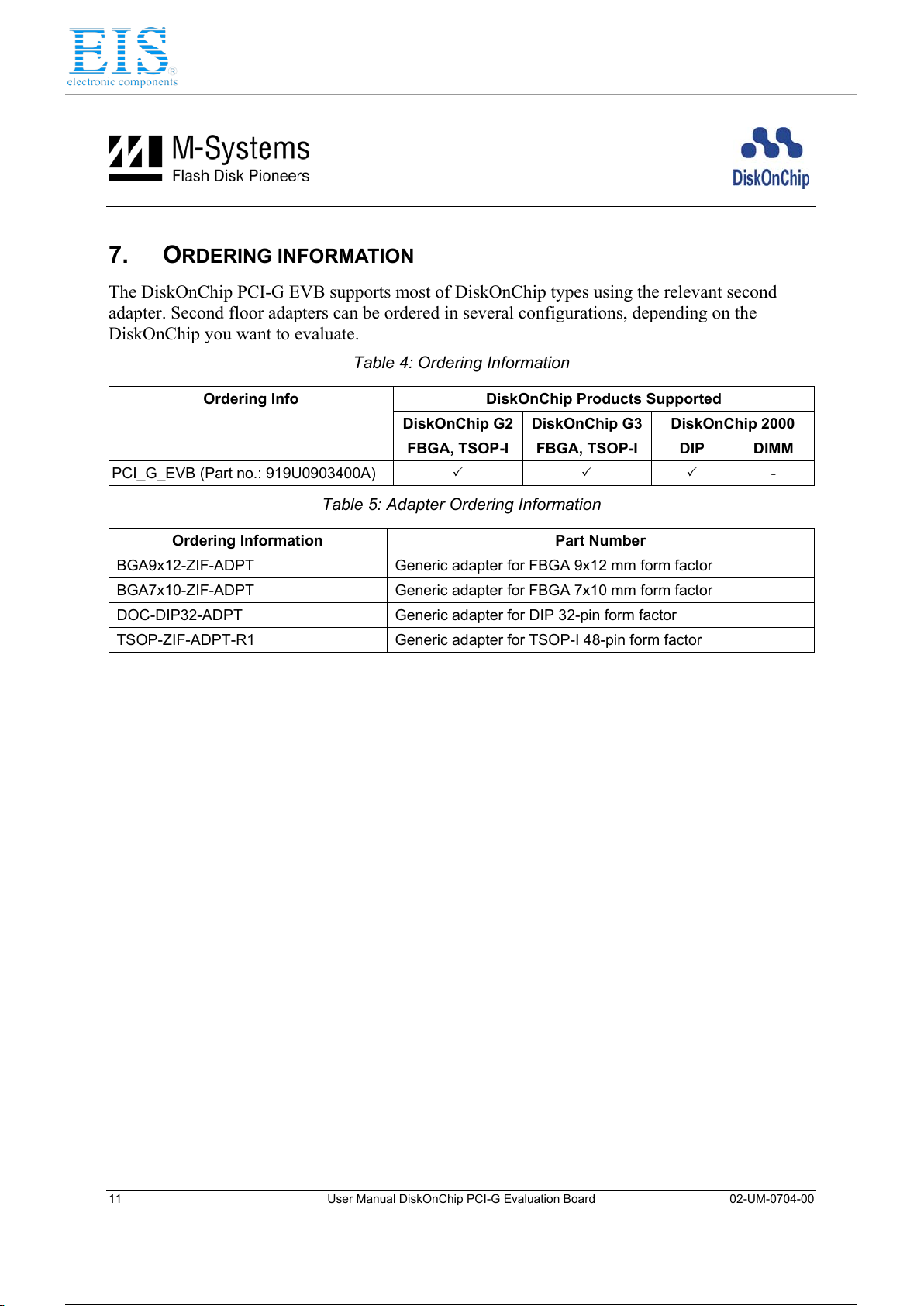

7. Ordering information .......................................................................................................... 11

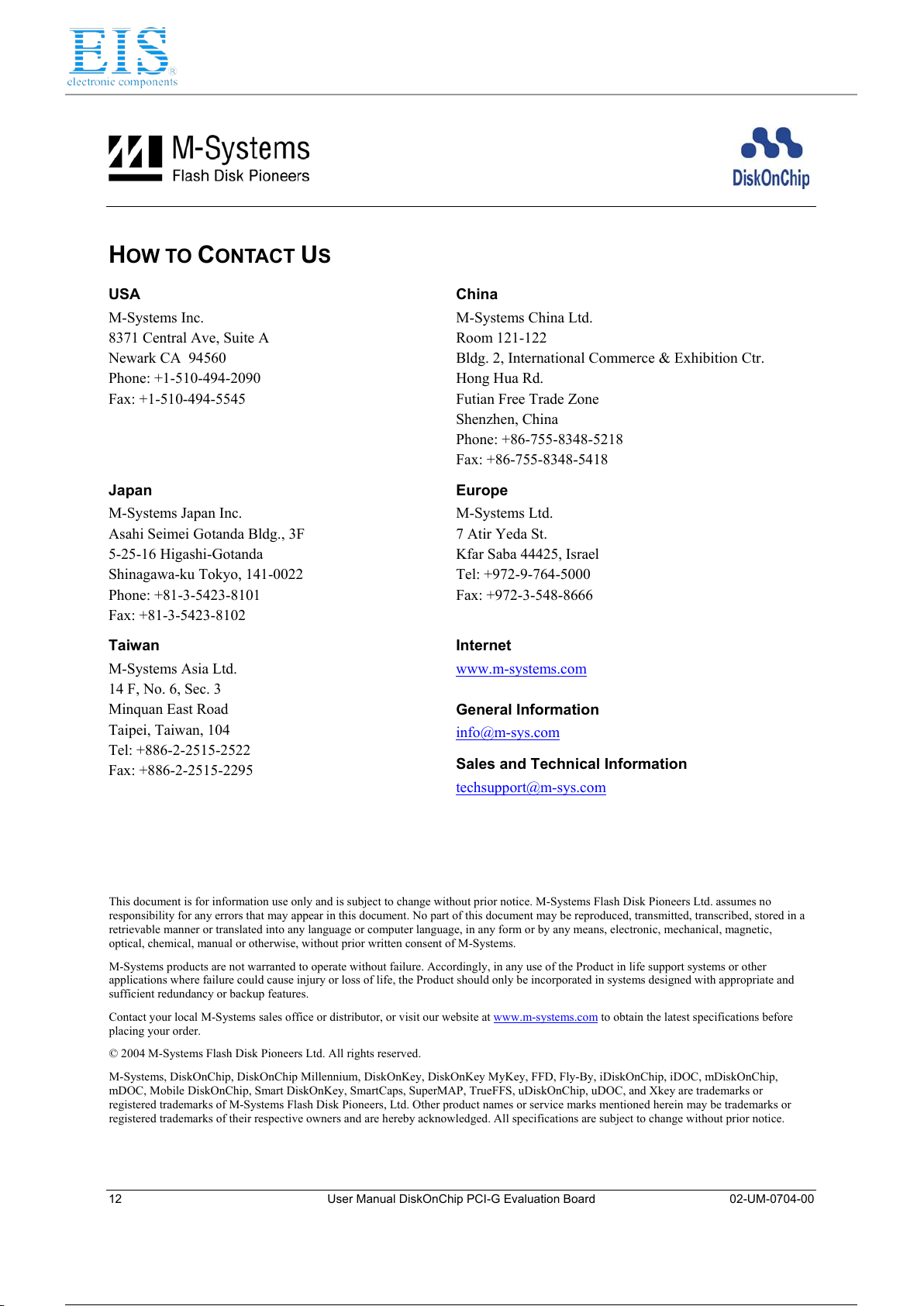

How to Contact Us .................................................................................................................... 12
4 / 13
4 / 13

Distributor of SanDisk: Excellent Integrated System Limited
Datasheet of BGA9X12-ZIF-ADPT - SOCKET ADAPTER BGA TO 32DIP
Contact us: [email protected] Website: www.integrated-circuit.com
4 User Manual DiskOnChip PCI-G Evaluation Board 02-UM-0704-00
1. INTRODUCTION
The DiskOnChip PCI-G Evaluation Board (EVB) provides a quick, easy way to evaluate the
DiskOnChip in platforms with a PCI extension slot. The PCI-G EVB is a useful tool for
designers who need to evaluate, program, duplicate or test DiskOnChip, even before their target
platform is available. Once installed, the DiskOnChip PCI-G EVB can be accessed as an
additional disk drive or as a boot device.
M-Systems’ DiskOnChip products are high-performance, single-chip flash disks that provide full
hard drive emulation for all major operating systems and platforms. This unique product line
offers a complete data storage solution for applications in which mechanical hard drives cannot
be used, such as embedded systems, Internet access devices, network computers and mobile
systems. DiskOnChip provides superior performance through a true 16-bit bus interface, and
offers security-enabling and data-protection features.
1.1. Supported Devices
The PCI-G EVB General DiskOnChip interface connector, in combination with the relevant
second-floor adapter, supports the DiskOnChip product line.
A TrueFFS driver is required to work with any of the DiskOnChip products. TrueFFS is natively
supported by every major OS, such as Windows CE, Windows 2000, QNX, and VxWorks. The
latest TrueFFS drivers can be obtained from M-Systems for these operating systems and others,
such as DOS, Linux, pSOS and NT Embedded. For other environments (including OS-less) the
TrueFFS Software Development Kit (SDK) can be obtained. When using DiskOnChip as the
boot device in a non-x86 environment, M-Systems’ Boot Software Development Kit (BDK)
package is required. Contact M-Systems regarding availability for both packages.
1.2. Features
The PCI-G EVB includes the following features:
• Support for the current DiskOnChip product line using the second-floor adapter.
• An independent memory window for each device on-board
• Support for 1.8V, 3.3V and 5V VCC core and VCC_I/O
• Variable 8-bit or 16-bit operation
• Support for the DiskOnChip hardware protection option, including the LOCK# signal
• Two fixed memory base address are available for the DiskOnChip second-floor adapter
(using a jumper)
• General DiskOnChip interface connector on both sides of the EVB for more flexibility (only
one can be used at a time)
5 / 13
5 / 13

Distributor of SanDisk: Excellent Integrated System Limited
Datasheet of BGA9X12-ZIF-ADPT - SOCKET ADAPTER BGA TO 32DIP
Contact us: [email protected] Website: www.integrated-circuit.com
5 User Manual DiskOnChip PCI-G Evaluation Board 02-UM-0704-00
2. PCI-G EVB PACKAGE CONTENTS
The PCI-G EVB package includes the following:
• DiskOnChip PCI-G Evaluation Board
• Release Letter
• Quick Installation Guide
• Data CD with:
o Software utilities and tools
o Additional documentation
Note: It is recommended to download the latest software utilities from our website at
www.m-systems.com.
• M-Systems limited warranty
3. SYSTEM REQUIREMENTS
• PC or any other platform with free PCI bus slots.
• 32KB free memory space (between D000 and D800 or D800 and DA00).
• It is recommended to have a bootable DOS diskette on hand as all software utilities included
are compiled for DOS.
6 / 13
6 / 13

Distributor of SanDisk: Excellent Integrated System Limited
Datasheet of BGA9X12-ZIF-ADPT - SOCKET ADAPTER BGA TO 32DIP
Contact us: [email protected] Website: www.integrated-circuit.com
6 User Manual DiskOnChip PCI-G Evaluation Board 02-UM-0704-00

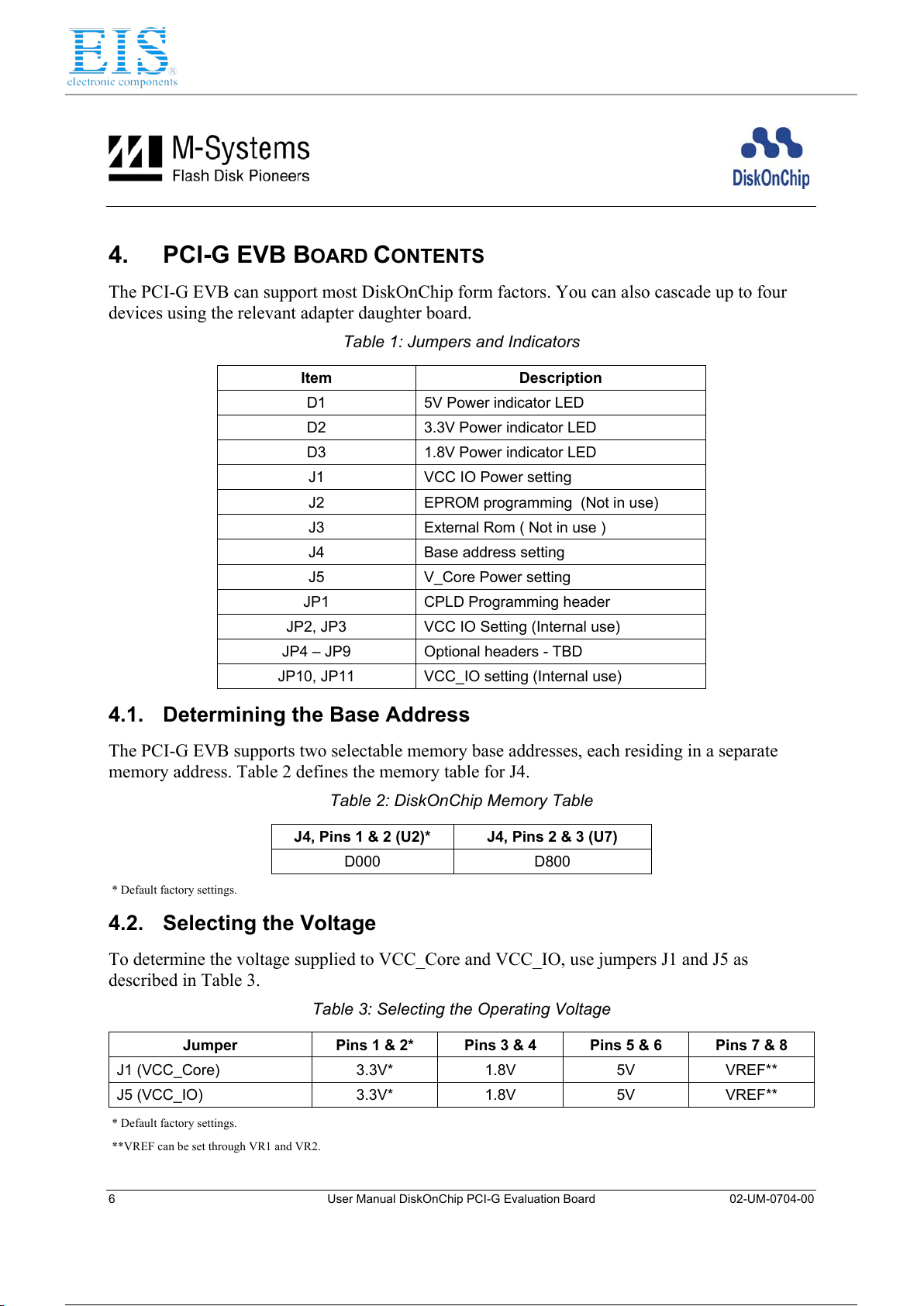

4. PCI-G EVB BOARD CONTENTS
The PCI-G EVB can support most DiskOnChip form factors. You can also cascade up to four
devices using the relevant adapter daughter board.
Table 1: Jumpers and Indicators
Item Description
D1 5V Power indicator LED
D2 3.3V Power indicator LED
D3 1.8V Power indicator LED
J1 VCC IO Power setting
J2 EPROM programming (Not in use)
J3 External Rom ( Not in use )
J4 Base address setting
J5 V_Core Power setting
JP1 CPLD Programming header
JP2, JP3 VCC IO Setting (Internal use)
JP4 – JP9 Optional headers - TBD
JP10, JP11 VCC_IO setting (Internal use)
4.1. Determining the Base Address
The PCI-G EVB supports two selectable memory base addresses, each residing in a separate
memory address. Table 2 defines the memory table for J4.
Table 2: DiskOnChip Memory Table
J4, Pins 1 & 2 (U2)* J4, Pins 2 & 3 (U7)
D000 D800
* Default factory settings.
4.2. Selecting the Voltage
To determine the voltage supplied to VCC_Core and VCC_IO, use jumpers J1 and J5 as
described in Table 3.
Table 3: Selecting the Operating Voltage
Jumper Pins 1 & 2* Pins 3 & 4 Pins 5 & 6 Pins 7 & 8
J1 (VCC_Core) 3.3V* 1.8V 5V VREF**
J5 (VCC_IO) 3.3V* 1.8V 5V VREF**
* Default factory settings.
**VREF can be set through VR1 and VR2.
7 / 13
7 / 13

Distributor of SanDisk: Excellent Integrated System Limited
Datasheet of BGA9X12-ZIF-ADPT - SOCKET ADAPTER BGA TO 32DIP
Contact us: [email protected] Website: www.integrated-circuit.com
7 User Manual DiskOnChip PCI-G Evaluation Board 02-UM-0704-00
4.3. Locking Protected Areas
The PCI-G EVB supports the Lock feature. When the LOCK# pin on the second floor adapter is
set using a dedicated jumper, the EVB does not allow writing to write-protected areas or access
to read-protected areas, even when the correct password is entered.
4.4. Working in 16-Bit Mode
The PCI-G EVB supports 16-bit operation. When the IF_CFG pin is set on the second floor
adapter, the EVB works in full 16-bit mode, achieving approximately twice the performance
speed.
8 / 13
8 / 13

Distributor of SanDisk: Excellent Integrated System Limited
Datasheet of BGA9X12-ZIF-ADPT - SOCKET ADAPTER BGA TO 32DIP
Contact us: [email protected] Website: www.integrated-circuit.com
8 User Manual DiskOnChip PCI-G Evaluation Board 02-UM-0704-00
5. INSTALLING AND CONFIGURING THE PCI-G EVB
When installing the DiskOnChip PCI-G EVB as a bootable drive in operating systems other then
DOS, make sure to place the relevant systems files on DiskOnChip (i.e., execute according to
Section 5.1, then install the systems files and continue with Section 5.2).
In Windows systems, the New hardware found message is displayed each time you boot with
the PCI-G EVB plugged in. To suppress this message, select the option to install a driver, then
select the DOC_PCI.INF file located in the PCI_G_EVB directory of the DiskOnChip software
utilities. This will NOT install a driver, but will inform Windows of the new hardware and
prevent the message from being displayed during boot-up.
When working with the PCI-G EVB in environments other then PC, you must use the
DiskOnChip BDK to enable your boot code to access DiskOnChip and load your OS and drivers.
Additional information, scenarios, and advice regarding using DiskOnChip as a bootable drive
are available in the DiskOnChip Software Utilities user manual.
5.1. Installing DiskOnChip as an Additional Disk Drive
DOS Example:
1. Mount the DiskOnChip second-floor adapter(s) on the PCI-G EVB in the appropriate socket.
2. Insert the PCI-G EVB into a free PCI slot (make sure your host is powered off).
3. Power on your computer (host). You may now access the PCI-G EVB as an additional drive.
Note: TSOP and FBGA devices require formatting before the PCI-G EVB can be accessed as an
additional drive (refer to the DiskOnChip Software Utilities user manual on our website).
When using other operating systems, you may need to first install the DiskOnChip driver (see the
DiskOnChip OS-specific installation manuals).
5.2. Using the PCI-G EVB as a Boot Device (DOS)
The PCI-G EVB may be used either as an additional hard drive or as the system’s boot device
(drive [C:]). When shipped, DiskOnChip default settings cause it to be installed as the next
available drive. This will typically be drive [D:] if the system already includes another drive. To
convert it into a bootable DOS drive, perform the following:
1. Boot the system and ensure that the PCI-G EVB is correctly installed as an additional drive.
2. Copy your system files to DiskOnChip by typing FORMAT D: /S or SYS D: (assuming
DiskOnChip is registered as drive [D:]).
3. Remove your hard drive or type DFORMAT D: (or /WIN:segment) /FIRST
/S:DOCnn.EXB /UPDATE. Observe the following rules:
o The /S flag must be used when the /FIRST flag is used. DOCnn.EXB stands for the
DiskOnChip firmware file name.
9 / 13
9 / 13

Distributor of SanDisk: Excellent Integrated System Limited
Datasheet of BGA9X12-ZIF-ADPT - SOCKET ADAPTER BGA TO 32DIP
Contact us: [email protected] Website: www.integrated-circuit.com
9 User Manual DiskOnChip PCI-G Evaluation Board 02-UM-0704-00

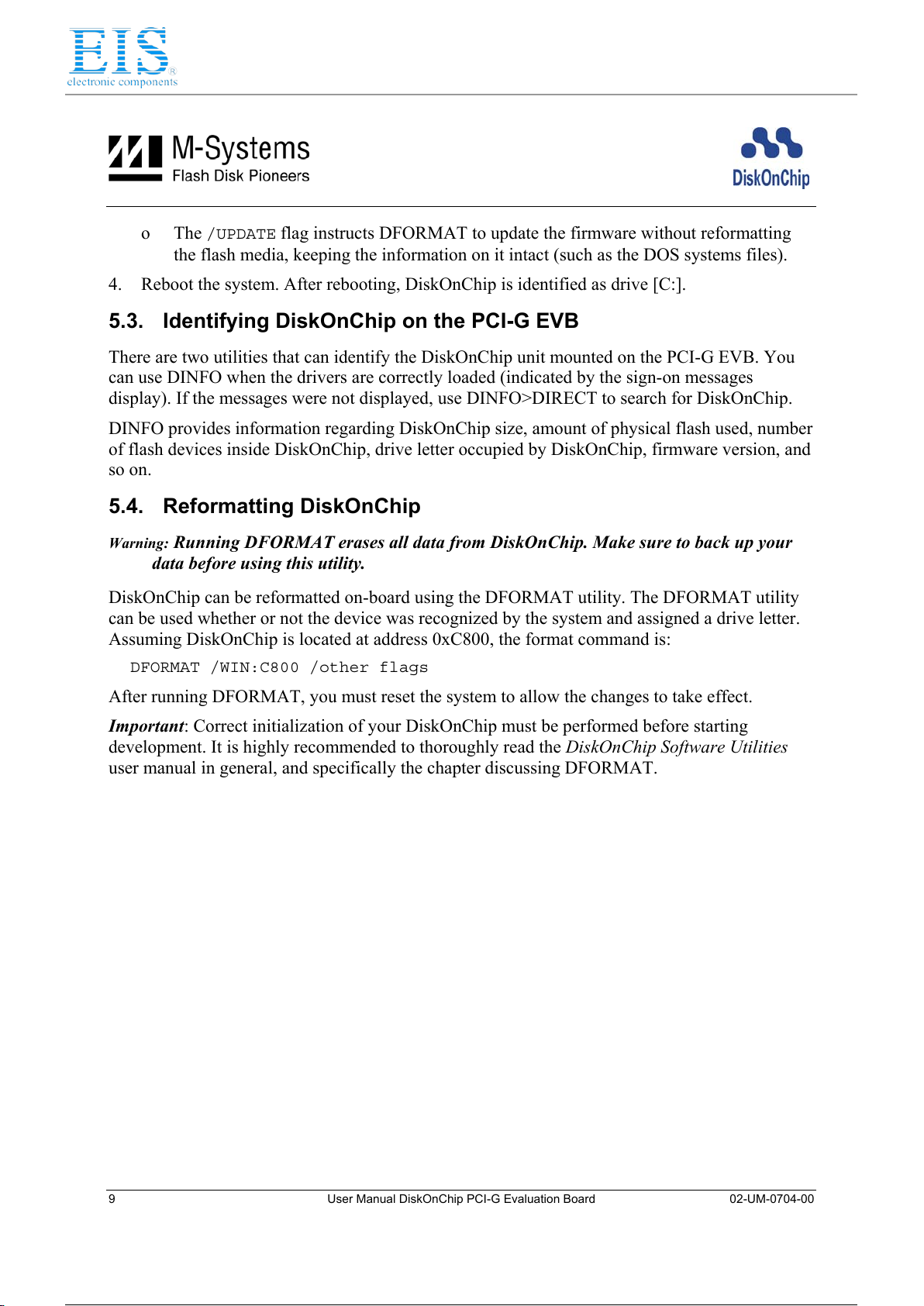

o The /UPDATE flag instructs DFORMAT to update the firmware without reformatting
the flash media, keeping the information on it intact (such as the DOS systems files).
4. Reboot the system. After rebooting, DiskOnChip is identified as drive [C:].
5.3. Identifying DiskOnChip on the PCI-G EVB
There are two utilities that can identify the DiskOnChip unit mounted on the PCI-G EVB. You
can use DINFO when the drivers are correctly loaded (indicated by the sign-on messages
display). If the messages were not displayed, use DINFO>DIRECT to search for DiskOnChip.
DINFO provides information regarding DiskOnChip size, amount of physical flash used, number
of flash devices inside DiskOnChip, drive letter occupied by DiskOnChip, firmware version, and
so on.
5.4. Reformatting DiskOnChip
Warning: Running DFORMAT erases all data from DiskOnChip. Make sure to back up your
data before using this utility.
DiskOnChip can be reformatted on-board using the DFORMAT utility. The DFORMAT utility
can be used whether or not the device was recognized by the system and assigned a drive letter.
Assuming DiskOnChip is located at address 0xC800, the format command is:
DFORMAT /WIN:C800 /other flags
After running DFORMAT, you must reset the system to allow the changes to take effect.
Important: Correct initialization of your DiskOnChip must be performed before starting
development. It is highly recommended to thoroughly read the DiskOnChip Software Utilities
user manual in general, and specifically the chapter discussing DFORMAT.
10 / 13
10 / 13

Distributor of SanDisk: Excellent Integrated System Limited
Datasheet of BGA9X12-ZIF-ADPT - SOCKET ADAPTER BGA TO 32DIP
Contact us: [email protected] Website: www.integrated-circuit.com
10 User Manual DiskOnChip PCI-G Evaluation Board 02-UM-0704-00
6. ADDITIONAL SOFTWARE UTILITIES
6.1. DOS
You can use any of the DiskOnChip DOS utilities with the PCI-G EVB. Detailed information
can be found in the DiskOnChip Software Utilities user manual.
6.2. Using PMC Connectors
You can connect the PCI-G EVB to boards in which the PCI bus is only accessible through PMC
connectors (such as the MCP750 reference board), by using PMC-to-PCI adapter cards (vendor
supplied). Additional information and links to these products is available on our website
(www.m-systems.com, “Third Party Tools”, located in the DiskOnChip section).
11 / 13
11 / 13

Distributor of SanDisk: Excellent Integrated System Limited
Datasheet of BGA9X12-ZIF-ADPT - SOCKET ADAPTER BGA TO 32DIP
Contact us: [email protected] Website: www.integrated-circuit.com
11 User Manual DiskOnChip PCI-G Evaluation Board 02-UM-0704-00
7. ORDERING INFORMATION
The DiskOnChip PCI-G EVB supports most of DiskOnChip types using the relevant second
adapter. Second floor adapters can be ordered in several configurations, depending on the
DiskOnChip you want to evaluate.
Table 4: Ordering Information
DiskOnChip Products Supported
DiskOnChip G2 DiskOnChip G3 DiskOnChip 2000
Ordering Info
FBGA, TSOP-I FBGA, TSOP-I DIP DIMM
PCI_G_EVB (Part no.: 919U0903400A) 333-
Table 5: Adapter Ordering Information
Ordering Information Part Number
BGA9x12-ZIF-ADPT Generic adapter for FBGA 9x12 mm form factor
BGA7x10-ZIF-ADPT Generic adapter for FBGA 7x10 mm form factor
DOC-DIP32-ADPT Generic adapter for DIP 32-pin form factor
TSOP-ZIF-ADPT-R1 Generic adapter for TSOP-I 48-pin form factor
12 / 13
12 / 13

Distributor of SanDisk: Excellent Integrated System Limited
Datasheet of BGA9X12-ZIF-ADPT - SOCKET ADAPTER BGA TO 32DIP
Contact us: [email protected] Website: www.integrated-circuit.com
12 User Manual DiskOnChip PCI-G Evaluation Board 02-UM-0704-00
HOW TO CONTACT US
USA
M-Systems Inc.
8371 Central Ave, Suite A
Newark CA 94560
Phone: [phone]
Fax: [phone]
China
M-Systems China Ltd.
Room 121-122
Bldg. 2, International Commerce & Exhibition Ctr.
Hong Hua Rd.
Futian Free Trade Zone
Shenzhen, China
Phone: [phone]
Fax: [phone]
Europe
M-Systems Ltd.
7 Atir Yeda St.
Kfar Saba 44425, Israel
Tel: [phone]
Fax: [phone]
Internet
www.m-systems.com
General Information
[e-mail]
Japan
M-Systems Japan Inc.
Asahi Seimei Gotanda Bldg., 3F
5-25-16 Higashi-Gotanda
Shinagawa-ku Tokyo, 141-0022
Phone: [phone]
Fax: [phone]
Taiwan
M-Systems Asia Ltd.
14 F, No. 6, Sec. 3
Minquan East Road
Taipei, Taiwan, 104
Tel: [phone]
Fax: [phone] Sales and Technical Information
[e-mail]
This document is for information use only and is subject to change without prior notice. M-Systems Flash Disk Pioneers Ltd. assumes no
responsibility for any errors that may appear in this document. No part of this document may be reproduced, transmitted, transcribed, stored in a
retrievable manner or translated into any language or computer language, in any form or by any means, electronic, mechanical, magnetic,
optical, chemical, manual or otherwise, without prior written consent of M-Systems.
M-Systems products are not warranted to operate without failure. Accordingly, in any use of the Product in life support systems or other
applications where failure could cause injury or loss of life, the Product should only be incorporated in systems designed with appropriate and
sufficient redundancy or backup features.
Contact your local M-Systems sales office or distributor, or visit our website at www.m-systems.com to obtain the latest specifications before
placing your order.
© 2004 M-Systems Flash Disk Pioneers Ltd. All rights reserved.
M-Systems, DiskOnChip, DiskOnChip Millennium, DiskOnKey, DiskOnKey MyKey, FFD, Fly-By, iDiskOnChip, iDOC, mDiskOnChip,
mDOC, Mobile DiskOnChip, Smart DiskOnKey, SmartCaps, SuperMAP, TrueFFS, uDiskOnChip, uDOC, and Xkey are trademarks or
registered trademarks of M-Systems Flash Disk Pioneers, Ltd. Other product names or service marks mentioned herein may be trademarks or
registered trademarks of their respective owners and are hereby acknowledged. All specifications are subject to change without prior notice.
Powered by TCPDF (www.tcpdf.org)
Powered by TCPDF (www.tcpdf.org) 13 / 13
13 / 13
