MacDon R85 User manual

169561 Revision C
R85 Rotary Disc 13 Foot
Pull-Type Mower Conditioner
Unloading and Assembly Instructions
Published: October, 2012

169561 Revision C
INTRODUCTION
This instruction describes the unloading, set-up and pre-delivery requirements for the Model R85 13 Foot
Pull-Type Rotary Disc Mower Conditioner. Use the Table of Contents to guide you to specific areas.
CAREFULLY READ ALL THE MATERIAL PROVIDED BEFORE ATTEMPTING TO UNLOAD, ASSEMBLE,
OR USE THE MACHINE.
R85 13 FOOT PULL-TYPE ROTARY DISC MOWER CONDITIONER

TABLE OF CONTENTS
Section/Title Page
169561 1Revision C
INTRODUCTION........................................................................................................................................................2
GENERAL SAFETY ..................................................................................................................................................3
RECOMMENDED TORQUES ...................................................................................................................................5
A.GENERAL...........................................................................................................................................................5
B.SAE BOLTS........................................................................................................................................................5
C.METRIC BOLTS..................................................................................................................................................5
D.FLARE TYPE HYDRAULIC FITTINGS...............................................................................................................6
E.O-RING BOSS (ORB) HYDRAULIC FITTINGS..................................................................................................6
F.O-RING FACE SEAL (ORFS) HYDRAULIC FITTINGS......................................................................................7
CONVERSION CHART .............................................................................................................................................8
DEFINITIONS ............................................................................................................................................................9
STEP 1.UNLOAD ARTICULATED POWER TURN (APT) HITCH.....................................................................10

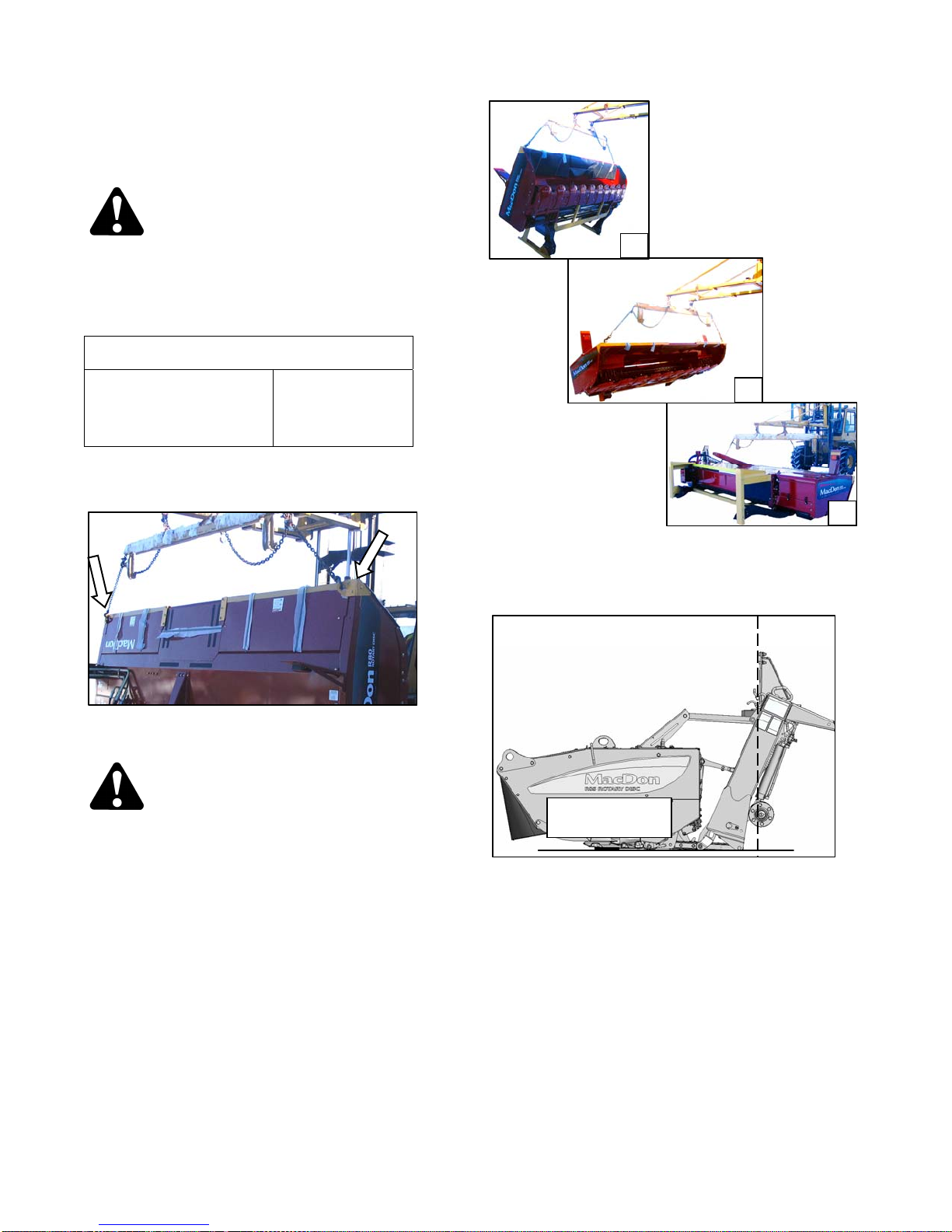

STEP 2.UNLOAD HEADER................................................................................................................................11
STEP 3.LOWER MOWER CONDITIONER ........................................................................................................12
STEP 4.REMOVE SHIPPING CHANNELS AND BLOCKING...........................................................................13
STEP 5.REMOVE FORMING SHIELD ...............................................................................................................14
STEP 6.UNPACK APT HITCH............................................................................................................................16
STEP 7.ATTACH APT HITCH ............................................................................................................................18
STEP 8.CONNECT LIFT HOSE..........................................................................................................................19
STEP 9.CONNECT WIRING HARNESS ............................................................................................................19
STEP 10.INSTALL HYDRAULIC MOTOR ...........................................................................................................20
STEP 11.INSTALL WHEELS................................................................................................................................21
STEP 12. INSTALL CENTER-LINK.......................................................................................................................22
A.MECHANICAL LINK..........................................................................................................................................22
B.HYDRAULIC LINK ............................................................................................................................................22
STEP 13.REMOVE BANDING AT LIFT CYLINDERS .........................................................................................22
STEP 14.TRACTOR SETUP.................................................................................................................................23
A.DRAWBAR ADJUSTMENT...............................................................................................................................23
B.DRAWBAR HITCH SETUP...............................................................................................................................23
C.3-POINT HITCH SETUP...................................................................................................................................25
STEP 15.MOWER CONDITIONER/ TRACTOR HOOKUP..................................................................................26
A.DRAWBAR HOOKUP.......................................................................................................................................26
B.3-POINT HITCH HOOKUP ...............................................................................................................................27
STEP 16.ATTACH HYDRAULICS AND ELECTRICAL.......................................................................................28
STEP 17.ATTACH ELECTRICAL CONNECTOR ................................................................................................29
STEP 18.INSTALL STEERING CYLINDER.........................................................................................................30
STEP 19.FILL LIFT CYLINDERS.........................................................................................................................31
STEP 20.INSTALL FLOAT SPRINGS..................................................................................................................32
STEP 21.INSTALL FORMING SHIELD................................................................................................................33
A.ATTACH FORMING SHIELD............................................................................................................................33
B.INSTALL SUPPORTS.......................................................................................................................................33
C.ADJUST REAR DEFLECTOR...........................................................................................................................34
D.ADJUST SIDE DEFLECTORS..........................................................................................................................34
E.ADJUST SWATH BAFFLE................................................................................................................................35
STEP 22.INSTALL OPTIONS...............................................................................................................................36
A.TALL CROP DIVIDER KIT................................................................................................................................36
B.SKID SHOES....................................................................................................................................................36

TABLE OF CONTENTS
Section/Title Page
169561 2Revision C
C.HEADER DRIVE PERFORMANCE KIT............................................................................................................36
D.HYDRAULIC DRIVE PRESSURE GAUGE.......................................................................................................37
STEP 23.LUBRICATE MOWER CONDITIONER.................................................................................................38
A.OPENING/CLOSING DRIVESHIELD................................................................................................................38
B.LUBRICATION PROCEDURE ..........................................................................................................................38
STEP 24.PERFORM PRE-DELIVERY CHECKS .................................................................................................43
A.DRIVE BELT .....................................................................................................................................................43
B.BEVEL GEARBOX OIL LEVEL.........................................................................................................................43
C.HEADER FLOAT...............................................................................................................................................44
D.SKID SHOES ....................................................................................................................................................44
E.CONDITIONER ROLLS.....................................................................................................................................45
F.LIGHTS .............................................................................................................................................................47
G.MANUALS.........................................................................................................................................................47
H.RUN-UP THE MOWER CONDITIONER...........................................................................................................48
I.TRUCK TRANSPORT HITCH...........................................................................................................................49

SAFETY
169561 3Revision C

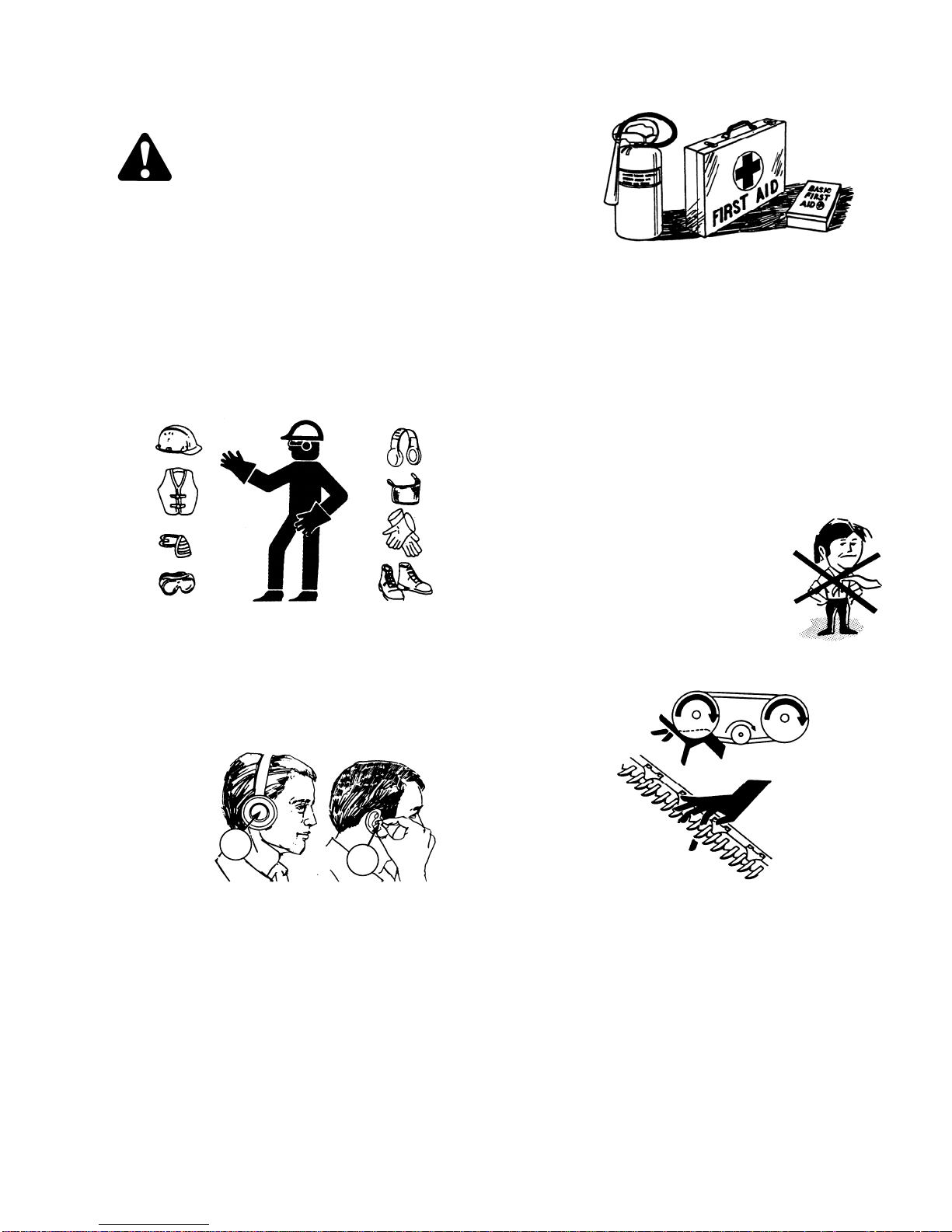

GENERAL SAFETY
CAUTION
The following are general farm safety
precautions that should be part of your
operating procedure for all types of machinery.
Protect yourself.
When assembling, operating and servicing
machinery, wear all the protective clothing
and personal safety devices that COULD be
necessary for the job at hand. Don't take
chances.
You may need:
oa hard hat.
oprotective shoes with slip resistant
soles.
oprotective glasses or goggles.
oheavy gloves.
owet weather gear.
orespirator or filter mask.
ohearing protection. Be aware that
prolonged exposure to loud noise can
cause impairment or loss of hearing.
Wearing a suitable hearing protective
device such as ear muffs (A) or ear
plugs (B) protects against objectionable
or loud noises.
Provide a first-aid kit for use in case of
emergencies.
Keep a fire extinguisher on the machine. Be
sure the extinguisher is properly maintained
and be familiar with its proper use.
Keep young children away from machinery at
all times.
Be aware that accidents often happen when
the operator is tired or in a hurry to get
finished. Take the time to consider the safest
way. Never ignore warning signs of fatigue.
Wear close-fitting clothing and cover long
hair. Never wear dangling
items such as scarves or
bracelets.
Keep hands, feet, clothing
and hair away from moving
parts. Never attempt to clear
obstructions or objects from
a machine while the engine
is running.
Keep all shields in place. Never alter or
remove safety equipment. Make sure driveline
guards can rotate independently of the shaft
and can telescope freely.
Use only service and repair parts made or
approved by the equipment manufacturer.
Substituted parts may not meet strength,
design, or safety requirements.
Do NOT modify the machine. Unauthorized
modifications may impair the function and/or
safety and affect machine life.
(continued next page)
A B

SAFETY
169561 4Revision C
Stop engine and remove key from ignition
before leaving Operator’s seat for any
reason. A child or even a pet could engage
an idling machine.
Keep the area used for servicing machinery
clean and dry. Wet or oily floors are
slippery. Wet spots can be dangerous when
working with electrical equipment. Be sure
all electrical outlets and tools are properly
grounded.
Use adequate light for the job at hand.
Keep machinery clean. Do NOT allow oil or
grease to accumulate on service platforms,
ladders or controls. Clean machines before
storage.
Never use gasoline, naphtha or any volatile
material for cleaning purposes. These
materials may be toxic and/or flammable.
When storing machinery, cover sharp or
extending components to prevent injury
from accidental contact.

GENERAL
169561 5Revision C
RECOMMENDED TORQUES
A. GENERAL
Tighten all bolts to the torques specified in
chart unless otherwise noted throughout
this manual.
Check tightness of bolts periodically, using
bolt torque chart as a guide.
Replace hardware with the same strength
bolt.
Torque figures are valid for non-greased or
non-oiled threads and heads unless
otherwise specified. Do not grease or oil
bolts or capscrews unless specified in this
manual.
When using locking elements, increase
torque values by 5%.
B. SAE BOLTS
BOLT
DIA. "A"
in.
NC BOLT TORQUE*
SAE-5 SAE-8
lbf·ft N·m lbf·ft N·m
1/4 9 12 11 15
5/16 18 24 25 34
3/8 32 43 41 56
7/16 50 68 70 95
1/2 75 102 105 142
9/16 110 149 149 202
5/8 150 203 200 271
3/4 265 359 365 495
7/8 420 569 600 813
1 640 867 890 1205
* Torque categories for bolts and capscrews are identified by
their head markings.
C. METRIC BOLTS
BOLT
DIA. "A"
STD COARSE BOLT TORQUE*
8.8 10.9
lbf·ft N·m lbf·ft N·m
M3 0.4 0.5 1.3 1.8
M4 2.2 3 3.3 4.5
M5 4 6 7 9
M6 7 10 11 15
M8 18 25 26 35
M10 37 50 52 70
M12 66 90 92 125
M14 103 140 148 200
M16 166 225 229 310
M20 321 435 450 610
M24 553 750 774 1050
M30 1103 1495 1550 2100
M36 1917 2600 2710 3675
* Torque categories for bolts and capscrews are identified by
their head markings.
SAE-5 SAE-8

GENERAL
169561 6Revision C
D. FLARE TYPE HYDRAULIC
FITTINGS
a. Check flare and flare seat for defects that
might cause leakage.
b. Align tube with fitting before tightening.
c. Lubricate connection and hand-tighten swivel
nut until snug.
d. To prevent twisting the tube(s), use two
wrenches. Place one wrench on the connector
body, and with the second, tighten the swivel
nut to the torque shown.
SAE
NO.
TUBE
SIZE
O.D.
(in.)
THD
SIZE
(in.)
NUT
SIZE
ACROSS
FLATS
(in.)
TORQUE
VALUE*
RECOMMENDED
TURNS TO
TIGHTEN
(AFTER FINGER
TIGHTENING)
ft·lbf N·m Flats Turns
3 3/16 3/8 7/16 6 8 1 1/6
4 1/4
7/16 9/16 9 12 1 1/6
5 5/16 1/2 5/8 12 16 1 1/6
6 3/8
9/16 11/16 18 24 1 1/6
8 1/2 3/4 7/8 34 46 1 1/6
10 5/8 7/8 1 46 62 1 1/6
12 3/4
1-1/16 1-1/4 75 102 3/4 1/8
14 7/8
1-3/8 1-3/8 90 122 3/4 1/8
16 1
1-5/16 1-1/2 105 142 ¾ 1/8
* The torque values shown are based on lubricated connections
as in re-assembly.

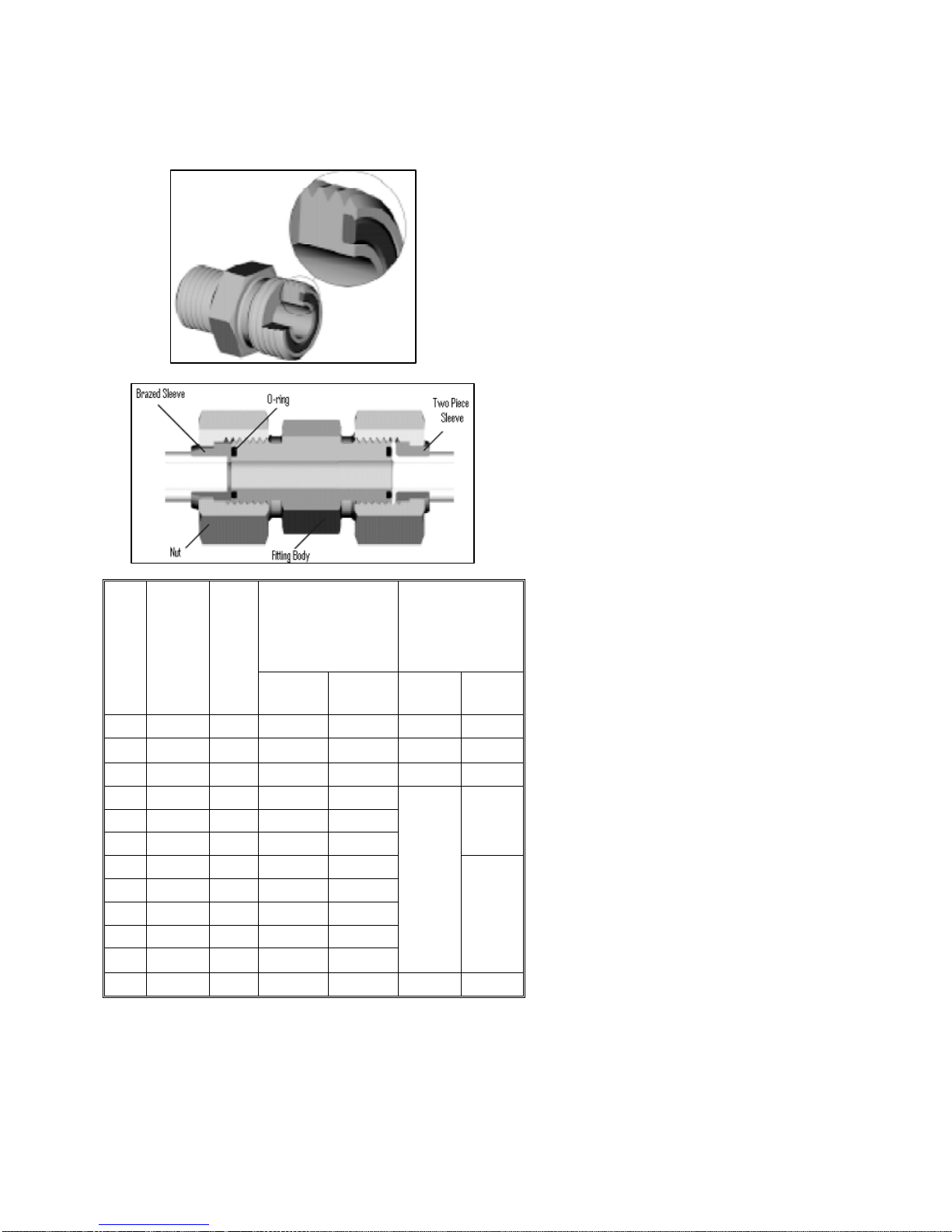

E. O-RING BOSS (ORB) HYDRAULIC
FITTINGS
a. Inspect O-ring and seat for dirt or obvious defects.
b. On angle fittings, back off the lock nut until washer
(A) bottoms out at top of groove (B) in fitting.
c. Hand-tighten fitting until back up washer (A) or
washer face (if straight fitting) bottoms on part
face (C), and O-ring is seated.
d. Position angle fittings by unscrewing no more than
one turn.
e. Tighten straight fittings to torque shown.
f. Tighten angle fittings to torque shown in the
following table while holding body of fitting with a
wrench.
SAE
NO.
THD
SIZE
(in.)
NUT SIZE
ACROSS
FLATS
(in.)
TORQUE
VALUE*
RECOMMENDED
TURNS TO TIGHTEN
(AFTER FINGER
TIGHTENING)
ft·lbf N·m Flats Turns
3 3/8 1/2 6 8 2 1/3
4 7/16 9/16 9 12 2 1/3
5 1/2 5/8 12 16 2 1/3
6 9/16 11/16 18 24 2 1/3
8 3/4 7/8 34 46 2 1/3
10 7/8 1 46 62 1-1/2 1/4
12 1-1/16 1-1/4 75 102 1 1/6
14 1-3/16 1-3/8 90 122 1 1/6
16 1-5/16 1-1/2 105 142 3/4 1/8
20 1-5/8 1-7/8 140 190 3/4 1/8
24 1-7/8 2-1/8 160 217 1/2 1/12
* The torque values shown are based on lubricated connections as
in re-assembly.
LOCKNUT
SEAT
WASHE
R
O-RING
GROOVE
FITTING
A
B
C
FLARE
FLARESEAT BODY
NUT

GENERAL
169561 7Revision C
F. O-RING FACE SEAL (ORFS)
HYDRAULIC FITTINGS
* Torque values and angles shown are based on lubricated
connection, as in re-assembly.
** Always default to the torque value for evaluation of adequate
torque
*** O-ring face seal type end not defined for this tube size.
a. Check components to ensure that the sealing
surfaces and fitting threads are free of burrs,
nicks, and scratches, or any foreign material.
b. Apply lubricant (typically Petroleum Jelly) to
O-ring and threads. If O-ring is not already
installed, install O-ring.
c. Align the tube or hose assembly. Ensure that
flat face of the mating flange comes in full
contact with O-ring.
d. Thread tube or hose nut until hand-tight. The
nut should turn freely until it is bottomed out.
Torque fitting further to the specified number of
F.F.F.T (“Flats From Finger Tight”), or to a given
torque value in the table shown in the opposite
column.
NOTE
If available, always hold the hex on the
fitting body to prevent unwanted rotation
of fitting body and hose when tightening
the fitting nut.
e. When assembling unions or two hoses together,
three wrenches will be required.
SAE
NO.
THD
SIZE
(in.)
TUBE
O.D.
(in.)
TORQUE VALUE*
RECOMMENDED
TURNS TO
TIGHTEN
(AFTER FINGER
TIGHTENING)**
ft·lbf N·m Tube
Nuts Swivel & Hose
3 *** 3/16 --- --- --- ---
4 9/16 1/4 11–12 14–16
1/4–1/2 1/2–3/4
5 *** 5/16 --- --- --- ---
6 11/16 3/8 18–20 24–27
1/4 -1/2
1/2–3/4
8 13/16 1/2 32–35 43–47
10 1 5/8 45–51 60–68
12 1-3/16 3/4 67–71 90–95
1/3 -1/2
14 1-3/16 7/8 67–71 90–95
16 1-7/16 1 93–100 125–135
20 1-11/16 1-1/4 126–141 170–190
24 2 1-1/2
148–167 200–225
32 2-1/2 2 --- --- --- ---

GENERAL
169561 8Revision C
CONVERSION CHART
QUANTITY INCH-POUND UNITS FACTOR SI UNITS (METRIC)
UNIT NAME ABBR. UNIT NAME ABBR.
Area acres acres x 0.4047 = hectares ha
Flow gallons per minute (US)
gallons per minute (Imp) gpm (US) gpm x 3.7854 = x 4.5460 = liters per minute L/min
Force pounds force lbf x 4.4482 = Newtons N
Length inch in. x 25.4 = millimeters mm
foot ft x 0.305 = meters m
Power horsepower hp x 0.7457 = kilowatts kW
Pressure pounds per square inch psi x 6.8948 = kilopascals kPa
x .00689 = megapascals MPa
Torque
pound feet or foot pounds lbf·ft or ft·lbf x 1.3558 =
newton meters N·m
pound inches or
inch pounds lbf·in. or in·lbf x 0.1129 =
Temperature degrees Fahrenheit ˚F (˚F - 32) x 0.56 = Celsius ˚C
Velocity
feet per minute ft/min x 0.3048 = meters per minute m/min
feet per second ft/s x 0.3048 = meters per second m/s
miles per hour mph x 1.6063 = kilometers per hour km/h
Volume
ounces oz. x 29.5735 = milliliters ml
cubic inches in.3x 16.3871 = cubic centimeters cm3or
cc
quarts (US)
quarts (Imperial) US qt. qt. x 0.96464 x 1.1365 liters L
gallons (US)
gallons (Imperial) US gal. gal. x 3.7854 = x 4.5460 =
Weight pounds lb x 0.4536 = kilograms kg
