MAG Audio FD Series User manual

[e-mail] Tel./Fax: [phone] www.mag-audio.com
FD Series User Manual rev 1.00
1
User Manual
Systems:
FD-52
FD-S15
FD SERIES

FD Series User Manual rev 1.00
[e-mail] Tel./Fax: [phone] www.mag-audio.com
2
Contents
Contents............................................................................................................................................................................................2
Panel A. Dimensions ....................................................................................................................................................................4
1. Safety instructions ...................................................................................................................................................................7
2. Regulatory information........................................................................................................................................................ 8
3. FD series.......................................................................................................................................................................................9
3.2. Z series speaker models ................................................................................................................................................9
4. Specifications.......................................................................................................................................................................... 10
5. System operation...................................................................................................................................................................12
5.1. Rigging.................................................................................................................................................................................12
5.2. Flying via M10 mounting points..............................................................................................................................12
5.3. Eye-bolt orientation......................................................................................................................................................12
5.4. Coupling using FD-C connector..............................................................................................................................12
5.5. FD-C connector mounting options .......................................................................................................................13
5.6. FD-52 or FD-S15 splay angle....................................................................................................................................13
5.7. FD-C connector mouting hole reference.............................................................................................................13
5.8. Passive speakers.............................................................................................................................................................14
5.8.1. Passive connections...............................................................................................................................................14
6. Standard contents.................................................................................................................................................................15
7. Accessories ................................................................................................................................................................................15
8. Warranty and assistance....................................................................................................................................................16
8.1. Product warranty............................................................................................................................................................16
8.2. Assistance..........................................................................................................................................................................16

[e-mail] Tel./Fax: [phone] www.mag-audio.com
FD Series User Manual rev 1.00
3
1. Правила техники безопасности ...................................................................................................................................17
2. Нормативная информация ............................................................................................................................................ 18
3. FD серия ....................................................................................................................................................................................19
3.1. Вступление........................................................................................................................................................................19
3.2. Системы FD серии........................................................................................................................................................19
4. Спецификации ......................................................................................................................................................................20
5. Эксплуатация......................................................................................................................................................................... 22
5.1. Установка .......................................................................................................................................................................... 22
5.2. Подвес с помощью точек М10 ............................................................................................................................. 22
5.3. Размещение рым-болтов при подвесе........................................................................................................... 22
5.4. Соединение с помощью коннектора FD-C................................................................................................... 22
5.5. Варианты крепления коннектора FD-C .........................................................................................................23
5.6. Угол раскрыва для креплении FD-52 или FD-S15 ...................................................................................23
5.7. Использование крепежных отверстий коннектора FD-C.....................................................................23
5.8. Пассивные системы....................................................................................................................................................24
5.8.1 Пассивное подключение...................................................................................................................................24
6. Комплект поставки............................................................................................................................................................. 25
7. Аксессуары.............................................................................................................................................................................. 25
8. Гарантия и поддержка.....................................................................................................................................................26
8.1. Гарантия продукта ......................................................................................................................................................26
8.2. Поддержка......................................................................................................................................................................26

FD Series User Manual rev 1.00
[e-mail] Tel./Fax: [phone] www.mag-audio.com
4
Panel A. Dimensions
FD-52 FD-S15

[e-mail] Tel./Fax: [phone] www.mag-audio.com
FD Series User Manual rev 1.00
5
1. Safety instructions
1. Read these instructions carefully.
2. Keep these instructions.
3. Heed all warnings.
4. Follow all instructions.
5. Do not use this equipment near water.
6. Clean only with dry cloth.
7. Do not block any ventilation openings. Install in accordance
with the manufacturer’s instructions.
8. Do not use near heat sources such as stoves, heat registers,
radiatiors or other equipment (including amplifiers) that
produces heat.
9. Do not use the unit near open fire sources.
10. Connect the unit only to the electric network with grounding.
Use only electic plugs that provide grounding.
11. Protect the power cord from being walked on, pinched, or
otherwise damaged.
12. Use only accessories specified by the manufacturer.
13. Unplug this unit during lightning storms or when unused for
long periods of time.
14. Refer all servicing to qualified service personnel. Servicing is
required when the system has been damaged in any way, such
as power supply cord or plug is damaged, liquid has been spilled
or objects have fallen into the unit, the unit has been exposed
to rain or moisture, does not operate normally, or has been
dropped.
15. WARNING: TO REDUCE THE RISK OF FIRE OR ELECTRIC
SHOCK, DO NOT EXPOSE THIS SYSTEM UNIT TO RAIN OR
MOISTURE.
THIS UNIT CONTAINS POTENTIALLY LETHAL VOLTAGES.
TO PREVENT ELECTRIC SHOCK OR HAZARD, DO NOT
REMOVE THE AMPLIFIER MODULE. NO USER SERVICEABLE
PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE
PERSONNEL.
INSTALLING OF THIS UNIT MUST BE PERFORMED ONLY BY
QUALIFIED TRAINED PERSONNEL FOLLOWING APPLICABLE
SAFETY RULES. DO NOT ALLOW INSTALLATION OF THIS UNIT
IF INSTALLATION HARDWARE IS BROKEN, BENT, PARTS ARE
MISSING OR IS OTHERWISE DAMAGED.
The triangle with the lightning bolt is used to alert the
user to the risk of electric shock.
The triangle with the exclamation point is used to
alert the user to important operating or maintenance
instructions.
The CE-mark indicates the compliance with the low
voltage and electromagnetic compatibility.
Symbol for earth/ground connection.
Symbol indicating that the equipment is for indoor use
only.
Symbol for conformity with Directive 2002/96/EC and
Directive 2003/108/EC of the European Parliament on
waste electrical and electronic equipment (WEEE).
WARNING:TO REDUCETHE RISK OF ELECTRIC SHOCK,
DO NOT ATTEMPT TO OPEN ANY PART OF THE
UNIT. NO USER-SERVICEABLE PARTS INSIDE. REFER
SERVICING TO QUALIFIED SERVICE PERSONNEL.
TO COMPLETELY DISCONNECT THIS APPARATUS
FROM THE AC MAINS, DISCONNECT THE POWER
SUPPLY CORD PLUG FROM THE AC RECEPTACLE.
THE MAINS PLUG OF THE POWER SUPPLY CORD
MUST REMAIN READILY ACCESSIBLE.
DO NOT EXPOSE THIS EQUIPMENT TO RAIN OR
MOISTURE, DRIPPING OR SPLASHING LIQUIDS.
OBJECTS FILLED WITH LIQUIDES, SUCH AS VASES,
SHOULD NOT BE PLACED ON THIS APPARATUS.
CONNECTIONS TO THE MAINS SHALL BE DONE ONLY
BY AN ELECTROTECHNICALLY SKILLED PERSON
ACCORDING TO THE NATIONAL REQUIREMENTS OF
THE COUNTRIES WHERE THE UNIT IS SOLD.
EXPLANATIONS OF GRAPHICAL SYMBOLS IMPORTANT SAFETY INSTRUCTIONS
? ?
?
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN

FD Series User Manual rev 1.00
[e-mail] Tel./Fax: [phone] www.mag-audio.com
6
2. Regulatory information
FCC COMPLIANCE NOTICE
This device complies with part 15 of the FCC
rules. Operation is subject to the following two
conditions: (1) This device may not cause harmful
interference, and (2) this device must accept any
interference received, including interference that
may cause undesired operation.
CAUTION: Changes or modifications not expressly
approved by the party responsible for compliance
could void the user’s authority to operate the
equipment.
NOTE: This equipment has been tested and found
to comply with the limits for a Class B digital device,
pursuant to part 15 of the FCC Rules.These limits are
designed to provide reasonable protection against
harmful interference in a residential installation.This
equipment generates, uses, and can radiate radio
frequency energy and, if not installed and used in
accordance with the instruction manual, may cause
harmful interference to radio communications.
However, there is no guarantee that interference
will not occur in a particular installation. If this
equipment does cause harmful interferenceto radio
or television reception, which can be determined
by turning the equipment o and on, the user is
encouraged to try to correct the interference by
one or more of the following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment
and receiver.
- Connect the equipment into an outlet on a
circuit dierent from that to which the receiver is
connected.
- Consult the dealer or an experienced radio/TV
technician for help.
EC DECLARATION OF CONFORMITY
Manufacturer:
MAG Audio LLC
2 Merezhna str., Bila Tserkva,
Kyiv region, 09100, Ukraine
We declare under our sole responsibility that
product models:
FD-52-63-BK, FD-52-63-WH, FD-52-66-BK,
FD-52-66-WH, FD-52-93-BK, FD-52-93-WH,
FD-52-96-BK, FD-52-96-WH, FD-52-99-BK,
FD-52-99-WH, FD-S15-BK, FD-S15-WH
intended for use as:
professional speaker systems
are in conformitywith the provisions ofthe following
EC Directives, including all amendments, and with
national legislation implementing these directives:
- 2006/95/EC Low Voltage Directive
- 2004/108/EC Electromagnetic Compatibility Directive
- 2002/95/CE RoHs Directive
The following harmonized standards are applied:
EN 55103-1:2009 /A1:2012
EN 55014-1:2006 /A1:2009 /A2:2011
EN 55022:2010 /AC:2011
EN 61000-3-2:2006 /A1:2009 /A2: 2009
EN 61000-3-3:2013
EN 61000-3-11:2000
EN 61000-3-12:2011
EN 55103-2:2009 /IS:2012
EN 61000-4-2:2009
EN 61000-4-3:2006 /A1:2008 /IS1:2009 /A2:2010
EN 61000-4-4:2012
EN 61000-4-5:2006
EN 61000-4-6:2014
EN 61000-4-11:2004
EN 60065:2002 /A1:2006 /A11:2008 /A2:2010 /A12:2011
Bila Tserkva,
22 January 2019
Alexey Asanov
CEO
For compliance questions: [e-mail]

[e-mail] Tel./Fax: [phone] www.mag-audio.com
FD Series User Manual rev 1.00
7
3. FD series
3.1. Introduction
Field series’ design allows for easycoupling allowing
engineer to create a tailored solution for the best
coverage and clarity in clustered distributed
systems for domed stadiums, arenas and other
large open air spaces.
With comprehensive range of mounting accessories
engineered for permanent installation, Field series
is prepared to deliver controlled sound into the
most dicult installations.
FD-52 is a coaxial positioned hornloaded 15” and
1,5’’ HF driver speaker in weather-resistant IP 55
enclosure. Available with wide selection of HF
horn providing various coverage patterns, FD-52’s
are versatile for long-throw and short-distance
applications alike.
FD-S15 is a hybrid-horn subwoofer extending
operation of Field series for truly full-range
applications. Compatible IP55 enclosure allows to
integrate FD-S15 straight into a FD-52 clusters for
convenience of system engineering, deployment
and amplification
3.2. Z series speaker models
FD series includes following speaker models:
FD-52-63-BK part number 00-0020010
FD-52-63-WH part number 00-0021246
FD-52-66-BK part number 00-0020011
FD-52-66-WH part number 00-0021248
FD-52-93-BK part number 00-0020012
FD-52-93-WH part number 00-0021249
FD-52-96-BK part number 00-0017195
FD-52-96-WH part number 00-0021255
FD-52-99-BK part number 00-0020013
FD-52-99-WH part number 00-0021257
FD-S15-BK part number 00-0019958
FD-S15-WH part number 00-0021263

FD Series User Manual rev 1.00
[e-mail] Tel./Fax: [phone] www.mag-audio.com
8
4. Specifications
System FD-52-63 FD-52-66 FD-52-93
Type Weather-resistant installa-
tion speaker
Weather-resistant installa-
tion speaker
Weather-resistant installa-
tion speaker
Frequency Response (−10dB) 86 - 18000 Hz 86 - 18000 Hz 86 - 18000 Hz
Max SPL 1141 dB 141 dB 141 dB
Sensitivity (1W/1m) 105 dB 105 dB 105 dB
Drivers 15” woofer, 1,5” HF driver in
coaxial configuration
15” woofer, 1,5” HF driver in
coaxial configuration
15” woofer, 1,5” HF driver in
coaxial configuration
Nominal Coverage Angle
(Horizontal × Vertical) 60° x 30° 60° x 60° 90° x 30°
Impedance 8 Ohm 8 Ohm 8 Ohm
Nominal power 2500 W 500 W 500 W
Connectors Phoenix terminal / Gland nut
cover plate
Phoenix terminal / Gland nut
cover plate
Phoenix terminal / Gland nut
cover plate
Dimensions (W×H×D), mm 759x765x700 mm
29,9”x30,1”x27,56”
759x765x700 mm
29,86”x30,13”x27,56”
759x765x700 mm
29,86”x30,13”x27,56”
Net weight, kg 58 kg / 127,9 lbs 58 kg / 127,9 lbs 58 kg / 127,9 lbs
Shipping weight, kg 61 kg / 134,5 lbs 61 kg / 134,5 lbs 61 kg / 134,5 lbs
Mounting 24x M10 mounting points 24x M10 mounting points 24x M10 mounting points
Enclosure material Plywood; polyurethane
environmental paint
Plywood; polyurethane
environmental paint
Plywood; polyurethane
environmental paint
Weather-protection IP55 IP55 IP55
Speaker protection Steel grill, acoustically
transparent backing
Steel grill, acoustically
transparent backing
Steel grill, acoustically
transparent backing
System FD-S15
Type Weather-resistant installation subwoofer
Frequency Response (−10dB) 43 - 200 Hz
Max SPL 1141 dB
Sensitivity (1W/1m) 102 dB
Drivers 15” woofer
Impedance 8 Ohm
Nominal power 21000 W
Connectors Phoenix terminal / Gland nut cover plate
Dimensions (W×H×D), mm 759x762x708mm
29,94”x30,00”x27,87”
Net weight, kg 60 kg / 132,3 lbs
Shipping weight, kg 63 kg / 138,9 lbs
Mounting 24x M10 mounting points
Enclosure material Plywood; polyurethane environmental paint
Weather-protection IP55
Speaker protection Steel grill, acoustically transparent backing
1 - peak value, calculated according to AES 2 - 2012
2 - based on transducer power measured according to AES 2 - 2012
1 - peak value, calculated according to AES 2 - 2012
2 - based on transducer power measured according to AES 2 - 2012

[e-mail] Tel./Fax: [phone] www.mag-audio.com
FD Series User Manual rev 1.00
9
System FD-52-96 FD-52-99
Type Weather-resistant installation speaker Weather-resistant installation speaker
Frequency Response (−10dB) 86 - 18000 Hz 86 - 18000 Hz
Max SPL 1141 dB 141 dB
Sensitivity (1W/1m) 105 dB 105 dB
Drivers 15” woofer, 1,5” HF driver in coaxial
configuration
15” woofer, 1,5” HF driver in coaxial
configuration
Nominal Coverage Angle
(Horizontal × Vertical) 90° x 60° 90° x 90°
Impedance 8 Ohm 8 Ohm
Nominal power 2500 W 500 W
Connectors Phoenix terminal / Gland nut cover plate Phoenix terminal / Gland nut cover plate
Dimensions (W×H×D), mm 759x765x700 mm
29,86”x30,13”x27,56”
759x765x700 mm
29,86”x30,13”x27,56”
Net weight, kg 58 kg / 127,9 lbs 58 kg / 127,9 lbs
Shipping weight, kg 61 kg / 134,5 lbs 61 kg / 134,5 lbs
Mounting 24x M10 mounting points 24x M10 mounting points
Enclosure material Plywood; polyurethane environmental paint Plywood; polyurethane environmental paint
Weather-protection IP55 IP55
Speaker protection Steel grill, acoustically transparent backing Steel grill, acoustically transparent backing
1 - peak value, calculated according to AES 2 - 2012
2 - based on transducer power measured according to AES 2 - 2012

FD Series User Manual rev 1.00
[e-mail] Tel./Fax: [phone] www.mag-audio.com
10
5. System operation
5.1. Rigging
FD series systems are equipped with M10 point for mounting or for connecting using the FD-C connector.
Rigging must be performed only by trained personnel following the established safety rules.
MAXIMUM WEIGHT RESTRICTIONS MUST BE FOLLOWED AT ALL TIMES!
MAKE SURE THE SUPPORT STRUCTURE IS CAPABLE OF HOLDING THE APPLIED WEIGHT WHILE
SUSPENDING THE SYSTEM!

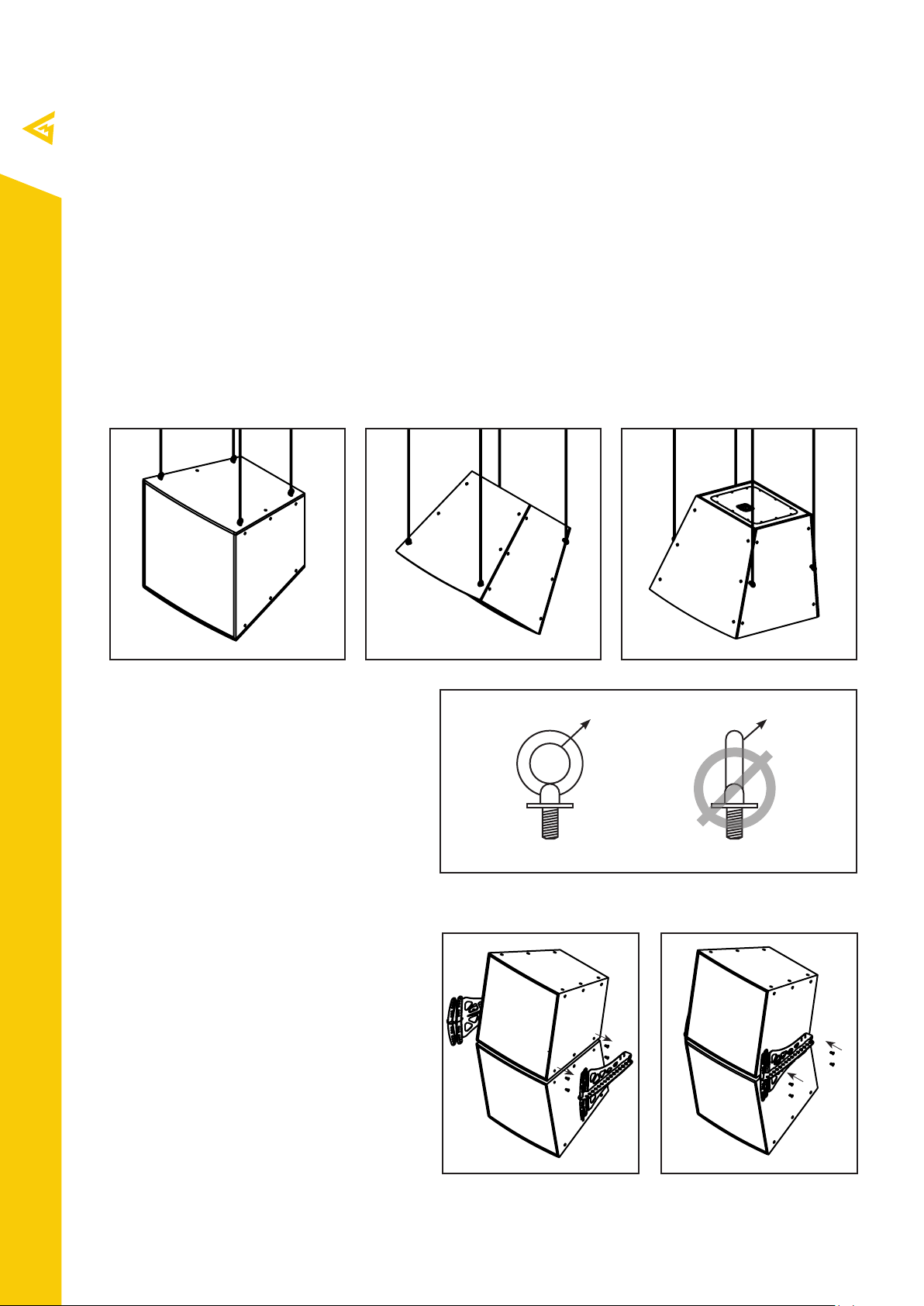

5.2. Flying via M10 mounting points
Required accessories:
VA-0016 (part No. 00-00003695)
Dierent options are available while flying FD series speakers using integrated M10 flying points.
5.3. Eye-bolt orientation
While flying, pull direction must be in the
plane of the VA-0016 eyebolt’s ring. It is
prohibited to arrange the rig in the way
that pull direction is at the angle from the
eyebolt’s ring plane.
Correct
Pull direction
Incorrect
5.4. Coupling using FD-C connector
Required accessories:
FD-C-BK (part No. 00-0005427)
FD-C-WH (part No. 00-0005428)
FD-C Connector is the versatile tool for
coupling together several FD-52 and FD-
S15 cabinets.
- Remove M10 mounting bolts from
cabinets. (pic. 1)
- Attach the FD-C connector to both
cabitens from two sides and fix it firmly
with M10 mounting bolts. (pic. 2) 1 2

[e-mail] Tel./Fax: [phone] www.mag-audio.com
FD Series User Manual rev 1.00
11
5.6. FD-52 or FD-S15 splay angle
FD-C connector allows to set 20° to 50°
splay anlge between speakers’ radiation
axes.
5.5. FD-C connector mounting
options
FD-C connector can be attached to FD-
52 or FD-S15 cabinet using both its sides:
mounting holes can be revealed (pic. 3, 4)
for mounting or hidden (pic. 5, 6) for smaller
dimensions and neater looks.
5.7. FD-C connector mouting hole
reference
Hole pattern Radiation axes
angle
1 + A 20°
2 + A 25°
3 + A 30°
4 + B 35°
5 + B 40°
6 + B 45°
7 + B 50°
3
7
1AB
2
3
4
5
6
7
4
8
9
5 6
Shackle holes hidden
Shackle holes visible

FD Series User Manual rev 1.00
[e-mail] Tel./Fax: [phone] www.mag-audio.com
12
Connection plate Cable gland cover Installation of
cable gland cover
1. PHOENIX TERMINAL: Connect the 2-wire cable from amplifier
here.
2. CABLE GLAND: Put the cable through cable gland for water
sealed signal connection.
3. Use six screws (included) to install the cable gland cover onto
the connection plate
DSP AMPLIFIER
Z series passive
full-range system
Z series passive
subwoofer
Z series passive
subwoofer
FD series passive connection diagram
5.8.1. Passive connections
Use power amplifier with DSP or power amplifiers
with external speaker processor with FD series
systems.
MAKE SURE TO USE HIGH PASS FILTER FOR ALL
FD SERIES SYSTEMS TO PREVENT EXCESSIVE
CONE MOVEMENT, RESULTING IN TRANSDUCER
DAMAGE OR FAST DETERIORATION.
Recommended HPF settings, suggested power
amplifier ratings, and connection pins are found in
the table below:
System Amplifier power Amplifier impedance Connection pins Recommended HPF
FD-52 500 - 1000 W 8 Ohm + -55 Hz or higher, 18 dB/oct min
FD-S15 1000 - 2000 W 8 Ohm + -40 Hz or higher, 18 dB/oct min
1
5.8. Passive speakers
2
Speakon -
two wire cable
Speakon -
two wire cable
Speakon -
two wire cable
Speakon -
two wire cable
FD-52
FD-S15
FD-52
FD-S15

[e-mail] Tel./Fax: [phone] www.mag-audio.com
FD Series User Manual rev 1.00
13
6. Standard contents
Please check the complement of your FD series system upon receiving the package.
Standard contents of FD series systems:
System Supplied FD series system FD series
User Manual
Cable gland
cover with 6pcs
screws
Polyethylene
bag Carton Box
FD-52-63-BK FD-52-63 Weather resistant passive
system, black + + + +
FD-52-63-WH FD-52-63 Weather resistant passive
system, white + + + +
FD-52-66-BK FD-52-66 Weather resistant passive
system, black + + + +
FD-52-66-WH FD-52-66 Weather resistant passive
system, white + + + +
FD-52-93-BK FD-52-93 Weather resistant passive
system, black + + + +
FD-52-93-WH FD-52-93 Weather resistant passive
system, white + + + +
FD-52-96-BK FD-52-96 Weather resistant passive
system, black + + + +
FD-52-96-WH FD-52-96 Weather resistant passive
system, white + + + +
FD-52-99-BK FD-52-99 Weather resistant passive
system, black + + + +
FD-52-99-WH FD-52-99 Weather resistant passive
system, white + + + +
FD-S15-BK FD-S15 weather resistant passive
subwoofer, black + + + +
FD-S15-WH FD-S15 weather resistant passive
subwoofer, white + + + +
7. Accessories
Accessories available for FD series systems:
FD-C-BK (Part No. 00-0020014)
Black flying adapter for FD-52, FD-S15
FD-C-WH (Part No. 00-0021263)
White flying adapter for FD-52, FD-S15

FD Series User Manual rev 1.00
[e-mail] Tel./Fax: [phone] www.mag-audio.com
14
8. Warranty and assistance
8.2. Assistance
There are no user-serviceable parts in your
device. Refer servicing to qualified technical
personnel. In addition to in-house service
department, MAG Audio supports the chain of
distributors, authorized in repairs and service. If
your device needs repair contact your MAG Audio
dealer or distributor.
Occasionally, due to the nature of the failure, it
might be necessary to return defective products to
MAG Audio for repair. In this case, before shipping,
please kindly contact your MAG Audio distributor or
dealer, or MAG Audio directly. You will be provided
the RMA number code and detailed instructions
regarding your particular case. Please do not send
products without a prior authorization.
Thank you for your understanding, cooperation and
choice of MAG Audio products.
8.1. Product warranty
1. By this warranty MAG Audio grants that all
equipment manufactured under the MAG Audio
trademark is free from defects in material,
components and factory workmanship under
the normal use and maintenance for the time as
specified below.
2. All warranty repairs and maintenance of MAG
Audio products shall be carried out at MAG Audio
production sites or by MAG Audio authorized
personnel at no cost for the product purchaser.
3. Warranty period for cone transducers, high
frequency drivers and crossovers, whether sold
separately or as a component of a speaker system,
is 60 months from the production date.
4. Warranty period for enclosures, grills, connection
plates and accessories, whether sold separately or
as a component of a speaker system, is 60 months
from the production date.
5. Warranty period for built-in power amplifiers,
whether sold separately or as a component of a
speaker system, is 36 months from the production
date.
6. Warranty repairs or maintenance will be
performed only if a) MAG Audio product was
purchased from an ocial MAG Audio distributor
/ dealer and b) warranty card with specified serial
number, production date, realization date, vendor’s
signature and stamp is presented.
7. Warranty shall not cover following: damage
caused by accident, misuse or failure to follow
exploitation rules stated in technical manual;
repairs performed by non-authorized personnel;
mechanical damage caused by shipping accidents
and normal tear and wear.
8. Warranty shall not be applicable to any product
with defaced, removed, or modified serial number.
9. If your MAG Audio product needs repairs or
maintenance, contact your ocial MAG Audio
distributor / dealer. Please do not ship your MAG
Audio product without prior authorization.

[e-mail] Tel./Fax: [phone] www.mag-audio.com
FD Series User Manual rev 1.00
15

FD Series User Manual rev 1.00
[e-mail] Tel./Fax: [phone] www.mag-audio.com
16
2 Merezhna str., Bila Tserkva,
Kyiv region, 09100, Ukraine
Tel./Fax.: [phone]
e-mail: [e-mail]
www.mag-audio.com
