MAG AUDIO ABOUT VerA M
3. ABOUT VerA M
3.1. Introduction
VerA series is a portable solution that in the best way combines power and high sound quality. Being compact,
VerA sets still deliver considerable sound pressure, needed in small- and medium-sized bars, restaurants,
karaoke bars, corporate events, and parties.
Convenience and ease of use – this is what the VerA series is all about. These sets are ready-to-use plug-and-
play systems, with built-in Powersoft modules, complete with ready presets, ensuring quick set-up as well as
smooth and flawless operation for any user.
VerA series is made specifically for ease of use and transportation while providing sound performance and
reliability rivaling those of bigger sets.
Vera M is the complete solution where a portable, powerful, and reliable sound system is a must-have. It
features quad 6” plus 1” low distortion driver satellites and two eective 15” subwoofers. Driven by integrated
Powersoft® amplifier and processing, Vera M is easy to set up and use, providing 3000W of nominal power.
3.2. VerA M speaker sets
VerA M is provided as the following speaker sets:
VerA-M-BK part number 00-0017441
VerA-M-WH part number 00-0021305
VerA M User Manual rev 1.00
8
MAG AUDIO SPECIFICATIONS
4. SPECIFICATIONS
System VerA M
Type Powered speaker set
Frequency Response (−10dB) 42 - 20000 Hz
Max SPL 1132 dB (one VerA M sub + one VerA M top)
Sub driver 15”
Top drivers 4x 6” + 1”
Coverage (HxV) 90° x 40° (one side)
Amplifier Class D Powersoft, Bi-amp, fan cooling
Total system power 6000 W
Amplifier channels 1500W + 1500W (one side)
Power consumption, 1/8 max
power 1200W (both sides)
Power consumption, peak 6600W (both sides)
Input sensitivity +4 dBV
Settings 4 switchable presets
VerA M Sub:
Connectors XLR input, XLR output, Powercon mains, Speakon output for Top
Mounting Top pole socket
Dimensions (WxHxD) 441x631x611 mm (each)
Net weight 34,8 kg (each)
Gross weight 36,8 kg (each)
Enclosure materials Plywood; wear-resistant paint
Grill Steel grill, acoustically transparent backing
VerA M Top:
Connectors Neutrik Speakon
Mounting 35mm pole socket
Dimensions (WxHxD) 171x920x231 mm (each)
Net weight 15,4 kg (each)
Gross weight 17,4 kg (each)
Grill Steel grill, acoustically transparent backing
VerA M User Manual rev 1.00
9
MAG AUDIO SYSTEM OPERATION
5. SYSTEM OPERATION
5.1. Rigging
VerA M system is a ready plug&play speaker set that comes with two stands to place the VerA M top on the
VerA M sub. The stand also houses the connecting speaker cable so VerA M is simple to connect, simple to use,
and easy to transport.
Exercise caution while setting up the system using the stands.
5.2. Setting up the VerA M system using stands.
Dierent options are available while flying X series full-range speakers using integrated M10 flying points.
Pull the stand release lever on the top of the VerA M sub. Insert the stand into the sockets of the VerA M sub.
Place the VerA M top onto the stand. Insert Speakon connectors in the sockets of the
VerA M Sub and VerA M Top.
VerA M User Manual rev 1.00
10
MAG AUDIO
5.3. Powered connections
VerA M powered set is equipped with highly ecient class D amplifiers with built-in DSP providing all
necessary protection and processing for instant set-up and operation.
VerA M nominal mains power specifications: AC 220V, 50/60 Hz.
Nominal voltage tolerance: 100 - 250 V.

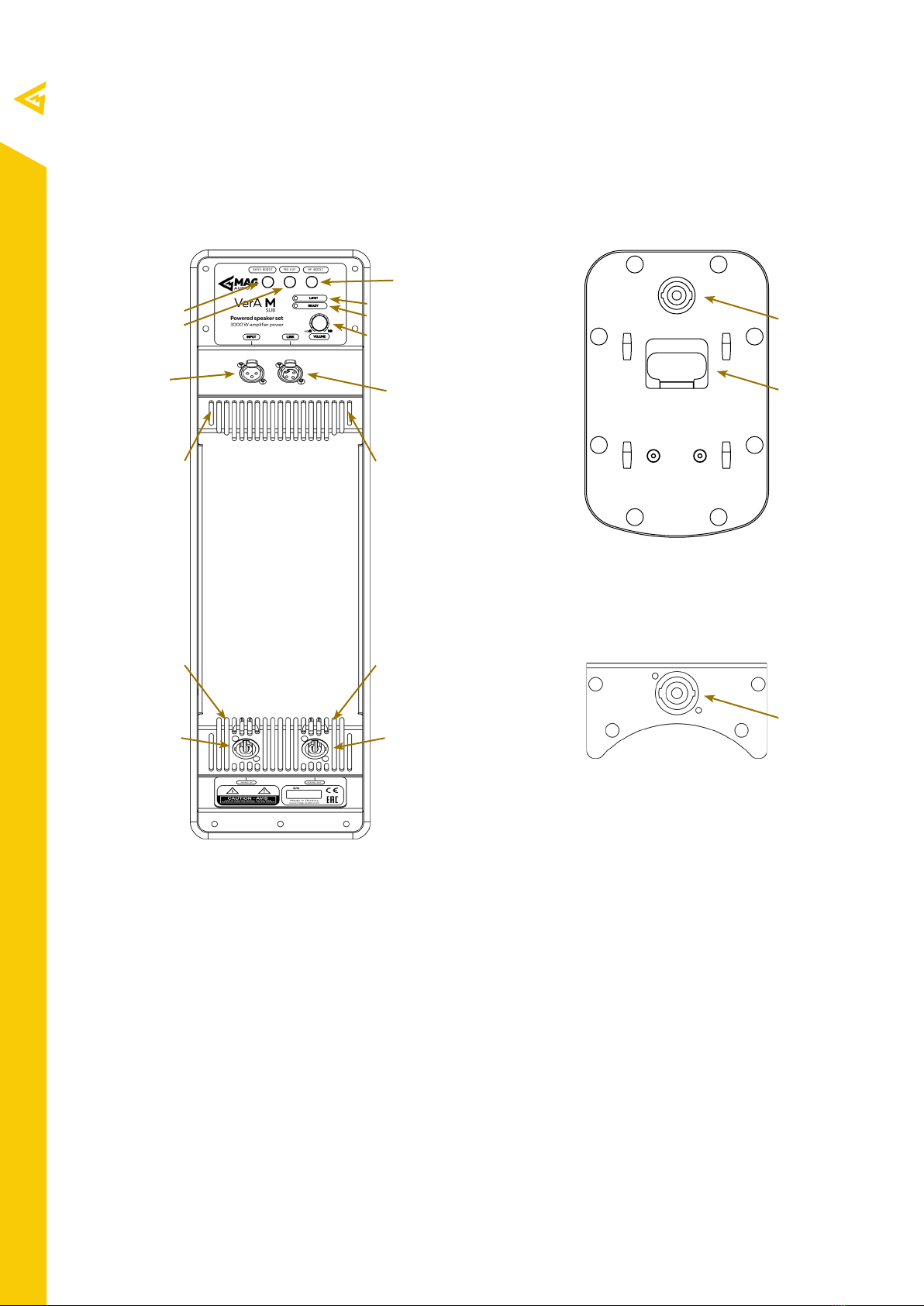

5.3.1. VerA M connection panels
SYSTEM OPERATION
Volume knob
LINK
Connector
READY LED
LIMIT LED
HF BOOST
button
BASS BOOST
button
MID CUT
button
INPUT
Connector
Heat sink
ventilation
openings
Heat sink
ventilation
openings
MAINS IN
connector
MAINS OUT
connector
Heat sink
ventilation
openings
Heat sink
ventilation
openings
VerA M Sub amplifier
Output to
VerA Top
Stand lock
release lever
VerA M top
input
VerA M Top
VerA M Sub stand mounting and output for
VerA M Top connection
VerA M User Manual rev 1.00
11
MAG AUDIO
Mono source VerA M connection
5.3.2. VerA M connection examples
SYSTEM OPERATION
Stereo source VerA M connection
VerA M User Manual rev 1.00
12
MAG AUDIO SYSTEM OPERATION
Balanced XLR

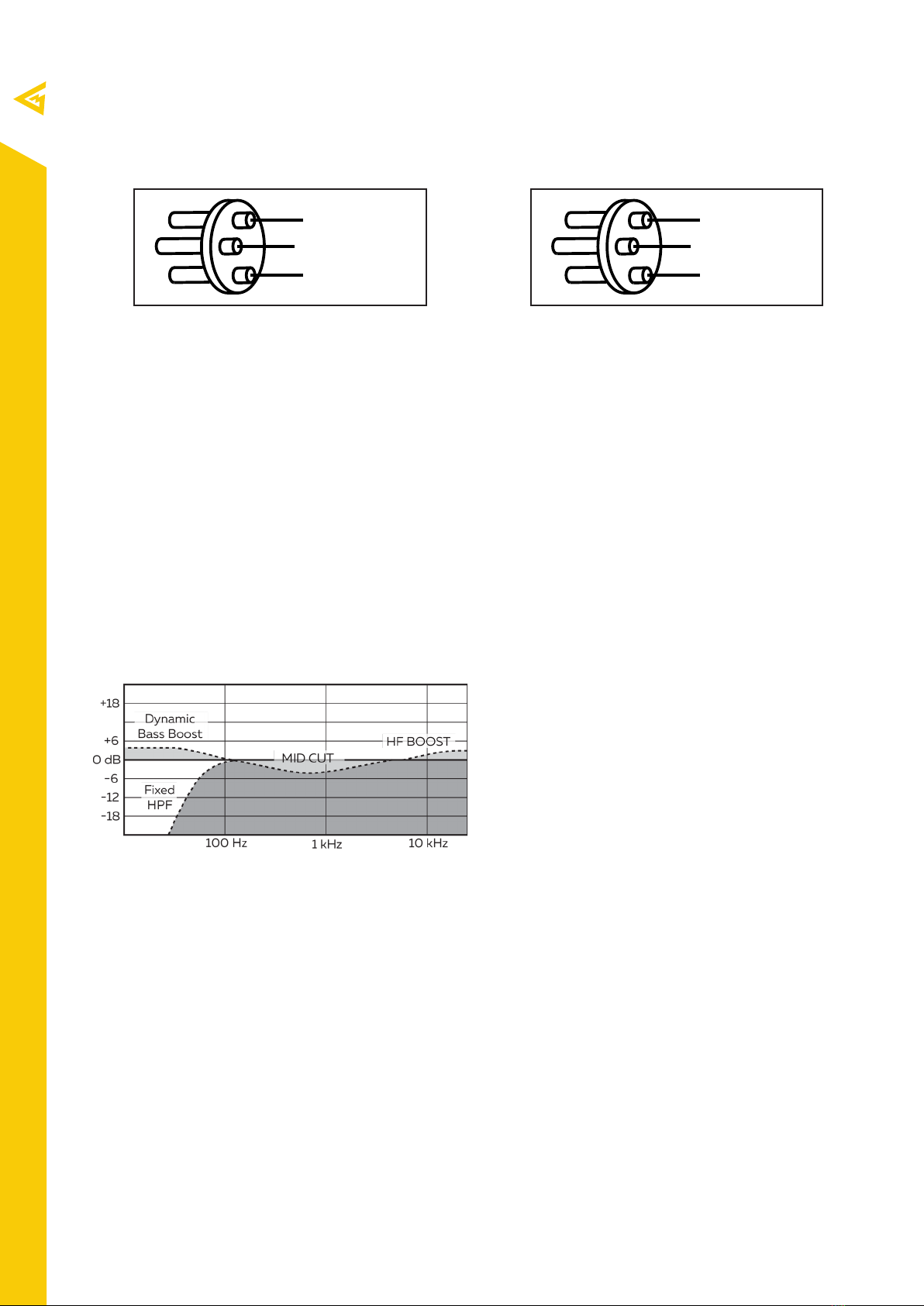

VerA M frequency corrections (VerA M Sub + VerA M Top)
Unbalanced XLR
5.3.4 Powered speakers controls.
Amplifier controls allow tailoring VerA M performance for any particular venue or project.
Volume knob. Adjusts the amplifier’s gain.
MID CUT button. Controls the mid-range of full-range cabinets.
HF BOOST button. Raises the high-frequency output for far-field applications.
BOOST button. Turns on the Dynamic Bass Boost.
Fixed HPF. All powered X series are equipped with HPF for driver protection that cannot be turned o.
Dynamic Bass Boost. For improved performance at the bottom end of the frequency range at low volumes,
Dynamic Bass Boost adds up to +4dB gain on frequencies below 60Hz depending on the input level. This
contour can be switched on using the BASS BOOST button on VerA M Sub.
5.3.3 Balanced and unbalanced line inputs.
VerA M Sub subwoofers are equipped with XLR INPUT and XLR LINK connectors for signal connection.
The use of balanced XLR connector cables is recommended. In case when balanced XLR connections are not
available, an unbalanced XLR connection is acceptable.
1
2
3
Shield (Ground)
Plus (+)
Minus (-)
1
2
3
Shield (Ground)
Plus (+)
Shield (Ground)
VerA M User Manual rev 1.00
13
MAG AUDIO
6. STANDARD CONTENTS
Please check the complement of your VerA M system upon receiving the package.
Standard contents of VerA M system:
System Item Quantity
VerA M-BK
VerA M Sub-BK 2
VerA M Top-BK 2
HLS-01-BK (Stand) 2
VerA M user manual 1
Packaging set 1
VerA M-WH
VerA M Sub-WH 2
VerA M Top-WH 2
HLS-01-WH (Stand) 2
VerA M user manual 1
Packaging set 1
7. ACCESSORIES
Various accessories are available for VerA M systems:
WH-1001 (Part No. 00-00003376)
100mm turning castor wheel
VerA M Sub-TB (Part No. 00-0021475)
Transportation bag for VerA M Sub
VerA M Top-TB (Part No. 00-0021474)
Transportation bag for VerA M Top
HLS-01-TB (Part No. 00-0021476)
Transportation bag for HLS-01 stand
STANDARD CONTENTS | ACCESSORIES
WH-1002 (Part No. 00-00003374)
100mm turning castor wheel with brakes
VerA M User Manual rev 1.00
14
MAG AUDIO
8. WARRANTY AND ASSISTANCE
8.2. Assistance
There are no user-serviceable parts in your device. Refer servicing to qualified technical personnel. In addition
to the in-house service department, MAG Audio supports the chain of distributors, authorized in repairs and
service. If your device needs repair contact your MAG Audio dealer or distributor.
Occasionally, due to the nature of the failure, it might be necessary to return defective products to MAG Audio
for repair. In this case, before shipping, please kindly contact your MAG Audio distributor or dealer, or MAG
Audio directly. You will be provided the RMA number code and detailed instructions regarding your particular
case. Please do not send products without prior authorization.
Thank you for your understanding, cooperation, and choice of MAG Audio products.
8.1. Product Warranty
1. By this warranty MAG Audio grants that all equipment manufactured under the MAG Audio trademark is
free from defects in material, components, and factory workmanship under the normal use and maintenance
for the time as specified below.
2. All warranty repairs and maintenance of MAG Audio products shall be carried out at MAG Audio production
sites or by MAG Audio authorized personnel at no cost to the product purchaser.
3. Warranty period for cone transducers, high-frequency drivers, and crossovers, whether sold separately or
as a component of a speaker system, is 60 months from the production date.
4. Warranty period for enclosures, grills, connection plates, and accessories, whether sold separately or as a
component of a speaker system, is 60 months from the production date.
5. Warranty period for built-in power amplifiers, whether sold separately or as a component of a speaker
system, is 36 months from the production date.
6. Warranty repairs or maintenance will be performed only if a) the MAG Audio product was purchased from
an ocial MAG Audio distributor/dealer and b) the warranty card with specified serial number, production
date, realization date, vendor’s signature, and the stamp is presented.
7. Warranty shall not cover the following: damage caused by accident, misuse, or failure to follow exploitation
rules stated in the technical manual; repairs performed by non-authorized personnel; mechanical damage
caused by shipping accidents and normal tear and wear.
8. Warranty shall not apply to any product with defaced, removed, or modified serial number.
9. If your MAG Audio product needs repairs or maintenance, contact your ocial MAG Audio distributor/
dealer. Please do not ship your MAG Audio product without prior authorization.
WARRANTY AND ASSISTANCE
VerA M User Manual rev 1.00
15
MAG AUDIO
9. NOTES
NOTES
2 Merezhna str., Bila Tserkva,
Kyiv region, 09100, Ukraine
Tel./Fax.: +38 044 2774789
e-mail: info@mag-audio.com
www.mag-audio.com
This manual suits for next models
2
Table of contents
Other MAG Audio Speakers manuals
