Magic-Pro Computer MAGIC-PRO MP-6VIP-1394 User manual

MODEL: MAGIC-PRO MP-6VIP-1394
EDITION: July, 2000
VERSION: 1.1

POST-CONSUMER
RECYCLED PAPER
Federal Communications Commission Statement
This device complies with FCC Rules Part 15. Operation is subject to the following two
conditions:
wThis device may not cause harmful interference
wThis device must accept any interference received, including interference that may
cause undesired operation.
This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a residential installation. This equipment
generates, uses and can radiate radio frequency energy. If this equipment is not installed and
used in accordance with the manufacturer's instructions, it may cause harmful interference to
radio communications. However, there is no guarantee that interference will not occur in a
particular installation. If this equipment does cause harmful interference to radio or television
reception, which can be determined by turning the equipment off and on, the user is
encouraged to try to correct the interference by one or more of the following measures:
wReorient or relocate the receiving antenna.
wIncrease the separation between the equipment and receiver.
wConnect the equipment to an outlet on a circuit different from that to which the
receiver is connected.
wConsult the dealer or an experienced radio/TV technician for help.
The use of shielded cables for connection of the monitor to the graphics card is required to
assure compliance with FCC regulations. Changes or modifications to this unit not expressly
approved by the party responsible for compliance could void the user's authority to operate
this equipment.
Canadian Department of Communications Statement
This digital apparatus does not exceed the Class B limits for audio noise emissions from
digital apparatusses set out in the Radio Interference Regulations of the Canadian
Department of Communications.
Manufacturer's Disclaimer Statement
The information in this document is subject to change without notice and does not represent a
commitment on the part of the vendor. No warranty or representation, either expressed or implied,
is made with respect to the quality, accuracy or fitness for any particular purpose of this document.
The manufacturer reserves the right to make changes to the content of this document and/or the
products associated with it at any time without obligation to notify any person or organization of such
changes. In no event will the manufacturer be liable for direct, indirect, special, incidental or
consequential damages arising out of the use or inability to use this product or documentation, even
if advised of the possibility of such damages. This document contains materials protected by
copyright. All rights are reserved. No part of this manual may be reproduced or transmitted in any
form, by any means or for any purpose without expressed written consent of it's authors. Product
names appearing in this document are mentioned for identification purposes only. All trademarks,
product names or brand names appearing in this document are registered property of their
respective owners.
Copyright Magic-Pro Computer Co., LTD.
All rights reserved
Author : Raymond
Printed in Taiwan July 2000

How This Manual Is Organized
This manual is divided into the following sections:
1) Item Checklist Product item list
2) Features Product information & specification
3) Hardware Setup Instructions on setting up the motherboard
4) Performance & Block Diagram Product performance & block diagram
5) Suspend to RAM Instructions STR installation
6) BIOS Setup Instructions on setting up the BIOS
software
7) Appendix General reference

Table Of Content
Item Checklist P.1
Summary of Features P.3
MP-6VIP-1394 Motherboard Layout P.5
Page Index for CPU Speed Setup/Connectors/Panel and Jumper Definition P.6
Performance List P.30
Block Diagram P.31
Suspend to RAM Installation P.32
Memory Installation P.38
Page Index for BIOS Setup P.39
Appendix P.67

Item Checklist
3
Item Checklist
The MP-6VIP-1394 motherboard
Cable for IDE / floppy device
CD for motherboard driver & utility
Internal COM B Cable (Optional)
Internal USB Cable (Optional)
MP-6VIP-1394 user’s manual

MP-6VIP-1394 Motherboard
3
Summary Of Features
Form Factor 30.4 cm x 20.3 cm ATX SIZE form factor, 4 layers PCB.
CPU Socket 370 processor
2nd cache in CPU(Depend on CPU)
Chipset VT82C694X (VIA Apollo Pro 133A)
VT82C686A
Clock Generator ICS 9248DF-39
66/100/133 MHz system bus speeds (PCI 33MHz)
112/124/140/150 MHz system bus speeds
(PCI 44MHz) (reserved)
Memory 3 168-pin DIMM sockets.
Supports PC-100 / PC-133 SDRAM and VCM SDRAM
Supports up to 1.5GB(Max)
Supports only 3.3V SDRAM DIMM
Supports 72bit ECC type DRAM integrity mode.
I/O Control VT82C686A
Slots 1 AGP Slot Supports 4X mode & AGP 2.0 compliant
5 PCI Slot Supports 33MHz & PCI 2.2 compliant
1 ISA Slot
1 AMR(Audio Modem Riser)Slot
On-Board IDE 2 IDE bus master (DMA 33/ ATA 66) IDE ports for up
to 4 ATAPI devices
Supports PIO mode 3, 4 (UDMA33/ATA66) IDE & ATAPI
CD-ROM
On-Board
Peripherals
1 floppy port supports 2 FDD with 360K, 720K,1.2M,
1.44M and 2.88M bytes
1 parallel ports supports SPP/EPP/ECP mode
2 serial ports (COM A & COM B)
4 USB ports
3 IEEE 1394 port
1 IrDA connector for IR
Hardware Monitor CPU / System fan revolution detect
CPU / System temperature detect
System voltage detect (Vcore,+3V,+5V,+12V)
CPU overheat shutdown detect
PS/2 Connector PS/2 keyboard interface and PS/2 mouse interface
To be continued…

Summary of Features
4
BIOS Licensed AMI BIOS, 2M bit flash ROM
Additional Features Supports Wake-on-LAN (WOL)
Supports Internal / External modem wake up
Includes 3 fan power connectors
Poly fuse for keyboard over-current protection

MP-6VIP-1394 Motherboard
5
MP-6VIP-1394 Motherboard Layout
DIMM3
PCI2
PCI3
VT82C686A
COMB COM
A
LPT
PS/2
SW1
PCI4
PCI5
ISA
DIMM2
DIMM1
SW2
AGP
AMR
JP16
6VIP-1394
PCI1
BAT1
PGA 370
CPU
JP9 JP19
JP30 JP15
JP5
USB
A
TX Power
JP11
Floppy
IDE1 IDE2
J11
JP23
JP1
Front USB
J3
JP2
J4
J12
JP22
J2
BIOS
BZ1
VT82C694X
USB2
J1
LED1
JP24
TSB4IL
V03
TSBI2
LV23
J13
J14
J15

MP-6VIP-1394 Motherboard Layout
6

Page Index for CPU Speed Setup/Connectors/Panel and Jumper Definition Page
CPU Speed Setup P.7
Connectors P.15
J13/J14/J15 : I EEE 1394 Connector P.15
COM A / COM B / LPT Port P.15
USB Connector P.16
PS/2 Keyboard & PS/2 Mouse Connector P.16
JP16 (CPU Fan) P.17
JP15 (Power Fan) P.17
JP2 (System Fan) P.18
ATX Power P.18
USB 2 Connector P.19
IR Connector P.19
Floppy Port P.20
IDE 1(Primary)/ IDE 2(Secondary) Port P.20
J3 (Ring Power On) P.21
J1 (Wake on LAN) P.21
JP5 (STR LED Connector) & LDE 1 (DIMM LED) P.22
Front USB Port [Optional] P.22
J11 (SM BUS) P.23
Panel and Jumper Definition P.24
J2 (2x11 Pins Jumper) P.24
JP1 (Clear CMOS Function) P.25
JP11 (STR Enable) P.25
JP19 (Cyrix CPU Turbo Function) [Optional] P.26
JP9 (USB Device Wake up Selection) [Optional] P.26
JP23 (Case Open) P.27
JP22 (BIOS Flash Write Protection) [Optional] P.27
JP30 (Over Voltage CPU Speed up) [Optional] P.28
J12 (Front Panel Jumper) [Optional] P.28
JP24 (Recovery/Normal) P.29
BAT1 (Battery) P.29

MP-6VIP-1394 Motherboard
7
CPU Speed Setup
The system bus speed is selectable at 66,100,133MHz and Auto. The user can select the system
bus speed (SW1) and change the DIP switch (SW2) selection to set up the CPU speed for 300 -
733MHz processor.
SW1: O : ON, X : OFF
CPU PCI CLK 1 2 3 4 5 6
Auto 33.3 X X X X O O
66 33.3 O O X X X X
75 37.5 O O O X X X
83 41.6 O O X O X X
100 33.3 O X X X X X
112 37.3 O X O X X X
124 31 X X X O X X
133 33.3 X X X X X X
140 35 X X O O X X
150 37.5 X X O X X X


The CPU speed must match with the frequency RATIO. It will cause system hanging up
if the frequency RATIO is higher than that of CPU.
SW2:
DIP SWITCH
FREQ. RATIO 1 2 3 4
X 3 OXOO
X 3.5 XXOO
X 4 OOXO
X 4.5 XOXO
X 5 OXXO
X 5.5 XXXO
X 6 OOOX
X 6.5 XOOX
X 7 OXOX
X 7.5 XXOX
X 8 OOXX
X 8.5 XOXX
X 9 OXXX
X 9.5 XXXX


We don’t recommend you to setup your CPU ratio above 8 , it doesn’t
support now.

CPU Speed Setup
8



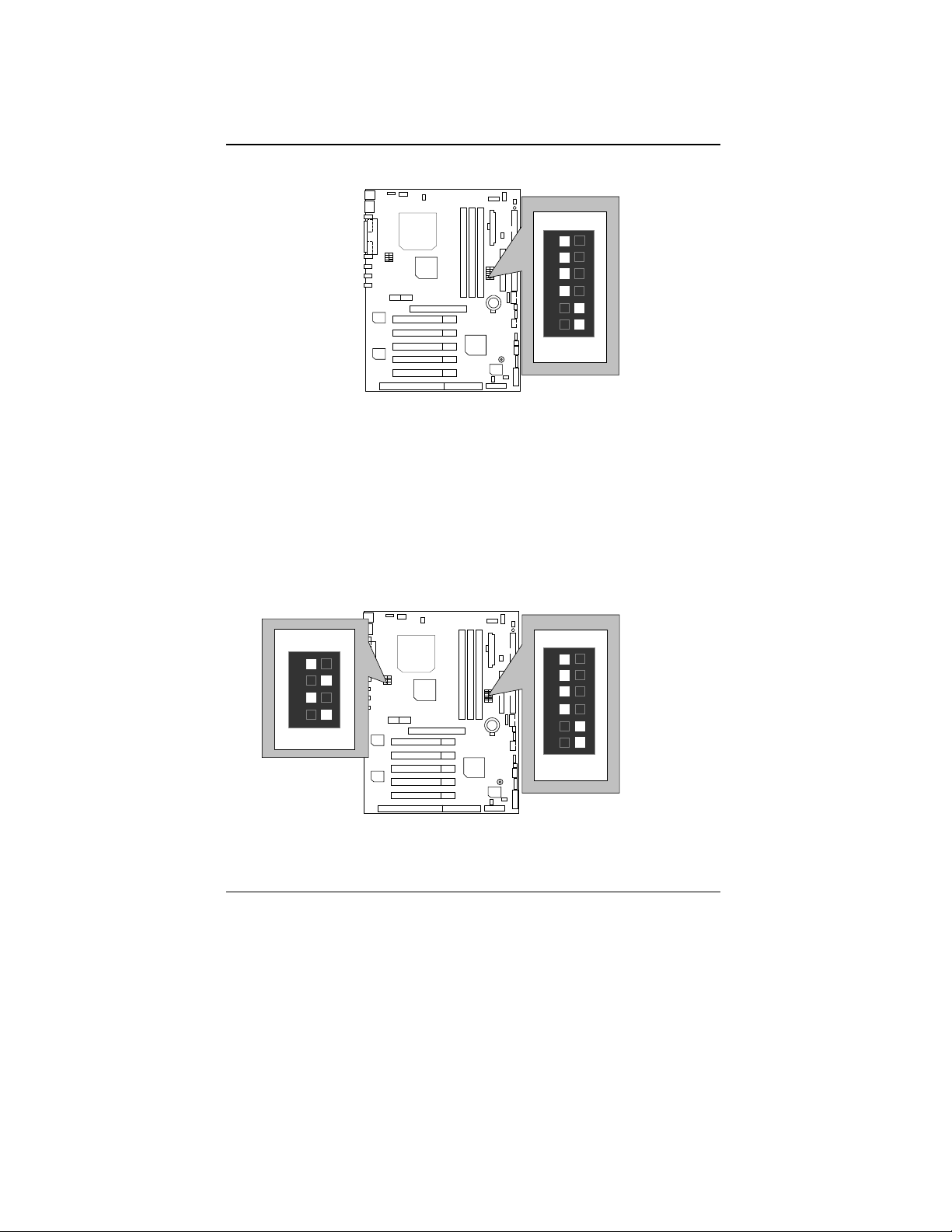

For Auto Jumper setting:
SW1
ON
1
2
3
4
5
6


Note:
1. If you use 66, 100, 133 MHz CPU, we recommend you to set up your system speed to
“Auto” value.
2. We don’t recommend you to set up your system speed to 75,83,112, 124, 140,150 MHz
because these frequencies are not the standard specifications for CPU, Chipset and
most of the peripherals. Whether your system can run under 75,83,112, 124, 140,150
MHz properly will depend on your hardware configurations: CPU, SDRAM, Cards, etc.
1. CeleronTM 300A / 66MHz FSB
SW2
ON
1
2
3
4
SW1
ON
1
2
3
4
5
6

MP-6VIP-1394 Motherboard
9
2. CeleronTM 333 / 66MHz FSB
3. CeleronTM 366 / 66MHz FSB
4. CeleronTM 400 / 66MHz FSB
SW2
ON
1
2
3
4
SW1
ON
1
2
3
5
4
6
SW2
ON
1
2
3
4
SW2
ON
1
2
3
4
SW1
ON
1
2
3
5
4
6
SW1
ON
1
2
3
5
4
6

CPU Speed Setup
10
5. CeleronTM 433 / 66MHz FSB
6. CeleronTM 466 / 66 MHz FSB
7. CeleronTM 500 / 66 MHz FSB
SW2
ON
1
2
3
4
SW2
ON
1
2
3
4
SW2
ON
1
2
3
4
SW1
ON
1
2
3
5
4
6
SW1
ON
1
2
3
5
4
6
SW1
ON
1
2
3
5
4
6

MP-6VIP-1394 Motherboard
11
8. CeleronTM 533 / 66 MHz FSB
9. CeleronTM 566 / 66 MHz FSB
10. Cyrix Joshua 300 / 100 MHz FSB (Optional)
SW2
ON
1
2
4
SW2
ON
1
2
3
4
SW2
ON
1
2
3
SW1
ON
1
2
3
5
4
6
SW1
ON
1
2
3
5
4
6
SW1
ON
1
2
3
5
4
6

CPU Speed Setup
12
11. Pentium®!!! 500 / 100MHz FSB
12. Pentium®!!! 550 / 100MHz FSB
13. Pentium®!!! 600 / 100MHz FSB
SW2
ON
1
2
3
4
SW2
ON
1
2
3
4
SW2
ON
1
2
3
4
SW1
ON
1
2
3
5
4
6
SW1
ON
1
2
3
5
4
6
SW1
ON
1
2
3
5
4
6

MP-6VIP-1394 Motherboard
13
14. Pentium®!!! 650 / 100MHz FSB
15. Pentium®!!! 700 / 100MHz FSB
16. Pentium®!!! 533 / 133MHz FSB
SW2
ON
1
2
3
4
SW2
ON
1
2
3
4
SW2
ON
1
2
3
4
SW1
ON
1
2
3
5
4
6
SW1
ON
1
2
3
5
4
6
SW1
ON
1
2
3
5
4
6

CPU Speed Setup
14
17. Pentium®!!! 600 / 133MHz FSB
18. Pentium®!!! 667 / 133MHz FSB
19. Pentium®!!! 733 / 133MHz FSB
SW2
ON
1
2
3
4
SW2
ON
1
2
3
4
SW2
ON
1
2
3
4
SW1
ON
1
2
3
5
4
6
SW1
ON
1
2
3
5
4
6
SW1
ON
1
2
3
5
4
6

MP-6VIP-1394 Motherboard
15
Connectors
J13/J14/J15 : I EEE 1394 Connector
Pin No. Definition
1 VP
2 VG
3 TPB-
4 TPB+
5 TPA-
6 TPA+
COM A / COM B / LPT Port
COM A
LPT PORT
COM B

Connectors
16
USB Connector
Pin No. Definition
1 USB V0
2 USB D0-
3 USB D0+
4 GND
5 USB V1
6 USB D1-
7 USB D1+
8 GND
12
34
8
7
65
PS/2 Keyboard & PS/2 Mouse Connector
PS/2 Mouse/ Keyboard
Pin No. Definition
1 Data
2 NC
3 GND
4 VCC(+5V)
5 Clock
6 NC
PS/2 Keyboard
PS/2 Mouse
1
2
3
4
5
6

MP-6VIP-1394 Motherboard
17

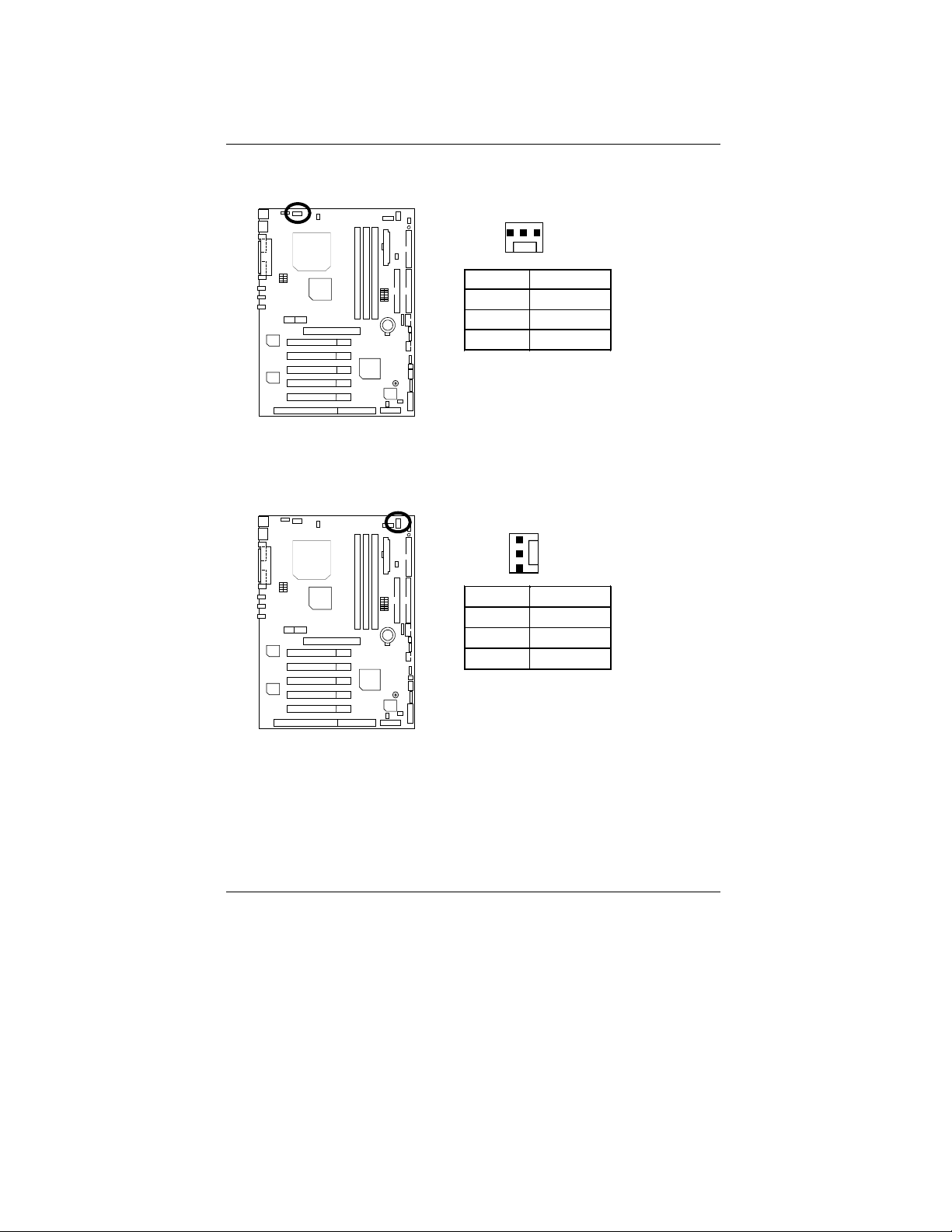

JP16: CPU Fan
Pin No. Definition
1 GND
2 +12V
3 SENSE
1
JP15: Power Fan
Pin No. Definition
1 GND
2 +12V
3 NC
1
