Magnat Audio VC 2 User manual

CONTENTS
 GENERAL INFORMATION
Accessories . . . . 18
Before starting . . . . . 19
Important safety notes . . . . . 19
Instructions for disposal . . . . 19
Regional coding . . . . 19
OPERATIONAL ELEMENTS AND CONNECTIONS
Front panel . . . . . 20
Remote control. . . . . 21
Rear/connections . . . . . . 22
 THE VC 2 SPEAKER SET 23
VARIOUS CONNECTION POSSIBILITIES
Audio connections. . . . 23
Front Speakers and Subwoofer . . . . 23
Antennas. . . . 23
Auxiliary audio devices . . . . . 23
TV / monitor connections . . . . . . 24
Audio outputs . . . . . . 24
Front connections. . . . . . 24
 THE DISPLAY 25
 STARTING UP THE DEVICE
Mains cable. . . . . 25
Remote control. . . . . 25
 THE FUNCTIONS OF THE VC 2
DVD playback. . . . . . 26
CD, WMA, MPEG-4 playback . . . . . 26
Tuner . . . . . . 27
RDS (Radio Data System) Functions of the Tuner. . . . . 27
Sound settings.. . . . . 28
18
 OSD MENU
Main page of the OSD menu . . . . . . 28
Language . .. . . . 29
Audio setup . . . . 29
Video setup . . . . 30
Rating. . . . . . 31
Default settings. . . . . 31
COMPATIBLE FORMATS FOR MEDIA PLAYBACK
Compatible disc formats. . . . 31
Compatible audio / video formats. . . . . . 31
Formats supported by USB . . . . 31
 SPECIFICATIONS
Specifications of the VC 2 . . . . . 32
ACCESSORIES
1) Instruction manual
2) Remote control
3) Batteries for remote control (2x AA)
4) Mains cable
5) MW loop antenna
6) FM indoor antenna
7) AV cable
8) 2 front speakers
9) Subwoofer
10)Speaker cables for front speakers and subwoofer
11) Rubber pucks for front speakers, self adhesive

BEFORE STARTING
Dear Customer,
Thank you for choosing the Magnat VC 2.
Please read the following information carefully before starting to use the VC 2.
IMPORTANT SAFETY INSTRUCTIONS
Please read the instruction manual carefully before use and keep it in a safe place.
Only operate the device at an ambient/room temperature from 10°C to 40°C.
Make sure there is sufficient ventilation for the device. A minimum distance of 10 cm
to objects on the side, towards the back, and above should be maintained.
The ventilation slots should not be covered by any items (e.g. curtains, newspaper,
etc.) in order to ensure sufficient ventilation for the device. Please do not position any
sources of heat, such as radiators, ovens, naked flames or other devices that generate
heat in close proximity to the device.
The device and the remote control should not be exposed to dripping or splash water
or high levels of humidity.
Similarly, no vases or other containers filled with liquid should be set on top of the
device.
In the event of contact with moisture or liquids unplug the mains plug immediately.
Onlyclean the device using a dry cloth.
Do not use any cleaning agents or chemical solvents when cleaning, as these could
damage the surface of the device.
Never open the device.
The mains cable must always be operational. The device should not continue to be
operated if there is visible damage to the mains cable. A damaged cable should not be
repaired, but must be replaced.
Do not connect or remove the mains cable with damp hands.
Always refer to a qualified specialist for any maintenance or repair work.
If the device is not going to be used for a longer period, switch off the device using the
mains switch (POWER) on the back side of the device.
In case of thunderstorms, please unplug the mains plug and the antenna cable.
19
The triangle with lightning symbol warns the user that high
voltage is used within the device which can result in electric
shock.
The triangle with exclamation pointmakes the user aware that
there are important notes in the enclosed instruction manual
which must be observed.
Do not open! Danger of electric shock! To reduce the danger of
fire or of an electric shock, the device may not be subjected to
rain or humidity.
This symbol informs the user that there is a class 1 laser
operating inside the device which does not pose any hazardous
threat outside the device.
INSTRUCTIONS FOR DISPOSAL
In accordance with European Directive 2002/96/EC all
electrical and electronic appliances must be disposed of
separatelyvia local collection points. Please observe the local
regulations and do not dispose of your old appliances with
normal household waste.
REGION CODE
Both the DVD-Player and discs are coded by region. These region codes must match in
order for the disc to play. If the codes do not match, the disc won’t play. This unit’s code is
2. DVDs with other region codes cannot be played in this unit. Discs marked “all”will also
play in this player.
The following list shows the various DVD regions of the world.
1 North America; U.S. territories; Bermuda
2 Europe; Western Asia; Egypt, Japan, Lesotho, South Africa, Swaziland; British
overseas territories, French overseas territories; Greenland
3 East and Southeast Asia
4 Oceania; Central and South America; Caribbean; Mexico
5 Africa, Central and South Asia, Belarus, India, Mongolia, North Korea, Russia, Ukraine 6
Mainland China

OPERATIONAL ELEMENTS AND CONNECTIONS - FRONT PANEL
14 13
IR
1 ON / STANDBY button
Switches the device on when it is in the
standby mode (LED lights up red). If the
LED does not illuminate, actuate the
power switch located on the rear of the
1 2 3 4
5 I◄◄SEARCH button
CD/DVD: Jumps to previous title.
Tuner: With a short press, the station
frequency can be increased by 5 kHz for
manual tuning. A longer press starts the
5 6 7 8 9 10 1112
8 DVD VIDEO 12 PHONES
DVD/CD compartment. Insert the 3.5 mm stereo output jack for
DVD/CD into the compartment with the headphones. The speakers are
label facing upwards. deactivated when this jack is used. Set
the volume to a low level when
device. Conversely the device can be
switched from power operation to the
standby mode (LED lights up green).
2 ▲EJECT button
Opens or closes the DVD/CD
compartment (8).
3 ►/II PLAY button
Starts or interrupts the media playback.
4 ■STOP button
Stops the media playback.
Tuner: Switches between FM-Auto and
FM-Mono for FM stations.
station search.
6 ►►I SEARCH button
CD/DVD: Jumps to next title.
Tuner: Like point 5, but the search starts
forwards.
7 SOURCE switch
For the selection of the input source,
DISC, TUNER or external sources AUX
1, AUX 2, AUX 3, LINE, Digital Optical,
Digital Coaxial. It is indicated on the
display (13).
9 USB input
For connecting USB storage media.
10 VOLUME regulator
Adjusts the volume. The knob needs to
be turned through approximately two
revolutions to alternate between minimum
and maximum volume. The volume is
shown on the display (13).
(VOLUME 00 - VOLUME 40).
11 LINE IN
3.5 mm stereo input jack for an auxiliary
audio device (e.g. MP3 player, etc.).
20
connecting headphones.
13 Display
Displays the settings you have made.
14 Sensor for remote control
Please aim at this sensor when using the
remote control.

OPERATIONAL ELEMENTS AND CONNECTIONS - REMOTE CONTROL
6
1
2
5 7
8
5 USB
3 Activates the USB input.
4 36 6 DIGITAL IN
35 Activates the input sources DIGITAL
OPTICAL and DIGITAL COAXIAL.
7 AUX
Activates the input sources “Aux 1”,
9 “Aux 2”, “Aux 3”.
Tuner: With a short press, the station
frequency can be increased by 50 kHz for
manual tuning. A longer press starts the
station search.
17 TUNE►►
Likepoint 16, but the search starts forwards.
18 I◄PRESET
Jumps to the previous title.
28 REPEAT A-B
CD/DVD: To repeat a selected segment
between two points (A and B).
29 ZOOM
DVD mode: zoom function.
30 ANGLE
DVD mode: Selects the camera angle (only
10
14
12
16
18
20
27
29
17
19
21
28
30
11 8 Numeric keys
15 For the direct selection of titles on a CD/DVD
or of pre-set stations on the tuner.
9 MEM
13
22 For storing radio stations.
24 10 SEARCH/RDS
23 25 CD/DVD: Direct selection of chapters, tracks
26 34 or jump to a certain time point.
33 32 Tuner: display of the selected RDS function.
31 11 SETUP
Opens the OSD screen menu for setting the
setups in DISC mode.
12 TITLE
For calling up the DVD title menu.
Tuner: Selects the next lower preset.
19 ►►I PRESET
Jumps to the next title.
Tuner: Selects the next higher preset.
20 ■Stop
Stops the media playback.
21 ►/II Play
Starts or interrupts the media playback.
22 EQ
Selection of stored sound settings: LINEAR
- FILM - MUSIC - LANGUAGE - CUSTOM.
23 TONE
Setting of bass, highs and balance. The
if the DVDsupports that feature).
31 SUBTITLE
DVD mode: to select a subtitle language (if
available).
32 AUDIO
DVD mode: to select one of the available
audio formats or languages (only if the DVD
supports that feature).
33 PROG
DVD mode: Selected programming of single
tracks or chapters.
34 HDMI RES
Selection of the resolution of the HDMI
1 POWER
Switches the device on when it is in the
standby mode. If the LED does not illuminate,
actuate the power switch located on the rear
of the device. Conversely the device can be
switched from power operation to the standby
mode.
2 DISC
For selecting the input source “Disk”, CD or
DVD player.
3 TUNER
Activates the input source “tuner”. Several
pushes switches between “FM”and “AM”.
4 MONO/ST
FM reception: Switches between FM auto
and FM mono.
13 MENU
For calling up the DVD menu.
14 Cursor keys
For operating the screen menu (OSD=On
Screen Display) and setup.
15 OK
Button for confirming the settings made with
the cursor keys.
16 ◄◄ TUNE
Touching this button starts the search
backwards with 2, 4, 8 or 16x speed,
depending on how often it is pushed.
Another touch brings the disk back to the
normal speed. You can also achieve this by
pressing the PLAY button.
respective setting can be altered using the
PRESET buttons.
24 VOLUME
For setting the volume.
25 MUTE
Mutes the device.
26 DVS SET
Activates the virtual Dolby® Surround
playback via stereo speakers.
With connected headphones, the Dolby®
headphone function is switched on or off.
27 REPEAT 1/ALL
Repeats the current track or the complete
CD/DVD.
21
output.
35 VIDEO OUT
Selection of the video output (in the following
sequence): SCART, Component Interleased
(COMP I), Component Progressive (COMP
P), HDMI, S-Video. The Composite (CVBS)
output is always activated.
36 ▲Eject
DVD/CD operation: Opens or closes the
compartment. Thus ends or starts the
DVD/CD playback.

OPERATIONAL ELEMENTS AND CONNECTIONS - BACK SIDE/CONNECTIONS
12 13 14 15 16 17 18
11 10 9 8 7 6 5 4 1 2 3
1 POWER AC 230V 5 SPEAKER OUT R/L 11 Digital OUTPUT 17 INPUT AUX 3
Mains supply. For connecting the supplied Output for the connection of the supplied Optical and coaxial digital audio output. Analog audio input.
mains cable. satellite speakers (the correct polarity
must be taken into account). 12 ANT FM 18 SCART OUT
2 FUSE Antenna connection. For connecting the SCART output.
Only use a fuse with the parameters 6 OUTPUT R / L supplied FM indoor antenna or a house
indicated on the rear of the device. Analog right and left audio output. antenna.
3 On / Off 7 OUTPUT S-VIDEO 13 ANT AM
Mains switch. Switches the device on and S-video (Y/C) output. Antenna connection. For connecting the
sets it in the standby mode. If the switch supplied AM loop antenna.
is set to the “OFF”position, the device is 8 OUTPUT COMPOSITE
disconnected from the mains supply. Video composit (FBAS) output. 14 Digital INPUT
Optical and coaxial digital audio input.
4 SPEAKER OUT SUB 9 OUTPUT COMPONENT
Output for connecting the supplied Analog video component output (YUV) 15 INPUT AUX1
subwoofer. Analog audio input.
10 HDMI OUTPUT
HDMI output. (High Definition Multimedia 16 INPUT AUX2
Interface). Analog audio input.
22

THE VC 2 SPEAKER SET
The VC 2 set includes two front speakers as well as a subwoofer. These speakers have
been adapted to perfectly match the VC 2 and we recommend to use these speakers
together with the VC 2 CD receiver only.
POSITIONING OF THE FRONT SPEAKERS
The front loudspeakers are positioned at ear height on the left and right as equidistant from
the television as possible. There should be a clear line of sight between the loudspeakers
and the listening position. Any sound-absorbing or reflecting obstacles in the path will distort
the sound.
The speakers can be placed on a shelf or a sideboard. Please fix the supplied self-adhesive
rubber pucks on the bottom side of the speakers (4 pieces per speaker).
The front speakers are provided with a bracket for wall mounting at the rear. Insert a
suitable screw, which can be used to mount the speaker, into a load-bearing wall. We
recommend to fix the supplied rubber pucks on the rear side of the speakers to grant a
certain distance between the box and the wall.
POSITIONING OF THE SUBWOOFER
The frequency range reproduced by the subwoofer cannot be pinpointed by the human
ear. That's why positioning generally doesn't present any problems. However, it is
preferable to place the speaker close to the front loudspeaker in front of the listening
position. You should also make sure that the distance from the sides and from the rear to
items and walls is at least 25 centimetres as otherwise bass reproduction may be impaired.
VARIOUS CONNECTION POSSIBILITIES
Only connect the mains cable when all connections have been made.
 When making the connections, observe the manuals of the other
components
 With cables, heed the quality. The HDMI cable in particular should
absolutely be HDMI-certified.
VARIOUS CONNECTION POSSIBILITIES
AUDIO CONNECTIONS
Subwoofer
Speaker R Speaker L
Auxiliary audio device
AM-Antenna digital analog
R
FM-Antenna
FRONT SPEAKERS AND SUBWOOFER
The VC 2 set comes with prefabricated speaker cables for the two front speakers (2x3m)
and the subwoofer (1x5m). If possible, use these cables when connecting the speakers.
If required, you can shorten and strip the cables yourself. Please note that the cables for
the front speakers should be the same length. If you need longer cables, do not extend the
cables supplied, but purchase new, equivalent cables in the desired length from a
specialised store.
Loosen the terminal screws of the speakers one after the other and insert the stripped
ends into the designated holes. Then re-tighten the terminal screws. Please ensure that
any protruding wires do not cause a short circuit. Then connect the other end of the cable
to the connecting terminals on the VC 2 unit in the same way. Make sure you pay attention
to the correct polarity.
ANTENNAS
Connect the FM indoor antenna to the FM antenna socket. If you have one, use the house
antenna system. This generally offers better reception. For this, use a commercial IEC
antenna cable.
To use the MW receiver, connect the included frame antenna to the AM antenna input.
Direct the antenna so that the best possible reception is guaranteed.
AUXILIARY AUDIO DEVICES
If the devices have a digital output, you should use it and connect it to one of the digital
inputs of the VC 2, either with a coax cable (75 ohms) or with an optical cable.
You can connect devices with analog output via a RCA line with the Aux outputs of the
VC 2.
23

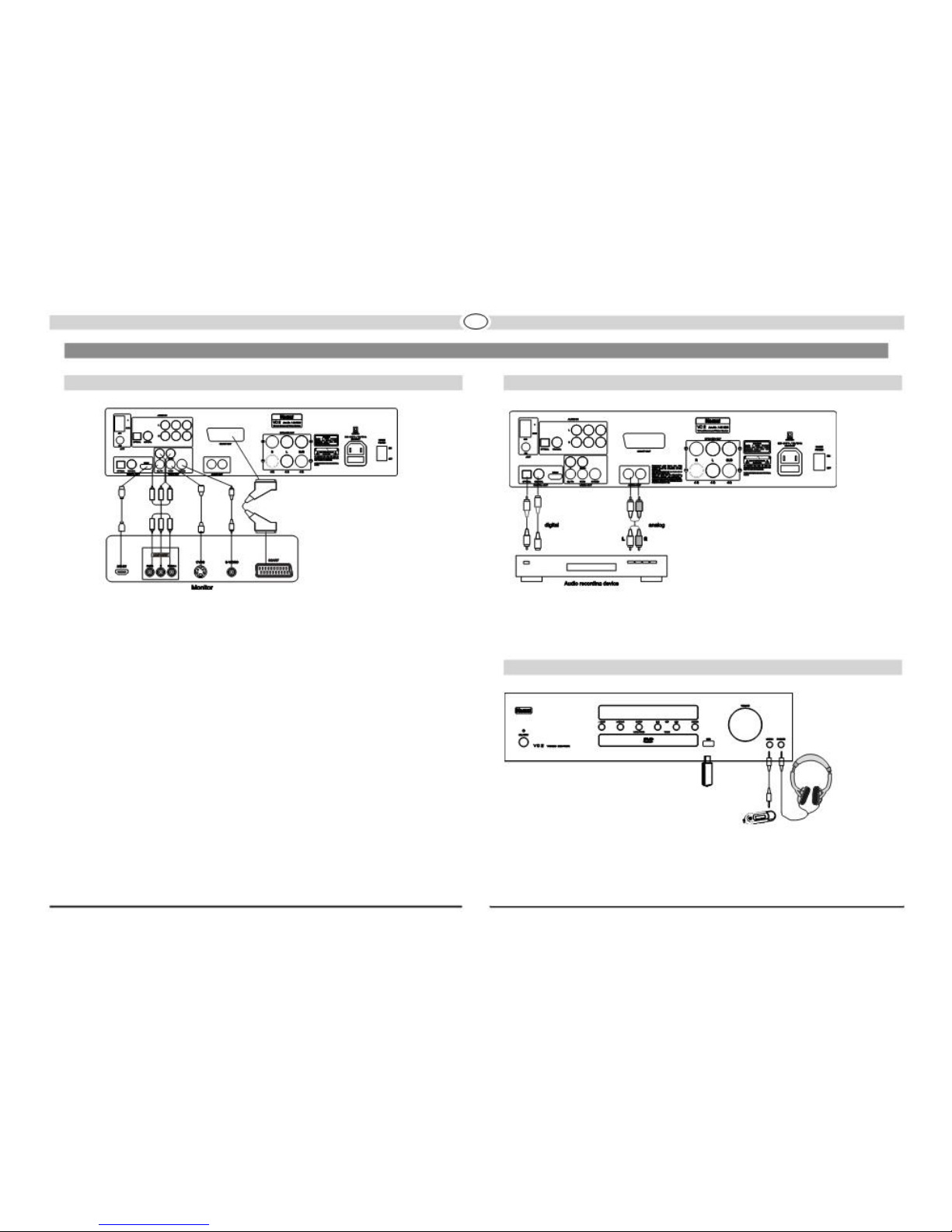

VARIOUS CONNECTION POSSIBILITIES
TV / MONITOR CONNECTIONS
A TV can be connected to the VC 2 as follows:
Via the composite output of the S-video output.
Via the SCART input.
Via the component output.
 Via the HDMI output.

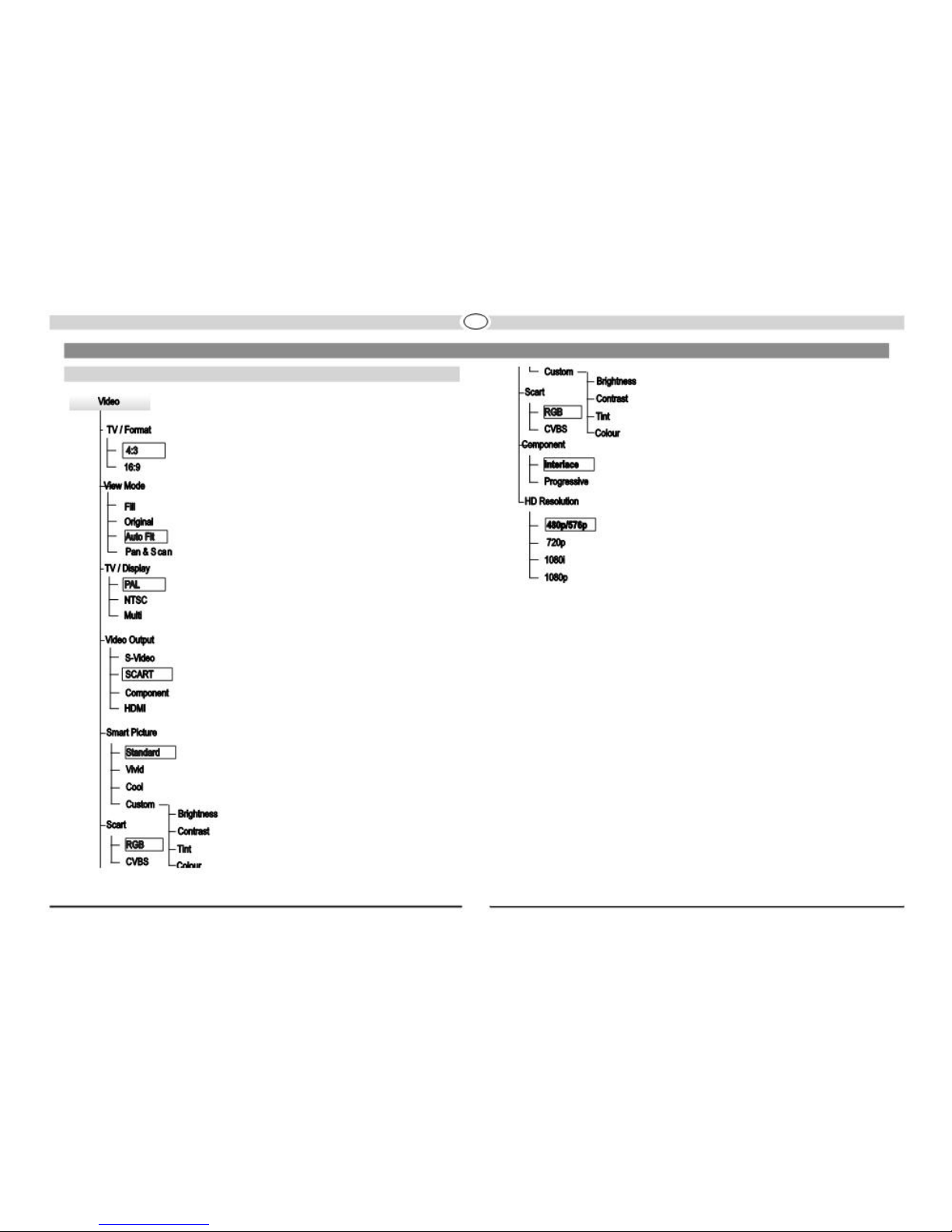

The following video resolutions can be set for the HDMI output via the video setup or
the remote control.
(PAL / NTSC) 576/480 progressive 720 progressive
1080 interlaced 1080 progressive
Please make sure you know which video resolution is optimal for your TV. Also observe
the operating instructions for the device.
Important: The video outputs must be set via the video setup or the remote control. The
Composite output is always activated.
AUDIO OUTPUTS
The following audio outputs anbe used for audio recording devices:
The digital output: optical or coaxial with corresponding cables.
The analog stereo output: Via RCA cable.
FRONT CONNECTIONS
IR
Connection for USB mass storage.
LINE IN (e.g. for connecting a MP3 player)
PHONES (headphone output)
24

DISPLAY STARTING UP THE DEVICE
6
MAINS CABLE
Once you have made all connections, connect the mains cable.
Check all connections again, observing the manuals for the other devices.
Check whether the right and left channels are connected correctly (left with left, right with
right).
2 1 3 4 5 Do not bundle the mains cable with the connecting cables to prevent buzzing and other
disturbances.
1 Status display of the drive function (play, pause, fast forward/rewind) Switch the devices on.
2 Alphanumericdisplay: Details about current settings, operations and RDS information.
When the CD/DVD mode is active the current chapter, current track and elapsed time
are displayed here.
3 Displays during FM reception:
ST.: Stereo reception
TUNED: Station set correctly
RDS: RDS data available
4 Display for Dolby® Digital decoding
5 Display of the channels available for decoding
6 The display is visible when DVS REF or DVS WIDE is active (Dolby® Virtual Speaker REMOTE CONTROL
Processing). Insert the batteries in the appropriate compartment on the remote control.
When using the remote control aim it at the infrared sensor on the VC 2 (14).
25

THE FUNCTIONS OF THE VC 2
DVD PLAYBACK
Use SOURCE on the front of the VC 2 (pos. 7) or DISC on the remote control (pos. 2) to
set the input to DISC (indicated on the display).
Use EJECT on the front (pos. 2) or the remote control (pos. 36) to open the compartment,
insert a DVD and close the compartment again with EJECT.
The unit reads the disc and displays the DVD menu on the screen (only if the DVD supports
that feature). Use the cursor and OK buttons (pos. 14, 15) for navigation in the menu. The
following functions are available during playback:
Control playback by using the buttons on the front of the unit (pos. 3-6) or the remote
control (pos. 16-21).
Access the DVD menu or the DVD title menu by pressing the MENU or TITLE button
on the remote control respectively (only if the DVD supports that feature).
 Selecting a track/chapter directly or jumping to a specific time marker
(SEARCH/RDS button on the remote control (pos. 10))
Select the appropriate input field using the cursor buttons and then enter the relevant
track or chapter number. The time marker is entered in the following format:
Hours:Minutes:Seconds (two digits each). Do NOT use the ">10" button when doing
this!
Selected programming (SEARCH/RDS button on the remote control, pos. 33).
Use the cursor buttons (pos. 14) to select the desired track or chapter from the list on
the left and press the OK button (pos. 15) to add it to the playlist (on the right). You can
use the buttons below to delete individual tracks or the entire playlist or play the
selection.
26
Repeat functions (REPEAT 1/ALL, REPEAT A-B, pos. 27, 28)
Press REPEAT 1/ALL to repeat the current track or the entire DVD. Pressing this button
again switches off the repeat function.
Press the REPEAT A-B button to define the start of the section to be repeated. Press
the button again to specify the end of the section.
CD, WMA, MPEG-4 PLAYBACK
The input selection and insertion of the CD are the same as in the DVD mode.
A USB mass storage device can also be used as a storage medium. This is connected to
the USB input on the front of VC 2 unit (pos. 9). The USB input must be activated as the
input sourceby pressing the SOURCE button on the front of the VC 2 unit (pos. 7) or the
USB button on the remote control (pos. 5).
The track list is displayed on the screen.
An individual track can be selected by using the cursor buttons and the OK button or
playback of the entire CD can be started by pressing PLAY. The repeat and playback mode
can also be selected here.
The following functions are available during playback:
Control playback by using the buttons on the front of the unit (pos. 3-6) or the remote
control (pos. 16-21).
 Selecting a track/chapter directly or jumping to a specific time marker
(SEARCH/RDS button on the remote control (pos. 10))
Select the appropriate input field using the cursor buttons and then enter the relevant
track number. The time marker, which can be set in the current track or within the CD,
is entered in the following format: Hours:Minutes:Seconds (two digits each). Do NOT
use the ">10" button when doing this!

THE FUNCTIONS OF THE VC 2
Repeat functions (REPEAT 1/ALL, REPEAT A-B, pos. 27, 28)
Press REPEAT 1/ALL to repeat the current track or the entire CD. Pressing this button
again switches off the repeat function.
Press the REPEAT A-B button to define the start of the section to be repeated. Press
the button again to specify the end of the section. Pressing this button again switches
off the repeat function.
For many media files, there are no generally-valid standards. Therefore, we
cannot guarantee that all files will always play back correctly.
Verylarge video files can cause problems during playback viaUSB. These
should then be played back from a CD or DVD.
TUNER
Selecting the tuner band
•Select TUNER FM or TUNER AM as the audio source using the SOURCE (VC 2, pos.
7) or TUNER button (on the remote control, pos. 3).
•Press the MONO/ST button (remote control (pos. 4)) to switch between mono reception
(recommended for poor reception) or stereo reception.
Station search
•Select TUNER as the audio source and choose the band (see above).
•Use the TUNING buttons on the front of the VC 2 (5, 6) or the TUNING buttons on the
remote control (16, 17):
•Briefly pressing these buttons increases or decreases the tuning frequency by 50 kHz.
•Pressing and holding these buttons searches for the next or previous station on the
band.
Station presets
•20 FM and AM stations can be stored in the memory.
•Select the desired station (FM or AM). Open the memory using the MEM button on the
remote control (9).
•Choose the desired station number via the numerical buttons on the remote control (8). •
The station number flashes in the display.
•Press the MEMbutton again to store the station.
•The station number stops flashing.
•Repeat this procedure to store other stations.
27
Selecting the preset stations
Press one of the PRESET buttons on the remote control (18, 19) to select the desired sta-
tion number.
The memory slot can also be selected directly by using the numerical buttons.
RDS (RADIO DATA SYSTEM) FUNCTIONS OF THE TUNER
RDS is a system which provides information about FM stations that is broadcast together
with the station's signal. The VC 2 can present this information (about the station, broad-
cast, etc.) in the display. The RDS functions can be set via the SEARCH/RDS button on
the remote control (10).
RDS functions of the VC 2
•PS (Program Service Name): Displays the name of the programme. •
PTY (Program Type Identification): Displays the type of programme. •
RT (Radio Text): Displays all information for the programme.
Display sequence when repeatedly pressing the SEARCH/RDS button: PS, station fre-
quency, PTY, RT.
If one of these functions is not supported despite reception of an RDS signal, "N/A" will ap-
pear in the display.

THE FUNCTIONS OF THE VC 2
SOUND SETTINGS
Setting the volume
The volume can be adjusted by using the VOLUME regulator on the front panel (10) or on
the remote control (24). VOL and a value between 00 and MAX (40) then appears in the
display.
MUTE (remote control, pos. 25)
The sound can be deactivated using this button. MUTING flashes on the display.
The sound can be reactivated by pressing this button again or by altering the volume.
Adjusting the bass/treble
Repeatedly press TONE on the remote control (23) until BASS or TREB appears in the
display. Adjust the tone by using the TUNING buttons on the remote control (16, 17).
Adjusting the balance
The balance setting is selected in the same way as the tone regulator. Press the corre-
sponding button repeatedly until BAL L00 - 00R appears in the display. The balance can
be adjusted to the left or right by using TUNING (16).
EQ Function
Various equaliser settings can be called up by pressing the EQ button on the remote con-
trol (22). The following settings can be selected: LINEAR, MOVIE, MUSIC, VOCAL. These
can be selected by repeatedly pressing the EQ button.
DVS Function
With DVS SET (remote control, pos. 26) you can switch off the virtual 5-channel sound via
stereo speakers (Dolby® Virtual Speaker) or select between “DVS Ref”and “DVS Wide”.
DVS Ref is the standard mode with which you can create the 5-channelsound with the
two front speakers.
DVS Wide generates an expanded (broader) sound field for the front channels.
28
OSD MENU
The VC 2 isequipped with an OSD(On Screen Display) menu. All necessary basic settings
can be made using this menu if “DISC”was selected as inputsource.
You open the menu with the setup button on the remote control (pos. 11).
Use the cursor buttons (pos. 14) to select a menu item. This will then appear in a frame
or on a lightbackground. You can select the menu element with the OK button or navigate
through additional submenus with the cursor keys. You can change a setting with the OK
button.
Press the SETUPkey to quit the OSD menu.
MAIN PAGE OF THE OSD MENU
Language
Video
Audio
Rating
Default
From this page you can access the various submenus:
Under Language you can select the language for various menus of the VC 2.
 Under Video you can reach the Video Setup, where you can make various picture
settings.
Under Audio you can reach the AUDIO SETUP, where you can make various sound
settings.
Under Rating you can set authorizations for the playback of films.
Under Default you can reset the VC 2 to the factory settings.

OSD MENU
LANGUAGE
Under OSD Menu you can set the language of the setup
menu.
Under Audio you can set the language of the soundtrack
of a DVD.
Under Disk menu you can set the language of the menu of
a DVD.
Under Subtitle you can set the language of the subtitles
on a DVD or you can switch off the subtitles.
Please note for the last three points that these language
settings must also be supported by the DVD used.
AUDIO SETUP
Audio
EQ Mode
Movie
Music
Vocal
Custom
Bass Control
Treble Control
Balance
Wallmount
Subwoofer Gain
Digital out
RAW
29
You can adjust the tone and balance for audio
playback under EQ mode. Four presets can be
selected here: Linear, Film, Music, Spoken. You
can adjust your own settings under the "Manual"
menu.
Under Speaker Position you can implement a
frequency response correction based on the
location of the satellite speakers. If the speakers
are set up on a shelf and the distance to the wall
is at least 15cm, the "Shelf" setting is
recommended. If the speakers are mounted
directly on a wall, please select the "Wall
mounting" option.
You can adjust the volume of the subwoofer to
match the acoustic properties of the room under
Subwoofer Gain . The closer the subwoofer is
positioned to a wall, the greater the bass
response; therefore it may need to be reduced
(negative values). If the subwoofer is set up
relatively freely in the room, an amplification is
often necessary (positive values). You should test
the settings by conducting various listening tests
with different films and pieces of music. When
doing this the EQ modeshould be set to Linear.
You can choose between PCM (two-channel PCM
data format) and RAW (multi-channel data format)
under Digital Output.

OSD MENU
VIDEO SETUP
With TV Format you can set various screen
formats.
The View Mode allows you to make various
adjustments to the image format on the TV.
You can select one of the following options:
Fill: Scale up/down the image in horizontal and
vertical direction respectively to fill the screen
height and width.
Original: Fit the original screen size. (Only for Divx
and MPEG).
Auto Fit : Take the type value of horizontally fit
scale ratio and vertically fit scale ratio.
Pan & Scan : Take the maximum value of
horizontally fit scale ratio and vertically fit scale
ratio.
With TV Display you can select between the
colour standards PAL, NTSC and Multisystem.
With Video Output you can select between the
outputs “S-Video”, “SCART”, “Component”and
“HDMI”. The composite output is active
independent of the setting.
You can adjust the brightness, contrast, hue and
colour saturation under Smart Picture . Three
settings are stored (standard, vivid and cool). You
can adjust your own settings under the "Custom"
menu.
If HDMI is selected as the video output, only the
brightness level can be changed.
Under the SCART option you can choose between
SCART video output in RGB or CVBS format
(provided SCART is selected as the video output)
Under the Component option you can choose
between component video output in interleased or
progressive format (provided Component is
selected as the video output).
With HD Resolution you can set the resolution of
the HDMI output. The following resolutions can be
selected:
(PAL / NTSC) 576/480 progressive
720 progressive
1080 interlaced
1080 progressive
Please make sure you know which video
resolution is optimal for your TV. Also observe the
operating instructions for the device.
30

OSD Menu
RATING
Rating
Parental control 8.Adult
Enter Password *
Correct Password Wrong Password
1.Kid Safe
2.G
3.PG
4.PG-13
5.PG-R
6.R
Set Password
Enter Password *
Correct Password Wrong Password
Enter New Password *
Confirm New Password
DEFAULT SETTING
Default
Use Default Settings
YES NO
After confirming with "YES" the default settings of the VC 2 unit are restored.
COMPATIBLE FORMATS FOR MEDIA PLAYBACK
COMPATIBLE DISC FORMATS
The following disc formats canbe played back by the VC 2:
 CD-DA  VCD  DVD-
R/DVD+R/RW
 HDCD  S-VCD
 CD-R/CD-RW  DVD Video
COMPATIBLE AUDIO/VIDEO FORMATS
The following audio/video formats can be played back by the VC 2:
 Dolby® Digital  MPEG-4 
AAC
 Dolby® Prologic II  MPEG-2  WMA
Dolby® Virtual speaker  MPEG-1 audio  JPG
 Dolby® Headphone  Kodak Picture CD
ABOUT FORMATS SUPPORTED BY USB
The following formats can be played back by the VC 2 via USB:
 AAC  MP4 
WMA
 MP4  JPEG
*
After entering the correct password you can change the parental control settings. The
preset password is 8888.
Under Set Password you can change the valid password as follows:
Enter the valid password.
 Enter the new password twice.
31

SPECIFICATIONS
CD RECEIVER
Amplifier
Output:
Rated power SAT (4 Ohm) 2 x 50 W
Rated power SUB (4 Ohm) 1 x 100W
Peak power (total): 350 W
Frequency response-linearity:
CD/AUX/Line 20 Hz - 20 kHz (-1.0 dB)
Signal-to-Noise ratio:
CD/AUX/Line 95 dB
Input sensitivity:
AUX/Line 450 mV/47kOhm
Equalizer:
Bass ±10 dB/100 Hz
Treble ±10 dB/10 kHz
Sub ± 6 dB
FM tuner
Frequency range 87.5 - 108 MHz
Signal-to-Noise ratio: Mono: 70 dB
Stereo: 65 dB
AM tuner
Frequency range 531-1602 MHz
Signal-to-Noise ratio: 40 dB
Miscellaneous
Mains voltage: 230 VAC/50 Hz
Power input: Maximum 200 W
Standby 0.9 W
Dimensions (w x h x d):
Main device: 400 x 98 x289 mm
Main device incl. operational elements/connecting terminals:
400 x 98 x 332 mm
Remote control: 53 x 220 x 22 mm
Weight: 4.8 kg 32
FRONT SPEAKERS
Configuration: 2 way, sealed
Power Handling RMS/max: 70 / 120W
Impedance: 4 Ohm
Frequency Response: 60 - 35 000 Hz
Efficiency (1 W/1 m): 90 dB
Dimensions (w x h x d): 108 x 202 x 152 mm
SUBWOOFER
Configuration : Bass reflex
Power Handling RMS/max: 140 / 200W
Impedance : 4 Ohm
Frequency Response: 25 - 180 Hz
Efficiency (1 W/1 m): 90 dB
Dimensions (w x h x d): 235 x 390 x 388 mm
Special features
Dolby® virtual speaker processing for perfect cinema sound from 2 speakers
 Dolby® Headphone
Digital 3-channel power amp
Zoran vaddis® video processor
Upscale function up to 1080p (full HD resolution) for DVD
Superhet FM/MW tuner with RDS / Radiotext function 
Digital mains adapter
Standby function with low power consumption
Subject to technical change.
