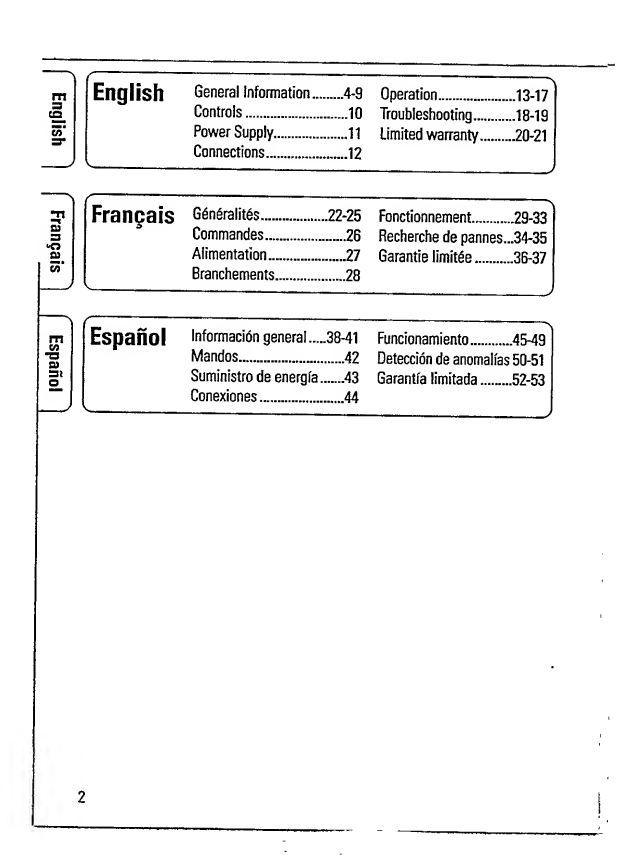

English General Information.4-9 Operation.13-17
Controls.....10 Troubleshooting.18-19
Power Supply.11 Limited warranty.20-21
Connections.12
Franpais
Gbnbralitbs...
Commandes.
Alimentation.
...22-25
..26
.27
Fonctionnement.29-33
Recherche de pannes...34-35
fiaranlie limittfp QFLQ?
Branchements.....
.28
Espanol
Informacibn general..
..38-41
Funcionamiento.
. 45 - 49 ]
Mandos...
.42
Deteccion de anomalias 50-51 |
Suministro de energia
.43
Garantfa limitada....
.52-53
Conexiones.
.44

MODE
OPEN

CAUTION
Use of controls or adjustments or performance of procedures other
than herein may result in hazardous radiation exposure.
The set complies with the FCC-Rules, Part 15 and with 21 CFR 1040.10.
ATTENTION
[.'utilisation des commandes ou reglages ou Ie non-respect des
procedures ci-incluses peuvent se traduire par une exposition
dangereuse a 1'irradiation.
L'appareii r^pond aux normes FCC, Part 15 et 21 CFR 1040.10.
ATENCION
El uso de mandos o ajustes o la ejecuccion de metodos que no sean
los aqui descritos puede ocasionar peligro de exposicion a radiacion.
El aparato cumple las normas FCC, Parte 15 y 21 CFR 1040.10.

GENERAL INFORMATION

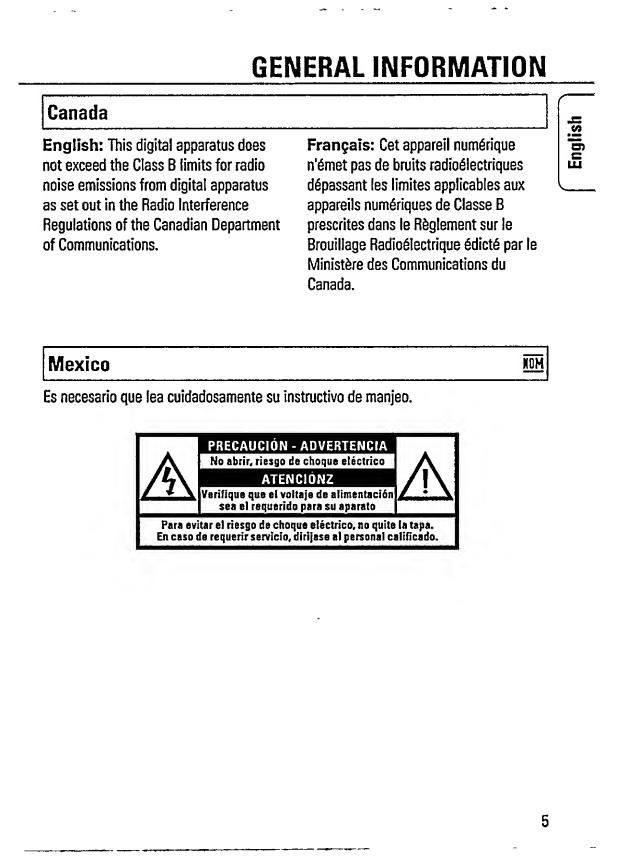

Canada
English: This digital apparatus does
not exceed the Class B limits for radio
noise emissions from digital apparatus
as set out in the Radio Interference
Regulations of the Canadian Department
of Communications.
Fran 9 ais: Cet appareil numSrique
n’Smet pas de bruits radiodlectriques
dSpassant les limites applicables aux
appareils num§riques de Classe B
prescrites dans le Rfcglement sur le
Brouillage Radio§Iectrique 6dict§ par le
Ministere des Communications du
Canada.
Mexico mm
Es necesario que lea cuidadosamente su instructivo de manjeo.

(
English
GENERAL INFORMATION
Return your Warranty Registration Card today to
ensure you receive all the benefits you’re entitled.
Once your MAGNAVOX purchase is registered, you’re eligible to
receive all the privileges of owning a MAGNAVOX product. So
complete and return the Warranty Registration Card enclosed
with your purchase at once. And take advantage of these
■ Model
Registration
Returning your
Warranty Registration
Card right away
guarantees you’ll
receive all the
information and
special offers which
you qualify for as the
owner of your model.
KNOW THESE SAFETY SYMBOLS.
A
A
RISK OF ELECTRIC SHOCK
DO NOT OPEN
CAUTION: To reduce the risk of electric shock, do not
remove cover (or back). No user-serviceable parts
inside. Refer servicing to qualified service personnel.
A The “exclamation point"
calls attention to
features for which you
should read the enclosed
literature closely to prevent
operating and maintenance
problems.
WARNING: TO PREVENT FIRE OR SHOCK HAZARD, DO NOT EXPOSE THIS
EQUIPMENT TO RAIN OR MOISTURE.
CAUTION: To prevent electric shock, match wide blade of plug to wide slot, and fully insert.
A This “bolt of lightning"
indicates uninsulated
material within your unit
may cause an electrical shock.
For the safety of everyone in your
household, please do not remove
product covering.
important benefits.
■ Warranty
Verification
Registering your
product within 10
days confirms your
right to maximum
protection under the
terms and
conditions of your
MAGNAVOX
warranty.
■ Owner
Confirmation
Your completed
Warranty Registra¬
tion Card serves as
verification of
ownership in the
event of product
theft or loss.
6

SAFETY INSTRUCTIONS - Read before operating equipment
i
This product was designed and manufactured to meet strict quality and safety standards. There are,
however, some installation and operation precautions which you should be particularly aware of.
1. Read Instructions-All the safety and
operating instructions should be read
before the appliance is operated.
2. Retain Instructions - The safety and
operating instructions should be retained
for future reference.
3. Heed Warnings-All warnings on the
appliance and in the operating instructions
should be adhered to.
4. Follow Instructions - All operating and
use instructions should be followed.
5. Water and Moisture - The appliance
should not be used near water - for
example, near a bathtub, washbowl,
kitchen sink, laundry tub, in a wet
basement or near a swimming pool, etc.
6. Carts and Stands - The appliance should
be used only with a cart or stand that is
recommended by the manufacturer.
6A. An appliance and cart
| combination should be moved
1 with care. Quick stops,
excessive force, and uneven sur¬
faces may cause the appliance
and cart combination to
overturn.
7. W all or Ceiling Mounting -The
appliance should be mounted to a wall or
ceiling only as recommended by the
manufacturer.
8. Ventilation - The appliance should be
situated so that its location or position
does not interfere with its proper
ventilation. For example, the appliance
should not be situated on a bed, sofa, rug,
or similar surface that may block the
ventilation openings; or, placed in a built-
in installation, such as a bookcase or
cabinet that may impede the flow of air
through the ventilation openings.
9. Heat - The appliance should be situated
away from heat sources such as radiators,
heat registers, stoves, or other appliances
{including amplifiers) that produce heat
10. Power Sources - The appliance should
be connected to a power supply only of
the type described in the operating
instructions or as marked on the
appliance.
11. P ower-Cord Protection - Power supply
cords should be routed so that they are
not likely to be walked on or pinched by
items placed upon or against them, paying
particular attention to cords and plugs,
convenience receptacles, and the point
where they exit from the appliance.
12. C l e aning - The appliance should be
cleaned only as recommended by the
manufacturer.
13. P ower Lines - An outdoor antenna
should be located away from power lines.
14. N onuse Periods- T he power cord of the
appliance should be unplugged from the
outlet when left unused for a long period
of time.
15. Object and Liquid Entry - Care should
be taken so that objects do not fall and
liquids are not spilled into the enclosure
through openings.
16. D a m age Requiring Service - T he
appliance should be sen/iced by qualified
service personnel when:
A. The power-supply cord or the plug has
been damaged; or
B. Objects have fallen, or liquid has spilled
into the appliance; or
C. The appliance has been exposed to rain;
or
D. The appliance does not appear to operate
normally or exhibits a marked change in
performance; or
E The appliance has been dropped, or the
enclosure damaged.
17.Servicing -The user should not attempt
to service the appliance beyond that
described in the operating instructions. All
other servicing should be referred to
qualified service personnel.
91/8 EL 4562-1
7
English

Congratulations on your purchase,
and welcome to the “family!”
Dear MAGNAVOX product owner:
Thank you for your confidence in MAGNAVOX. You’ve selected
one of the best-built, best-backed products available today.
And well do everything in our power to keep you happy with
your purchase for many years to come.
As a member of the MAGNAVOX “family,” you’re entitled to
protection by one of the most comprehensive warranties and
outstanding service networks in the industry.
What’s more, your purchase guarantees you’ll receive all the
information and special offers for which you qualify, plus easy
access to accessories from our convenient home shopping
network.
And most importantly you can count on our uncompromising
commitment to your total satisfaction.
All of this is our way of saying welcome-and thanks for
investing in a MAGNAVOX product.
Sincerely,
Robert Minkhorst
President and Chief Executive Officer
P.S. Remember, to get the most from your MAGNAVOX
product, you must return your Warranty
Registration Card within 10 days. So please mail it
to us right now!

GENERAL INFORMATION

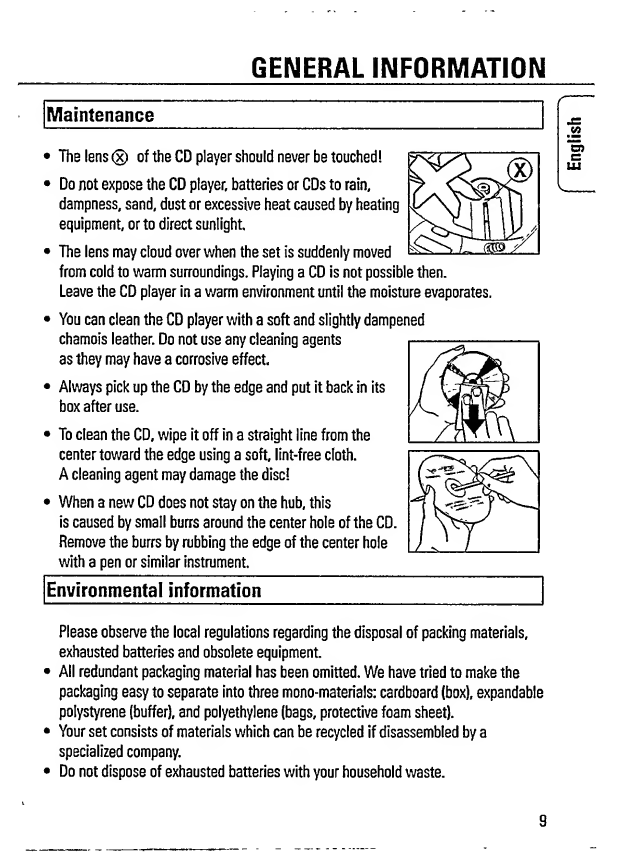

Maintenance
The lens ® of the CD player should never be touched!
Do not expose the CD player, batteries or CDs to rain,
dampness, sand, dust or excessive heat caused by heating
equipment, or to direct sunlight.
The lens may cloud over when the set is suddenly moved
from cold to warm surroundings. Playing a CD is not possible then.
Leave the CD player in a warm environment until the moisture evaporates.
• You can clean the CD player with a soft and slightly dampened
chamois leather. Do not use any cleaning agents
as they may have a corrosive effect.
• Always pick up the CD by the edge and put it back in its
box after use.
• To clean the CD, wipe it off in a straight line from the
center toward the edge using a soft, lint-free cloth.
A cleaning agent may damage the disc!
• When a new CD does not stay on the hub, this
is caused by small burrs around the center hole of the CD.
Remove the burrs by rubbing the edge of the center hole
with a pen or similar instrument.
Environmental information
Please observe the local regulations regarding the disposal of packing materials,
exhausted batteries and obsolete equipment.
• All redundant packaging material has been omitted. We have tried to make the
packaging easy to separate into three mono-materials: cardboard (box), expandable
polystyrene (buffer), and polyethylene (bags, protective foam sheet).
• Your set consists of materials which can be recycled if disassembled by a
specialized company.
• Do not dispose of exhausted batteries with your household waste.
9
English

English
CONTROLS
please refer to the illustration on page 3
DISPLAY . Window for showing the different playing modes, tracks and times
► w.Button for selecting the next music track or, if held down, for
searching forward for a particular passage on the CD
m.Button for selecting the previous music track or, if held down,
for searching-backward for a particular passage on the CD
VOLUME . Control for adjusting the volume of the headphones
RESUME/HOLD . S witch for activating the RESUME function (resuming CD play)
and/or HOLD (blocking all buttons) function
MODE O.Button for selecting the different playing modes:
SHUFFLE—SHUFFLE REPEAT ALL-REPEAT 1-REPEAT ALL
-SCAN-off
PROG P . B u tton for storing tracks in a program and for reviewing the
program
DBB.Dynamic Bass Boost: Button for boosting the bass response
STOP ■ .Button for stopping CD play, deleting various settings,
switching off the CD player and activating charging.
OPEN . Slide control for opening the lid of the CD player
► II . Button for starting and pausing CD play
O / CD OUT . Headphone jack (3.5 mm)
4.5 V DC . Socket for external power supply
Battery compartment for inserting batteries
10

POWER SUPPLY
Power adapter
1 Make sure that the local voltage corresponds
to the voltage of the adapter (see
accessories).
2 Connect the power adapter to the player’s
4.5 V DC socket and to the wall outlet.
• Always disconnect the adapter when you are
not using it.
H
Batteries, type LR6, UM3 or AA (supplied or optional available)
• Open the battery compartment and insert 2
alkaline batteries.
Typical playing times under normal conditions:
Alkaline batteries: 6 hours
i
• Remove the batteries if they are dead or if the
CD player is not to be used for a long time.
iS4
Note: In the right-hand comer of the display the battery condition will be indicated:
-Full batteries: no indication.
-Weak batteries: & -symbol lights up.
-Dead batteries: cn -symbol flashes and the message bfitt appears. Replace
or recharge the batteries or connect the power adapter.
Batteries contain chemical substances, therefore they should be disposed of
properly.
11
English

English
CONNECTIONS
Accessories
Accessories for power supply
AY 3160 power adapter 4,5 V/400 mA Direct current plus-pole to the center pin
Note: Use only the AY 3160 adapter, other products may damage the set.
IConnecting headphones (supplied)
Connect the supplied headphones (16 ohms/
3.5mm plug) at the O / CD OUT jack.
Note: Use this jack also for connecting your HIFi system I
Isignal lead) or your car radio (adapter cassette or\
signal lead). In both cases , the volume of the CD
player has to be set to position 6-8.
I Use your head when using headphones
Hearing safety: Do not play your headphones at a high volume. Hearing experts
advise that continuous use at high volume can permanently damage hearing.
Traffic safety: Do not use headphones while driving a vehicle. It may create a
hazard and it is illegal in many countries. Even if your headphones are an open-air
type designed to let you hear outside sounds, do not turn up the volume so high
that you cannot hear what is going on around you.
12

OPERATION
Playing a CD
1 Open the lid by pushing the OPEN slide control to the side.
2 Insert an audio CD, printed side up.
3 Close the lid by pushing down on the right-hand side.
- ► Display indication of: (example)
17 = total number of tracks / 51:06 = total playing time
4 Press the Hi button to start CD play.
Display indication of: (example)
4 = current track / 2:56 = elapsed time of current track
5 Adjust the sound using the controls VOLUME and DBB.
6 You can interrupt CD play by pressing the Hi button. Continue CD play by pressing
the Hi button again.
- ► Display indication of: time of the current position (flashing).
7 Press the STOP ■ button to stop CD play.
Display indication of: total number of tracks / the total playing time.
• If you press the STOP ■ button again, you will switch off the set.
Note: If no button is pressed for 90 seconds, the set will switch off automatically.
13

English
OPERATION
1 * 0*1

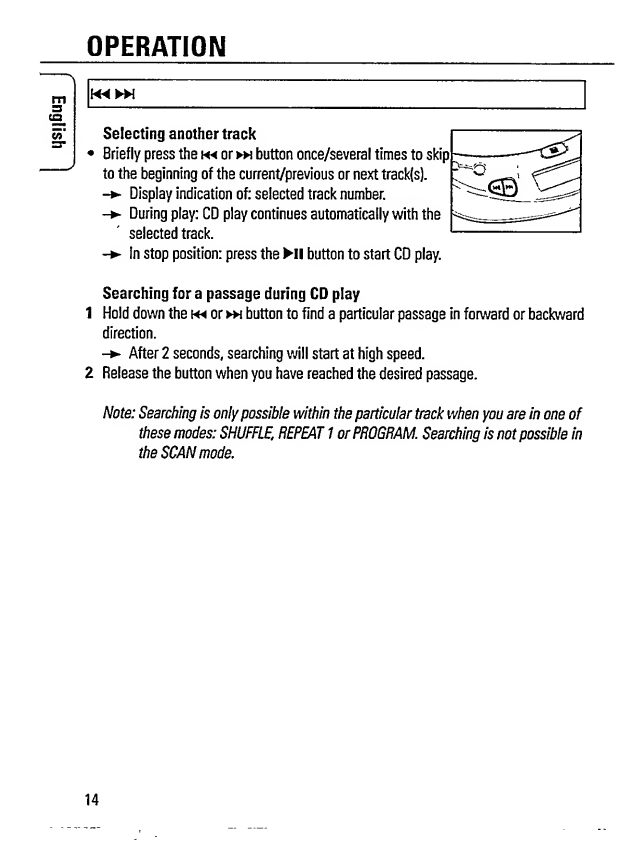

Selecting another track
• Briefly press the or »i button once/several times to skip
to the beginning of the current/previous or next trackfs).
- ► Display indication of: selected track number.
- ► During play: CD play continues automatically with the
selected track.
- ► In stop position: press the Ml button to start CD play.
Searching for a passage during CD play
1 Hold down the or button to find a particular passage in forward or backward
direction.
After 2 seconds, searching will start at high speed.
2 Release the button when you have reached the desired passage.
Note: Searching is only possible within the particular track when you are in one of
these modes: SHUFFLE, REPEAT 1 or PROGRAM. Searching is not possible in
the SCAN mode.
14

OPERATION

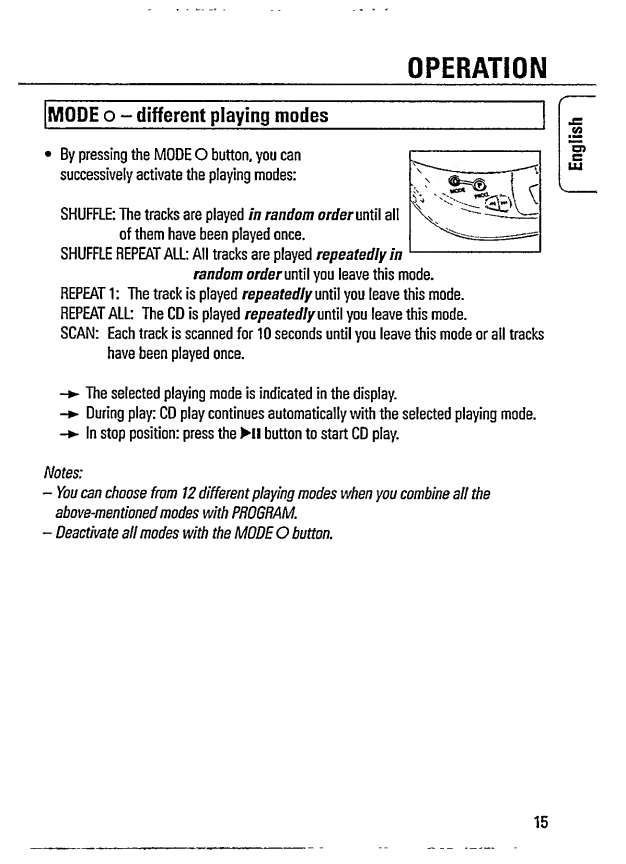

MODE o - different playing modes
• By pressing the MODE O button, you can
successively activate the playing modes:
SHUFFLE: The tracks are played in random order until all
of them have been played once.
SHUFFLE REPEAT ALL: All tracks are played repeatedly in
random order until you leave this mode.
REPEAT 1: The track is played repeatedly until you leave this mode.
REPEAT ALL: The CD is played repeatedly until you leave this mode.
SCAN: Each track is scanned for 10 seconds until you leave this mode or all tracks
have been played once.
- ► The selected playing mode is indicated in the display.
- ► During play: CD play continues automatically with the selected playing mode.
In stop position: press the HI button to start CD play.
Notes:
- You can choose from 12 different playing modes when you combine all the
above-mentioned modes with PROGRAM.
- Deactivate all modes with the MODE O button.
15
English

/---\
English

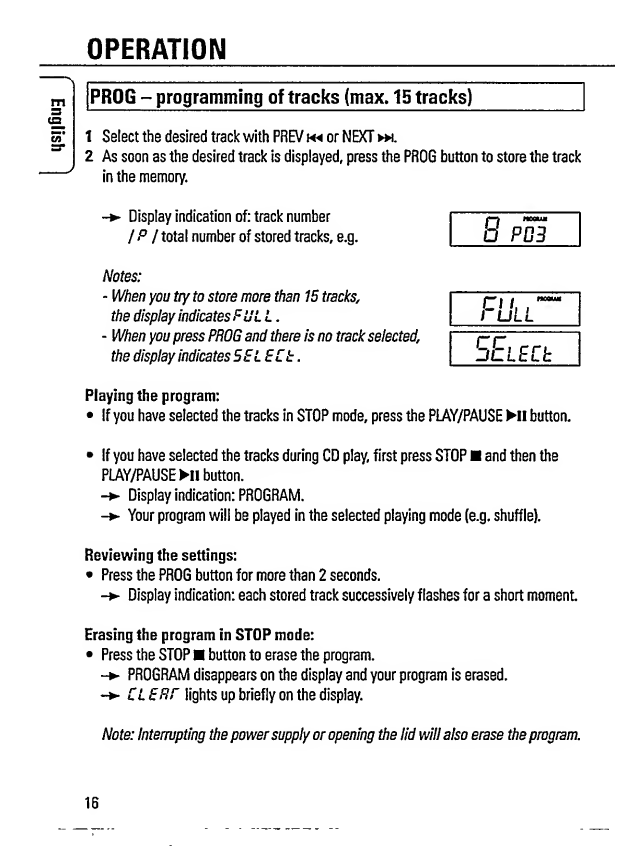

OPERATION
PROG - programming of tracks (max, 15 tracks)
1 Select the desired track with PREV m or NEXT
2 As soon as the desired track is displayed, press the PROG button to store the track
in the memory.
Display indication of: track number
/ P l total number of stored tracks, e.g.
Notes:
- When you try to store more than 15 tracks ,
the display indicates FUL L.
- When you press PROG and there is no track selected,
the display indicates SELECt.
Playing the program:
• If you have selected the tracks in STOP mode, press the PLAY/PAUSE Hi button.
• If you have selected the tracks during CD play, first press STOP M and then the
PLAY/PAUSE HI button.
- ► Display indication: PROGRAM.
- ► Your program will be played in the selected playing mode (e.g. shuffle).
Reviewing the settings:
• Press the PROG button for more than 2 seconds.
- ► Display indication: each stored track successively flashes for a short moment
Erasing the program in STOP mode:
• Press the STOP ■ button to erase the program.
- ► PROGRAM disappears on the display and your program is erased.
CL ERF lights up briefly on the display.
Note: Interrupting the power supply or opening the lid will also erase the program.
8 PD3
SELECt
16

OPERATION

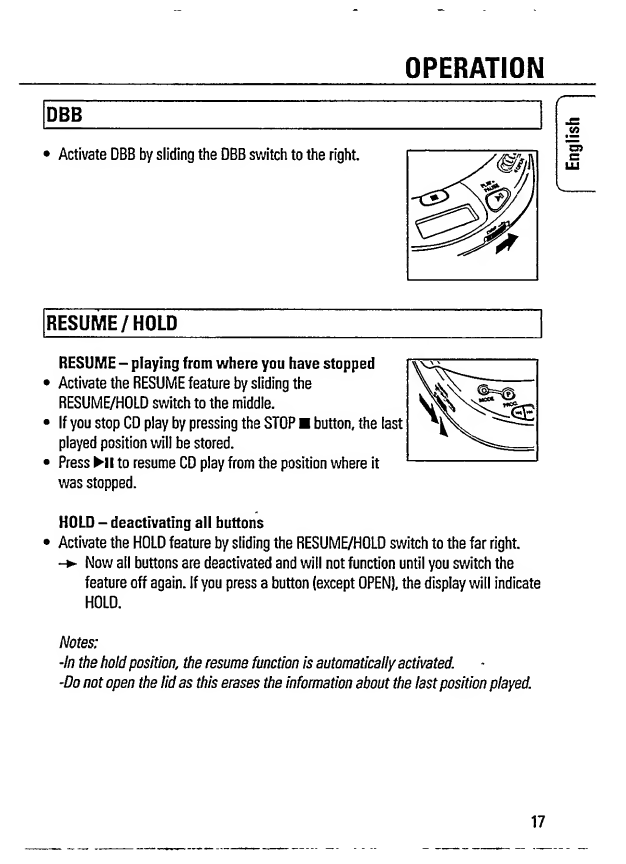

RESUME - playing from where you have stopped
• Activate the RESUME feature by sliding the
RESUME/HOLD switch to the middle.
• If you stop CD play by pressing the STOP ■ button, the last
played position will be stored.
• Press HI to resume CD play from the position where it
was stopped.
HOLD - deactivating all buttons
• Activate the HOLD feature by sliding the RESUME/HOLD switch to the far right
Now all buttons are deactivated and will not function until you switch the
feature off again. If you press a button (except OPEN), the display will indicate
HOLD.
Notes:
-In the hold position , the resume function is automatically activated.
Do not open the lid as this erases the information about the last position played.
17
English

English

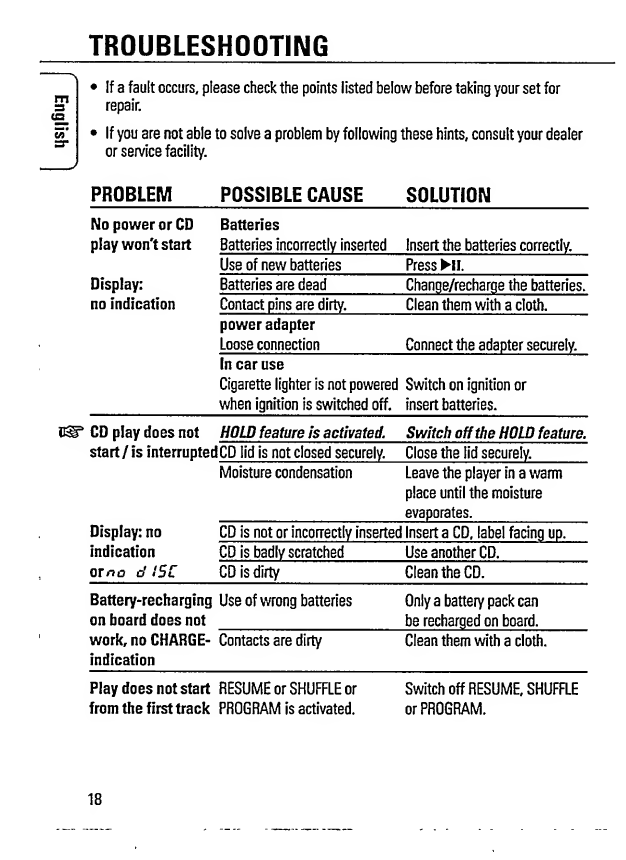

TROUBLESHOOTING
If a fault occurs, please check the points listed below before taking your set for
repair.
If you are not able to solve a problem by following these hints, consult your dealer
or service facility.
PROBLEM POSSIBLE CAUSE
SOLUTION
No power or CD
play won't start
Batteries
Batteries incorrectly inserted
Insert the batteries correctly.
Use of new batteries
Press Hi.
Display:
Batteries are dead
Change/recharge the batteries.
no indication
Contact pins are dirty.
Clean them with a cloth.
power adapter
Loose connection
Connect the adapter securely.
In car use
Cigarette lighter is not powered Switch on ignition or
when ignition is switched off. insert batteries.
CD play does not
HOLD feature is activated.
Switch off the HOLD feature.
start/is interrupted CD lid is not closed securely.
Close the lid securely.
Moisture condensation
Leave the player in a warm
place until the moisture
evaporates.
Display: no
CD is not or incorrectly inserted Insert a CD, label facing up.
indication
CD is badly scratched
Use another CD.
QTno d iSC
CD is dirty
Clean the CD.
Battery-recharging Use of wrong batteries
on board does not
Only a battery pack can
be recharged on board.
work, no CHARGE- Contacts are dirty
indication
Clean them with a cloth.
Play does not start RESUME or SHUFFLE or
from the first track PROGRAM is activated.
Switch off RESUME, SHUFftE
or PROGRAM.
18

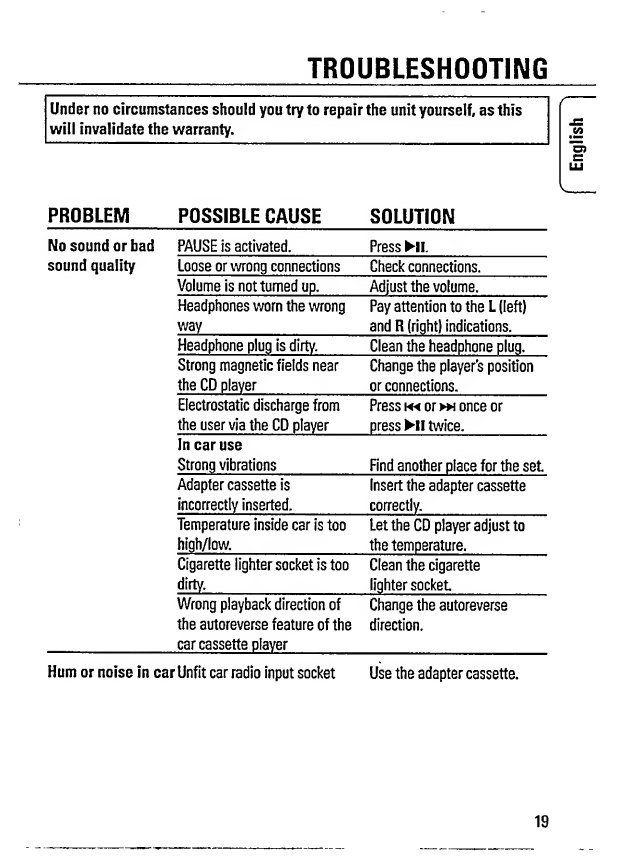

TROUBLESHOOTING
PROBLEM POSSIBLE CAUSE SOLUTION
No sound or bad PAUSE is activated. _ Press ► ». _
sound quality Loose or wrong connections Check connections. _
Volume is not turned up. _ Adjust the volume. _
Headphones worn the wrong Pay attention to the L (left)
way _ and R (right) indications.
Headphone plug is dirty. _ Clean the headphone plug.
Strong magnetic fields near Change the players position
the CD player _ or connections. _
Electrostatic discharge from Press m or once or
the user via the CD player press ► » twice. _
In car use
Strong vibrations _ Find another place for the set
Adapter cassette is Insert the adapter cassette
incorrectly inserted. _ correctly. _
Temperature inside car is too Let the CD player adjust to
high/low. _ the temperature. _
Cigarette lighter socket is too Clean the cigarette
dirty. _ lighter socket _
Wrong playback direction of Change the autoreverse
the autoreverse feature of the direction,
car cassette player
Hum or noise in car Unfit car radio input socket Use the adapter cassette.
19

English
LIMITED WARRANTY
MAGNAVOX PORTABLE COMPACT DISC
One Year Free Exchange
This product must be carried in for an exchange.
WHO IS COVERED?
You must have proof of purchase to exchange the productA sales receipt or other
document showing that you purchased the product is considered proof of purchase.
Attach it to this owner's manual and keep both nearby.
WHAT IS COVERED?
Warranty coverage begins the day you buy your product. For one year thereafter, a
defective or inoperative product will be replaced with a new, renewed or comparable
product at no charge to you. A replacement product is covered only for the original
warranty period.When the warranty on the original product expires, the warranty on
the replacement product also expires.
WHAT IS EXCLUDED?
Your warranty does not cover:
• labor charges for installation or setup of the product, adjustment of customer controls
on the product, and installation or repair of antenna systems outside of the product.
• product repair and/or part replacement because of misuse, accident, unauthorized
repair or other cause not within the control of Philips Consumer Electronics
Company.
• reception problems caused by signal conditions or cable or antenna systems outside
the unit.
• a product that requires modification or adaptation to enable it to operate in any
country other than the country for which it was designed, manufactured, approved
and/or authorized, or repair of products damaged by these modifications.
• incidental or consequential damages resulting from the product. (Some states do not
allow the exclusion of incidental or consequential damages, so the above exclusion may
not apply to you.This includes, but is not limited to, prerecorded material, whether
copyrighted or not copyrighted.)
• a product that is used for commercial or institutional purposes.
WHERE IS EXCHANGE AVAILABLE?
You may exchange the product in all countries where the product is officially distributed
by Philips Consumer Electronics Company. In countries where Philips Consumer
Electronics Company does not distribute the product, the local Philips service
organization will attempt to provide a replacement product (although there may be a
delay if the appropriate product is not readily available).
BEFORE REQUESTING EXCHANGE...
Please check your owner’s manual before requesting an exchange. Adjustments of the
controls discussed there may save you a trip.
Philips Service Company, P.O. Box 555,
Jefferson City,Tennessee 37760, [phone]
20
