Magnavox AZ 9430 User manual

a ee cur et ee tage
ocos = = ee sr M
MAGNAVOX
AZ 9430 / AZ 9435 Radio Cassette Recorder/CD Player
R
ЦІ.
00000 005

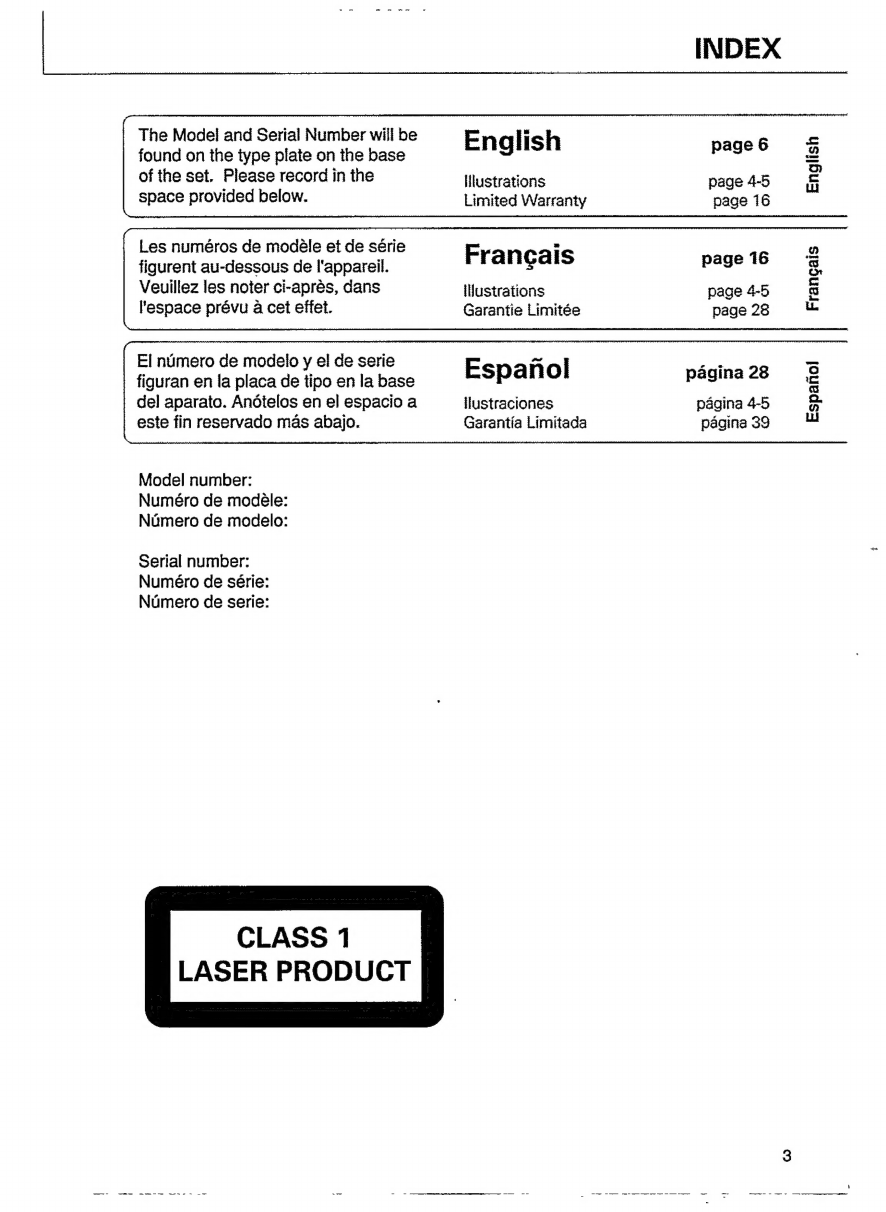

INDEX
The Model and Serial Number will be
found on the type plate on the base
of the set, Please record in the
space provided below.
Les numéros de modéle et de série
figurent au-dessous de l'appareil.
Veuillez les noter ci-aprés, dans
l'espace prévu a cet effet.
El número de modelo у el de serie
figuran en la placa de tipo en la base
del aparato. Anótelos en el espacio a
este fin reservado más abajo.
Model number:
Numéro de modèle:
Número de modelo:
Serial number:
Numéro de série:
Número de serie:
CLASS 1
LASER PRODUCT
—- за. = rr -—- >
English
Hustrations
Français
iHustrations
Garantie Limitée
Español
illustraciones
Garantia Limitada
Limited Warranty
page 6
page 4-5
English
page 16 2
e
page 4-5 @
page 28 ч.
página 28 2
pagina 4-5 я.
pagina3Q №

BASS/TREBLE с
VOLUME DYNAMIC “Ў. CD PLAYER BUTTONS/DISPLAY
POWER eee OPEN/CLOSE
> POWER %
FM STEREO 2
PHONES
MODE
MIC MIXING
CASSETTE DECK
BUTTONS
BAND \ TUNING
HIGH SPEED DUBBING
MAINS
VOLTAGE
SPEAKERS
BATTERY
COMPARTMENT
A ee ee н == A AA PP A авн н o

aam manne PPP A e PP m аа аа.
ИШ

ysbuy
Please follow these three important steps
to get the most from your product
Return your owner’s
registration card within 10 days
2
pS
Registering your purchase is an essential
step to guarantee that you'll receive all of
the benefits you're entitled to as a
Magnavox product owner.
Complete and mal your Owner's Registra-
tion Card today to ensure your right to war-
ranty verification, owner confimation, model
registration, plus a wide variety of special
services and savings.
Know these safety symbols
A CAUTION AN
RISK OF ELECTRIC SHOCK
DO NOT OPEN
CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK,
DO NOT REMOVE COVER (OR BACK).
NO USER-SERVICEABLE PARTS INSIDE.
REFER SERVICING TO QUALIFIEO SERVICE PERSONNEL.
A This bolt of lightning indicates uninsulat-
ed material within your umt may cause
an electrical shock. For the safety of
everyone in your household, please do
not remove product covering.
A This exclamation point calls attention to
features for which you should read the
enclosed literature closely to prevent
operating and maintenance problems.
Read operating instructions
carefully
The information in this manual can help you
take full advantage of your product's many
features, and ensure years of safe, reliable
operation. So don't miss out. Read the
enclosed instructions, safety tips and war-
ranty information today.
ee e ee ee
MAGNAVOX
Congratulations on your new purchase ...
and welcome to the Magnavox family!
Dear Magnavox family member:
Thank you for your confidence in Magnavox.
You've selected one of the best-built, best-backed
products available today.
We appreciate your support, and we'll do every-
thing we can do to keep you happy with your pur-
chase for many years to come. After all, you're
the reason we're іп business!
As a Magnavox family member, you're entitled to
а world of special privileges - and our uncompro-
mising commitment to your total satisfaction.
Your Magnavox product is protected by one of
the most comprehensive warranties and out-
standing service networks in the industry.
What's more, your purchase qualifies you to
receive advance information on exciting new
products from Magnavox, convenient access to
our home shopping network for special products
and accessories, plus factory-direct rebates and
discounts on your future Magnavox purchases.
All of this is our way of saying ‘thanks’ for soming
the Magnavox family.
To start taking advantage of these great benefits,
just remember to return your Magnavox Owner's
Registration Card.
Simply complete, detach and mail us your
Owner's Registration Card today. And enjoy your
new purchase with our best wishes!
Sincerely, с) oh e i | ай
Donald F. Johnstone
President and Chief Executive Officer
For Customer Use:
Enter below the Serial No. which ts located on
the type plate on the base of the cabinet.
Retain this information for future reference.
Model No. AZ9430/AZ 9435
Serial No.

wt reve

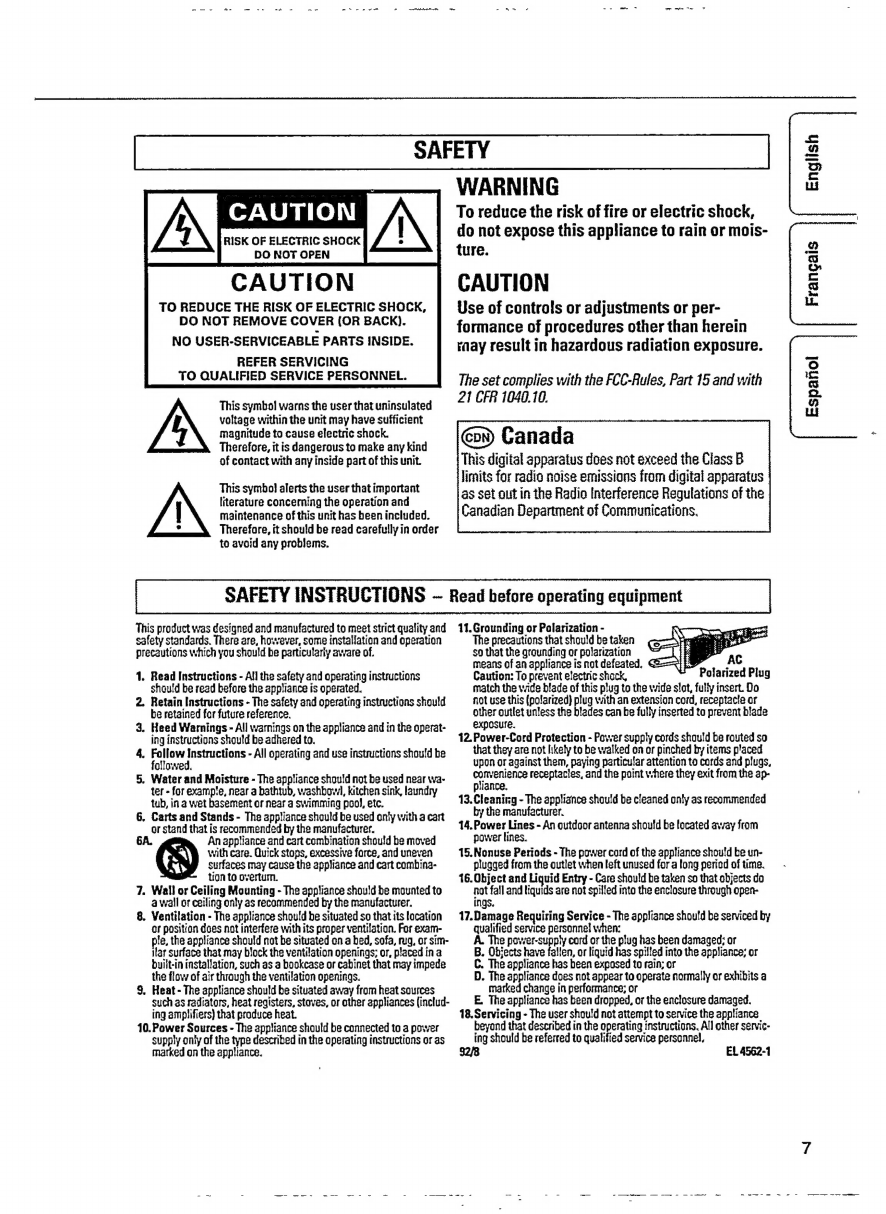

SAFETY
CAUTION
RISK OF ELECTRIC SHOCK
CAUTION
TO REDUCE THE RISK OF ELECTRIC SHOCK,
DO NOT REMOVE COVER (OR BACK).
NO USER-SERVICEABLE PARTS INSIDE.
REFER SERVICING
TO QUALIFIED SERVICE PERSONNEL.
This symbol warns the user that uninsulated
voltage within the unit may have sufficient
magnitude to cause electric shock.
Therefore, it is dangerous to make any kind
of contact with any inside part of this unit.
This symbol! alerts the user that important
literature conceming the operation and
maintenance of this unit has been included.
Therefore, it should be read carefully in order
to avoid any problems.
SAFETY INSTRUCTIONS -- Read before operating equipment
WARNING
To reduce the risk of fire or electric shock,
do not expose this appliance to rain or mois-
ture.
CAUTION
Use of controls or adjustments or per-
formance of procedures other than herein
raay result in hazardous radiation exposure.
The set complies with the FCC-Rules, Part 15 and with
21 CFR 1040.10.
Canada
This digital apparatus does not exceed the Class B
limits for radio noise emissions from digital apparatus
as set ош in the Radio Interference Regulations of the
Canadian Department of Communications.
This product was designed and manufactured to meet strict quality and
safety standards, There are, however, some installation and operation
precautions which you should be particularly aware of.
1. Read Instructions - All the safety and operating instructions
should be read before the appliance is operated.
2. Retain Instructions - The safety and operating instructions should
be retained for future reference.
3. Heed Warnings - All warnings on the appliance and in the operat-
ing instructions should be adhered to.
4. Fallow Instructions - All operating and use instructions should be
followed,
5, Water and Moisture - The appliance should not be used near wa-
ter - for examp!e, near a bathtub, washbowd, kitchen sink, laundry
tub, in a wet basement or near a swimming pool, etc.
6, Carts and Stands - The appliance should be used only with a cart
or stand that is recommended by the manufacturer.
6A. An appliance and cart combination should be moved
with care. Quick stops, excessive force, and uneven
surfaces may cause the appliance and cart combina-
tion to overtum.
7. Wall or Ceiling Mounting - The appliance should be mounted to
a wall or ceiling only as recommended by the manufacturer.
8. Ventilation - The appliance should be situated so that its location
or position does not interfere with its proper ventilation. For exam-
ple, the appliance should not be situated on a bed, sofa, rug, or sim-
ilar surface that may block the ventilation openings; or, placed ina
built-in installation, such as a bookcase or cabinet that may impede
the flow of air through the ventilation openings.
9. Heat- The appliance should be situated away from heat sources
such as radiators, heat registers, stoves, or ather appliances (includ-
ing amplifiers) that produce heat.
10. Power Sources - The appliance should be connected to a power
supply only of the type descnbed in the operating instructions or as
marked on the appliance.
11.Grounding or Polarization -
The precautions that should be taken
so that the grounding or polarization ` D” ac
means of an appliance is not defeated. EJEA
Caution: To prevent electric shock, о. Polarized Plug
match the wide blade of this plug to the wide slot, fuliy insert. Do
not use this (polarized) plug wath an extension cord, receptacte or
other outlet unless the blades can be fully inserted to prevent blade
exposure.
12 Power-Cord Protection - Power supply cords should be routed so
that they are not likely to be walked on or pinched by items placed
upon or against them, paying particular attention to cords and plugs,
кеев receptacles, and the point where they exit from the ap-
pliance.
13. Cleaning - The appliance should be cleaned only as recommended
by the manufacturer.
14. Power Lines - An outdoor antenna should be located away from
power lines.
15.Nonuse Periods - The power cord of the appliance should be un-
plugged from the outlet when left unused for a long period of time.
16. Object and Liquid Entry - Care should be taken so that objects do
not fall and liquids are not spilled into the enclosure through open-
ings.
17. Damage Requiring Service - The appliance should be serviced by
qualified service personne! when:
A. The power-supply cord or the plug has been damaged; or
B. Objects have fallen, or liquid has spilled into the appliance; or
C. The appliance has been exposed to rain; or і
D. The appliance does not appear to operate normally or exhibits a
marked change їп performance; or
E. The appliance has been dropped, or the enclosure damaged.
18. Servicing - The user should not attempt to service the appliance
beyond that described in the operating instructions. All other servic-
ing should be referred to qualified service personnel,
El 4562-1
Francais English
Español
—— —— —=—

ч5цбид
CONTRO LS КККК ГЕТЕ, se Рог the illustrations, keep pages 4 and 5 open

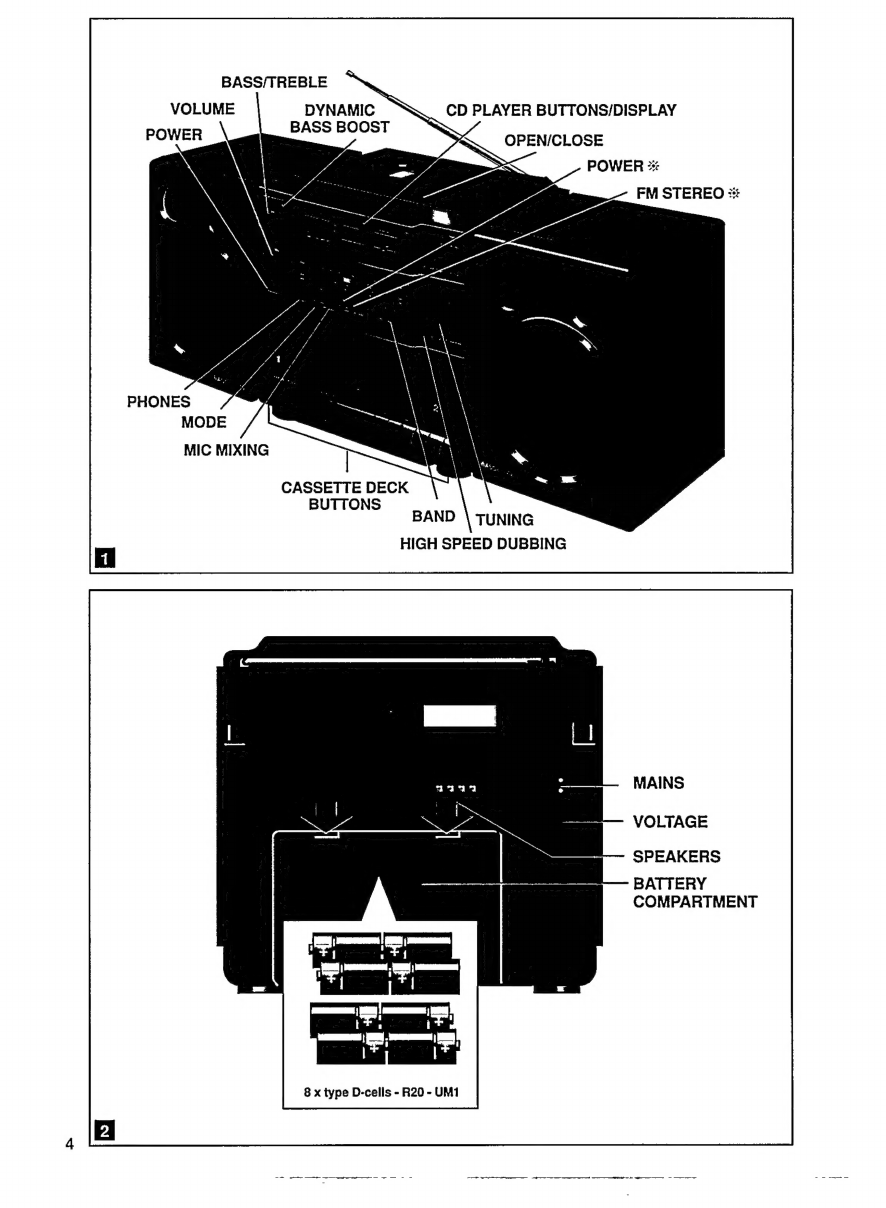

CONTROLS - fig. 1 and 2
POWER on/off button
VOLUME control
BASS/TREBLE tone control
DYNAMIC BASS BOOST — bass button
CD PLAYER BUTTONS and DISPLAY:
[> — PLAY and PAUSE button
O ~ STOP button (press again to erase
the memory)
К PREVIOUS/NEXT Ы: in position play-
back or STOP, press briefly to jump to a
previous K or nextDl track
ч SEARCH pp: during playback, keep
pressed to search fast backward << or
forward >
INTROSCAN ~ to play only the begin-
ning of each track
МОРЕ ~ press repeatedly until the re-
quired function appears in the display
— SHUFFLE play all tracks іп a random
order
— SHUFFLE REPEAT continuously re-
peat the CD in the SHUFFLE mode
— REPEAT ALL (MEMORY) continu-
ously repeat the CD (or the stored se-
lection — MEMORY)
— REPEAT 1 continuously repeat 1 title
(the displayed track)
MEMORY -— to store the displayed track
number in the memory (press for longer
than 1 second to display all stored track
numbers)
CD display, shows:
no y {52 —no CD inserted
TRACK — the total number of tracks, and
during play the number of the track being
played
TIME — the total playing time of the CD,
“апа during play the elapsed time of that
track
REPEAT (ALL or 1) activated
SHUFFLE activated
MEMORY ~ the stored selection (mem-
ory) is played
SCAN (INTROSCAN) activated
PAUSE activated
OPEN/CLOSE - to open and close the CD
cover
POWER 3# – power on/off indicator
FM STEREO 2%- FM stereo indicator
PHONES — stereo headphone socket
MODE selector — to select the sound source
TAPE - RADIO -CD
MIC MIXING — microphone socket
CASSETTE DECK 1 BUTTONS
O RECORD
» PLAY
«« REWIND — fast rewind
>> F.FWD — fast forward wind
m STOP/EJECT
П PAUSE
CASSETTE DECK 2 BUTTONS
» PLAY
<< REWIND — fast rewind
>> F.FWD — fast forward wind
Ш STOP/EJECT
H PAUSE
BAND selector
TUNING knob
HIGH SPEED DUBBING button
MAINS socket for mains lead
VOLTAGE selector (not on all versions)
SPEAKERS -loudspeaker terminals
BATTERY COMPARTMENT
The type plate is located on the base of the
Set.
- - = meee ~~ awe аа рч ee ee ee e

SUPPLY
SUPPLY
Batteries
Whenever convenient, use АС mains sup-
ply ifyou want to conserve battery life.
e Open the battery compartment (fig. 2).
e Insert as indicated eight (preferably
Alkaline) batteries, type R20, UMi or D-
cells (fig. 2).
Note: Instead of normal batteries, you can
also insert 'Gates' rechargeable power
sticks 4 x size 2D. They require no separate
recharger but are recharged automatically
in this set whenever connected to a wall out-
let. Use only 'Gates' power sticks. Normal
rechargeable D-cells are not recharged in
this set.
e The battery supply is switched off when
the set is connected to the mains. When
changing over to battery supply, pull out
the plug from the MAINS socket (fig. 2).
e Remove the batteries if exhausted or if
they will not be used again for a long
period.
AC mains supply
e Check if the mains voltage as shown on
the type plate (on the base of the set).
corresponds to your local mains supply.
If it does not, consult your dealer or serv-
ice organisation.
If the set is equipped with a VOLTAGE
selector (fig. 2), set this selector to the
local mains voltage.
e Connect the mains lead to the MAINS
socket (fig. 2) and the wall socket. The
mains supply is now switched on.
e To disconnect the set from the mains
completely, withdraw the mains plug
from the wall socket.
— A e - e —– - — -_— — - — -— ~
CONNECTIONS
CONNECTIONS
Stereo headphone socket PHONES
For stereo headphones with 3.5 mm plug.
Inserting the plug will disconnect the loud-
speakers.
Microphone socket MIC MIXING
For a microphone with 3.5 mm plug. To
avoid disturbing noises, reduce the volume
before connection.
— you can reproduce your voice amplified
through the loudspeakers. Set MODE
selector to ТАРЕ.
— you can mix your voice with CD, radio or
cassette. Set the MODE selector to CD,
RADIO or TAPE. In the CD or RADIO
mode you can record it all on the cas-
sette deck.
Adjust the sound with the controls VOL-
UME, BASS/TREBLE and DYNAMIC BASS
BOOST. If a howling sound occurs, keep
the microphone away from the loudspeak-
ers or reduce the volume. Disconnect the
microphone when not in use.
Loudspeaker terminals SPEAKERS
See fig. 3 for connecting the supplied loud-
speakers (or others having an impedance of
4 Ohms). Connect the coloured (or marked)
wire to the red terminal.
To attach the loudspeakers, see fig. 4.
Move knob (ў) to take off the loudspeakers,
see fig. 5.
Note
The supplied loudspeakers are different for
AZ9435.
English
аа аа

убия
10
RADIO
RADIO
RADIO RECEPTION
Switch on the set using the POWER
button. POWER = lights up.
Set the MODE selector to RADIO.
Adjust the sound with the controls VOL-
UME, BASS/TREBLE and DYNAMIC
BASS BOOST.
Select the wave band using the BAND
selector. (LW not on all versions).
For FM, pull out the telescopic aerial. To
improve FM-reception, incline and turn
the aerial. Reduce its length if the FM-
signal is too strong (very close to a trans-
mitter).
For AM/MW and LW (Medium and Long
Wave), the set is provided with a built-in
aerial, so there is no need to use the
telescopic aerial. The aerial can be
directed by turning the whole set.
Tune to a radio station using the
TUNING knob.
When FM STEREO + lights up, you are
receiving a FM-stereo transmitter. A dis-
turbing noise, due to a weak FM-stereo
signal, can be suppressed by setting the
BAND selector to FM (mono). FM
STEREO ¥ will then go out and you will
hear (and record) the FM programme in
mono.
Always switch off the set after use with
the POWER button. POWER == will then
go out.
COMPACT DISC
COMPACT DISC
PLAYING A DISC
Switch on the set using the POWER but-
ton. POWER % lights up.
Set the MODE selector to CD.
Press OPEN/CLOSE to open the CD
cover.
Insert the CD, printed side facing up
(fig. 6).
Close the cover. The CD-player starts
and scans the contents list of the CD.
After that, the total playing time and the
number of tracks appear on the display
and the CD player stops.
Playback will start by pressing PLAY P>.
As soon as playback starts, the display
shows the track number and the elapsed
playing time of that title.
Adjust the sound with the controls VOL-
UME, BASS/TREBLE and DYNAMIC
BASS BOOST.
For brief interruptions, press PAUSE.
The word PAUSE then appears. To con-
tinue playback, press PAUSE again.
To stop playback, press STOP O.
The CD player also goes to position STOP:
by pressing OPEN/CLOSE;
when the end of the CD is reached;
if you move the MODE selector;
if the batteries run down or if the power
supply is interrupted in another way.
To take out the CD, open the CD cover
by pressing OPEN/CLOSE. Open the
CD cover only if the CD-player is in posi-
tion STOP.
Always switch off the set after use with
the POWER button. POWER # will then
go out.
Remarks
lf the battery voltage is not sufficient any
more for playing a CD, the CD-player will
not start.
[ле Y /5£ appears after inserting a
CD, the player cannot read the CD. Pos-
sible causes are:
you inserted the CD the wrong way: the
label should face up (fig. 6);
ee ee ee

COMPACT DISC
— the CD is badly scratched or dirty, see
‘Maintenance’;
— thelensG (fig. 7) is steamed up because of
a sudden transition from a cold into a warm
environment; do not clean the lens, but let
the set acclimatize for a while.

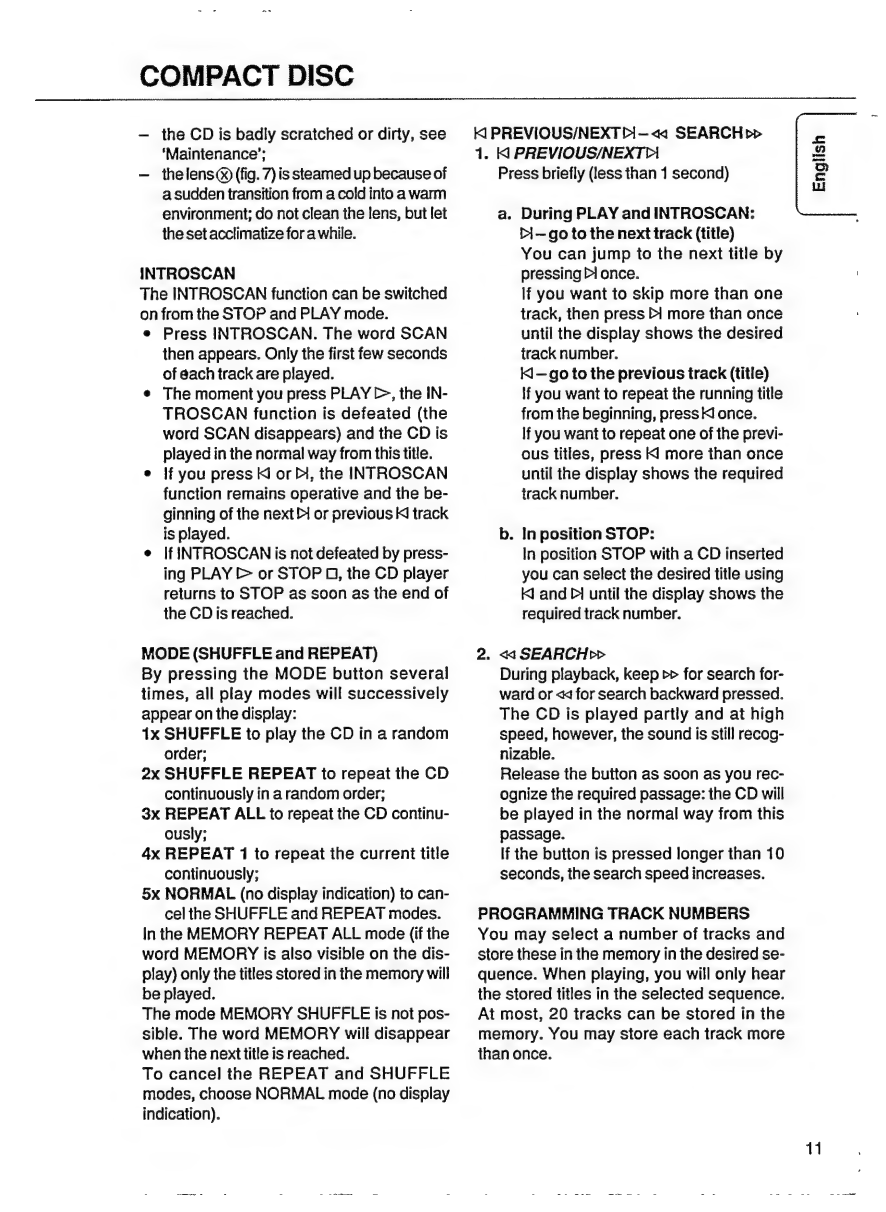

INTROSCAN
The INTROSCAN function can be switched
on from the STOP and PLAY mode.
e Press INTROSCAN. The word SCAN
then appears. Only the first few seconds
of each track are played.
e The moment you press PLAY ©, the IN-
TROSCAN function is defeated (the
word SCAN disappears) and the CD is
played in the normal way from this title.
e If you press Ki or bl, the INTROSCAN
function remains operative and the be-
ginning of the next ог previous K track
is played.
е IfINTROSCAN is not defeated by press-
ing PLAY © or STOP O, the CD player
returns to STOP as soon as the end of
the CDis reached.
MODE (SHUFFLE and REPEAT)
By pressing the MODE button several
times, all play modes will successively
appear on the display:
1x SHUFFLE to play the CD in a random
order;
2x SHUFFLE REPEAT to repeat the CD
continuously їп a random order;
3x REPEAT ALL to repeat the CD continu-
ously;
4x REPEAT 1 to repeat the current title
continuously;
5x NORMAL (no display indication) to can-
celthe SHUFFLE and REPEAT modes.
In the MEMORY REPEAT ALL mode (if the
word MEMORY is also visible on the dis-
play) only the titles stored in the memory will
be played.
The mode MEMORY SHUFFLE is not pos-
sible. The word MEMORY will disappear
when the next title is reached.
To cancel the REPEAT and SHUFFLE
modes, choose NORMAL mode (no display
indication).
KI PREVIOUS/NEXTD1-<«a SEARCH pp
1. К PREVIOUS/NEXTDA
Press briefly (less than 1 second)
a. During PLAY and INTROSCAN:
іЫ -- go to the next track (title)
You can jump to the next title by
pressing іЫ once.
lf you want to skip more than one
track, then press bi more than once
until the display shows the desired
track number.
К1— go to the previous track (title)
if you want to repeat the running title
from the beginning, press К once.
If you want to repeat one of the previ-
ous titles, press КІ more than once
until the display shows the required
track number.
b. In position STOP:
In position STOP with a CD inserted
you can select the desired title using
КІ апа until the display shows the
required track number.
2. «4 SEARCH
During playback, keep p> for search for-
ward or << for search backward pressed.
The CD is played partly and at high
speed, however, the sound is still recog-
nizable.
Release the button as soon as you rec-
ognize the required passage: the CD will
be played in the normal way from this
passage.
If the button is pressed longer than 10
seconds, the search speed increases.
PROGRAMMING TRACK NUMBERS
You may select a number of tracks and
store these in the memory in the desired se-
quence. When playing, you will only hear
the stored titles in the selected sequence.
At most, 20 tracks can be stored in the
memory. You may store each track more
than once.
English
11

ysi¡buy
12
COMPACT DISC i
Manual selecting
e Select the desired track using the but-
tons K and ® until the display shows the
required track number.
e Store this track by pressing MEMORY.
e Select and store in this way all desired ti-
tles.
Storing during INTROSCAN
e Press INTROSCAN to play the first few
seconds of each track.
е Press MEMORY as soon as you recog-
nize a desired title.
200 during PLAY
e During normal PLAY you may store the
running title by pressing MEMORY.
— After pressing MEMORY the character
F (PROGRAM) appears, indicating that
the track has been stored.
— Store all desired titles in the required
sequence. You may store each track
more than once.
— At most, 20 tracks can be stored іп the
memory. When the memory is full, the
character £ (FULL) appears.
— When pressing MEMORY for longer
than 1 second, the display will show in
sequence all stored track numbers.
— You can simply erase the whole memory
by pressing STOP C for a second time:
the character £ for CLEAR appears now.
The contents of the memory are also
erased:
— by opening the CD cover using OPEN/
_ CLOSE;
— if you move the MODE selector;
— if the batteries get exhausted or if the
power supply is interrupted in another
way.
How to play the stored selection
To play your selection, the CD-player
should be in position STOP; then press
PLAY Р»: now, the word MEMORY ap-
pears.
—- ee e ae a e ——
CASSETTE
CASSETTE
RECORDING
Preparation
e Switch on the set using the POWER
button. POWER ¥ lights up.
e Press EJECT ш to open the cassette
holder.
e Insert the cassette (fig. 9).
For recording you must use a cassette on
which the tabs (fig. 10) are not broken out.
At the very beginning of the tape, no record-
ing will take place during the first 7 seconds
when the leader tape passes the recorder
heads.
e When monitoring during recording,
adjust the sound with the controls VOL-
UME, BASS/TREBLE and DYNAMIC
BASS BOOST. These controls do not
affect the recording.
O from the CD-player
e Setthe MODE selector to CD. It's not
necessary to start the CD-player sepa-
rately: if you press RECORD @, the CD-
player starts automatically:
— if the CD-player is in position STOP,
recording will start from the beginning of
the CD (or from the beginning of the
programmed selection);
— ifthe CD-player is in position PAUSE, re-
cording will start from this very position;
— іп position INTROSCAN the CD-player
will first return to the beginning of that
track and then recording will start.
Recording from the radio
е Set the MODE selector to RADIO.
e Tune to the desired radio station.
e In case of FM radio recordings, set the
BAND selector to FM (mono) or FM
STEREO.

CASSETTE
Microphone recording
e Connect the microphone to socket MIC
MIXING.
— Microphone only: set the MODE selector
to TAPE.
~ Mixing with CD: set MODE selector to CD.
— Mixing with radio: set MODE selector to
RADIO.
e Ifahowling sound occurs:
— keep the microphone away from the
loudspeakers,
— orreduce the volume,
— oruse headphones for monitoring.
Starting and stopping the recording
e Start recording by pressing RECORD @;
in doing so, PLAY > is pressed too.
e For brief interruptions, press PAUSE ІІ.
To restart recording, press this button
once more.
e To stop recording, press STOP ш. On
pressing again, the cassette holder will
open.
e Always switch off the set after use with
the POWER button. POWER ¥ will then
go out.
FAST WINDING
Press << or »». To stop fast winding, press
STOP Ш.
SAFEGUARDING AGAINST ERASURE
Keep the cassette side to be safeguarded in
front of you (fig. 10) and break out the left
tab. Now, recording on this side is no longer
possible. You can render this safeguard
ineffective by covering the aperture with a
piece of adhesive tape.
a ee =- =- —— - - am va == ‚ж => —
DUBBING - Copying from deck 2 to 1
When copying, it is recommended to use
fresh batteries or to connect the set to the
mains supply.
е
Switch on the set using the POWER
button. POWER ¥ lights up.
Set the MODE selector to TAPE. Do
not move this selector during dubbing.
Set the HIGH SPEED DUBBING button
to:
Æ for normal speed copying:
за. for high speed copying.
Do not switch this button during dubbing.
Press both STOP/EJECT m buttons
and insert a recorded cassette into
deck 2 and a cassette which is suited
for recording into deck 1 (fig. 9).
Press on deck 1 PAUSE И and then
RECORDO .
To start dubbing, press PLAY » on
deck 2. Deck 1 PAUSE His then
released.
By pressing PAUSE Поп deck 1, you
can omit undesired passages while
deck 2 continues. To restart copying,
press PAUSE II once more.
Using PAUSE ІІ of deck 2, deck 1 will
record a blank part.
To stop dubbing, press both STOP/
EJECTm buttons.
Aiways switch off the set after use with
the POWER button.
CASSETTE PLAYBACK
Switch on the set using the POWER but-
ton. POWER ¥ lights up.
Set the MODE selector to TAPE.
Adjust the sound with the controls VOL-
UME, BASS/TREBLE and DYNAMIC
BASS BOOST.
Press EJECT Ш and insert a recorded
cassette (fig. 9).
Fast winding and rewinding: Press << or
>>. To stop, press STOP Шш.
Press PLAY апа playback will start.
To stop playback, press STOP Ш.
When the end of the tape is reached, the
recorder butions are released.
English
13

ys¡¡6uz
14

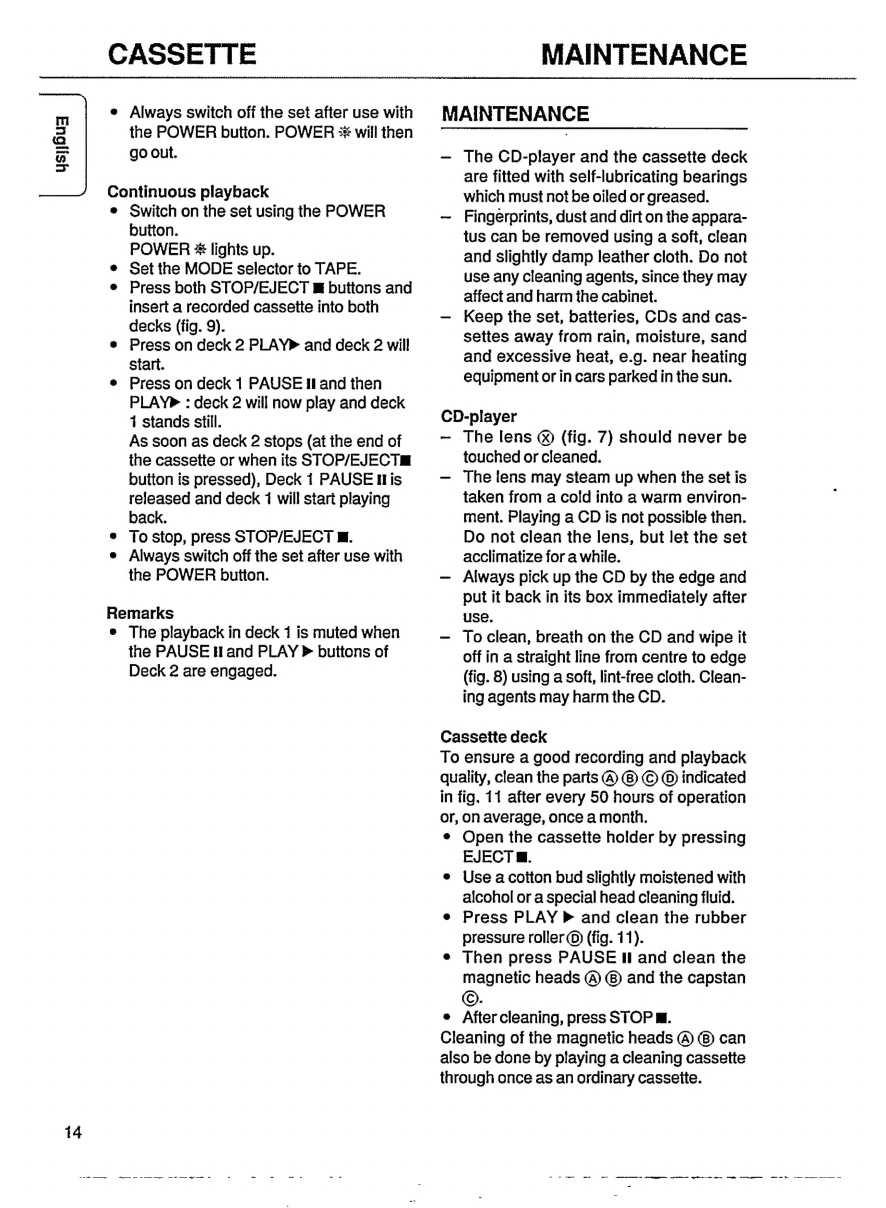

CASSETTE
e Always switch off the set after use with
the POWER button. POWER Ж will then
go out.
Continuous playback
e Switch on the set using the POWER
button.
POWER # lights up.
e Set the MODE selector to ТАРЕ.
e Press both STOP/EJECT m buttons апа
insert a recorded cassette into both
decks (fig. 9).
e Press on deck 2 PLAY» and deck 2 will
start.
е Press on deck 1 PAUSE папа then
PLAY» : deck 2 will now play and deck
1 stands still.
As soon as deck 2 stops (at the end of
the cassette or when its STOP/EJECTHEE
button is pressed), Deck 1 PAUSE His
released and deck 1 will start playing
back.
e To stop, press STOP/EJECT ш.
e Always switch off the set after use with
the POWER button.
Remarks
e The playback in deck 1 is muted when
the PAUSE H and PLAY > buttons of
Deck 2 are engaged.
MAINTENANCE
MAINTENANCE
— The CD-player and the cassette deck
are fitted with self-lubricating bearings
which must not be oiled or greased.
— Fingerprints, dust and dirt on the appara-
tus can be removed using a soft, clean
and slightly damp leather cloth. Do not
use any cleaning agents, since they may
affect and harm the cabinet.
— Keep the set, batteries, CDs and cas-
settes away from rain, moisture, sand
and excessive heat, e.g. near heating
equipment or in cars parked in the sun.
CD-player
— The lens & (fig. 7) should never be
touched or cleaned.
— The lens may steam up when the set is
taken from a cold into a warm environ-
ment. Playing a CD is not possible then.
Do not clean the lens, but let the set
acclimatize for a while.
— Always pick up the CD by the edge and
put it back in its box immediately after
use.
— То clean, breath on the CD and wipe it
off in a straight line from centre to edge
(fig. 8) using a soft, lint-free cloth. Clean-
ing agents may harm the CD.
Cassette deck
To ensure a good recording and playback
quality, clean the parts (А) (В) © © indicated
in fig. 11 after every 50 hours of operation
or, on average, once a month.
e Open the cassette holder by pressing
EJECT 8.
e Use a cotton bud slightly moistened with
alcohol or a special head cleaning fluid.
e Press PLAY > and clean the rubber
pressure roller ©) (fig. 11).
e Then press PAUSE II and clean the
magnetic heads (А) (8) and the capstan
©).
е After cleaning, press STOP W.
Cleaning of the magnetic heads (А (Б) сап
also be done by playing a cleaning cassette
through once as an ordinary cassette.

LIMITED WARRANTY
Magnavox Portable Compact Disc
- One Year Carry-In Exchange -
One Year Coverage
For one year from the date of purchase, your Portable Compact Disc wall be replaced with a new, renewed or comparable product
(whichever 15 deemed necessary) if it becomes defective or inoperative. This is done without charge to you. Replacement prod
ucts are warranted for the balance of the warranty period.
Who is Protected? ... Where?
This warranty is extended to the onginal retail purchaser for products purchased and used in the U.S.A, Puerto Rico, the Virgin Is-
lands and Canada.
What the Purchaser Must Do
Before you call for service, check your operating instruction booklet. A slight adjustment of the customer controls discussed in
your instruction booklet may save you a service call.
This warranty does not cover commercial use, rental agreements, shipping damage, misuse or failure due to lack of normal care.
For product purchased in the U.S.A., Puerto Rico
or the Virgin Islands
if you require service during the warranty penod, you must
take your portable product to the dealer from whom it was
purchased, or carefully pack the product and ship it by prepaid
transportation with proof of the purchase date to the Small
Product Semice Center”, address listed below.
In the U.S.A., Puerto Rico or the Virgin Islands, all implied war-
rantes including implied warranties of merchantability and fit-
ness for a particular purpose, are limited in duration to the du-
ration of this express warranty. Some states do not allow limi-
tations on how long an implied warranty lasts, so the above
limitation may not apply to you.
This warranty gives you specific legal nghts, and you may
have other rights which vary from state to state.
For product purchased in Canada
Replacement product can be arranged through your dealer
who vall advise of the nearest герат centre. To obtain warranty
service, the product must be delivered {camed-n) to a Philips
Consumer Service Centre (listed below), Philips Self-Servicing
Dealer or Authonzed Service Depot.
All that's required to validate your original factory warranty for
products you purchase is to present your bill of sale as proof of
purchase.
In Canada, this warranty applies only to the normal service
area of a Philips Consumer Service Centre, Philips Self-Servic-
ing Dealer or Authorized Service Depot. Beyond this area, trav-
el time or expense 15 the owner's responsibility.
How To Get Service On Your Portable Product After The One Year Warranty Expires
Out-of-varranty service can be obtained at a nominal cost for replacement and handling under the follovang arrangements:
For product purchased in the U.S.A., Puerto Rico or
the Virgin Islands
. Contact the Philips Service Company office (ff 615/475-
8869) to obtain the cost of out-of-warranty repair for your
product. Please know your mode! number before you call,
. Pack your product securely in a suitable container for ship-
ment
Mail the product to:
*Small Product Service Center
Philips Service Company
907 Snapps Ferry Road, Plant А ушшш 6
Greeneville, Tennessee TN 377
ТЇ (615) 636 - 5740
For product purchased in Canada
1. Call the nearest Canadian Philips Consumer Semice Centre
(listed below) to obtain the cost of out-of-varranty гераі for
your product. Please know your model number before you
call.
. Pack your product securely in a suitable container for shp-
ment.
. Mail the product to the nearest Canadian Philips Service
Centre {listed below).
Canadian Philips Consumer Service Centres
Toronto Montréal
601 Milner Avenue
Montréal, Québec
НАТ 1Е1
ат [phone]
М
Т? [phone] ог 292-5161
Fax [phone]
5930 Cóte de Liesse
Fax ТР [phone]
Vancouver
3695 Grandview Highway
Vancouver, B.C
V5M 267
T [phone]
Fax [phone]
When your product is received, it vall be replaced by а renevved (or comparable) product which meets Philips’ high quality stam-
dards and shipped back to you by prepaid transportation.
EL 4546-2 92/11
= mmen
English

А29430
А29435
Philips
Consumer
Electronics
Company
A Division of North American Philips Corporation
3139 116 14432 Printed In Malaysia
