Magnimage MIG-EC90 User manual

MIG-EC90 Event Console
User manual V1.0
△
!
All-in-one 4K Event Console
Before using this video processor, please read this manual
carefully and keep it for reference in the future.

Without the written permission, any unit or individual could not
copy, reproduction or translate the book or part of it. Also could
not transmit it in any form or any way (electronic, mechanical,
photocopying, record or other way) for any business and profitable
purpose.
The product specifications and information mentioned in this
manual is just for reference, will not give prior notice if there is any
update. Unless there is a special agreement, it is just used as
guidelines. All the statements or information in this manual shall
not constitute any form of guarantee.
Statement

BRIEFS....................................................................................................................... 1
TRADEMARK CREDIT....................................................................................................................................1
ABOUT THE SOFTWARE................................................................................................................................ 1
FEATURES.................................................................................................................................................. 2
EXTENDED PORTS........................................................................................................................................3
SAFETY INSTRUCTIONS................................................................................................................................. 4
SPECIFICATION............................................................................................................................................4
FUNCTION INTRODUCTION......................................................................................5
BRIEF........................................................................................................................................................5
THE FRONT PANEL.......................................................................................................................................6
THE REAR PANEL.........................................................................................................................................7
Other............................................................................................................... 错误！未定义书签。
TECHNICAL SPECIFICATIONS...........................................................................................................................8
USER MENU............................................................................................................ 10
DEFAULT STATUS INTRODUCTION..................................................................................................................10
MAIN MENU INTRODUCTION...................................................................................................................... 11
Main menu...................................................................................................................................... 12
Picture setting................................................................................................................................. 13
Output setting menu.......................................................................................................................15
Input setting.................................................................................................... 错误！未定义书签。
Layer setting.................................................................................................................................... 22
Save and load.................................................................................................................................. 29
EDID.................................................................................................................错误！未定义书签。
Communication............................................................................................................................... 33
MISC................................................................................................................ 错误！未定义书签。
Language......................................................................................................... 错误！未定义书签。
MULTI-PREVIEW INTERFACE INTRODUCTION...................................................................................................40
BUTTON.................................................................................................................. 41
HOW TO USE THE BUTTON......................................................................................................................... 41
MENU AREA：.................................................................................................错误！未定义书签。
ADJUSTMENT area：.......................................................................................错误！未定义书签。
LAYER AREA：................................................................................................. 错误！未定义书签。
LOGO AREA：..................................................................................................错误！未定义书签。
FUNCTION 1&2 AREA：.................................................................................. 错误！未定义书签。
INPUT AREA：................................................................................................. 错误！未定义书签。
Directory

PRESET AREA：............................................................................................... 错误！未定义书签。
TRANSITION AREA........................................................................................... 错误！未定义书签。
WARRANTY............................................................................................................. 49
MACHINE WARRANTY................................................................................................................................ 49
NON-WARRANTY...................................................................................................................................... 49

1
Briefs
Thanks for your purchasing our MIG-EC90 event controller. Do hope you can
enjoy the experience of the product performance. The design of the LED
video processor conforms to international and industry standards. But if with
improper operation, there will be a personal injury and property damage. In
order to avoid the danger, please obey the relevant instructions when you
install and operate the product.
Trademark credit
VESA is a Video Electronics Standards Association's trademark.
HDMI, HDMI mark and High-Definition Multimedia Interface are all from
HDMI.
Even if not specified company or product trademarks, trademark has been
fully recognized VESA is a Video Electronics Standards Association's
trademark.
About the software
Do not change, decompile, disassemble, decrypt or reverse engineer the
software installed in the product, these acts are illegal.

2
Features
2 Program output + 1 Multi-preview + 2 AUX outputs
4K×2K@60Hz Program output and AUX output
Customized input and output resolution
Support HDMI 2.0, DP 1.2 & 12G SDI inputs
8 standard 4K×2K@60Hz input
Support expand 2 input modules，each one has 2 inputs
Extended board support DP1.2，HDMI2.0，SDI，DVI
Support HDCP1.4&2.2
4：4：4 processing technology
Internal multi-layer processing allows 6 layers seamless switching
Support layer clip, crop and zoom
Support layer clone and shadow function
Support save & load up to 3 logos
Support layer mirror and shadow effect
Support virtual output setting
Support layer box effect
Layer and Logo support chroma-key
Save & Load 20 user presets
Support touch screen, rotary knob control and T-BAR switch
Support Window & Mac software control
Support USB upgrade
Support the MIG-EXK200 keyboard when using PC control
Support customized Multi-preview window and input rename

3
Extended ports
The MIG-EC90 is the basic model. Based on this model, it can be extended
with more input modules as shown in the following table：
Available extended input card
Model No.
Description
Input
card

4
Safety instructions
The power input voltage range of the product is 100~240V
AC/60HZ,please use the correct power supply accordingly.
When you need to connect or pull out any signal or control cables. Please
confirm that all the power supply cords have been pulled out ahead.
When you need to add hardware device for the machine, make sure all of
the signals and power cables have been pulled out ahead.
Before you operate any hardware, please turn off the machine’s power,
release static electricity from your body by touching the ground surface.
Please use the machine in clean, dry and ventilated environment, do not
use it in the high temperature or humidity environment.
The product is the electronic product; please stay away from the fire,
water and of which is inflammable and blast, dangerous.
This product is with high pressure components, please do not open the
case or repair the equipment by yourself.
As there is exceptional condition with smoke, ill-smelling, please turn off
the switch at once and contact with the dealers.Specification
Specification
Input power supply
100～240VAC，50/60Hz
Power consumption
120W
Overall dimension(L×W×H)
600×456.4×145.8 Unit mm(L×W×H)
Net Weight
13.5Kg

5
Function introduction
Brief
MIG-EC90 is a 4K seamless switcher which combines input, output, switching
and controlling in one machine. Based on its 4K/60Hz 4:4:4 processing
technology and matrix design, this switcher is able to manage and switch 4K
video freely.
MIG-EC90 is equipped with a touch screen, which supports fast menu
browsing and parameter adjustment the T-bar and the rotary knob can adjust
the parameters of the layer precisely. It is a indispensable event controller
with small size, powerful function and easy use in the video switching
domain .
There are abundant input and output ports:
Input：DP 1.2×4 and HDMI 2.0×4，12G SDI with EDID function.
Output：2 Program outputs, 1 Multi-preview and 2 AUX outputs, each one
support 4096 × 2160@60Hz and customized output resolution. The
Multi-preview is fixed 1920 x 1080@60Hz.
Support Window, Mac or Window with the MIG-EXK200 keyboard control.

6
The front panel
Button instruction
1
MENU area
Include touch screen, the rotary knob, OK button and return button to adjust parameters and
operate menu
2
ADJUSTMENT area
Number buttons to adjust parameters
3
LAYER area
Choose and operate layer area
4
BKG area
Choose and operate BKG area
5
FUNCTION 1~2 area
Function area
6
INPUT area
Choose input signal area
7
PRSET area
Choose and operate preset area
8
TRANSITION area
Include T-bar and buttons to switch function setting
1
2
3
4
5
6
7
8

7
The rear panel
MIG-EC90 standard configuration：
1- Program output 1-2，with copy backups
2- AUX output 1-2，with copy backups
3- Input 1-4，HDMI 2.0*4
4- Input 5-6，DP 1.2*4
5- Input 7-8,12G SDI*2
6- Multi-preview output
7- LED light and switch
8- Power port and switch
9- LAN：Control the machine with software
10- USB: MIG-EC90 software upgrade
Genlock in & out
1
2
3
4
5
7
6
8
9

8
Other
The fan, power port and switch
Technical specifications
Standard inputs
Port
Quantity
Resolution
HDMI 2.0 （1-4）
4
3840×2160/60Hz and EDID management
DP 1.2（5-6）
2
3840×2160/60Hz and EDID management
12G SDI (7-8)
2
3840×2160/60Hz

9
Output
Port
Quantity
Resolution（single output）
PROGRAM
HDMI(1-2) A-B
2×2
1920×1080/60Hz
4096×2160/60Hz
3840×2160/30Hz
1920×1080/50Hz
3840×2160/50Hz
1920×2160/60Hz
3840×1080/60Hz
3840×1280/60Hz
1920×1080/59.94Hz
3840×2400/60Hz
4096×2160/30Hz
1920×1200/60Hz
4096×2160/50Hz
3840×2160/60Hz
AUX 1-2
HDMI(1-2) A-B
2×2
Customized resolution（optimized bandwidth）：
Horizontal resolution up to 4352 pixels
Vertical resolution up to 2176 pixels
PREVIEW
HDMI&DVI
DVI×1
HDMI×1
1920×1080/60Hz
Remarks：2×2 indicates 2 groups of output and 2 duplicate output ports in
each group.
Control port
RJ45×1
RJ45 interface to control MIG-EC90
USB×1
USB port to upgrade MIG-EC90
GENLOCK IN×1 OUT×1
Genlock port to keep synchronization between multiple units
of MIG-EC90

10
User menu
Default status introduction
After turning on the power of MIG-EC90 event controller, the front panel of
the LCD screen will display the opening interface in system start-up procedure，
and the LCD screen will display the default status as below.
Here is the guidance：
Window
Description
PROGRAM &
AUX PGM
Show the layer’s size, position and status of the PROGRAM.
Notes：The PROGRAM frames will be not synchronous with the PREVIEW
after turning on TAKE EDIT, but the PROGRAM output frames of the
machine are synchronous with the PREVIEW.
PREVIEW &
AUX PVW
Tell the layer’s size, position and status of the PREVIEW. The red frame
indicates the selected layer and the white frame indicates the layer that is
not selected
Layer 1-6
The color lump status corresponds with the layer1-6 in the preview.
Input 1-8
Tell the info of input type, resolution and refresh rate.
Output 1-4
Tell the info of output status, mosaic, resolution and refresh
rate.

11
Main menu introduction
The symbols listed in the below table will appear in the main menu ， the
specific meanings are as follows:
In the main menu, the user selects and adjusts each item by using the three
buttons “OK”, “ ” and the knob or by touching the corresponding menu.
The operation mode is as follows:
Icon
Explanation
Return to the main menu or return to the previous menu
Operation
Button
Open the main menu
Press the "OK" button or press the“knob” by default
Selected each item
Rotate the knob to select each item or touch click on the corresponding
menu
Adjust parameters
When the right end of the item is a number or option parameter, press the
“knob” to select the parameter, or touch click ”” ” to adjust
the parameter to be small or large, or touch the parameter and click in the
pop-up numeric key input area. Parameter adjustment
Enter the next menu
When the right end of the item is the “ ” symbol, press the “OK”
button or press the knob or touch to click the menu.
Process some function
Use the knob to select the item to be executed, press the "OK" button or
touch to click the function.
Return to the previous
menu
Press the " " button or touch the return icon
Confirm operation
In order to avoid wrong operation in reset operation, it is necessary to
confirm operation or touch click with "OK" key.
Menu button appear to
yellow box
Indicate knob selected,could move to next operation
Function menu word is
yellow
Indicate this function menu is occupied
Function menu word is
white
Indicate this function menu is not occupied

12

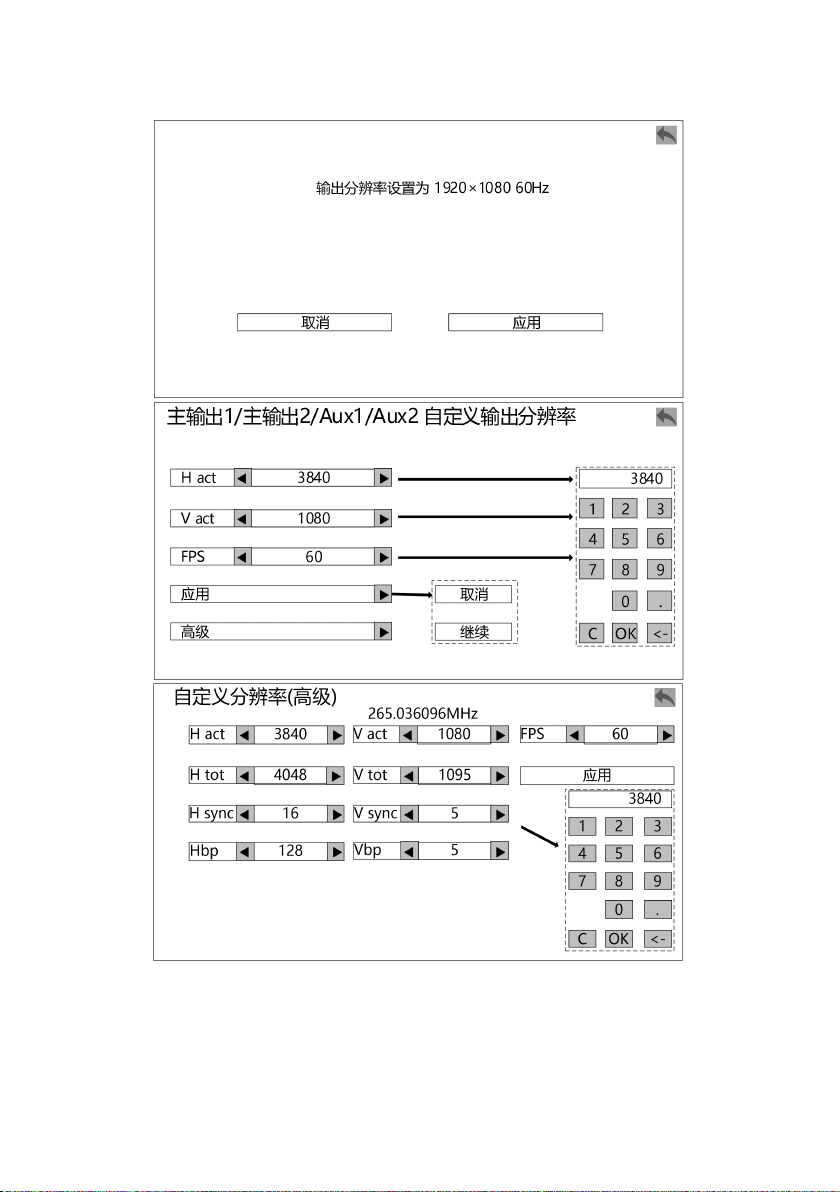

Numeric keypad description: In addition to any parameters that need to be
modified, except press and rotate the knob, touch the left and right arrow
keys to operate, it also clicks the corresponding parameter and pops up the
numeric keypad on the screen to operate. 0 to 9 represent numbers,
: A decimal point
: To exit the numeric keypad mod
: Confirmation of the modified parameters
: A backspace to delete the entered number. The
numeric keypad is shown below.
Main menu
In the default state, press“OK”or“Knob” to enter the main menu, and the
LCD screen will show the details as below:
The main menu has nine sub menu items. Rotating the knob” to select the
above listed nine sub menu title, the selected menu icon font color is yellow,
selected, press “OK” button to enter the selected project, press ” ”to be
back. Or touch the LCD screen enter correspond sub menu.
3840
1 2 3
4 5 6
7 8 9
0 .
C OK <-

13
Picture setting
Program output layer setting：
Image setting sub menu is used to set this device output layer’s brightness level, Gamma value
and the parameter for each layer.
Brightness level
Open or close this function, range from 0 to 16.
Gamma
Open or close this function, gamma range from 0.0 to 5.0.
Layer 1~6 picture
setting
Brightness: range 0~100, the default is 50
Contrast: range 0~100, the default is 50.
Saturation: range 1~100, the default is 50.

14
Note: Arrow points to the menu that pops up for this option.
Layer 1~6
color
temperature
setting
Divided into “4000K”, “5000K”, “6500”,
“7500K”, ”8200K”, ”9300K”, “10000K”,
“11500K”, “User”, total 9 options.
Red range 0~225, the default is 128.
Green range 0~225, the default is 128.
Blue range 0~225, the default is 128.
Layer 1~4 picture
setting
Reset all the layers’picture parameters to default setting.

15

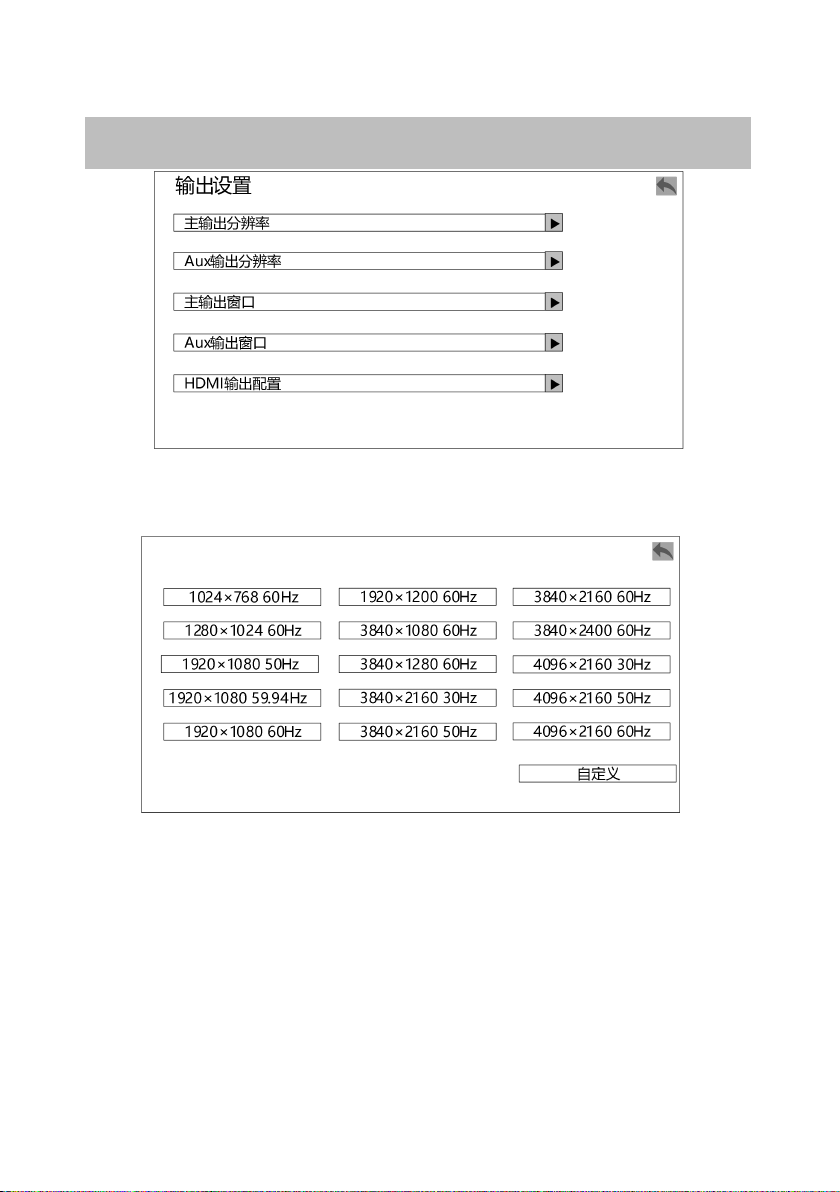

Output setting
PGM 1，PGM 2, AUX 1, AUX2 output resolution:

16
