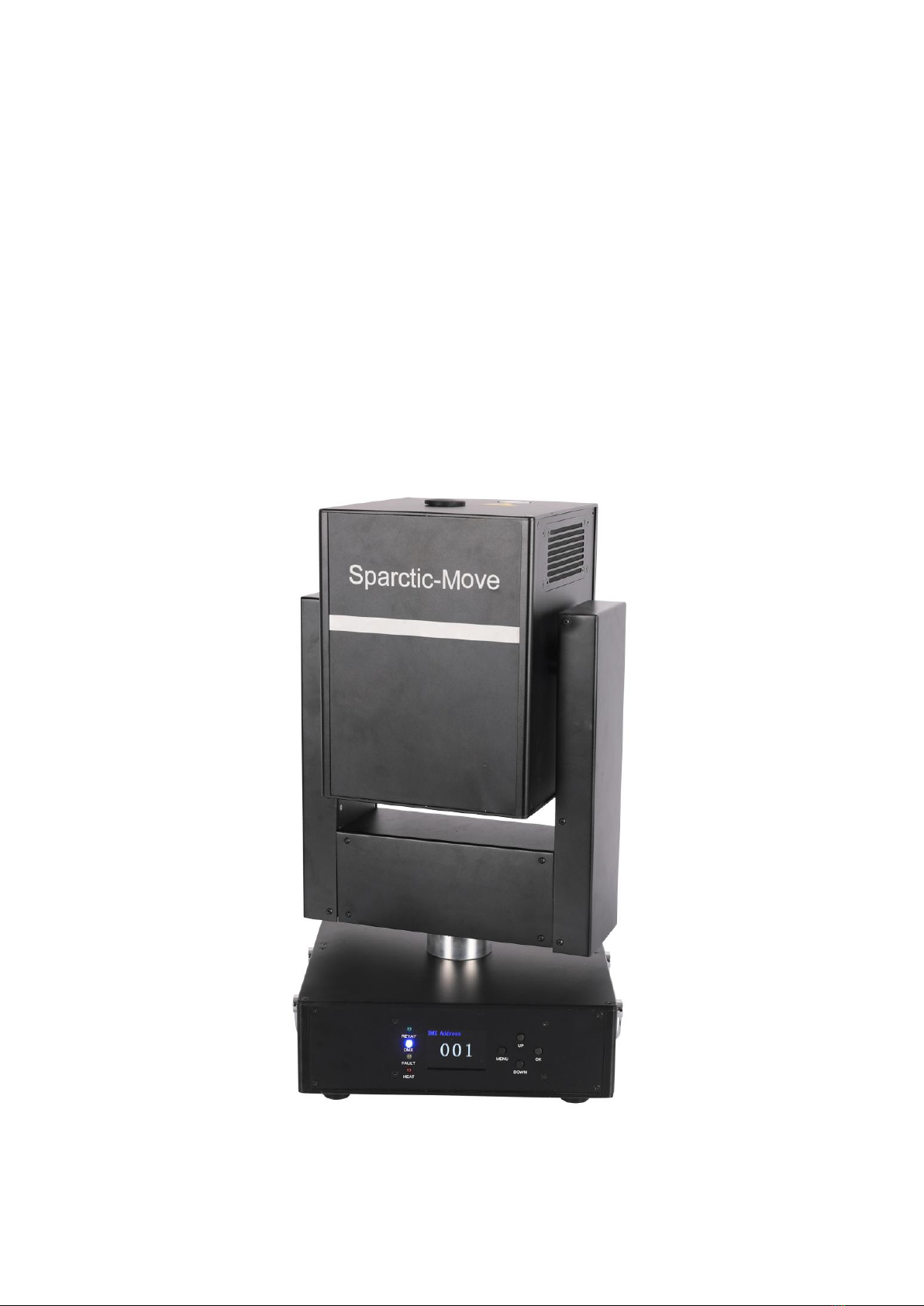

Magnum Lighting Sparctic-Move User manual

- 1 -
Moving head spark machine
User Manual

- 2 -
Safety
Warnings and Cautions
The sign is to remind users of paying attention to risk and security.
Please note that the machines are not meant to be a continuous duration effect. The maximum
running time is 30 second and can be repeated but should not be done to overheat the machine.
Eye Protection
Eye protection warning sign is to remind you of protecting the eyes during the
machine operation.
Injury Voltages
Warning: Dangerous voltages are present in this machine when electrical power is
applied. There is a danger of injury from electric shock. Under no circumstances
are you to attempt to open the machine or attempt to remove or adjust any
components fitted within the machine.
Only fully trained engineers can open the equipment.
Caution Against Liquids
Use caution so that any liquids do not wet the machine.
Keep the machine and controller dry and not use rainy or snowy days unless
covered.
Warning
Please prevent anything from entering the fountain port, if this happens
Please clear obstructions before continuing operation.
Please prevent machine from dropping when installing “DAMAGE CAN
OCCUR”.
Cleaning
Please inspect fountain nozzle before use and confirm whether there are

- 3 -
accumulation granulates.If it does, please clean out by inverting the machine to
clean out port.
Security Considerations:
1. Unauthorized repair is prohibited, or else it may cause serious accident.
2. Keep spark machine dry and do NOT use in rain or snow.
3. Make sure the hopper lid is well covered when use spark machine. Accidentally
Burning of Composite Ti can only use sands to extinguish. Composite Ti should be
stored in a dry sealed environment.
4. Keep audience and flammable material at a minimum distance of 3m from spark
machine. Make sure sparks shooting out from spark machine can NOT reach any
objects.
5. It is necessary to clean the Composite Ti remains in the pipe before and after the
show. Check whether there are Composite Ti remains in the nozzle after each show.
If it does, please clean it up, or else it will affect the shooting effect or even
damage spark machine.
6. Connection maximum is 6 pieces, and over-connection may result in damage or
even fire.
7. For better heat dissipation, do NOT block the air intake and air outlet.
8. Cover nozzle is prohibited.

- 4 -
Parameter(machine):
Working Height:
1-5 meters
Working Temperature:
-10℃-50℃
Heating Power:
750w 6.8A (110V version)
750w 3.4A (220V version)
Fuse:
110V/10A, 220V/6A
Control:
DMX
Net Weight:
11.8kg
Dimensions:
265*265*480mm
Max connections:
6 pieces
Warranty:
1 year
Package:
Carton box
Flight case(2 in 1)
Flight case(4 in 1)
Parameter(consumables):
Consumable material:
Titanium Alloy Grains
Net Weight:
200g
Usage:
total 7-15 minutes spark shooting
Package:
Vacuum packing

- 5 -
DMX 512 Operation:
1) International standard control signal: DMX 512
2) The device uses five channels
Channel 1: control preheat and emergency stop
Channel 2: control spark height
Channel 3: X-axis rotation
Channel 4: Y-axis rotation
Channel 5: speed adjustment
3) Spark height, X/Y axis rotating direction and speed can be adjustable
4) Overheating can be intelligently protected and shows error code
5) The digital display of the cold spark machine shows that F1-F5 corresponds to the
1-5-position spark height respectively
6) When the ready green light is on, the spark effect is best

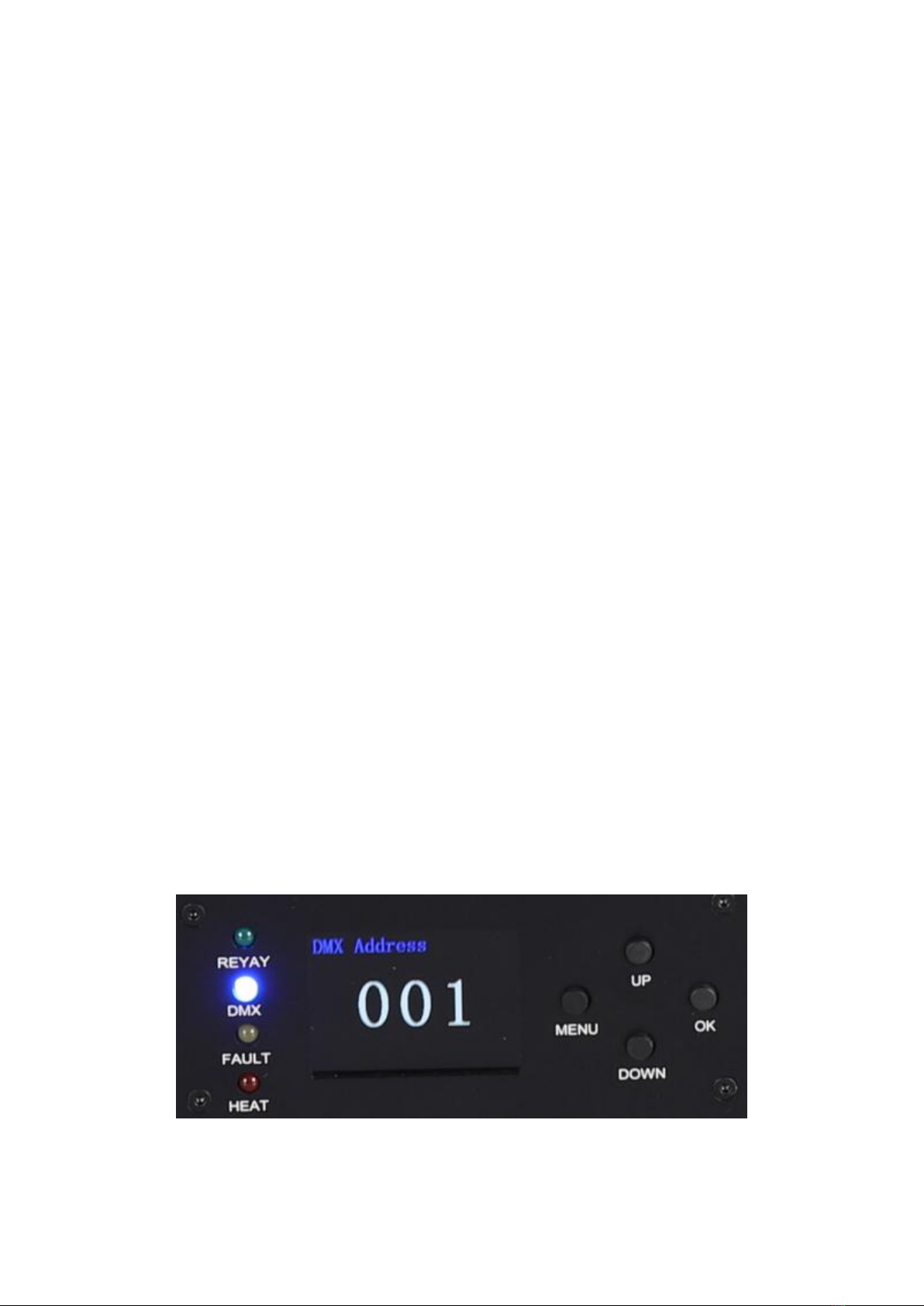

Operation Interface:
READY(green): flash: not ready, light on: ready

- 6 -
DMX(blue): flash: dmx signal, light off: signal disconnected
FAULT(yellow): reminder error
HEAT(red): heating lights
MENU: menu
UP: choose above
DOWN: choose below
OK: confirm
1. Address adjustment: MENU-- DMX Address Setup --OK --UP/DOWN
2. Temperature adjustment: MENU-- Temperature Setup --OK -- UP/DOWN
(Temperature range: 580-650 degree, presetting: 620 degree)

- 7 -
3. X-axis direction: MENU-- X Reverse Setup-- OK --UP/DOWN
(ON: clockwise direction, OFF: anticlockwise direction)
4. Y-axis direction: MENU -- Y Reverse Setup -- OK --UP/DOWN
(ON: clockwise direction, OFF: anticlockwise direction)

- 8 -
5. Screen Saver Setup: MENU -- Screen Saver Setup -- OK -- UP/DOWN
DMX512 signal control:
When using the DMX512 control mode, the signals between devices are connected in parallel. So it
is best to use twisted-pair shielded cables when connecting multiple devices. Each device is
connected via the DMX signal socket (cassette) INPUT and OUTPUT on the device. The 3-pin
XLRXL connector terminals of the connected device must correspond to each other. When
connecting device signals, it is recommended to use the DMX signal terminator to avoid signal
reflection and damage signal control.
When the DMX console is successfully connected to the machine, the DMX signal light (blue)
flashes. When the first channel (240-255) pre-heat function can is on, the HEAT light (red) lights,
and the temperature will be displayed on the machine screen. When the heating is completed, the
screen will display the DMX channel, and the READY (green) will change from blinking to static
state, indicating that the machine is ready, and the height can be controlled through the second
channel.

- 9 -
DMX Channel List
The 1st channel:
Functions:
Display
0-10
Pre-heat OFF
11-220
E-stop
E57
221-239
Clear powder
CLE
240-255
Pre-heat ON
0-500
The 2nd channel:
Functions:
0-15
Pre-heat OFF
OFF
16-63
working height 1
F1
64-111
working height 2
F2
112-159
working height 3
F3
160-207
working height 4
F4
208-255
working height 5
F5
The 3rd channel:
Functions:
0-255
X-axis direction
adjustment(540 degree)
The 4th channel:
Functions:
0-255
Y-axis direction
adjustment(120 degree)
The 5th channel:
Functions:
0-255
Speed adjustment
Fault Light solution:
Code
Reason
solution
E01
Failed heating
1. Check the heating
board/radiator works normally
or not.
2. Replace the heating board
E02
Heating is out of control
1. Replace the heating board
E03
Inside temperature is too high
1. Check the fan.
2. Stop heating or operating,
and restart after 10mins.
E04
Blower stops working
1. Check whether something
goes into the nozzle.
2. Replace the blower.
E05
Sensor is faulty
1. Checking sensor socket.
2. Replace sensor.

- 10 -
Note: When the FAULT light is on, please restart the machine until FAULT light is off.
Consumables:
1) If the consumables are accidentally ignited, they can only be covered with sand,
and the air is isolated until it is extinguished. Do not use water.
2) Consumables should be kept in a dry and sealed environment to prevent moisture.
3) The consumables are classified as:
Indoor consumables: the spray height is 1.0-3.0 m (error 0.5 m), and the remnants are
little.
Outdoor consumables: The spray height is 2-5 meters (0.5 m error), and the remnants
will leave on ground.
4) If you find that the spark effect is not good, it may be due to insufficient
consumables, and please add some.
Consumables clean(important note):
1. Please empty the powder by turning over the machine and clean remnants (DMX
control address: 221-239) after use.
2. If the remnants are stuck, you have to open the housing and manually rotate the
chain anticlockwise.
3. We don’t offer free warranty once the machine stops working without clean
process after use.

- 11 -
Warning:
1. Do not shoot more than 30 seconds each time. If the continuous shooting time is
too long, the internal temperature will rise sharply and cause permanent damage.
After a single long-time shooting, the machines should have a short pause to cool
down.
2. The spark shooting will stop automatically after 30 seconds. If users need it to
work again, please operate the second channel again.
3. Max connection is 6 pieces via power connecting cables.
4. If there is no spark out with enough consumables, it is possible that the chain is
stuck and please open the side rubber and rotate the chain manually. Please contact
after-sale service for help if it does not work.
5. After use the machines, do not immediately turn off the power. The
heat-dissipating fan should take out the internal air when the power is on.
Otherwise, the internal heat is quickly transmitted to the surface of the casing.
6. The operators should be 3-5 meters away from the cold spark machine.
7. Make sure the device is off before filling the consumables.
8. If the consumables are accidentally ignited, please use the sand to extinguish, do
not use water.
9. Store consumables in a cool, dry, sealed environment.
10. Damage caused by improper use or human factors is not covered by the warranty.
11. The final interpretation right belongs to our company.
