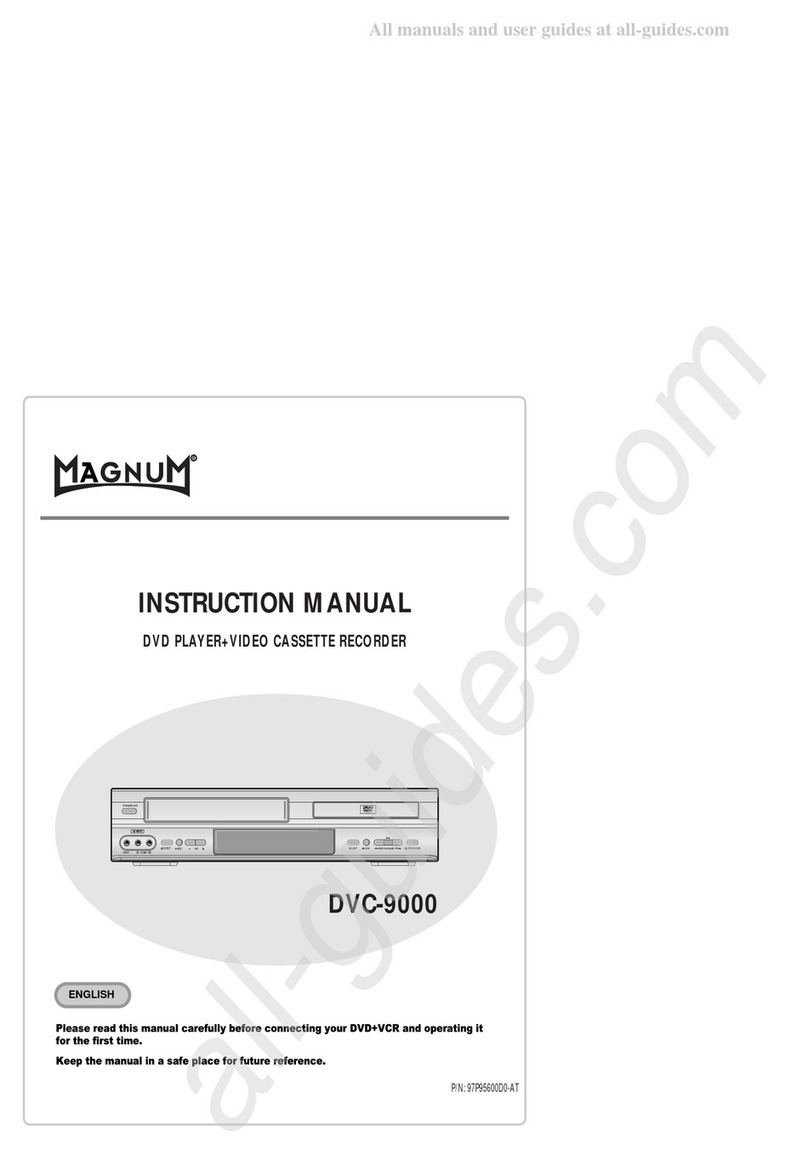

Magnum DVC-9000 User manual

INSTRUCTION MANUAL
DVD PLAYER+VIDEO CASSETTE RECORDER
P/N:97P95600D0-AT
DVC-9000
Please read this manual carefully before connecting your DVD+VCR and operating it
for the first time.
Keep the manual in a safe place for future reference.
ENGLISH

Contents Important Safeguards
Product information
1
Product Information
Important Safeguards ..................................................... 1
Advantages of This Product Are .... ............................ 4
Read Carefully before sing ......................................... 5
Identification of Controls ............................................... 6
Remote Control ..............................................................10
Installation
Setting up your player...................................................11
Connecting your player through extra equipment
(satellite system) ............................................................12
Connecting your player to the Hi-Fi system .............13
How to connect your player to another player,
How to connect your player to a camcorder ............ 14
Connecting Dolby Digital Amp with Digital Audio
Out Jack ........................................................................... 15
2nd Scart Socket ............................................................. 16
Basic Operation
Initial Installation ........................................................... 17
Setting time and date .................................................... 18
OSD ON & OFF / Output Select ................................19
DVD Playback ................................................................20
VCR Playback ................................................................ 21
Recording ........................................................................22
VCR Operation
Tuning in New Stations ................................................ 24
Timer Recording ............................................................ 27
More Functions .............................................................. 29
Connections and Copying ........................................... 33
DVD Operation
Playing a desired scene ................................................35
Confirming the current PLAYING TIME.................. 40
Selecting an A DIO language, S BTITLE language
and 3D A DIO............................................................... 42
Selecting ZOOM and Multi Angle.............................. 44
Program Playback..........................................................45
About MP3 , JPG and DivX® discs............................ 46
Displaying menus in a disc........................................... 51
Set-up
Language Setup..............................................................52
Video Setup ......................................................................54
Audio Setup..................................................................... 55
Others Setup ................................................................... 56
The others
About DVD...................................................................... 58
Basic information about VCR and Videotape.......... 61
Before doubting about troubles (VCR)....................... 62
Before doubting about troubles (DVD) ..................... 64
Specifications .................................................................. 65
CAUTION: TO RED CE THE RISK OF ELECTRIC
SHOCK, DO NOT REMOVE COVER (OR BACK). NO
SER-SERVICEABLE PARTS INSIDE. REFER
SERVICING TO Q ALIFIED SERVICE PERSONNEL.
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
The lightning flash with arrowhead symbol,
within an equilateral triangle, is intended to
alert the user to the presence of uninsulated
“dangerous voltage” within the product’s
enclosure that may be of sufficient magnitude
to constitute a risk of electric shock.
The exclamation point within an equilateral
triangle is intended to alert the user to the
presence of important operating and servicing
instructions in the literature accompanying the
appliance.
WARNING : TO RED CE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS
APPLIANCE TO RAIN OR MOIST RE.
CAUTION : TO PREVENT ELECTRIC SHOCK, MATCH WIDE BLADE OF PL G TO WIDE SLOT,
F LLY INSERT.
IMPORTANT FOR LASER PRODUCTS
• LASER : This Digital Video Disc Player employs a Laser System. To ensure proper use of this product
please read this instruction manual carefully and retain for future reference. Should the unit
require maintenance, contact an authorized service location - see service procedure.
se of control adjustments or the performance of procedures other than those specified
may result in hazardous radiation exposure.
To prevent direct exposure to the laser beam, do not try to open the enclosure. Visible laser
radiation when open and interlocks defeated.
DO NOT STARE INTO THE BEAM.
• DANGER : Visible laser radiation when open and interlock failed or
defeated. Avoid direct exposure to beam.
• CAUTION : Do not open the top cover. There are no user
serviceable parts inside the nit; leave all servicing to
qualified service personnel.
CLASS 1 LASER PRODUCT
LUOKAN 1 LASERLAITE
KLASS 1 LASERAPPARAT
CA TION: Any changes or modification in construction of this device which are not expressly approved by
the party responsible for compliance could void the user’s authority to operate the equipment.
• Make sure the unit shou d be p aced at east 8cm apart from the other home app iances or the
obstac es to get sufficient venti ation.
• This unit sha not be exposed to dripping or sp ashing and no objects fi ed with iquids, such
as vases, sha be p aced on this unit.
• Switching it off does not disconnect it from the mains (stand-by). To disconnect it from the
mains, you have to unp ug it.
• The system is not comp ete y disconnected from the mains when the / Ibutton is set to
the position.

Important Safeguards
3
2
Important Safeguards
Product informationProduct information
This set has been designed and manufactured to assure
personal safety. Improper use can result in electric
shock or fire hazard. The safeguards incorporated in
this unit will protect you if you observe the following
procedures for installation, use and servicing. This unit
is fully transistorized and does not contain any parts
that can be repaired by the user.
1 READ INSTRUCTIONS
All the safety and operating instructions should be
read before the unit is operated.
2 RETAIN INSTRUCTIONS
The safety and operating instructions should be
retained for future reference.
3 HEED WARNINGS
All warnings on the unit and in the operating
instructions should be adhered to.
4 FOLLOW INSTRUCTIONS
All operating and use instructions should be
followed.
5 CLEANING
nplug this unit from the wall outlet before
cleaning. Do not use liquid cleaners or aerosol
cleaners. se a damp cloth for cleaning.
6 ATTACHMENTS
Do not use attachments unless recommended by
the unit’s manufacturer as they may cause
hazards.
7 WATER AND MOISTURE
Do not use this unit near water- for example, near
a bath tub, wash bowl, kitchen sink or laundry tub,
in a wet basement, or near a swimming pool.
8 ACCESSORIES
Do not place this unit on an
unstable cart, stand, tripod,
bracket, or table. The unit may
fall, causing serious injury to
a child or adult as well as serious damage to the
unit. se this unit only with a cart, stand , tripod,
bracket, or table recommended by the
manufacturer.
8A A unit and cart combination should be moved
with care. Quick stops, excessive force, and uneven
surfaces may cause the product and cart
combination to overturn.
9 VENTILATION
Slots and openings in the case are provided for
ventilation to ensure reliable operation of the unit
and to protect it from overheating. These openings
must not be blocked or covered. These openings
must not be blocked by placing the unit on a bed,
sofa, rug, or other similar surface. This unit should
never be placed near or over a radiator or heat
radiator. This unit should not be placed in a built-
in installation such as a bookcase or rack unless
proper ventilation is provided or the
manufacturer’s instructions have been adhered to.
10 POWER SOURCES
This unit should be operated only from the type of
power source indicated on the marking label. If
you are not sure of the type of power supply to
your home, consult your dealer or local power
company. For units intended to operate from
battery power, or other sources, refer to the
operating instructions.
11 GROUNDING OR POLARIZATION
This unit is equipped with a polarized alternating -
current line plug (a plug having one blade wider
than the other). This plug will fit into the power
outlet only one way.
This is a safety feature. If you are unable to insert
the plug fully into the outlet, try reversing the
plug. If the plug still fails to fit, contact your
electrician to replace your obsolete outlet.To
prevent electric shock, do not use this polarized
plug with an extension cord, receptacle, or other
outlet unless the blades can be fully inserted
without blade exposure. If you need an extension
cord, use a polarized cord.
12 POWER-CORD PROTECTION
Power-supply cords should be routed so that they
are not likely to be walked on or pinched by items
placed upon or against them, paying particular
attention to cords at plugs, convenience
receptacles, and the point where they exit from the
unit.
PORTABLE CART WARNING
(symbol provided by RETAC)
13 LIGHTNING
For added protection for this unit during a
lightning storm, or when it is left unattended and
unused for long periods of time, unplug it from the
wall outlet and disconnect the antenna or cable
system. This will prevent damage to the unit due
to lightning and power line surges.
14 DISC TRAY
Keep your fingers well clear of the disc as it is
closing. It may cause serious personal injury.
15 OVERLOADING
Do not overload wall outlets of extension cords as
this can result in a risk of fire or electric shock.
16 OBJECT AND LIQUID ENTRY
Never push objects of any kind into this unit
through openings as they may touch dangerous
voltage points or “short-out” parts that could
result in a fire or electric shock. Never spill liquid
of any kind on the unit.
17 BURDEN
Do not place a heavy object on or step on the
product. The object may fall, causing serious
personal injury and serious damage to the product.
18 DISC
Do not use a cracked, deformed or repaired disc.
These discs are easily broken and may cause
serious personal injury and product malfunction.
19 SERVICING
Do not attempt to service this unit yourself as
opening or removing covers may expose you to
dangerous voltage or other hazards. Refer all
servicing to qualified service personnel.
20 DAMAGE REQUIRING SERVICE
nplug this unit from the wall outlet and refer
servicing to qualified service personnel under the
following conditions.
A. When the power-supply cord or plug is
damaged.
B. If liquid has been spilled, or objects have fallen
into the unit.
C. If the unit has been exposed to rain or water.
D. If the unit does not operate normally by
following the operating instructions. Adjust
only those controls that are covered by the
operating instructions. Improper adjustment of
other controls may result in damage and will
often require extensive work by a qualified
technician to restore the unit to its normal
operation.
E. If the unit has been dropped or the cabinet has
been damaged.
F. When the unit exhibits a distinct change in
performance-this indicates a need for service.
21 REPLACEMENT PARTS
When replacement parts are required, have the
service technician verify that the replacements he
uses have the same safety characteristics as the
original parts. se of replacements specified by the
unit manufacturer can prevent fire, electric shock,
or other hazards.
22 SAFETY CHECK
pon completion of any service or repairs to this
unit, ask the service technician to perform safety
checks recommended by the manufacturer to
determine that the unit is in safe operating
condition.
23 WALL OR CEILING MOUNTING
The product should be mounted to a wall or
ceiling only as recommended by the manufacturer.
24 HEAT
The product should be situated away from heat
sources such as radiators, heat registers, stoves, or
other products (including amplifiers) that produce
heat.
25 To prevent battery electrolyte leakage, which may
result in injury and damage to the unit or other
objects, observe the following precautions:
A. All batteries must be installed with the
proper polarity.
B. Do not mix new with old or used batteries.
C. Only use batteries of the same type and brand.
D. Remove the batteries when they are not to be
used for a long period time.
E. When the batteries have become discharged,
they must be disposed of in a safe manner
which complies with all applicable laws.

Read Carefully before Using
54
Advantages of This Product Are .....
Product information
• DVD, VCD, CD, CD-R(MP3), CD-RW, VHS
• Watching DVD for recording broadcast
• Integrated remote contro (VCR, DVD)
• VISS function
• Mu tip ex sound p ayback/record
• High Sound Qua ity of 6 head Hi-Fi
• Simp e record function
• MP3/JPEG fi e p ayback function (CD-R
disc having records of MP3/JPEG fi es)
• Function to p ay DivX fi es (disc recorded
with the .avi,. divx format.)
(Some of the discs may not be played
according to a DivX version. )
• Screensaver function (DVD)
• 3D sound (3D sound effect using 2 speakers)
• High bit/High samp ing with 108MHz/12-bit
Video Encoder.
• High bit/High samp ing with Bui t-In Audio
DAC.
• Coaxia digita Audio output (PCM, Do by
Digita , dts)
You can enjoy high- eve digita audio by
connecting with amp embedded with Do by
Digita / dts decoder.
• Bui t-in Do by Digita decoder (DVD)
• Ana og audio 2-channe s output for
DOWNMIX (x1)
• Composite video output (x1)
• S ow Forward / Reverse p ayback (DVD)
• Fast Forward / Reverse p ayback
• Search of tit e, chapter, and time in DVD
disc, and search of time and track time in
VCD.
• Various TV aspect (DVD)
4:3 for Pan and Scan, 4:3 for Letter Box, and 16:9
for Wide
• Repeat p ayback (tit e, chapter, and part for
DVD/ track, disc, and part for VCD/CD)
• Se ective P ay (DVD/VCD/CD)
You can se ect and p ay the desired tit e / chapter
of DVD and track of Video CD/CD in STOP
mode.
• 8 anguages OSD(On Screen Disp ay)
function(DVD).
You can se ect and disp ay OSD in 8
anguages.
• Parenta Lock function (DVD)
This function can prevent p ayback of software
that may be unsuitab e for chi dren.
• Mu ti Audio function (DVD)
The audio soundtrack can be heard in up to 8
anguages. In the case of SVCD or VCD, it
depends on the disc. (The number of audio
anguages depends on the software.)
• Mu ti Subtit e function (DVD)
The subtit e can be seem in up to 32 anguages.
In the case of SVCD or VCD, it depends on the
disc. (The number of subtit e anguages depends
on the software.)
• Mu ti Ang e function (DVD)
This function a ows you to choose the viewing
ang e of scenes which were shot from a number
of different ang es. (The number of ang es
depends on the software.)
• Screen zoom function (DVD/VCD)
Cautions in use of DVD-Video player are described
below.
Please read carefully before using a DVD-Video player.
✔Insta ation p ace and hand ing
• When you p ace this p ayer near other devices,
they may affect poor y together.
• When you p ace DVD-Video p ayer and TV in
the upper and ower sides, it may cause
f ickering of pictures or fai ure (tape is not
ejected).
• When you p ace this p ayer near strong magnetic
materia s, it may affect image or voice poor y or
damage recording.
• Do not spi vo ati e iquids ike insect spray over
the p ayer. Do not eave rubber or p astic
products in contact with the p ayer for a ong
time. They wi cause deterioration or paint pee -
off.
✔Not in use
• When the unit is not in use, be sure to remove the
disc or tape and turn off the power.
• If you do not use the unit for a ong period,
remove batteries in remote contro to prevent
eakage.
• In case you don’t use the unit for a ong time, the
unit may not function proper y in the future.
Turn on and use the p ayer occasiona y.
✔Moving
• Repack the unit as it was origina y packed at the
factory. A ternative y, pack this product with
towe not to be damaged.
• Eject any videotape.
✔C eaning
• Dust off dirt in cabinet or contro pane part
smooth y with a soft c oth.
• For heavy dirt, soak the c oth in a weak detergent
so ution, wring it we and wipe. Use a dry c oth
to wipe it out.
• Fo ow instructions in using chemica c eaners.
• Do not use any type of so vent such as gaso ine
or benzene, as they may cause deterioration or
paint pee -off.
✔Checking
• Video is a high precision device. To obtain a
c ear screen, we recommend regu ar inspection
and maintenance every 1,000 hours of use by
technica engineers.
• For checking, contact your dea er or your nearest
service center.
✔Checking and Rep acement of Antenna
• Antenna is subject to change in its direction or
damage by wind and rain. For c ean screen,
contact and consu t your nearest service center
about checking and rep acement.
✔In recording important screen
• Be sure to record the screen and check whether
recording is performed proper y. We beg you to
understand compensation of recording if
recording is not performed by badness of used
tape or video.
✔Copyright
• Do not use your recordings without permission
of a copyrighter except persona usage.
✔Tape and Disc Hand ing
• Do not use any tape and disc be ow. Damage of
video head or cut/coi ing of tape may cause
fai ure.
- Tape with mo d
- Tape or disc stained with juice or attachments
- Tape having breakage connection
- Disassemb ed tape
- Disc with severe scratch
• Moisture condensation may occur in tape.
Moisture condensation damages the tape. P ease
use the tape after the moisture condensation is
disappeared.
• After use, store tape vertica y in a case to
prevent oose.
• Do not store the fo owing p aces.
- High temperature and humidity
- Subject generation of mo d
- Subject to direct sun ight
- Much dirt or dust
- Near strong magnetic materia s such as speaker
✔Video head c eaning
• Video head c eaning is needed when the
p ayback picture becomes unc ear. Use an
equiva ent high qua ity chemica non-abreasive
head c eaning tape or have them c eaned
professiona y.

Identification of Controls
76
Identification of Controls
Product information
! POWER (STANDBY/ON) button
se to power the device on/off if AC power
supply is connected.
@ P ace to insert videotape
# Disc tray
$ VIDEO INPUT jack
% AUDIO INPUT jack
^ EJECT button
& RECORD button
* PR Down/Up button
( Operation Disp ay Window
Display operation of device. For more
information, see “Operation Display Window”
in 7P.
) SELECT button
se to change DVD mode to VCR mode, and
vice versa.
1 STOP button
se to stop playing.
2 REWIND button
se to rewind currently being played videotape
or disc; or to playback back rapidly.
3 P ayback/PAUSE button
Playback videotape or disc.
Press this button to pause a screen.
4 FAST FORWARD button
se to wind currently being played videotape
or disc; or to playback rapidly.
5 OPEN/CLOSE Tray button
Main body front panel)
!
%& * )
1
2345
^
@#
$(
Timer Recording Standby
Timer Recording Error
Recording in Progress
Timer Recording in
Progress
Recording Pause
- RECORDING MODE -
DVD playback
Fast playback
Fast reverse playback
Slow playback
Pause picture
- DVD OPERATION -
VCR playback
Fast forward
Rewinding
Fast playback (CUE)
Fast reverse playback
(REVIEW)
Slow playback
Still picture
Stop
Child Lock
- VCR OPERATION -
Operation Display Window

Identification of Controls
Product information
9
Remote contro 2 Batteries RF cab e Scart Cab e Instruction
Manua
• To purchase accessories or not supplied parts additionally, contact your nearest dealer or service center. But,
instruction manual is not sold additionally.
• Operate remote contro within 7m from the unit.
• Do not press 2(two) buttons at the same time.
• Do not ight up sending and receiving part of remote contro .
• Do not keep in the p ace with much dust and humidity.
Instructions in using REMOTE
Accessories
AAA
AAA
✔
Remote control battery installation
Detach the battery cover on the rear of the
remote contro , and insert two AAA
batteries with the + and - ends a igned
correct y.
Two “AAA ” batteries
(optional).
8
Identification of Controls
!#
*&
^
@$
%
! POWER CORD
It is a jack for supp ying power to the unit.
Connect to out et in a wa .
@ EURO AV2/DECODER Jack
# VIDEO OUTPUT Jack
$ AUDIO OUTPUT Jack
% DIGITAL OUTPUT (COAXIAL) Jack
To enjoy sound qua ity of theatre eve in
home, connect this jack with amp or unit
embedded with digita audio decoder.
^ Connection to ANTENNA Cab e
& Connection to TV
* EURO AV1 Jack
Main body Rear Panel)
✔ Disposal of Used lectrical & lectronic quipment
The meaning of the symbol on the product, its accessory or packaging indicates that
thisproduct shall not be treated as household waste. Please, dispose of this equipment
at your applicable collection point for the recycling of electrical & electronic
equipments waste. In the European nion and Other European countries which there
are separate collection systems for used electrical and electronic product. By ensuring
the correct disposal of this product, you will help prevent potentially hazardous to the
environment and to human health, which could otherwise be caused by unsuitable
waste handling of this product. The recycling of materials will help conserve natural
resources. Please do not therefore dispose of your old electrical and electronic
equipment with your household waste. For more detailed information about recycling
of this product, please contact your local city office, your household waste disposal
service or the shop where you purchased the product.

Setting up your player
Installation
1110
Remote Control
With this connection, if your player is receiving CH ARD and your TV is displaying CH3, when you press the
[TV/VCR] button on the remote control, your TV will automatically display the CH ARD. “VCR” will be
displayed.
In this mode, to change the viewing channels the [PR-] and [PR+] buttons on the player remote need to be used.
To switch off this mode press [TV/VCR] on the remote control, TV remote can now be used as normal. You will
get better pictures and sound quality if you connect your player with a scart lead.
■Before you start, unplug all the equipment from the mains supply.
Te evision
Aeria
The type of aerial you
should use, depends on
local interference and how
far you are from the
transmitter. You should
contact a local retailer if you
have any questions about
your aerial.
Back view of your p ayer
200-240V~,
50/60 Hz
Te evision
Aeria
Back view of your p ayer
200-240V~,
50/60 Hz
Scart ead
Option 1) - Connecting your player through RF lead
Option 2) - Connecting your player through a scart lead
!
#
@
$
%
^
&
(
)
2
4
5
7
9
“
#
‘
=
q
w
eR
r
T
Y
0
+
E
y
W
Q
*
3
1
6
8
!
[DVD] OPEN/CLOSE button, [VCR] EJECT button
@ VCR SELECT button
#
[DVD, VCR] NUMBER button, [VCR] TRACKING -/+
button
$ SYSTEM button (This button is not avai ab e for this
set)
% SETUP button
^
[DVD, VCR] MOVE/SELECT in OSD, [VCR] Channe
Up/Down button
&
[DVD] TITLE /PBC button
*
[DVD] AUDIO LANGUAGE Se ect, [VCR] AUDIO
Se ect button
(
[DVD] SUBTITLE Se ect button
) REVERSE SEARCH button
1 PLAY/PAUSE button
2
[DVD] PREVIOUS button (move into a previous
chapter or track)
3
[VCR] Record SPEED button
4
[VCR] Record button
5
[VCR] TV/VCR button
6
[DVD] 3D button
7
[VCR] CM SKIP
8
[VCR] Rep ay button
9 POWER button
0 DVD SELECT button
“
[VCR] INPUT Se ection button
‘ CLEAR button
+
[DVD, VCR] OSD DISPLAY button
= OK/ENTER button
Q
[DVD] MENU button
q
[DVD] Chapter/Tit e/Time SEARCH button
W
[DVD] ZOOM button
w FORWARD SEARCH button
E STOP button
e
[DVD] NEXT button (Move into a next chapter or
track) , [VCR] Frame Advance button in pause mode
R
[DVD] REPEAT P ayback button
r
[DVD] REPEAT a defined period from A to B button
T
[DVD] ANGLE button
[DVD] MARK button
Y
[VCR][DVD] PROGRAM button
y
[VCR] LAST CHANNEL button (If you move channe s
using the [PR+/PR-] button, return to the previous
channe which was being watched. )
Press the power [ ] button of the remote for about
5 seconds. No buttons of front panel can be operated
now and Lock indicator (“ ”) will be
displa ed on window displa . To release child lock,
press an button of the remote control.
P WER N
Pla er will be POWER ON if an button of the
remote control is pressed.
Child Lock !

Connecting your player to the Hi-Fi system
Installation
1312
Connecting your player through
extra equipment (satellite system)
■Before you start, unplug all the equipment from the mains supply.
Te evision
Plug a phone cable into the
“Audio L/R” sockets on the
back panel and into the audio
sockets on any audio
amplifier, if needed. If your
player does not have this
connection, see page 15.
Player
200-240V~,
50/60 Hz
You can a so use a scart ead to improve picture and sound qua ity from your p ayer.
Hi-Fi Aeria
Te evision
Plug a scart to phone cable into
the “AV1” socket on the back
panel and into the audio socket
on any audio amplifier, if
needed.
Player
200-240V~,
50/60 Hz
Hi-Fi Aeria
Option 1
Option 2
■Before you start, unplug all the equipment from the mains supply.
Te evision
Aeria
Back view of your p ayer
200-240V~,
50/60 Hz
You can use this connection if your player has two scart sockets. This will improve sound and picture quality
when you are recording from satellite.
Sate ite
Option 1) - Connecting your player through RF lead

Connecting Dolby Digital Amp
with Digital Audio Out Jack
Installation
1514
How to connect your player to another player
(L) AUDIO IN (R)
1
1Se eccione COAXIAL para a conexión a amp ificador de Do by Digita .
* If you want to know about “Do by Digita ”, p ease refer to [About DVD] in 58-60p.
Home Theater Receiver with Dolby Digital
decoding capability
REAR PANEL OF DVD-VIDEO
CONNECTING CABLE
(Not supplied)
Fabricado bajo licencia de Dolby Laboratories.
"Dolby" and the double-D symbol are registered trademarks of Dolby Laboratories.
How to connect
“DTS” and “DTS Digital Out” are trademarks of Digital Theater Systems, Inc.
■Before you start, unplug all the equipment from the mains supply.
First p ayer
Second p ayer
200-240V~,
50/60 Hz
1) Insert the tape you wish to record on into the first player and press [INP T] until “AV1” appears on the front
display.
2) Insert the tape you wish to copy from into the second player. Press the [PLAY] button on the second player.
3) Press the [RECORD] button on the first player.
The player will start recording.
If your p ayer has two scart sockets, you can use the other socket “AV2” to connect other equipment.
To use this function, see page 16.
How to connect your player to a camcorder
■Before you start, unplug all the equipment from the mains supply.
If you have connected your camcorder in this way, you can a so connect a scart ead from “AV2” on the
back pane of the p ayer to the te evision. To use this function, see page 16.
You can also connect the camcorder by using a phone cable if your player has front input sockets.
Check the front of your player for this connection, see page 16.
Camcorder
Aeria
200-240V~,
50/60 Hz
Te evision
P ayer
to
camcorder
Scart P ug
to TV
How to connect
How to connect

Initial Installation
Basic Operation
1716
2nd scart socket
■Switch the TV on.
■You can also start "A TO SET" in the SET P "PR PRESET"
➝ "A TO SET".
■To tune in new stations (manual tuning) and to enter station names see page 24-25.
LANGUAGE SET
ENGLISH
DEUTSCH
ITALIANO
ESPAÑOL
FRANÇAIS
NEDERLANDS
PR+/-:SELECT
OK:CONFIRM SETUP:END
COUNTRY SET
BN
DNL
DK S
ESF
GR CH
ITR
LUX OTHERS
PR+/-:SELECT
OK:CONFIRM SETUP:END
SETUP:END
PLEASE WAIT...
CH 25
RF OUTPUT SET
0-9:SELECT(21-69)
OK:CONFIRM SETUP:END
CURRENT CH 52
RECOMMENDED CH 54
You should see this picture the first time you switch on the TV
and player.
Choose your anguage.
1
Then choose your country.
For selecting the country, refer to the followings.
2
OK for "AUTO SET!".
"A TO SET" tunes in all the stations you can receive in your
country.
Clock is automatically set.
3
If other stations are positioned on near the current RF O TP T
CH, the guide message appears automatically.
The player recommends the optimal RF O TP T CH number
automatically.
4
B: Belgium
D: Germany
DK: Denmark
E: Spain
GR: Greece
I: Italy
L X: Luxembourg
N: Norway
NL: Netherlands
S: Sweden
SF: Finland
CH: Switzerland
TR: Turkey
Press the [OK] button to confirm the recommended PR.
Should you wish the stations to have the same numbers as those
used on the TV, follow the instructions in "Sorting programme
locations" on page 25.
Else ...
exit the basic installation function and enjoy your player.
5
PLEASE CHANGE THE TV
CH TO 54.
IMPORTANT!
MANUAL SET
PR01 ARD PR08 P-08
PR02 ZDF PR09 P-09
PR03 P-03 PR10 P-10
PR04 P-04 PR11 P-11
PR05 MTV PR12 ----
PR06 P-06 PR13 ----
PR07 P-07 PR14 ----
PR+/-:SELECT
OK:CONFIRM SETUP:END
• If you don´t see this picture, because you don´t use a SCART cable,
search this picture now (CH 52) with the station tuning functions of
your TV set (see its user manual).
• In case of interference problems on CH 52, type in an
other transmission channel between 21 and 69 using
the number buttons.
Setting up the player
If your video has the AV2 output, shown in the diagram below, you can connect other equipment as seen on
pages 12-15.
2nd scart INPUT ONLY
INPUT+OUTPUT
When connecting other equipment please refer to their manuals for further information. This video manual
recommends the set up as shown on page 12. When connected by this method if the equipment is turned off the
video behaves as normal, but if the equipment is turned on the video will automatically switch over to AV2
mode and displays the channel of the other equipment, channel selection can only be performed by the other
equipment, the video PR+/PR- buttons have no effect.
To return to normal video use the other equipment must be turned off.
Recording from other Equipment.
Simple recording can be performed, ensure the equipment is turned on and is displaying the correct channel.
Timer recording, set the video to perform a timed recording ensuring AV1 is selected as the channel to be
recorded. Some equipment may have a timer which allows it to be powered on to the correct channel, if this
feature is not available the other equipment should be left powered on.
Front AV
If the video has front input sockets, it is possible to connect devices such as a
camcorder to the video. To watch a camcorder tape the video must be in
AVF mode. Recordings of this input are the same as described on page 14.
2nd scart socket

OSD ON & OFF
Basic Operation
1918
Setting time and date
Output Select
Press [DVD] button.
If DVD mode is correctly selected, DVD on the operation display
window is lit. Then, REMOTE button works as DVD function. Press the
[DVD] button, then the mode of DVD-Video Player becomes to the
OPERATION mode.
Press [VCR] button.
If VCR mode is correctly selected, DVD on the operation display
window goes out. Then, REMOTE button works as VCR function. Press
the [VCR] button, then it becomes to the VCR OPERATION mode.
Press [INPUT] button.
When you press [INP T] button, BROADCASTING RECEPTION and EXTERNAL INP T is selected. But, it
is not operated in PLAY, REC and DVD mode.
Call the player’s "SET P".
1
Choose “VCR SET P”.
And press the [OK] button.
2
Select “OSD ON/OFF”.
If you want OSD OFF mode, select it and press [OK] button to
confirm.
Then OSD characters are not displayed in the normal picture.
3
This player is set to “OSD (On Screen Display) ON” mode before shipping and you can change it
to OFF mode.
VCR SETUP
CLOCK SET
LANGUAGE SET
RF OUTPUT SET
16:9 SET
OSD ON/OFF
PR+/-:SELECT
OK:CONFIRM SETUP:END
OSD ON/OFF
ON
OFF
PR+/-:SELECT
OK:CONFIRM SETUP:END
SETUP
TIMER PROGRAM
PR PRESET
VCR SETUP
TAPE CONTROL
PR+/-:SELECT
OK:CONFIRM SETUP:END
OSD On Screen Display) ON & OFF
To Select DVD
To Select VCR
To Select Watch Modes or External Input
■Press [VCR] button on the remote control to change into VCR Mode and follow the procedure
below.
Call the player’s "SET P",
choose "VCR SET P", then "CLOCK SET".
1
Move to the position you want to change and type in the
new values.
Wait a few seconds after typing a one-digit number.
2
Store with [OK] button and exit with [SET P] button.
CLOCK SET
0-9:SETUP (HOUR)
/➝:CORRECT SETUP:END
TIME - - : - -
DATE - - / - - /- - - -
CLOCK SET
0-9:SETUP (HOUR)
/➝:CORRECT
OK:CONFIRM SETUP:END
TIME 06:05
DATE 06/08/2006(SUN)
Setting time and date
➝
➝

VCR Playback
Basic Operation
2120
DVD Playback
Press [ ] button to power on.
Press [VCR] button of remote control to change into VCR mode.
Insert the desired tape.
If you want to p ayback it, press [PLAY/PAUSE] button.
When the operational status is flickering or poor, adjust it with [TRACKING
+/-] button.
1
2
3
To stop it, press [ ] button.
To stop, press [STOP] button in playback mode.
4
Press [EJECT] button in the front part or [OPEN/CLOSE] button on remote
contro to remove the tape.
5
If the product, which
has a auto-detector,
detects a contaminated
head(s), it shows the
conditions to notice the
contamination on
screen.
* In case of the notice on
screen, please rub the
heads with a head-
cleaner followed b
“How to use a head-
cleaner”.
Various P ayback Methods
■If you want fast forward (or reverse) p ayback, press [√√√√] or [œœœœ ] button in
Playback mode. You can watch fast playing (rewinding) screen.
* NOTE: You might see no color noise band when you fast forward (or reverse)
playback the tape which is recorded in LP mode.
■If you want Sti picture, press [PLAY/PA SE] in Playback mode. You can watch
the desired screen in pause status.
■If you want s ow-motion p ayback, press [√√√√] button in Pause mode. You can
watch the desired screen in the slow forward playback.
* NOTE: VCR doesn’t have Slow Reverse Pla back function.
■If you want to watch a series of screens one by one, (FRAME ADVANCE) press
[NEXT √√√√❚ ] button in Pause mode. Each time you press this button, the picture
advances one frame.
■If you press [REPLAY] button in p ayback mode, the player quickly rewinds 15
seconds of the tape and plays it.
■If you press [CM SKIP] button in p ayback mode, the player quickly skips 30
seconds of the tape and plays it.
To Adjust Disp ay
This product includes automatic Tracking function and enables users to enjoy clear
picture without an additional operation. Provided that the following problems can be
solved by the manual adjustment, which improves display quality. (During automatic
display adjustment, “Adjusting Display” are displayed on TV screen.)
- If the screen is poor in P ayback mode,
- If noises occur in the upper or ower part of screen in s ow p ayback mode,
-If paused picture vibrates up and down.
se [TRACKING +/-] buttons of remote control to adjust the display suitable for watching.
Press [ ] button to power on.
Press [DVD] button of REMOTE to change into DVD mode.
Press [OPEN/CLOSE] button to open the disc tray.
Place a disc firmly on the disc tray, making its label look upward.
Insert the disc and press [OPEN/CLOSE] button to c ose the tray.
The disc tray is closed and after checking the disc’s condition, Playback or Stop
function starts to operate.
1
2
3
To p ayback it, press [PLAY/PAUSE] button.
• In the case of DVD,
DVD menus and titles are displayed on TV screen.
• In the case of S-VCD and VCD2.0
the menus are displayed on TV screen and it is converted into PBC(Playback
Control) mode.
• In the case of CD, VCD1.1, MP3, DivX and JPG
the disc plays.
4
To stop it, press [ ] button.
To stop, press [STOP] button in playback mode.
5
Press [OPEN/CLOSE] button to remove the disc.
6
Various P ayback Methods
■If you want fast forward (or reverse) p ayback, press [√√√√] or [œœœœ ]button in
Playback mode. You can watch fast playing (reverse ) screen.
* This reverse playback can be unavailable for certain DVD.
■If you want s ow (or reverse) p ayback, press [√√√√] or [œœœœ ] button in Pause
mode. You can watch the desired screen in the slow forward (reverse) playback.
* For the case of VCD and DivX, this reverse slow playback function is unavailable.
The mark will appear.
■If you want still picture, press [PA SE] button in Playback mode. You can watch
the desired screen in Pause status.

Recording
Basic Operation
2322
Recording
“This product incorporates copyright protection technology that is protected by
.S patents and other intellectual property rights.
se of this copyright protection technology must be authorized by Macrovision,
and is intended for home and other limited viewing uses only unless otherwise
authorized by Macrovision. Reverse engineering or disassembly is prohibited.”
■When your urgent business happens suddenly in watching TV or you want to record the current TV
program for the desired time, follow the procedures below.
1
1Insert the desired DVD disc.
When it is a DVD disc with copy protect function, you can’t copy it.
Insert a recordab e tape.
2
2Press [REC] button during p aying of DVD.
DVD plays and VCR starts recording.
3
3If you press STOP [ ] button in DVD mode, DVD and VCR wi stop at the
same time.
If you press STOP [ ] button in VCR mode, VCR stops to record and DVD
continues to p ay.
1
1First, fo ow the steps 1 to 4 in “Recording With VCR”.
2
2Press [REC] button as much as you want. See the “Recording Times Tab e”
be ow.
Once continuous recording until you press STOP button
Twice recording for 30 mins from current time
3 (times) recording for 1 hour
21 recording for 10 hours
22 returning to the status of Once Press
3
3To stop Recording mode, press [STOP] button more than 5 seconds.
To Copy From DVD To Videotape
One Touch timer Recording OTR)
1
1If you want to p ayback DVD during recording with video, insert a DVD disc.
Place the desired DVD disc on DVD tray, press [DVD] button to convert
O TP T into DVD mode and press [PLAY] button. Then, you can watch DVD.
2
2If you want to watch a TV channe during DVD recording with video, press
[VCR] button to convert OUTPUT into VCR mode and press [PR+/-] button.
Then , you can watch a TV channel.
Press [ ] button to power on.
• Press [VCR] button of remote control to change into VCR mode.
Insert a recordab e tape.
Insert a tape with recording tab.
With [CHANNEL], [NUMBER] and [INPUT] buttons, se ect the desired
broadcasting channe or externa input unit to record.
1
2
3
Se ect the desired speed (SP or LP) with [SPEED] button.
4
Press [REC] button.
Then, it starts recording.
5
If you want to pause recording, press [PAUSE] button.
After pressing [PA SE] button, if the pause status continues for five minutes,
the recording is released automatically.
6
To exit recording, press [STOP] button.
7
To Record With VCR
To Enjoy a TV Channel or DVD during recording

Tuning in New Stations
VCR Operation
2524
Tuning in New Stations
■If your player is showing no station name or is showing a station name incorrectly, you can
correct this.
Call this menu (just see the previous page),
if it isn't displayed.
Select NAME position.
Press the [0] button to change the given name.
Or press the [1] button to create the station name.
1
Either select the name from the stored list or you
create the station name and enter a 4-digit name.
Change the letters with the [PR +/–] buttons,
move to the next letter with the [œœ /√√] buttons.
2
Store and exit.
3
MANUAL SET
PR+/-:SELECT
OK:CONFIRM SETUP:END
PR01 ARD PR08 P-08
PR02 ZDF PR09 P-09
PR03 P-03 PR10 P-10
PR04 P-04 PR11 P-11
PR05 MTV PR12 ----
PR06 P-06 PR13 ----
PR07 P-07 PR14 ----
MANUAL SET
PR+/-: UP/DOWN
0/1: CHANGE/CREATE
OK:CONFIRM SETUP:END
PR 01
RECEPTION AERIAL
AUTOSEARCH CH01
FINE TUNING
DECODER ON
NAME
___ _
MANUAL SET
PR+/-: SELECT CHARACTER
/➝: SELECT POSITION
OK:CONFIRM SETUP:END
PR 01
RECEPTION AERIAL
AUTOSEARCH CH
__
FINE TUNING
DECODER ON
NAME O ___
Station names
➝
■The TV and player are switched on.
■To see the picture from your player, press the input or AV (Audio/Video) button on the TV.
To complete the set-up of your video recorder when the
auto set has not stored all of the channels or when you wish
to store a new channel.
Call the video’s "SET P", choose "PR PRESET".
1
Select "MAN AL SET".
2
Choose any unused location number "----" or "P-xx" ...
It's simplest to use the same location number on both the
TV and video.
... and confirm.
3
Set the station you want:
• the programme location number;
• the broadcast system you want (Aerial(CH) or
Cable(CC)),
• You can directly enter the real channel number with the
[0 to 9] buttons, or search by pressing [œœ /√√],
• The fine tuning you can adjust,
• When the program is encoded (and you have a decoder
connected to socket E RO AV2), press the [œœ or √√] to
select ON or OFF.
• Change or create the station name.
4
Once you see the station you want, store it.
Tune in further stations (from step 3 onwards) or exit
tuning mode.
5
PR PRESET
AUTO SET
MANUAL SET
PR ERASE
PR ALIGN
PR+/-:SELECT
OK:CONFIRM SETUP:END
MANUAL SET
PR+/-: UP/DOWN
/➝: SELECT
OK:CONFIRM SETUP:END
MANUAL SET
PR01 ARD PR08 P-08
PR02 ZDF PR09 P-09
PR03 P-03 PR10 P-10
PR04 P-04 PR11 P-11
PR05 MTV PR12 ----
PR06 P-06 PR13 ----
PR07 P-07 PR14 ----
PR+/-:SELECT
OK:CONFIRM SETUP:END
PR 04
RECEPTION AERIAL
AUTOSEARCH CH __
FINE TUNING
DECODER ON
NAME ___ _
MANUAL SET
PR+/-: UP/DOWN
/➝: SELECT
OK:CONFIRM SETUP:END
PR 03
RECEPTION AERIAL
AUTOSEARCH CH 03
FINE TUNING
DECODER ON
NAME
___ _
MANUAL SET
PR+/-: UP/DOWN
0/1: CHANGE/CREATE
OK:CONFIRM SETUP:END
PR 03
RECEPTION AERIAL
AUTOSEARCH CH __
FINE TUNING
DECODER ON
NAME
___ _
Tuning
➝
➝

Timer Recording
VCR Operation
2726
Tuning in New Stations
■For timer recordings, clock, date, and stations must be set correctly.
■Load a cassette with its safety tab in place and with sufficient free space for the recording.
Call the player’s "SET P", choose "TIMER PROGRAM".
Decide if you want to record "ONCE", "WEEKLY" or
"DAILY"...
... and confirm.
1
Type in one after the other:
• The programme location number;
• the time the broadcast starts,
• the time the broadcast ends,
• the day of the broadcast, if it is not today.
• Select LP if you wish to make a very long recording .
2
If you wish to make changes:
Move to the position you want to change using the [
œœ
/
√√ ]
buttons. Change the setting using the [PR+/- ] or [number]
buttons.
If all setting are ok, press [
œœ
or √√], till you see “OK :
CONFIRM” in the bottom line.
Confirm.
3
Switch your p ayer off.
• Wait a few seconds after typing a one-digit-number.
• If you have made a mistake, move to the position you want to change using the [
œœ
/
√√]
buttons and change the setting.
• If programme timings overlap, the machine will give a warning message. If you don’t
adjust the times, the machine will record the first programme completely then continue
with the second one.
• If there is no sufficient free space for the recording on the cassette the video switches
automatically to “LP” for double recording capacity.
• The recorder will eject cassettes which have the safety tab removed.
• The player will be powered on and record the program at the set time.
• In case the player is powered on after setting of timer recording, the player cannot record
in VCR mode but can record in DVD mode.
PR+/-:SELECT(AV1/AV2)
0-9 :SETUP(PR)
/➝:CORRECT SETUP:END
PR --
START TIME --:--
END TIME --:--
START DATE --/--
TAPE SPEED SP
TIMER PROGRAM (ONCE)
PR 01
START TIME 18:10
END TIME 20:30
START DATE 20/08(FRI)
TAPE SPEED LP
PR+/-:SELECT(AV1/AV2)
0-9 : SETUP (PR)
/➝:CORRECT
OK:CONFIRM SETUP:END
TIMER PROGRAM (ONCE)
HOW OFTEN DO YOU WANT
TO RECORD THIS PROGRAM?
PR+/-:SELECT
OK:CONFIRM SETUP:END
ONCE
WEEKLY(ONCE A WEEK)
DAILY(MON-FRI)
DAILY(MON-SAT)
DAILY(MON-SUN)
Normal timer recording
➝
➝
If the location numbers used for programmes stored in your TV and player are different, you can change them
on the player. To do this, move the stations to the right numbers, until they are arranged the way you want.
1
1Call the player’s "SET P",
choose "PR PRESET" then "PR ALIGN".
2
2Select the programme to swap.
Confirm by pressing OK button.
Move the station to the desired location number.
Confirm by pressing OK button.
1
1Call the player’s "SET P",
choose "PR PRESET" then "PR ERASE".
2
2Select the station (location number) you want to
clear.
Review the picture by pressing [œœ ] button.
Clear by pressing OK button.
PR ERASE
PR+/-:SELECT
:PR VIEW
OK:ERASE SETUP:END
PR ALIGN
PR+/-:ALIGN
:PR VIEW
OK:CONFIRM SETUP:END
PR01ARD PR08 P-08
PR02 ZDF PR09 P-09
PR03 P-03 PR10 P-10
PR04 P-04 PR11 P-11
PR05 MTV PR12 ----
PR06 P-06 PR13 ----
PR07 P-07 PR14 ----
PR01 ARD PR08 P-08
PR02 ZDF PR09 P-09
PR03 P-03 PR10 P-10
PR04 P-04 PR11 P-11
PR05 MTV PR12 ----
PR06 P-06 PR13 ----
PR07 P-07 PR14 ----
Sorting programme locations
Clearing programme locations
➝
➝

More Functions
VCR Operation
2928
Timer Recording
■The counter counts in real time from the point you load the cassette. This does not have to be its
beginning! The counter does not count unrecorded parts of the tape.
■If you rewind beyond the zero position, the counter counts in negative values (e.g. – 0:01:15).
Each time you press [DISPLAY] button,
1x: Time and date+current status ➝ Time and date
2x: Counter+current status ➝ counter
3x: disappear.
• If didn’t wind tape (PLAY, FF, REW,...), it doesn’t appear the tape remain time.
STOP SP PR01 ARD
14:00 06/08 E180 00:48
STEREO ON
When you want the player to show the time remaining from the current player tape position (to find out if
there is sufficient space for a recording, for example).
To ensure the remaining time shown is accurate, select the length of cassette currently loaded by selecting
this function until you reach the correct length.
Call the player’s "SET P",
choose "TAPE CONTROL"
• Remaining time display is
only possible when the
cassette is loaded.
TAPE CONTROL TAPE REMAIN
E-240 01:27
TAPE REMAIN
GO TO ZERO
COUNTER RESET
INDEX+
INDEX-
E-180
E-240
E-300
PR+/-:SELECT
OK:CONFIRM SETUP:END PR+/-:SELECT
OK:CONFIRM SETUP:END
When you record a program, the VCR places an index mark at the start of
the recording.
To search fo an index mark
1. Call the player’s "SET P", choose "TAPE CONTROL"
2. Choose index + to search forward or index - to search backward.
The VCR will locate your index mark and begin playback.
TAPE CONTROL
TAPE REMAIN
GO TO ZERO
COUNTER RESET
INDEX+
INDEX-
PR+/- :SELECT
OK:CONFIRM SETUP:END
Clock / counter display
Remaining time and cassette length
Searching a recorded program with index
Call the player’s "SET P",
choose "TIMER PROGRAM".
1
Select the programming to change or erase.
If you want to erase this programming press
button [0], confirm with OK.
If you wish to make changes:
Move to the position you want to change using the
[
œœ
/
√√] buttons.
Change the settings using the [PR +/–] or
[number] buttons.
If all settings are ok, press [
œœ
or √√], until you see
"OK: CONFIRM" in the bottom line.
Confirm changes with [OK]. Exit the menus.
2
TIMER PROGRAM
PR START END DATE
03 21:20 22:20 14/08
01 18:10 20:30 20/08
-- -- : -- -- : -- -- / --
-- -- : -- -- : -- -- / --
-- -- : -- -- : -- -- / --
-- -- : -- -- : -- -- / --
-- -- : -- -- : -- -- / --
-- -- : -- -- : -- -- / --
PR+/-:SELECT
OK:CONFIRM SETUP:END
TIMER PROGRAM (ONCE)
PR 03
START TIME 21:20
END TIME 22:20
START DATE 14/08(SAT)
TAPE SPEED SP
0 :ERASE
/➝:CORRECT SETUP:END
Timer Review – changing and erasing
➝

More Functions
VCR Operation
3130
More Functions
Dimmer : Your player dims its display when switched to stand-by mode.
Auto power off : Your player switches to stand-by when no tape is played and no station is received for more
than 5 minutes.
Press the [ ] button for about 5 seconds.
No buttons of front panel can be operated now and LOCK INDICATOR (“ ”)
will be displayed on window display. Keep your remote control in a safe place.
To release child lock, press any button of the remote control.
se only good quality tape cassettes with the VHS logo.
•Keep cassettes away from excessive moisture or dust, magnetic and electrical fields
(loud speakers and computer monitors, for example).
•Always wind the tape to the beginning when you have finished. Store with the full
spool at the bottom and with the cassette in its cover.
You can protect your precious recordings from being wiped by breaking out the safety
tab on the side of the cassette (some cassettes have a slide). Should you wish to re-use
the tape after removing the tab, cover the hole with adhesive tape.
PAL
Cassettes
and ...
Child lock
The player will wind to the position 0:00:00 and stop.
REW SP
GO TO ZERO
0:02:13
Reset the counter.
COUNTER RESET
0:00:00
You can play and record the program of 16:9 Wide-Screen format with this player .
• 16:9 Set
-Auto : This video automatically detects the program format (16:9 or 4:3) and
records or plays this program in the same format.
-ON : The video will play or record all broadcasts in 16:9 format. 4:3 broadcasts will
be converted to 16:9 format.
-OFF : The video will play or record all broadcasts in 4:3 format only.
VCR SETUP
CLOCK SET
LANGUAGE SET
RF OUTPUT SET
16:9 SET
OSD ON/OFF
PR+/-:SELECT
OK:CONFIRM SETUP:END
16:9 SET
AUTO
OFF
ON
PR+/-:SELECT
OK:CONFIRM SETUP:END
• If you watch a program which is recorded by 16:9 wide screen format with
this player, your TV must have 16:9 wide screen function and you have to
connect TV and player with the A/V scart.
If you press the [PLAY] button for 5secs during stop or still mode, it goes Auto repeat mode. This player plays
repeatedly the tape from the beginning to end parts.
To release this mode, press the [ ] button or mode operation button. (PLAY, FF, REW or STOP)
Call the player’s "SET P", choose
"VCR SET P", then "LANG AGE SET".
Select your language.
Confirm.
LANGUAGE SET
PR+/-:SELECT
OK:CONFIRM SETUP:END
ENGLISH
DEUTSCH
ITALIANO
ESPAÑOL
FRANÇAIS
NEDERLANDS
Accessing counter zero position
Resetting the counter to zero
16 : 9 Wide Screen Format Playing back / Recording
AUTO REPEAT
SETUP languages

Connections and Copying
VCR Operation
3332
More Functions
■If you are using a SCART cable, select the AV input on the TV to see the picture from the player.
■If you are not using a SCART cable, select the button number on the TV reserved for video input
to see the picture from the player.
If you are not using a SCART cable, your player can transmit pictures and sound to the TV via
the coax aerial cable. Just tune the TV to the player's transmitting channel (factory set to HF CH
52). Tune the TV carefully to ensure the best pictures and sound.
Once you have carried out the steps in "Connecting up the player" ,
switch on your TV.
Press the [ENTER] button of the player’s remote control longer than
5 seconds to call the player´s test picture.
Tune the TV to the test picture using the channel pre-set functions of
your TV as described in its manual.
When you have found the test picture, store it under the button
number on your TV for player input.
Press the [ENTER] button of the player’s remote control again
longer than 5 seconds to release the test picture.
1
• If the quality of the test picture transmitted to the TV is poor due
to interference caused by a station transmitting on channel 52, you
can tune the player to a different transmitting channel. Find a free
channel between 21 and 69 on your TV.
Call the player’s "SET P" choose "VCR SET P" then "RF
O TP T SET".
Type in the free channel.
Store and exit.
2
RF OUTPUT SET
0-9:SELECT (21-69)
OK:CONFIRM SETUP:END
CH 52
To the TV via antenna cable if you are not using a SCART cable)
■The player machine records the complete sound signal transmitted by the TV station.
■On the mono VCR, you will hear the normal mono sound.
In addition to the normal mono sound track of VHS video recorders, your player machine is equipped with a
high-quality Hi-Fi sound system.
This means you can enjoy
• films with excellent stereo sound
• films of full-length concerts in high quality stereo
• films with impressive Surround Sound using additional Surround equipment
• films with two dialogue modes (dual, bilingual), usually the original sound track and dubbed sound track
• VHS cassettes with Hi-Fi stereo sound and VHS cassette with normal sound
During Stop, the player displays what the current station is broadcasting. When
you switch to another station or the current station changes the sound mode, your
player displays the programme and sound mode on screen (if not, press A DIO).
• “STEREO” = stereo
“BIL I / BIL II ”=bilingual
nothing= monaural sound
During Playback, the player displays what is recorded on
the cassette (if not, press A DIO).
• “Hi-Fi” = stereo/bilingual
nothing = monaural sound
STOP SP PR10 EURO
STEREO ON
PLAY SP Hi-Fi
L+R
During a stereo performance (playback-”Hi-Fi”/ broadcast
- “STEREO”):
Hi-Fi stereo ➝ left audio channel only ➝ right channel
only ➝ the normal mono sound track of a Hi-Fi cassette
• During broadcasting a bilingual performance : Main
language (original sound track) ➝ sub-language
(dubbed) ➝ both main language and sub-language ➝
OFF.
• For mono performances , there is no choice available.
PLAY SP Hi-Fi
L+R
HI-Fi
LEFT
Hi-Fi
RIGHT
Hi-Fi
OFF
The Hi-Fi system
What you can listen to
Choice of sound output
• If the quality of the test picture transmitted to the TV is poor, fine-tuning on the TV
may help (refer to the TV manual).
• Without a scart cable, you will not get stereo sound from a TV capable of stereo sound.
STOP SP PR10 EURO
BIL
BIL I
II
BIL
I+II
BIL
OFF

DVD Operation
3534
Connections and Copying
To move to next chapter (or track), press [ √√
❚
NEXT] button.
The current chapter (or track) moves to the next chapter (or track).
Press [
❚
œœ PREV] button.
The current scene moves to the previous chapter (or track) or first scene of current
chapter (or track).
Press the [TITLE/PBC] or [MENU] button.
A list of the titles on the disc is displayed.
* For the case of VCD disc, menu screen will
appear only when the disc has PBC function
and PBC ON is activated.
1
Press the [ENTER] button or [PLAY] button
after pressing the [ œ √…† ] button to se ect
the desired tit e.
For the case of VCD disc, press the [Number]
button.
The selected title now starts playing.
2
■ Some movie discs may contain multiple titles. If the disc has a movie title menu recorded on it, the
[TITLE/PBC] or [MEN ] button can be used to select the movie title. Details of operation may differ depending
on the disc used.
* Selecting a title ma not be available on certain DVD discs.
To skip scenes in a disc
Directly moving to a desired title
■Switch off all components when connecting or disconnecting cables.
To copy to your player from another video machine,
connect the two machines with a cable between their
E RO AV (SCART) sockets and select as
programme "AV 1/AV 2" or “F. AV” (front sockets)
using the [AV], [PR+/-] or [INP T] button.
Set the other video machine to playback and your
machine to record.
•To connect a mono audio source, use the front
Audio In socket marked L.
To copy to another video machine from your player,
connect the two machines by means of their E RO
AV (SCART) sockets.
On the other video, select its AV input and set the
machine to record.
Switch your player to play back at the position you
want copying to start.
TV
(other VCR)
Other VCR
Decoder for Pay-TV
Camcorder
Video Player
Satellite Receiver
Audio Amp.
devices
Should you wish to assemble your own film, from camcorder footage for example, use the assembly
technique for smooth edit points:
• The symbol is lit in VCR mode and goes out in TV
mode.
• This symbol means the cassette is in.
• This symbol means a timer recording is setting.
For the best results, the source cassette from which
you are recording should already be playing back
when you start recording.
Copying
Assembling
Playing a desired scene

Playing desired scene
DVD Operation
3736
Playing desired scene
Press [SEARCH] button in p ayback mode.
It shows current disc mode.
1
If you want to search with a tota time or chapter
time, se ect TT TIME or CH TIME using [ … / † ]
button, and press [ENTER].
Please enter the new TT time to be searched using
the [N MBER] buttons.
PLAY starts from the selected position.
4
If you want to search with a chapter number,
se ect CHAPTER using [ … / † ] button. Then press
[ENTER]
Please enter the new chapter number to be searched
using the [N MBER] buttons.
3
Searching DVD with a title number, a chapter number or a time
■You may repeat a defined period from A to B.
At the point where you want to start the repeat
p ayback, press [A-B] button.
The right figure appears and repeat playback start
position (A) is set.
1
At the point where you want to end the repeat
p ayback, press [A-B] button again.
The repeat playback end position (B) is set and a
defined period from A to B is playback repeatedly.
2
To exit from repeat p ayback mode, press [A-B]
button.
It enters into Normal Playback mode.
3
* For the case of VCD disc, repeat playback starts only in PBC OFF mode.
- DivX -
REPEAT TRACK
REPEAT FOLDER
REPEAT OFF
➝➝
➝
- VCD/CD -
TRACK
DISC
OFF
➝➝
➝
- MP3/JPEG -
REPEAT TRACK
REPEAT FOLDER
RANDOM
➝➝
REPEAT OFF
➝
➝
Each time you press [REPEAT] button in playback mode, repeat playback starts as below.
A-
A-B
Repeating a defined period
Repeating a defined period from A to B
- DVD -
CHAPTER
TITLE
DISC
➝➝
OFF
➝
➝
MENU
BITRATE 45 Title Elapsed 0:17:24
➟current title / total title
➟current chapter
➟current audio
➟current subtitle
➟current angle / total angle
MENU
BITRATE 45 Title Elapsed 0:17:24
➟total time
➟chapter time
➟repeat playback mode
➟time display
TITLE 01/02
CHAPTER 02/24
AUDIO 2CH ENGLISH
SUBTITLE OFF
ANGLE 1/2
TT TIME 1:49:00
CH TIME 0:17:24
REPEAT OFF
TIME DISP. TITLE ELAPSED
If you want to search with a tit e number, se ect
TITLE using [ … / † ] button. Then press [ENTER]
Please enter the new title number to be searched
using the [N MBER] buttons.
2
TITLE _1/02
CHAPTER 02/24
AUDIO 2CH ENGLISH
SUBTITLE OFF
ANGLE 1/2
TITLE 01/02
CHAPTER _2/24
AUDIO 2CH ENGLISH
SUBTITLE OFF
ANGLE 1/2
TT TIME 1:49:00
CH TIME 0:17:24
REPEAT OFF
TIME DISP. TITLE ELAPSED
* You can also select AUDIO, SUBTITLE, ANGLE, REPEAT and TIME DISPLAY using [SEARCH]
button.
