Majestic fireplaces UV36RN Mounting instructions

PLEASE READ THIS MANUAL
BEFORE INSTALLING AND USING
HEATERS
IMPORTANT: Read all instructions
and warnings carefully before starting
installation. Failure to follow these in-
structions may result in a possible fire
hazard and will void the warranty.
WARNING: If the information in this
manual is not followed exactly, a fire
or explosion may result causing prop-
erty damage, personal injury or loss
of life.
— Do not store or use gasoline or
other flammable vapors and liquids
in the vicinity of this or any other
appliance.
— What to Do If You Smell Gas
• Do not try to light any appliance.
• Do not touch any electrical switch;
do not use any phone in your
building.
• Immediately call your gas supplier
from a neighbor’s phone. Follow
the gas supplier’s instructions.
• If you cannot reach your gas sup-
plier, call the fire department.
— Installation and service must be
performed by a qualified installer,
service agency or the gas supplier.
This is an unvented gas-fired heater.
It uses air (oxygen) from the room in
which it is installed. Provisions for ad-
equate combustion and ventilation air
must be provided. Refer to Page 4.
Vent-Free Gas Fireplaces
Models: UV36RN, UV36RP
Homeowner’s Installation and
Operating Instructions
MH17022
Gas Fired Un-
vented Room
Heaters
INSTALLER: DO NOT DISCARD THIS MANUAL - Leave in fireplace for homeowner.
Models with “N” after the model number use natural gas;
models with “P” after the model number use Propane
(LP) gas.
20007436 3/06 Rev. 5

2
UV36RN/RP Vent-Free Gas Fireplaces
20007436
Table of Contents
Important Information ..................................................................................................................3
Fireplace Dimensions ......................................................................................................................4
Provision for Adequate Combustion and Ventilation Air .................................................................. 5
Installation & Operating Instructions
Locating the Fireplace ........................................................................................................7
Gas Line .............................................................................................................................7
Drafts ..................................................................................................................................7
Fan Kit ................................................................................................................................7
Electrical Services ..............................................................................................................7
Framing Clearances ...........................................................................................................7
Clearances .........................................................................................................................8
Installation ..........................................................................................................................9
Gas Connection ................................................................................................................10
High Altitude Installation ...................................................................................................10
Gas Pressure Check ........................................................................................................ 11
Gas Pipe Sizing Chart ...................................................................................................... 11
Log Installation .................................................................................................................12
Log Assembly ...................................................................................................................12
Installation of Optional Wireless Remote ..........................................................................13
Installation of Millivolt Wall Switch ....................................................................................13
Lighting Instructions ..........................................................................................................14
Match Lighting ..................................................................................................................15
Flame Check ....................................................................................................................15
Finishing the Fireplace ..................................................................................................... 15
Managing Heat Output .....................................................................................................16
Maintenance
Cleaning ...........................................................................................................................17
Troubleshooting .........................................................................................................................18
Servicing ...........................................................................................................................18
Replacement Parts .....................................................................................................................19
Warranty ...................................................................................................................................... 21
This book contains your operating and installation instructions and should be kept in a safe place. For you to realize
all the advantages and use of the reliable service that has been engineered into your fireplace, you must carefully fol-
low all of the instructions contained in this book regarding installation and operation of the fireplace.
These instructions should be read carefully in their entirety before beginning installation of the fireplace.
It is suggested that you wear work gloves and safety glasses to protect your hands and eyes when installing your
fireplace.
NOTE: Authorities having jurisdiction (i.e. building inspectors, fire marshals, etc.) should be consulted before installa-
tion to determine the need to obtain a permit.
FAILURE TO FOLLOW THESE INSTRUCTIONS WILL VOID YOUR WARRANTY AND MAY PRESENT A FIRE HAZ-
ARD.
UV36RN, UV36RP
Certified To
ANSI Z 21.11.2-2000
Unvented Room Heaters
Units: GF1VA2, GF1VB2

3
UV36RN/RP Vent-Free Gas Fireplaces
20007436
Important Information
INSTALLER: Please leave these instructions with the
owner.
OWNER: Please retain these instructions for future
reference.
IMPORTANT: READ THESE INSTRUCTIONS CARE-
FULLY BEFORE OPERATING.
• DO NOT use this heater if any part of it has been under
water. Immediately call a qualified technician to inspect the ap-
pliance and replace any part of the control system and any gas
control which has been under water.
• This appliance may be installed in an after-market* manu-
factured “mobile” home where not prohibited by state or local
codes.
*After-market: Completion of sale, not for purpose of re-sale from the
manufacturer.
• Children and adults should be alerted to the hazard of high
surface temperature and should stay away to avoid burns or
clothing ignition.
• Although your gas logs are very realistic in appearance,
it is not a real wood-burning fireplace and must not be
used for burning solid fuel.
• To avoid irreparable damage to the appliance or personal
injury; matches, paper, garbage or any other material must not
be placed or thrown on top of the logs or into the flames.
• To avoid personal injury, do not touch hot surfaces when
the appliance is operating.
• Close supervision is necessary when the appliance is
being operated near children.
• Do not use to cook food.
• This appliance is intended to be used only for supplemen-
tal heat. Do not use it routinely as a primary heat source.
Continuous operation could produce excessive humidity
depending on construction characteristics and outdoor tempera-
tures (below 20°F). Over time, this could cause condensation
to form and damage wall structures and exterior paint.
• An unvented room heater having an input rating of more than
10,000 btu per hour shall not be installed in a bedroom or bath-
room.
NOTES
• Due to high temperatures, the appliance should be lo-
cated out of traffic and away from furniture and draperies.
• Installation and repair must be done by a qualified service
person or gas appliance installer.
• A fireplace screen must be in place when the appliance is
operating. On models with movable screens, the screens must
be closed when the fireplace is operating.
• The appliance must be inspected before use and at least
annually by a professional service person. More frequent
cleaning may be required due to excessive lint from carpeting,
bedding material, dust and pet hair, etc. It is important that the
control compartment, burners and circulating air passageways
of the appliance be kept clean.
• DO NOT place clothing or other flammable material on or
near the appliance.
• This appliance must only be used with pressures at the inlet
as shown in Table 1, Page 11 in installation instructions.
• The installation must conform with local codes or, in the
absence of local codes, with the NATIONAL FUEL GAS CODE,
ANSI Z223/NFPA 54, latest edition.
• Any safety screen or guard removed for servicing an appli-
ance must be replaced prior to operating the heater.
• The appliance and its appliance main gas shut-off valve must
be disconnected from the gas supply piping system during any
pressure testing of that system at test pressures in excess of
1/2 psig (3.5 kpa).
• The appliance must be isolated from the gas supply piping
system by closing its equipment shut-off valve during any test-
ing of the gas supply piping system at test pressures equal to or
less than 1/2 psig (3.5 kpa).
• DO NOT use this heater in recreational vehicles, bedrooms
or bathrooms.
• If this is the ONLY gas appliance, we recommend a
minimum 200 pound cylinder with a fill gauge. Use of a 100
pound cylinder is not recommended. Other household gas
appliances may require the tank size to be larger. Do not
operate the vent-free heater if the fuel level in the propane
tank is below 1/4 full.
• Use only with two-stage regulator.
WARNING: During manufacturing, fabricating and ship-
ping, various components of this appliance are treated
with certain oils, films or bonding agents. These chemi-
cals are not harmful but may produce annoying smoke
and smells as they are burned off during the initial
operation of the appliance, possibly causing headaches
and eye/lung irritation. This is a normal and temporary
occurrence.
WARNING: Do not use a blower insert, heat exchanger
insert or other accessory not approved for use with this
heater.
WARNING: If the area in which the heater may be operat-
ed is smaller than that defined as an unconfined space or
if the building is of unusually tight construction, provide
adequate combustion and ventilation air by one of the
methods described in the National Fuel Gas code, ANSI
Z223.1/NFPA 54, section 5.3 or applicable local codes.
This heater shall not be installed in a confined space or
unusually tight construction unless provisions are pro-
vided for adequate combustion and ventilation air.
WARNING: Any change to this heater or its controls can
be dangerous.
This appliance is only for use with the type of gas indi-
cated on the rating plate. This appliance is not convertible
for use with other gases.
This appliance may be installed in an aftermarket, per-
manently located, manufactured (mobile) home, where
not prohibited by local codes.
WARNING: Do not install televisions or other elec-
tronic devices above this fireplace unless approved
by the electronics manufacturer.

4
UV36RN/RP Vent-Free Gas Fireplaces
20007436
36"
33"
31"
17"
1"
21"
35"
50"
Rough Opening Width 36"
Rough
Opening
Height
14"
Rough
Opening
Depth
7436
UV36RN/rp Specs
11/4/03 djt
35"
33"
1/2"
3"
7"
8"
11"
8"
Outside Air Access
Gas Line Access
(Not used on
this model)
Gas Line
Access
3"
7"
8"
8"
Gas Line/
Electrical Access
Gas Line Access
(Not used on
this model)
1/2” Clearance to Combustibles not Required at This Point
Fireplace Dimensions
Fig. 1 UV36RN/RP specifications and framing.
7436

5
UV36RN/RP Vent-Free Gas Fireplaces
20007436
WARNING: Do not allow fans to blow directly into the
fireplace. Avoid any drafts that alter burner flame pat-
tern.
WARNING: Any glass doors on an unvented room
heater shall be opened when the appliance is in opera-
tion.
Provisions for Adequate
Combustion and Ventilation Air
Today’s homes are built more energy efficient than
ever. New materials, increased insulation and new
construction methods help reduce heat loss in homes.
Home owners weather strip and caulk around windows
and doors to keep the cold air out and the warm air in.
During heating months, home owners want their homes
as air tight as possible.
While it is good to make your home energy efficient,
you need fresh air. All fuel-burning appliances need
fresh air for proper combustion.
Supplying Adequate Ventilation
This appliance must be installed in an unconfined
space.
The National Fuel Gas Code’s definitions for confined
and unconfined spaces are as shown below.
Determining if You Have a
Confined or Unconfined Space
Use this worksheet to determine if you have a confined
or unconfined space.
Space: Includes the room in which you will install
heater plus any adjoining rooms with doorless passage-
ways or ventilation grilles between the rooms.
1. Determine the volume of the space (length x width x
height).
Length x Width x Height = _____cu. ft. (volume of
space)
Example: Space size 25’ (length) x 25’ (width) x 8’
(ceiling height) = 5,000 cu. ft. (volume of space)
If additional ventilation from adjoining room(s) is
supplied with grilles or doorless openings, add the
volume of these rooms to compute the total volume
of the applicable space.
2. Divide the space volume by 50 cubic feet to deter-
mine the maximum BTU/Hr the space can support.
________(volume of space) ÷ 50 cu. ft. = (Maximum
BTU/Hr the space can support.
Example: 5,000 cu. ft. (volume of space) ÷ 50 cu. ft.
= 100 or 100,000 (maximum BTU/Hr the space can
support)
3. Add the BTU/Hr of all gas burning appliances in the
space.
Gas range _________________ BTU/Hr
Vented gas heater __________ BTU/Hr
Gas fireplace logs ___________ BTU/Hr
Other gas appliances* + _____ BTU/Hr
Total = _____ BTU/Hr
Example: Gas range 60,000 BTU/Hr
Vent-free logs + 29,000 BTU/Hr
Total = 89,000 BTU/Hr
*Do not include direct-vent gas appliances. Direct-vent
draws combustion air from the outdoors and vents to
the outdoors.
4. Compare the maximum BTU/Hr the space can sup-
port with the actual amount of BTU/Hr used.
_______ BTU/Hr (maximum the space can support)
_______ BTU/Hr (actual amount of BTU/Hr used)
Example: 100,000 BTU/Hr (maximum the space can
support) 89,000 BTU/Hr (actual amount of BTU/Hr
used)
The space in the above example is an unconfined
space because the actual BTU/Hr used is less than the
maximum BTU/Hr the space can support. If the space
had been confined, your options would be as follows:
A. Rework worksheet, adding the space of an adjoin-
ing room. If the extra space provides an unconfined
space, remove door to adjoining room or add venti-
lation grille between rooms. See Ventilation Air From
Inside Building.
B. Install a lower BTU/Hr heater, if lower BTU/Hr size
makes room unconfined.
Converting Confined Space
to Unconfined Space
Additional volume to convert a confined to an un-
confined space could come from an adjoining space.
When using an adjoining space, you can provide two
permanent openings: one within 12” of the ceiling and
one within 12” of the floor on the wall connecting the
two spaces (see options 1 and 3, Figure 2), or remove
the door into the adjoining room.
The National Fuel Gas Code, ANSI Z223.1/NFPA
54 defines a confined space as a space whose
volume is less than 50 cubic feet per 1,000 Btu
per hour (4.8 m3 per kw) of the aggregate input
rating of all appliances installed in that space and
an unconfined space as a space whose volume is
not less than 50 cubic feet per 1,000 Btu per hour
(4.8 m3 per kw) of the aggregate input rating of all
appliances installed in that space. Rooms com-
municating directly with the space in which the
appliances are installed, through openings not
furnished with doors, are considered a part of the
unconfined space.

6
UV36RN/RP Vent-Free Gas Fireplaces
20007436
Ventilation air from outdoors for unusually tight
construction.
WARNING: If the area in which the heater may be
operated is smaller than that defined as an uncon-
fined space or if the building is of unusually tight
construction, provide adequate combustion and
ventilation air by one of the methods described in
the National Fuel Gas Code, ANSI Z223.1/NFPA 54,
Section 5.3 or applicable local codes.
Unusually tight construction is defined as construc-
tion where:
a. walls and ceilings exposed to the outside atmo-
sphere have a continuous water vapor retarder with
a rating of one perm (6x10.-11 kg per pa-sec-m2) or
less with openings gasketed or sealed and
b. weather stripping has been added on openable win-
dows and doors.
c. caulking or sealants are applied to areas such as
joints around window and door frames, between
sole plates and floors, between wall-ceiling joints,
between wall panels, at penetrations for plumbing,
electrical and gas lines and at other openings.
If your home meets all of the three criteria above, you
must provide additional fresh air.
You may provide two permanent openings: one within
12” of the ceiling and one within 12” of the floor. Con-
nect these items directly to the outdoors or spaces
open to the outdoors. These spaces include attics
and crawl spaces. Follow the National Fuel Gas Code
NFPA 54/ANSI Z223.1, Section 5.3, Air for Combustion
and Ventilation for required size of ventilation grille or
ducts.
IMPORTANT: Do not provide openings for inlet or
outlet air into attic if attic has a thermostat-controlled
power vent. Heated air entering the attic will activate
the power vent.
You may provide two permanent openings: one within
12” of the ceiling and one within 12” of the floor. Con-
nect these items directly to the outdoors or spaces
open to the outdoors. These spaces include attics
and crawl spaces. Follow the National Fuel Gas Code
NFPA 54/ANSI Z223.1, Section 5.3, Air for Combustion
and Ventilation for required size of ventilation grille or
ducts.
WARNING: The optional blower kit is equipped
with a three prong (grounding) plug for your
protection against shock hazard and should be
plugged directly into a properly grounded three
prong receptacle.
WARNING: Air openings that provide fresh air
from an adjoining unconfined space shall not be
blocked or obstructed in any way. Installation
of unit should allow a minimum of 2” clearance
from any part of the heater to any of the ventila-
tion openings.
VO370-2
Ventilation
options
3/26/99 djt

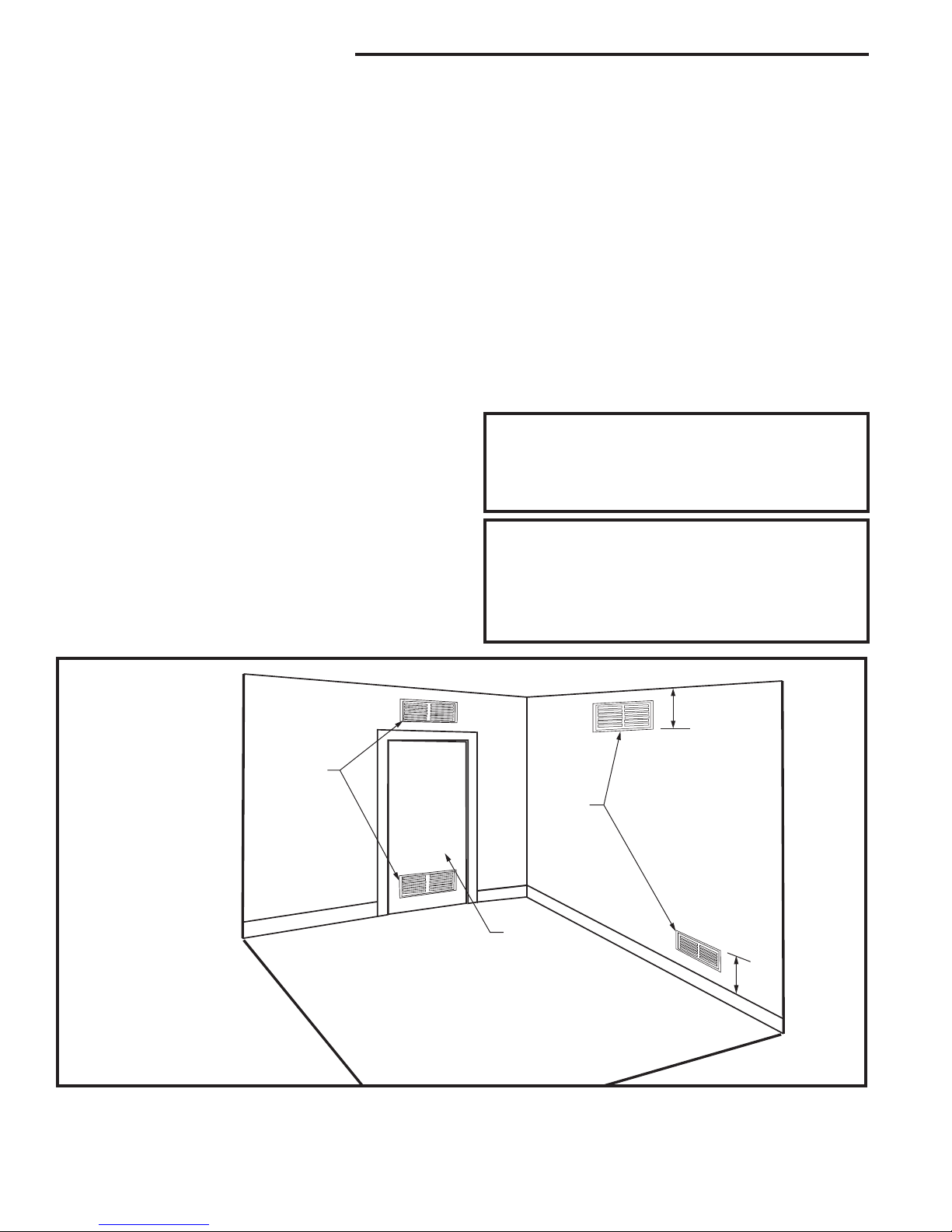

OPTION 1 -
Vents to
Adjoining
Room
OPTION 2
- Remove
Door to
Adjoining
Room
OPTION 3
- Vents to
Adjoining
Room
12”
12”
VO370-2
Fig. 2 Ventilation options for confined spaces.

7
UV36RN/RP Vent-Free Gas Fireplaces
20007436
Installation & Operating Instructions
Locating the Fireplace

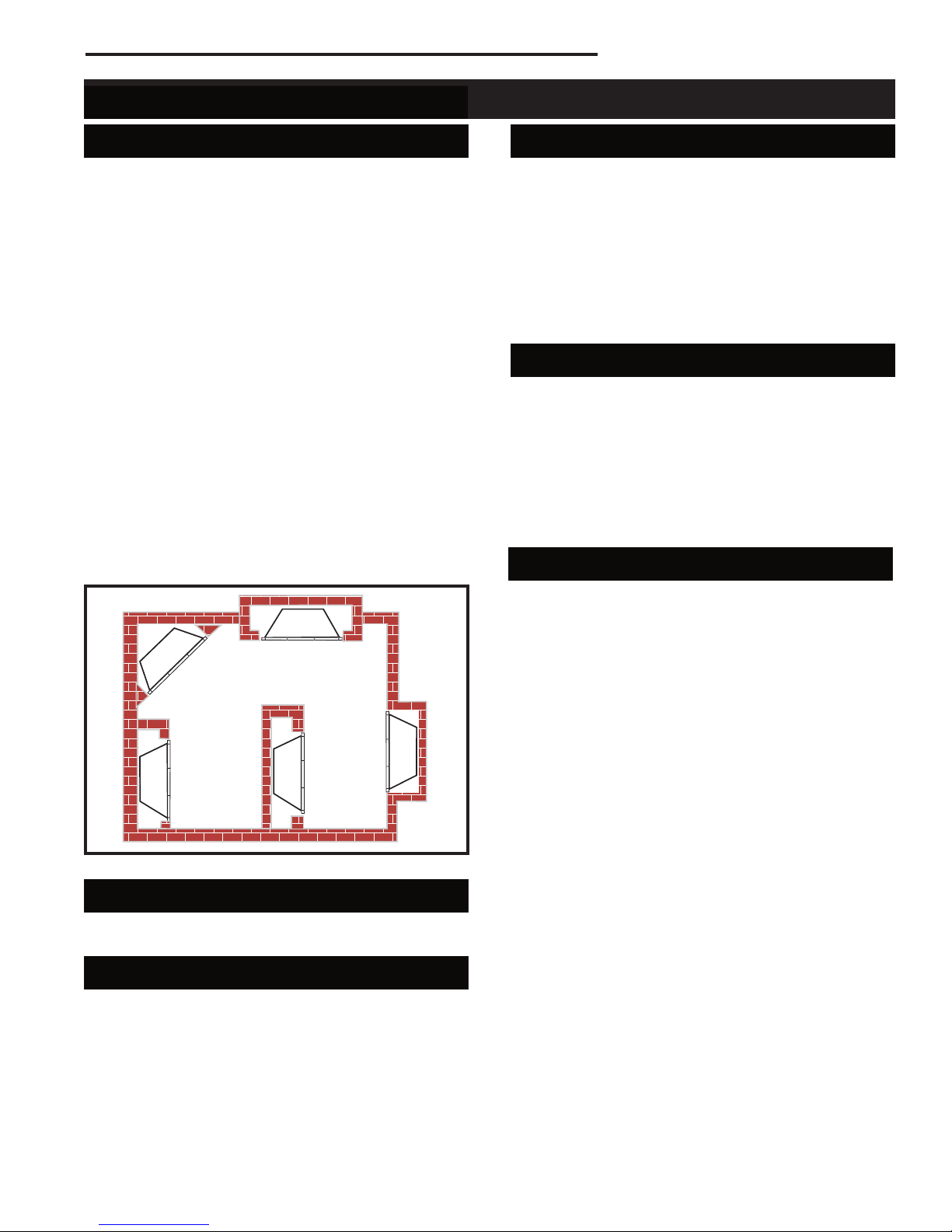

Figure 3 shows some of the many ways your fireplace
may be installed. Consider the traffic pattern in your
room and the location of doors and windows. Moving
air from ceiling fans, open doors and hot air grilles may
cause the flames to soot. If a disturbance is found that
affects the flames, it must be eliminated by turning off
the ceiling fan, closing the door or closing/moving the
hot air register. A corner location may be best where
space is limited.
Your fireplace weighs no more than some of your fine
furniture. If the fireplace is located near a load bearing
wall, additional supports to the foundation will not be
necessary.
NOTE: Heavy facings such as brick, stone, etc., may
require additional foundation support.
NOTE: Although this unit may be installed on com-
bustible surfaces, it must not be installed on carpet
or vinyl.
The clearances to sidewalls and ceiling that are shown
in Figures 5, 6a, 6b and 7 must be considered when
choosing the location for the fireplace.
LU584-1
Locating unit
2/4/99 djt
Partial Room
Projection
Corner
Full Room
Projection Room
Divider
Flush
LU584-1
Fig. 3 Locating the fireplace.
Gas Line
The gas line must be installed by a licensed gas line
installer before framing in the fireplace.
Drafts
Do not locate the fireplace in high traffic areas or areas
exposed to high drafts and winds. Locate the fireplace
away from furniture and draperies.
Fan Kit - Optional
If the construction of your fireplace is with a full outer
casing and full bottom pan, use Blower Kit BL-4 or
FK12.
If the construction of your fireplace is with two sheet
metal legs supporting the combustion chamber at the
back, use Blower Kit BL-3. The variable speed control,
SCVS, is included with the BL-3.
Optional variable speed control, Model SCVS, may be
used with the Blower Kit BL-4.
Electrical Services
All optional fan kits are equipped with a 120V, 60Hz
blower, less than 12 amps.
A 120V outlet, Part no. EB-1, is needed in the fireplace
in order to plug in the optional blower accessory. The
blower is equipped with a standard 3-prong electrical
plug.
Installation Tip: The blower will be easier to install if
done at time of appliance installation.
Framing Clearances
The fireplace may be placed directly on a combustible
floor, against a combustible wall at marked clearances
or on a raised wooden platform.
If the fireplace is to be installed on a raised wooden
platform, the platform must be a continuous level sur-
face.
The fireplace must be secured in place so it cannot shift
positions. The nailing flanges on the sides of the fire-
box make securing it to the framing easy. They were
designed to allow the installation of 1/2” wallboard or
plywood flush with the face of the fireplace.
Only the header (Fig. 4) may rest on the standoffs on
top of the firebox. Framing must rest on top of stand-
offs.
When the fireplace is installed over carpeting, vinyl tile
or any combustible material other than wood flooring,
it must be installed on a metal or wood panel extend-
ing its full width and depth. Alternatively - the carpet-
ing, vinyl tile, etc., may be removed from beneath the
fireplace before installing.
Combustible materials must not be installed over or
touch the black front surface of the fireplace.

8
UV36RN/RP Vent-Free Gas Fireplaces
20007436
21¹⁄₈"
14¹⁄₂"
1/2"
36"
36"
32¹⁄₈"
14¹⁄₂"
Min.
36¹⁄₈"
T143
framing dimension
11/4/03 djt
1/2” Clearance
not Required
at This Point
2” Min. Clearance
to Mantel Leg
T143
Fig. 4 UV36 framing dimensions.
Clearances
To ensure a safe installation, the following instructions
must be carefully observed.
1. Sidewall Clearances: Clearances from the side of
the fireplace opening to any combustible wall should
not be less than 2”.
2. Ceiling Clearances: The ceiling height should not
be less than 36” from the top of the fireplace (Fig.
5a).
Mantel Clearances:
a. Mantel profile: The minimum distance above the
fireplace opening to combustible material project-
ing 1” (tile moldings, breast boards, etc.) is 13”.
Combustible material projecting 6” (a mantel
shelf, for example) requires a minimum clearance
of 20¹⁄₄” above the fireplace opening. Required
clearance varies with the amount of projection.
(Fig. 5a)
The mantel profile must fall within the cross-sec-
tion shown in Figure 5a (with standard canopy)
or Figure 5b (if a AH3342 adjustable canopy is
used).
b. With Canopy: The minimum distance above the
fireplace opening to combustible material project-
ing 1” (tile moldings, breast boards, etc.) is 9”.
Combustible material projecting 6” (a mantel
shelf, for example) requires a minimum clearance
of 12” above the fireplace opening. Required
clearance varies with the amount of projection.
(Fig. 5b)
c. Heat resistant material: Any heat resistant mate-
rial suitable for a continuos operating temperature
of 120°C (248°F) must cover the wall surface di-
rectly above the fireplace opening and extend the
full width of the fireplace opening for a distance
of 9” above the opening of the fireplace. (Figs. 5a
and 5b)
d. Refer to Figure 6 for mantel leg clearances.
NOTE: Due to the continuous heat output of a
Vent Free Fireplace, occasional discoloration or
peeling of paint and varnish materials may be
noticed directly above the fireplace opening.
T144
standard canopy
clearances
11/4/03 djt
1"
10"
7"
4"
12"
13"
17¹⁄₄"
21¹⁄₂"
26"
Min. 36"
From Top
of Unit to
Ceiling
1"
10"
7"
4"
12" 13"
17¹⁄₄"
21¹⁄₂"
26"
Min. 36" From Top
of Unit to Ceiling
Combustible
Header
Standoff
Spacer
Ceiling*
Combustibles
Allowed in
Shaded Area
Combustible
Face Wall
Noncombus-
tible to Top of
Standoff
Canopy
Top of Screen
Frame
Fireplace
Top Face
Top of Fireplace
Opening
T144
Fig. 5a Minimum mantel clearance with standard canopy.
*Ceiling height is the minimum height of the room ceiling in front of
the fireplace measured from the top front edge of the fireplace.
Hex Head Screws
Canopy
Canopy Installation
(Top View)

9
UV36RN/RP Vent-Free Gas Fireplaces
20007436
10"
8"
6"
1"
9"
Min.
T107
Mantel clearance
with canopy
10/27/03 djt
12"
Min.
18"
Min.
22"
Min.
Heat Resistant
Material
AH3342
Adjustable
Canopy
T107
Fig. 5b Minimum clearances with AH3342 canopy.
T107
side clearance
and projection
10/27/03 djt
Fireplace
Opening
Combustible Mantel
Noncombustible
Facing
Mantel Leg
Mantel Leg
2” Min.
Clearance Max. Projec-
tion 7”
T108
Fig. 6 Side clearance and projection.
This list of specific instructions will help you make
certain that every installation operation is done
correctly. Complete the installation steps in the
sequence shown.
LOCAL BUILDING CODES SHOULD BE CONSULTED
IN ALL CASES AS TO THE PARTICULAR REQUIRE-
MENTS CONCERNING THE INSTALLATION OF FAC-
TORY BUILT VENT FREE FIREPLACES.
Select the location for the fireplace by taking into con-
sideration the factors previously outlined in the Planning
Ahead section of this manual.
Step 1: Framing the Firebox
The entire fireplace can be elevated above the floor to
achieve a raised hearth effect. This can be done by
adding a small platform to achieve the desired height.
STOP! INSTALL CANOPY AT THIS TIME BY LOOS-
ENING THE SCREWS LOCATED AT THE TOP
FRONT OF THE FIREPLACE. NEXT, SLIDE THE
SLOTTED FLANGE OF THE CANOPY UNDER THE
LOOSENED SCREWS, THEN RETIGHTEN THE
SCREWS TO SECURE THE CANOPY. (Fig. 5a)
Step 2: Install the Firebox
Install the firebox into the framed opening by setting
it directly in front of the opening and sliding it into the
proper position.
Step 3: Level the Firebox
Check the level of the firebox on the top edge of the
fireplace face. Shim if necessary.
Step 4: Secure the Firebox
Secure the fireplace to the framing. The nailing flanges
on the firebox will make securing the firebox to the
frame quick and easy. Use appropriate size nails or
screws to secure the firebox.
Step 5: Removing the Front Screen Panel
To remove the screen panel, first open the control
panel door. Using a 1/4” nut driver, remove the two
screws that secure the screen panel to the front of the
fireplace, (Refer to Figure 7 for the location). Carefully
pull the bottom of the screen panel out toward you, then
pull the panel down until the two pins at the top of the
screen panel clears the holes in the top of the fireplace.
Reverse the above operation to reinstall the screen
panel.
WARNING: The front screen on the fixed screen
models must be installed before the fireplace is
put into operation.
T145
front screen panel
11/4/03 djt
Pins Securing Top of
Screen Panel
Screws Securing Bottom of
Screen Panel
(Control Panel Door is Open)
T145
Fig. 7 To remove screen panel, remove two screws securing
screen, then pull panel down until top pins clear holes in top
of fireplace.

10
UV36RN/RP Vent-Free Gas Fireplaces
20007436
BTU/Hr
Model Fuel Hi Low
UV36RN Natural 29,000 18,000
UV36RP LP/Propane 29,000 23,000
Gas Specifications
Gas Connection
Connection between the manual shut-off valve and the
gas valve can be made with a CSA design certified flex-
ible connector if allowed by local codes. A drip leg is still
required. Tighten all joints securely.
NOTE: If the manual gas shut-off valve is located in
the control compartment, the two screws that hold the
control cover in place during shipping must be left out
so the control cover is removable by hand.
Testing the Gas Piping. Test all piping for leaks.
When checking gas piping to the heater with gas pres-
sure less than 1/2 psi, shut off manual gas valve for the
heater.
If gas piping is to be checked with the pressure at or
above 1/2 psi, the heater and manual shut off valve
must be disconnected during testing to prevent damage
to the regulator on the unit, (see WARNING).
To ensure that the gas lines and connections do not
have any leaks, a pressure test should be performed.
Only a qualified installer should perform the pres-
sure test to ensure that the unit is not damaged by
high pressures! Apply soapsuds (or a liquid deter-
gent) to each joint. Bubbles forming indicate a leak.
Correct even the slightest leak at once.
If you connect natural gas to an LP gas unit, you may
be unable to ignite the pilot. If the pilot does ignite, the
front burner flame on the low setting will be bright blue
but only 1/4” to 1/2” long and most likely lifting off the
burner ports. If this is the case, turn the unit off imme-
diately.
If you connect LP gas to a natural gas unit, the front
burner flame on the low setting will be about 6” - 8”
long. On the medium and high setting, the front burner
flames will be bright yellow and about 10” in length.
Turn the unit off immediately! If the unit is allowed to
run in this condition, substantial amounts of soot will be
generated and emitted into the house.
High Altitude Installation
CSA listed vent free gas fireplaces are tested and ap-
proved for elevations from 0 to 2,000 feet (0-610m) with
no change to the rated input.
Check Gas Type. Use only the gas type indicated
on the heater’s rating plate. If the gas type indicated
on the plate is not your type of gas supply, DO NOT
INSTALL. Contact your dealer for proper model.
Gas Piping. The gas supply line must be of an ad-
equate size to handle the BTU/HR requirements and
length of the run for the unit being installed.
Determine the minimum pipe size from the piping size
chart on Page 10. The normal gas connection is 1/2”
NPT made at the center of the unit.
WARNING
DANGER OF PROPERTY DAMAGE,
BODILY INJURY OR DEATH.
Make sure the heater is equipped to operate on
the type of gas available. Models designated as
natural gas are to be used with natural gas only.
Heaters designated for use with liquified petro-
leum (l.p.) gas have orifices sized for commercial-
ly pure propane gas. They cannot be used with
butane or a mixture of butane and propane.
Always use an external regulator for all LP appliances
to reduce the supply tank pressure to a maximum of
13” w.c. This is in addition to the regulator fitted to the
heater.
WARNING: Connecting directly to an unregulated
LP tank can cause an explosion.
All piping must comply with local codes and ordinances
or with the National Fuel Gas Code (ANSI Z223.1/NFPA
54), whichever applies. Installation of a sediment trap
is a requirement of this code.
Gas Connection. If installation is for L.P. gas, have
L.P. installer use two-stage regulation and make all con-
nections from the storage tank to the heater. Refer to
the National Fuel Gas Code for the proper supply tank
size with the Btu’s/Hr requirements. If this is the ONLY
gas appliance, we recommend a minimum 200 pound
cylinder with a fill gauge. Use of a 100 pound cylinder
is not recommended. Other household gas appliances
may require the tank size to be larger. Do not operate
the vent free fireplace if the fuel level in the propane
tank is below 1/4 full.
Use pipe wrenches when making the connection to the
valve to prevent turning or damage to gas valve.
WARNING
DANGER OF PROPERTY DAMAGE,
BODILY INJURY OR DEATH.
Never use a match or open flame to test for
leaks. Never exceed specified pressures for
testing. High pressures may damage the appli-
ance regulator which would require replacement.
Liquified petroleum (LP) is heavier than air and it
will settle in any low area, including open de-
pressions and it will remain there unless area is
ventilatedNever attempt start-up of unit before
thoroughly ventilating area.

11
UV36RN/RP Vent-Free Gas Fireplaces
20007436
When installing this fireplace at an elevation above
2,000 feet, it may be necessary to decrease the input
rating by changing the existing burner orifice to a small-
er size. Input should be reduced four percent (4%) for
each 1,000 feet above sea level, unless the heating
value of the gas has been reduced, in which case this
general rule will not apply. To identify the proper orifice
size, check with the local gas utility.
Consult your local gas utility for assistance in determin-
ing the proper orifice for your location.
Gas Pressure Check
The gas inlet pressure specified in Table 1 is the pres-
sure where the field-installed gas line connects to the
gas control. This is measured at the inlet test port on
the gas valve in the appliance. Ensure that pressure is
as shown in Table 1.
The manifold pressure is controlled by a regulator built
into the gas control and should be checked at the pres-
sure test points located between the flame adjustment
knob and the control knob at the front of the valve. The
Table 1
Gas Inlet Pressure Natural Propane
Max. 14.0” w.c. 14.0” w.c.
Normal 7.0” w.c. 11.0” w.c.
Min.* 4.5” w.c. 11.0” w.c.
Regulator Pressure 3.5” w.c. 10.0” w.c.
*Minimum inlet supply pressure for the purpose of input adjustment.
pressure connections accept 1/4” I.D. hose or tubing.
The pressure should be checked with the appliance
burning on high (highest setting) and all other gas ap-
pliances turned on. One must then read the manometer
and if pressures are not as specified in Table 1, then
the inlet pressure must be adjusted.
After measuring the pressure, tighten the screw in the
pressure test port and check for leaks. Replace the
control box cover and the two screws.
NOTE: To determine the size of the branch gas line from the main gas line to the fireplace, enter the tables below (for
iron pipe or copper tubing) using the distance from the gas meter or second stage regulator to the furthest appliance on
the gas system. Select a pipe or tube diameter which has enough capacity to meet the maximum input requirement of
the fireplace. Regardless, do not use less than 1/2” diameter for the branch line. For any distances required longer than
shown in these tables, refer to the National Fuel Gas Code.
NOTE: There may be a local gas utility requirement specifying a minimum diameter for gas piping. All units require a 1/2 inch pipe con-
nection at the gas valve.
Gas Line Pipe Sizing
CAPACITY OF PIPING
Cubic Feet per Hour based on 0.3” w.c. Pressure Drop
Specific Gravity for Natural Gas - 0.6 (1000 BTU/Cubic Foot)
Specific Gravity for Propane Gas - 1.6 (2550 BTU/Cubic Foot)
Length Nominal Inches for Iron Pipe Sizes (1,000s BTU/hr)
of 1/2” D 3/4” D 1” D 1¹⁄₄” D 1¹⁄₂” D
Pipe Natural Propane Natural Propane Natural Propane Natural Propane Natural Propane
20’ 92 143 190 296 350 546 730 1135 1100 1711
30’ 73 115 152 237 285 444 590 918 890 1385
40’ 63 97 130 202 245 380 500 778 760 1183
50’ 56 87 115 179 215 334 440 683 670 1043
60’ 50 79 105 163 196 304 400 622 610 949
70’ 46 71 96 151 180 280 370 576 560 872
90’ 40 61 84 130 160 250 320 497 490 763
100’ 38 59 79 122 150 235 305 474 460 717
Outside Diameter Copper Tubing, Type L (1,000s BTU/hr)
Tubing Length 1/2” 5/8” 3/4” 7/8”
Feet 0.43 0.545 0.666 0.785
10 110 206 348 536
20 76 141 239 368
30 61 114 192 296
40 52 97 164 256
50 46 86 146 224
60 42 78 132 203
80 36 67 113 174
100 32 59 100 154
WARNING: Use only internally tinned copper tubing. If correct copper tubing is not used, tubing can deteriorate and de-
velop gas leaks.
CAUTION: If the appliance’s operating pressures
are not checked and adjusted, improper combus-
tion may result in soot being produced.

12
UV36RN/RP Vent-Free Gas Fireplaces
20007436
Log Installation
With gloves, remove each of the logs by gripping at
either end while avoiding any undue pressure. The logs
are made from light-weight ceramic fiber and may break
if undue force is applied.
The carton contains the following items: front log and
rear log, 2 top twigs, a bag of volcanic ash and a bag
embers.
Log Assembly
(Refer to Figures 8, 9 and 10)
1. Rear log should be installed onto rear log sup-
ports. Match slots on rear of log with the vertical log
bracket tabs. (Fig. 8)
2. Place the bottom edge of the large front log be-
tween the two tabs located in the log support chan-
nel which centers the log left to right. (Fig. 8)
3. The two top twigs can then be placed in their desig-
nated positions located with pins on back logs and
grooves on the front log.
4. Lava rock from the bag provided should be placed
on the hearth pan area to suit individual appearance
preferences. DO NOT place volcanic ash on burner,
pilot or logs.
5. Platinum embers are to be placed only on top of the
front burner port area. Equally space embers one
layer thick. Do not pile ember material over one
layer thick as this does not enhance the “ember”
appearance or improve the log set performance.
(Fig. 10)
6. Flames must not impinge (touch) on logs.
WARNING: Do not use more embers than those sup-
plied with your unit. Do not use embers other than
genuine “Platinum Embers” supplied by CFM Corpora-
tion, Part No. 78037.
When you have completed these steps, compare log
positions with Figure 9. The logs must be positioned as
illustrated.
CAUTION: Proper location is critical. When positioning
the log set, make sure the logs do not interfere with the
sides of the fireplace before securing the chassis.
T131
VF Burner
10/30/03 djt
Rear Log Supports
Front Log Loca-
tor Tabs
(Left to Right)
T131

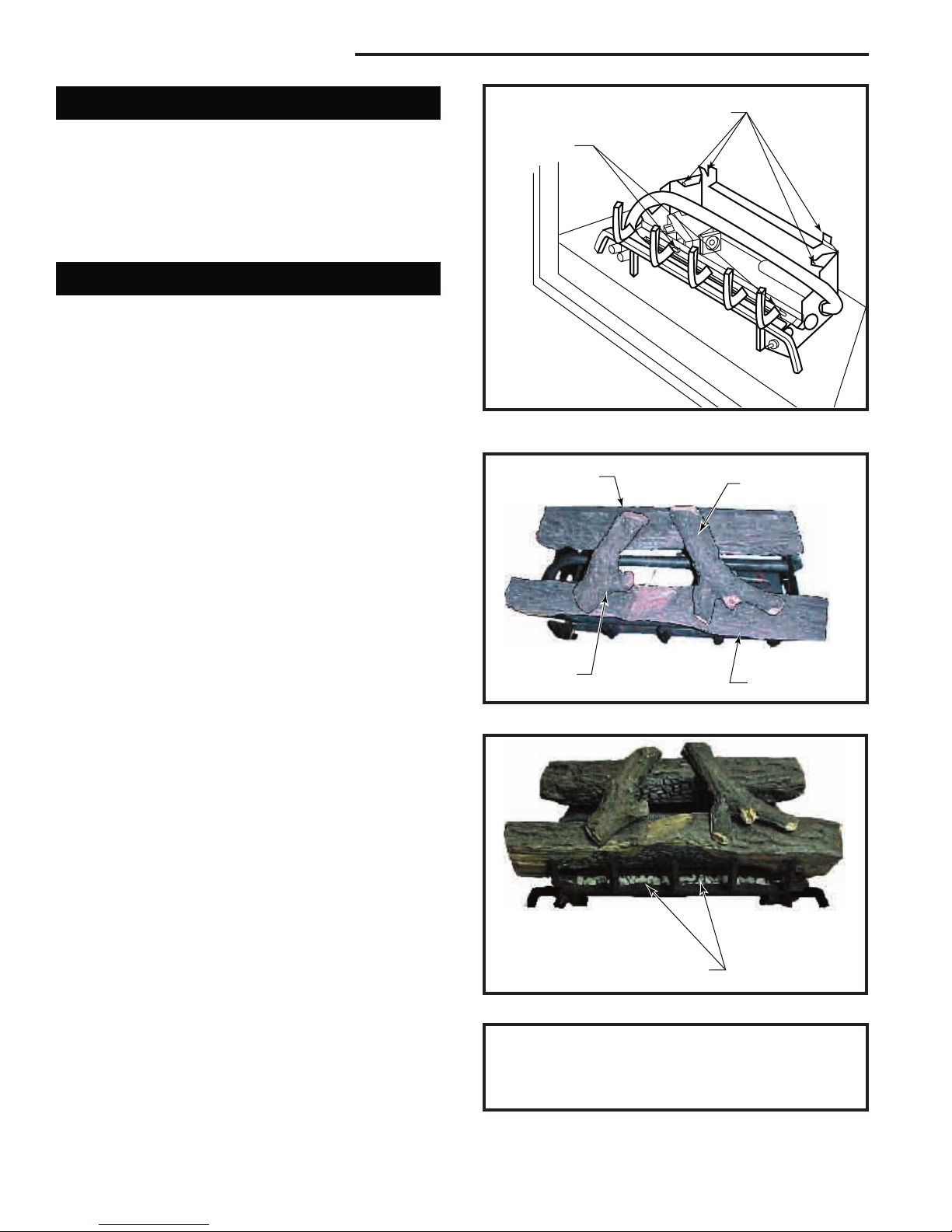

Fig. 8 Match slots on rear of log with vertical log bracket tabs.

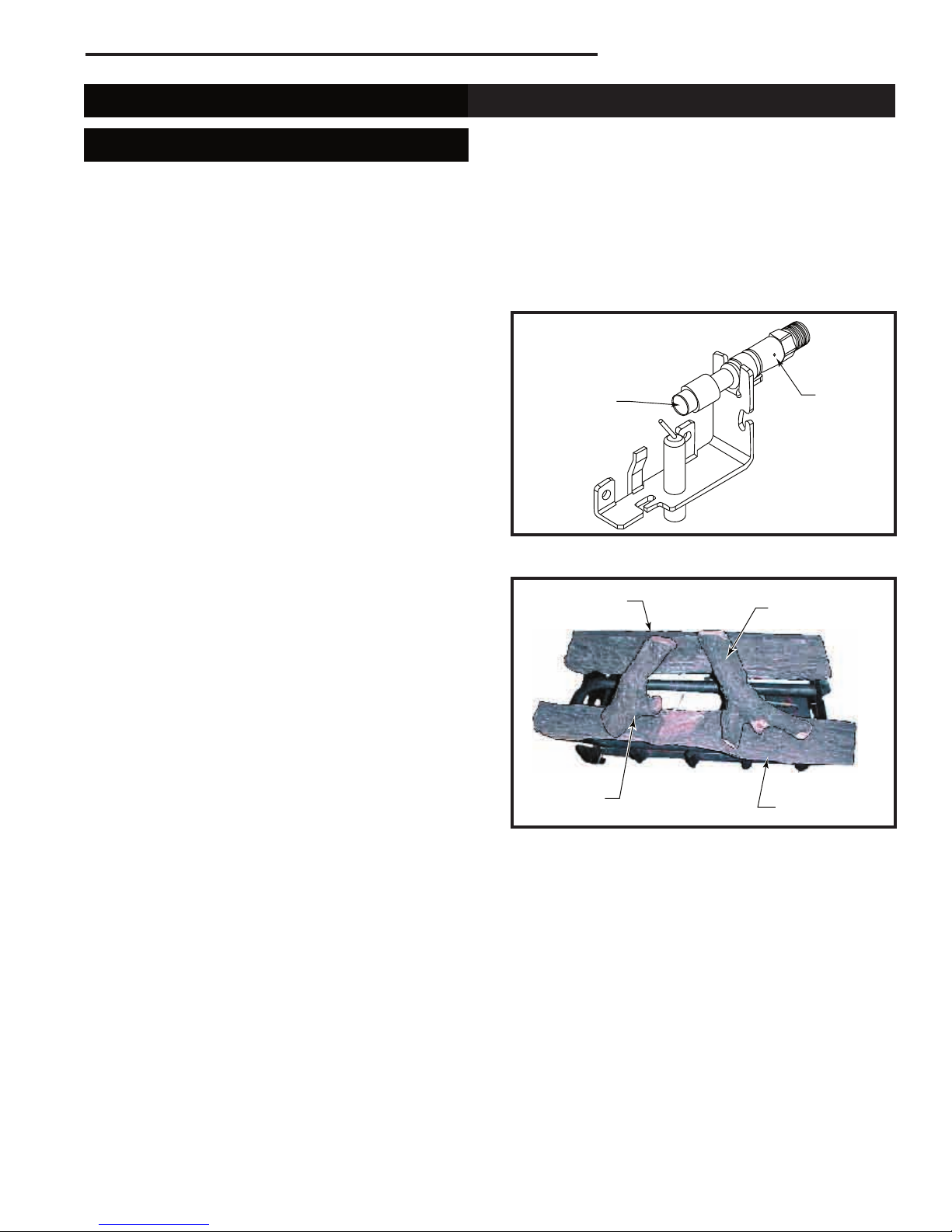

TL106
VF34 logs
10/03
Rear Log Right Twig
Front Log
Left Twig
TL106
Fig. 9 Correct log placement.
TL107
vf34 embers
10/03
Platinum Embers TL107
Fig. 10 Platinum ember placement.
WARNING: Failure to position the parts in ac-
cordance with this diagram or failure to use only
parts specifically approved with this heater may
result in property damage or personal injury.

13
UV36RN/RP Vent-Free Gas Fireplaces
20007436
Installation of Optional Wireless Remote
Two remote control kits are offered. The standard
ON/OFF model is a WRD-1 and the thermostatic model
is a WRST-K.
The remote receiver should be placed in the lower com-
partment of the fireplace behind the control cover panel.
There will be a battery terminal and two wire leads.
The remote receiver does not need to be secured to the
fireplace but can be placed on the floor under hearth
pan assembly.
The enclosed jumper wires can be attached to the
receiver wires by joining the female connectors from
the receiver.
All connections should be made as shown in the re-
mote kit instructions. The jumper wire should be routed
behind the cover plate to the valve. The wires from
your receiver can be connected to the two outer termi-
nals on the valve, making sure it is the two outer termi-
nals and not the center one. (Figs. 11 and 12) You may
now refer to the lighting instructions for use. The log
set should not be modified to accept any other type of
remote control as no guarantee may be made regarding
proper function. Refer to manufacturer’s instructions for
battery replacement.
T147
connect terminals
side view
11/5/03 djt
T147
Fig. 11 Connect wires from receiver to terminals on valve.
BB
A
T148
attach wires
11/5/03 djt
A. Existing valve wiring (Do not tamper with)
B. Remote receiver wires (red or white on either side)
Fig. 12 Attach receiver wires to outer two terminals on valve.
Installation of Millivolt Wall Switch
To install your millivolt wall switch, an approved wall box
should be installed in a location suitable to you. The
thermostat wire should be routed from the wall box to
the log set and should be routed underneath the log set
and pulled up to the valve’s wiring terminal as shown in
Figure 14.
The two wires, letter “A”, should not be removed or
changed. Remove switch wires, Letter B. The two
female ends of your wire can be connected to the two
outer connections just below the screw terminals as
shown in Figures 11 and 14.
Now the wall switch can be wired as shown in Figure
13. The wires can be connected to either poles as they
carry only millivolt current. No ground is used at the
wall switch. See the lighting instructions on Page 14.
Wall switch must be for millivolt operation.
Do not connect 120 Volts to wall switch.
Wire Size Maximum Length
14 ga. 50’
16 ga. 32’
18 ga. 20’
20 ga. 15’
22 ga. 10’
Recommended Maximum Lead Length (Double
Wire) When Using Wall Switch or Thermostat
T149
wall switch wires
11/5/03 djt
T149
Fig. 13 Optional wiring to wall switch.
T113
Thermopile switch
10/27/03 djt
C
B
A
T114
A Thermopile (Do not remove)
B Switch (OFF/ON)
C Wires from receiver (red &
white) or wires from millivolt
wall
Fig. 14 Control valve terminal block.

14
UV36RN/RP Vent-Free Gas Fireplaces
20007436
T150
fireplace
control panel
11/6/03 djt
Valve Control
ON/OFF/PILOT
HI/LO Flame
Adjustment ON/OFF
Switch
Piezo
NOTE: Optional Remote Control
Receiver May be Placed on Floor
Behind Cover Panel
Optional Gas
Shutoff Valve
T150
Fig. 15 Fireplace control panel.
WARNING: If you do not follow these instructions exactly, a fire or explosion may result causing property damage,
personal injury or loss of life.
A. This appliance has a pilot which must be lighted by hand.
When lighting the pilot, follow these instructions exactly.
B. BEFORE OPERATION smell all around the appliance area
for gas. Be sure to smell next to the floor because some
gas is heavier than air and will settle on the floor.
WHAT TO DO IF YOU SMELL GAS:
• Do not try to light any appliance.
• Do not touch any electrical switch; do not use any tele-
phone in your building.
• Immediately call your gas supplier from a neighbor’s tele-
phone.
• Follow the gas supplier’s instructions.
• If you cannot reach your gas supplier, call the fire depart-
ment.
C. Use only your hand to push in or turn the gas control knob.
Never use tools. If the knob will not push in or turn by
hand, don’t try to repair it. Call a qualified service techni-
cian. Force or attempted repair may cause a fire or an
explosion.
D. Do not use this appliance if any part of it has been under
water. Immediately call a qualified service technician to
inspect the appliance and to replace any part of the control
system or gas control which has been under water.
E. Be sure both the receiver and the remote have had a 9 volt
battery installed in each.
Lighting Instructions
1. STOP! Read the safety information above before proceed-
ing.
2. Refer to Figure 16. To turn off
the gas supply, depress the knob
slightly and turn clockwise
to the OFF position.
3. Wait five (5) minutes to clear out
any gas. Then smell for gas,
including near the floor. If you
smell gas, STOP! Follow “B” in
the safety information above. If
you don’t smell gas, go to the
next step.
4. Refer to Figure 17. Locate the
pilot. It is at the right side of the
burner.
5. Refer to Figure 18. Push in the
control knob and turn counter-
clockwise to the PILOT position. Hold the control
knob in for a few seconds.
6. While still holding in the control knob, press the ignitor push-
button several times. This will cause a spark at the pilot
which will ignite the pilot gas. (Fig. 19)
7. Hold the control knob for 60 seconds to prevent the flame
failure detector from shutting off the
gas while its probe is warming up.
8. Release the control knob.
• If the knob does not pop up when
released, stop and immediately call
your service technician.
• If the pilot will not stay lit after sev-
eral tries, turn the gas control knob to
OFF and call your service technician
or gas supplier.
9. Refer to Figure 20. When the
pilot remains lit, turn the control
knob counterclockwise to
the ON position.
10. Lighting Instructions for Millivolt
Wall Switch. After the pilot is lit
and the control knob is released,
the wall switch can be switched
to turn the unit “ON” or switched
to turn it “OFF”. Refer to Page 13 for wiring.
T118
Lighting Instr
Piezo
10/28/03 djt
Fig. 19
Piezo
T125
OP Pilot
10/28/03 djt
Fig. 17
OFF
ON
PILOT
OFF
ON
PILOT
OFF
ON
PILOT
T151
control knob
11/6/03 djt
Fig. 16 Fig. 18 Fig. 20
To Turn OFF Gas to Appliance
Depress the control knob slightly and turn it clockwise to the OFF position. Refer to Figure 16.
For Your Safety, Read Before Lighting

15
UV36RN/RP Vent-Free Gas Fireplaces
20007436

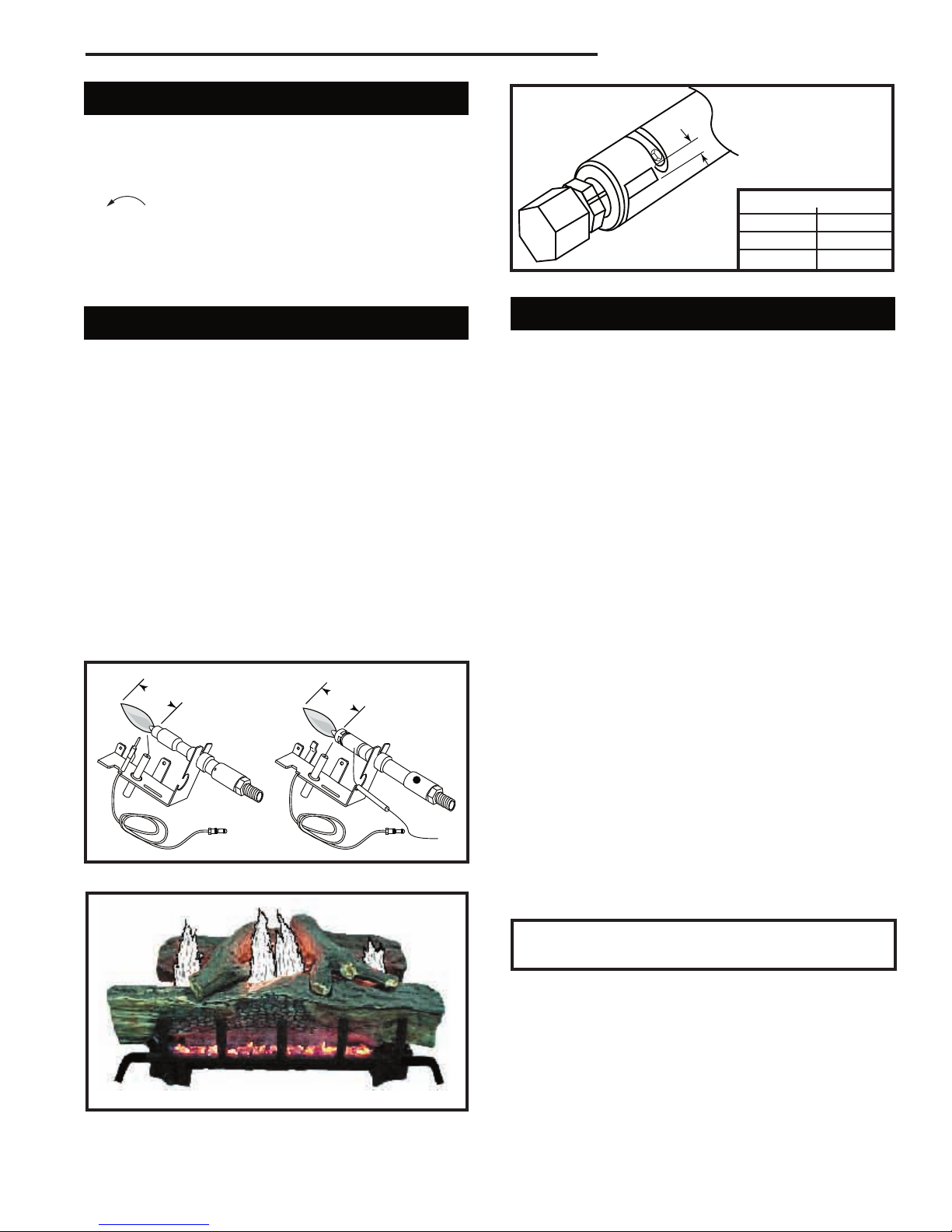

If the pilot cannot be ignited with the piezo, it can be manually
lit with the use of a match and lighter rod.
1. Place the match in the holder and light. With the right
hand, depress and turn the control knob counterclockwise
to the PILOT position. Hold in for 20 seconds.
2. Take the lighter rod and lighted match and ignite the pilot.
3. Continue to hold the control knob for an additional 20
seconds to ensure pilot is maintained.
4. Proceed with Step 8 in the Lighting Instructions on Page
14.
Match Lighting
Flame Check
A periodic visual check of the flames should be made.
The pilot flame should always be present when the ap-
pliance is in operation. (Fig. 21)
In normal operation (at full rate for approximately 15
minutes) the following flame appearance should be
observed:
The flame should burn blue with some yellow flames
visible. Height of the blue flame should be approxi-
mately 1” on high. The yellow flames should extend 6
to 8 inches above the large front log.
Typical flame shape seen in Figure 22.
NOTE: For your safety, the appliance is equipped with
an oxygen depletion system. The system senses the
oxygen in the atmosphere and switches off the gas sup-
ply in case the level of oxygen falls below a safe level. It
must not be altered in any way.
T140
Temco manual
pilot flame
10/27/03 djt
1¹⁄₂"
1¹⁄₂"
T140
Natural Gas Propane
Fig. 21 Pilot flame position and location.
TL108
Fig. 22 Correct burner flame appearance.
A
Air Shutter Settings
Model A
UV36RN 0.125”
UV36RP 0.375”
T134
Fig. 23 Air shutter settings.
Finishing the Fireplace
There are a wide variety of finishing materials avail-
able for your fireplace, from formal wall treatments with
marble and mantels to rustic wood paneling, stone or
brick.
It is important that the black face of the fireplace
not be covered with any type of combustible mate-
rial.
Noncombustible facing materials such as marble, brick
or ceramic tile may overlap the black face of the fire-
place up to the opening on either side of the fireplace.
Seal all joints between the black fireplace face and the
wall covering with a heat resistant material such as rock
wool insulation or mortar. Be sure to use high tempera-
ture adhesive or mortar when anchoring brick, stone or
tile to the face of the fireplace. Check to see whether
man-made brick and stone are made of noncombustible
materials before using them on the face of the fireplace.
Some of these products contain combustible materials.
Combustible wall coverings such a paneling or wall-
board may not overlap the black face of the fireplace.
The space between the wall covering and the fireplace
should be sealed with a heat resistant material such as
rock wool insulation or mortar.
NOTE: An “L” shaped steel lintel must be installed
across the top of the firebox opening where facing
materials such as brick or stone are used on the face
of the firebox. It acts as a support/firestop. It should be
attached to the face of the fireplace with screws and
sealed to the fireplace with a heat resistant sealer. Re-
fer to Figure 24 for finishing options.
WARNING: These vent free fireplaces are not to
be used with glass doors.

16
UV36RN/RP Vent-Free Gas Fireplaces
20007436

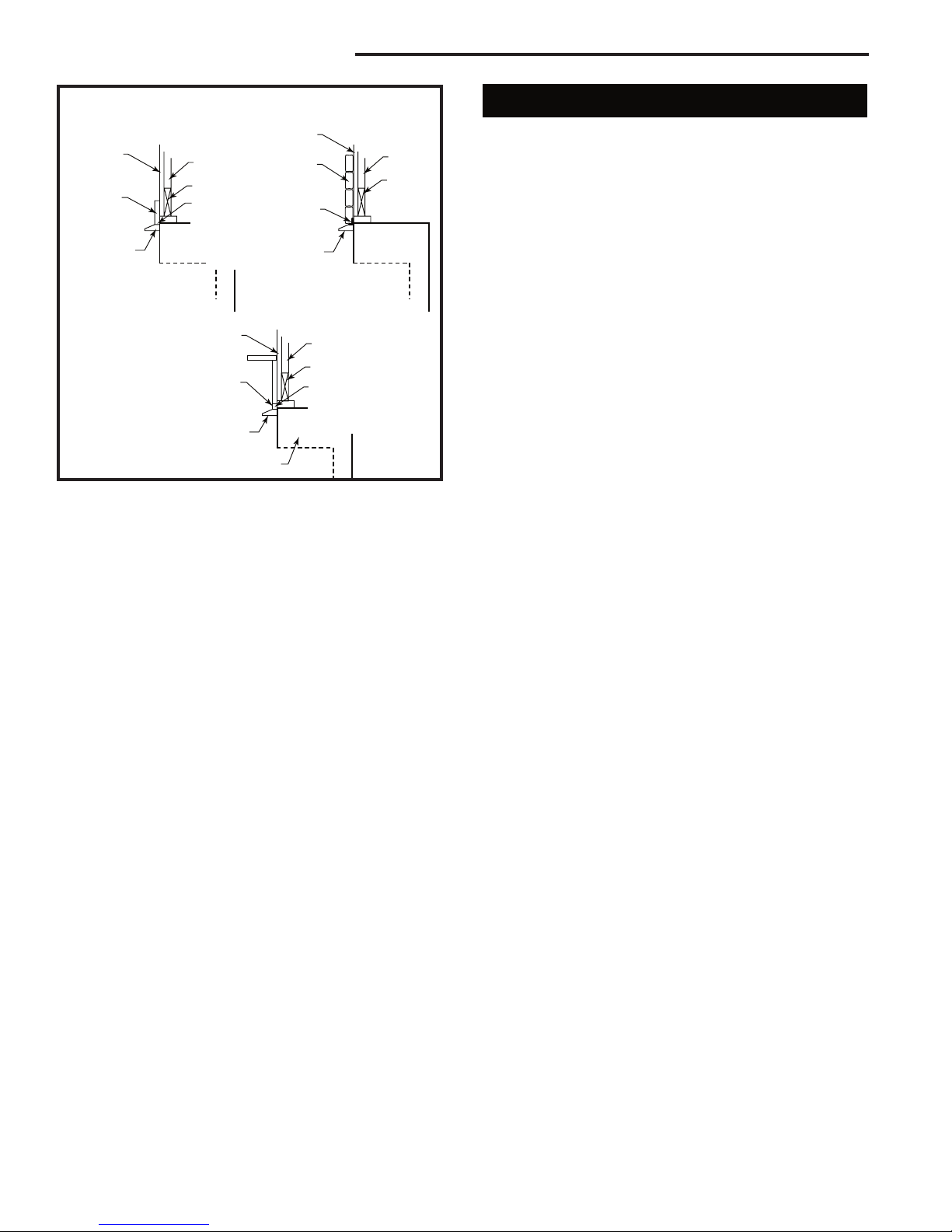

Managing Heat Output
The heat output from the appliance may be controlled
by adjusting the main gas valve. Reference lighting
instructions on Page 14 and chart on Page 10 which
shows inputs at all settings.
The main gas valve may be adjusted anywhere be-
tween high and low to give the desired combination of
flame aesthetics and heat output.
Fig. 24 Finishing options.
T146
finishing
11/5/03 djt
Wallboard with Marble,
Slate or Tile Facing Brick or Stone Facing
Wallboard with
Facing and Mantel
Finished
Wall Stud
Header
Noncombustible
Decorative
Covering
Stud
Header
Finished Wall
Brick or
Stone Facing
Steel
Lintel
Finished
Wall
Noncombustible
Decorative Cov-
ering
Stud
Header
Must be
enclosed with
noncombustible
material
Noncombustible Deco-
rative Covering T146
Canopy
Canopy
Canopy
Must be
enclosed with
noncombustible
material

17
UV36RN/RP Vent-Free Gas Fireplaces
20007436
Maintenance
Cleaning
CAUTION: Before cleaning or moving logs or other
parts of the unit, be sure to read the section on impor-
tant safeguards.
Cleaning should be done before the logs are used each
year and after long periods of non-use. Professional
servicing is recommended.
All cleaning should be carried out when the appliance is
cold.
Only limited cleaning will be required under normal use.
Dusting the front grate or the control knob panel may be
required occasionally. Do not use any cleaning fluids to
clean the logs or any other part of the appliance.
If the flames show any unusual shapes or behavior, or
if the burner(s) fail to ignite properly, then the burner
holes may require cleaning. If this occurs contact your
nearest dealer to get the appliance serviced.
Alternatively, the appliance can be cleaned by removing
the logs. Handle the logs gently so as not to damage
them. Always lift each log by holding it carefully at each
end.
After the logs are removed allowing access to the
burner area, use the brush attachment from your
vacuum cleaner to carefully remove dust and loose par-
ticles from the base, logs and from around the burner.
Gloves are recommended when handling the logs. Use
extreme caution when cleaning around the pilot (ODS).
The pilot should not be moved or altered from the
original factory setting (Pilot to burner preset location).
To clean the pilot, take an Air Duster can (computer
cleaner compressed air) and insert the nozzle into
the primary air inlet. Shoot a short blast of air into the
inlet to clear dust. (Fig. 25) The burner should not be
removed or taken out of it’s locked and secure position
(proper location of burners are critical).
Logs must be carefully replaced in their orignial, preset
positions (Fig. 26), to prevent the rear flames from
touching any log. No other arrangement is permitted.
Incorrect placement can diminish combustion efficiency
and cause sooting.
A qualified gas professional should periodically check
and clean the orifices and burners per National Fuel
Gas Code, Appendix B.
Lack of proper maintenance may void warranty.
T141
Temco
manual pilot
left view
10/31/03 djt
Primary
Air Inlet
Gas
Outlet
T141
Fig. 25 Use a short burst of air into the primary air inlet to
clean pilot.
TL106
VF34 logs
10/03
Rear Log Right Twig
Front Log
Left Twig
TL106
Fig. 26 Correct log placement.

18
UV36RN/RP Vent-Free Gas Fireplaces
20007436
Symptom Possible Cause Corrective Action
1. Pilot will not light Air in gas line Purge gas lines and repeat ignition operation
Low gas pressure Check gas pressure
Gas supply turned off Turn on gas supply
Blockage in gas line Check gas passage way
ODS pilot orifice is clogged Call a qualified service person
Control knob not in pilot position Turn control knob to pilot position
Control knob not pressed in while Press in control knob while in pilot position
in pilot position
Ignitor did not spark Ignitor electrode positioned wrong Correct electrode position
Ignitor electrode broken Replace assembly
Ignitor cable pinched or broken Free ignitor cable, if damaged replace it
Ignitor cable not connected to ignitor Connect cable to ignitor
2. Pilot will not stay lit Partially clogged ODS pilot orifice Contact qualified service person or your gas company
Corrosion of thermocouple contact Clean thermocouple contact
Bad gas valve Replace gas valve
Control knob not pressed in long After pilot lights, keep control knob pressed in for
enough 60 seconds
Thermocouple connection loose at Tighten connection finger tight + 1/4 turn or replace
gas control or damaged thermocouple or replace ODS pilot assembly
Pilot flame not touching thermocouple Contact a qualified service person
3. Main burner will not light Low gas supply pressure Contact your gas supplier
Burner orifice clogged Clean burner orifice
Control knob not in ON position Turn control knob to ON position
4. Heater shuts off on ODS Not enough fresh air is available Open window
Low gas pressure Contact your gas supplier
ODS pilot partially lit Contact a qualified service person
5. Sooting Low gas pressure Contact your gas company
Clogged air intake/orifice Contact service agent for cleaning
Flame impingement Insure no air currents are around appliance
Logs misplaced Refer to installation instructions for proper log
placement
Troubleshooting
With proper installation and maintenance, your new gas
fireplace should provide years of trouble-free service. If you
do experience a problem, refer to the trouble shooting guide
below. This guide will assist you or a qualified service person
in the diagnosis of problems and the corrective action to be
taken. Any safety screen or guard removed for servicing an
appliance must be replaced prior to operating the appliance.
Use only a qualified service person when making repairs.
Repair and replacement work should only be done by a quali-
fied service technician.
Always shut off the gas supply and make sure the appliance
is cool before beginning any service operation.
Always check for gas leaks after servicing.
Servicing Repair Parts
Always include the correct name, part number, model number,
control type and serial number of the appliance when ordering
service parts. Refer to the parts list below.
Use manufacturer’s authorized parts only. If you desire to
communicate with the factory, write to Customer Service at:
CFM Corporation
2695 Meadowvale Blvd.
Mississauga, Ontario
Canada L5N 8A3

19
UV36RN/RP Vent-Free Gas Fireplaces
20007436
12
34
5a,b
6a,b
8
7a,b
17
18
19
19a
19b
19c
19d
10
12
13
14
15
16
7436
UV36RN/RP parts
8/04
9a,b
20
21
CFM Corporation reserves the right to make changes in design, materials, specifications, prices and discontinue colors and products at any time,
without notice.
7436
UV36RN, UV36RP
Ref. Description UV36RN UV36RP
1. Grate Assembly 78442 78442
2. Side Deflector 78443 78443
3. Support Channel 78439 78439
4. Air Scoop 78445 78445
5a. Valve - Natural 78126 -
5b. Valve - LP/Propane - 78127
6a. Burner - Natural 78474 -
6b. Burner - LP/Propane - 78473
7a. Pilot - Natural (OP) 78167 -
7b. Pilot - LP/Propane (OP) - 78169
8. Manifold Tube Split Nut 78449 78449
9a. Orifice #38 - Natural 78450 -
9b. Orifice #52 - LP/Propane - 78625
10. Tube, Flexible Gas Inlet 71598 71598

20
UV36RN/RP Vent-Free Gas Fireplaces
20007436
UV36RN, UV36RP (continued)
Ref. Description UV36RN UV36RP
11. Tube, Pilot 3/16” 71221 71221
12. Ignitor, w/Nut (Piezo) 65180 65180
13. Wire Assembly Rocker Switch 78596 78596
14. Mini Rocker Switch PCOA049 PCOA049
15. Knob Extension On/Off (3”) 77958 77958
16. Knob Extension Hi/Lo (3”) 77959 77959
17. Embers, Platinum (Bag) 78037 78037
18. Lava Gravel Assy 68688 68688
19. Log Set Assembly 77282 77282
19a. Front Log 76895 76895
19b. Back Log 75317 75317
19c. Log, Right Twig 75318 75318
19d. Log, Left Twig 75319 75319
20. Screen Panel Assy 78924 78924
21. Canopy, ADF33 71653 71653
