Hearth and Home Technologies BE-36-C Assembly instructions

Hearth & Home Technologies • BE-36-C, BE-36-CIPI • 397-981 Rev. R • 2/05 1
- Do not store or use gasoline or other flam-
mablevaporsandliquidsinthevicinityofthis
oranyotherappliance.
-What to do if you smell gas
• Do not try to light any appliance.
• Do not touch any electrical switch.
• Donotuseanyphoneinyourbuilding.
• Immediately call your gas supplier from a
neighbor's phone. Follow the gas supplier's
instructions.
• If you cannot reach your gas supplier, call
thefiredepartment.
- Installationandservicemustbeperformedbya
qualified installer, service agency, or the gas
supplier.
Models:
BE-36-C
BE-36-CIPI
Installers Guide
WARNING: IMPROPER INSTALLA-
TION, ADJUSTMENT, ALTERATION,
SERVICE OR MAINTENANCE CAN
CAUSE INJURY OR PROPERTY DAM-
AGE. REFER TO THIS MANUAL. FOR
ASSISTANCE ORADDITIONAL INFOR-
MATION CONSULT A QUALIFIED IN-
STALLER, SERVICEAGENCY, OR THE
GAS SUPPLIER.
Underwriters
Laboratories Listed
READ THIS MANUAL BEFORE INSTALLING OR
OPERATING THIS APPLIANCE. THISINSTALLERS
GUIDE MUST BE LEFT WITH APPLIANCE FOR
FUTUREREFERENCE.
1.This appliance may be installed in an af-
termarket,permanentlylocated,manufac-
tured(mobile)home,wherenotprohibited
bylocalcodes.
2. Thisapplianceisonlyforusewiththetype
of gas indicated on the rating plate. This
appliance is not convertible for use with
othergases,unlessacertifiedkitisused.
PleasecontactyourHearth &HomeTechnologiesdealer
with any questions or concerns. For the number of your
nearestHearth& HomeTechnologiesdealer,pleasecall
1-800-669-4328.
Printed in U.S.A. Copyright 2005
Hearth& HomeTechnologies Inc.
20802Kensington Boulevard, Lakeville,MN 55044
WARNING: IF THE INFORMATION
IN THESE INSTRUCTIONS IS NOT
FOLLOWED EXACTLY,A FIRE OR
EXPLOSION MAY RESULT CAUS-
ING PROPERTY DAMAGE, PER-
SONAL INJURY, OR DEATH.
Thisproductmaybecoveredbyoneormoreofthefollowingpatents:(UnitedStates)4593510,4686807,4766876,4793322,4811534, 5000162, 5016609, 5076254, 5113843,5191877,5218953,5263471,
5328356,5341794,5347983,5429495,5452708,5542407,5601073,5613487,5647340,5688568,5762062,5775408,5890485,5931661,5941237,5947112,5996575,6006743,6019099,6048195,6053165,
6145502,6170481,6237588,6296474,6374822,6413079,6439226,6484712,6543698,6550687,6601579,6672860,6688302B2, 6715724B2, 6729551,6736133,6748940,6748942,D320652,D445174,
D462436;(Canada)1297749, 2195264,2225408; orother U.S.and foreignpatents pending.

Hearth & Home Technologies • BE-36-C, BE-36-CIPI • 397-981 Rev. R • 2/05
2
These units MUST use one of the vent systems
described in the Installing the Fireplace section of
the Installers Guide. NO OTHER vent systems or
components MAY BE USED.
This gas fireplace and vent assembly MUST be
vented directly to the outside and MUST NEVER be
attached to a chimney serving a separate solid fuel
burning appliance. Each gas appliance MUST USE
a separate vent system. Common vent systems are
PROHIBITED.
INSPECT the external vent cap on a regular basis to
make sure that no debris is interfering with the air
flow.
The glass door assembly MUST be in place and
sealed, and the trim door assembly MUST be in
place on the fireplace before the unit can be placed
into safe operation.
DO NOT OPERATE this appliance with the glass
door removed, cracked, or broken. Replacement of
the glass door should be performed by a licensed
or qualified service person. DO NOT strike or slam
the glass door.
The glass door assembly SHALL ONLY be
replaced as a complete unit, as supplied by the gas
fireplace manufacturer. NO SUBSTITUTE material
may be used.
DO NOT USE abrasive cleaners on the glass door
assembly. DO NOT ATTEMPT to clean the glass
door when it is hot.
Turn off the gas before servicing this appliance. It is
recommended that a qualified service technician
perform an appliance check-up at the beginning of
each heating season.
Any safety screen or guard removed for servicing
must be replaced before operating this appliance.
DO NOT place furniture or any other combustible
household objects within 36 inches of the fireplace
front.
READ and UNDERSTAND all instructions carefully
before starting the installation. FAILURE TO
FOLLOW these installation instructions may result
in a possible fire hazard and will void the warranty.
Prior to the first firing of the fireplace, READ the
Using Your Fireplace section of the Owners Guide.
DO NOT USE this appliance if any part has been
under water. Immediately CALL a qualified service
technician to inspect the unit and to replace any part
of the control system and any gas control which has
been under water.
THIS UNIT IS NOT FOR USE WITH SOLID FUEL.
Installation and repair should be PERFORMED by a
qualified service person. The appliance and venting
system should be INSPECTED before initial use
and at least annually by a professional service
person. More frequent cleaning may be required
due to excessive lint from carpeting, bedding
material, etc. It is IMPERATIVE that the unit’s
control compartment, burners, and circulating air
passageways BE KEPT CLEAN to provide for
adequate combustion and ventilation air.
Always KEEP the appliance clear and free from
combustible materials, gasoline, and other
flammable vapors and liquids.
NEVER OBSTRUCT the flow of combustion and
ventilation air. Keep the front of the appliance
CLEAR of all obstacles and materials for servicing
and proper operations.
Due to the high temperature, the appliance should
be LOCATED out of traffic areas and away from
furniture and draperies. Clothing or flammable
material SHOULD NOT BE PLACED on or near the
appliance.
Children and adults should be ALERTED to the
hazards of high surface temperature and should
STAY AWAY to avoid burns or clothing ignition.
Young children should be CAREFULLYSUPERVISED
when they are in the same room as the appliance.
!
!
!
!
!
!
!
!!
!
!
!
!
!
!
!
!
SAFETY AND WARNING INFORMATION
!
!

Hearth & Home Technologies • BE-36-C, BE-36-CIPI • 397-981 Rev. R • 2/05 3
TABLE OF CONTENTS
Safety and Warning Information ................................................ 2
Service Parts Lists ..................................................................... 4
Section 1: Approvals and Codes............................................... 8
ApplianceCertification................................................................... 8
Installation Codes.......................................................................... 8
HighAltitudeInstallations............................................................... 8
Section 2: Getting Started ......................................................... 9
Introducing the Hearth & Home Technologies Gas Fireplaces ..... 9
Pre-installationPreparation ........................................................... 9
Section 3: Installing the Fireplace...........................................11
Constructing the Fireplace Chase ...............................................11
Step 1 Locating the Fireplace ..................................................11

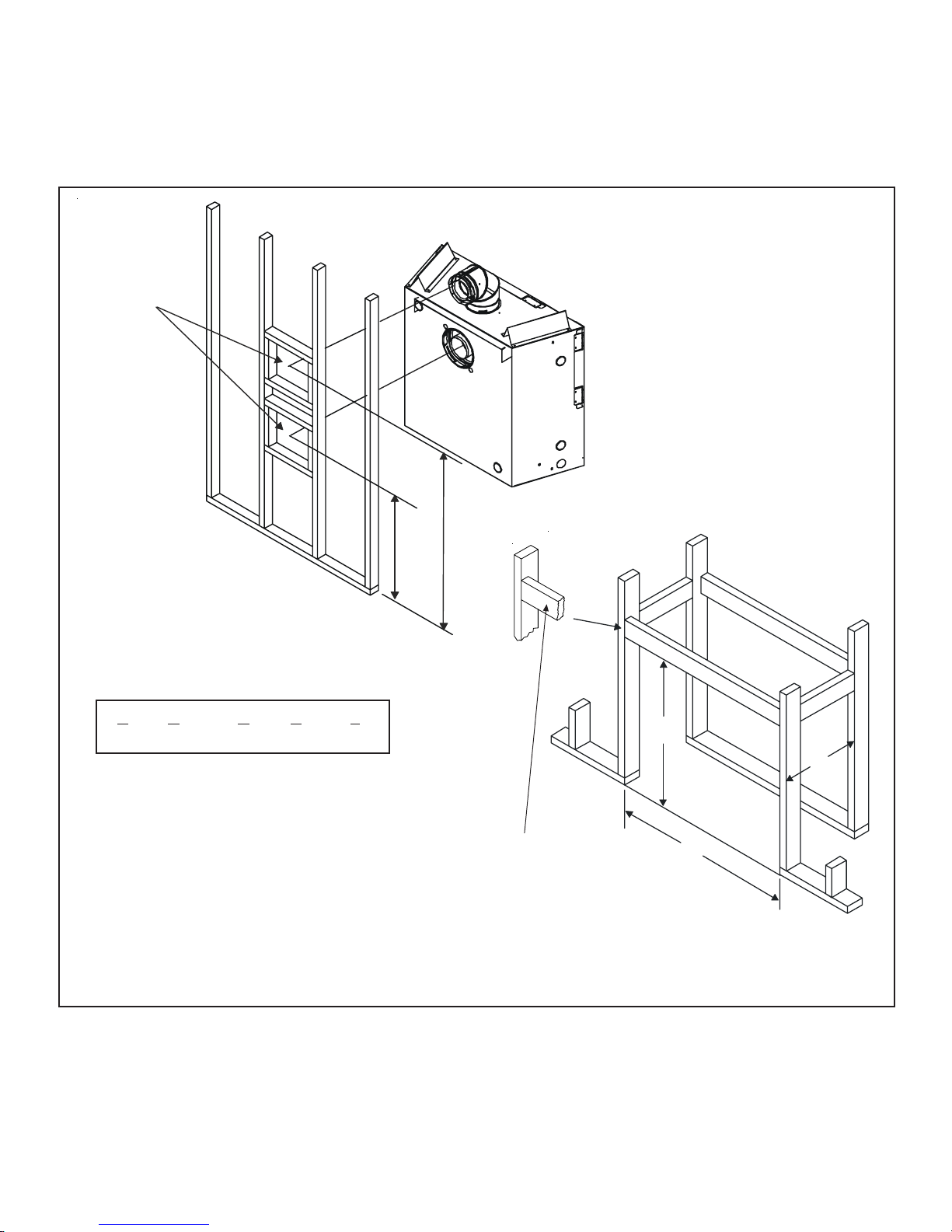

Step 2 Framing the Fireplace.................................................. 12

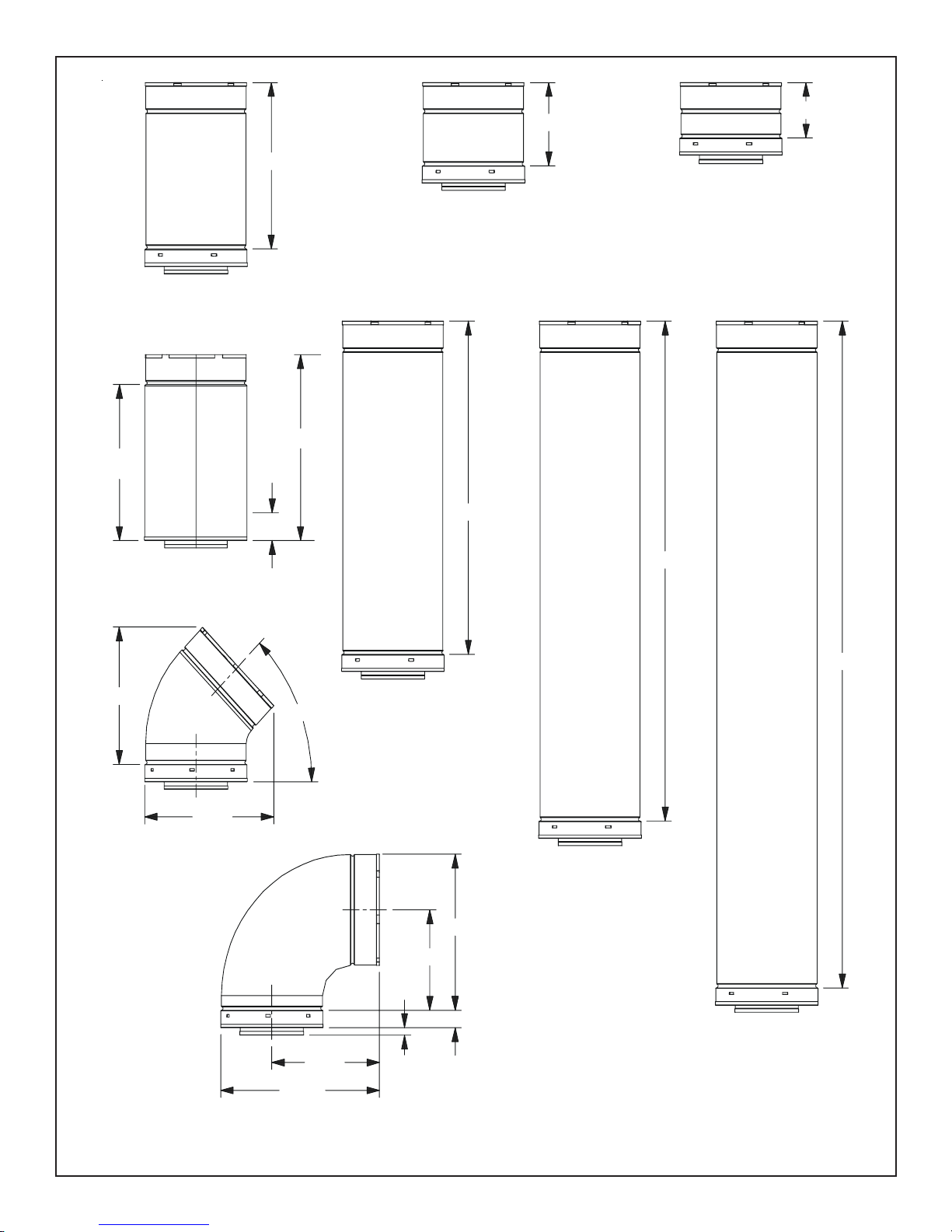

Step 3 Installing the Vent System............................................ 15
A. Vent SystemApprovals........................................... 15
B. Installing Vent Components.................................... 23
C. Vent Termination .................................................... 26
Step 4 Positioning, Leveling,and
Securing the Fireplace................................................. 29
Step 5 The Gas Control System............................................. 29
Step 6 The Gas Supply Line ................................................... 30
Step 7 Gas Pressure Requirements ...................................... 30
Step 8 Wiring the Fireplace .................................................... 31
Step 9 Finishing ...................................................................... 34
Step 10 Installing Trim, Logs, and Ember Material.................... 34
Installing theTrim......................................................... 34
Positioning the Logs .................................................... 34
Shutter Settings........................................................... 34
Placing the Ember Material.......................................... 35
Glass Specifications .................................................... 35
Step 11 Before Lighting the Fireplace ....................................... 36
Step 12 Lighting the Fireplace .................................................. 36
Afterthe Installation..................................................................... 36
Section 4: Maintaining and Servicing Your Fireplace......... 37
Î= Containsupdated information.
Î
Î

Hearth & Home Technologies • BE-36-C, BE-36-CIPI • 397-981 Rev. R • 2/05
4
*Partnumberlist on following page.
*La liste des numéros de pièce se
trouveà lapage suivante.
10
11 12
9Log Set Assembly
(NG, LP) Exploded Parts Diagram
(GN, PL) Vue éclatée des pièces
Service Parts BE-36-C, BE-36-CIPI
Beginning Manufacturing Date: 4-01
Ending Manufacturing Date: ______
1
7
3
8
54
6
2
13
14

Hearth & Home Technologies • BE-36-C, BE-36-CIPI • 397-981 Rev. R • 2/05 5
(NG, LP) Service Parts List / Liste des pièces de rechange
IMPORTANT: THISIS DATEDINFORMATION.Themostcurrent informationis locatedon yourdealersVIPsite. Whenordering,
supplyserialandmodelnumberstoensurecorrect serviceparts./ IMPORTANT: L'information fourniedans cettebrochure n'est
valide que pendant une courte période. Les sites VIP des distributeurs disposent des renseignements les plus récents. Lors
d'unecommande, veuillez fournir les numéros desérieet de modèles pour un remplacementadéquatdes pièces.
ITEM /
PIÈCE Common Parts / Pièces communes SERIAL # /N°DE SÉRIE PART NUMBER / N° DE PIÈCE
Burner Orifice NG (#45C) / Orifice de brûleur GN (#45C) 582-845
Burner Orifice LP (#55C) / Orifice de brûleur PL (#55C) 582-855
2 Mesh Assembly / Écran 550-382A
3Burner Assembly / Module de Brûleur 397-176A
4 Glass Door Assembly / Assemblée de Porte vitrée GLA-550TR
5 Louver, Top / Louvre, supérieure 397-249
6 Louver, Bottom / Louvre, inférieure 397-248
7 Grate Assembly / Module de Grille 397-361A
8 Hood / Hotte SRV550-175
9 Log Assembly / Module de Bûches LOGS-BE36-C
10 Log 1 / Bûche 1 SRV397-701
11 Log 2 / Bûche 2 SRV397-702
12 Log 3 / Bûche 3 SRV397-703
13 Grate Support / Appui de Grille 397-120
Standing Pilot / Veilleuse
Conversion Kit LP / Module de conversion PL LPK-BE36-C
14 Junction Box / Boîtier de dérivation 100-250A
IPI System / IPI Systeme
1 Junction Box / Boîtier de dérivation PRE 4-04
POST 4-04 383-250A 4021-013
Conversion Kit LP / Module de conversion PL LPK-BE36-CIPI
Conversion Kit NG / Module de conversion GN NGK-BE36-CIPI
Accessories / Accessoires
Gas Inlet Kit (Optional) / Kit d'Admission du Gaz (Facultatif) 531-320A
Polished Brass Kit / Module de Laiton PB-BE36
BE-36-C, BE-36-CIPI

Hearth & Home Technologies • BE-36-C, BE-36-CIPI • 397-981 Rev. R • 2/05
6
(NG, LP) Exploded Parts Diagram
(GN, PL) Vue éclatée des pièces
Service Parts
Beginning Manufacturing Date: 4-01
Ending Manufacturing Date: ______
BE-36-CIPI
Intermittent Pilot Ignition
ValveAssembly
ITEM /
PIÈCE DESCRIPTION SERIAL # /N° DE SÉRIE PART NUMBER / N° DE PIÈCE
1 Wire Assembly / Module de fil PRE 7-04
POST 7-04 35031 2012-206
2 Thermostat Wire Assembly / L'Assemblée de Fil de thermostat PRE 4-04
POST 4-04 040-557A 2045-024
3 Burner Neck Gasket / Joint de Cou de Brûleur 438-407
4 Pilot AssemblyNG / Module de veilleuse GN 385-510A
4 Pilot Assembly LP / Module de veilleuse PL 385-511A
5 Valve Bracket / Parenthèse de Valve 2025-101
6 Ground Strap / Courroie de Raison(Terre) 385-512
7 Pilot AssemblySupport / Appui d'Assemblée Pilote 397-121
8 Valve NG / Valve GN 593-500
8 Valve LP / Valve PL 593-501
9 Flexible Gas Connector / Tuyau à gaz flexible 530-302A
10 Module / Module 593-592
11 Wire Assembly / Module de fil 593-590A
12 Battery Pack / Paquet de Batterie(Pile) 593-594A
13 3 Volt Transformer / 3 Transformateur de Volt 593-593A
14 Valve Plate Gasket / Joint de Plat de Valve 530-431
15 Pilot Bracket / Parenthèse Pilote 530-164
15
6
14
10
2
1
5
3
8
4
12
9
11
13
7

Hearth & Home Technologies • BE-36-C, BE-36-CIPI • 397-981 Rev. R • 2/05 7
BE-36-C
(NG, LP) Exploded Parts Diagram
(GN, PL) Vue éclatée des pièces
Service Parts
Beginning Manufacturing Date: 4-01
Ending Manufacturing Date: _____
Standing Pilot Ignition
ValveAssembly
ITEM /
PIÈCE DESCRIPTION SERIAL # /N° DE SÉRIE PART NUMBER / N° DE PIÈCE
1 Piezo Ignitor / Allumeur piézo 291-513
2 Burner Neck Gasket / Joint de Cou de Brûleur 438-407
3 Thermostat Wire Assembly / L'Assemblée de Fil de thermostat PRE 4-04
POST 4-04 040-557A 2045-024
4 Pilot Assembly NG /Module de veilleuse GN 485-510A
4 Pilot Assembly LP / Module de veilleuse PL 485-511A
5 Valve Bracket / Parenthèse de Valve 2025-101
6 Valve Plate Gasket / Joint de Plat de Valve 530-431
7 Pilot Bracket / Parenthèse Pilote 530-164
8 Valve NG / Valve GN 060-520
8 Valve LP / Valve PL 060-521
9 Flexible Gas Connector / Tuyau à gaz flexible 530-302A
9
4
2
6
5
7
3
1
8

Hearth & Home Technologies • BE-36-C, BE-36-CIPI • 397-981 Rev. R • 2/05
8
Appliance Certification
The fireplace model discussed in this Installers Guide has
been tested to certification standards and listed by the
applicablelaboratories.
Certification
MODELS: BE-36-C,BE-36-CIPI
LABORATORY: Underwriters Laboratories
TYPE: Direct Vent Gas Fireplace Heater
STANDARD: ANSI Z21.88•CSA2.33•UL307B
NOTE: THIS MODEL IS UL LISTED TO UL307B, THE
STANDARDFORGAS-BURNINGHEATINGAPPLIANCES
FOR MANUFACTURED HOMES AND RECREATIONAL
VEHICLES.
Installation Codes
Thefireplaceinstallationmustconformtolocalcodes. Before
installing the fireplace, consult the local building code
agency to ensure that you are in compliance with all
applicable codes, including permits and inspections.
Inthe absenceof localcodes, thefireplaceinstallation must
conform to the National Fuel Gas Code ANSI Z223.1 (in
theUnitedStates)ortheCAN/CGA-B149InstallationCodes
(in Canada). The appliance must be electrically grounded
in accordance with local codes or, in the absence of local
codes with the National Electric CodeANSI/NFPA No. 70
(intheUnitedStates),ortothe CSAC22.1CanadianElectric
Code(in Canada).
This model may be installed in a bedroom or bed-sitting
room in the U.S.A. and Canada.
1Approvals and
Codes
HighAltitude Installations
U.L. Listed gas appliances are tested and approved with-
outrequiring changes for elevations from 0 to 2,000 feet in
the U. S.A. and in Canada.
Wheninstalling this appliance at an elevation above 2,000
feet, it may be necessary to decrease the input rating by
changingthe existing burner orifice to a smaller size. Input
rate should be reduced by 4% for each 1000 feet above a
2000 foot elevation in the U.S.A. or 10% for elevations
between2000and4500feetin Canada.If theheating value
of the gas has been reduced, these rules do not apply. To
identify the proper orifice size, check with the local gas
utility.
Ifinstalling this appliance at an elevation above 4,500 feet
(in Canada), check with local authorities.

Hearth & Home Technologies • BE-36-C, BE-36-CIPI • 397-981 Rev. R • 2/05 9
2Getting Started
Introducing the Hearth & Home
Technologies Gas Fireplaces
Hearth& HomeTechnologies directventgas fireplaces are
designedto operate with all combustion air siphoned from
outside of the building and all exhaust gases expelled to
the outside.
The information contained in this Installers Guide, unless
noted otherwise, applies to all models and gas control
systems.Gasfireplace diagrams,including thedimensions,
are shown in this section.
Pre-install Preparation
Thisgas fireplace and its components are tested and safe
when installed in accordance with this Installers Guide.
Report to your dealer any parts damaged in shipment,
particularly the condition of the glass. Do not install any
unit with damaged, incomplete, or substitute parts.
The vent system components and optional trim doors are
shippedin separatepackages.The gas logsare packaged
separately and must be field installed.
Read all of the instructions before starting the
installation. Follow these instructions carefully during
the installation to ensure maximum safety and benefit.
Failure to follow these instructions will void the
owner’s warranty and may present a fire hazard.
The Hearth & Home Technologies Warranty will be voided
by, and Hearth & Home Technologies disclaims any
responsibilityfor, the following actions:
• Installation of any damaged fireplace or vent system
component.
• Modification of the fireplace or direct vent system.
• Installation other than as instructed by Hearth & Home
Technologies.
• Improper positioning of the gas logs or the glass door.
• Installationand/or use ofany component part notmanu-
facturedand approved byHearth& HomeTechnologies,
not withstanding any independent testing laboratory or
other party approval of such component part or acces-
sory.
ANY SUCH ACTION MAY POSSIBLY CAUSE A FIRE
HAZARD.
When planning a fireplace installation, it’s necessary to
determine:
•Where the unit is to be installed.
•Thevent system configuration to be used.
•Gas supply piping.
•Electricalwiring.
•Framingandfinishingdetails.
•Whether optional accessories—devices such as a fan,
wallswitch, or remote control—are desired.
If the fireplace is to be installed on carpeting or tile, or on
any combustible material other than wood flooring, the
fireplaceshould be installed on a metal or wood panel that
extends the full width and depth of the fireplace.

Hearth & Home Technologies • BE-36-C, BE-36-CIPI • 397-981 Rev. R • 2/05
10

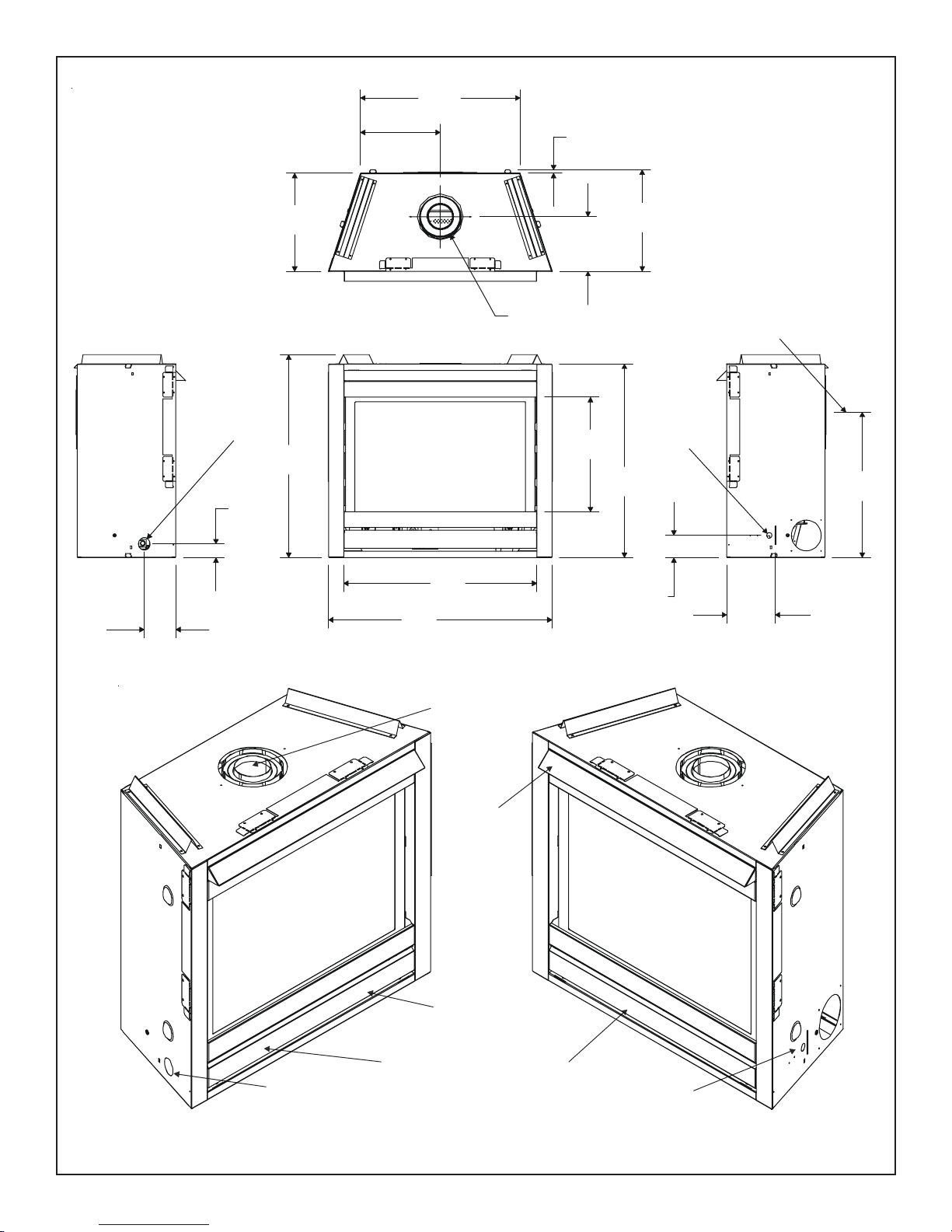

Figure 1. Diagram of model BE-36-C
HOOD
VENT COLLARS
RATING PLATES
& LABELS
BOTTOM GRILLE
COVER ELECTRICAL
ACCESS
GAS
CONTROLS
GAS LINE
ACCESS
5-1/16
129[]
2-1/4
56[]
32-1/2
830[]
36
913[]
31
790[]
31
792[]
18-1/2
468[]
3-1/2
91[] 8
198[]
23-3/8
595[]
15-3/4
402[]
1/2
14[]
16-1/4
415[]
8-3/4
223[]
12-7/8
327[]
25-3/4
653[]
ø6-5/8
168[]
ELECTRICAL
ACCESS
ø8 [203]
GAS LINE
ACCESS

Hearth & Home Technologies • BE-36-C, BE-36-CIPI • 397-981 Rev. R • 2/05 11
3Installing the Fireplace
Step 1. Locating the Fireplace
Thefollowingdiagramshows spaceand clearancerequire-
ments for locating a fireplace within a room.
Minimum Clearances
from the Fireplace to Combustible Materials
Inches mm
Glass Front........................ 36 .................... 914
Floor ................................... 0 ....................... 0
Rear ...................................1/2 ..................... 13
Sides .................................1/2 ..................... 13
Top ................................... 1 1/2 ................... 38
Ceiling* .............................. 31 .................... 787
For minimum clearances, see the direct vent termination
clearance diagrams on pages 26 and 27 in this manual.
Minimum Clearances
from the Vent Pipe to Combustible Materials
Inches mm
Vertical Sections. ............. 1 ................ 25
Horizontal Sections
Top..................................... 3 ................ 75
Bottom ............................... 1 ................ 25
Sides ................................. 1 ................ 25
At Wall Firestops
Top.................................. 2 1/2 ............63.7
Bottom ..............................1/2............... 13
Sides ................................. 1 ................ 25
* Theclearancetotheceilingismeasuredfrom thetop
of the unit, excluding the standoffs (see Figure 34).
A B C* D* E*
37” 16 1/4” 29 3/8” 41 1/2” 58 3/4”
Thedistance from the unit to combustible construction
is to be measured from the unit outer wrap surface to
thecombustibleconstruction,NOTfromthescrewheads
that secure the unit together.
D
E
C
B
A
Clearance Requirements
Thetop and back ofthefireplace are defined bystand-offs.
The minimum clearanceto a perpendicular wall extending
past the face of the fireplace is 3 inches (76mm). The back
of the fireplace may be recessed 16 1/4 inches (413mm)
into combustible construction.
Figure 2. Fireplace Dimensions, Locations,
and Space Requirements
Constructing the Fireplace Chase
A chase is a vertical box-like structure built to enclose the
gasfireplace and/or its vent system. Vertical ventsthatrun
on the outside of a building may be, but are not required to
be, installed inside a chase.
CAUTION: TREATMENT OF FIRESTOP SPACERS AND
CONSTRUCTIONOFTHE CHASEMAYVARYWITHTHE
TYPE OF BUILDING. THESE INSTRUCTIONSARE NOT
SUBSTITUTES FOR THE REQUIREMENTS OF LOCAL
BUILDINGCODES. THEREFORE,YOURLOCAL BUILD-
ING CODES MUST BE CHECKED TO DETERMINE THE
REQUIREMENTSFOR THESE STEPS.
Factory-builtfireplace chases shouldbeconstructed in the
manner of all outside walls of the home to prevent cold air
draftingproblems. The chase should not break the outside
buildingenvelopeinany manner.
Thismeans thatthe walls,ceiling,base plateand cantilever
floorof thechaseshould beinsulated.Vapor andairinfiltra-
tionbarriers shouldbe installed inthe chaseasper regional
codesfor therest ofthe home.Additionally, Heat-N-Glorec-
ommendsthattheinsidesurfacesbesheetrockedandtaped
for maximum air tightness.
Tofurtherprevent drafts,the firestopsshould be caulkedto
seal gaps. Gas line holes and other openings should be
caulked or stuffed with insulation. If the unit is being in-
stalled on a cement slab, we recommend that a layer of
plywood be placed underneath to prevent conducting cold
up into the room. Be sure to include spark arrestors for
woodburningunits if theyare required.
THECHASESHOULDBECONSTRUCTEDSOTHATALL
CLEARANCES TO THE FIREPLACEARE MAINTAINED
AS SPECIFIED WITHIN THIS INSTALLERS GUIDE.
Note: *If venting with (2) 900elbows off rear of unit
the dimensions C, D and E will change.

Hearth & Home Technologies • BE-36-C, BE-36-CIPI • 397-981 Rev. R • 2/05
12
Figure 3. Framing Dimensions for SL D-Series and DVP-Series Pipe
A B C D* E*
37” 33” 16 1/4” 36 1/2” 24 3/8
Framing should be constructed of
2 X 4 lumber or heavier. The
framing headers may rest on the
fireplace stand-offs.
WARNING:
To ensure proper clearances
the front framing header must be
installed on its narrow edge and
to the front of the frame.
A
B
C
Step 2. Framing the Fireplace for DVP-Series
and SL D-Series Pipe
Fireplaceframing canbebuilt beforeorafter thefireplaceis
set in place. Framing should be positioned to accommo-
date wall coverings and fireplace facing material. The dia-
grambelow showsframing reference dimensions.
CAUTION: MEASURE FIREPLACE DIMENSIONS AND
VERIFY FRAMING METHODS AND WALL COVERING
DETAILS BEFOREFRAMING.
*The center of the framing hole is one inch (25.4mm)
above the center of the horizontal vent pipe.
VENT
FRAMING
HOLE
ED

Hearth & Home Technologies • BE-36-C, BE-36-CIPI • 397-981 Rev. R • 2/05 13
NOTE: PIPES OVERLAP 1-3/8 INCHES (34.93mm)AT EACH JOINT.
Figure 4. SL D-Series Direct Vent Component Specifications (4-inch inner pipe / 6 5/8-inch outer pipe)
120”
(3048mm)
24”
(610mm)
36”
(914mm)
60”
(1524mm)
9 1/4
6 5/8
6 1/2 6 3/8
6 1/2 9 5/8
9 5/8
6 5/8
6 3/8
8 3/4
SL-09D
12-17
SL-12/17D (SL12-17D) SL-24D SL-36D SL-48D
47 3/4
35 3/4
23 3/4
SL-45D
SL-90D
SL-17/24D
(SL17-24D)
17-24
SL-06D
SL-12D
5 3/4
6 5/8
6 1/2
11 3/4
SL-FLEX-2
SL-FLEX-10
SL-FLEX-5
SL-FLEX-3
Î

Hearth & Home Technologies • BE-36-C, BE-36-CIPI • 397-981 Rev. R • 2/05
14
NOTE: PIPES OVERLAP 1-3/8 INCHES
(34.93mm)AT EACH JOINT.
Figure 5. DVP-Series Direct Vent Component Specifications (5-inch inner pipe / 8 inch outer pipe)
DVP90ST
12-9/16
11-1/4
7-1/4
1-1/4 TYP
1/2 TYP
8-9/16
DVP36
DVP48
48
24
36
4
6
DVP4
DVP6
12
DVP12
2
MIN.
DVP12A
12-3/16
MAX.
DVP24
9-7/8
45.0
O
10-1/4
DVP45
14-1/4

Hearth & Home Technologies • BE-36-C, BE-36-CIPI • 397-981 Rev. R • 2/05 15
Step 3. Installing the Vent System
A. Vent System Approvals
Thismodel has ventstarting collars on boththe top andthe
back of the unit. Depending upon the installation, decide
whichONE set of starting collars will be used to attach the
vent system. The starting collar sealing cap must remain
on the starting collar NOT used.
Thismodeluses SL-D-series,directvent componentswhen
using the TOP vent collars. This pipe is tested and listed
as an approved component of the fireplace. The pipe is
tested to be run inside an enclosed wall. There is no
requirementfor inspection openingsat each jointwithin the
wall.Thereisnorequiredpitch forhorizontalvent runswhen
usingDVP-Series and SL D-Series pipe.
This model also uses DVP-series direct vent components
whenusing the REAR vent collars.
The flame and ember appearance may vary based on the
typeof fuel burned and the venting configuration used.
WARNING: YOU MUST NOT MIX DVP-SERIES
ANDSLD-SERIESCOMPONENTSINANYVENT
SYSTEMCONFIGURATION.
Identifying Vent Components
Approvedvent system components are labeled for identifi-
cation. NO OTHER VENTING SYSTEMS OR COMPO-
NENTS MAY BE USED. Detailed installation instructions
are included with each vent termination kit and should be
used in conjunction with this Installers Guide. Figure 5
shows vent system components and terminations.
The vent systems installed on this gas fireplace may in-
clude one, two, or three 90°elbow assemblies. The rela-
tionshipsof vertical rise to horizontal run in vent configura-
tions using 90° elbows MUST BE strictly adhered to. The
risetorunrelationshipsareshown in the venting drawings
andtables.Refertothediagrams onthenext severalpages.
NOTE: Two 45° elbows may be used in place of one
90° elbow. Maximum and minimum rise to run ratios
must always be maintained in the vent system when
using 45° elbows.
!
Figure 6. Vent System Components and Termination Kits
Vent System Termination Kits Vent System Components
* For use with flex vent only.
** For use on IPI units only.
HORIZONTAL
TERMINATION
WALL
FIRESTOP
90 DEGREE
ELBOW
VERTICAL
TERMINATION
STORM COLLAR
ROOF FLASHING
HORIZONTAL PIPE
SUPPORT
PIPE LENGTH
WALL BRACKET
CEILING
FIRESTOP
SLK-991DA
SLK-01TRD
SLK-01TRF
DVP-TVHW
SL D-SERIES
DVP-SERIES
SL-FLEX2-01TRF
(SL-Series)
(SL-Series)
DVP-TRAP
DVP-TB1
DVP-TV
PVK-80
SLK-SNKD *
**
(Required
to have a
minimum of 3
feet of vertical
in the vent
system)
(There MUSTbea25%
reduction in total H
when using the snorkel
cap except when using
the simple up and out
installation (see Fig. 7)
(For use with both DVP
and SL-D venting)
Î

Hearth & Home Technologies • BE-36-C, BE-36-CIPI • 397-981 Rev. R • 2/05
16
STRAIGHTUP
VERTICALVENTING
V(FT.)
45'MAX.
Figure 8. Straight up Vertical Venting
Use SL D-Series
components only.
NOTE: Forvertical
ventingover20feet an
ExtendedVerticalBaffle
Kitis recommended for
improvedflame
appearance.
V
CAP
Figure 7.
Flex Vent
The flex vent must be supported with the spacing between
supportintervals not exceeding4 feet, withnomore than ½
inchsag between supports.
A support is required at each change in venting direction,
and in any location where it is necessary to maintain the
necessaryclearancetocombustibles.Asimple“upandout”
installation(Figure7) requiresonly enoughsupport tomain-
tainthenecessaryclearance tocombustibles. However,the
vent attachment point and the firestop location are consid-
eredto be supports.
3” CLEARANCE TERMINATION
CAP
FLEX-VENT
1”
CLEARANCE
STRAIGHTOUTHORIZONTALVENTING
H
Max. Run
36" (914 mm)
Use DVP-Series
components only.
Figure 9. Straight Out Horizontal Venting
For corner
installation.
45-DEGREE
ELBOW
H
Two 900elbows or one 450
elbow may be used for corner
installations. The use of two 900
elbows in a corner installation
will affect space requirements
(see Fig. 2)
90-DEGREE
ELBOWS

Hearth & Home Technologies • BE-36-C, BE-36-CIPI • 397-981 Rev. R • 2/05 17
Figure 11. Venting with One 90° Elbow
V (MIN.) H (MAX.)
90oElbow on Top 2.5' (863mm)
1' (305mm) 3'(914mm)
2' (610mm) 4' (1.22m)
3' (914mm) 6' (1.86m)
4' (1.22m) 8' (2.48m)
5' (1.52m) 16' (4.8m)
H MAX. = 16' (4.8m)
V + H MAX. = 40' (12.2m)
Use SL D-Series
components only.
BE-36-C BE-36-C LP
H (MAX.)
2.5' (863mm)
2.5' (863mm)
4' (1.22m)
6' (1.86m)
8' (2.48m)
16' (4.8m)
NOTE: There MUST be a 25% reduc-
tion in total H when using flex vent
exceptwhen usingthe simpleup and
out installation (see Figure 7).
V H
1' MIN. (305mm) 2' MAX. (610mm)
2' MIN. (610mm) 4' MAX. (1.22m)
3' MIN. (914mm) 6' MAX. (1.86m)
4' MIN. (1.22m) 8' MAX. (2.4m)
V+H=40' MAX. (12.4m)
H = 8' MAX. (2.4m)
Figure 10. Venting with One 90° Elbow
Use DVP-Series
components only.
V
H
H
V

Hearth & Home Technologies • BE-36-C, BE-36-CIPI • 397-981 Rev. R • 2/05
18
V H H + H1
1' MIN. (305 mm) 2' MAX. (610 mm) 4' MAX.(1.22m)
2' MIN. (610 mm) 4'MAX.(1.22m) 8'MAX. (2.4m)
3' MIN. (914 mm) 6'MAX.(1.86m) 12'MAX.(3.6m)
4' MIN. (1.22 m) 8'MAX. (2.48 m) 16' MAX. (4.8m)
V+H+H 1 = 40' MAX. (12.4 m) H = 8' MAX. (2.48 m) H+H
1
= 16' MAX. (4.8m)
Figure 12. Venting with Two 90° Elbows
V (FT) H + H1(FT)
1' MIN. (305 mm) 2' MAX. (610 mm)
2' MIN. (610 mm) 4' MAX. (1.22 m)
3' MIN. (914 mm) 6' MAX. (1.86 m)
4' MIN. (1.22 m) 8' MAX. (2.48 m)
H + H1= 8' MAX. (2.48 m)
V + H + H1= 40' (12.2m) MAX.
Use DVP-Series
components only.
V
H
H
1
H
1
V
H

Hearth & Home Technologies • BE-36-C, BE-36-CIPI • 397-981 Rev. R • 2/05 19
Figure 13.
Venting with Two 90° Elbows
BE-36-C
V (MIN.) H + H1(MAX.)
90oElbow on Top 2.5' (863mm)
1' (305mm) 3' (914mm)
2' (610mm) 4' (1.22m)
3' (914mm) 6' (1.86m)
4' (1.22m) 8' (2.48m)
5' (1.52m) 16' (4.8m)
H + H1MAX. = 16' (4.8m)
V + H + H1MAX. = 40' (12.2m)
BE-36-C
V (MIN.) H (MAX.)
90oElbow on Top 2.5' (863mm)
1' (305mm) 3' (914mm)
2' (610mm) 4' (1.22m)
3' (914mm) 6' (1.86m)
4' (1.22m) 8' (2.48m)
5' (1.52m) 16' (4.8m)
H MAX. = 16' (4.8m)
V + V1+ HMAX. = 40' (12.2m)
Use SL D-Series
components only.
BE-36-C LP
H+H1(MAX.)
2.5' (863mm)
2.5' (863mm)
4' (1.22m)
6' (1.86m)
8' (2.48m)
16' (4.8m)
BE-36-C LP
H (MAX.)
2.5' (863mm)
2.5' (863mm)
4' (1.22m)
6' (1.86m)
8' (2.48m)
16' (4.8m)
H
V
V
1
NOTE: There MUST be a 25% reduc-
tion in total H when using flex vent
except when using the simple up
and out installation (see Figure 7).
V
H
H
1

Hearth & Home Technologies • BE-36-C, BE-36-CIPI • 397-981 Rev. R • 2/05
20
Figure 14. Venting with Three 90° elbows
1'MIN.(305mm) 2' MAX. (610mm) 4' MAX. (1.22m)
2'MIN.(610mm) 4' MAX. (1.22m) 8' MAX. (2.48m)
3'MIN.(914mm) 6' MAX. (1.86m) 12' MAX. (3.72m)
4'MIN.(1.22m) 8' MAX. (2.48m) 16' MAX. (4.8m)
V1+V+H+H1= 40' MAX. (12.4m)
H = 8' MAX. (2.48m) H+H1=16' MAX. (4.8m)
V H H + H1
1'MIN. (305 mm) 2' MAX. (610 mm) 4' MAX. (1.22m)
2'MIN. (610 mm) 4' MAX. (1.22 m) 8' MAX. (2.48m)
3'MIN. (914 mm) 6' MAX. (1.86 m) 12' MAX. (3.72m)
4' MIN. (1.22 m) 8' MAX. (2.48 m) 16' MAX. (4.8m)
V+H+H1+H2= 40' MAX. (12.4 m)
H = 8' MAX. (2.48m) H + H1 + H2= 16' MAX. (4.8m)
V H H + H1 + H2
Use DVP-Series
components only.
H
H
1
H
2
V
H
V
H
1
V
1
