Majestic fireplaces NVC36 Operating instructions

Decorative Gas Appliance
INSTALLER: DO NOT DISCARD THIS MANUAL LEAVE FOR HOMEOWNER.
Installation and Homeowners
Operating Instructions
PLEASE READ THIS MANUAL
BEFORE INSTALLING AND
USING APPLIANCE
IMPORTANT: Read all instruc-
tions and warnings carefully
before starting installation. Fail-
ure to follow these instructions
may result in a possible fire
hazard and will void the warranty.
WARNING: If the information in
this manual is not followed
exactly, a fire or explosion may
result causing property damage,
personal injury or loss of life.
FOR YOUR SAFETY
Installation and service must be
performed by a qualified installer,
service agency, or the gas sup-
plier. Do not store or use gaso-
line or other flammable vapors
and liquids in the vicinity of this
or any other appliance.
FOR YOUR SAFETY
If you smell gas:
•Do not touch electrical switches.
•Do not try to light any appliance.
•Extinguish any open flame.
•Do not use the phone in your
building.
•Immediately call your gas sup-
plier from a neighbor's phone.
•Follow your gas supplier's in-
structions.
•If you cannot reach your gas
supplier, call the fire department.
INSTALLER/CONSUMER
SAFETY INFORMATION
Models: NVC36
NVC39
NVC43
CERTIFIED
D
E
S
I
G
N
C
E
R
T
I
F
I
E
D
20000194 12/02 Rev. 3
“
410 Admiral Blvd. • Mississauga, Ontario, Canada L5T 2N6 • 905-670-7777
www.majesticproducts.com • www.vermontcastings.com
Vermont Castings, Majestic Products

2
Majestic Fireplaces® NVC Series B-Vent
20000194
Table of Contents
Thank you and Congratulations on your purchase of a
Vermont Castings Majestic Products Company fireplace.
PLEASE READ THE INSTALLATION & OPERATING INSTRUCTIONS BEFORE USING THE APPLIANCE
IMPORTANT: Read all instructions and warnings carefully before starting installation. Failure to follow these
instructions may result in a possible fire hazard and will void the warranty.
Installation Instructions ................................................................................................................3
Installation & Operating Instructions ..................................................................................3
Fireplace Dimensions.........................................................................................................4
Clearance to Combustibles ................................................................................................5
Mantels ..............................................................................................................................5
Hearth ..............................................................................................................................5
Framing and Finishing........................................................................................................6
Final Finishing ....................................................................................................................6
Gas Specifications .............................................................................................................6
Gas Inlet & Manifold Pressures..........................................................................................6
High Elevations ..................................................................................................................6
Gas Line Installation...........................................................................................................7
Remote Switch Installation.................................................................................................7
Alternate Switch Location...................................................................................................7
EB-1 Electrical Box ............................................................................................................8
Install Venting System, Flashing and Termination .............................................................8
Operating Instructions
Glass Information .............................................................................................................10
General Maintenance.......................................................................................................10
Louvre Removal ...............................................................................................................10
Window Frame Assembly Removal .................................................................................10
Glass Cleaning.................................................................................................................10
Log Installation .................................................................................................................11
Lava Rock, Ember Material Placement............................................................................11
Flame Adjustment ............................................................................................................11
Flame Characteristics ......................................................................................................11
Inspecting the Venting System.........................................................................................12
Test Chimney Draw..........................................................................................................12
First Firing ........................................................................................................................12
Lighting and Operating Instructions .................................................................................13
Vent Safety Switch ...........................................................................................................14
Electrical Connection .......................................................................................................14
Troubleshooting ...............................................................................................................15
Maintenance
Cleaning the Standing Pilot Control System ....................................................................18
Replacement Parts
Part Pictorial.....................................................................................................................19
Parts List ..........................................................................................................................20
Optional Accessories
Fan Kits ............................................................................................................................22
Wiring Instructions............................................................................................................22
Remote Controls ..............................................................................................................23
Ceramic Refractory Panels ..............................................................................................23
Arched Door Kit................................................................................................................23
Decorative Bay Windows .................................................................................................24
EB-1 Receptacle Box .......................................................................................................24
Decorative Frame Trims...................................................................................................24

3
Majestic Fireplaces® NVC Series B-Vent
20000194
Installation & Operating Instructions
This gas appliance should be installed by a qualified
installer in accordance with local building codes and
with current CSA-B149.1 Installation codes for Gas
Burning Appliances and Equipment. If the unit is being
installed in a mobile home, the installation should
comply with the current CAN/CSA Z 240.4 code. For
U.S.A Installations follow local codes and/or the current
National Fuel Gas Code ANSI Z223.1.
FOR SAFE INSTALLATION AND OPERATION
PLEASE NOTE THE FOLLOWING:
1. This appliance gives off high temperatures and
should be located out of high traffic areas and away
from furniture and draperies.
2. Children and adults should be alerted to the hazards
of the high surface temperatures of this appliance
and should stay away to avoid burns or ignition of
clothing.
3. Children should be carefully supervised when they
are in the same room as your appliance.
4. Under no circumstances should this appliance be
modified. Parts having to be removed for servicing
should be replaced prior to operating this appliance
again.
5. Installation and any repairs to this appliance should
be carried out by a qualified service person. A
professional service person should be contacted to
inspect this appliance annually. Make it a practice to
have all of your gas appliances checked annually.
More frequent cleaning may be required due to
excess lint and dust from carpeting, bedding mate-
rial, etc.
6. Control compartments, burners and air passages in
this appliance should be kept clean and free of dust
and lint. Make sure that the gas valve and pilot light
are turned off before you attempt to clean this unit.
7. The venting system (chimney) of this appliance
should be checked at least once a year and if
needed your venting system should be cleaned.
8. Keep the area around your appliance clear of
combustible materials, gasoline and other flammable
vapor and liquids. This appliance should not be used
as a drying rack for clothing, nor should Christmas
stockings or decorations be hung in the area of it.
9. Under no circumstances should any solid fuels
(wood, coal, paper or cardboard etc.) be used in this
appliance.
10. The flow of combustion and ventilation air must not
be obstructed in any way.
11. Whether the appliance is installed directly on
carpeting, vinyl tile or any combustible material other
than wood, this appliance must be installed on a
metal or wood panel extending the full width and
depth of the appliance.
12. This appliance requires adequate ventilation and
combustion air to operate properly.
13. this fireplace must not be connected to a chimney
flue serving a separate solid fuel burning fireplace.
14. When the fireplace is not in use it is recommended
that the gas valve be left in the OFF position.
The appliance and its individual shutoff valve must be
disconnected from the gas supply piping system during
any pressure testing of that system at test pressures in
excess of 1/2 psig (3.45 kPa).
IMPORTANT:
PLEASE READ THE FOLLOWING CAREFULLY
Remove any plastic from trim parts before turning the
fireplace ON.
It is normal for fireplaces fabricated of steel to give
off some expansion and/or contraction noises during
the start up or cool down cycle. Similar noises are
found with your furnace heat exchanger or car
engine.
It is not unusual for your Vermont Castings Majestic
Products Company gas fireplace to give off some
odor the first time it is burned. This is due to the
curing of the paint and any undetected oil used in the
manufacturing process.
Please ensure that your room is well ventilated -
open all windows.
It is recommended that your burn your fireplace for at
least ten (10) continuous hours the first time you use
it. If the optional fan kit has been installed, place the
fan switch in the “OFF” position during this time.
Proposition 65 Warning: Fuels used in gas,
woodburning or oil fired appliances, and the products
of combustion of such fuels, contain chemicals
known to the State of California to cause cancer, birth
defects and other reproductive harm.
California Health & Safety Code Sec. 25249.6
This appliance has been approved for aftermarket
mobile home installations.

4
Majestic Fireplaces® NVC Series B-Vent
20000194
A
D
N
MN
A
BS
G
HJ
Gas Line
Access - 2" Dia.
Gas Line
Access
2" Dia.
Finished Wall
Thickness
6"
Flue
Rough
Opening
Height
Rough Opening Width
Rough
Opening
Depth
C
Electrical Cable
Knock-out - 1" Dia.
E
L
F
K
P
Q
R
Electrical Box
Knock-out - 2" Dia.
Electrical
Cable
Knock-out
1" Dia.
C
L
Outside
Air Access
(See inset A)
T
UV
INSET A
5⁷⁄₈"
7³⁄₈"3⁵⁄₈"
10"
10" = 254mm
7³⁄₈" = 187mm
5⁷⁄₈" = 149mm
3⁵⁄₈" = 92mm
Fireplace Dimensions
Do not install
header until
unit is in place.

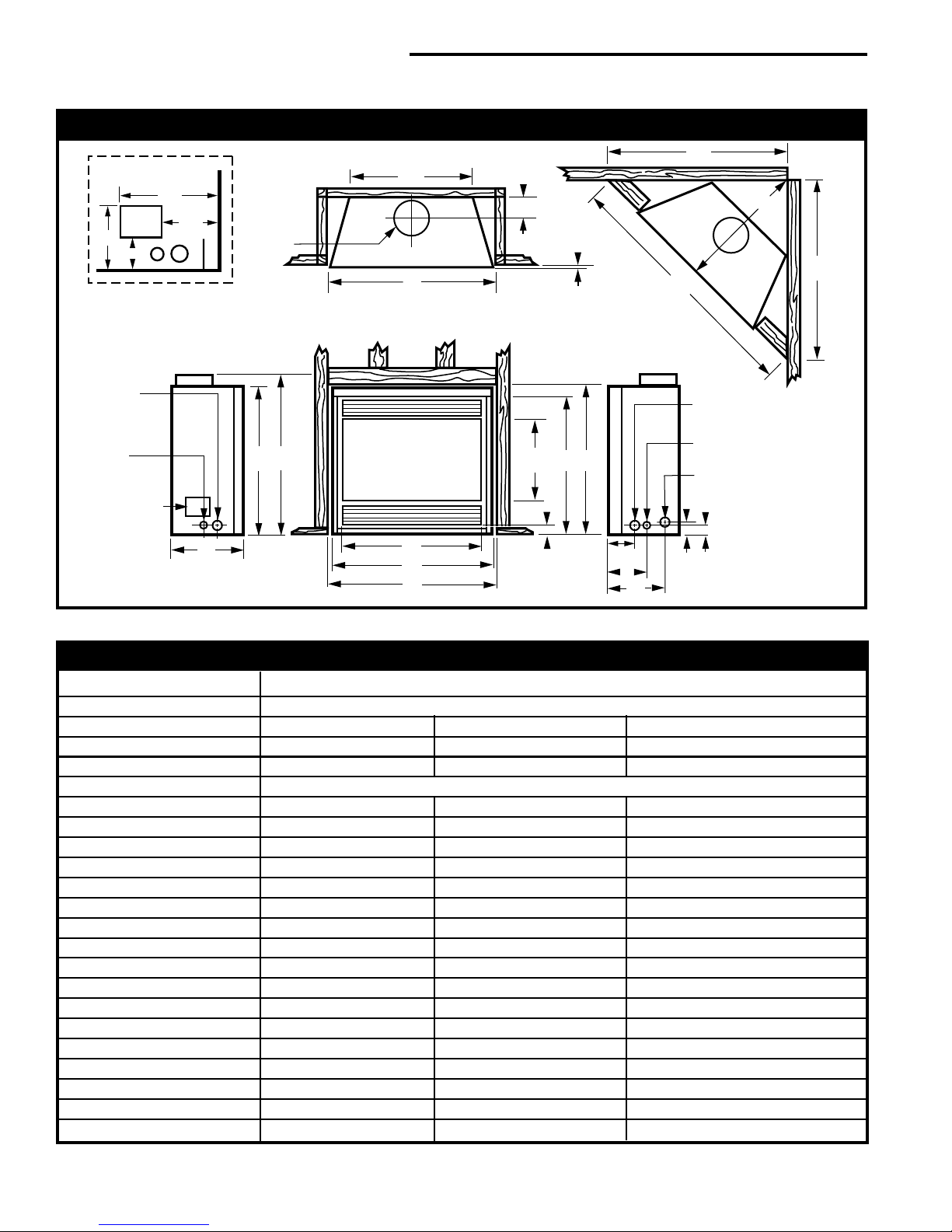

Fig. 1 Fireplace specifications and framing dimensions.
Ref. NVC36 NVC39 NVC43
Framing Dimensions
A36¹⁄₂" (927mm) 39¹⁄₂" (1003mm) 43¹⁄₂" (1105mm)
B34³⁄₄" (883mm) 35" (889mm) 37¹⁄₂" (953mm)
C14¹⁄₂" (362mm) 16¹⁄₂" (419mm) 16¹⁄₂" (419mm)
Appliance Dimensions
D36" (914mm) 39" (991mm) 43" (1092mm)
E21" (533mm) 21" (533mm) 23¹⁄₂" (597mm)
F 1" (25mm) 1" (25mm) 1" (25mm)
G5¹⁄₂" (140mm) 6⁵⁄₁₆" (160mm) 5¹⁄₂" (140mm)
H7³⁄₄" (197mm) 8²¹⁄₃₂" (220mm) 8" (203mm)
J 2" (51mm) 2" (51mm) 2" (51mm)
K20" (508mm) 24" (610mm) 31" (787mm)
L6" (152mm) 6¹⁄₂" (165mm) 5³⁄₄" (146mm)
M47⁵⁄₈" (1422mm) 56" (1422mm) 62⁵⁄₈" (1591mm)
N33⁵⁄₈" (854mm) 40" (1016mm) 44¹⁄₄" (1124mm)
P24¹⁄₂" (622mm) 28⁹⁄₁₆" (813mm) 32" (813mm)
Q10³⁄₄" (273mm) 12¹³⁄₃₂" (315mm) 12" (305mm)
R4" (102mm) 4" (102mm) 4" (102mm)
S32³⁄₄" (832mm) 32³⁄₄" (832mm) 35¹⁄₂" (902mm)
T33" (838mm) 36" (914mm) 40" (1016mm)
U34¹⁄₄" (870mm) 34¹⁄₄" 9870mm) 37" (940mm)
V36¹⁄₂" (927mm) 37¹⁄₄" (946mm) 39¹⁄₄" (997mm)
Appliance Dimensions

5
Majestic Fireplaces® NVC Series B-Vent
20000194
Clearance to Combustibles
Appliances
Top ...........................................0” (0mm)
Bottom .....................................0” (0mm)
Side .........................................0” (0mm)
Back.........................................0” (0mm)
Perpendicular Sidewall ............0” (0mm)
Top of unit to ceiling.................36” (914mm)
Front of unit to combustibles ...36” (914mm)
Venting
B-Vent......................................1” (25mm)
Mantels
The height that a combustible mantel is fitted above the
fireplace is dependent on the depth of the mantel. This
also applies to the distance between the mantel leg (if
fitted) and the fireplace.
For the correct mounting height and widths refer to
Figures 2a and 2b and the Mantel Chart below.
The distances and reference points are not affected by
the fitting of a bay window front trim kit.
Noncombustible mantels and legs may be installed at
any height and width around the appliance.
When using a paint or lacquer to finish the mantel, such
paint or lacquer must be heat resistant to prevent
discoloration.
ABCDE
V
W
X
Y
Z
Fireplace
Ref. Mantel Ref. Mantel From Top
Shelf Depth of Comb. Chamber
V10" (254 mm) A 19¹⁄₂" (495 mm)
W8" (203 mm) B 17¹⁄₂" (444 mm)
X6" (152 mm) C 15¹⁄₂" (394 mm)
Y4" (101 mm) D 13¹⁄₂" (343 mm)
Z 2" ( 51 mm) E 11¹⁄₂" (292 mm)

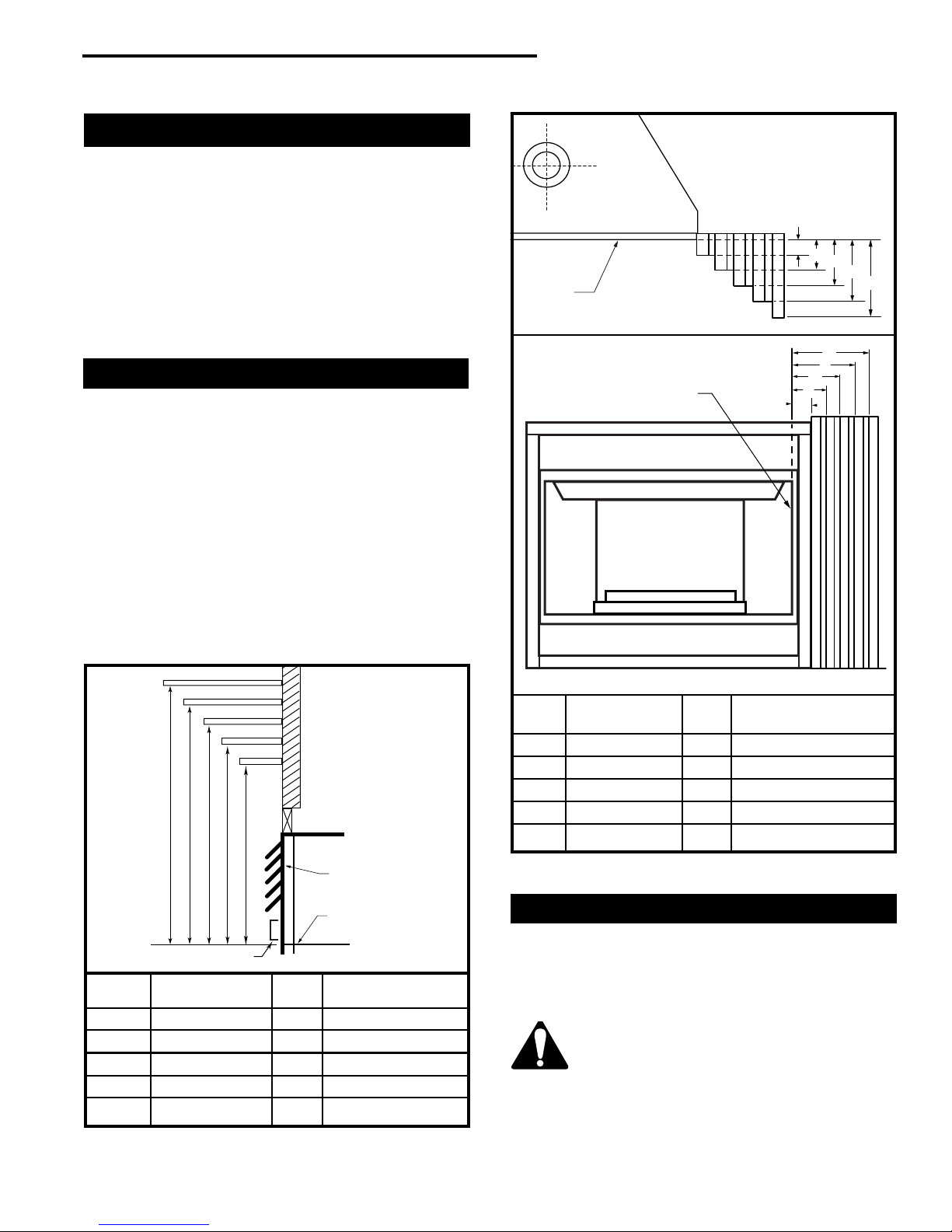

Fig. 2a Mantel clearances.
Side View
CFM146
Top of
Combustion Chamber
Bottom of Door Trim
Top Louvre Assembly
J
F
G
H
I
Mantel
Leg
Ref. Mantel Ref. Mantel Leg From Side
Leg Depth of Comb. Opening
F10" (254 mm) K 12" (305 mm)
G8" (203 mm) L 10" (254 mm)
H6" (152 mm) M 8" (203 mm)
I4" (101 mm) N 6" (152 mm)
J2" ( 51 mm) O 4" (101 mm)
O
NM
L
K
CFM164
CFM170
Fig. 2b Combustible mantel leg minimum installation.
Side of
Combustion Chamber
Black
Surround
Face
Hearth
A hearth is not mandatory but is recommended for
aesthetic purposes. We recommend a noncombustible
hearth.
Cold climate installation recommendation: When
installing this unit against a noninsulated
exterior wall or chase, it is mandatory
that the outer walls be insulated to
conform to applicable insulation codes.

6
Majestic Fireplaces® NVC Series B-Vent
20000194
NVC36RN
NVC36RP
NVC36VN
NVC36VP
NVC36EN
NVC36EP
NVC39RN
NVC39RP
NVC39VN
NVC39VP
NVC39EN
NVC39EP
NVC43RN
NVC43RP
NVC43VN
NVC43VP
NVC43EN
NVC43EP
Natural
Propane
Natural
Propane
Natural
Propane
Natural
Propane
Natural
Propane
Natural
Propane
Natural
Propane
Natural
Propane
Natural
Propane
Millivolt Hi/Lo
Millivolt Hi/Lo
24V Hi/Lo*
24V Hi/Lo*
Electronic Ignition
Electronic Ignition
Millivolt Hi/Lo
Millivolt Hi/Lo
24V Hi/Lo*
24V Hi/Lo*
Electronic Ignition
Electronic Ignition
Millivolt Hi/Lo
Millivolt Hi/Lo
24V Hi/Lo*
24V Hi/Lo*
Electronic Ignition
Electronic Ignition
25,000
25,000
25,000
25,000
25,000
25,000
30,000
30,000
30,000
30,000
30,000
30,000
33,000
33,000
33,000
33,000
33,000
33,000
17,500
18,750
17,500
18,750
17,500
18,750
21,000
22,500
21,000
22,500
21,000
22,500
23,100
24,750
23,100
24,750
23,100
24,750
Max.
Input
Gas ControlFuelModel Min.
Input
*To be used with PVS-1
Gas Specifications
1. Choose the unit location.
2. Place the unit into position and secure it to the floor
with 1¹⁄₂” (38mm) screws, or nails. The holes to
secure the unit to floor are located just behind the
access door grille on the left and right side of the
unit.
3. Frame in the fireplace with a header across the top.
It is important to allow for the finished wall face
when setting the depth of the frame.
4. Attach the fireplace to the frame using the adjust-
able frame drywall strips (located behind the ac-
cess door for shipping). Preset the depth to suit
the facing material of the wall. The strips are adjust-
able to 1/2” (13 mm), 5/8” (16 mm), or 3/4” (19 mm).
(Fig. 4)
5. Screw through the slotted holes in the drywall strip
and into pre-drilled holes in fireplace side. Measure
from face of fireplace to the face of the drywall strip to
confirm the final depth.
Check fireplace to make sure it is levelled
and properly positioned.
Framing and Finishing
Final Finishing
Noncombustible materials such as brick or tile may be
extended over the edges of the face of the appliance.
DO NOT cover the window frame assembly, any
vent, louvre top assembly or louvre bottom assem-
bly.
If a Trim Kit is going to be installed on the fireplace, the
brick or tile will have to be installed flush with the edges
of the appliance.
NVC36 / NVC39 / NVC43
CERTIFIED TO
ANSI Z21.50a-1999 / CGA 2.22a-M99
Vented Gas Fireplace Heaters
High Elevations
Input ratings are shown in BTU per hour and are
certified without deration for elevations up to
4,500 feet (1,370m) above sea level.
For elevations above 4,500 feet (1,370m) in USA,
installations must be in accordance with the
current ANSI Z223.1 and/or local codes having
jurisdiction.
In Canada, please consult provincial and/or local
authorities having jurisdiction for installations at
elevations above 4,500 feet (1,370m).
Natural LP
Minimum Inlet Pressure 5.5" w.c. 11.0" w.c.
Maximum Inlet Pressure 14.0" w.c. 14." w.c.
Manifold Pressure 3.5" w.c. 10.0" w.c.
Gas Inlet & Manifold Pressures
A
B
C
Fig. 4 Adjustable drywall strip (nailing flanges).
Adjustable Drywall Strip
(Nailing Flange)
Screw Drywall
Position Depths
A1/2” / 13mm
B5/8” / 16mm
C3/4” / 19mm
FP1023
Adjustable
1/2”, 5/8” &
3/4” Spacing

7
Majestic Fireplaces® NVC Series B-Vent
20000194
Gas Line Installation
When purging gas line the fornt glass
must be reomvoed. Purging gas lines
must comply with the NFPA-54 or B-149.
The gas pipeline can be brought in through the right or
left side of the appliance, as well as the bottom. Knock-
outs are provided at convenient locations to allow for
the gas pipe installation and testing of any gas connec-
tion. It is most convenient to bring the gas line in from
the right side, as this allows fan installation or removal
without disconnecting the gas line.
The gas line connection can be made with properly
tinned 3/8" copper tubing, 1/2" rigid pipe or an approved
flex connector, then reduced to 3/8" (R Models) or 1/2"
(E Models) to the appliance. Because some municipali-
ties have some additional local codes, it is always best
to consult your local authority and the CSA-B149.1
installation code.
For US installations consult the current National Fuel
Gas Code, ANSI Z223.1.
Always check for gas leaks with a mild
soap and water solution applied with a
brush no larger than 1" (25mm). Never
aply soap and water solution with a spray
bottle. Do not use an open flame for leak
testing.
The fireplace valve must not be subjected
to any test pressures exceeding 1/2 psi.
Isolate or disconnect this or any other
gas appliance control from the gas line
when pressure testing.
The gas control is equipped with a captured screw type
pressure test point, therefore it is not necessary to
provide a 1/8" test point up stream of the control.
When using copper or flex connector use only approved
fittings. Always provide a union so that gas line can
be easily disconnected for burner or fan servicing.
Refer to gas specification for pressure details and
ratings. NOTE: If flex connector is used, it must be kept
inside of the appliance. (Fig. 5)
Remote Switch Installation
1. Thread wire through the electrical knockout located
on either side of unit. Do not cut wire or insulation on
metal edges. Ensure that wire is protected. Run the
other end to a conveniently located wall receptacle
box.
2. Attach wire to switch and install switch into receptacle
box. Attach cover plate to switch.
3. Connect wiring to gas valve. (Figs. 19 or 20, Page
14)
Alternate Switch Location
Remote switch can be installed on either side of the ac-
cess door. Simply mount the switch to the switch bracket
provided. Screw the bracket on either side of the frame,
lining up the screws with the pre-punched holes. (Fig. 7)

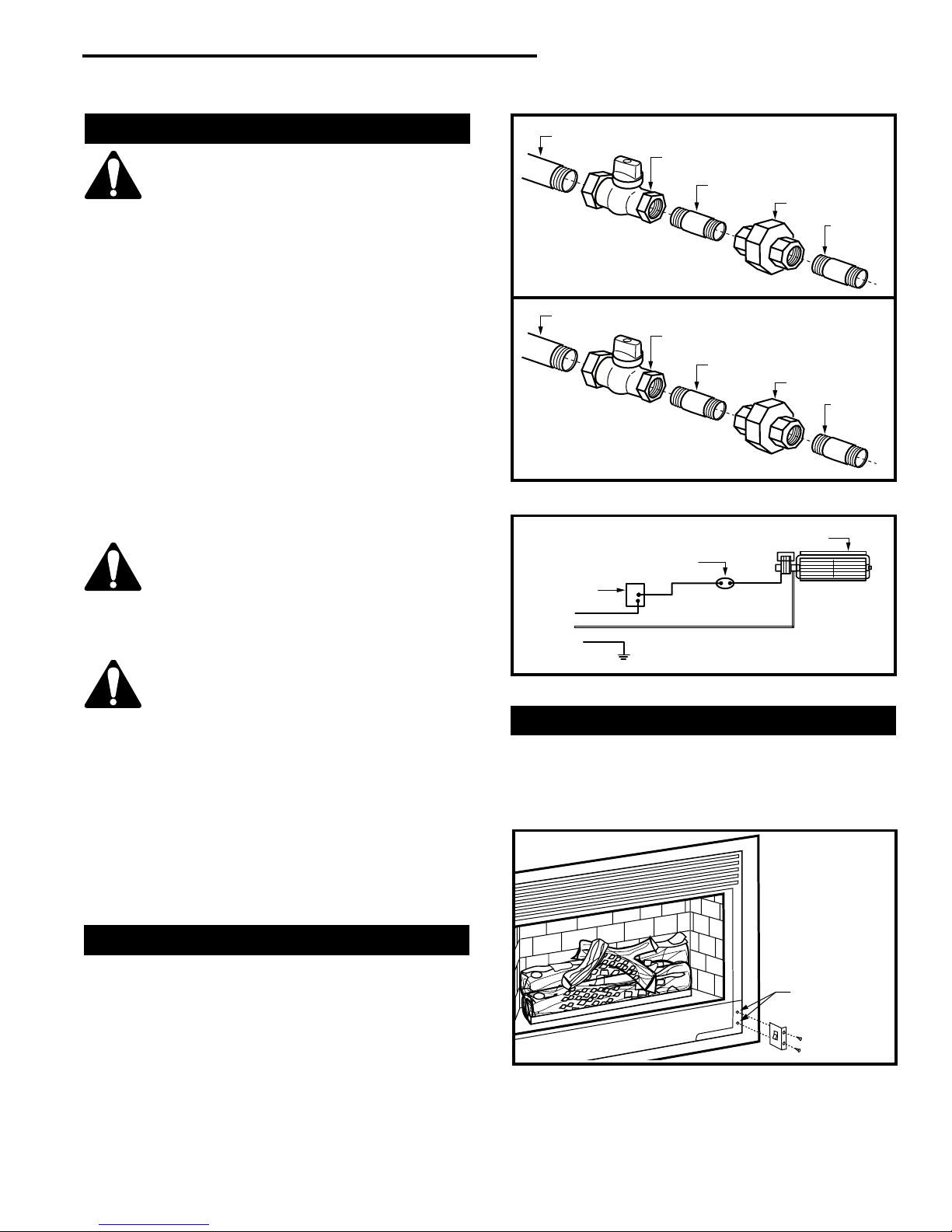

Fig. 5 Typical gas supply installation.
FP413
1/2" Gas Supply 1/2" x 3/8" Shut-off Valve
3/8" Union
3/8" Nipple
3/8"
Nipple
1/2" Gas Supply 1/2" x 1/2" Shut-off Valve
1/2" Union
1/2" Nipple
1/2"
Nipple
"R" Model
Supply Line
"E" Model
Supply Line
Fig. 6 Wiring diagram. FP394
Black
White
Ground
Fan
Temperature
Sensor
Speed
Control
Fig. 7 Installing remote switch bracket.
FP381
Pre-punched
Holes

8
Majestic Fireplaces® NVC Series B-Vent
20000194
The fireplace, when installed, must be
electrically connected and grounded in
accordance with local codes or, in the
absence of local codes, with the current
CSA C22.1 Canadian Electrical Code
For USA installations follow the local
codes and the national electrical code
ANSI/NFPA No. 70.
It is strongly suggested that the wiring of
the EB-1 Electrical Junction Box be
carried out by a licensed electrician.
Ensure that the power to the supply line
has been disconnected before commenc-
ing this procedure.
The EB-1 Electrical junction box has been supplied
standard on the DVRT 36/39/43 models to allow for the
easy installation of an optional fan kits
.
To connect the EB-1 box to the house electrical supply
follow the steps below.
1. Unscrew the retaining screw from the EB-1 base
plate (Fig. 8) and remove the EB-1 assembly from
the fireplace.
2. Remove the front cover of the EB-1 box.
3 Remove the plug socket assembly from the EB-1 box.
4. Feed the supply line in from the outside through the
cable clamp. (Fig. 8)
5. Connect black wire of the power supply line to the
brass screw (polarized) of the socket assembly.
6. Connect the white wire of the power line to the
chrome screw of the socket assembly.
7. Connect the ground wire of the supply line to the
green screw of the socket assembly.
8. Refit the socket assembly back into the electrical
box and replace the cover plate. Secure the cable
with the clamp on the outside of the unit to prevent
strain on the connections.
9. The EB-1 electrical junction box is now ready to
supply power to the FK12 or FK24 fan kits if fitted.
EB-1 Electrical Box
Outside
Electrical Box
Front of Unit
Inside
Front of Unit
Retaining Screw
FP580

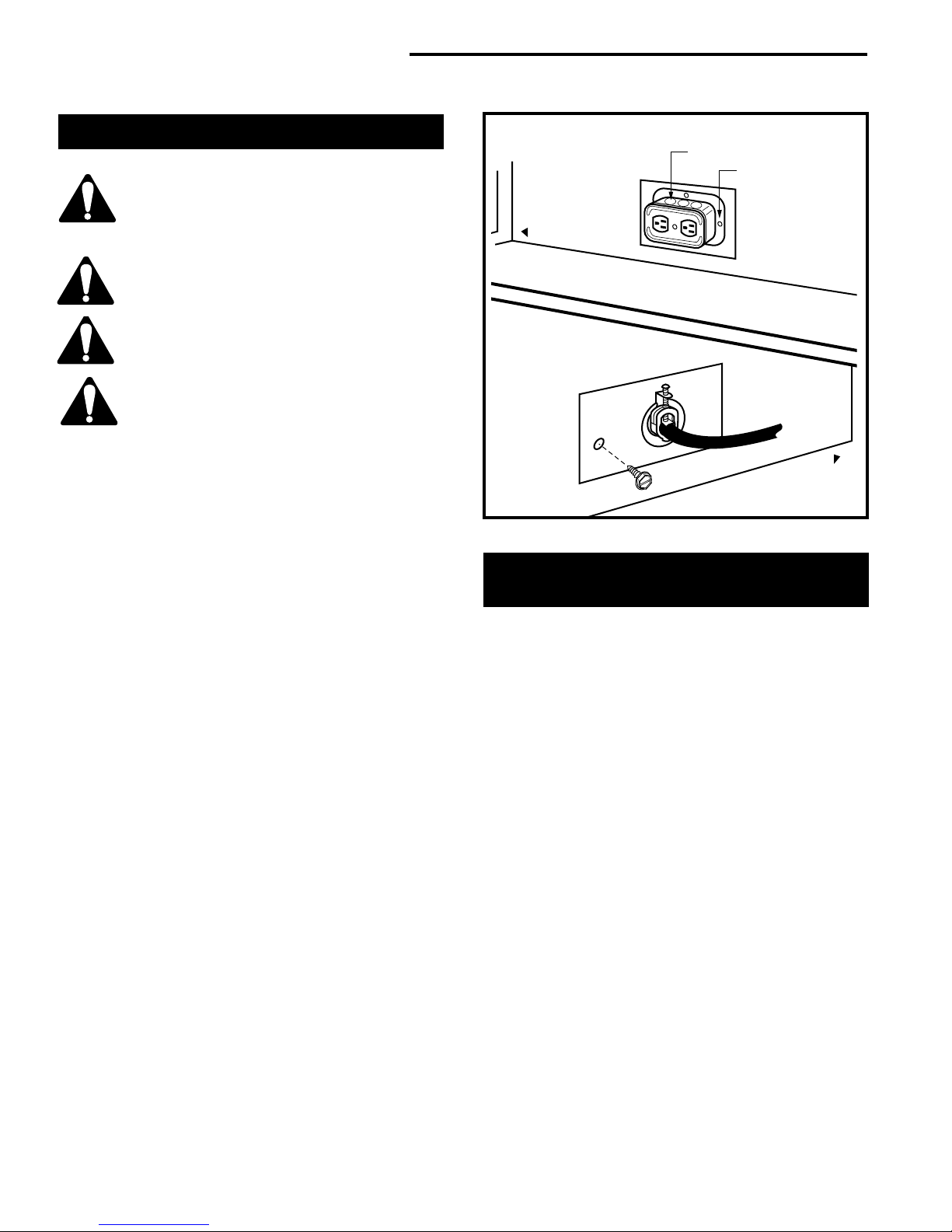

Fig. 8 EB-1 receptacle.
Install the Venting System,
Flashing and Termination
Refer to venting installation instructions provided by the
B-Vent manufacturer.
Refer to Figure 1, Page 3 to locate chimney center line
dimension from a combustible back wall.
• Minimum vertical chimney height — 12 feet
(3.65m).
• Maximum vertical height — 40 feet (12m).
• Minimum height with two elbows — 12 feet
(3.65m)
• Elbow requirements allow a maximum of two
90 degree elbows or four 45 degree elbows
per installation. (Two 45 degree elbows =
One 90 degree elbow.) See venting chart for
proper elbow offset runs.
For firestop positioning, refer to Figure 9. Only one (1)
firestop required per frame. NOTE: A firestop is not
required at the roof.

9
Majestic Fireplaces® NVC Series B-Vent
20000194
Fig. 9 Firestop/draftstop positions.
Ceiling Installation
Attic Installation
Firestop position when area above ceiling is an attic.
Firestop position when area above ceiling is NOT an attic.
(Firestop/draftstop
appearances may
vary. Only 1 firestop
required per frame.)
Firestop
Spacer
Nails (4)
Joist
FP384
Table 1 Venting configurations.
Venting Runs
40
38
36
34
32
30
28
26
24
22
20
18
16
14
12
8 9 10 11 123 4 5 6 7
Horizontal Run (in feet)
Vertical Run (in feet)
(Measured from floor of unit tocenter of horizontal vent pipe.)
A
A: Vertical installations up to 40 feet (12m) in
height. Up to a 8 ft. horizontal vent run can be
installed within the vent system using a
maximum of two 90-degree elbows or four
45-degree elbows.
B: Vertical installations up to 40 feet (12m) in
height. Up to a 12 ft. horizontal vent run can be
installed within the vent system using a
maximum of two 45-degree elbows.
B
= Acceptable venting configuration
= Unacceptable venting configuration
FP567a

10
Majestic Fireplaces® NVC Series B-Vent
20000194
Operating Instructions
Only glass approved by The Vermont
Castings Majestic Products Company
should be used on this fireplace.
•The use of any non-approved replacement glass will
void all product warranties.
•Care must be taken to avoid breakage of the glass.
•Under no circumstances should this appliance be
operated without the front glass in place, or with the
glass in a damaged condition.
•Replacement glass (complete with gasket) is
available through your Majestic Fireplaces dealer
and should only be installed by a licensed qualified
service person.
Glass Information

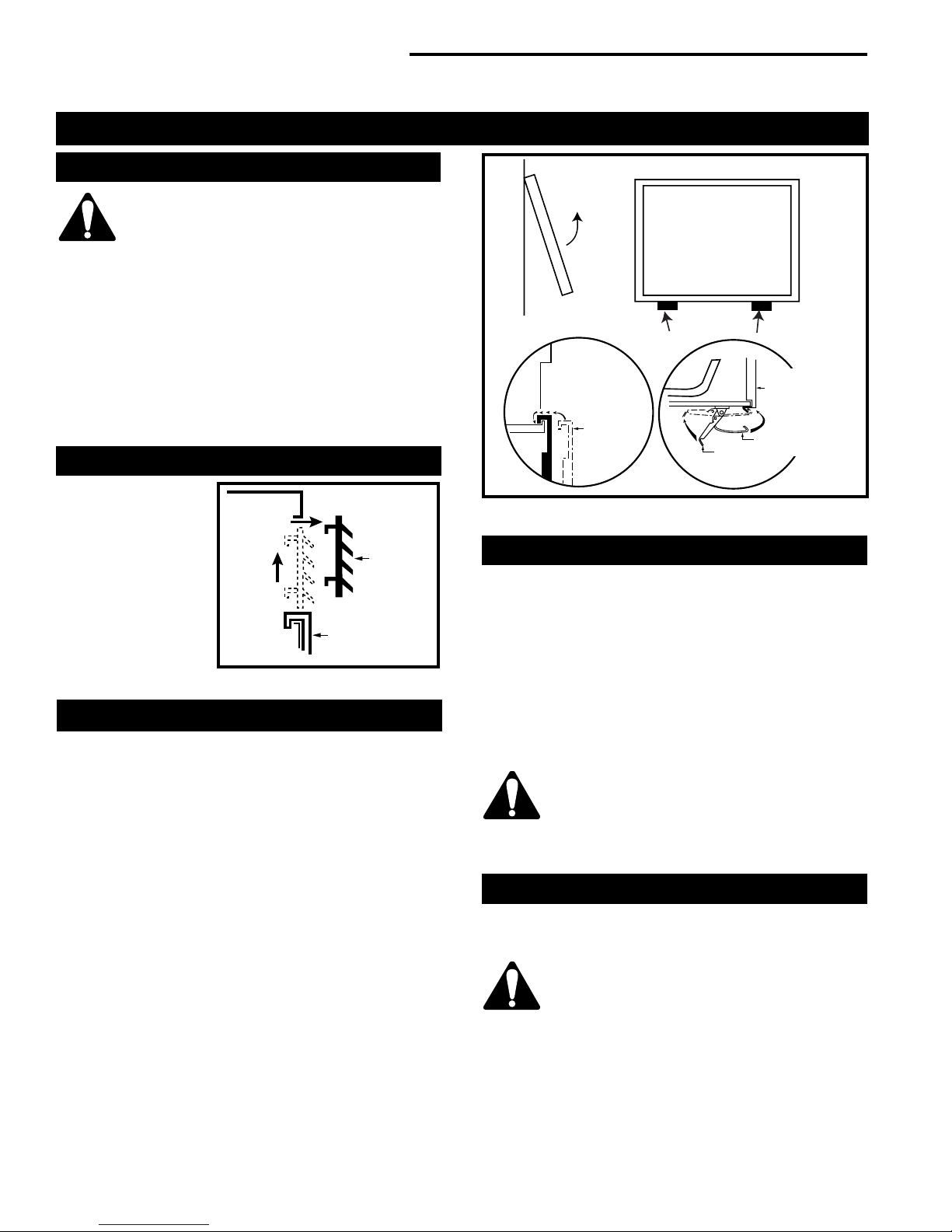

Louvre Removal
To remove the
louvre top assem-
bly, lift louvre up
and then out. (Fig.
12) The louvre
bottom assembly is
hinged at the
bottom edge and
swings down.
Lower
Clamps
FP1191
Window
Frame
Assembly Pull Clamp
Hook
Push
Clamp
Handle
Fig. 11 Window frame assembly removal.
Window Frame
Assembly
Glass Cleaning
It is necessary to clean the glass periodically. During
start-up, condensation, which is normal, forms on the
inside of the glass and causes lint, dust and other
airborne particles to cling to the glass surface. Also
initial paint curing may deposit a slight film on the glass.
It is therefore recommended the glass be cleaned two
or three times with a non-ammonia household cleaner
and warm water (gas fireplace glass cleaner is recom-
mended). After initial use glass should be cleaned two
or three times during heating season.
Clean glass after first two weeks of
operation.
Do not clean glass when hot.
Do not use abrasive cleaners.
Do not strike or slam the glass.
Log Installation
1. Remove window frame assembly. (Refer to Page xx)
2. Remove logs from the packaging.
As with all plastic, these bags are not
toys and should always be kept away
from children and infants.
3. Place rear log on back bracket. Ensure that log is
firmly positioned and there is no side-to-side move-
ment.
4. Place the front log on top of the burner, use bottom
holes to locate the logs on top of the studs.
FP383
Glass Panel
Louvre
Top
Assembly
1.
2.
Fig. 10 Louvre install and removal.
Window Frame Assembly Removal
1. Turn gas off.
2. Let the unit cool if it has been operating.
3. Remove louvre top assembly. (Refer to Louvre
Removal section.)
4. Open louvre bottom assembly.
5. Release the two clamps at the bottom of the window
frame by pulling down on the clamp handles.
6. Lift off the window frame assembly as shown. (Fig.
11)
7. To reinstall window frame assembly, follow the
above procedure in reverse.

11
Majestic Fireplaces® NVC Series B-Vent
20000194
5. Place the front right log on top of the burner, Use
bottom holes to locate the logs on top of the studs.
6. Place the top logs onto the locator notches. Ensure
that the logs are secure. (Fig. 12)
7. Place ember material. See "Ember Material Place-
ment" section.
NVC36 NVC39 NVC43
Front Left Log BB6 BC5 BD6
Front Right Log BB7 BC6 BD7
Rear Log BE5 BC7 BD8
Top Left Log BB9 BC8 BD9
Top Right Log BB10 BC9 BD10
Lava Rock
The lava rock provided with this fireplace must be
placed on the firebox base on either side of the burner
assembly. Do not place lava rock in combustion pan.
Under no circumstances should this lava
rock be placed on any part of the burner
assembly.
Ember Material Placement
Separate the ember material into small pieces, roughly
1/2" in diameter, and place onto the burner in front of
the front logs. Do NOT pack down, leave in fluffy, loose
condition for more realistic ember effect.
Flame Adjustment
For fireplaces equipped with HI/LO valves, flame
adjustment is accomplished by rotating the HI/LO
adjustment knob located near the center fo the gas
control. (Fig. 13 or 14)
LO
HI
Turn
counterclockwise
to decrease
flame height
Turn clockwise
to increase
flame height
Fig. 13 Flame adjustment knob for Honeywell valve.
HV102
Turn
counterclockwise
to increase
flame height
Turn clockwise
to decrease
flame height
I
H
LO
Fig. 14 Flame adjustment knob for SIT valve.
HV116
Fig. 12 Log locations.
BE5 Log Rear BB9 Log Top Left
BB10 Log Top Right
BB6
Log Front
Left
BB7
Log
Front
Rigth
NVC36
BD8 Log Rear
BD9 Log Top Left BD10 Log Top Right
BD6
Log Front
Left BD7
Log
Front
Right
NVC43
BC7
Log
Rear
BC8 Log Top Left
BC9
Log Top Right
BC5 Log
Front
Left BC6
Log Front
Right

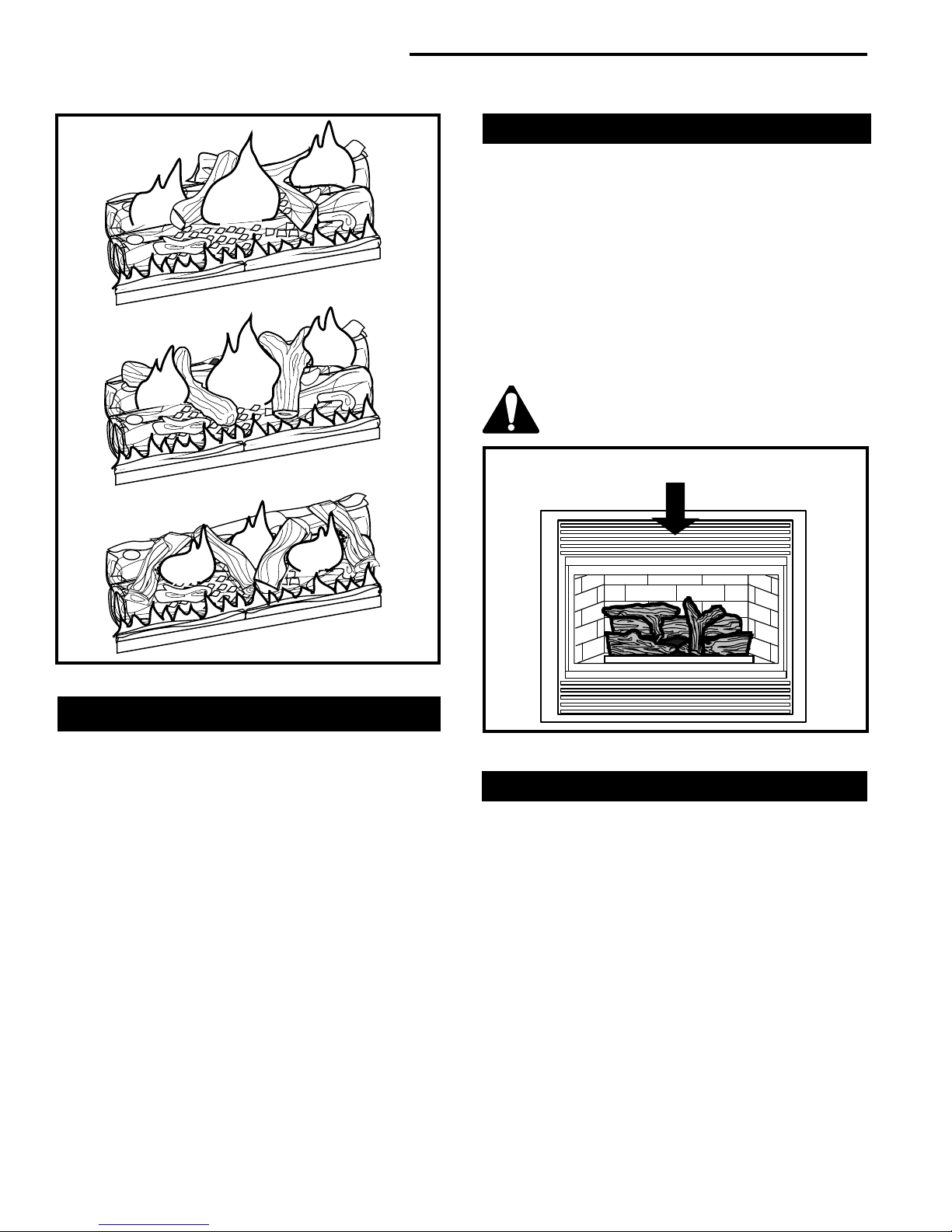

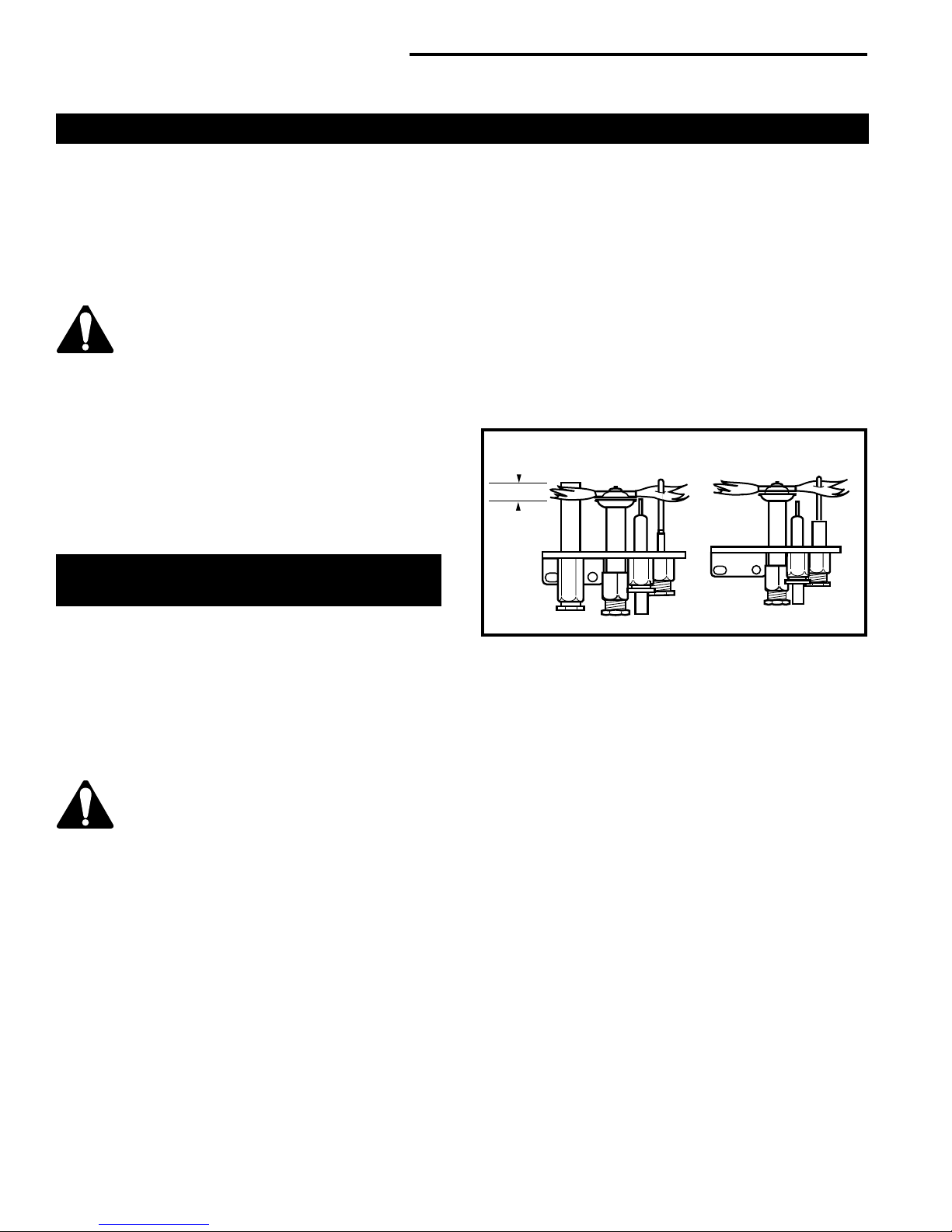

NVC39 Flame Characteristics
It is important to periodically perform a visual check of
the pilot and burner flames. Compare them to the ,
pictorials illustrated below. (Figs. 15 or 16) If the flame
patterns appear abnormal contact a qualified service
provider for service and adjustment.
Fig. 15 Proper pilot flame height.
FP392/585
3/8"-1/2"
Electronic
Ignition

12
Majestic Fireplaces® NVC Series B-Vent
20000194
Test Chimney Draw
A "Chimney Draw" test must be made before the
installation is complete.
1. Close all doors and windows in the home and start
exhaust fans in the kitchen and bathroom.
2. Light unit and operate for 5 minutes.
3. Hold an ignited match, cigarette, or smoke match in
front of the unit. Refer to Figure 17 for location of the
draft hood opening.
4. Check to make sure smoke from the match, cigarette
or smoke match is drawn into the fireplace. If it is
not, turn the unit off and check for causes creating
the lack of adequate draft.
Do not operate the unit until lack of
adequate draft has been determined and
rectified.
Fig. 16 Approximate flame heights for each model.
FP393
NVC36
NVC43
NVC39
Inspecting the Venting System
This appliance venting system is designed and con-
structed to develop a positive flow adequate to remove
flue gases to the outside atmosphere.
Any foreign objects in the venting system, except those
designed specifically for the venting system, may cause
spillage of flue gases.
To inspect the venting system, make sure the main gas
valve is off. Remove the window frame assembly (Refer
to Page 10). Using a flashlight, check the area above
the baffle in the combustion dome. Clean if necessary.
Test for Draft at This Location
FP1197
Fig. 17 Draft test location.
First Firing
Remove window frame assembly before lighting.
Upon completing the gas line connection, a small
amount of air will be trapped in the line. When first
lighting the unit with pilot light, it will take a few minutes
to purge the trapped air. Once purging is complete, the
pilot and burner will light and operate as indicated in the
instruction manual. Subsequent lightings of the appli-
ance will not require purging.
When lit for the first time, the appliance will emit a slight
odor for awhile. This is due to paint and lubricants used
in the manufacturing process. After each lighting, vapor
may condense and fog the glass; this moisture disap-
pears within a few minutes of burning.

13
Majestic Fireplaces® NVC Series B-Vent
20000194
3. Open control access panel.
4. Push in gas control knob slightly and turn
clockwise to "OFF". Do not force.
5. Close control access panel.
1. STOP! Read the safety information above.
2. Turn off all electrical power to the fireplace.
3. For MN/MP/TN/TP appliances ONLY, go on to
Step 4. For RN/RP appliances turn the On/Off
switch to “OFF” position or set thermostat to
lowest level.
4. Open control access panel.
5. Push in gas control knob slightly and turn
clockwise to "OFF".
10. Push the control knob all the way in and hold.
Immediately light the pilot by repeatedly
depressing the piezo spark ignitor until a flame
appears. Continue to hold the control knob in for
about one (1) minute after the pilot is lit. Release
knob and it will pop back up. Pilot should remain
lit. If it goes out, repeat steps 5 through 8.
FOR YOUR SAFETY READ BEFORE LIGHTING
•If you cannot reach your gas supplier, call the
Fire Department
C. Use only your hand to push in or turn the gas
control knob. Never use tools. If the knob will not
push in or turn by hand, do not try to repair it, call a
qualified service technician. Applying force or any
attempted repair may result in a fire or explosion.
D. Do not use this fireplace if any part has been under
water. Immediately call a qualified service techni-
cian to inspect the heater and to replace any part of
the control system and any gas control which has
been under water.
A. This heater has a pilot which must be lit
manually. When lighting the pilot follow these
instructions exactly.
B. BEFORE LIGHTING smell all around the heater
area for gas. Be sure to smell next to the floor
because some gas is heavier than air and will
settle on the floor.
WHAT TO DO IF YOU SMELL GAS
•Do not try to light any fireplace
•Do not touch any electric switch
• Do not use any phone in your building
•Immediately call your gas supplier from a
neighbor's phone. Follow the gas supplier's
instructions.
To Turn Off Gas To Heater
Lighting And Operating Instructions
1. Turn the On/Off switch to Off position or set the
thermostat to lowest setting.
2. Turn off all electric power to the fireplace if
service is to be performed.
Lighting Instructions
6. Wait five (5) minutes to clear out any gas. Then
smell for gas, including near the floor. If you
smell gas, STOP! Follow "B" in the safety
information above. If you do not smell gas, go
to the next step.
7. Remove glass door before lighting pilot. (See
Glass Frame Removal section).
8. Visibly locate pilot by the main burner.
9. Turn knob on gas control counterclockwise
to "PILOT".
•If knob does not pop up when released, stop
and immediately call your service technician or
gas supplier.
• If after several tries, the pilot will not stay lit,
turn the gas control knob to "OFF" and call your
service technician or gas supplier.
11. Replace glass door.
12. Turn gas control knob to “ON” position.
13. For RN/RP appliances turn the On/Off switch to
“ON” position or set thermostat to desired setting.
14. Turn on all electrical power to the fireplace.
WARNING:If you do not follow these instructions exactly, a fire or explosion
may result causing property damage, personal injury or loss of life.

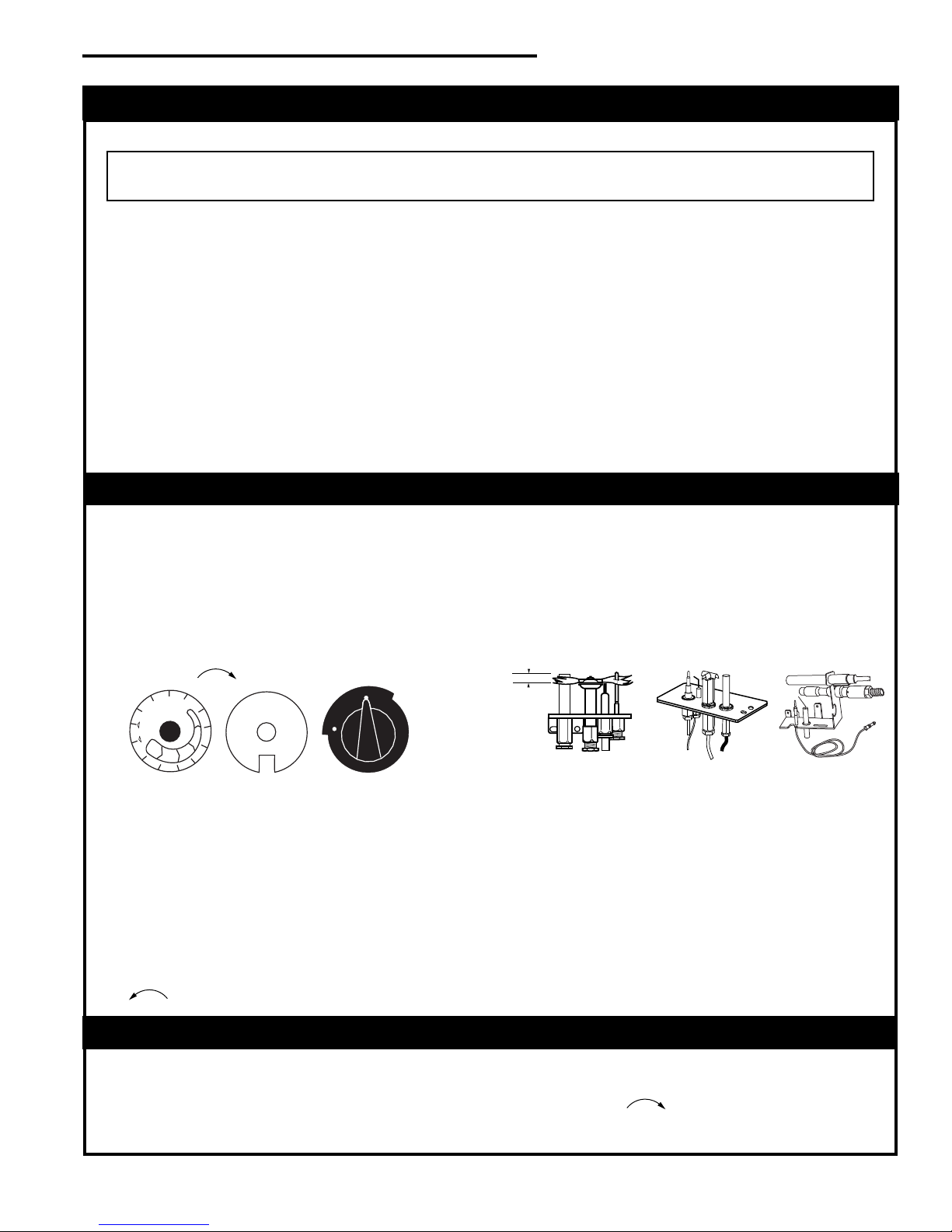

Euro SIT SIT NOVA Honeywell
PILOT
ON
OFF
ON
P
I
L
O
T
O
F
F
O
F
F
5
4
3
2
1
O
F
F
P
i
l
o
t
3/8" - 1/2"

14
Majestic Fireplaces® NVC Series B-Vent
20000194
Vent Safety Switch
This fireplace incorporates the use of a Vent Safety
Shut-off Switch. The sensor and wiring are factory
installed and should not be removed or altered during
installation.
In the event of total flue blockage the system will detect
the increased heat buildup and will automatically shut
down the main burner assembly.
The sensor is located above the firebox behind the top
louvre assembly. It is accessible by removing the top
louvre assembly.
CAUTION: The firebox, Vent Safety Switch sensor
and surrounding panels become very hot during
normal operation. Allow time for the components to
cool before carrying out any service or inspection.
If the sensor is activated and shuts off the burner
assembly, the following procedure should be followed:
•Observe that the pilot flame is still ON. If the pilot
flame has gone out the reason for the fireplace shut
down is not the vent safety switch.
•Turn the pilot flame OFF and close all controls. Allow
the fireplace to cool.
•Check the flue and venting components for blockage
or restrictions.
•Remove the front louvre assembly.
•Locate the sensor.
•Reset the sensor by pressing the reset pin between
the two wire terminals. (Fig. 18)
CAUTION: The components may still be hot.
•Light the fireplace and check for downdrafts.
•Operate the fireplace in the normal manner. If the
burner assembly shuts down again after a period of
operation, DO NOT ATTEMPT TO RESET THE
SENSOR AGAIN. Turn off the fireplace and contact
your service technician.
Electrical Connection
The sensor is wired in series between the wall mounted
ON/OFF switch and the Electronic Ignition Module (Fig.
19) or the thermopile and the gas valve (Fig. 20)
Sensor
Wire
Terminal
Reset Pin FP1160
Fig. 18 Vent Safety Switch.
Wire
Terminal
24 VAC HOT
24 VAC RTN
ON-OFF
SWITCH
NOVA SIT 822 VALVE
HONEYWELL S8600 B IGNITION MODULE
120 VAC RTN
40VA
TRANSFORMER
120 VAC HOT
BLACK
BLACK
BLACK
BLACK
BLACK
BLACK
BLACK
WHITE
WHITE
WHITE
WHITE
WHITE
WHITE
WHITE
WHITE
BLACK
PILOT
H
I
L
O
EA
P
I
L
O
T
1 5
3 4
GREEN
MV MVPV PV GND
(BURNER) 24V
GND 24V SENSE SPARK
FP670
Fig. 19 Vent Safety Switch wiring, EN/EP units.
TH
TP
TH
TP
Gas
Valve
Thermopile
OnN/OFF
Switch
Vent
Safety
Switch
FP1161
Fig. 20 RN/RP units using a remote ON/OFF switch.

15
Majestic Fireplaces® NVC Series B-Vent
20000194
Troubleshooting
FP649
Turn gas supply off
Turn ON/OFF Switch
to call for heat.
NO
NO
NO
NO
NO
NO
NO
Spark across
Ignitor Sensor gap
Power to module
(24V nominal)
YES YES
YES
YES
YES
YES
YES
Turn gas on
Pilot burner lights?
Spark stops when pilot
is lit?
Main Burner lights?
Replace Module
START
Line Voltage (120VAC)
Low Voltage Transformer
(19.5 minimum VAC)
ON/OFF Switch
Wiring connections
Thermodisk
Check continuity of ignition cable and ground wire.
Clean flame rod.
Check electrical connections beween flame rod and module.
Check for cracked ceramic flame rod insulator.
Check that pilot flame covers flame rod and is steady blue.
Adjust pilot flame.
If problem persists, replace module.
Unplug Ignition Lead
and check spark
at module
(24VAC nominal)
Spark OK?
Check ignition cable, ground wiring, Ceramic Insulator and gap. Correct as necessary
Check boot of ignition cable for signs of melting or buckling. Take protective
actions to shield cable and boot from excessive temperatures.
Check for 24VAC across MV-MV/PV terminals. If no voltage, replace module.
Check electrical connections between module and gas control. If okay, replace gas
control or gas control operator.
Check for continuity of igniton cable and ground wire. NOTE: If ground is poor or
erratic, shutdowns may occur occasionally even though operation is normal
at time of checkout.
Check that the pilot flame covers flame rod and is steady and blue.
If checks are okay, replace module.
Troubleshooting
Ends
Check that all manual gas valves are open, supply tubing and pressures are good,
and pilot burner orifice is not blocked.
Check electrical connections between module and pilot operator on gas control.
Check for 24VAC across PV-MV/PV terminals on module. If voltage is okay, replace
gas control. If not, replace module.
NOTE: If S8600B goes into lockout, reset system.
NOTE: If S8600B goes into lockout, reset system.
CHECK :
System runs until
ON/OFF switch is in
"OFF" position
Honeywell Electronic Ignition

16
Majestic Fireplaces® NVC Series B-Vent
20000194
Remove glass door before service work
Honeywell VS8421
START CHECK
Gas Supply On
▼
▼
▼
▼▼
Pilot Lights With Piezo
Ignitor
•Lockout Has Engaged. Wait 60
Seconds And Try Again.
•For Spark At Electrode While
Depressing Piezo
1/8" Gap To Pilot Hood Needed.
•All Wiring Connections
•Replace Piezo Ignitor
•Supply Line Hooked Up
•Shutoff Valve Open
Pilot Stays Lit
•For Air In The Lines
•Thermopile Needs A Min.
325mv. Adjust Pilot Flame
Height.
•All Wiring Connections
•Replace Thermopile
•Thermocouple Needs A Min. Of
14mv
•Defective Valve. Turn To Pilot,
Meter Should Read Greater
Than 100mv. If Not, Replace.
Pilot Lights Main Burner
•Valve Is Turned On
•Wall Switch Is Not Turned On.
Watch For Grounded Wires!
•Thermopile Needs A Min. 325mv.
•Plugged Burner Orifice
System Ok
▼
YES
NO
NO
▼
NO
▼
NO
YES
YES
YES
Troubleshooting

17
Majestic Fireplaces® NVC Series B-Vent
20000194
Troubleshooting
FP396
Gas Supply On Supply Line Hooked Up
Shutoff Valve Open
NO
NO
NO
NO
Lockout Has Engaged. Wait
60 Seconds and Try Again.
Piezo Nut Tight for Good Ground.
For Spark at Electrode While
Depressing Piezo (Red Button)
- 1/8" Gap to Pilot Hood Needed.
All Wiring Connections
Replace Piezo Ignitor
Check thermodisk
For Air in the Lines
Thermopile Needs a Minimum
325Mv. Adjust Pilot Flame Height.
All Wiring Connections.
Replace Thermopile
Thermocouple Needs a Minimum
of 14Mv.
Pilot Lights With
Piezo Ignitor
YES
YES
YES
YES
Pilot Stays Lit
Pilot Lights Main
Burner
System Ok.
START
CHECK
Valve is Turned On
Wall Switch is Not Turned On.
Watch for Grounded Wires!
Thermopile Needs a
Minimum 325Mv.
Plugged Burner Orifice.
Defective Valve. Turn to Pilot,
Meter Should Read Greater Than
100 Mv. If Not, Replace.
Nova SIT 820 Standing Pilot

18
Majestic Fireplaces® NVC Series B-Vent
20000194
Cleaning the Standing
Pilot Control System
The burner and control system consists of
• burner tube •gas orifice
• pilot assembly •thermopile
• millivolt gas valve
Most of these components may require only an occa-
sional checkup and cleaning and some may require
adjustment. If repair is necessary, it should be
performed by a qualified technician.
CAUTION: Logs may be hot!
1. Turn off pilot light at gas valve side.
2. Let fireplace cool if it has been running.
3. Remove window frame assembly. (Refer to Window
Frame Assembly Removal section)
4. Remove logs.
5. Vacuum burner compartment especially around
orifice primary air openings.
6. Visually inspect pilot. Brush or blow away any dust
or lint accumulation.
7. Reinstall logs.
8. Ignite pilot - Refer to Lighting Instructions.
9. Reinstall window frame assembly.
3/8"-1/2"
Nova SIT Pilot Electronic Ignition
FP392/585
Fig. 21 Correct pilot flame appearance.
Maintenance
Burner and Burner Compartment
It is important to keep the burner and the burner
compartment clean. At least once per year the logs and
lava rock/ember material should be removed and the
burner compartment vacuumed and wiped out. Remove
and replace the logs as per the instructions in this
manual.
Always handle the logs with care as they
are fragile and may also be hot if the
fireplace has been in use.
FK24 Fan Assembly
The fan unit requires periodic cleaning. At least once
per month in the operating season, open the lower
louvre panels and wipe or vacuum the area around the
fan to remove any build up of dust or lint.
Brass Trim
Clean the brass trim pieces using a soft cloth lightly
dampened with lemon oil. Do not use water or
household cleaners on any brass components.
To obtain proper operation, it is imperative that the pilot
and burner’s flame characteristics are steady, not lifting
or floating.
Typically, the top 3/8” or 1/2” of the thermopile should
be engulfed in the pilot flame. (Fig. 21)
To adjust pilot burner; (by qualified service technician)
1. Remove pilot adjustment cap.
2. Adjust pilot screw to provide properly sized flame.
3. Replace pilot adjustment cap.
The primary air shutter is set at factory and should only
be adjusted, if necessary, by a qualified service techni-
cian.

19
Majestic Fireplaces® NVC Series B-Vent
20000194
194
31
28
29
26
6a/b
4a/b
5
36
35
34
1a 1b
1c
1d
1e
NVC43 Logs 1
27
37
23
1a 1b
NVC36
1d
1e
1c
1e
1c
1a 1b
1d
NVC39
1
18
25
17a/b
22
19
H
I
L
O
E A
P
I
L
O
T
NOVA SIT 822
VALVE
39a/b
911b
20/21
MV MVPV PV GND
(BURNER) 24V
GND 24V SENSE SPARK
SIT Valve
12
15-16a/b
H
I
L
O
O
F
F
O
N
O
F
F
P
I
L
O
T
O
F
F
E A
P
I
L
O
T
THTP TP TH
13
8a/b
14
9
7a/b
11a
10
PILOT
ON
OFF
PILOT
ADJ
L
O
H
I
TPTH TH
TP
40 a/b
33
32
30
Vermont Castings, Majestic Products reserves the right to make changes in design, materials, specifications, prices and discontinue colors and
products at any time, without notice.
NVC36/39/43
Ref. Description NVC36 NVC39 NVC43
1. Log Set Complete 10000022 10000024 10000025
1a. Log Front Left BB6 BC5 BD6
1b. Log Front Right BB7 BC6 BD7
1c. Log Rear BE5 BC7 BD8
1d. Log Top Left BB9 BC8 BD9
1e. Log Top Right BB10 BC9 BD10
2. Lava Rock (pkg) 55255 55255 55255
3. Ember (pkg) 51915 51915 51915
4a. Burner Housing w/tile-Nat 10000027 10000033 10000029

20
Majestic Fireplaces® NVC Series B-Vent
20000194
NVC36/39/43 (continued)
Ref. Description NVC36 NVC39 NVC43
4b. Burner Housing w/tile-LP 10000028 10000694 10000030
5. Ceramic tile (Single) 57803 57803 57803
6a. Orifice Front Burner-Nat. See Rating Plate
6b. Orifice Front Burner-LP See Rating Plate
7a. Pilot Assy-LP (SIT Pilot 4 Way) 54221 54221 54221
7b. Pilot Assy - Nat. (SIT Pilot 4 Way) 54219 54219 54219
8a. Orifice Pilot - Nat. 54273 54273 54273
8b. Orifice Pilot - LP 54272 54272 54272
9. Pilot Tubing w/Fittings 53211 53211 53211
10. Electrode Ignitor 52465 52465 52465
11a. Cable Ignitor (RNRP/VN/VP) 24” 53194 53194 53194
7522432 7522432 7522432
11b. Cable Ignitor (EN/EP) 10000696 10000696 10000696
12. Ignitor Piezo 52464 52464 52464
13. Thermocouple (RN/RP/VN/VP) 53373 53373 53373
14. Thermopile (RN/RP) 51827 51827 51827
15a. Valve SIT - RN 52677 52677 52677
15b. Valve SIT - RP 52678 52678 52678
16a. Valve SIT - VP 57587 57587 57587
16b. Valve SIT - VN 57588 57588 57588
17a. Valve SIT - EN 57884 57884 57884
17b. Valve SIT - EP 57883 57883 57883
18. Manifold Tubing w/Fittings 57318 57318 57318
19. Transformer (VN/VP/EN/VP) 7522409 7522409 7522409
20. Ignition Device Synetek (EN/EP) 57899 57899 57899
21. Ignition Device Honeywell (EN/EP) 20000005 20000005 20000005
22. Sensing Electrode (EN/EP) 57885 57885 57885
23. Wire Harness (EN/EP) Synetek Ign. (not shown) 10000417 10000417 10000417
24. Wire Harness (EN/EP) Honeywell Ign. (not shown) 10000609 10000609 10000609
25. Fan w/Bracket (FK24) 54103 54103 54103
26. Electrical Cord - 6 ft. 51865 51865 51865
27. Fan Temperature Sensor 51704 51704 51704
28. Speed Control 51738 51738 51738
29. Speed Control Knob 51882 51882 51882
30. Glass w/Gasket 55686 55686 55686
31. Gasket Glass 57317 57317 57317
32. Frame Window 57937 10000695 57977
33. Clamp Frame Window 54174 54174 54174
34. Louvre Top Assy. 10000037 10000037 10000037
35. Louvre Bottom Assy. 10000038 10000038 10000038
36. Hinge 52356 52356 52356
37. Switch ON/OFF 51842 51842 51842
38. Remote Switch Kit (not shown) 53875 53875 53875
39a. Pilot Assy - Nat. 10002387 10002387 10002387
39b. Pilot Assy - LP 10002388 10002388 10002388
40a. Valve - Honeywell VS8421 - Nat. 10001782 10001782 10001782
40b. Valve - Honeywell VS8421 - LP 10001759 10001759 10001759
