Majestic fireplaces NVC36 User manual

Decorative Gas Fireplace
Installation and Homeowners
Operating Instructions
PLEASE READ THIS MANUAL
BEFORE INSTALLING AND USING
APPLIANCE
IMPORTANT: Read all instructions
and warnings carefully before starting
installation. Failure to follow these
instructions may result in a possible
fire hazard and will void the warranty.
WARNING: If the information in this
manual is not followed exactly, a fire or
explosion may result causing property
damage, personal injury or loss of life.
FOR YOUR SAFETY
Installation and service must be
performed by a qualified installer,
service agency, or the gas supplier. Do
not store or use gasoline or other
flammable vapors and liquids in the
vicinity of this or any other appliance.
FOR YOUR SAFETY
If you smell gas:
• Do not touch electrical switches.
• Do not try to light any appliance.
• Do not use the phone in your building.
• Immediately call your gas supplier from
a neighbor's phone.
• Follow your gas supplier's instructions.
• If you cannot reach your gas supplier,
call the fire department.
INSTALLER/CONSUMER
SAFETY INFORMATION
Models: NVC36, NVC39, NVC43
CERTIFIED
D
E
S
I
G
N
C
E
R
T
I
F
I
E
D
20000194 11/07 Rev. 7
GF461
NVC cover
3/3/97
INSTALLER: Leave this manual with the appliance.
CONSUMER: Retain this manual for future reference.

2
NVC Series B-Vent
20000194
Table of Contents
Thank you and Congratulations on your purchase of a
CFM Corporation fireplace.
PLEASE READ THE INSTALLATION & OPERATING INSTRUCTIONS BEFORE USING THE APPLIANCE
IMPORTANT: Read all instructions and warnings carefully before starting installation. Failure to follow these
instructions may result in a possible fire hazard and will void the warranty.
Installation Instructions
General Information, Warnings, Cautions ..........................................................................3
Requirements for the Commonwealth of Massachusetts ....................................................4

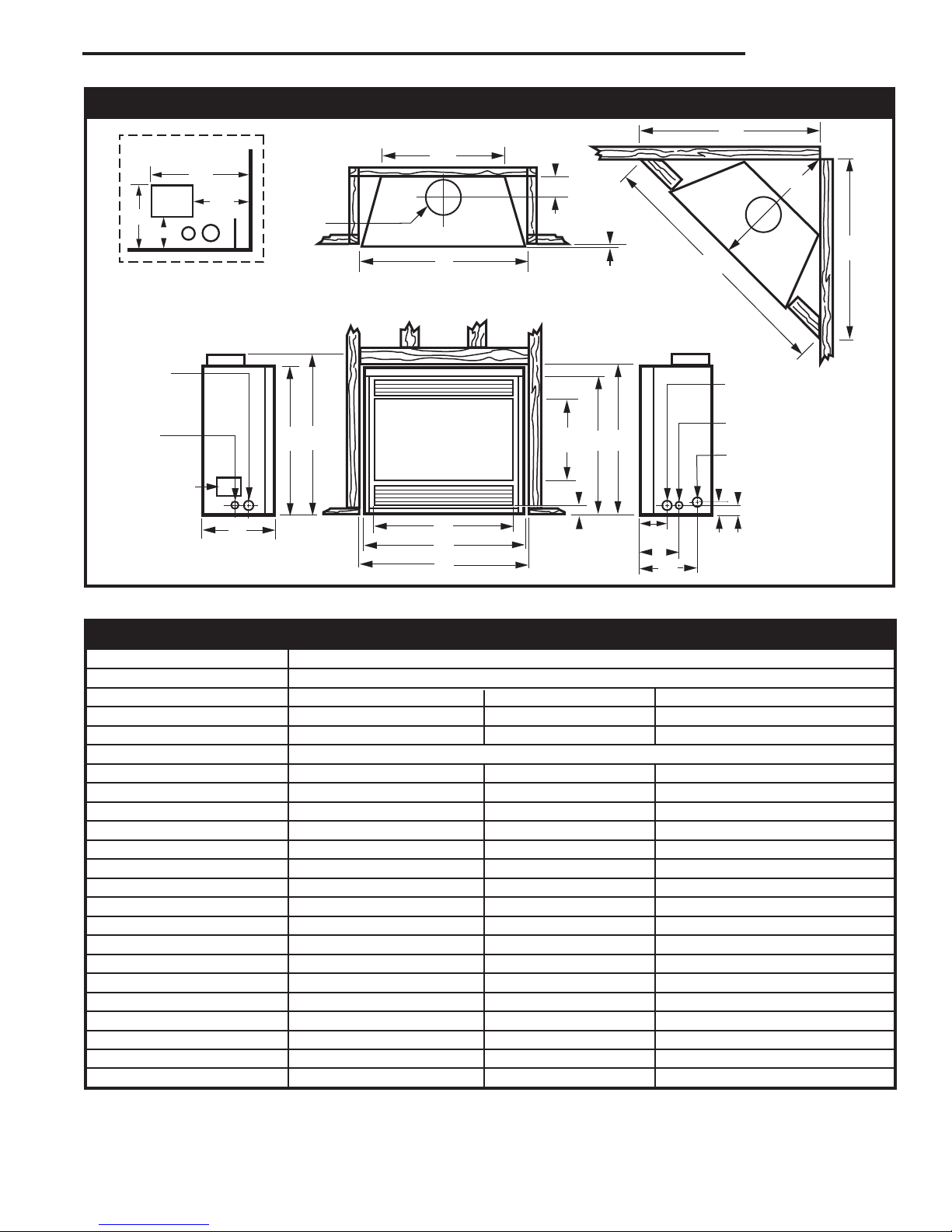

Fireplace Dimensions ..........................................................................................................5
Clearance to Combustibles .................................................................................................6
Mantels ...............................................................................................................................6
Hearth ...............................................................................................................................6
Framing and Finishing .........................................................................................................7
Final Finishing .....................................................................................................................7
Gas Specifications ...............................................................................................................7
Gas Inlet & Manifold Pressures ...........................................................................................7
High Elevations ................................................................................................................... 7
Gas Line Installation ............................................................................................................8
Remote Switch Installation ..................................................................................................8
Alternate Switch Location ....................................................................................................8
EB-1 Electrical Box ..............................................................................................................9
Install Venting System, Flashing and Termination ............................................................... 9
Operating Instructions
Glass Information .............................................................................................................. 11
General Maintenance ........................................................................................................ 11
Louvre Removal ................................................................................................................ 11
Window Frame Assembly Removal ................................................................................... 11
Glass Cleaning .................................................................................................................. 11
Log Installation ..................................................................................................................12
Lava Rock, Ember Material Placement .............................................................................12
Flame Adjustment ..............................................................................................................12
Flame Characteristics ........................................................................................................12
Inspecting the Venting System ..........................................................................................13
Test Chimney Draw ...........................................................................................................13
First Firing ......................................................................................................................... 13
Lighting and Operating Instructions ...................................................................................14
Vent Safety Switch ............................................................................................................15
Electrical Connection .........................................................................................................15
Troubleshooting ................................................................................................................. 16
Maintenance
Cleaning the Standing Pilot Control System ..................................................................... 19
Replacement Parts
Part Pictorial ......................................................................................................................20
Parts List ........................................................................................................................... 21
Optional Accessories
Fan Kits 22
Wiring Instructions .............................................................................................................23
Remote Controls ............................................................................................................... 24
Ceramic Refractory Panels ............................................................................................... 24
Arched Door Kit .................................................................................................................24
Decorative Bay Windows .................................................................................................. 25
EB-1 Receptacle Box ........................................................................................................25
Decorative Frame Trims ....................................................................................................25
Warranty ........................................................................................................................................27
Energuide ......................................................................................................................................28

3
NVC Series B-Vent
20000194
Installation & Operating Instructions
This gas appliance must be installed by a qualified installer,
preferably NFI or WETT (Canada) certified, in accordance with
local building codes and with current CSA-B149.1 Natural Gas
and Propane Installation Code. If the unit is being installed in
a mobile home, the installation should comply with the current
CAN/CSA Z 240.4 code. For U.S.A Installations follow local
codes and/or the current National Fuel Gas Code ANSI Z223.1/
NFPA 54.
FOR SAFE INSTALLATION AND OPERATION PLEASE
NOTE THE FOLLOWING:
1. This appliance gives off high temperatures and should be
located out of high traffic areas and away from furniture and
draperies.
2. Children and adults should be alerted to the hazards of the
high surface temperatures of this appliance and should stay
away to avoid burns or ignition of clothing.
3. CAUTION: Due to high glass surface temperature, chil-
dren should be carefully supervised when in the same
room as fireplace.
ance must be installed on a metal or wood panel extending
the full width and depth of the appliance.
12.This appliance requires adequate ventilation and combustion
air to operate properly.
13.This fireplace must not be connected to a chimney flue serv-
ing a separate solid fuel burning fireplace.
14.When the fireplace is not in use it is recommended that the
gas valve be left in the OFF position.
The appliance and its individual shutoff valve must be discon-
nected from the gas supply piping system during any pressure
testing of that system at test pressures in excess of 1/2 psig
(3.45 kPa).
This appliance may be installed in an aftermarket
permanently located, manufactured home or mobile
home, where not prohibited by local codes.
This appliance is only for use with the type of gas
indicated on the rating plate. This appliance is not
convertible for use with other gases, unless a certified
kit is used.
Proposition 65 Warning: Fuels used in gas, wood-
burning or oil fired appliances, and the products of
combustion of such fuels, contain chemicals known
to the State of California to cause cancer, birth de-
fects and other reproductive harm.
California Health & Safety Code Sec. 25249.6
IMPORTANT:
PLEASE READ THE FOLLOWING CAREFULLY
Remove any plastic from trim parts before turning the
fireplace ON.
It is normal for fireplaces fabricated of steel to give off
some expansion and/or contraction noises during the
start up or cool down cycle. Similar noises are found
with your furnace heat exchanger or car engine.
It is not unusual for your gas fireplace to give off some
odor the first time it is burned. This is due to the curing
of the paint and any undetected oil used in the manu-
facturing process.
Please ensure that your room is well ventilated -
open all windows.
It is recommended that your burn your fireplace for at
least ten (10) continuous hours the first time you use
it. If the optional fan kit has been installed, place the
fan switch in the “OFF” position during this time.
WARNING: Check with your electronics manufacturer
before installing a television or other electronic de-
vice above this fireplace.

�






4. Under no circumstances should this appliance be modified.
Parts having to be removed for servicing should be replaced
prior to operating this appliance again.
5. Installation and any repairs to this appliance should be car-
ried out by a qualified service person. A professional service
person should be contacted to inspect this appliance an-
nually. Make it a practice to have all of your gas appliances
checked annually. More frequent cleaning may be required
due to excess lint and dust from carpeting, bedding material,
etc.
6. Control compartments, burners and air passages in this ap-
pliance should be kept clean and free of dust and lint. Make
sure that the gas valve and pilot light are turned off before
you attempt to clean this unit.
7. The venting system (chimney) of this appliance should be
checked at least once a year and if needed your venting
system should be cleaned.
8. Keep the area around your appliance clear of combustible
materials, gasoline and other flammable vapor and liquids.
This appliance should not be used as a drying rack for cloth-
ing, nor should Christmas stockings or decorations be hung
in the area of it.
9. Under no circumstances should any solid fuels (wood, coal,
paper or cardboard etc.) be used in this appliance.
10.The flow of combustion and ventilation air must not be ob-
structed in any way.
11.Whether the appliance is installed directly on carpeting, vinyl
tile or any combustible material other than wood, this appli-
NVC36 / NVC39 / NVC43
CERTIFIED To
ANSI Z21.50b-2005 / CSA 2.22b-2005
Vented Decorative Gas Fireplace

4
NVC Series B-Vent
20000194
Installation & Operating Instructions
Requirements for the Commonwealth of
Massachusetts
All gas fitting and installation of this heater shall only be
done by a licensed gas fitter or licensed plumber.
For all side wall horizontally vented gas fueled
equipment installed in every dwelling, building or
structure used in whole or in part for residential
purposes, including those owned or operated by the
Commonwealth and where the side wall exhaust vent
termination is less than seven (7) feet above finished
grade in the area of the venting, including but not limited
to decks and porches, the following requirements shall
be satisfied:
Installation of Carbon Monoxide Detectors
At the time of installation of the side wall horizontal
vented gas fueled equipment, the installing plumber
or gas fitter shall observe that a hard wired carbon
monoxide detector with an alarm is installed on each
additional level of the dwelling, building or structure
served by the side wall horizontally vented gas fueled
equipment. It shall be the responsibility of the property
owner to secure the services of qualified licensed
professionals for the installation of hard wired carbon
monoxide detectors.
In the event that the side wall horizontally vented gas
fueled equipment is installed in a crawl space or an
attic, the hard wired carbon monoxide detector with
alarm and battery back-up may be installed on the next
adjacent floor level.
In the event that the requirements of this subdivision
can not be met at the time of completion of installation,
the owner shall have a period of thirty (30) days
to comply with the above requirements; provided,
however, that during said thirty (30) day period, a
battery operated carbon monoxide detector with an
alarm shall be installed.
Approved Carbon Monoxide Detectors
Each carbon monoxide detector as required
in accordance with the above provisions shall
comply with NFPA 720 and ANSI/UL 2034
listed and IAS certified.
Signage
A metal or plastic identification plate shall be
permanently mounted to the exterior of the building at
a minimum height of eight (8) feet above grade directly
in line with the exhaust vent terminal for the horizontally
vented gas fueled heating appliance or equipment. The
sign shall read, in print size no less than one-half (1/2)
inch in size, “GAS VENT DIRECTLY BELOW, KEEP
CLEAR OF ALL OBSTRUCTIONS”.
Inspection
The state or local gas inspector of the side wall
horizontally vented gas fueled equipment shall not
approve the installation unless, upon inspection, the
inspector observes carbon monoxide detectors and
signage installed in accordance with the provisions of
248 CMR 5.08(2)(a)1 through 4.
Exemptions
The following equipment is exempt from 248 CMR
5.08(2)(a)1 through 4:
• The equipment listed in Chapter 10 entitled
“Equipment Not Required To Be Vented” in the most
current edition of NFPA 54 as adopted by the Board;
and
• Product Approved side wall horizontally vented gas
fueled equipment installed in a room or structure
separate from the dwelling, building or structure
used in whole or in part for residential purposes.
MANUFACTURER REQUIREMENTS
Gas Equipment Venting System Provided
When the manufacturer of Product Approved side
wall horizontally vented gas equipment provides a
venting system design or venting system components
with the equipment, the instructions provided by the
manufacturer for installation of the equipment and the
venting system shall include:
• Detailed instructions for the installation of the venting
system design or the venting system components;
and
• A complete parts list for the venting system design or
venting system.
Gas Equipment Venting System NOT
Provided
When the manufacturer of a Product Approved side
wall horizontally vented gas fueled equipment does
not provide the parts for venting the flue gases, but
identifies “special venting systems”, the following
requirements shall be satisfied by the manufacturer:
• The referenced “special venting system” instructions
shall be included with the appliance or equipment
installation instructions; and
• The “special venting systems” shall be Product
Approved by the Board, and the instructions for
that system shall include a parts list and detailed
installation instructions.
A copy of all installation instructions for all Product
Approved side wall horizontally vented gas fueled
equipment, all venting instructions, all parts lists
for venting instructions, and/or all venting design
instructions shall remain with the appliance or
equipment at the completion of the installation.

5
NVC Series B-Vent
20000194
A
D
N
M
N
A
BS
G
HJ
Gas Line
Access - 2" Dia.
Gas Line
Access
2" Dia.
Finished Wall
Thickness
6"
Flue
Rough
Opening
Height
Rough Opening Width
Rough
Opening
Depth
C
Electrical Cable
Knock-out - 1" Dia.
E
L
F
K
P
Q
R
Electrical Box
Knock-out - 2" Dia.
Electrical
Cable
Knock-out
1" Dia.
C
L
Outside
Air Access
(See inset A)
T


U V
FP378
INSET A
5"
7"
3"
10"
10" = 254mm
7" = 187mm
5" = 149mm
3" = 92mm
Fireplace Dimensions
Do not install
header until
unit is in place.
Fig. 1 Fireplace specifications and framing dimensions.
Ref. NVC36 NVC39 NVC43
Framing Dimensions
A 36¹⁄₂" (927 mm) 39¹⁄₂" (1003 mm) 43¹⁄₂" (1105 mm)
B 34³⁄₄" (883 mm) 35" (889 mm) 37¹⁄₂" (953 mm)
C 14¹⁄₂" (362 mm) 16¹⁄₂" (419 mm) 16¹⁄₂" (419 mm)
Appliance Dimensions
D 36" (914 mm) 39" (991 mm) 43" (1092 mm)
E 21" (533 mm) 21" (533 mm) 23¹⁄₂" (597 mm)
F 1" (25 mm) 1" (25 mm) 1" (25 mm)
G 5¹⁄₂" (140 mm) 6⁵⁄₁₆" (160 mm) 5¹⁄₂" (140 mm)
H 7³⁄₄" (197 mm) 8²¹⁄₃₂" (220 mm) 8" (203 mm)
J 2" (51 mm) 2" (51 mm) 2" (51 mm)
K 20" (508 mm) 24" (610 mm) 31" (787 mm)
L 6" (152 mm) 6¹⁄₂" (165 mm) 5³⁄₄" (146 mm)
M 47⁵⁄₈" (1210 mm) 56" (1422 mm) 62⁵⁄₈" (1591 mm)
N 33⁵⁄₈" (854 mm) 40" (1016 mm) 44¹⁄₄" (1124 mm)
P 24¹⁄₂" (622 mm) 28⁹⁄₁₆" (726 mm) 32" (813 mm)
Q 10³⁄₄" (273 mm) 12¹³⁄₃₂" (315 mm) 12" (305 mm)
R 4" (102 mm) 4" (102 mm) 4" (102 mm)
S 32³⁄₄" (832 mm) 32³⁄₄" (832 mm) 35¹⁄₂" (902 mm)
T 33" (838 mm) 36" (914 mm) 40" (1016 mm)
U 34¹⁄₄" (870 mm) 34¹⁄₄" (870 mm) 37" (940 mm)
V 36¹⁄₂" (927 mm) 37¹⁄₄" (946 mm) 39¹⁄₄" (997 mm)
Appliance Dimensions

6
NVC Series B-Vent
20000194
Clearance to Combustibles
Appliances
Top .......................................................... 0” (0 mm)
Bottom ..................................................... 0” (0 mm)
Side ......................................................... 0” (0 mm)
Back ........................................................ 0” (0 mm)
Perpendicular Sidewall ........................... 0” (0 mm)
Top of unit to ceiling .......................... 36” (914 mm)
Front of unit to combustibles ............. 36” (914 mm)
Venting
B-Vent ................................................... 1” (25 mm)
Mantels

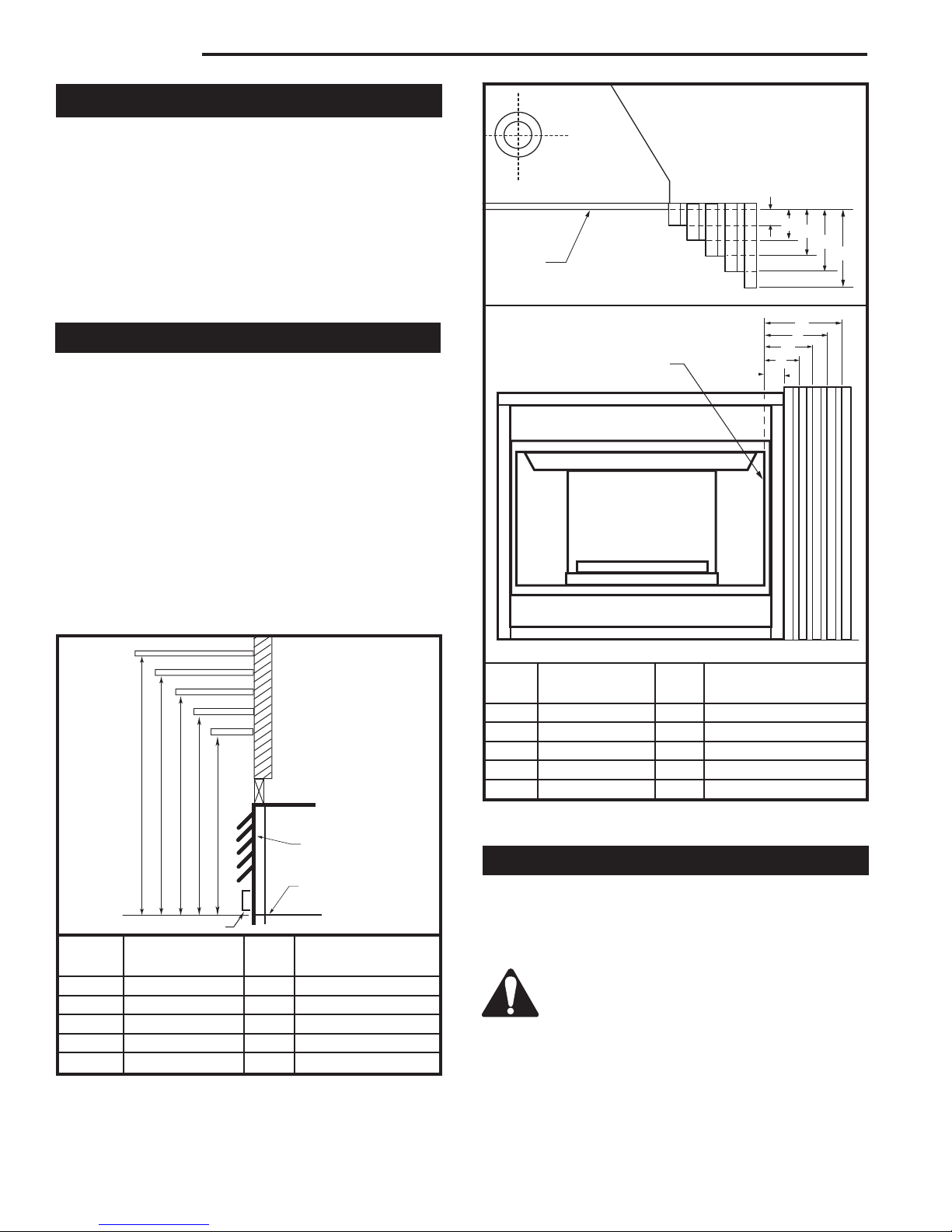

The height that a combustible mantel is fitted above the
fireplace is dependent on the depth of the mantel. This
also applies to the distance between the mantel leg (if
fitted) and the fireplace.
For the correct mounting height and widths refer to
Figures 2a and 2b and the Mantel Chart below.
The distances and reference points are not affected by
the fitting of a bay window front trim kit.
Noncombustible mantels and legs may be installed at
any height and width around the appliance.
When using a paint or lacquer to finish the mantel,
such paint or lacquer must be heat resistant to prevent
discoloration.
A B C D E
V
W
X
Y
Z
Fireplace
CFM146
DV Mantel Chart
7/5/01 sta
Ref. Mantel Ref. Mantel From Top
Shelf Depth of Comb. Chamber
V 10" (254 mm) A 19¹⁄₂" (495 mm)
W 8" (203 mm) B 17¹⁄₂" (444 mm)
X 6" (152 mm) C 15¹⁄₂" (394 mm)
Y 4" (101 mm) D 13¹⁄₂" (343 mm)
Z 2" ( 51 mm) E 11¹⁄₂" (292 mm)
Fig. 2a Mantel clearances.
Side View
CFM146
Top of
Combustion Chamber
Bottom of Door Trim
Top Louvre Assembly
J
F
G
H
I
Mantel
Leg
CFM164a
Mantel Leg Chart
06/22/01 sta
Ref. Mantel Ref. Mantel Leg From Side
Leg Depth of Comb. Opening
F 10" (254 mm) K 12" (305 mm)
G 8" (203 mm) L 10" (254 mm)
H 6" (152 mm) M 8" (203 mm)
I 4" (101 mm) N 6" (152 mm)
J 2" ( 51 mm) O 4" (101 mm)
CFM170
DV Builder Front
View
O
N
M
L
K
CFM164
CFM170
Fig. 2b Combustible mantel leg minimum installation.
Side of
Combustion Chamber
Black
Surround
Face
Hearth
A hearth is not mandatory but is recommended for
aesthetic purposes. We recommend a noncombustible
hearth.
Cold climate installation recommendation: When
installing this unit against a noninsulated
exterior wall or chase, it is mandatory that
the outer walls be insulated to conform to
applicable insulation codes.

7
NVC Series B-Vent
20000194

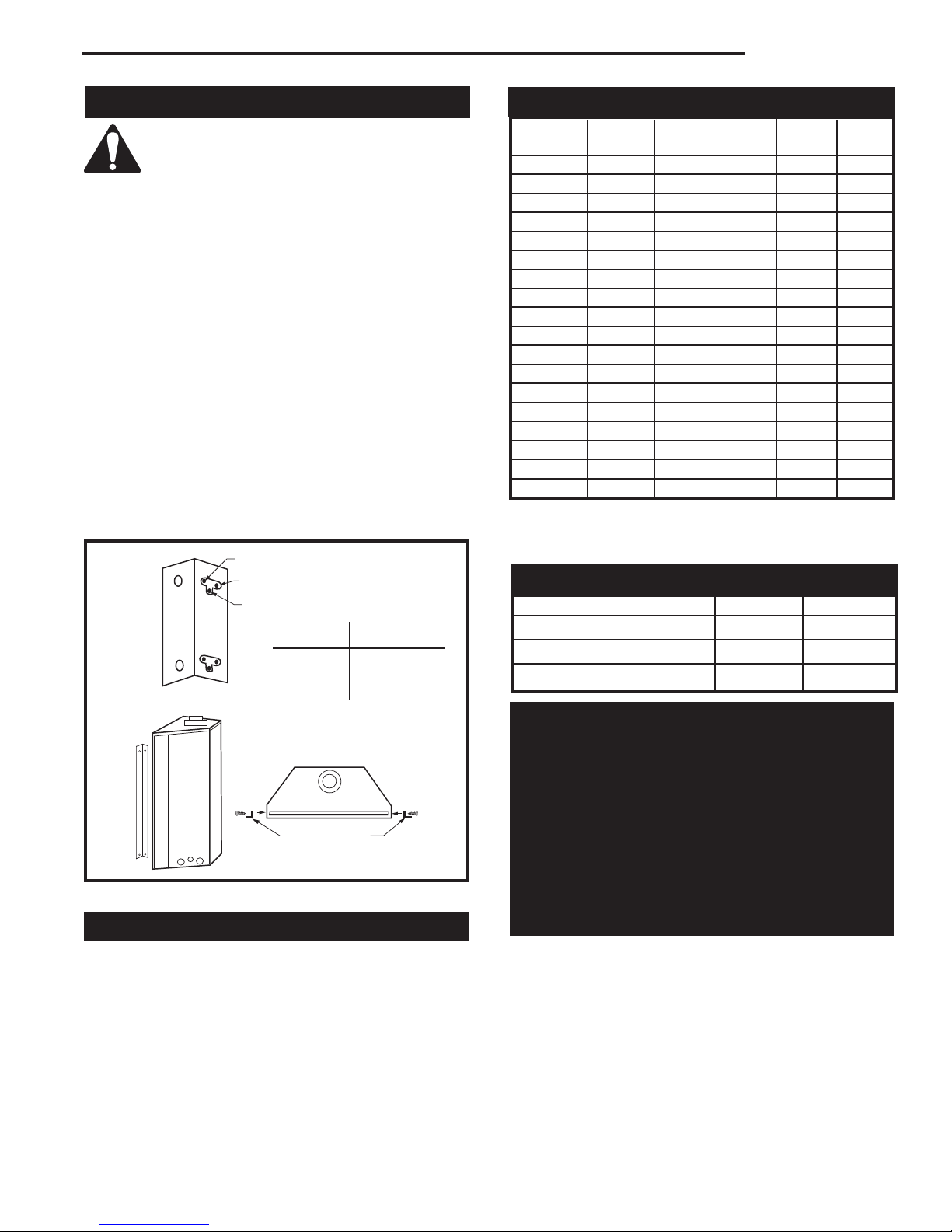

Gas Specifications
1. Choose the unit location.
2. Place the unit into position and secure it to the floor
with 1¹⁄₂” (38mm) screws, or nails. The holes to
secure the unit to floor are located just behind the
access door grille on the left and right side of the
unit.
3. Frame in the fireplace with a header across the top.
It is important to allow for the finished wall face when
setting the depth of the frame.
4. Attach the fireplace to the frame using the adjustable
frame drywall strips (located behind the access door
for shipping). Preset the depth to suit the facing
material of the wall. The strips are adjustable to 1/2”
(13 mm), 5/8” (16 mm), or 3/4” (19 mm). (Fig. 4)
5. Screw through the slotted holes in the drywall strip
and into pre-drilled holes in fireplace side. Measure
from face of fireplace to the face of the drywall strip
to confirm the final depth.
Check fireplace to make sure it is levelled
and properly positioned.
Framing and Finishing
Final Finishing
Noncombustible materials such as brick or tile may be
extended over the edges of the face of the appliance.
DO NOT cover the window frame assembly, any
vent, louvre top assembly or louvre bottom assem-
bly.
If a Trim Kit is going to be installed on the fireplace, the
brick or tile will have to be installed flush with the edges
of the appliance.
High Elevations
Input ratings are shown in BTU per hour and are
certified without deration for elevations up to
4,500 feet (1,370m) above sea level.
For elevations above 4,500 feet (1,370m) in USA,
installations must be in accordance with the
current ANSI Z223.1/NFPA 54 and/or local codes
having jurisdiction.
In Canada, please consult provincial and/or local
authorities having jurisdiction for installations at
elevations above 4,500 feet (1,370m).
Natural LP
Minimum Inlet Pressure 5.5" w.c. 11.0" w.c.
Maximum Inlet Pressure 14.0" w.c. 14." w.c.
Manifold Pressure 3.5" w.c. 10.0" w.c.
Gas Inlet & Manifold Pressures
FP1023
side nailing flange
1/27/00 djt
A
B
C
Fig. 4 Adjustable drywall strip (nailing flanges).
Adjustable Drywall Strip
(Nailing Flange)
Screw Drywall
Position Depths
A 1/2” / 13 mm
B 5/8” / 16 mm
C 3/4” / 19 mm
FP1023
Adjustable
1/2”, 5/8” &
3/4” Spacing
Max. Min.
Model Fuel Gas Control Input Input
NVC36RN Natural Millivolt Hi/Lo 25,000 17,500
NVC36RP Propane Millivolt Hi/Lo 25,000 18,750
NVC36VN Natural 24V Hi/Lo* 25,000 17,500
NVC36NP Propane 24V Hi/Lo* 25,000 18,750
NVC36EN Natural Electronic Ignition 25,000 17,500
NVC36EP Propane Electronic Ignition 25,000 18,750
NVC39RN Natural Millivolt Hi/Lo 30,000 21,000
NVC39RP Propane Millivolt Hi/Lo 30,000 22,500
NVC39VN Natural 24V Hi/Lo* 30,000 21,000
NVC39VP Propane 24V Hi/Lo* 30,000 22,500
NVC39EN Natural Electronic Ignition 30,000 21,000
NVC39EP Propane Electronic Ignition 30,000 22,500
NVC43RN Natural Millivolt Hi/Lo 33,000 23,100
NVC43RP Propane Millivolt Hi/Lo 33,000 24,750
NVC43VN Natural 24V Hi/Lo* 33,000 23,100
NVC43VP Propane 24V Hi/Lo* 33,000 24,750
NVC43EN Natural Electronic Ignition 33,000 23,100
NVC43EP Propane Electronic Ignition 33,000 24,750
NOTE: VN and VP models are for use the PVS-1 Power
Vent System.

8
NVC Series B-Vent
20000194
Gas Line Installation
When purging gas line the fornt glass must
be removed. Purging gas lines must com-
ply with ANSI Z223.1/NFPA 54 in USA and
CSA B149.1 in Canada.
The gas pipeline can be brought in through the right or
left side of the appliance, as well as the bottom. Knock-
outs are provided at convenient locations to allow for
the gas pipe installation and testing of any gas connec-
tion. It is most convenient to bring the gas line in from
the right side, as this allows fan installation or removal
without disconnecting the gas line.
The gas line connection can be made with properly
tinned 3/8" copper tubing, 1/2" rigid pipe or an approved
flex connector, then reduced to 3/8" (R Models) or 1/2"
(E Models) to the appliance. Because some municipali-
ties have some additional local codes, it is always best
to consult your local authority and the CSA-B149.1
installation code.
For US installations consult the current National Fuel
Gas Code, ANSI Z223.1/NFPA 54 .
Always check for gas leaks with a mild
soap and water solution applied with a
brush no larger than 1" (25mm). Never
aply soap and water solution with a spray
bottle. Do not use an open flame for leak
testing.
The fireplace valve must not be subjected
to any test pressures exceeding 1/2 psi.
Isolate or disconnect this or any other gas
appliance control from the gas line when
pressure testing.
The gas control is equipped with a captured screw type
pressure test point, therefore it is not necessary to pro-
vide a 1/8" test point up stream of the control.
When using copper or flex connector use only approved
fittings. Always provide a union so that gas line can
be easily disconnected for burner or fan servicing. Re-
fer to gas specification for pressure details and ratings.
NOTE: If flex connector is used, it must be kept inside
of the appliance. (Fig. 5)
Remote Switch Installation
1. Thread wire through the electrical knockout located
on either side of unit. Do not cut wire or insulation on
metal edges. Ensure that wire is protected. Run the
other end to a conveniently located wall receptacle
box.
2. Attach wire to switch and install switch into receptacle
box. Attach cover plate to switch.
3. Connect wiring to gas valve. (Figs. 19 or 20, Page
14)
Alternate Switch Location
Remote switch can be installed on either side of the ac-
cess door. Simply mount the switch to the switch bracket
provided. Screw the bracket on either side of the frame,
lining up the screws with the pre-punched holes. (Fig. 7)
1/2" Gas Supply
1/2" x 3/8" Shut-off Valve
3/8" Union
3/8" Nipple
3/8"
Nipple
1/2" Gas Supply
1/2" x 1/2" Shut-off Valve
1/2" Union
1/2" Nipple
1/2"
Nipple
GF413
nvt GAS SUPPLY INSTALL
12/16/96
"R" Model
Supply Line
"E" Model
Supply Line

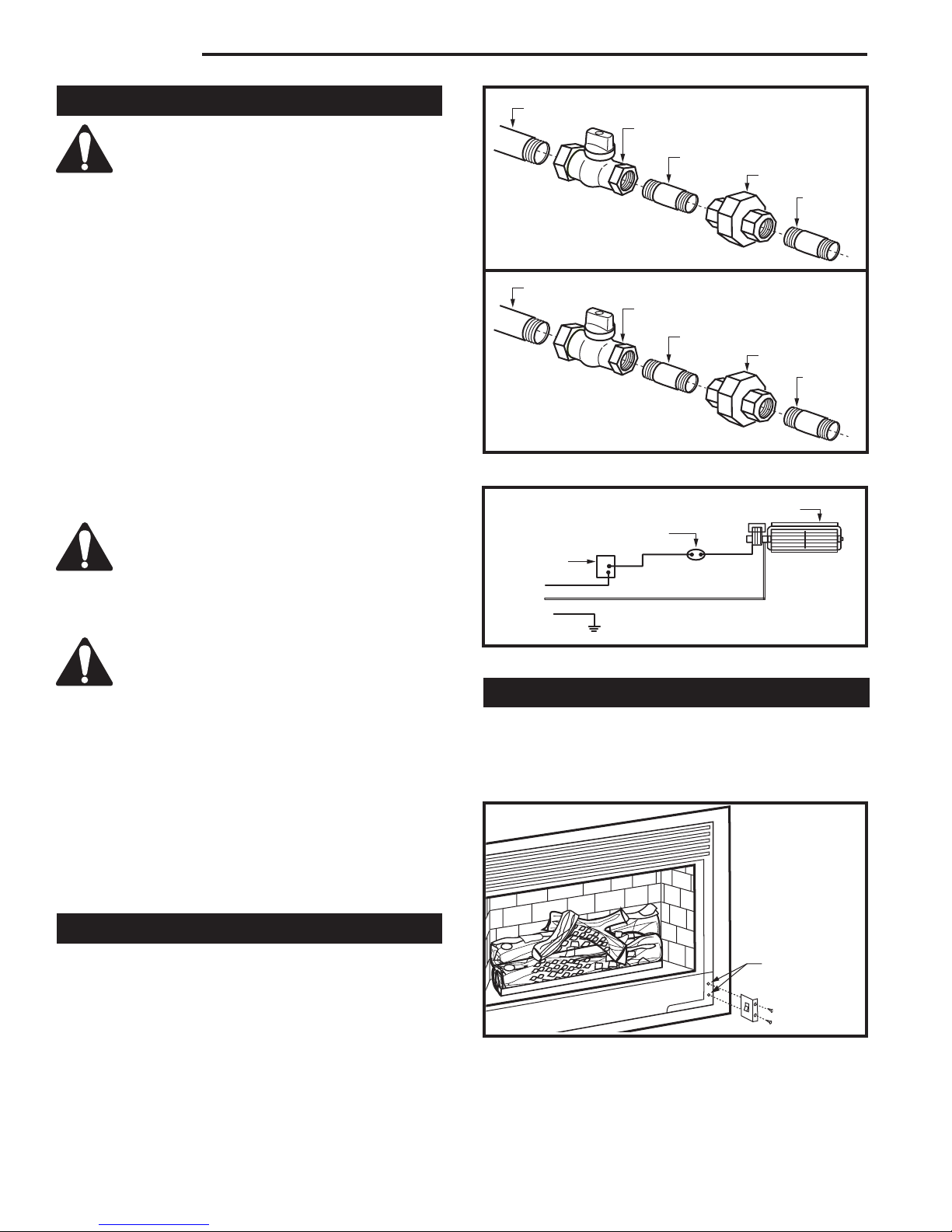

Fig. 5 Typical gas supply installation.
FP413
Fig. 6 Wiring diagram.
FP394
Black
White
Ground
Fan
Temperature
Sensor
Speed
Control
FP394
WIRING DIAGRAM
11/20/96
Fig. 7 Installing remote switch bracket.
FP381
FP381
NVC/UVC-Remote switch bracket
11/12/98
Pre-punched
Holes

9
NVC Series B-Vent
20000194
The fireplace, when installed, must be
electrically connected and grounded in
accordance with local codes or, in the ab-
sence of local codes, with the current CSA
C22.1 Canadian Electrical Code
For USA installations follow the local
codes and the national electrical code
ANSI/NFPA No. 70.
It is strongly suggested that the wiring of
the EB-1 Electrical Junction Box be carried
out by a licensed electrician.
Ensure that the power to the supply line
has been disconnected before commenc-
ing this procedure.
The EB-1 Electrical junction box has been supplied
standard on the DVRT 36/39/43 models to allow for the
easy installation of an optional fan kits .
To connect the EB-1 box to the house electrical supply
follow the steps below.
1. Unscrew the retaining screw from the EB-1 base
plate (Fig. 8) and remove the EB-1 assembly from
the fireplace.
2. Remove the front cover of the EB-1 box.
3 Remove the plug socket assembly from the EB-1 box.
4. Feed the supply line in from the outside through the
cable clamp. (Fig. 8)
5. Connect black wire of the power supply line to the
brass screw (polarized) of the socket assembly.
6. Connect the white wire of the power line to the
chrome screw of the socket assembly.
7. Connect the ground wire of the supply line to the
green screw of the socket assembly.
8. Refit the socket assembly back into the electrical
box and replace the cover plate. Secure the cable
with the clamp on the outside of the unit to prevent
strain on the connections.
9. The EB-1 electrical junction box is now ready to sup-
ply power to the FK12 or FK24 fan kits if fitted.

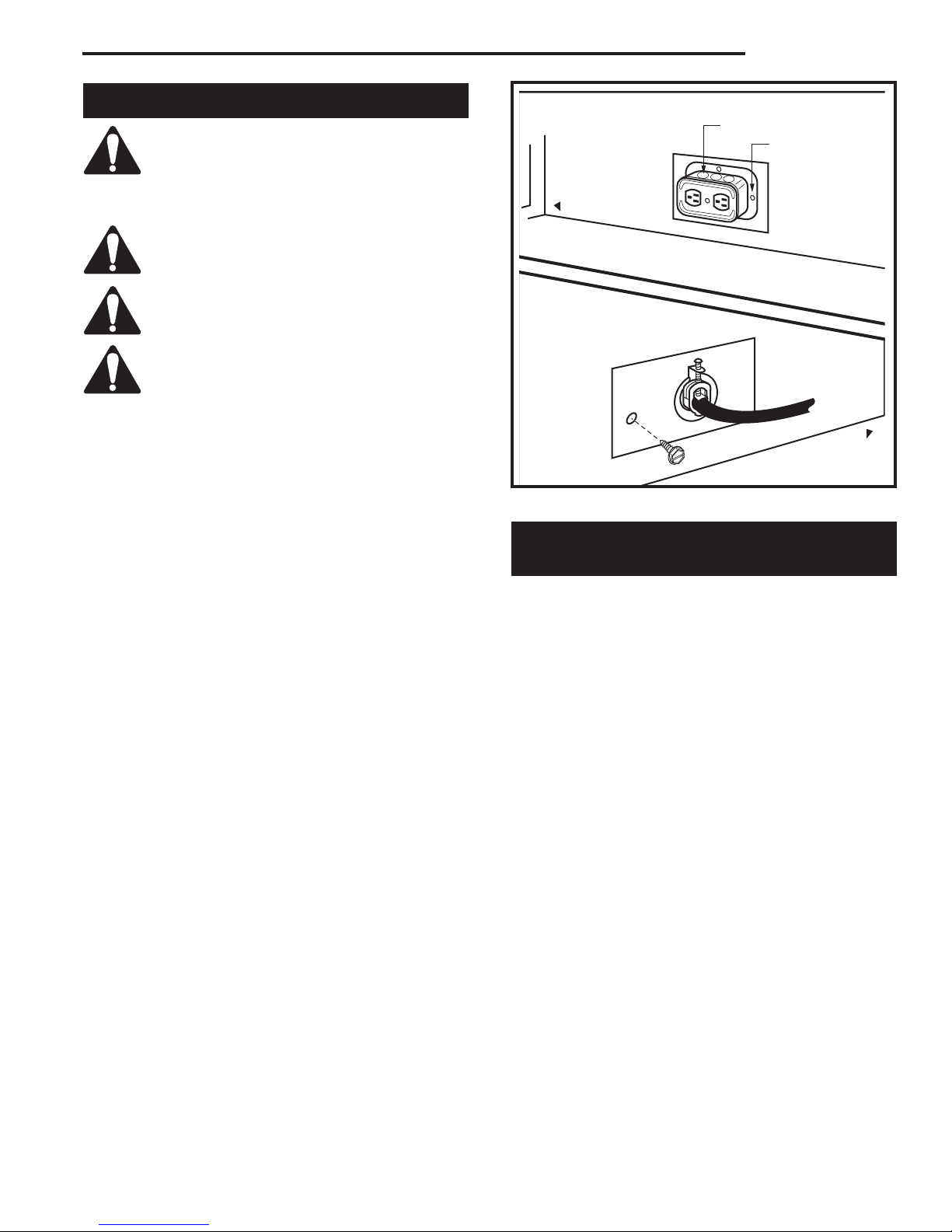

EB-1 Electrical Box
FP580
INSTA VENT FREE
EB1 JUNCTION BOX
11/18/97
Outside
Electrical Box
Front of Unit
Inside
Front of Unit
Retaining Screw
FP580
Fig. 8 EB-1 receptacle.
Install the Venting System,
Flashing and Termination
Refer to venting installation instructions provided by the
B-Vent manufacturer.
Refer to Figure 1, Page 3 to locate chimney center line
dimension from a combustible back wall.
• Minimum vertical chimney height — 12' (3.65 m)
• Maximum vertical height — 40' (12 m)
• Minimum height with two elbows — 12' (3.65 m)
• Elbow requirements allow a maximum of two 90°
elbows or four 45° elbows per installation. (Two
45° elbows = One 90° elbow.) See venting chart
for proper elbow offset runs.
For firestop positioning, refer to Figure 9. Only one (1)
firestop required per frame. NOTE: A firestop is not
required at the roof.

10
NVC Series B-Vent
20000194
Fig. 9 Firestop/draftstop positions.
Ceiling Installation
FP384 
FIRESTOP
11/21/96
adapted from IGF53
Attic Installation
Firestop position when area above ceiling is an attic.
Firestop position when area above ceiling is NOT an attic.
(Firestop/draftstop 
appearances may 
vary. Only 1 firestop 
required per frame.)
Firestop
Spacer
Nails (4)
Joist


FP384

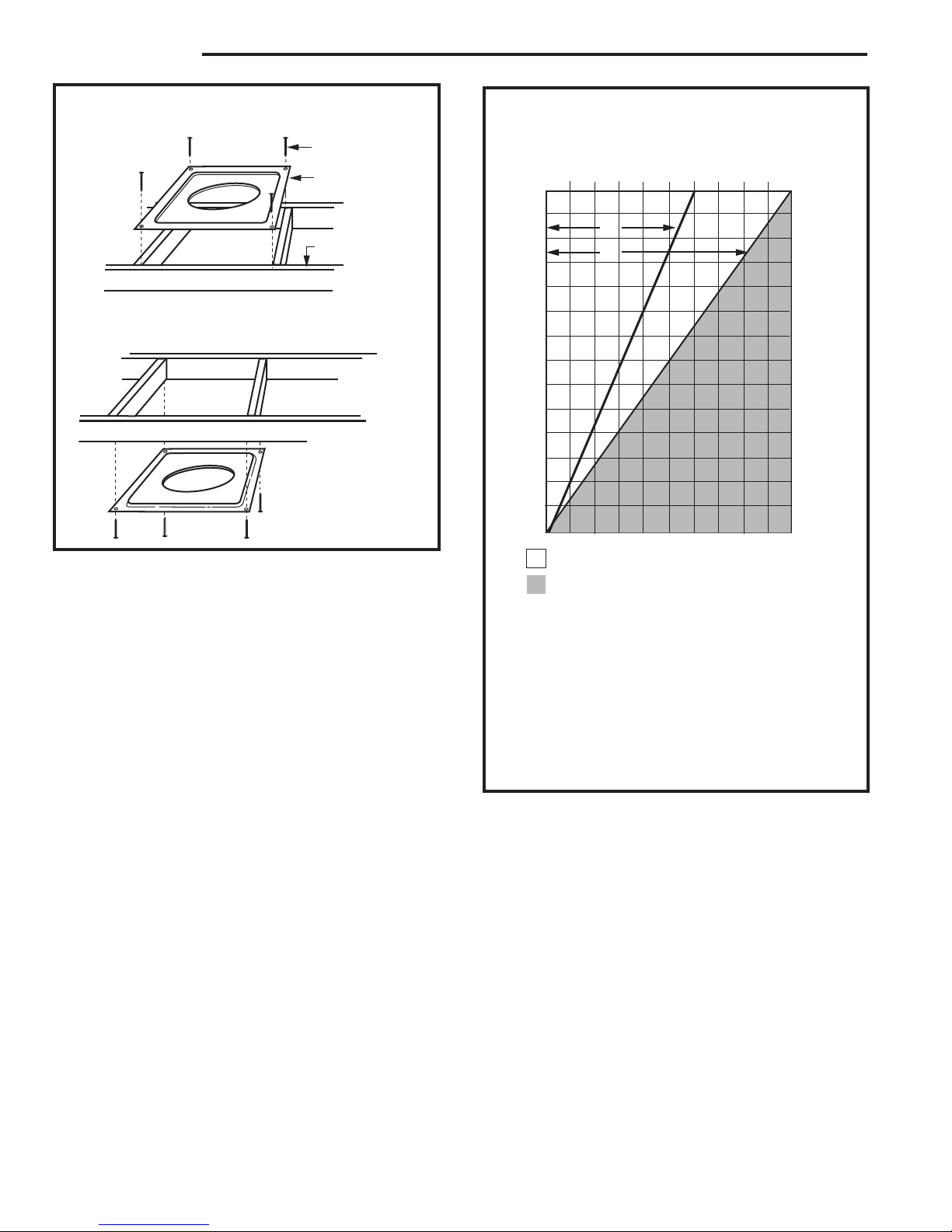

Table 1 Venting configurations.
FP567a
NVBR/NVBC VENTING RUNS
11/12/97
Venting Runs
40
38
36
34
32
30
28
26
24
22
20
18
16
14
12
8 9 10 11 12
3 4 5 6 7
Horizontal Run (in feet)
Vertical Run (in feet)
(Measured from floor of unit tocenter of horizontal vent pipe.)
A
A: Vertical installations up to 40 feet (12m) in 
height. Up to a 8 ft. horizontal vent run can be
installed within the vent system using a 
maximum of two 90-degree elbows or four 
45-degree elbows.

B: Vertical installations up to 40 feet (12m) in 
height. Up to a 12 ft. horizontal vent run can be
installed within the vent system using a 
maximum of two 45-degree elbows.
B
= Acceptable venting configuration
= Unacceptable venting configuration
FP567a

11
NVC Series B-Vent
20000194

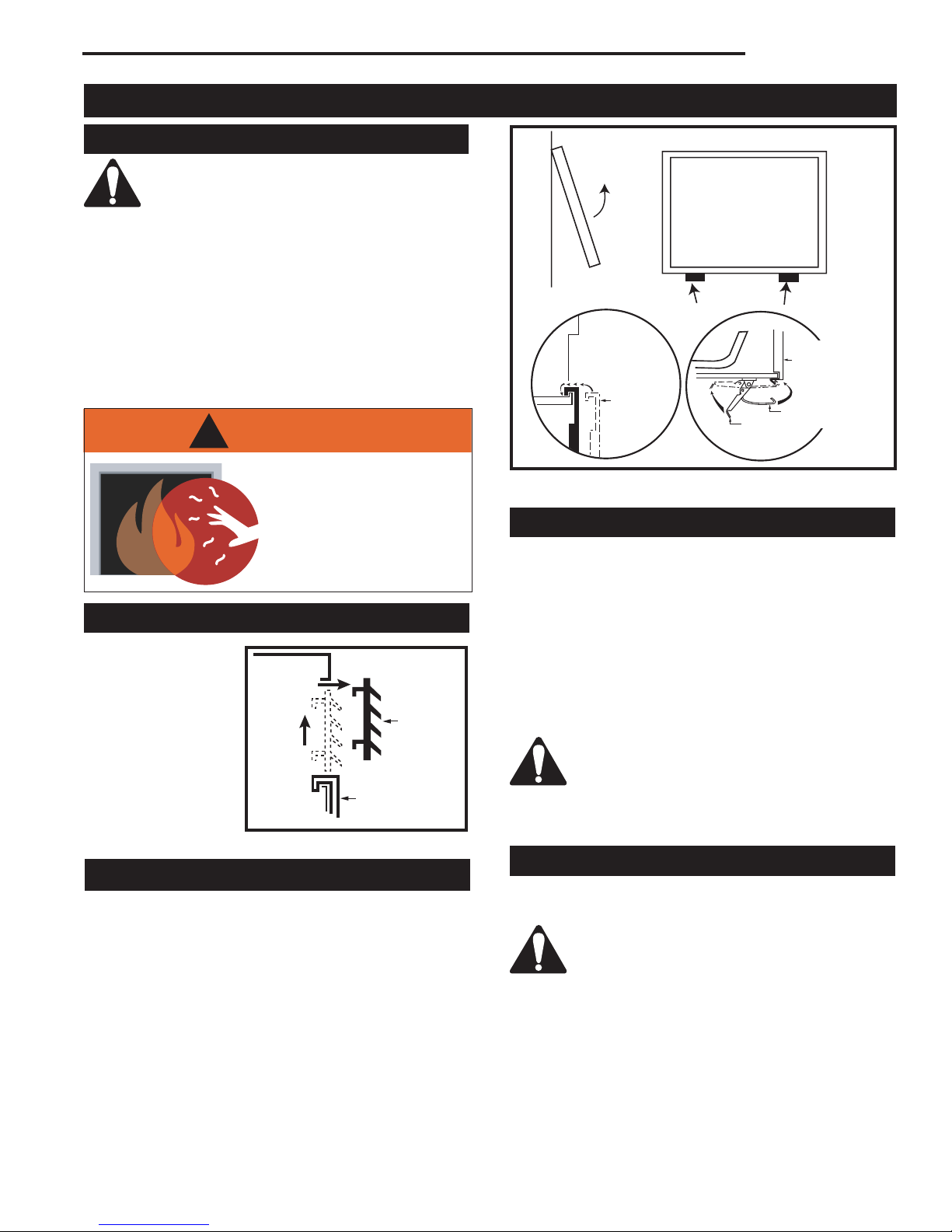

Operating Instructions
Only glass approved by CFM Corporation
should be used on this fireplace.
• The use of any non-approved replacement glass will
void all product warranties.
• Care must be taken to avoid breakage of the glass.
• Do not operate appliance with glass front
removed, cracked or broken.
• Replacement glass (complete with gasket) is
available through your CFM Corporation dealer
and should only be installed by a licensed
qualified service person.
Glass Information
Louvre Removal
To remove the lou-
vre top assembly,
lift louvre up and
then out. (Fig. 12)
The louvre bottom
assembly is hinged
at the bottom edge
and swings down.
Lower
Clamps
FP1191
Window
Frame As-
sembly Pull Clamp
Hook
Push
Clamp
Handle
Fig. 11 Window frame assembly removal.
Window Frame
Assembly
Glass Cleaning
It is necessary to clean the glass periodically. Dur-
ing start-up, condensation, which is normal, forms on
the inside of the glass and causes lint, dust and other
airborne particles to cling to the glass surface. Also
initial paint curing may deposit a slight film on the glass.
It is therefore recommended the glass be cleaned two
or three times with a non-ammonia household cleaner
and warm water (gas fireplace glass cleaner is recom-
mended). After initial use glass should be cleaned two
or three times during heating season.
Clean glass after first two weeks of opera-
tion.
Do not clean glass when hot.
Do not use abrasive cleaners.
Do not strike or slam the glass.
Log Installation
1. Remove window frame assembly. (Refer to Page xx)
2. Remove logs from the packaging.
As with all plastic, these bags are not toys
and should always be kept away from chil-
dren and infants.
3. Place rear log on back bracket. Ensure that log is
firmly positioned and there is no side-to-side move-
ment.
4. Place the front log on top of the burner, use bottom
holes to locate the logs on top of the studs.
5. Place the front right log on top of the burner, Use
bottom holes to locate the logs on top of the studs.
FP383
GF383 NVC
11/20/96
REMOVE LOUVRE/GRILLE
Glass Panel
Louvre
Top
Assembly
1.
2.
Fig. 10 Louvre install and removal.
Window Frame Assembly Removal
1. Turn gas off.
2. Let the unit cool if it has been operating.
3. Remove louvre top assembly. (Refer to Louvre Re-
moval section.)
4. Open louvre bottom assembly.
5. Release the two clamps at the bottom of the window
frame by pulling down on the clamp handles.
6. Lift off the window frame assembly as shown. (Fig.
11)
7. To reinstall window frame assembly, follow the
above procedure in reverse.

�







12
NVC Series B-Vent
20000194
6. Place the top logs onto the locator notches. Ensure
that the logs are secure. (Fig. 12)
7. Place ember material. See "Ember Material Place-
ment" section.
NVC36 NVC39 NVC43
Front Left Log BB6 BC5 BD6
Front Right Log BB7 BC6 BD7
Rear Log BE5 BC7 BD8
Top Left Log BB9 BC8 BD9
Top Right Log BB10 BC9 BD10
Lava Rock
The lava rock provided with this fireplace must be
placed on the firebox base on either side of the burner
assembly. Do not place lava rock in combustion pan.
Under no circumstances should this lava
rock be placed on any part of the burner
assembly.
Ember Material Placement
Separate the ember material into small pieces, roughly
1/2" in diameter, and place onto the burner in front of
the front logs. Do NOT pack down, leave in fluffy, loose
condition for more realistic ember effect.
Flame Adjustment
For fireplaces equipped with HI/LO valves, flame ad-
justment is accomplished by rotating the HI/LO adjust-
ment knob located near the center fo the gas control.
(Fig. 13 or 14)
LO
HI
Turn
counterclockwise
to decrease
flame height
Turn clockwise
to increase
flame height
HV102
Honeywell hi/lo knob
4/5/99 djt
Fig. 13 Flame adjustment knob for Honeywell valve.
HV102
Turn
counterclockwise
to increase
flame height
Turn clockwise
to decrease
flame height
HV116
SIT 820 knob
1/14/02 djt
I
H
LO
Fig. 14 Flame adjustment knob for SIT valve.
HV116

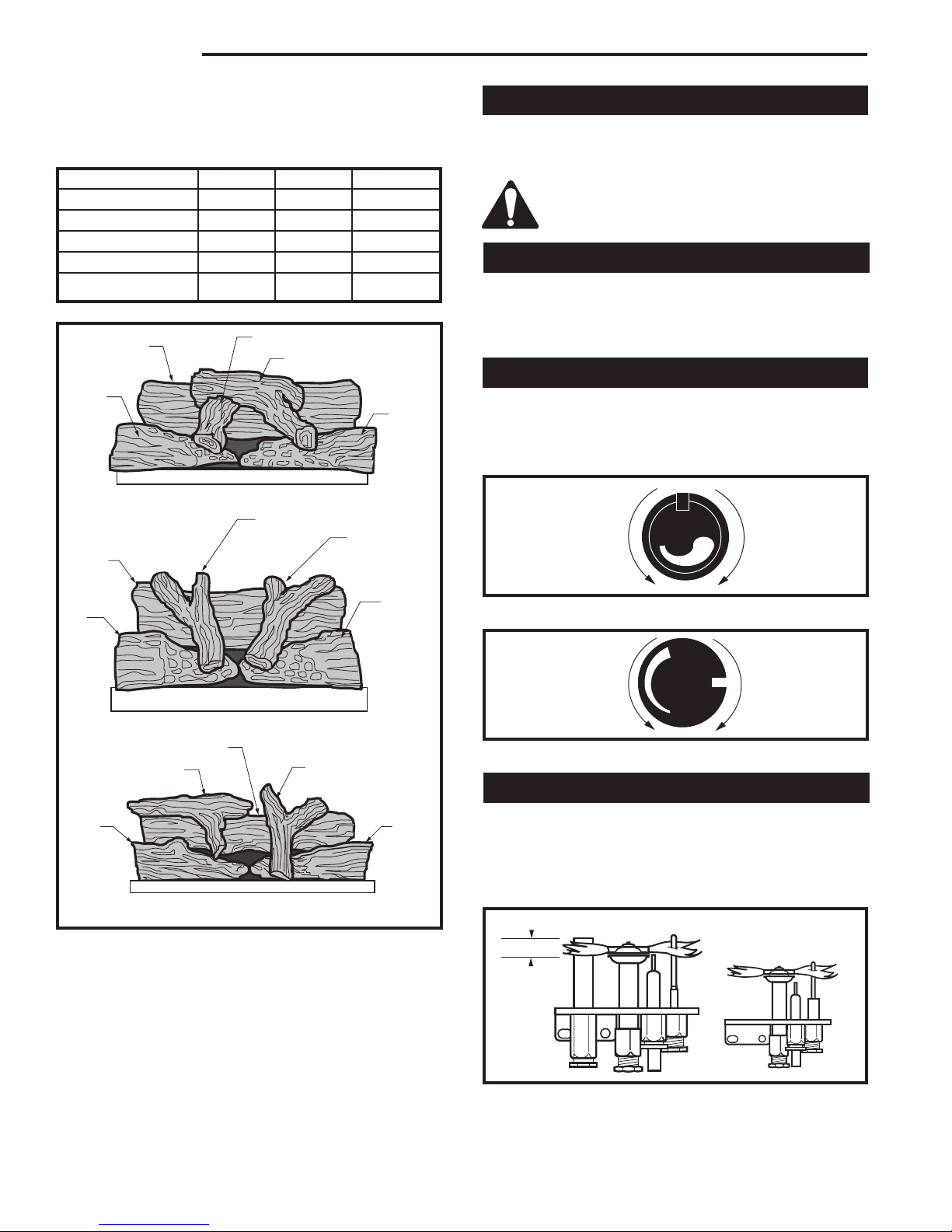

Fig. 12 Log locations.
FP
NVC36 LOG SET
8-11-98
BE5 Log Rear BB9 Log Top Left
BB10 Log Top Right
BB6
Log Front
Left
BB7
Log
Front
Rigth
NVC36
FP
NVC43 LOG SET
8-12-98
BD8 Log Rear
BD9 Log Top Left BD10 Log Top Right
BD6
Log Front
Left BD7
Log
Front
Right
NVC43
NVC39 LOG SET
8-12-98
BC7
Log
Rear
BC8 Log Top Left
BC9
Log Top Right
BC5 Log
Front
Left
BC6
Log Front
Right
NVC39

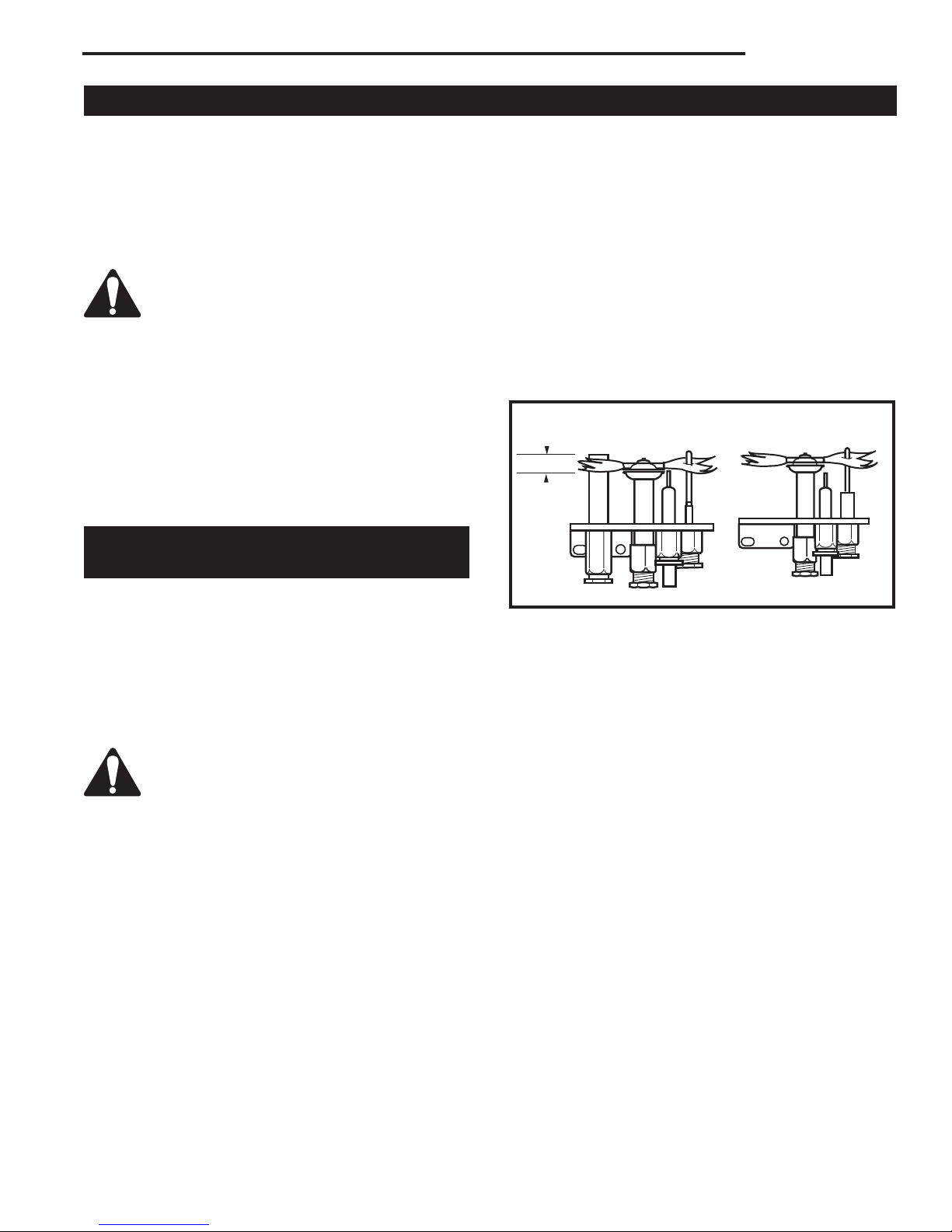

Flame Characteristics
It is important to periodically perform a visual check
of the pilot and burner flames. Compare them to the ,
pictorials illustrated below. (Figs. 15 or 16) If the flame
patterns appear abnormal contact a qualified service
provider for service and adjustment.
FP584
NVB
12/4/97
H
I
L
O
EA
P
I
L
O
T
Nova Sit 822
Valve
3/8"-1/2"
FP392
NVC-PILOTS
11/21/96
ELECTRONIC
IGNITION
Fig. 15 Proper pilot flame height.
FP392/585
Electronic
Ignition

13
NVC Series B-Vent
20000194
Test Chimney Draw
A "Chimney Draw" test must be made before the instal-
lation is complete.
1. Close all doors and windows in the home and start
exhaust fans in the kitchen and bathroom.
2. Light unit and operate for 5 minutes.
3. Hold an ignited match, cigarette, or smoke match in
front of the unit. Refer to Figure 17 for location of the
draft hood opening.
4. Check to make sure smoke from the match, cigarette
or smoke match is drawn into the fireplace. If it is
not, turn the unit off and check for causes creating
the lack of adequate draft.
Do not operate the unit until lack of ad-
equate draft has been determined and
rectified.

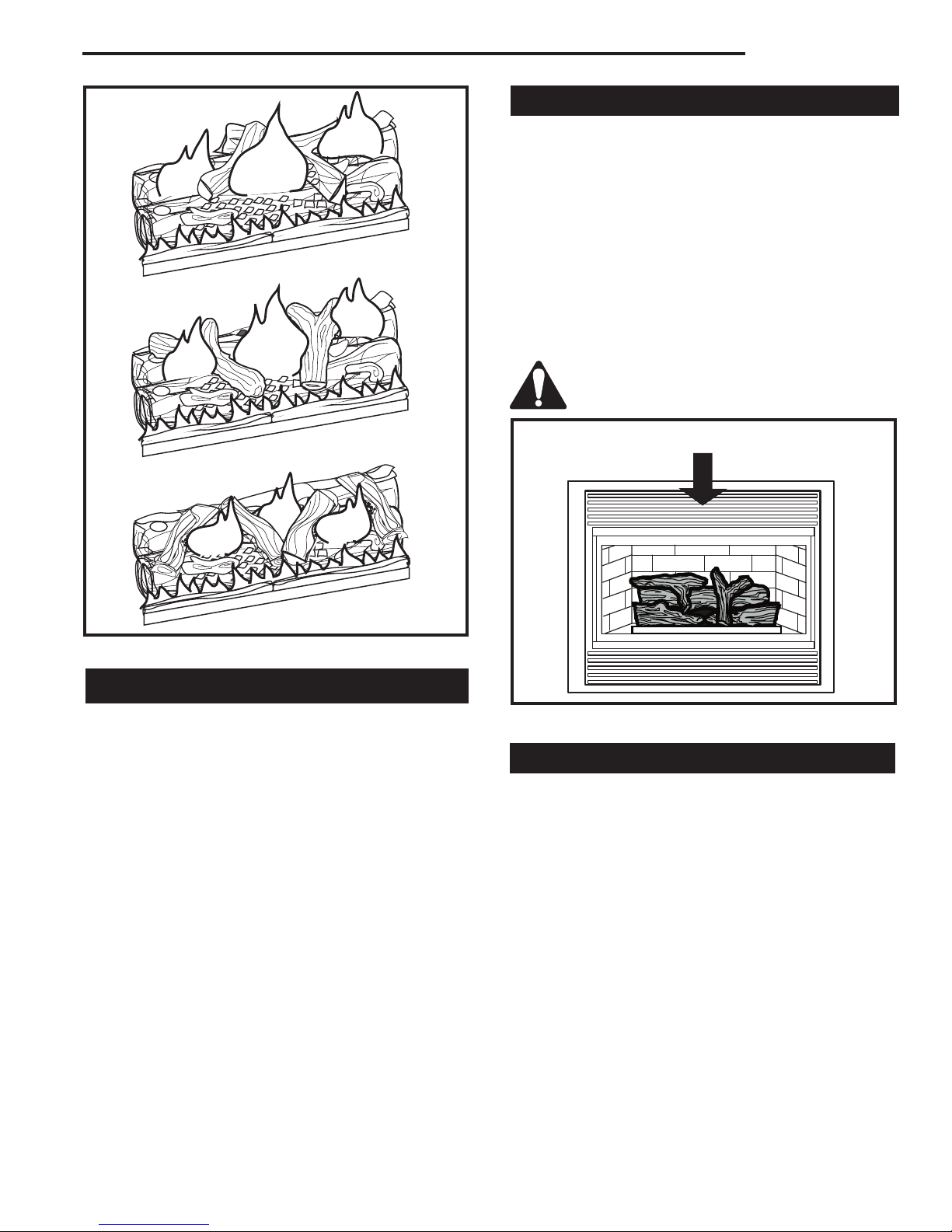

Fig. 16 Approximate flame heights for each model.
FP393
NVC36
NVC43
FP393
8/25/98
NVC FLAME HEIGHTS
NVC39
Inspecting the Venting System
This appliance venting system is designed and con-
structed to develop a positive flow adequate to remove
flue gases to the outside atmosphere.
Any foreign objects in the venting system, except those
designed specifically for the venting system, may cause
spillage of flue gases.
To inspect the venting system, make sure the main gas
valve is off. Remove the window frame assembly (Refer
to Page 10). Using a flashlight, check the area above
the baffle in the combustion dome. Clean if necessary.
FP1197
draft test location
2/27/02 djt
Test for Draft at This Location
FP1197
Fig. 17 Draft test location.
First Firing
Remove window frame assembly before lighting.
Upon completing the gas line connection, a small
amount of air will be trapped in the line. When first
lighting the unit with pilot light, it will take a few minutes
to purge the trapped air. Once purging is complete, the
pilot and burner will light and operate as indicated in the
instruction manual. Subsequent lightings of the appli-
ance will not require purging.
When lit for the first time, the appliance will emit a slight
odor for awhile. This is due to paint and lubricants used
in the manufacturing process. After each lighting, vapor
may condense and fog the glass; this moisture disap-
pears within a few minutes of burning.

14
NVC Series B-Vent
20000194
3. Open control access panel.
4. Push in gas control knob slightly and turn clock-
wise to "OFF". Do not force.
5. Close control access panel.
1. STOP! Read the safety information above.
2. Turn off all electrical power to the fireplace.
3. For MN/MP/TN/TP appliances ONLY, go on to
Step 4. For RN/RP appliances turn the On/Off
switch to “OFF” position or set thermostat to
lowest level.
4. Open control access panel.
5. Push in gas control knob slightly and turn
clockwise to "OFF".
10. Push the control knob all the way in and hold.
Immediately light the pilot by repeatedly depress-
ing the piezo spark ignitor until a flame appears.
Continue to hold the control knob in for about one
(1) minute after the pilot is lit. Release knob and it
will pop back up. Pilot should remain lit. If it goes
out, repeat steps 5 through 8.
FOR YOUR SAFETY READ BEFORE LIGHTING
• If you cannot reach your gas supplier, call the
Fire Department
C. Use only your hand to push in or turn the gas con-
trol knob. Never use tools. If the knob will not push
in or turn by hand, do not try to repair it, call a
qualified service technician. Applying force or any
attempted repair may result in a fire or explosion.
D. Do not use this fireplace if any part has been
under water. Immediately call a qualified service
technician to inspect the heater and to replace
any part of the control system and any gas control
which has been under water.
A. This heater has a pilot which must be lit manu-
ally. When lighting the pilot follow these
instructions exactly.
B. BEFORE LIGHTING smell all around the heater
area for gas. Be sure to smell next to the floor
because some gas is heavier than air and will
settle on the floor.
WHAT TO DO IF YOU SMELL GAS
• Do not try to light any fireplace
• Do not touch any electric switch
• Do not use any phone in your building
• Immediately call your gas supplier from a neigh-
bor's phone. Follow the gas supplier's instruc-
tions.

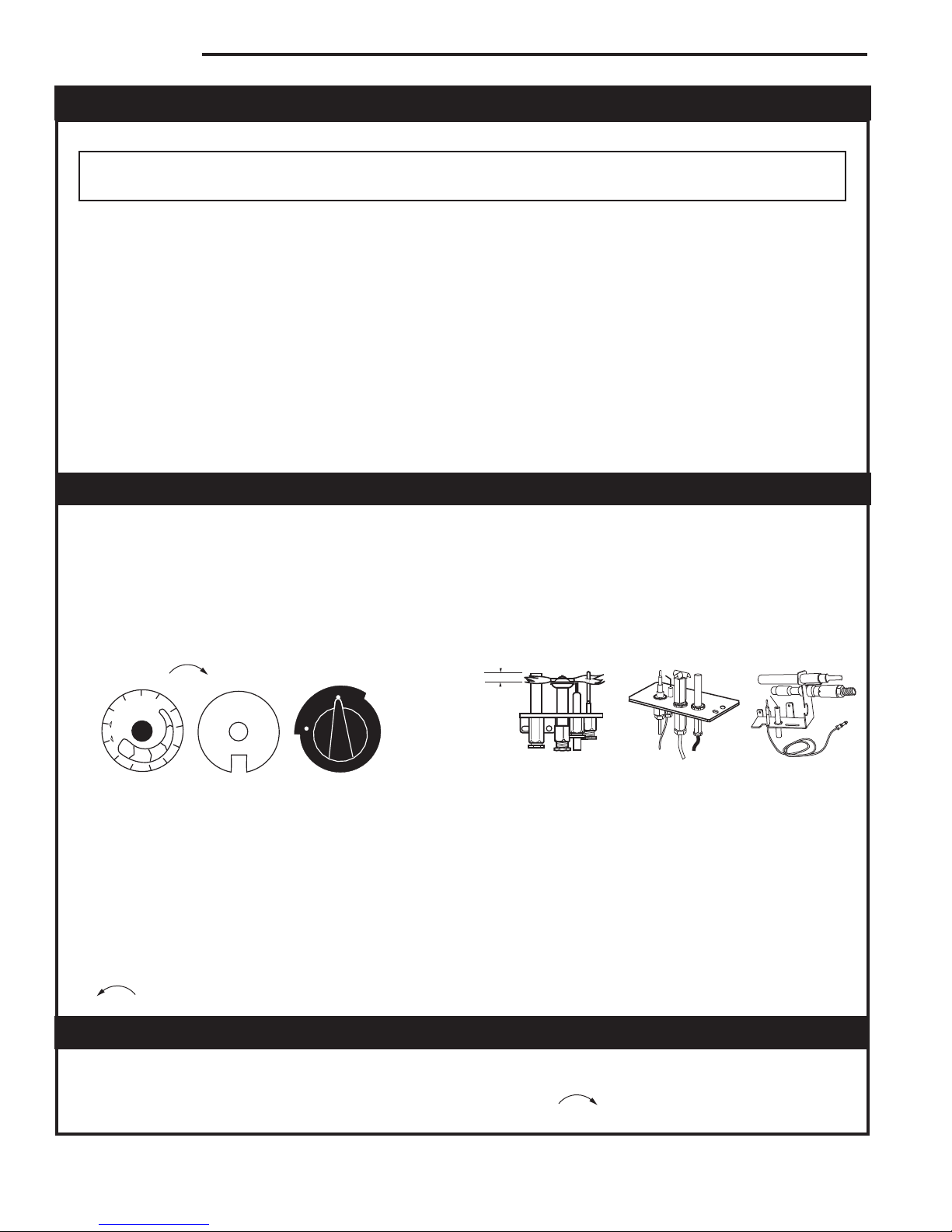

To Turn Off Gas To Heater
Lighting and Operating Instructions
1. Turn the On/Off switch to Off position or set the
thermostat to lowest setting.
2. Turn off all electric power to the fireplace if
service is to be performed.
Lighting Instructions
6. Wait five (5) minutes to clear out any gas. Then
smell for gas, including near the floor. If you
smell gas, STOP! Follow "B" in the safety infor-
mation above. If you do not smell gas, go to the
next step.
7. Remove glass door before lighting pilot. (See
Glass Frame Removal section).
8. Visibly locate pilot by the main burner.
9. Turn knob on gas control counterclockwise
to "PILOT".
• If knob does not pop up when released, stop
and immediately call your service technician or
gas supplier.
• If after several tries, the pilot will not stay lit,
turn the gas control knob to "OFF" and call your
service technician or gas supplier.
11. Replace glass door.
12. Turn gas control knob to “ON” position.
13. For RN/RP appliances turn the On/Off switch to
“ON” position or set thermostat to desired setting.
14. Turn on all electrical power to the fireplace.
WARNING:If you do not follow these instructions exactly, a fire or explosion
may result causing property damage, personal injury or loss of life.
Euro SIT SIT NOVA Honeywell
PILOT
ON
OFF
ON
P
I
L
O
T
O
F
F
O
F
F
FP1067
lighting instruction
knobs
3/9/01 djt
5
4
3
2
1
O
F
F
P
i
l
o
t
3/8" - 1/2"
FP1068
Lighting instructions
Pilots

15
NVC Series B-Vent
20000194
Vent Safety Switch
This fireplace incorporates the use of a Vent Safety
Shut-off Switch. The sensor and wiring are factory
installed and should not be removed or altered during
installation.
In the event of total flue blockage the system will detect
the increased heat buildup and will automatically shut
down the main burner assembly.
The sensor is located above the firebox behind the top
louvre assembly. It is accessible by removing the top
louvre assembly.
CAUTION: The firebox, Vent Safety Switch sensor
and surrounding panels become very hot during
normal operation. Allow time for the components to
cool before carrying out any service or inspection.
If the sensor is activated and shuts off the burner as-
sembly, the following procedure should be followed:
• Observe that the pilot flame is still ON. If the pilot
flame has gone out the reason for the fireplace shut
down is not the vent safety switch.
• Turn the pilot flame OFF and close all controls. Allow
the fireplace to cool.
• Check the flue and venting components for blockage
or restrictions.
• Remove the front louvre assembly.
• Locate the sensor.
• Reset the sensor by pressing the reset pin between
the two wire terminals. (Fig. 18)
CAUTION: The components may still be hot.
• Light the fireplace and check for downdrafts.
• Operate the fireplace in the normal manner. If the
burner assembly shuts down again after a period
of operation, DO NOT ATTEMPT TO RESET THE
SENSOR AGAIN. Turn off the fireplace and contact
your service technician.

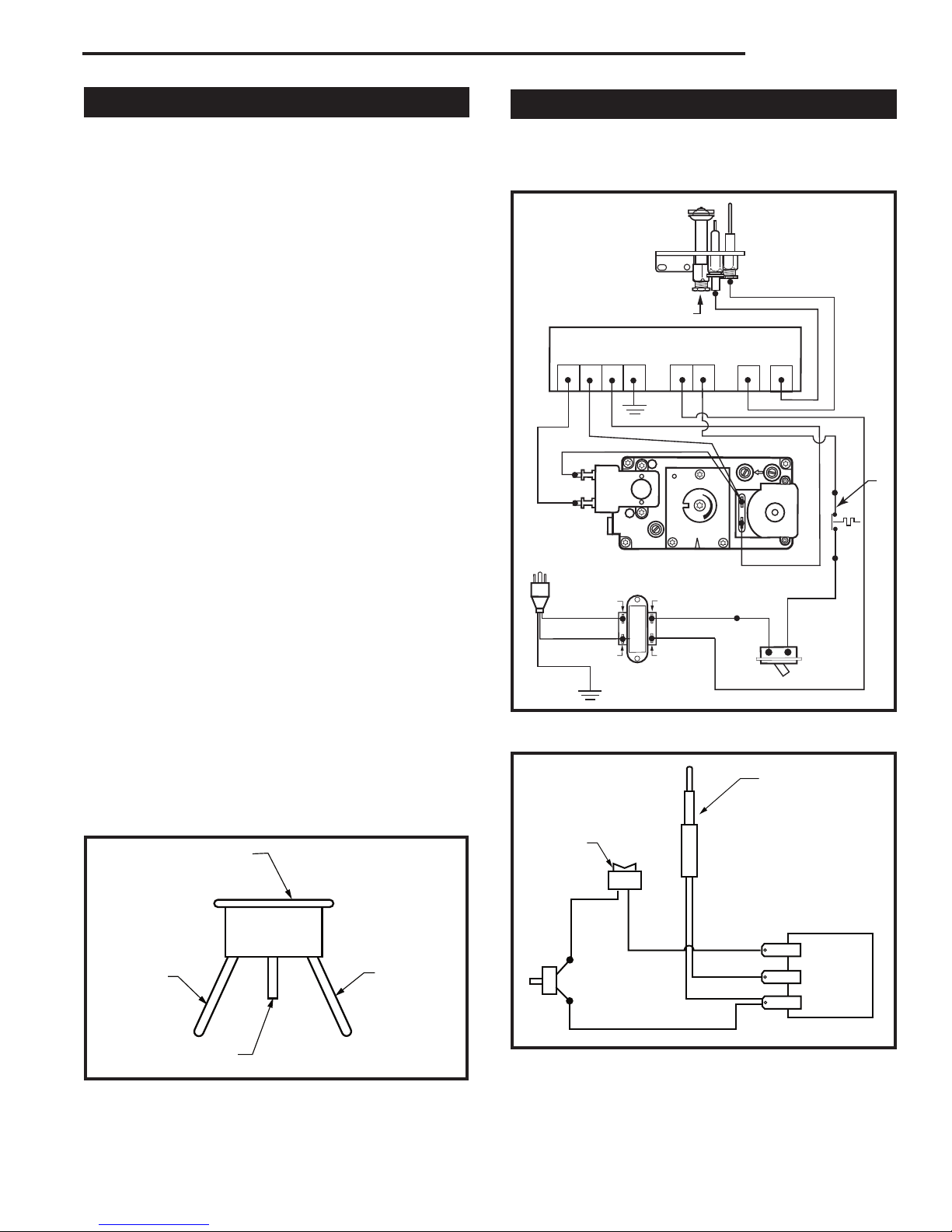

Electrical Connection
The sensor is wired in series between the wall mounted
ON/OFF switch and the Electronic Ignition Module (Fig.
19) or the thermopile and the gas valve (Fig. 20)
FP1160
Vent safety switch
11/2/01 djt
Sensor
Wire Ter-
minal
Reset Pin FP1160
Fig. 18 Vent Safety Switch.
Wire Terminal
24 VAC HOT
24 VAC RTN ON-OFF
SWITCH
NOVA SIT 822 VALVE
HONEYWELL S8600 B IGNITION MODULE
120 VAC RTN
40VA
TRANSFORMER
120 VAC HOT
BLACK
BLACK
BLACK
BLACK
BLACK
BLACK
BLACK
WHITE
WHITE
WHITE
WHITE
WHITE
WHITE
WHITE
WHITE
BLACK
FP670
NOVA SIT 822 VALVE WIRING DGRM.
(w/ Honeywell S8600 B Ignition Module)
4/30/98
PILOT
H
I
L
O
H
I
L
O
E
A
P
I
L
O
T
1 5
3 4
GREEN
MV MVPV PV GND
(BURNER) 24V
GND 24V SENSE SPARK
Block Flue Switch
(NVC Only)
FP670
Fig. 19 Vent Safety Switch wiring, EN/EP units.
TH
TP
TH
TP
Gas
Valve
FP1161
Vent Safety Switch
Wiring
11/2/01 djt
Thermopile
OnN/OFF
Switch
Vent
Safety
Switch
FP1161
Fig. 20 RN/RP units using a remote ON/OFF switch.

16
NVC Series B-Vent
20000194

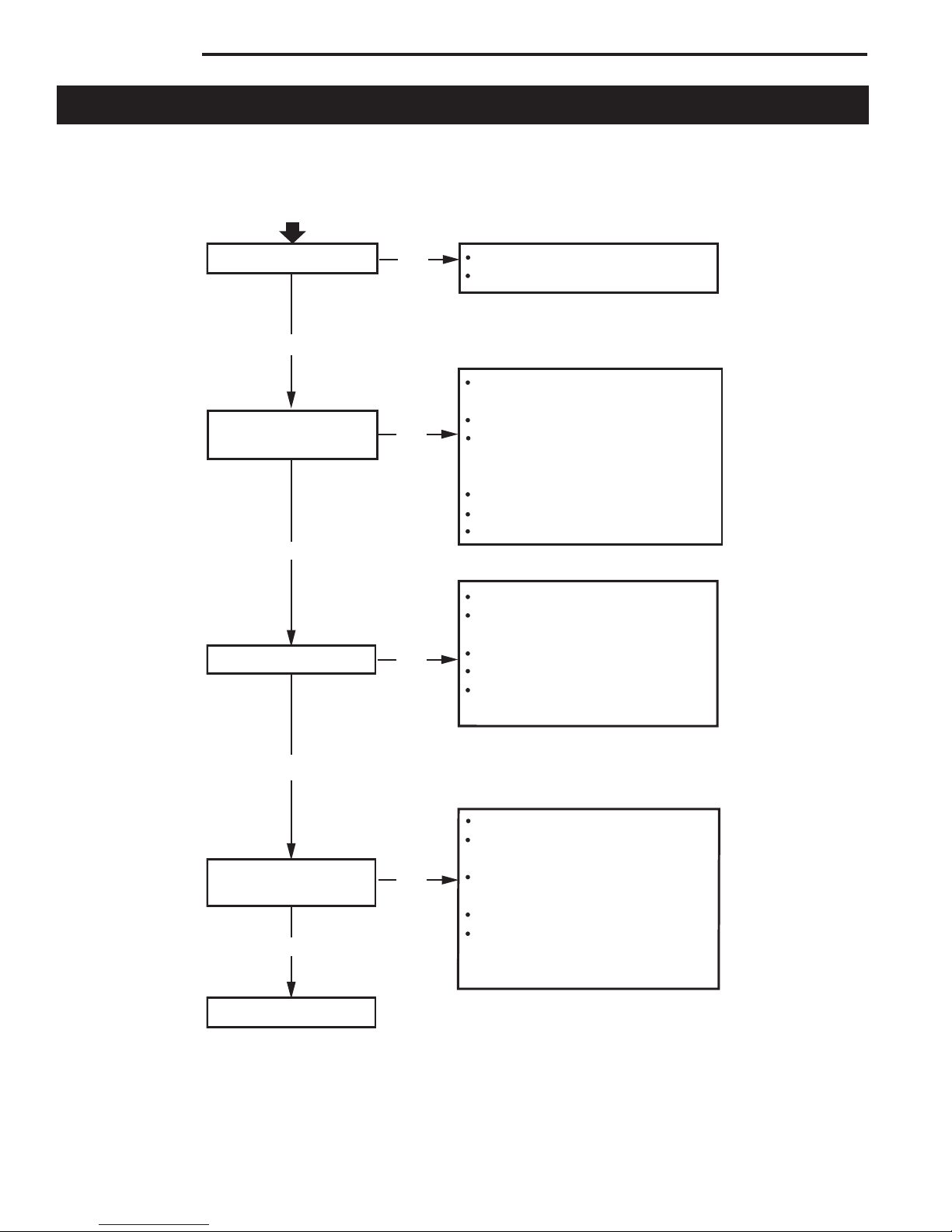

Troubleshooting
FP649
Turn gas supply off
Turn ON/OFF Switch
to call for heat.
NO
NO
NO
NO
NO
NO
NO
Spark across
Ignitor Sensor gap
Power to module
(24V nominal)
YES YES
YES
YES
YES
YES
YES
Turn gas on
Pilot burner lights?
Spark stops when pilot
is lit?
Main Burner lights?
Replace Module
START
Line Voltage (120VAC)
Low Voltage Transformer
(19.5 minimum VAC)
ON/OFF Switch
Wiring connections
Thermodisk
Check continuity of ignition cable and ground wire.
Clean flame rod.
Check electrical connections beween flame rod and module.
Check for cracked ceramic flame rod insulator.
Check that pilot flame covers flame rod and is steady blue.
Adjust pilot flame.
If problem persists, replace module.
Unplug Ignition Lead
and check spark
at module
(24VAC nominal)
Spark OK?
Check ignition cable, ground wiring, Ceramic Insulator and gap. Correct as necessary
Check boot of ignition cable for signs of melting or buckling. Take protective
actions to shield cable and boot from excessive temperatures.
Check for 24VAC across MV-MV/PV terminals. If no voltage, replace module.
Check electrical connections between module and gas control. If okay, replace gas
control or gas control operator.
Check for continuity of igniton cable and ground wire. NOTE: If ground is poor or
erratic, shutdowns may occur occasionally even though operation is normal
at time of checkout.
Check that the pilot flame covers flame rod and is steady and blue.
If checks are okay, replace module.
Troubleshooting
Ends
Check that all manual gas valves are open, supply tubing and pressures are good,
and pilot burner orifice is not blocked.
Check electrical connections between module and pilot operator on gas control.
Check for 24VAC across PV-MV/PV terminals on module. If voltage is okay, replace
gas control. If not, replace module.
NOTE: If S8600B goes into lockout, reset system.
NOTE: If S8600B goes into lockout, reset system.
CHECK :
System runs until
ON/OFF switch is in
"OFF" position
FP649 Honeywell S8600B T-shoot Guide 5/5/98
Honeywell Electronic Ignition

17
NVC Series B-Vent
20000194
Remove glass door before service work
Honeywell VS8421
START CHECK
Gas Supply On
Pilot Lights With Piezo
Ignitor
• Lockout Has Engaged. Wait 60
Seconds And Try Again.
• For Spark At Electrode While
Depressing Piezo
1/8" Gap To Pilot Hood Needed.
• All Wiring Connections
• Replace Piezo Ignitor
• Supply Line Hooked Up
• Shutoff Valve Open
Pilot Stays Lit
• For Air In The Lines
• Thermopile Needs A Min.
325mv. Adjust Pilot Flame
Height.
• All Wiring Connections
• Replace Thermopile
• Thermocouple Needs A Min. Of
14mv
• Defective Valve. Turn To Pilot,
Meter Should Read Greater
Than 100mv. If Not, Replace.
Pilot Lights Main Burner
• Valve Is Turned On
• Wall Switch Is Not Turned On.
Watch For Grounded Wires!
• Thermopile Needs A Min. 325mv.
• Plugged Burner Orifice
System Ok
Troubleshooting
YES
YES
YES
YES
NO
NO
NO
NO

18
NVC Series B-Vent
20000194
Troubleshooting
FP396
Gas Supply On Supply Line Hooked Up
Shutoff Valve Open
NO
NO
NO
NO
Lockout Has Engaged. Wait
60 Seconds and Try Again.
Piezo Nut Tight for Good Ground.
For Spark at Electrode While
Depressing Piezo (Red Button)
- 1/8" Gap to Pilot Hood Needed.
All Wiring Connections
Replace Piezo Ignitor
Check thermodisk
For Air in the Lines
Thermopile Needs a Minimum
325Mv. Adjust Pilot Flame Height.
All Wiring Connections.
Replace Thermopile
Thermocouple Needs a Minimum
of 14Mv.
Pilot Lights With
Piezo Ignitor
YES
YES
YES
YES
Pilot Stays Lit
Pilot Lights Main
Burner
System Ok.
START
CHECK
Valve is Turned On
Wall Switch is Not Turned On.
Watch for Grounded Wires!
Thermopile Needs a
Minimum 325Mv.
Plugged Burner Orifice.
Defective Valve. Turn to Pilot,
Meter Should Read Greater Than
100 Mv. If Not, Replace.
FP396
NVC-standing pilot troubleshooting
8/17/98
Nova SIT 820 Standing Pilot

19
NVC Series B-Vent
20000194
Cleaning the Standing
Pilot Control System
The burner and control system consists of
• burner tube • gas orifice
• pilot assembly • thermopile
• millivolt gas valve
Most of these components may require only an oc-
casional checkup and cleaning and some may require
adjustment. If repair is necessary, it should be per-
formed by a qualified technician.
CAUTION: Logs may be hot!
1. Turn off pilot light at gas valve side.
2. Let fireplace cool if it has been running.
3. Remove window frame assembly. (Refer to Window
Frame Assembly Removal section)
4. Remove logs.
5. Vacuum burner compartment especially around
orifice primary air openings.
6. Visually inspect pilot. Brush or blow away any dust
or lint accumulation.
7. Reinstall logs.
8. Ignite pilot - Refer to Lighting Instructions.
9. Reinstall window frame assembly.
FP584
NVB
12/4/97
H
I
L
O
EA
P
I
L
O
T
Nova Sit 822
Valve
3/8"-1/2"
FP392
NVC-PILOTS
11/21/96
ELECTRONIC
IGNITION
Nova SIT Pilot Electronic Ignition
FP392/585
Fig. 21 Correct pilot flame appearance.
Maintenance
Burner and Burner Compartment
It is important to keep the burner and the burner
compartment clean. At least once per year the logs and
lava rock/ember material should be removed and the
burner compartment vacuumed and wiped out. Remove
and replace the logs as per the instructions in this
manual.
Always handle the logs with care as they
are fragile and may also be hot if the
fireplace has been in use.
FK24 Fan Assembly
The fan unit requires periodic cleaning. At least once
per month in the operating season, open the lower
louvre panels and wipe or vacuum the area around the
fan to remove any build up of dust or lint.
Brass Trim
Clean the brass trim pieces using a soft cloth lightly
dampened with lemon oil. Do not use water or
household cleaners on any brass components.
To obtain proper operation, it is imperative that the pilot
and burner’s flame characteristics are steady, not lifting
or floating.
Typically, the top 3/8” or 1/2” of the thermopile should
be engulfed in the pilot flame. (Fig. 21)
To adjust pilot burner; (by qualified service technician)
1. Remove pilot adjustment cap.
2. Adjust pilot screw to provide properly sized flame.
3. Replace pilot adjustment cap.
The primary air shutter is set at factory and should only
be adjusted, if necessary, by a qualified service techni-
cian.

20
NVC Series B-Vent
20000194

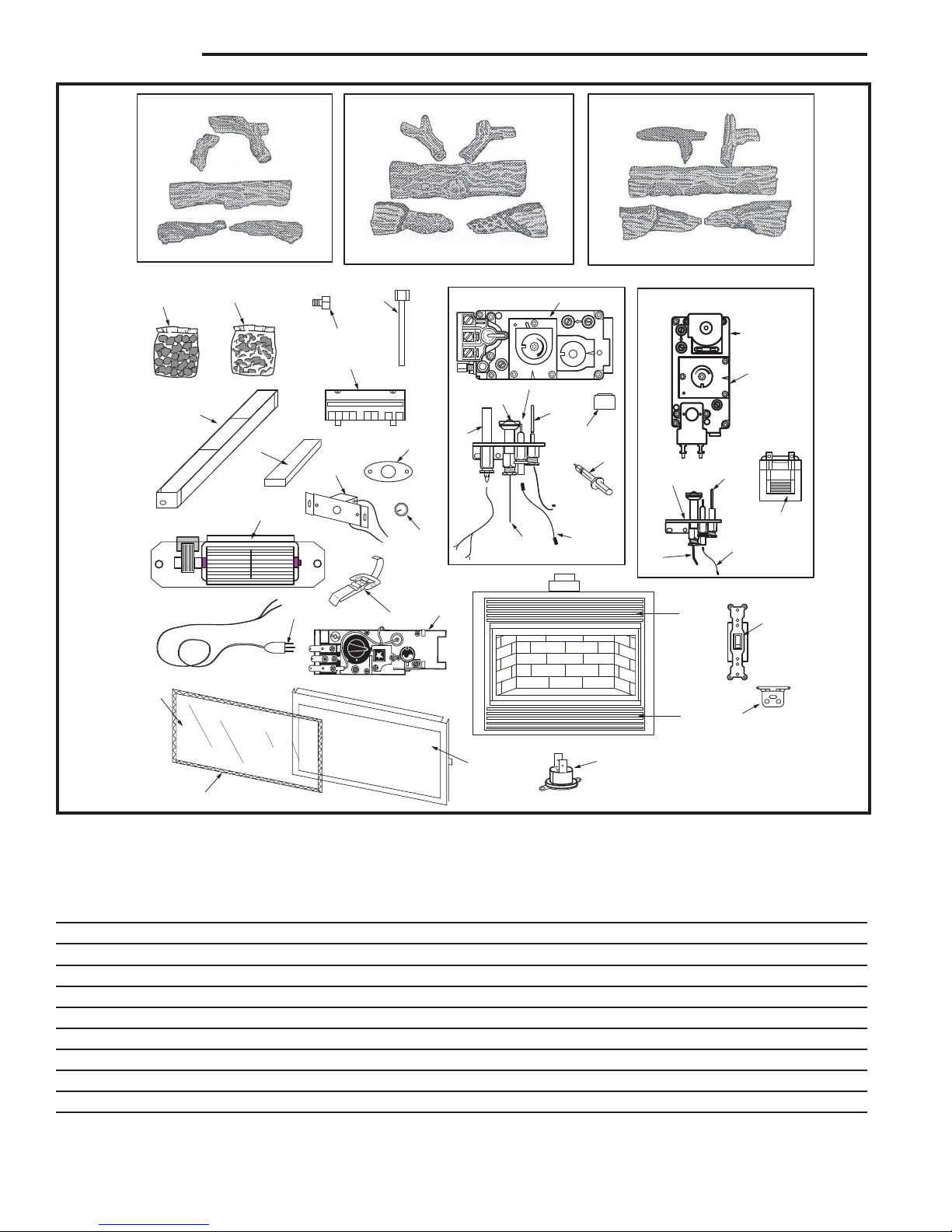

FP772A
Replacement Parts nvc
8/25/98
31
28
29
26
6a/b
4a/b
5
36
35
34
1a 1b
1c
1d
1e
NVC43 Logs 1
27
37
23
1a 1b
NVC36
1d
1e
1c
1e
1c
1a 1b
1d
NVC39
1
18
25
17a/b
22
19







































































NOVA SIT 822
VALVE
39a/b
9
11b
20/21
MV MVPV PV GND
(BURNER) 24V 24V SENSE SPARK
SIT Valve
12
15-16a/b








































































THTP
TP TH
13
8a/b
14
9
7a/b
11a
10
PILOT
ON
OFF
PILOT
ADJ
L
O
H
I
40 a/b
33
32
30
41
CFM Corporation reserves the right to make changes in design, materials, specifications, prices and discontinue colors and products at any time,
without notice.
NVC36/39/43
For Units: B32H00, B32I00, B33A00, B33B00, B32J00, B32K00, C32H00, C32I00, C32A00, C32B00, C32J00,
C32K00, D32H00, D32I00, D33A00, D33B00, D32J00, D32K00
Ref. Description NVC36 NVC39 NVC43
1. Log Set Complete 10000022 10000024 10000025
1a. Log Front Left BB6 BC5 BD6
1b. Log Front Right BB7 BC6 BD7
1c. Log Rear BE5 BC7 BD8
1d. Log Top Left BB9 BC8 BD9
1e. Log Top Right BB10 BC9 BD10
2. Lava Rock (pkg) 55255 55255 55255
3. Ember (pkg) 51915 51915 51915
