Riello RS 190 Quick start guide

Installation, use and maintenance instructions
Instrucciones de Instalación, Funcionamiento y Mantenimiento
Instruções de Instalação, Funcionamento e Manutenção
Forced draught gas burners
Quemadores de gas
Queimadores a gás
2915943 (11) - 09/2013
CODE - CÓDIGO MODEL - MODELO TYPE - TIPO
3785812 - 3785813 RS 190 835 T1
20011696 - 20011698 RS 190 835 T1
20030034 - 20030087 RS 190 835 T1
GB
E
P
Progressive two-stage operation
Funcionamiento a dos llamas progresivas
Funcionamento a duas chamas progressivas

1
CONTENTS
TECHNICAL DATA . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . page 2
Electrical data. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
Burner description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Packaging - Weight . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Max. dimensions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Standard equipment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Firing rates . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Test boiler. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Commercial boilers. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Gas pressure . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
INSTALLATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Boiler plate . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Blast tube length . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Securing the burner to the boiler . . . . . . . . . . . . . . . . . . . . . . . . . 6
Setting the combustion head . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Gas line . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

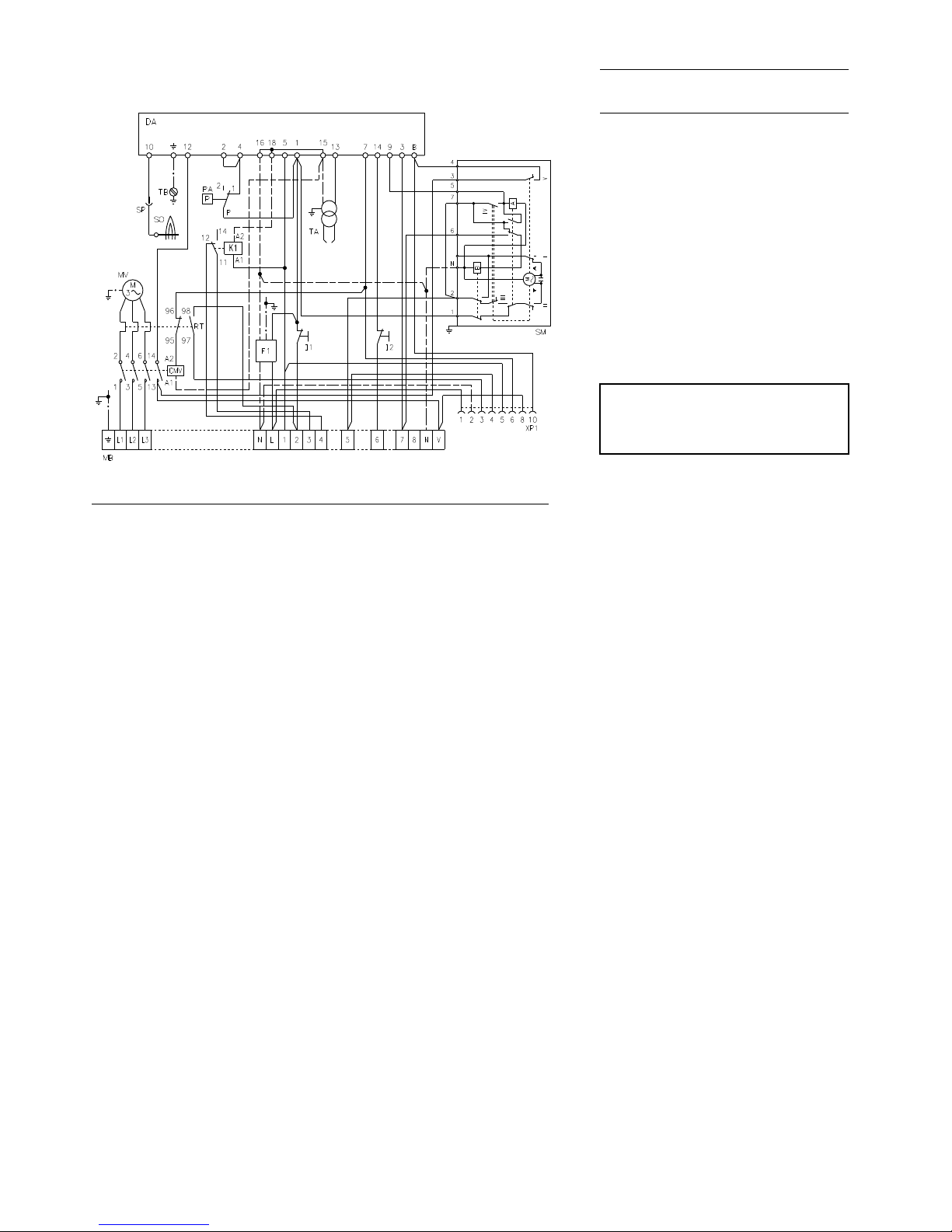

Electrical system . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Adjustments before firing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Servomotor. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Burner starting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Burner firing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Burner calibration: . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
1 - Firing output . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
2 - 2nd stage output . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
3 - 1st stage output. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
4 - Intermediates outputs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
5 - Air pressure switch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
6 - Minimum gas pressure switch. . . . . . . . . . . . . . . . . . . . . . . . 15
Flame present check . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

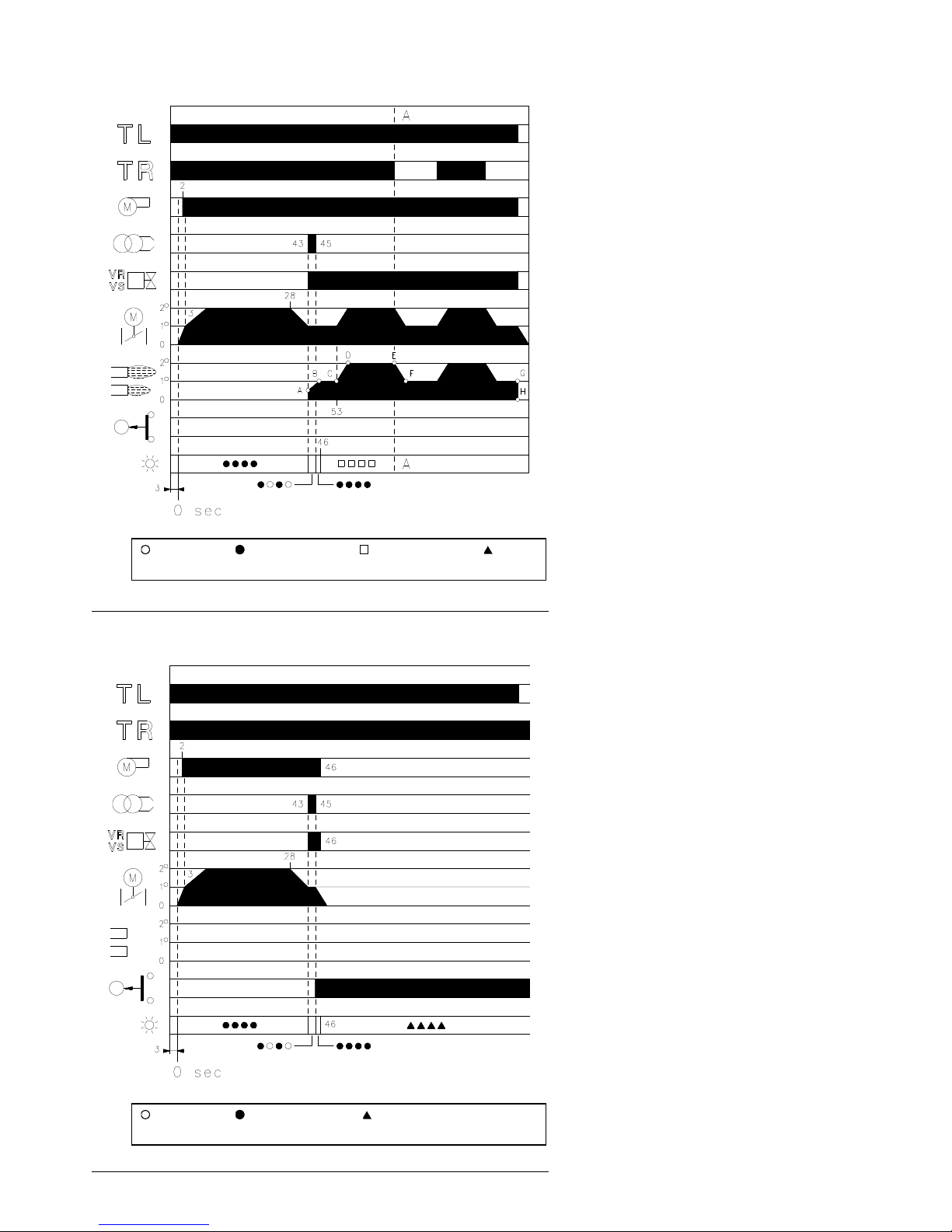

Burner operation. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
Final checks . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
Maintenance. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
Burner start-up cycle diagnostics. . . . . . . . . . . . . . . . . . . . . . . 18
Resetting the control box and using diagnostics. . . . . . . . . . . 18
Fault - Probable cause - Suggested remedy . . . . . . . . . . . . . . . 19
Accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
N.B.
Figures mentioned in the text are identified as follows:
1)(A) =part 1 of figure A, same page as text;
1)(A)p.3 =part 1 of figure A, page number 3.
GB

2
TECHNICAL DATA
(1) Reference conditions: Ambient temperature 20°C - Gas temperature 15°C - Barometric pressure 1013 mbar - Altitude 0 m s.l.m.
(2) Pressure at test point 17)(A)p.3, with zero pressure in the combustion chambre, with open gas ring 2)(B)p.7 an maximum burner output
(3) Sound pressure measured in manufacturers combustion laboratory, with burner operating on test boiler and at maximum rated output.
ELECTRICAL DATA
Motor IE1
Motor IE2
GAS CATEGORY VARIANTS
MODEL RS 190
CODE 3785812 - 3785813
20030034 - 20030087
20011696 - 20011698
OUTPUT (1) 2nd stage kW 1279 - 2290
1100 - 1970
Mcal/h
min. 1st stage kW 470
405
Mcal/h
FUEL NATURAL GAS: G20 - G21 - G22 - G23 - G25
G20 G25
- net calorific value kWh/Sm3
Mcal/Sm3
9,45
8,2
8,13
7,0
- absolute density kg/Sm30,71 0,78
- max. delivery Sm3/h 230 267
- pressure at max. delivery mbar 15 22
OPERATION • On-Off (1 stop min each 24 hours).
• Two-stage (high and low flame) and single stage (all - nothing)
STANDARD APPLICATIONS Boilers: water, steam, diathermic oil
AMBIENT TEMPERATUR °C 0 - 40
COMBUSTION AIR TEMPERATURE °C max 60
IN CONFORMITY WITH EEC DIRECTIVES 90/396 - 2004/108 - 2006/95 - 2006/42
NOISE LEVELS (2) dBA 83,1
APPROVAL CE 0085AT0042
MODEL RS 190
ELECTRICAL SUPPLY V
Hz
400 with neutral ~ +/-10%
50 - three-phaes
230 with neutral ~ +/-10%
50 - three-phaes
ELECTRIC MOTOR rpm
W
V
2860
4500
400
2860
4500
230
Running current A 9,1
72,8
15,8
126Start-up current A
IGNITION TRANSFORMER V1 - V2
I1 - I2
230 V - 1 x 8 kV
1 A - 20 mA
ELECTRICAL POWER CONSUMPTION W max 5500
ELECTRICAL PROTECTION IP 44
MODEL RS 190
ELECTRICAL SUPPLY V
Hz
400 with neutral ~ +/-10%
50 - three-phaes
230 with neutral ~ +/-10%
50 - three-phaes
ELECTRIC MOTOR rpm
W
V
2900
4500
400
2900
4500
230
Running current A 8,7
81
15
141Start-up current A
IGNITION TRANSFORMER V1 - V2
I1 - I2
230 V - 1 x 8 kV
1 A - 20 mA
ELECTRICAL POWER CONSUMPTION W max 5500
ELECTRICAL PROTECTION IP 44
COUNTRY CATEGORY
IT - AT - GR - DK - FI - SE
ES - GB - IE - PT
NL
FR
DE
BE
LU - PL
II2H3B / P
II2H3P
II2L3B / P
II2Er3P
II2ELL3B /P
I2E(R)B, I3P
II2E 3B/P
Model Code Power supply
electrical
RS 190 3785812 - 3785813 400 V
RS 190 20030034 - 20030087 400 V
RS 190 20011696 - 20011698 230 V

3

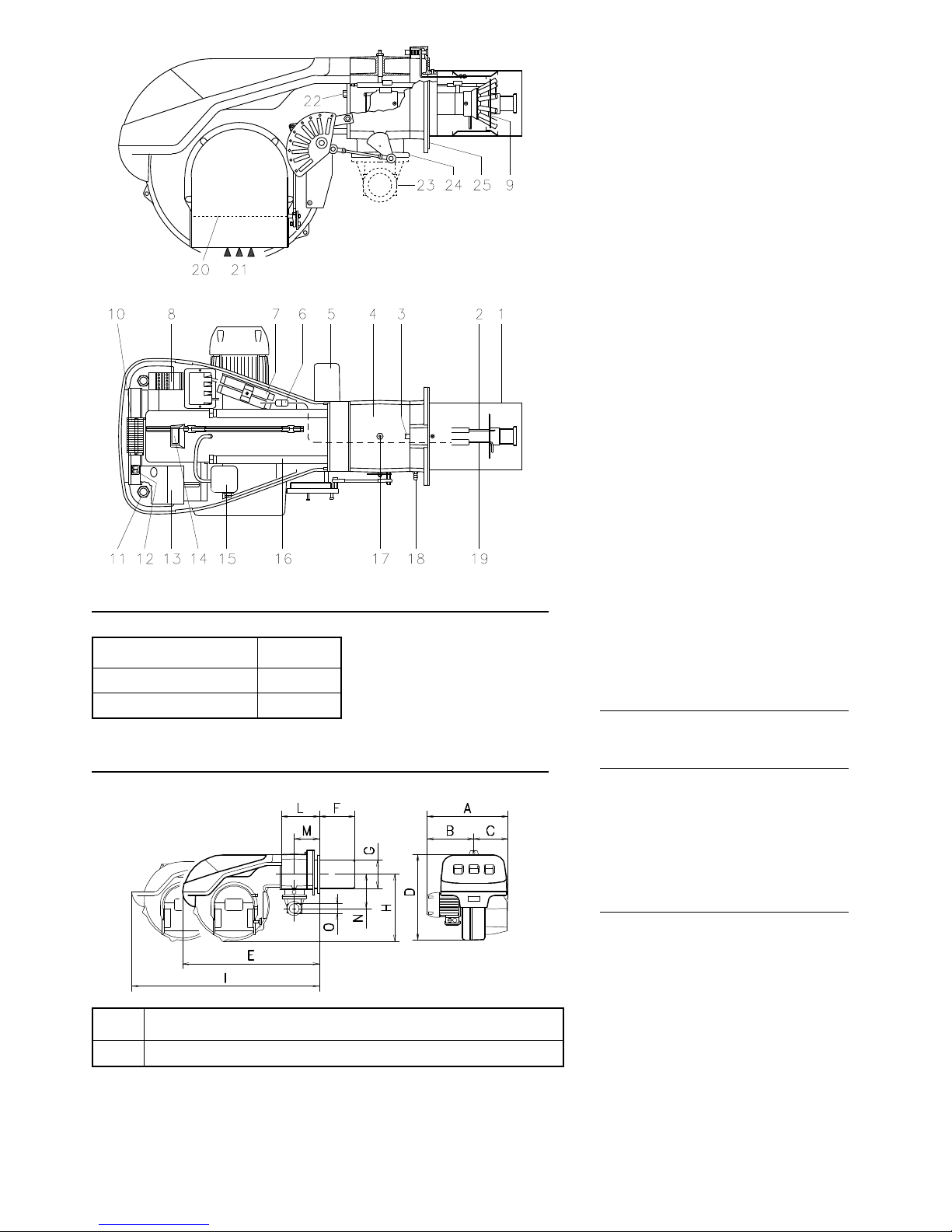

BURNER DESCRIPTION (A)
1 Combustion head
2 Ignition electrode
3 Screw for combustion head adjustment
4Sleeve
5 Servomotor controlling the gas butterfly
valve and of air gate valve (by means of a
variable profile cam mechanism).
When the burner is stopped the air gate
valve will be completely closed to reduce
heat loss due to the flue draught, which
tends to draw air from the fan air inlet.
6 Plug-socket on ionisation probe cable
7 Extension for slide bars 16)
8 Motor contactor and thermal cut-out reset
button
9 Flame stability disk
10 Terminal strip
11 Fairleads for electrical connections by installer

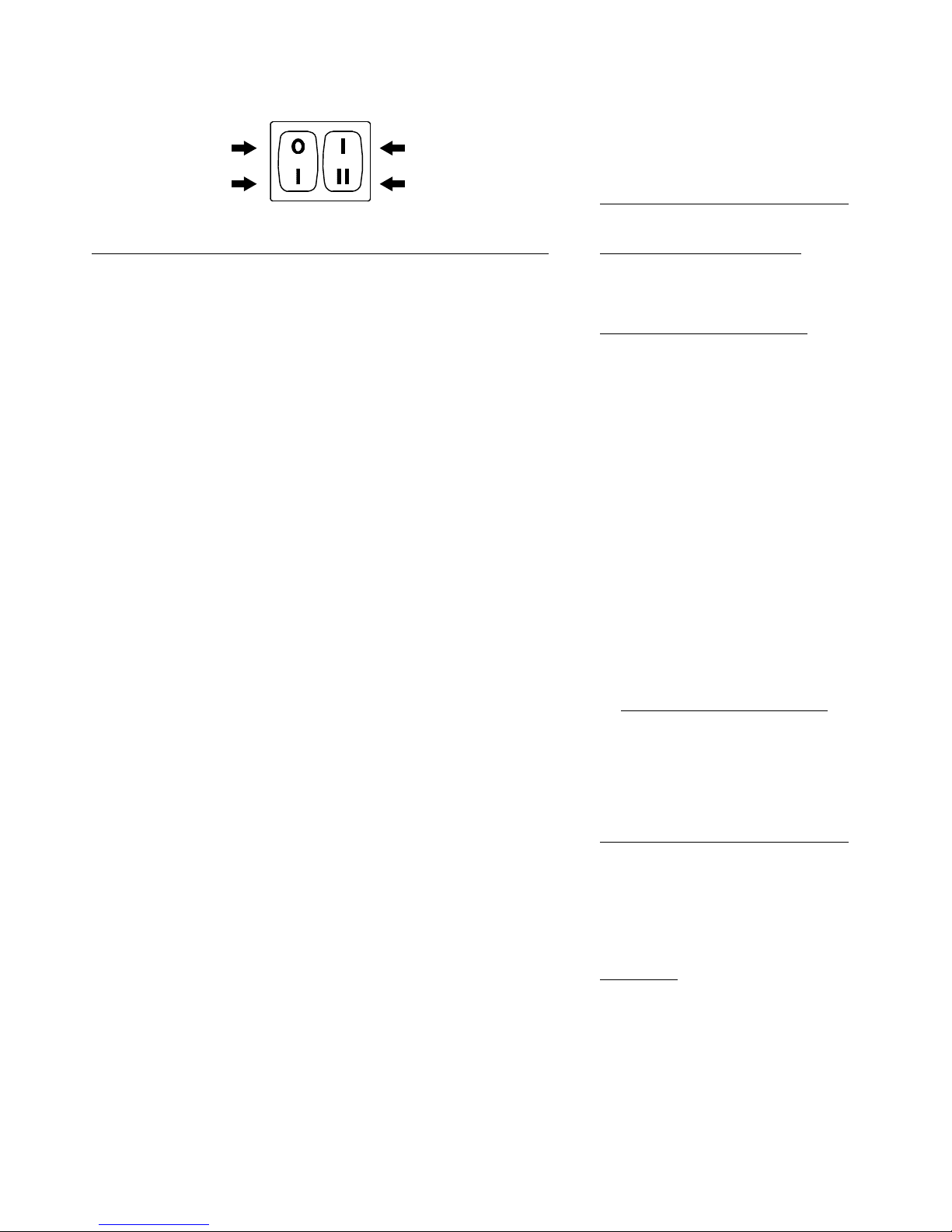

12 Two switches:
- one “burner off-on”
- one for “1st - 2nd stage operation”
13 Control box with lock-out pilot light and lock-
out reset button
14 Flame inspection window
15 Minimum air pressure switch
(differential operating type)
16 Slide bars for opening the burner and
inspecting the combustion head
17 Gas pressure test point and head fixing screw
18 Air pressure test point
19 Flame sensor probe
20 Air gate valve
21 Air inlet to fan
22 Screws securing fan to sleeve
23 Gas input pipework
24 Gas butterfly valve
25 Boiler mounting flange
Two types of burner failure may occur:
•Control box lock-out: if the control box
13)(A) pushbutton (red led) lights up, it indi-
cates that the burner is in lock-out.
To reset, hold the pushbutton down for
between 1 and 3 seconds.
•Motor trip: release by pressing the pushbut-
ton on thermal cutout 8)(A).
WEIGHT (B)
The weight of the burner complete with packag-
ing is indicated in Table (B).
MAX. DIMENSIONS (C)
Approximate measurements
The maximum dimensions of the burner are
given in (C).
Bear in mind that inspection of the combustion
head requires the burner to be opened by with-
drawing the rear part on the slide bars.
The maximum dimension of the burner when
open is give by measurement I.
STANDARD EQUIPMENT
1 - Gas train flange
1 - Flange gasket
6 - Flange fixing screws M 10 x 30
1 - Thermal insulation screen
4 - Screws to secure the burner flange to the
boiler: M 12 x 35
1 - Instruction booklet
1 - Spare parts list
(A)
(B)
(C)
D7861
D731
* Long Combustion Head Version
kg
RS 190 115
RS 190* 120
* Long Combustion Head Version
mm ABCDE F GH I LMNO
RS 190 681 366 315 555 872 370-520* 222 430 1328 246 150 186 2”

4

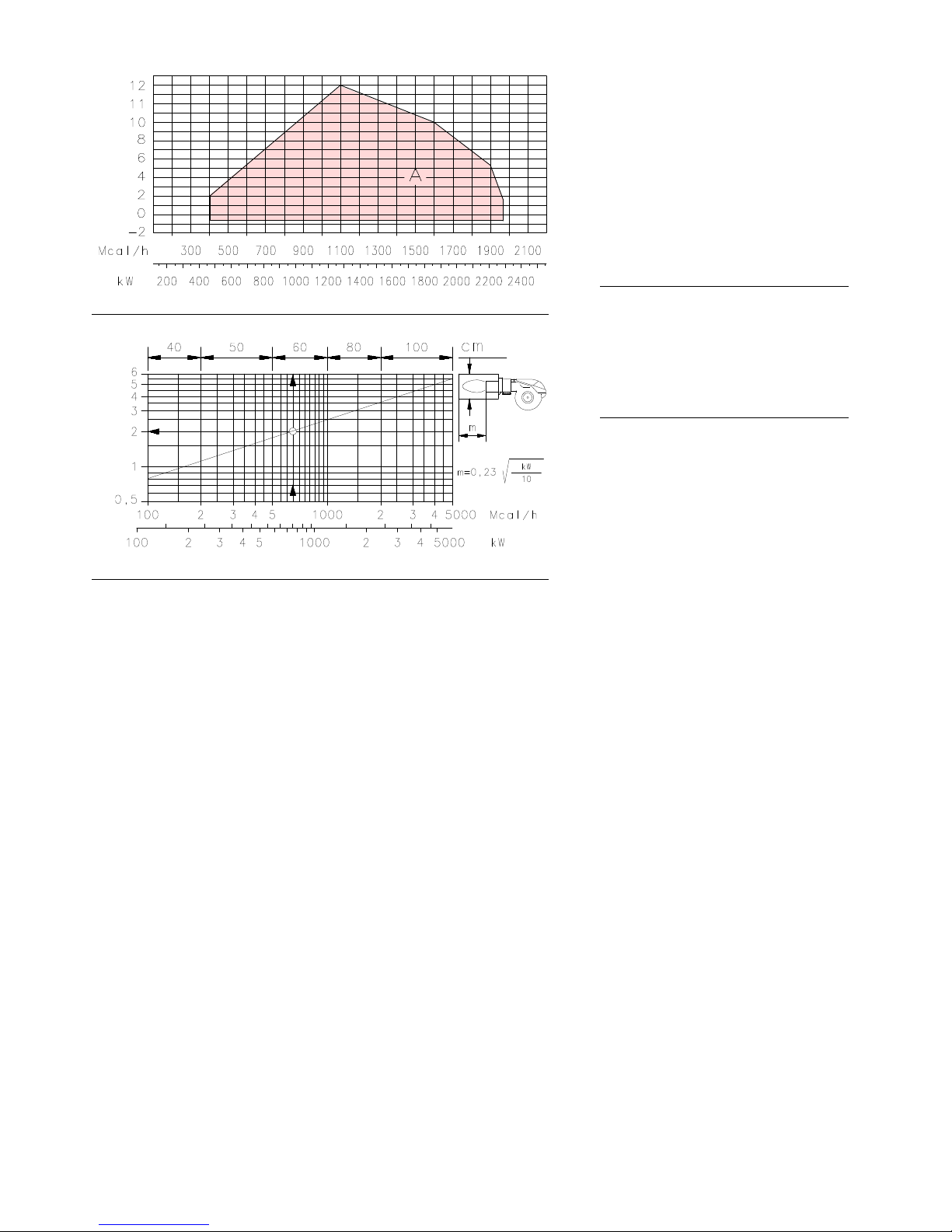

FIRING RATES (A)
The RS 190 model burner can work in two way:
one-stage and two-stage.
MAXIMUM OUTPUT must be selected in area
A.
MINIMUM OUTPUT must not be lower than the
minimum limit shown in the diagram.
RS 190 = 470 kW
Important
The FIRING RATE area values have been ob-
tained considering a surrounding temperature of
20 °C, and an atmospheric pressure of 1013
mbar (approx. 0 m above sea level) and with the
combustion head adjusted as shown on page 7.
TEST BOILER (B)
The firing rates were set in relation to special
test boilers, according to EN 676 regulations.
Figure (B) indicates the diameter and length of
the test combustion chamber.
Example:
Output 756 kW:
diameter = 60 cm; length = 2 m.
COMMERCIAL BOILERS
The burner/boiler combination does not pose
any problems if the boiler is CE type-approved
and its combustion chamber dimensions are
similar to those indicated in diagram (B).
If the burner must be combined with a commer-
cial boiler that has not been CE type-approved
and/or its combustion chamber dimensions are
clearly smaller than those indicated in diagram
(B), consult the manufacturer.
(A)
(B) D715
D1262
RS 190
pressure mbar
Combustion chamber
length m
Combustion chamber

5
GAS PRESSURE
The adjacent table shows minimum pressure
losses along the gas supply line depending on
the burner output in 2nd stage operation.
Column 1
Pressure loss at combustion head.
Gas pressure measured at test point 1)(B), with:
• Combustion chamber at 0 mbar
• Burner operating in 2nd stage
• Combustion head adjusted as indicated in
diagram (C)p. 7.
Column 2
Pressure loss at gas butterfly valve 2)(B) with
maximum opening: 90°.
Column 3
Pressure loss of gas train 3)(B) includes: adjust-
ment valve VR, safety valve VS (both fully
open), pressure governor R, filter F.
The values shown in the table refer to:
natural gas G 20 NCV 9.45 kWh/Sm3
(8,2 Mcal/Sm3)
With:
natural gas G 25 NCV 8,13 kWh/Sm3
(7,0 Mcal/Sm3) multiply tabulated values:
- column 1 - 2: by 1.5
- column 3: by 1.35.
Calculate the approximate 2nd stage output of
the burner thus:
- Subtract the combustion chamber pressure
from the gas pressure measured at test point
1)(B).
- Find the nearest pressure value to your result
in column 1 of the table (A).
- Read off the corresponding output on the left.
Example:
• 2nd stage operation
• Natural gas G 20 NCV 9.45 kWh/Sm3
• Gas pressure at test point 1)(B) = 11 mbar
• Pressure in combustion chamber = 3 mbar
11 - 3= 8 mbar
A 2nd stage output of 1600 kW shown in Table
(A) corresponds to 8 mbar pressure, column 1.
This value serves as a rough guide, the effective
delivery must be measured at the gas meter.
To calculate the required gas pressure at test
point 1)(B), set the output required from the
burner in 2nd stage operation:
- Find the nearest output value in the table (A).
- Read off the pressure at test point 1)(B) on
the right in column 1.
- Add this value to the estimated pressure in
the combustion chamber.
Example:
• Required burner output in 2nd stage opera-
tion: 1600 kW
• Natural gas G 20 NCV 9.45 kWh/Sm3
• Gas pressure at burner output of 1600 kW,
taken from table (A), column 1 = 8 mbar
• Pressure in combustion chamber = 3 mbar
8 + 3 = 11 mbar
pressure required at test point 1)(B).
(A)
RS 190 p (mbar)
kW 1 2
3
3970181
3970182
3970221
3970225
3970222
3970226
3970223
3970227
1280 7.0 1.3 28.6 10.3 7.2 4.8
1400 7.3 1.6 33.5 12.1 8.2 5.2
1500 7.6 1.8 37.7 13.6 9.0 5.5
1600 8.0 2.1 41.8 15.2 9.9 5.8
1700 8.7 2.4 46.0 16.7 10.7 6.1
1800 9.3 2.7 50.2 18.2 11.6 6.5
1900 10.2 3.0 54.3 19.8 12.5 6.8
2000 11.3 3.3 59.3 21.6 13.6 7.3
2100 12.5 3.6 64.4 23.5 14.8 7.7
2290 15.0 4.3 74.1 27.1 17.0 8.6
(B)
D3734
MB 420
MBC 1200
MBC 1900
MBC 3100

6

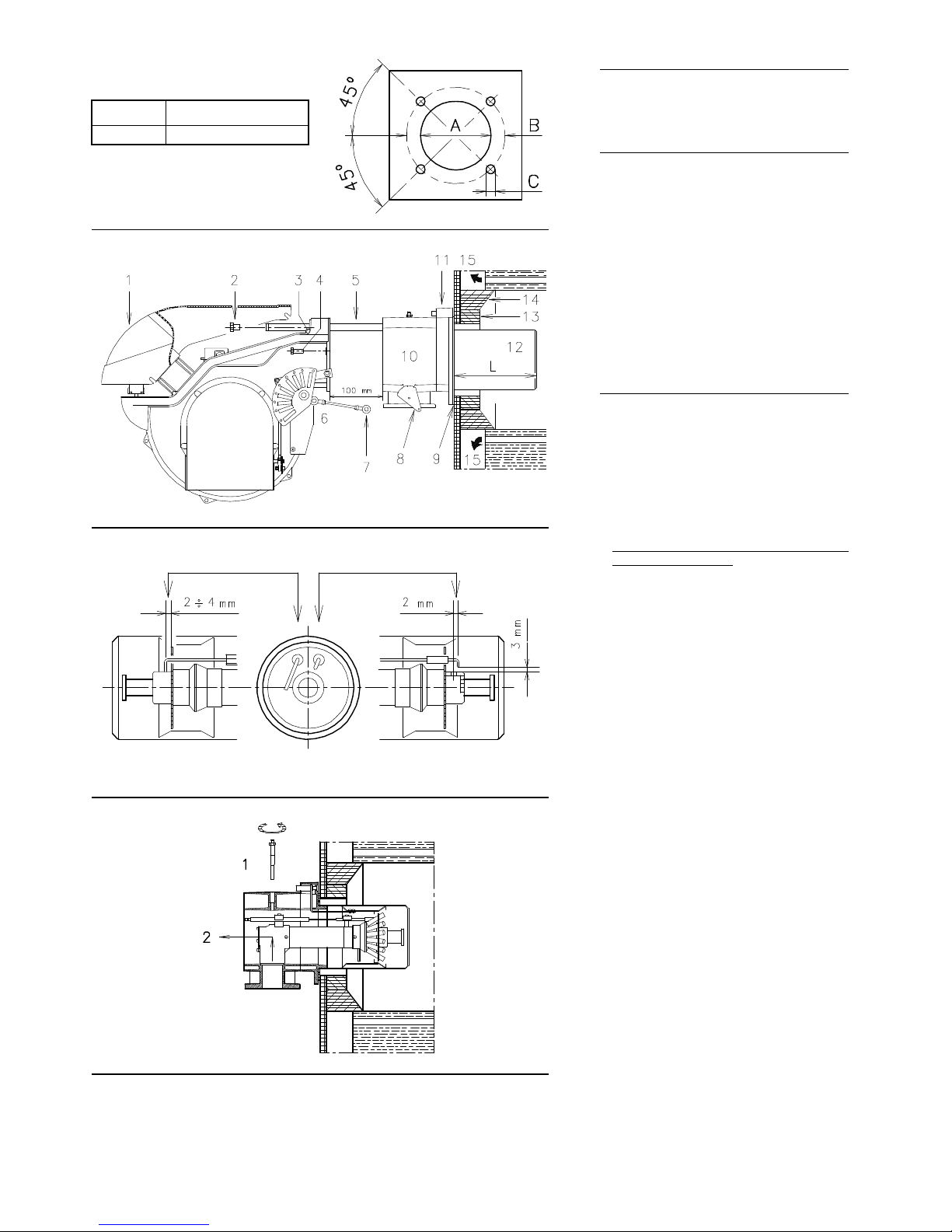

INSTALLATION
BOILER PLATE (A)
Drill the combustion chamber locking plate as
shown in (A). The position of the threaded holes
can be marked using the thermal screen sup-
plied with the burner.
BLAST TUBE LENGTH (B)
The length of the blast tube must be selected
according to the indications provided by the
manufacturer of the boiler, and in any case it
must be greater than the thickness of the boiler
door complete with its fettling.
For boilers with front flue passes 15) or flame
inversion chambers, protective fettling in refrac-
tory material 13) must be inserted between the
boiler fettling 14) and the blast tube 12).
This protective fettling must not compromise the
extraction of the blast tube.
For boilers having a water-cooled front the
refractory fettling 13)-14)(B) is not required
unless it is expressly requested by the boiler
manufacturer.
SECURING THE BURNER TO THE BOILER
(B)
Before securing the burner to the boiler, check
through the blast tube opening to make sure
that the flame sensor probe and the ignition
electrode are correctly set in position, as shown
in (C).
Now detach the combustion head from the
burner, fig.(B):
- Loosen the 4 screws 3) and remove the cover 1)
- Disengage the articulated coupling 7) from
the graduated sector 8).
- Remove the screws 2) from the slide bars 5).
- Remove the two screws 4) and pull the burner
back on slide bars 5) by about 100 mm.
Disconnect the wires from the probe and the
electrode and then pull the burner completely
off the slide bars.
Secure the flange 11)(B) to the boiler plate, inter-
posing the thermal insulating screen 9)(B) sup-
plied with the burner. Use the 4 screws, also
supplied with the unit, after first protecting the
thread with an anti-locking product.
The seal between burner and boiler must be air-
tight.
If you noticed any irregularities in positions of
the probe or ignition electrode during the check
mentioned above, remove screw 1)(D), extract
the internal part 2)(D) of the head and proceed
to set up the two components correctly.
Do not attempt to turn the probe. Leave it in the
position shown in (C) since if it is located too
close to the ignition electrode the control box
amplifier may be damaged.
(A)
(B)
(C)
(D)
PROBE ELECTRODE
D455
D3036
D1265
D1266
mm A B C
RS 190 230 325-368 M 16

7

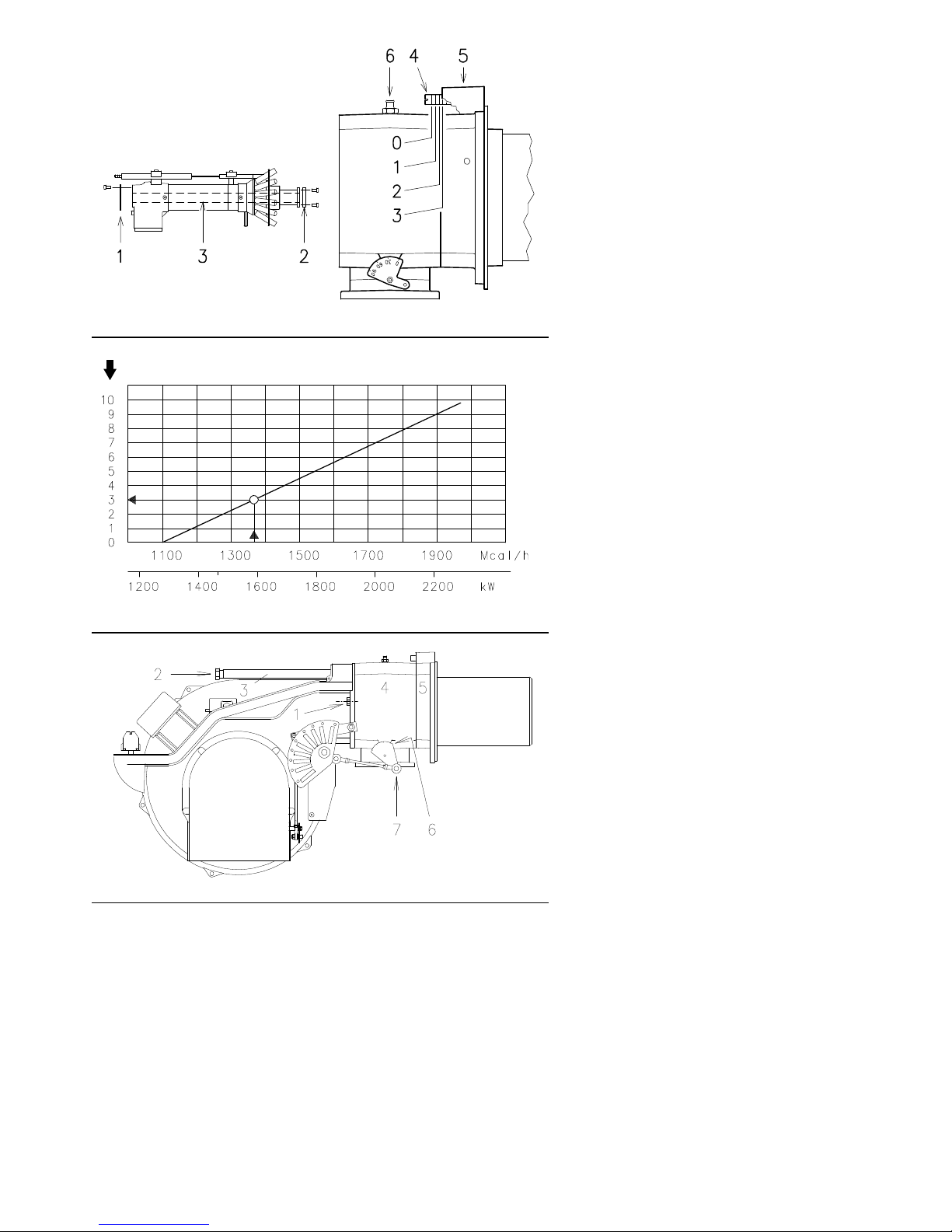

SETTING THE COMBUSTION HEAD
Installation operations are now at the stage
where the blast tube and sleeve are secured to
the boiler as shown in fig. (B). It is now a very
simple matter to set up the combustion head, as
this depends solely on the output developed by
the burner in 2nd stage operation.
It is therefore essential to establish this value
before proceeding to set up the combustion
head.
There are two adjustments to make on the
head.
Air adjustment (B) See diagram (C).
Turn screw 4)(B) until the notch identified is
aligned with the front surface 5)(B) of the flange.
Gas adjustment (A)
When the burner is installed for an output in 2nd
stage 1300 Mcal/h (about 1500 kW) assemble
the supplied disks 1)-2)(A) removing the inner
pipe 3)(A). If there is little gas in the network, the
head may be left in standard configuration, limit-
ing the minimum modulation to 450 Mcal/h
(circa 520 kW).
Example
Burner output = 1593 kW (1370 Mcal/h).
If we consult diagram (C) we find that for this
output, air must be adjusted using notch 3, as
shown in fig. (B).
Continuing with the previous example, page 5
indicates that for burner with output of 1593 kW
(1370 Mcal/h) a pressure of approximately 8
mbar is necessary at test point 6)(B).
Once you have finished setting up the head, refit
the burner to the slide bars 3)(D) at approxi-
mately 100 mm from the sleeve 4)(D) - burner
positioned as shown in fig. (B)p. 6 - insert the
flame detection probe cable and the ignition
electrode cable and then slide the burner up to
the sleeve so that it is positioned as shown in
fig. (D).
Refit screws 2) on slide bars 3).
Secure the burner to the sleeve by tightening
screw 1).
Reconnect the articulation 7) to the graduated
sector 6).
Important
When fitting the burner on the two slide bars, it
is advisable to gently draw out the high tension
cable and flame detection probe cable until they
are slightly stretched.
(A)
(C)
(B)
(D)
Burner output in 2nd stage operation
Nr. Notches
D1267
D1268
D3037

8
GAS LINE
• The gas train can enter the burner from the
right or left side, depending on which is the
most convenient.
• Gas valves must be as close as possible to the
burner to ensure gas reaches the combustion
head within the safety time range of 3 s.
• Make sure that the pressure governor calibra-
tion range (colour of the spring) comprises the
pressure required by the burner.
GAS TRAIN (A)
It is type-approved according to EN 676 Stand-
ards and is supplied separately from the burner
with the code indicated in Table (B).
KEY (A)
1 - Gas input pipe
2 - Manual valve
3 - Vibration damping joint
4 - Pressure gauge with pushbutton cock
5 - Filter
6A - Threaded” Multibloc including:
- filter (replaceable)
- functioning valve
- pressure governor
6B - Flanged” Multibloc including:
- safety valve
- functioning valve
- pressure governor
7 - Minimum gas pressure switch
8 - Gas valve leak detection control device.
In accordance with EN 676 Standards,
gas valve leak detection control devices
are compulsory for burners with maximum
outputs of more than 1200 kW.
9 - Gasket
10 - Standard issue burner gasket
11 - Gas adjustment butterfly valve
12 - Gas train/burner adaptor
- supplied with burner
- supplied on requested separately with the
gas ramp for flanged versions
P1 - Pressure at combustion head
P2 - Up-line pressure valve/adjuster
P3 - Pressure up-line from the filter
L - Gas train supplied separately with the code
indicated in Table (B)
L1 - The responsibility of the installer
KEY TO TABLE (B)
C.T.= Gas valves leak detection control devic-
es:
- = Gas train without gas valve leak de-
tection control device; device that can
be ordered separately and assem-
bled subsequently (see column 8).
= Gas train with assembled VPS valve
leak detection control device.
8 = VPS valve leak detection control de-
vice.
Supplied separately from gas train on
request.
13 = Gas train/burner adaptor.
Supplied separately from gas train on
request.
Note
See the accompanying instructions for the ad-
justment of the gas train.
(B)
BURNERS AND RELEVANT GAS TRAINS APPROVED ACCORDING TO EN 676
GAS TRAINS - L 8 13
Code Model Ø C.T. Code Code
3970181 MBD 420 2” - 3010123 -
3970182 MBD 420 CT 2” --
3970221 MBC-1200-SE-50 2” - 3010123 -
3970225 MBC-1200-SE-50 CT 2” --
3970222 MBC-1900-SE-65 FC DN 65 - 3010123 3000825
3970226 MBC-1900-SE-65 FC CT DN 65 - 3000825
3970223 MBC-3100-SE-80 FC DN 80 - 3010123 3000826
3970227 MBC-3100-SE-80 FC CT DN 80 - 3000826
P2
P3
56B
8
8
6A
P2
P1
P1
10
10
123
4
7
9
123
4
7
11
11
12
12
L1 L
L1 L
(A) D8555

9
ELECTRICAL SYSTEM
ELECTRICAL SYSTEM as set up by the manu-
facturer
Key to Layout (A)
CMV - Motor contactor
DA - Control box (Landis RMG)
F1 - Protection against radio interference
K1 - Relay
I1 - Switch: burner off - on
I2 - Switch: 1st - 2nd stage operation
MB - Burner terminal strip
MV - Fan motor
PA - Air pressure switch
RT - Thermal cut-out
SM - Servomotor
SO - Ionisation probe
SP - Plug-socket
TA - Ignition transformer
TB - Burner ground
XP1 - Connector
ATTENTION
In the case of phase-phase feed, a bridge
must be fitted on the control box terminal strip
between terminal 6 and the earth terminal.
(A)
ELECTRICAL EQUIPMENT FACTORY-SET
RS 190
RMG88.62A2
D3056

10
ELECTRICAL CONNECTIONS
Use flexible cables according to EN 60 335-1
Regulations:
• if in PVC sheath, use at least H05 VV-F
• if in rubber sheath, use at least H05 RR-F.
All the wires to connect to the burner terminal
strip 9)(A) must enter through the supplied fair-
leads.
The fairleads and hole press-outs can be used
in various ways; the following lists show one
possible solution:
1 - Pg 13,5 Three-phase power supply
2 - Pg 11 Single-phase power supply
3 - Pg 11 Remote control device TL
4 - Pg 9 Remote control device TR
5 - Pg 13,5 Gas valves
6 - Pg 13,5 Gas pressure switch or gas valve
leak detection control device
7 - Pg 11 Open the hole, if a pipe union is to
be added
8 - Pg 9 Open the hole, if a pipe union is to
be added
LAYOUT (B)
Electrical connection RS 190 burners with-
out leak detection control device.
LAYOUT (C)
Electrical connection RS 190 burners with
VPS leak detection control device.
Gas valve leak detection control takes place
immediately before every burner start-up.
Fuses and cables cross-section layouts (B) and
(C), see table (D).
Cross-section when not indicated: 1,5 mm2.
KEY TO LAYOUTS (B - C)
IN - Burner manual stop switch
XP- Plug for leak detection control device
MB- Burner terminal strip
PG- Min. gas pressure switch
S - Remote lock-out signal
S1 - Remote lock-out signal of leak detection
control device
TR- High-low mode load remote control system:
controls operating stages 1 and 2.
If the burner is to be set up for single stage
operation, replace of remote control device
TR with a jumper.
TL - Load limit remote control system:
shuts down the burner when the boiler tem-
perature or pressure reaches the preset
value.
TS - Safety load control system:
operates when TL is faulty
VR- Adjustment valve
VS- Safety valve
(A)
(B)
RS 190 without leak detection control device
RS 190 with leak detection control device VPS
(C)
(D)
D955
RS 190
230 V 400 V
FA T25T20
Lmm22,5 2,5
D957
D956

11
N.B.
The RS 190 burner has been type- approved for
intermittent operation. This means it shoulds
compulsorily be stopped at least once every 24
hours to enable the control box to perform
checks of its own efficiency at start-up. Burner
halts are normally provided for automatically by
the boiler load control system.
If this is not the case, a time switch should be fit-
ted in series to IN to provide for burner shut-
down at least once every 24 hours.
The RS 190 burner is factory set for two-stage
operation and must therefore be connected to
control device TR.
Alternatively, if single stage operation is
required, instead of control device TR install a
jumper lead between terminals 6 and 7 of the
terminal strip.
WARNING: Do not invert the neutral with
the phase wire in the electricity supply
line. Inverting the wires will make the
burner go into lock-out because of firing
failure.
(A)
Model Calibration of thermal cut-out
RS 190 - 230 V 16 A
RS 190 - 400 V 9,5 A

12

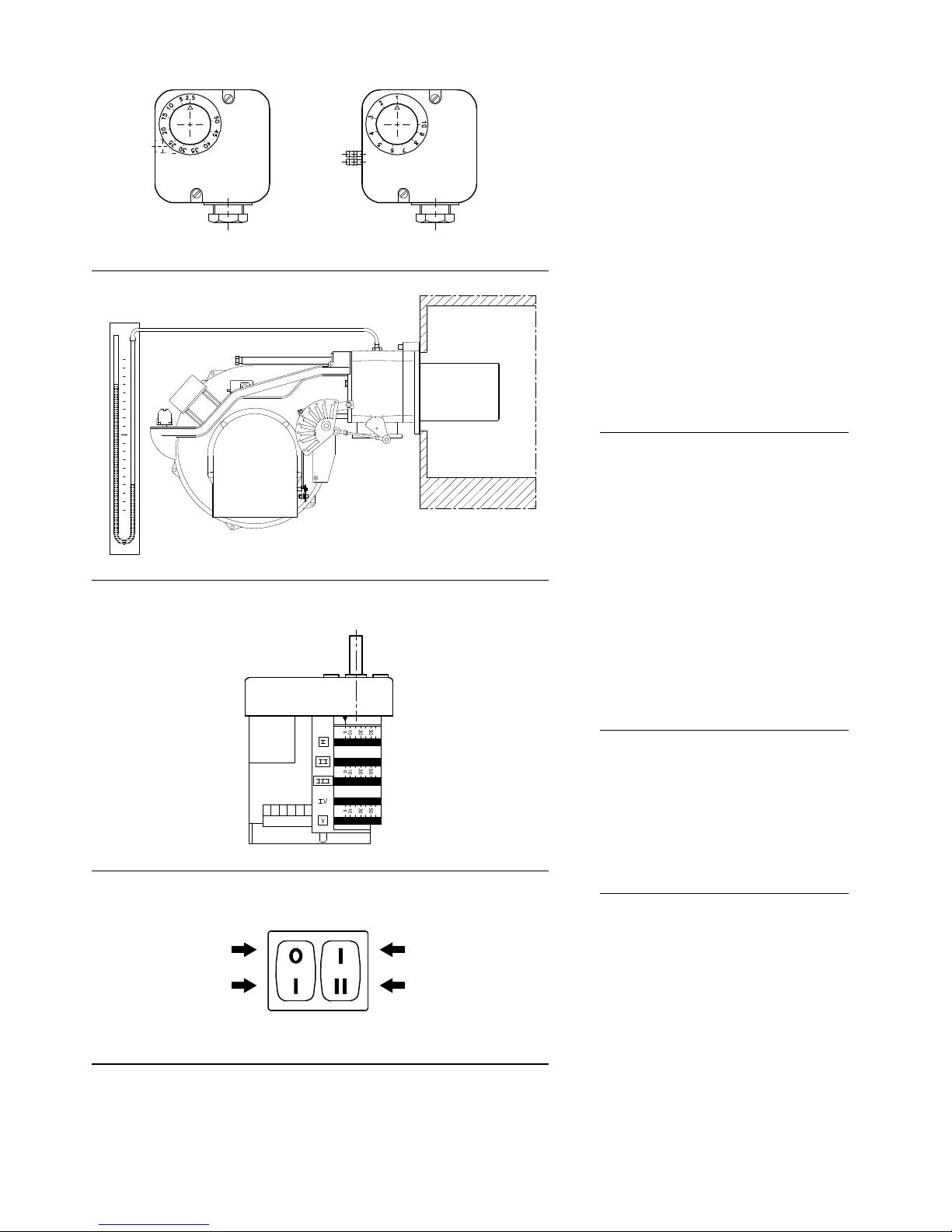

ADJUSTMENTS BEFORE FIRST FIRING
Adjustment of the combustion head, and air and
gas deliveries has been illustrated on page 7.
In addition, the following adjustments must also
be made:
- open manual valves up-line from the gas
train.
- Adjust the minimum gas pressure switch to
the start of the scale (A).
- Adjust the air pressure switch to the zero
position of the scale (B).
- Purge the air from the gas line.
Continue to purge the air (we recommend
using a plastic tube routed outside the build-
ing) until gas is smelt.
- Fit a U-type manometer (C) to the gas pres-
sure test point on the sleeve.
The manometer readings are used to calcu-
late the 2nd stage operation burner power
using the tables on page 5.
- Connect two lamps or testers to the two gas
line solenoid valves VR and VS to check the
exact moment at which voltage is supplied.
This operation is unnecessary if each of the
two solenoid valves is equipped with a pilot
light that signals voltage passing through.
Before starting up the burner it is good practice
to adjust the gas train so that ignition takes
place in conditions of maximum safety, i.e. with
gas delivery at the minimum.
SERVOMOTOR (D)
The servomotor provides simultaneous adjust-
ment of the air gate valve, by means of the vari-
able profile cam, and the gas butterfly valve.
The servomotor rotates through 130 degrees in
15 seconds.
Do not alter the factory setting for the 4 levers;
simply check that they are set as indicated
below:
Cam I : 130°
Limits rotation toward maximum position.
When the burner is in 2nd stage operation the
gas butterfly valve must be fully open: 90°.
Cam II : 0°
Limits rotation toward the minimum position.
When the burner is shut down the air gate valve
and the gas butterfly valve must be closed: 0°.
Cam III : 15°
Adjusts the ignition position and the output in 1st
stage operation.
Cam V : 125°
Lights up the 2nd stage LED
BURNER STARTING
Close the control devices and set:
• switch 1)(E) to "Burner ON" position;
• switch 2)(E) to "1st STAGE" position.
As soon as the burner starts check the direction
of rotation of the fan blade, looking through the
flame inspection window 14)(A)p.3.
Make sure that the lamps or testers connected
to the solenoids, or pilot lights on the solenoids
themselves, indicate that no voltage is present.
If voltage is present, then immediately stop the
burner and check electrical connections.
BURNER FIRING
Having completed the checks indicated in the
previous heading, the burner should fire. If the
motor starts but the flame does not appear and
the control box goes into lock-out, reset and wait
for a new firing attempt.
If firing is still not achieved, it may be that gas is
not reaching the combustion head within the
safety time period of 3 seconds.
In this case increase gas firing delivery.
The arrival of gas at the sleeve is indicated by
the U-type manometer (C).
Once the burner has fired, now proceed with
global calibration operations.
(A)
(C)
MIN GAS PRESSURE SWITCH AIR PRESSURE SWITCH
SERVOMOTOR
(D)
12
Burner off
Burner on
1st stage
2nd stage
(E)
(B) D897
D3038
D1272
D469

13
BURNER CALIBRATION
The optimum calibration of the burner requires
an analysis of the flue gases at the boiler outlet.
Adjust successively:
1 - First firing output
2 - 2nd stage burner output
3 - 1st stage burner output
4 - Intermediate outputs between 1st and 2nd stage
5 - Air pressure switch
6 - Minimum gas pressure switch
1 - FIRING OUTPUT
According to EN 676 Regulations:
Burners with max. output up to 120 kW
Firing can be performed at the maximum opera-
tion output level. Example:
• Max. operation output : 120 kW
• Max. firing output : 120 kW
Burners with max. output above 120 kW
Firing must be performed at a lower output than
the max. operation output. If the firing output
does not exceed 120 kW, no calculations are
required. If firing output exceeds 120 kW, the
regulations prescribe that the value be defined
according to the control box safety time "ts":
• for "ts" = 2s, firing output must be equal to or
lower than 1/2 of max. operation output.
• For "ts" = 3s, firing output must be equal to or
lower than 1/3 of max. operation output.
Example: MAX operation output of 600 kW.
Firing output must be equal to or lower than:
• 300 kW with "ts" = 2s
• 200 kW with "ts" = 3s
In order to measure the firing output:
- disconnect the plug-socket 6)(A)p.3 on the
ionization probe cable (the burner will fire and
then go into lock-out after the safety time has
elapsed).
- Perform 10 firings with consecutive lock-outs.
- On the meter read the quantity of gas burned.
This quantity must be equal to or lower than
the quantity given by the formula, for ts = 3s:
Example: for gas G 20 (9.45 kWh/Sm3):
Max. operation output: 600 kW corresponding to
63.5 Sm3/h.
After 10 firings with lock-outs, the delivery read
on the meter must be equal to or lower than:
63.5 : 360 = 0,176 Sm3
2 - 2ND STAGE OUTPUT
2nd stage output of the burner must be set
within the firing rate range shown on page 4.
In the above instructions we left the burner run-
ning in 1st stage operation. Now set switch 2)(A)
to the 2nd stage position: the servomotor will
open, simultaneously, the air gate valve and the
gas butterfly valve to 90°.
Gas calibration
Measure the gas delivery at the meter.
A guideline indication can be calculated from the
tables on page 5, simply read off the gas pres-
sure on the U-type manometer, see fig.(C) on
page 12, and follow the instructions on page 5.
- If delivery needs to be reduced, diminish out-
let gas pressure and, if it is already very low,
slightly close adjustment valve VR.
- If delivery needs to be increased, increase
outlet gas pressure.
(A)
12
Burner off
Burner on
1st stage
2nd stage
D469
Sm3/h (max. burner delivery)
360

14

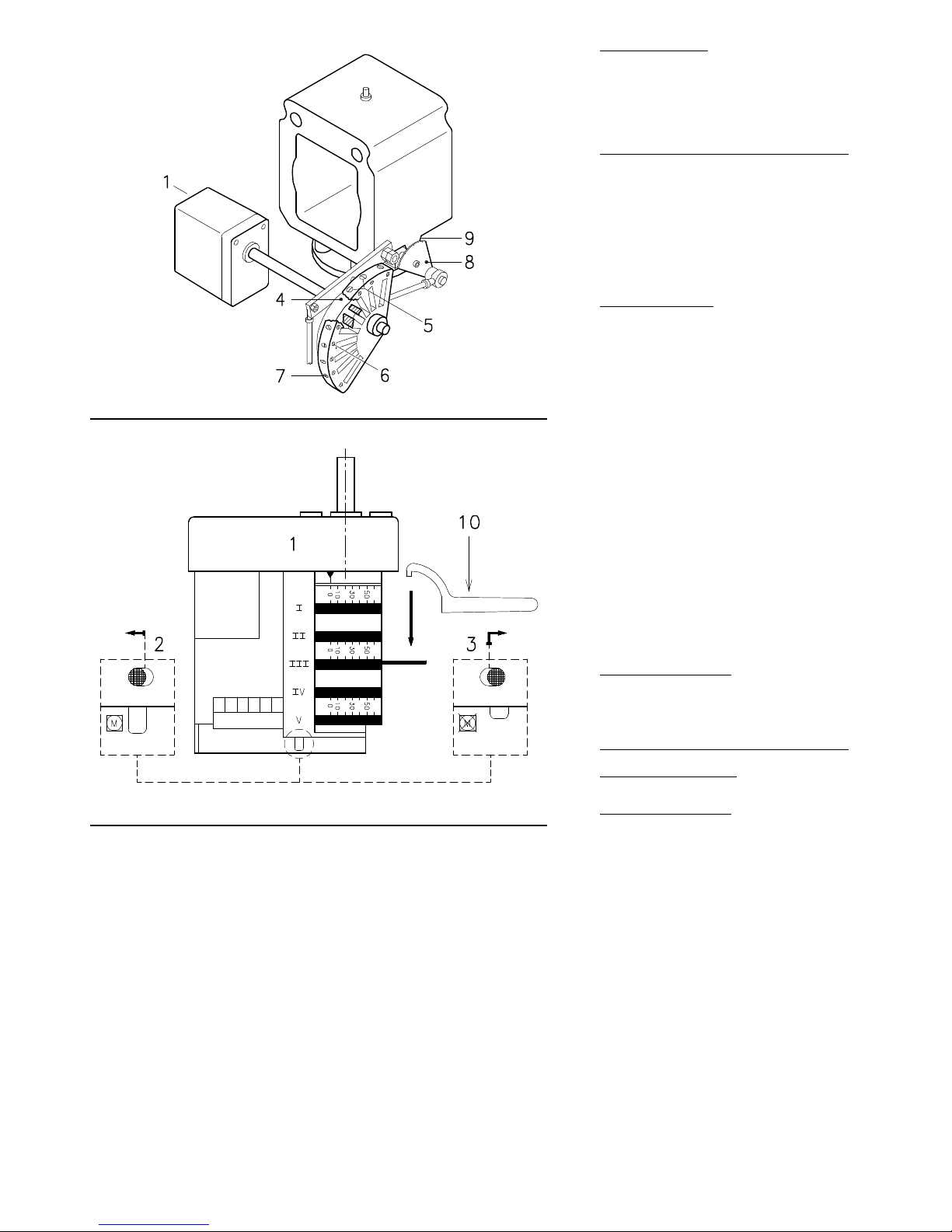

Adjusting air delivery
Progressively adjust the end profile of cam 4)(A)
by turning the screws 7).
- Turn the screws clockwise to increase air
delivery.
- Turn the screws counter-clockwise to reduce
air delivery.
3 - 1ST STAGE OUTPUT
Burner power in 1st stage operation must be
selected within the firing rate range shown on
page 4.
Set the switch 2)(A)p.13 to the 1st stage posi-
tion: the servomotor 1)(A) will close the air gate
valve and, at the same time, closes the gas but-
terfly valve down to 15°, i.e. down to the original
factory setting.
Adjusting gas delivery
Measure the delivery of gas from the gas meter.
- If this value is to be reduced, decrease the
angle of the orange lever (B) slightly by pro-
ceeding a little at a time until the angle is
changed from 15° to 13° or 11°....
- If it is necessary to increase the mains pres-
sure, move to 2nd stage operation by altering
the setting of switch 2)(A)p.13 and increase
the angle of the orange lever, proceeding a lit-
tle at a time until the angle is changed from
15° to 17° - 19°....
At this point return to 1st stage operation and
measure gas delivery.
Note
The servomotor follows the adjustment of the
orange lever only when the angle is reduced.
If, however the angle must be increased, switch
to 2nd stage operation, increase the angle and
then return to 1st stage operation to check the
effect of the adjustment.
In order to adjust cam III, especially for fine
movements, the key 10)(B), held by a magnet
under the servomotor, can be used.
Adjustment of air delivery
Progressively adjust the starting profile of cam
4)(A) by turning the screws 5). It is preferable
not to turn the first screw since this is used to set
the air gate valve to its fully-closed position.
4 - INTERMEDIATE OUTPUTS
Adjustment of gas delivery
No adjustment of gas delivery is required.
Adjustment of air delivery
Switch off the burner using switch 1)(A)p.13,
disengage the cam 4)(A) from the servomotor,
by pressing the button 3)(B) and moving it to the
right, and check more than once that the move-
ment is soft and smooth, and does not grip, by
rotating the cam 4) forward and backward by
hand.
Engage the cam 4) to the servomotor again by
moving the button 2)(B) to the left.
As far as is possible, try not to move those
screws at the ends of the cam that were previ-
ously adjusted for 1st and 2nd stage air gate
valve control.
Finally fix the adjustment by turning the screws
6)(A).
Note
Once you have finished adjusting outputs 2ND
STAGE - 1ST STAGE - INTERMEDIATE, check
ignition once again: noise emission at this stage
must be identical to the following stage of opera-
tion.
If you notice any sign of pulsations, reduce the
ignition stage delivery.
(A)
(B)
D891
1Servomotor
2 Servomotor 1) - Cam 4): engaged
3 Servomotor 1) - Cam 4): disengaged
4 Adjustable profile cam
5 Cam starting profile adjustment screws
6 Adjustment fixing screws
7 Cam end profile adjustment screws
8 Graduated sector for gas butterfly
valve
9 Index for graduated sector 8
10 Key for cam III adjustment
D889

15

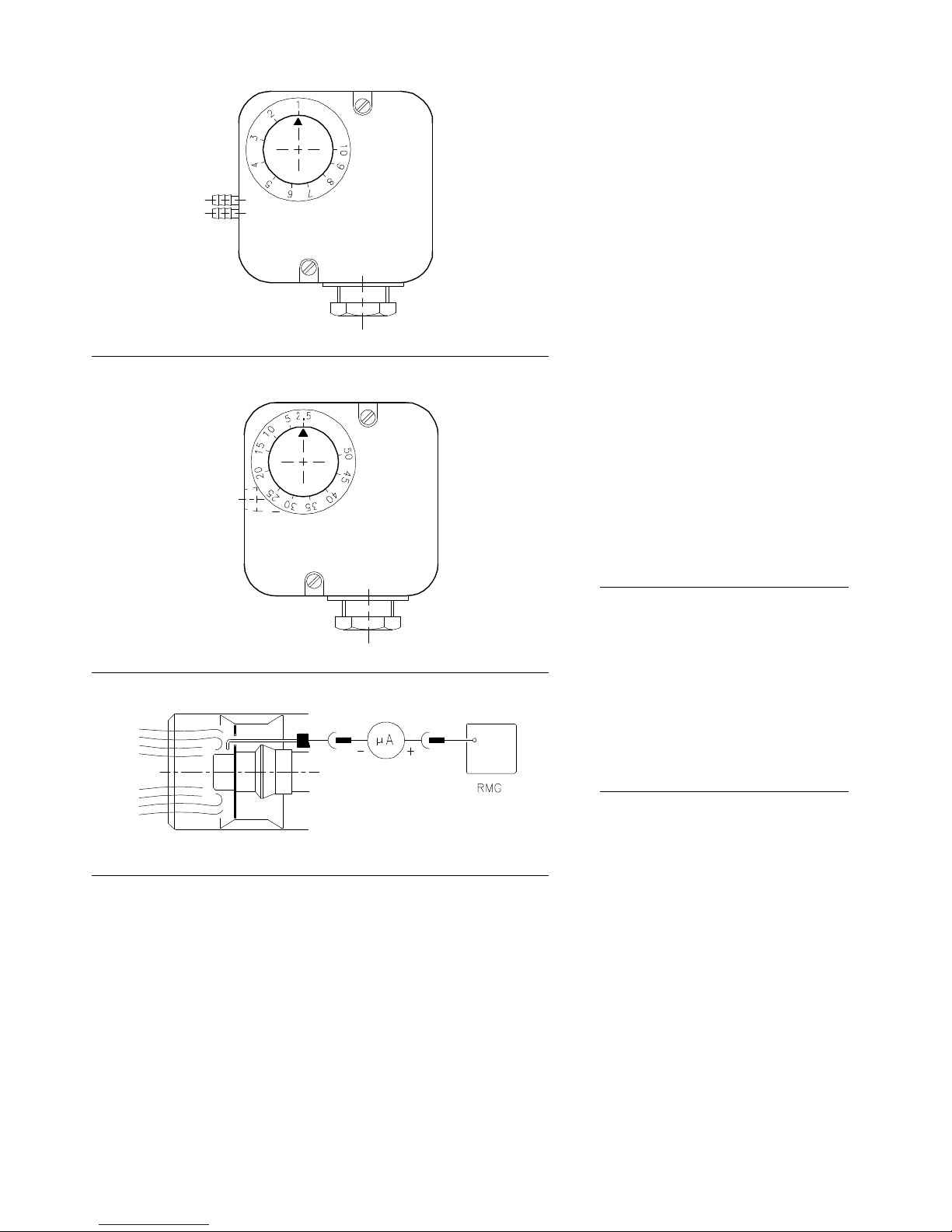

5 - AIR PRESSURE SWITCH (A)
Adjust the air pressure switch after having per-
formed all other burner adjustments with the air
pressure switch set to the start of the scale (A).
With the burner operating in 1st stage, increase
adjustment pressure by slowly turning the rela-
tive knob clockwise until the burner locks out.
Then turn the knob anti-clockwise by about 20%
of the set point and repeat burner starting to
ensure it is correct.
If the burner locks out again, turn the knob anti-
clockwise a little bit more.
Attention
As a rule, the air pressure switch must limit the
CO in the fumes to less than 1% (10,000 ppm).
To check this, insert a combustion analyser into
the chimney, slowly close the fan suction inlet
(for example with cardboard) and check that the
burner locks out, before the CO in the fumes
exceeds 1%.
The air pressure switch may operate in "differ-
ential" operation in two pipe system. If a nega-
tive pressure in the combustion chamber during
pre-purging prevents the air pressure switch
from switching, switching may be obtained by fit-
ting a second pipe between the air pressure
switch and the suction inlet of the fan. In such a
manner the air pressure switch operates as dif-
ferenzial pressure switch.
Warning
The use of the air pressure switch with differen-
tial operation is allowed only in industrial appli-
cations and where rules enable the air pressure
switch to control only fan operation without any
reference to CO limit.
6 - MINIMUM GAS PRESSURE SWITCH (B)
Adjust the minimum gas pressure switch after
having performed all the other burner adjust-
ments with the pressure switch set at the start of
the scale (B).
With the burner operating in 2nd stage, increase
adjustment pressure by slowly turning the rela-
tive knob clockwise until the burner locks out.
Then turn the knob anti-clockwise by 2 mbar
and repeat burner starting to ensure it is uni-
form.
If the burner locks out again, turn the knob anti-
clockwise again by 1 mbar.
FLAME PRESENT CHECK (C)
The burner is fitted with an ionisation system
which ensures that a flame is present. The mini-
mum current for plant operation is 5 µA.
The burner provides a much higher current, so
that controls are not normally required. How-
ever, if it is necessary to measure the ionisation
current, disconnect the plug-socket 6)(A)p.3 on
the ionisation probe cable and insert a direct
current microamperometer with a base scale of
100 µA.
Carefully check polarities!
(A)
AIR PRESSURE SWITCH 15)(A)p. 3
MIN GAS PRESSURE SWITCH 7)(B)p. 8
(B)
(C)
D521
D896
D3023

16
BURNER OPERATION
BURNER STARTING (A)
• : Control device TL closes.
Servomotor starts: it rotates during
opening up to the angle set on cam
with orange lever.
After about 3s:
• 0 s : The control box starting cycle begins.
• 2 s : Fan motor starts.
• 3 s : Servomotor starts: it rotates during
opening until contact is made on cam
with red lever.
The air gate valve is positioned to 2nd
stage output.
Pre-purge stage with air delivery at
2nd stage output.
Duration 25 seconds.
• 28 s : Servomotor starts: it rotates during
closing up to the angle set on cam
with orange lever.
• 43 s : The air gate valve and the gas butter-
fly are positioned to 1st stage output.
Ignition electrode strikes a spark.
Safety valve VS and adjustment valve
VR (rapid opening) open. The flame
is ignited at a low output level, point
A. Output is then progressively
increased, with the valve opening
slowly up to 1st stage output, point B.
• 45 s : The spark goes out.
• 53 s : If remote control device TR is closed
or if it has been replaced by a jumper,
the servomotor will continue to turn
until the cam with red lever come into
operation, setting the air gate valve
and the gas butterfly valve to the 2nd
stage operation position, section C-D.
The control box starting cycle ends.
STEADY STATE OPERATION (A)
System equipped with one control device TR.
Once the starting cycle has come to an end,
control of the servomotor passes on to the con-
trol device TR that controls boiler temperature or
pressure, point D.
(The control box will continue, however, to mon-
itor flame presence and the correct position of
the air pressure switch).
• When the temperature or the pressure
increases until the control device TR opens,
the servomotor closes the gas butterfly valve
and the air gate valve and the burner passes
from the 2nd to the 1st stage of operation,
section E-F.
• When the temperature or pressure decreases
until the control device TR closes, the servo-
motor opens the gas butterfly valve and the
air gate valve and the burner passes from the
1st to the 2nd stage of operation, and so on.
• The burner stops when the demand for heat
is less than the amount of heat delivered by
the burner in the 1st stage, section G-H. Con-
trol device TL now opens, the servomotor
returns toward the 0° position, limited in this
movement by cam with blue lever. The air
gate valve closes completely to reduce heat
losses to a minimum.
Systems not equipped with control device TR
(jumper wire installed)
The burner is fired as described in the case
above. If the temperature or pressure increase
until control device TL opens, the burner shuts
down (Section A-A in the diagram).
FIRING FAILURE (B)
If the burner does not fire, it goes into lock-out
within 3 s of the opening of the gas solenoid
valve and 49 s after the closing of control
device TL. The control box red pilot light will
light up.
BURNER FLAME GOES OUT DURING OPER-
ATION
If the flame should accidentally go out during
operation, the burner will lock out within 1s.
(A)
(B)
NORMAL FIRING
(n° = seconds from instant 0)
NO FIRING
D3051
D3052
RMG
LED *
Off Yellow Green Red
For further details see page 18.
*
Off Yellow Red
For further details see page 18.
*
RMG
LED *

17
FINAL CHECKS (with burner running)
• Disconnect one of the wires on the minimum
gas pressure switch:
• Open remote control device TL:
• Open remote control device TS:
the burner must stop
• Disconnect the common wire P from the air
pressure switch:
• Disconnect the ionisation probe lead:
the burner must lock out
• Make sure that the mechanical locking sys-
tems on the various adjustment devices are
fully tightened.
MAINTENANCE
Combustion
The optimum calibration of the burner requires
an analysis of the flue gases. Significant differ-
ences with respect to the previous measure-
ments indicate the points where more care
should be exercised during maintenance.
Gas leaks
Make sure that there are no gas leaks on the
pipework between the gas meter and the burner.
Gas filter
Change the gas filter when it is dirty.
Flame inspection window
Clean the flame inspection window (A).
Combustion head
Open the burner and make sure that all compo-
nents of the combustion head are in good condi-
tion, not deformed by the high temperatures,
free of impurities from the surroundings and cor-
rectly positioned. If in doubt, disassemble the
elbow fitting 5)(B).
Burner
Check for excess wear or loose screws in the
mechanisms controlling the air gate valve and
the gas butterfly valve. Also make sure that the
screws securing the electrical leads in the
burner terminal strip are fully tightened.
Clean the outside of the burner, taking special
care with the transmission joints and cam
4)(A)p.14.
Combustion
Adjust the burner if the combustion values found
at the beginning of the operation do not comply
with the regulations in force, or at any rate, do
not correspond to good combustion. Use the
appropriate card to record the new combustion
values; they will be useful for subsequent con-
trols.

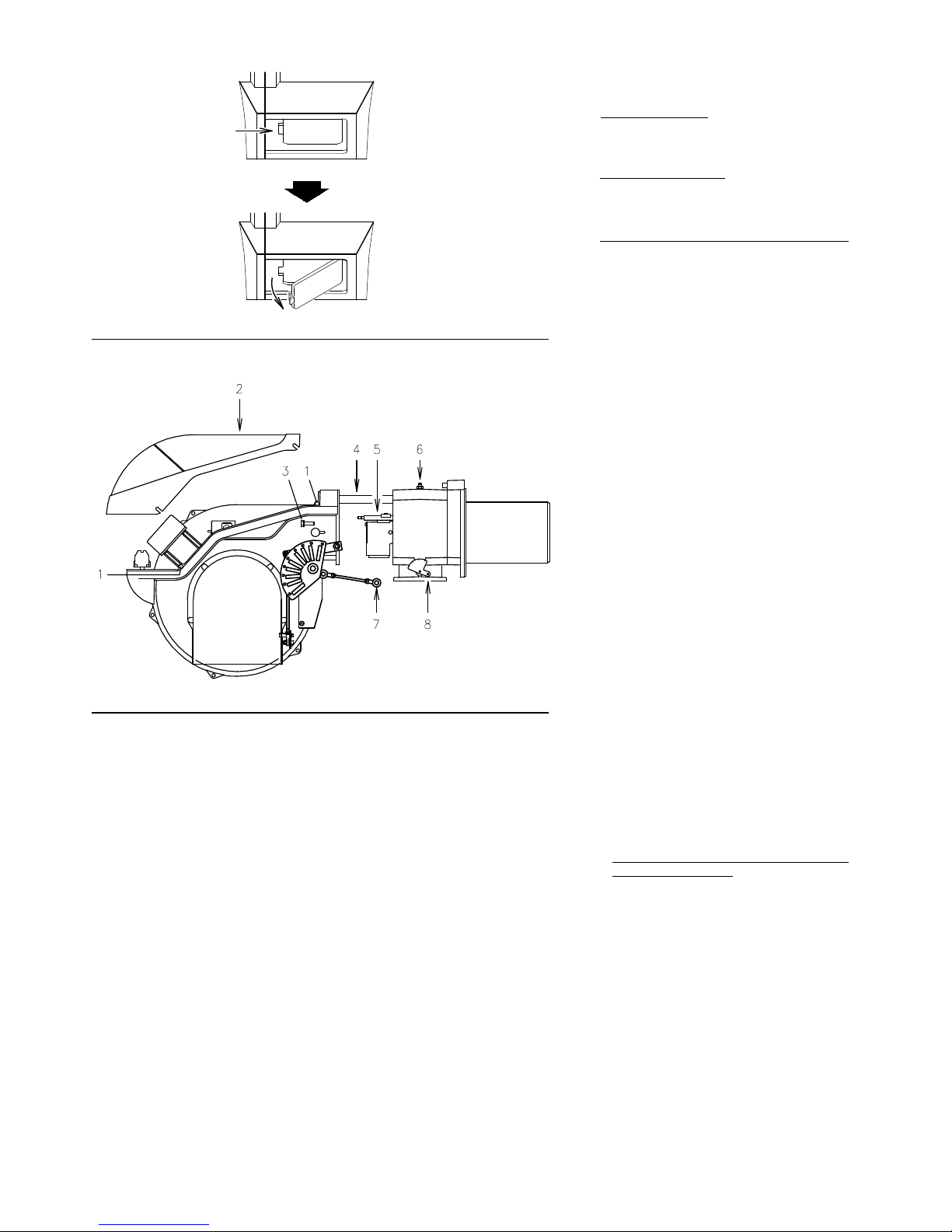

TO OPEN THE BURNER (B):
- switch off the electrical power.
- Loosen screws 1) and withdraw cover 2).
- Disengage the articulated coupling 7) from
the graduated sector 8).
- Fit the two standard supplied extensions onto
the slide bars 4).
- Remove screws 3), and pull the burner back
by about 100 mm on the slide bars 4). Discon-
nect the probe and electrode leads and then
pull the burner fully back.
Now extract the gas distributor 5) after having
removed the screw 6).
TO CLOSE THE BURNER (B):
- push the burner until it is about 100 mm from
the sleeve.
- Re-connect the leads and slide in the burner
until it comes to a stop.
- Refit screws 3), and pull the probe and elec-
trode leads gently out until they are slightly
stretched.
- Re-couple the articulated coupling 7) to the
graduated sector 8).
- Remove the two extensions from the slide
bars 4).
(A)
(B)
FLAME INSPECTION WINDOW
OPENING THE BURNER
D709
D3041

18
BURNER START-UP CYCLE DIAGNOSTICS
During start-up, indication is according to the followin table:
RESETTING THE CONTROL BOX AND USING DIAGNOSTICS
The control box features a diagnostics function through which any causes of malfunctioning are easily identified (indicator: RED LED).
To use this function, you must wait at least 10 seconds once it has entered the safety condition (lock-out), and then press the reset button.
The control box generates a sequence of pulses (1 second apart), which is repeated at constant 3-second intervals.
Once you have seen how many times the light pulses and identified the possible cause, the system must be reset by holding the button
down for between 1 and 3 seconds.
The methods that can be used to reset the control box and use diagnostics are given below.
RESETTING THE CONTROL BOX
To reset the control box, proceed as follows:
-Hold the button down for between 1 and 3 seconds.
The burner restarts after a 2-second pause once the button is released.
If the burner does not restart, you must make sure the limit thermostat is closed.
VISUAL DIAGNOSTICS
Indicates the type of burner malfunction causing lock-out.
To view diagnostics, proceed as follows:
-Hold the button down for more than 3 seconds once the red LED (burner lock-out) remains steadily lit.
A yellow light pulses to tell you the operation is done.
Release the button once the light pulses. The number of times it pulses tells you the cause of the malfunction, according to the coding
system indicated in the table on page 19.
SOFTWARE DIAGNOSTICS
Reports burner life by means of an optical link with the PC, indicating hours of operation, number and type of lock-outs, serial number of
control box etc ...
To view diagnostics, proceed as follows:
-Hold the button down for more than 3 seconds once the red LED (burner lock-out) remains steadily lit.
A yellow light pulses to tell you the operation is done.
Release the button for 1 second and then press again for over 3 seconds until the yellow light pulses again.
Once the button is released, the red LED will flash intermittently with a higher frequency: only now can the optical link be activated.
Once the operations are done, the control box’s initial state must be restored using the resetting procedure described above.
The sequence of pulses issued by the control box identifies the possible types of malfunction, which are listed in the table on page 19.
COLOUR CODE TABLE
Sequences Colour code
Pre-purging
Ignition phase
Operation, flame ok
Operating with weak flame signal
Electrical supply lower than ~170V
Lock-out
Extraneous light
Key: Off Yellow Green Red
BUTTON PRESSED FOR CONTROL BOX
Between 1 and 3 seconds Control box reset without viewing visual diagnostics.
More than 3 seconds Visual diagnostics of lock-out condition:
(LED pulses at 1-second intervals).
More than 3 seconds starting from the visual
diagnostics condition
Software diagnostics by means of optical interface and PC (hours of operation, malfunc-
tions etc. can be viewed)
Press reset
for > 3s 3sPulses Pulses
RED LED on
wait at least 10s
Interval
Lock-out
