MODEL T220D
MODEL T22ODW
With Fast Charger
Applicable staples
INSTRUCTION MANUAL
Staple capacity Dimensions (L x W x H) Net weight
SPECIFICATIONS
Input
Voltage output Charging time
Staples
Nos.
1010, 1013,1016, 1
*1019. *lo22
100
1 '7~~7m187.5x2~,mx;11~43,~m 1 1.8 kg 14.0 Ibs)
9.6 V
Battery Cartridge 9000
1 Modal DC9700 Fast Charqer
A.C. only 50 Hr - 60 Hz D.C. 7.2 V. 9.6 V 1 Hr.

IMPORTANT
SAFETY INSTRUCTIONS
(For All Tools)
WARNING:
WHEN USING ELECTRICTOOLS, BASIC SAFETY
PRECAUTIONSSHOULDALWAYS BE FOLLOWEDTO REDUCE
THE RISK OF FIRE, ELECTRIC SHOCK, AND PERSONAL
INJURY, INCLUDING THE FOLLOWING:
READ ALL INSTRUCTIONS.
1.
2.
3.
4.
5.
6.
7.
8.
9.
IO.
11.
12.
KEEP WORK AREA CLEAN. Cluttered areas and benches invite injuries.
CONSIDER WORK AREA ENVIRONMENT. Don't use power tools
in damp
or wet locations. Keep work area well
lit. Don't expose power tools to rain.
Don't use tool in presence of flammable liquids or gases.
KEEP CHILDREN AWAY. All visitors should be kept away from work area.
Don't let visitors contact tool or extension cord.
STORE IDLETOOLS. When not
in use, toolsshould be stored in dry, andhigh
or locked-up place
- out of reach of children.
DON'T FORCETOOL.
It will do thejob better andsafer at the ratefor which
it was intended.
USE RIGHT TOOL. Don't force small tool or attachment to do the job of a
heavy-duty tool. Don't use tool for purpose not intended.
DRESS PROPERLY. Don't wear looseclothing orjewelry. They can becaught
in moving parts. Rubber gloves and non-skid footwear are recommended
when working outdoors. Wear protectivehair covering tocontain long hair.
USE SAFETY GLASSES. Also useface or dust mask if cutting operation is
dusty.
DON'T ABUSE CORD. Never carry tool bycordor yank
it todisconnect from
receptacle. Keep cord from heat, oil, and sharp edges.
SECURE WORK. Use clamps or a vise to hold work. It's safer than using
your hand and
it frees both hands to operate tool.
DON'T OVERREACH. Keep proper footing and balance at all times.
MAINTAIN TOOLS WITH CARE. Keep tools sharp and clean for better and
safer performance. Follow instructionsfor lubricating and changing acces-
sories. Inspecttoolcordsperiodicallyandifdamaged, have repairedbyautho-
rized service facility. Inspect extension cords periodically and replace if
damaged. Keep handles dry, clean, and free from oil and grease.
13. DISCONNECTTOOLS. When not in use, beforeservicing, and when chang-
ing accessories, such as blades, bits, cutters.
2

14. REMOVE ADJUSTING KEYS AND WRENCHES. Form habit of checking to
see that keysand adjusting wrenches are removedfrom tool before turning
it on.
15. AVOID UNINTENTIONALSTARTING. Don't carry plugged-intool withfinger
on switch. Be sure switch is OFF when plugging
in.
16. OUTDOOR USE EXTENSIONCORDS. When tool is usedoutdoors, use only
extension cords intended for use outdoors and
so marked.
17. STAY ALERT. Watch what you are doing, usecommon sense. Don't operate
tool when you are tired.
18. CHECK DAMAGED PARTS. Before further use of the tool, a guard or other
part that is damaged should be carefully checked to determine that
it will
operate properly and perform itsintended function. Check for alignment of
moving parts, binding of moving parts, breakage of parts, mounting, and
any other conditions that may affect its operation. A guard or other part
that is damaged should be properly repaired or replaced by an authorized
service center unless otherwise indicated elsewhere in this instruction
manual. Havedefective switches replacedbyauthorizedservicecenter. Don't
use tool
if switch does not turn it on and off.
19. GUARDAGAINST ELECTRIC SHOCK. Prevent body contact withgrounded
surfaces. For example; pipes, radiators, ranges, refrigerator enclosures.
20. REPLACEMENTPARTS.When servicing, useonly identicalreplacementparts.
VOLTAGE WARNING: Before connecting the tooltoa power source (receptacle,
outlet, etc.) be sure the voltage supplied is the same as that specified on the
nameplate of the tool. A power source with voltage greater thanthat specified
for the toolcan result
in SERIOUS INJURYtothe user - as wellas damage to
the tool.
If in doubt, DO NOT PLUG IN THE TOOL. Using a power source with
voltage less than the nameplate rating is harmful to the motor.
3

IMPORTANT SAFETY
I N STRUCTI 0 N S
1. SAVE THESE INSTRUCTIONS - This manual
contains important safety and operating instructions for battery charger.
2. Beforeusing battery charger, readall instructionsand cautionary markings
on
(1) battery charger, (2) battery, and (3) product using battery.
3. CAUTION - To reduce risk of injury, charge only MAKITA Battery 7000,
9000 or 9100. Other types of batteries may burst causing personal injury
and damage.
4. Do not expose charger to rain or snow.
5. Use of an attachment not recommended or sold by the battery charger
manufacturer may result
in a risk of fire, electric shock, or injurytopersons.
6. To reduce risk of damage toelectric plugand cord, pull by plug rather than
cord when disconnecting charger.
7. Make sure cord is located so that it will not be stepped on, tripped over,
or otherwise subjected to damage or stress.
8. An extension cord should not be used unless absolutely necessary. Use of
improper extension cord could result
in a risk of fire and electric shock. If
extension cord must be used, make sure:
a. That pinson plugof extensioncordare the same number, size, andshape
b. That extensioncordisproperlywired and
in goodelectrical condition; and
c. That wire size isat least as large as theone specified inthe table below.
TABLE
1
RECOMMENDED MINIMUM AWG SIZE FOR
EXTENSION CORDS FOR BATTERY CHARGERS
as those of plug on charger;
I Length of Cord (Feet) I 25 I 50 I 100 1 150 I
I
-
I I I
~
AWG Size of Cord I 18 I 18 I 18 I 16
9. Do not operate charger with damaged cord or plug - replace them im-
mediately.
IO. Do not operate charger if it has received a sharp blow, been dropped, or
otherwise damaged
in any way; take it to a qualified serviceman.
11. Do not disassemble charger or battery cartridge; take it to a qualified
serviceman when service or repair is required. Incorrect reassembly may
result in a risk of electric shock or fire.
12. To reduce riskof electric shock, unplugcharger from outlet beforeattempt-
ingany maintenanceor cleaning. Turning
off controls willnotreducethis risk.
4

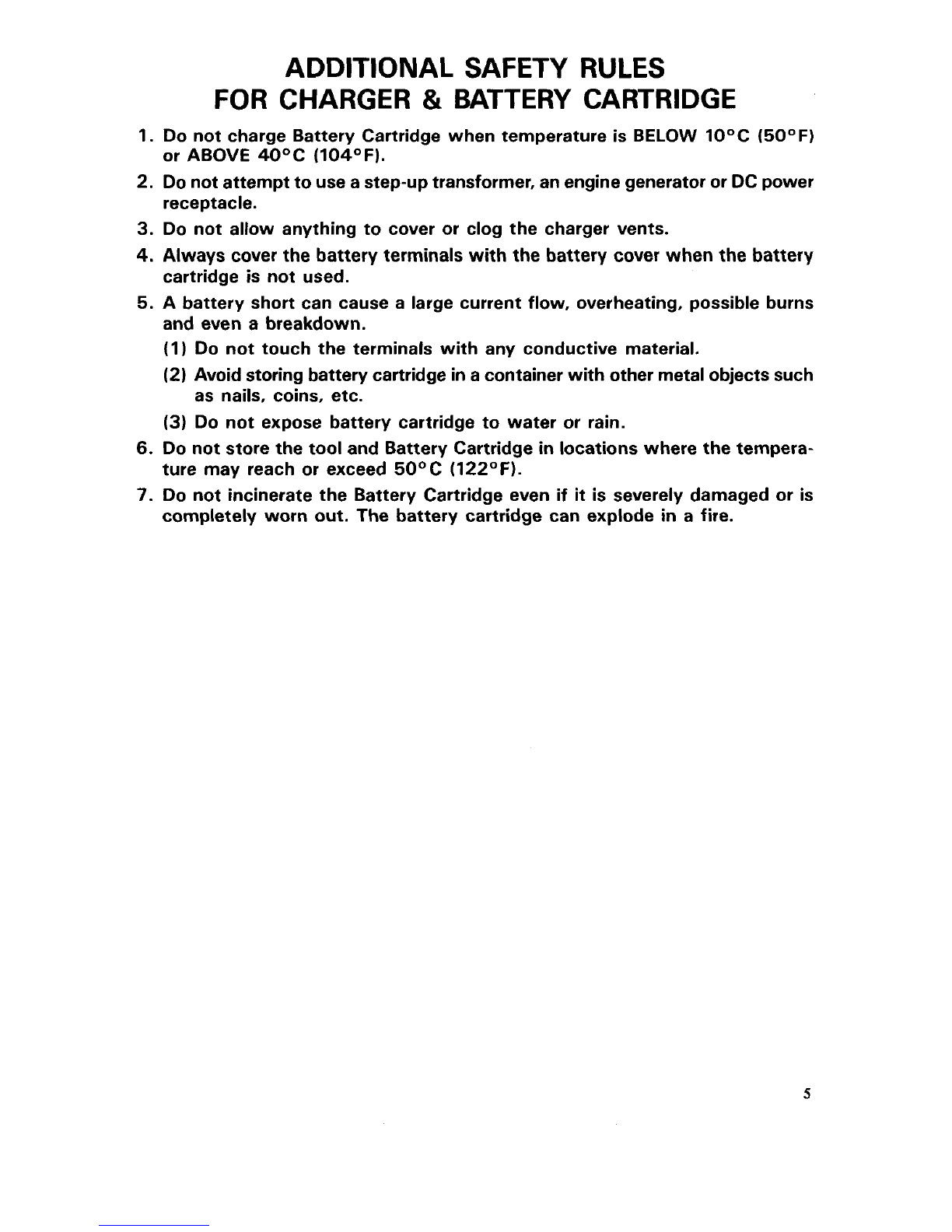

ADDITIONAL SAFETY RULES
FOR CHARGER
& BATTERY CARTRIDGE
1. Do not charge Battery Cartridge when temperature is BELOW 10°C (50OF)
or ABOVE 4OoC (104OF).
2. Donotattempt touseastep-uptransformer, anenginegenerator or DC power
3. Do not allow anything to cover or clog the charger vents.
4. Always cover the batteryterminals with the battery cover when the battery
5. A battery short can cause a large current flow, overheating, possible burns
receptacle.
cartridge is not used.
and even a breakdown.
(1) Do not touch the terminals with any conductive material.
(2) Avoid storing battery cartridge in acontainer withother metalobjects such
(3) Do not expose battery cartridge to water or rain.
ture may reach or exceed
5OoC (122OF).
completely worn out. The battery cartridge can explode in a fire.
as nails, coins, etc.
6. Do notstore the tooland Battery Cartridge in locations where the tempera-
7. Do not incinerate the Battery Cartridge even if it is severely damaged or is
5

ADDITIONAL SAFETY RULES
1. Always wear safety goggles or safety glasses with side shield, and a full
face shield when needed.
2. Do notpointthe ejection portat anyoneinthe vicinity (especially hisface).
Keep hands and feet away from the ejection port area.
3. Always removethe battery cartridge beforeloading thestaples, adjustment,
inspection, maintenance or after operation is over.
4. Makesure noone is nearby before operation. Never attempt todrive staples
from boththe inside and outside of wall atthe same time. Staples may rip
through and/or fly off, presenting a grave danger.
5. Watch your footing and maintainyour balance withthe tool. Makesure there
is no one below when working in high locations.
6. Check walls, ceilings, floors, roofingand the like carefully toavoid possible
electrical shock, gas leakage, explosions, etc. caused by stapling into live
wires, conduits or gas pipes.
7. Useonly staples specified in this manual. The useof any other staples may
cause malfunction of the tool.
8. Do nottamper withthe tool or attempt touse it for other than driving staples.
9. Do notoperatethetoolwithoutstaples. It shortensthe servicelifeof the tool.
IO. Stop driving operations immediately if you notice something wrong or out
of the ordinary
with the tool.
11. Never staple intoany materials which may allow the staple topuncture and
fly through as a projectile.
12. Neveractuatethetrigger switchandsafetyleveratthe same time until you
are preparedtostaple workpieces. Allow the workpiece todepressthe safety
lever. Never defeat its purpose
by securing the safety lever back or by
depressing it by hand.
13. Never tamper with the safety lever. Check the safety lever frequently for
proper operations.
SAVE THESE INSTRUCTIONS.
6
,

Installing or removing battery cartridge
Always switch off the tool before insertion or removal of the battery cartridge.
.To remove the battery cartridge, pull out
[
the set plate on the tool and grasp both
sides of the cartridge while withdrawing
it
from the tool.
*To insert the battery cartridge, align the
tongue on the battery cartridge with the
Battery cartridge
Set plate
v
groove in the housing and slip it into
place. Snap the
set plate back into place.
Be sure to close the
set plate fully before
usingthe tool.
0 Do not use force when inserting the battery cartridge.
If the cartridge does not slide in easily,
it is not being insertedcorrectly.
CAUTION
:
If you pull out the set plate carelessly when extra staples and stored in the storage space
in the tool, the extra staples can fall out and present
a danger to anyone or anything
below. Always hold the tool with the
set plate facing up to prevent the extra staples
from falling out when you pull out the
set plate.
Charging
Plug the fast charger into your power
source. Insert the battery cartridge
so that
the plus and minus terminals
on the bat-
tery cartridge are on the same sides
as their
respective markings on the fast charger.
Insert the cartridge fully into the port
so
that it rests on the charger portfloor.
Press the start button (red). The charging
light will come on and charging will begin.
If the charging light does not come on,
press the reset button (yellow) first, then
Charging light
Start button-
the start button (red). If the charging light goes out within 10 seconds even after pressing
the reset button and start button
a couple of times, the battery cartridge is dead. (CAU-
TION: Wait for more than 5 seconds after the charging light goes out to press the reset
button again.) Replace
it with a new one. When the charging light goes out after about
one hour, you may removethe fully charged battery cartridge.
After charging, unplug the charger from the power source.
7

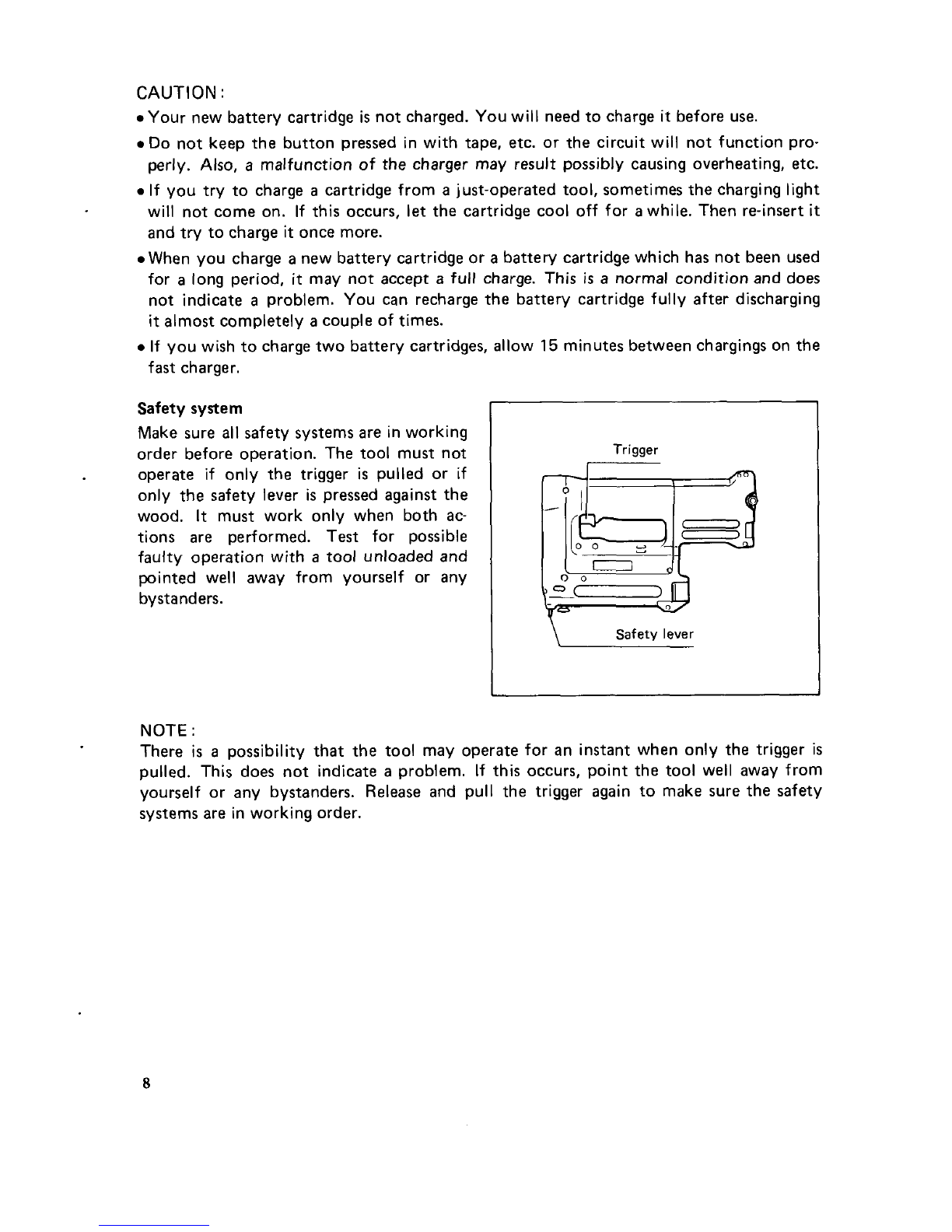

CAUTION :
0Your new battery cartridge is not charged. You will need to charge it before use.
0 Do not keep the button pressed in with tape, etc. or the circuit will not function pro-
perly.
Also, a malfunction of the charger may result possibly causing overheating, etc.
0 If you try to charge a cartridge from a just-operated tool, sometimesthe charginglight
will not come on.
If this occurs, let the cartridge cool off for a while. Then re-insert it
and try tocharge it once more.
0 When you charge a new battery cartridge or a battery cartridge which has not been used
for
a long period, it may not accept a full charge. This is a normal condition and does
not indicate
a problem. You can recharge the battery cartridge fully after discharging
it almost completely a couple of times.
0 If youwish to charge two battery cartridges, allow 15 minutes betweenchargings on the
fast charger.
Safety system
Make sure all safety systems are inworking
order before operation. The tool must not
operate if only the trigger
is pulled or if
only the safety lever
is pressed against the
wood.
It must work only when both ac-
tions are performed. Test for possible
faulty operation with
a tool unloaded and
pointed well away from yourself or any
bystanders.
Trigger
Safety lever
NOTE :
There is a possibility that the tool may operate for an instant when only the trigger is
pulled. This does not indicate a problem. If this occurs, point the tool well away from
yourself or any bystanders.
Release and pull the trigger again to make sure the safety
systems are in working order.
8

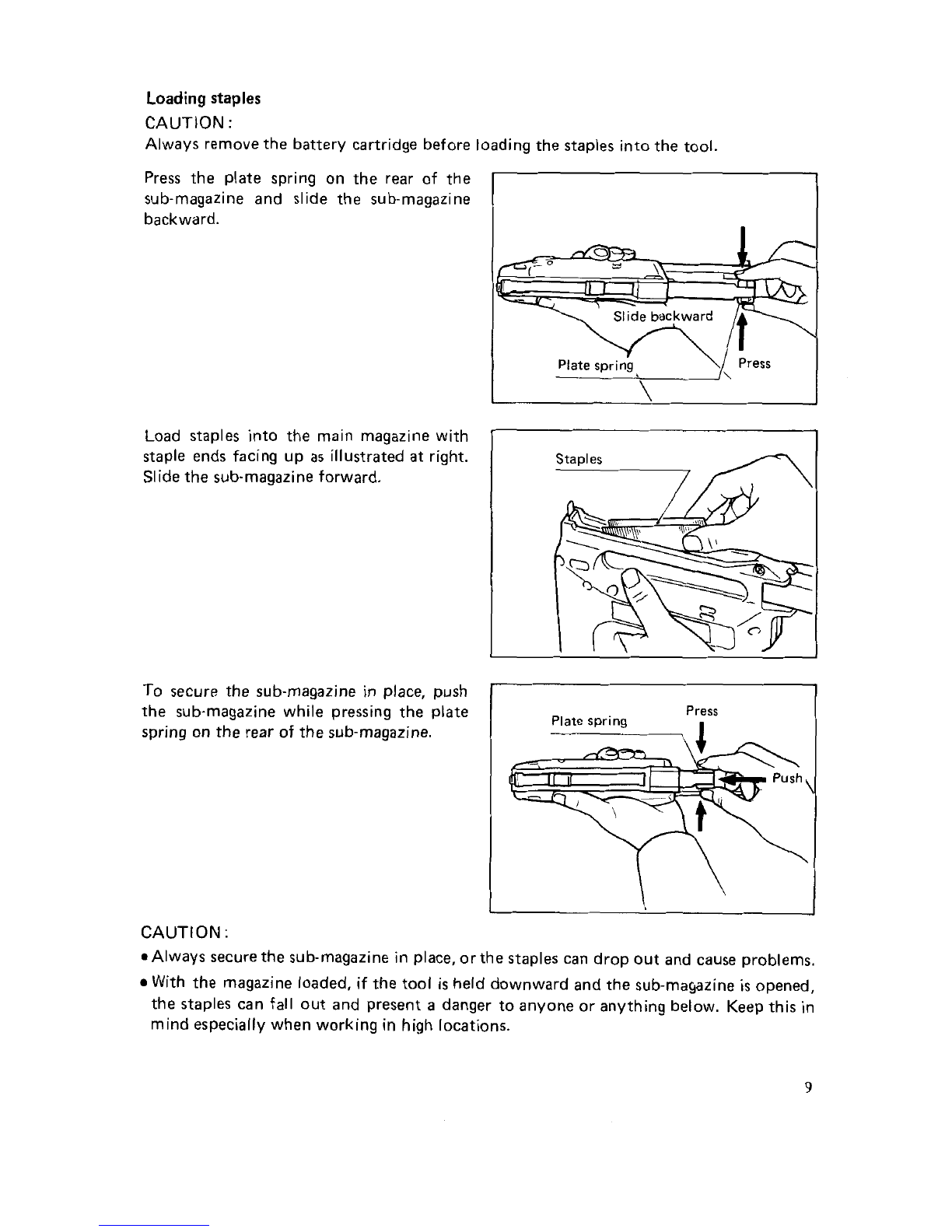

Loading staples
CAUTION
:
Always remove the battery cartridge before loading the staples intothe tool.
Press the plate spring on the rear
of the
sub-magazine and slide the sub-magazine
backward.
Load staples into the main magazine with
staple ends facing up
as illustrated at right.
Slide the sub-magazineforward.
To secure the sub-magazinein
place, push
the sub-magazine while pressing the plate
spring on the rear of
the sub-magazine.
Staples
CAUTION :
Always securethe sub-magazinein place, orthe staples can drop out and cause problems.
With the magazine loaded, if the tool is held downward and the sub-magazine is opened,
the staples can fall out and present
a danger to anyone or anything below. Keep this in
mindespecially when working in high locations.
9

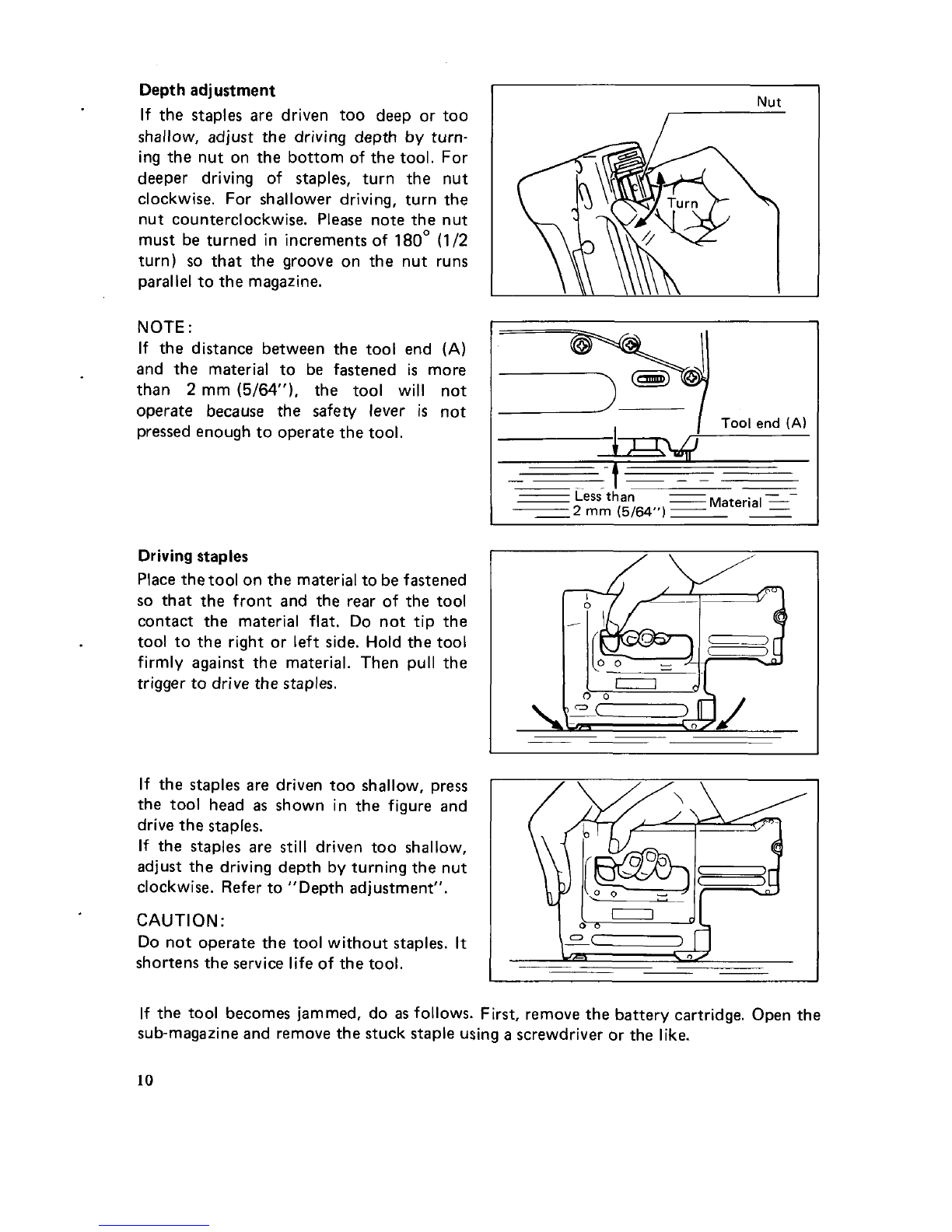

Depth adjustment
If the staples
are driven too deep or too
shallow, adjust the driving depth by turn-
ing the nut on the bottom of the tool. For
deeper driving of staples, turn the nut
clockwise. For shallower driving, turn the
nut counterclockwise. Please note the nut
must be turned in incrementsof
180" (1/2
turn) so that the groove on the nut runs
parallel tothe magazine.
NOTE
:
If the distance between the tool end (A)
and the material to be fastened
is more
than
2 mm (5/64"), the tool will not
operate because the safety
lever is not
pressed enough to operatethe tool.
Driving staples
Place thetoolonthe material to be fastened
so that the front and the rear of the tool
contact the material flat. Do not tip the
tool
to the right or left side. Hold the tool
firmly against the material. Then pull the
trigger todrive the
staples.
If the staples are driven too shallow, press
the tool head
as shown in the figure and
drive the staples.
If the staples are still driven too shallow,
adjust the driving depth by turning the nut
clockwise. Refer to "Depth adjustment".
CAUTION:
Do not operate the tool without staples.
It
shortens the service life of the tool.
I
Nut
lk---?-- / Tool end (A)
Material -=-
2 mm (5/64") -
If the tool becomes jammed, do as follows. First, removethe battery cartridge. Open the
sub-magazineand removethe stuck staple using
a screwdriver or the like.
10

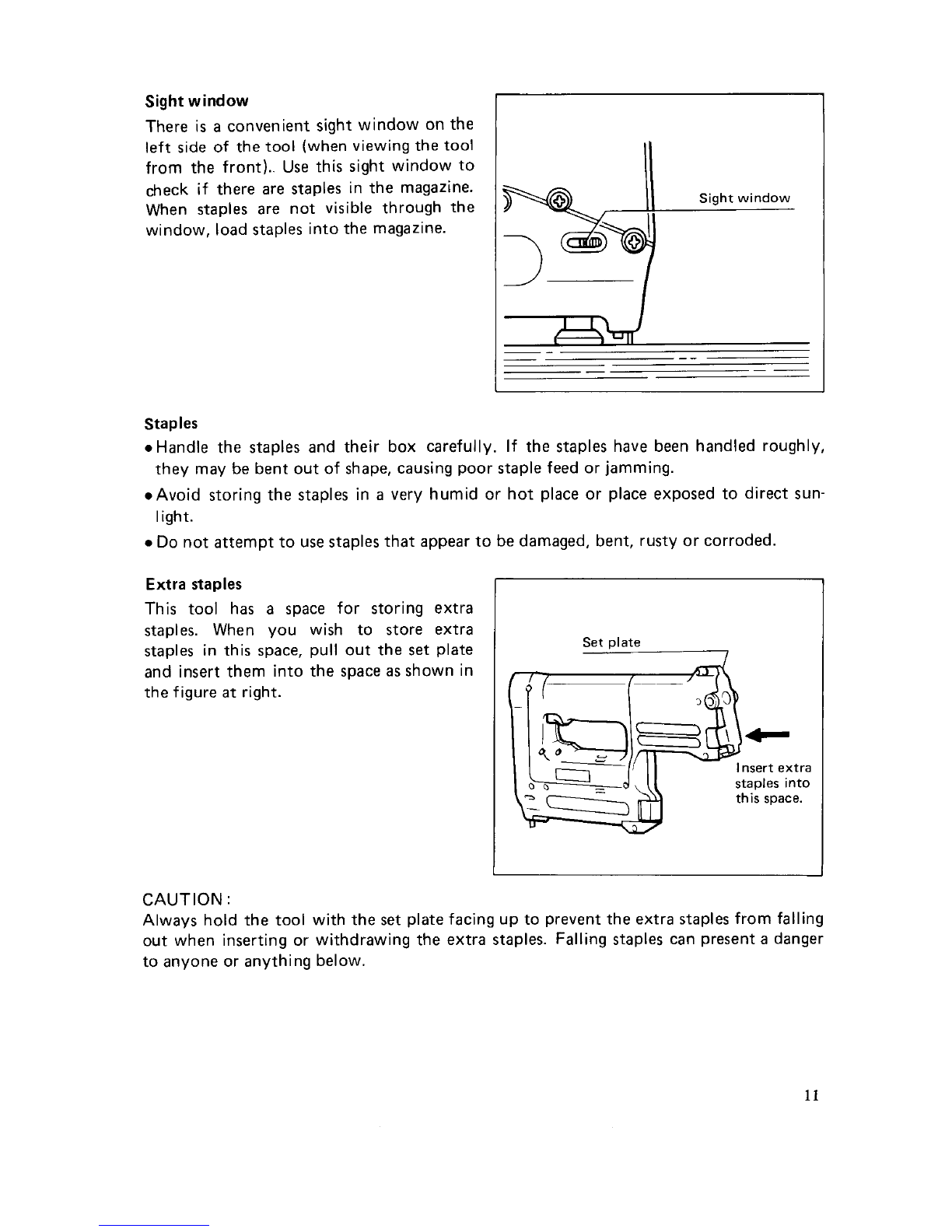

Sight window
There
is a convenient sight window on the
left side
of the tool (whenviewing the tool
from the front).. Use this sight window to
check if there are staples in the magazine.
When staples are not visible through the
window, load staples intothe magazine.
Sight window
/
Staples
0Handle the staples and their box carefully. If the staples have been handled roughly,
.Avoid storing the staples in
a very humid or hot place or place exposed to direct sun-
0 Do not attempt to use staples that appear to be damaged, bent, rusty or corroded.
they may be bent out of shape, causing poor staple feed or jamming.
light.
Set plate
Extra staples
This tool has
a space for storing extra
staples. When you wish to store extra
staples in this space, pull out the set plate
and insert them into the space
as shown in
the figure
at right.
staples into
this space.
CAUTION :
Always hold the tool with the set plate facing up to prevent the extra staples from falling
out when inserting or withdrawing the extra staples. Falling staples can present
a danger
to anyone or anything below.
11

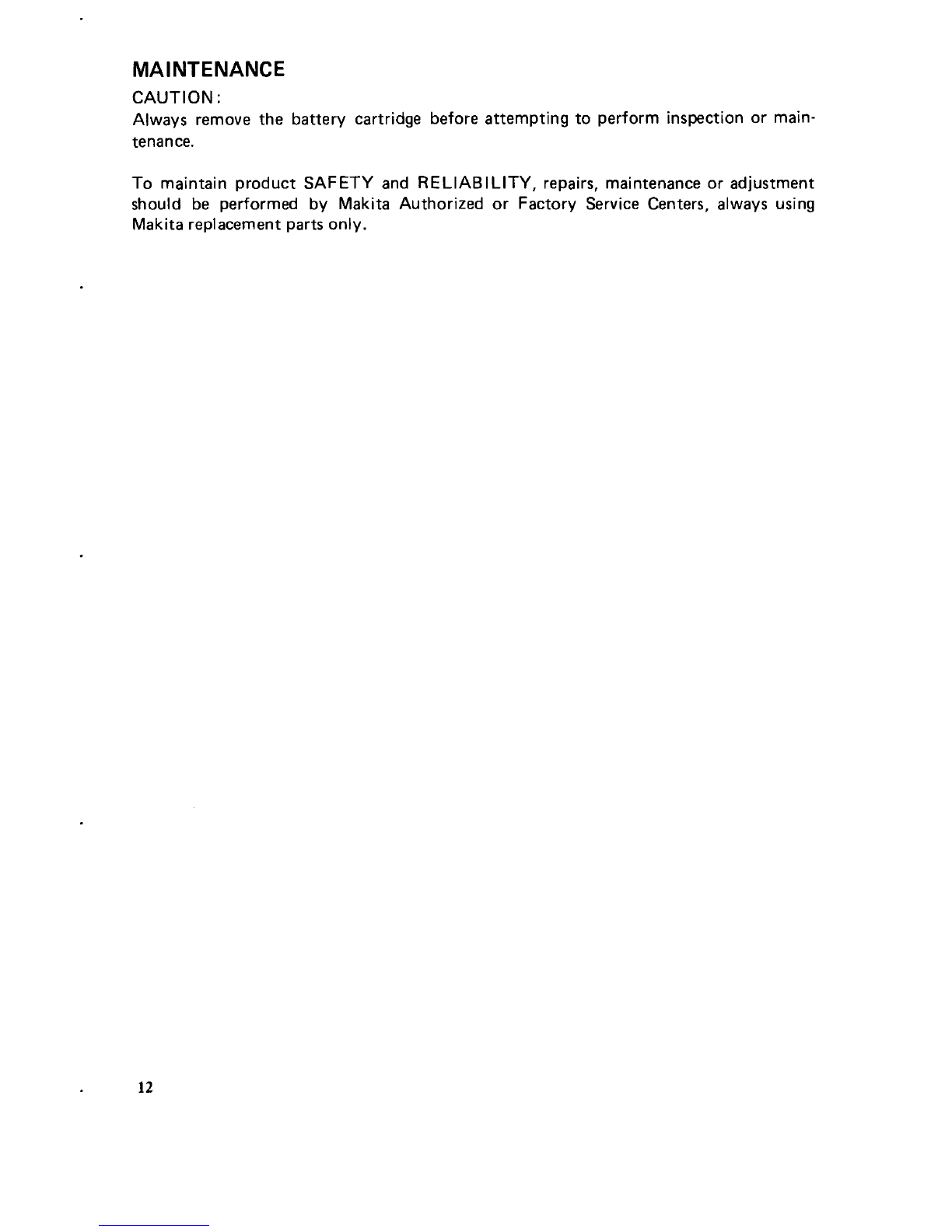

MAINTENANCE
CAUTION :
Always remove the battery cartridge before attempting to perform inspection or main-
tenance.
To maintain product SAFETY and RELIABILITY, repairs, maintenance or adjustment
should be performed by Makita Authorized or Factory Service Centers, always using
Makita replacement parts only.
12

ACCESSORIES
CAUTION:
These accessories or attachments are recommended for use with your Makita tool specified in this
manual. The use of any other accessories or attachments might present
a risk of injury to persons.
The accessories or attachments
should be used only in the proper and intended manner.
0 Fast charger
Model DC9700
Part No. 113103-2
0 Battery cartridge 9000
Part
No. 632007-4
0 Plastic carrying case
Part No. 182533-8
0 Charger 12V for car
Model DC9112
Part No. 113076-9
0 Battery cover
Part No. 414938-7
0 15 minute fast charger
Model
DC9015
Part No. 113106-6
13

Mar.-26-'92 EN
CORDLESS STAPLER
Model T220D
Note: The switch and other part configurations
may differ from country to country.
14

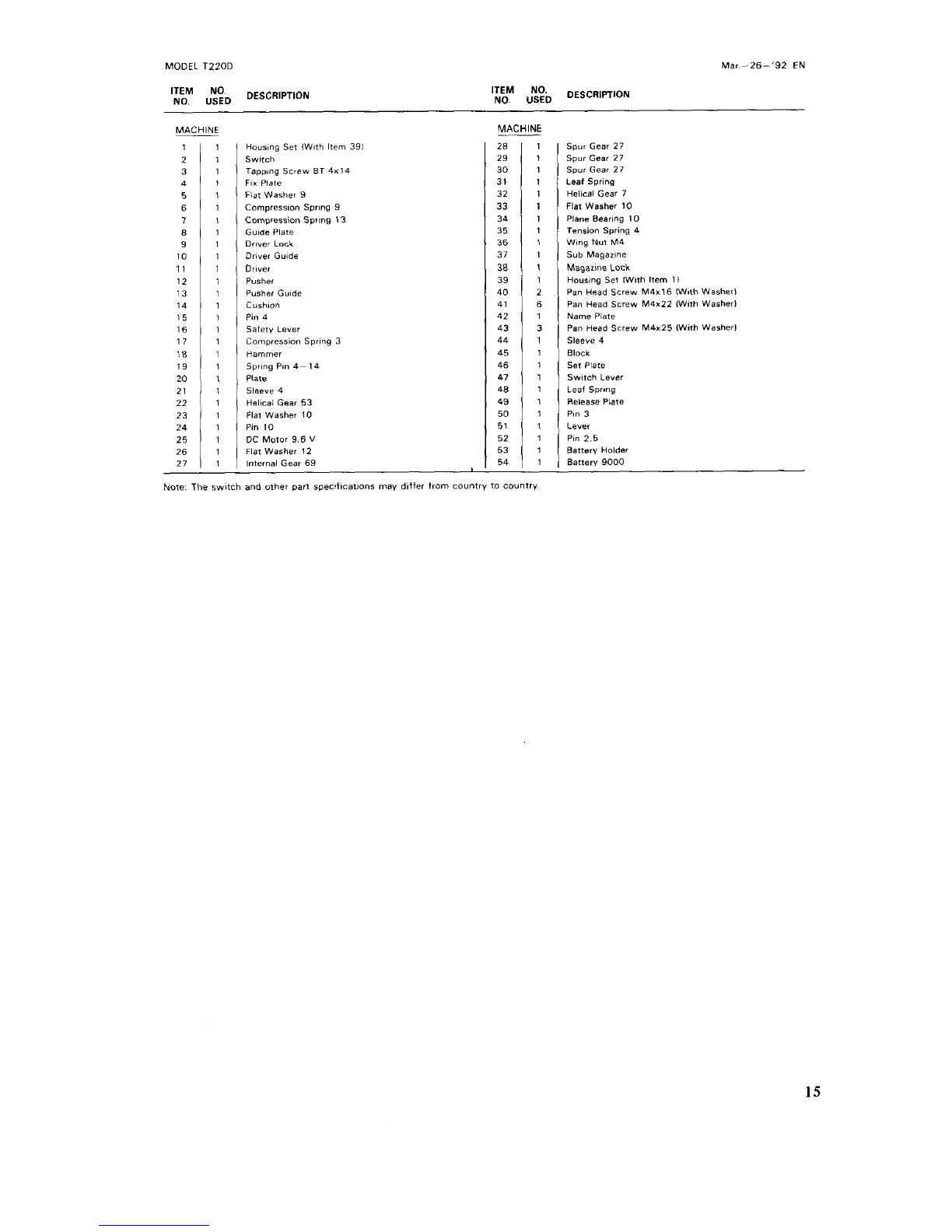

MODEL T220D Mar-26-'92 EN
I;,'," Aib DESCRIPTION I;"," DESCRIPTION
MACHINE
__
1
2
3
4
5
6
1
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
21
1
1
1
1
1
1
1
1
1
1
1
1
1
1
I
1
1
1
1
1
1
1
1
1
1
1
1
-
Housing Set (With Item 391
Switch
Tapping Screw
BT 4x14
Fix Plate
Flat Washer 9
Compression Spring 9
Guide Plate
Driver Lock
Driver Guide
DWtY
Pusher
Pusher
Guide
Cushion
Pi" 4
Safety Lever
Compression Spring 3
Hammer
Plate
Sleeve 4
Helical Gear 53
Flat Washer 10
P," 10
DC Motor
9 6 V
Flat Washer 12
Internal
Gear 69
Compresslo" sprmg 13
Spmg P," 4- 14
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
-
1
1
1
1
1
1
1
1
7
1
1
1
2
6
1
3
1
1
1
1
1
1
1
1
1
1
1
-
Spur Gear 27
Spur Gear 27
Spur Gear 27
Leaf Spmg
Helical Gear 7
Flat Washer 10
Plane Bearing 10
TenSlOn spmg 4
Wing Nut M4
Sub Magazine
Magazine Lock
Hou~ing Set IWith Item 1 I
Pan Head Screw M4x16 (WithWasherl
Pan Head Screw M4x22 (With Washer)
Name Plate
Pan
Head Screw M4x25 IWith Washer1
Sleeve 4
Block
set Plate
Switch
Lever
Release Plate
P," 3
Lever
P,n 2 5
Batfery Holder
Batter" 9000
Leaf Sprmg
Note The switch and other part specificalmns may differ from country to country
15

The only way to dispose of a Makita battery is
to recycle it. The law prohibits any other
method
of disposal.
To recyclethe battery:
1. Removethe battery from the tool.
2. a).
or
b)
1 Ni-Cd I
Take the batteryto your nearest Makita Factory Service Center
Take the battery
to your nearest Makita Authorized Service Center or
Distributor that has been designated as a Makita battery recycling location.
Call your nearest Makita Service Center or Distributor to determine the location
that provides Makita battery recycling. See your local Yellow Pages under
”Tools-Electric’
:
MAKlTALIMITEDONE YEAR WARRANTY
Warranty Policy
I
Every Makita tool is thoroughly inspected and tested before leaving the factory. It IS warranted to
be free of defects from workmanship and materials for the period of ONE YEAR from the date of
oriimd ourchase. Should any trouble develoD durinn this one-”ear period. return the COMPLETE
id, freight prepad, to one of Makita’s Factdry 01 Aithorized Service Centers. If inspection shows
1 the trouble is caused by defective worhanship or material, Makita will repair (or at our option,
replace) without charge.
ThisWarranty doer not apply where:
repairs have been made or attempted by others:
repain are required because of normal wear and tear
The tool has been abused, misused or improperly maintained;
alterations have been made to the tool.
I
IN NO EVENT SHALL MAKlTA BE LIABLE FOR ANY INDIRECT, INCIDENTAL OR CON-
SEQUENTIAL DAMAGES FROM THE SALE
OR USE OF THE PRODUCT. THIS DISCLAIMER
1 APPLIES BOTH DURING AND AFTER THE TERM OF THISWARRANTY.
MAKlTA DISCLAIMS LIABILITY FOR ANY IMPLIED WARRANTIES, INCLUDING IMPLIED
WARRANTIES OF “MERCHANTABILITY” AND “FITNESS FOR A SPECIFIC
PURPOSE.”
AFTER THE ONE-YEAR TERM OF THISWARRANTY.
This Warranty gives you specific legal rights, and you may also have other nghtr which vary from
state to state. Some
states do not allow the exclusion or limitation of incidental or consequential
damages.
so the above Imitation or exclusion may not apply to you. Some states do not allow
limitation on how long an implied warranty lasts. so the above limitation may not apply to you.
Ma ki ta Corporation
3-11 -8, Sumiyoshi-cho,
Anjo, Aichi
446 Japan
88381 1 A068
PRINTED IN JAPAN
1994 - 10 - N
