Makita T221D User manual
Cordless
Applicable staples
Stanler
Staple capacity Dimensions
(L
x
W
x
H)
Net weight
I
MODEL T221D
MODEL T22lDW
With
Fast
Charger
Battery Cartridge 9100
Voltage Charging time
1
Hr.
9.6
V
INSTRUCTION MANUAL
Model DC9700 Fast Charger
Input output
A.C. only
50
Hz
~
60
Hz
D.C.
7.2
V,
9.6
V
SPEC
IF
I
CAT
I
0
N
S
Model T221D
199
mm
x
58
mm
x
193
mm
(7-7/8”
x
2-114”
x
7-518”) 1.7
kg
(3.7
Ibs)
Staple
Nos.
*1019,
*lo22
1010, 1013, 1016,
I
100
~~~~
*
Manufacturer reserves the right to change specifications
without
notice.
*
Note:
1.
Specifications may differ from country
to
country.
2.
Staples
with
mark are for soft material only.

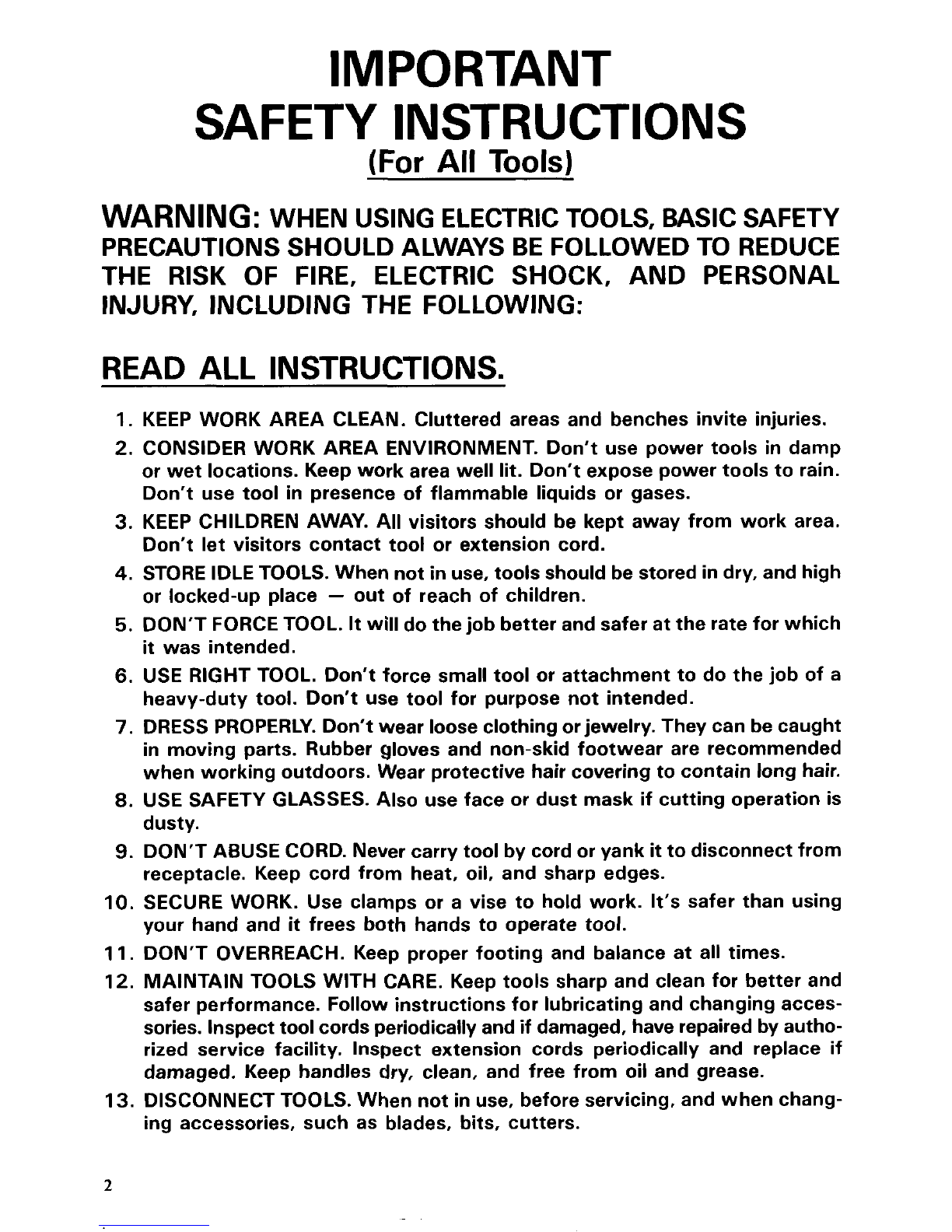

IMPORTANT
SAFETY INSTRUCTIONS
(For
All Tools)
WARNING:
WHEN USING ELECTRICTOOLS, BASICSAFETY
PRECAUTIONSSHOULD ALWAYS
BE
FOLLOWEDTO REDUCE
THE RISK OF FIRE, ELECTRIC SHOCK, AND PERSONAL
INJURY, INCLUDING THE FOLLOWING:
READ ALL INSTRUCTIONS.
1.
2.
3.
4.
5.
6.
7.
8.
9.
IO.
11.
12.
13.
2
KEEP WORK AREA CLEAN. Cluttered areas and benches invite injuries.
CONSIDER WORK AREA ENVIRONMENT. Don't use power tools in damp
or wet locations. Keep work area well
lit.
Don't expose power tools to rain.
Don't use tool in presence of flammable liquids or gases.
KEEP CHILDREN AWAY.
All
visitors should be kept away from work area.
Don't let visitors contact tool or extension cord.
STORE IDLETOOLS. When not inuse, tools should be stored indry, and high
or locked-up place
-
out of reach of children.
DON'T FORCETOOL.
It
will
do thejob better and safer at the ratefor which
it
was intended.
USE RIGHT TOOL. Don't force small tool or attachment to do the job of a
heavy-duty tool. Don't use tool for purpose not intended.
DRESS PROPERLY. Don't wear loose clothingorjewelry. They can be caught
in moving parts. Rubber gloves and non-skid footwear are recommended
when working outdoors. Wear protective hair covering to contain long hair.
USE SAFETY GLASSES. Also use face or dust mask if cutting operation is
dusty.
DON'T ABUSE CORD. Never carry tool by cordor yank
it
todisconnect from
receptacle. Keep cord from heat, oil, and sharp edges.
SECURE WORK. Use clamps or a vise to hold work. It's safer than using
your hand and
it
frees both hands to operate
tool.
DON'T OVERREACH. Keep proper footing and balance at all times.
MAINTAIN TOOLS WITH CARE. Keep tools sharp and clean for better and
safer performance. Follow instructions for lubricatingand changing acces-
sories. Inspect toolcords periodically andifdamaged, have repairedby autho-
rized service facility. Inspect extension cords periodically and replace if
damaged. Keep handles dry, clean, and free from oil and grease.
DISCONNECT TOOLS. When not inuse, beforeservicing, and when chang-
ing accessories, such as blades, bits, cutters.
14.
REMOVE ADJUSTING KEYS AND WRENCHES. Form habit of checking to
see thatkeysand adjusting wrenches are removedfrom tool beforeturning
it
on.
15.
AVOID UNINTENTIONALSTARTING. Don't carry plugged-intool withfinger
on switch. Be sure switch is
OFF
when plugging in.
16.
OUTDOOR USE EXTENSIONCORDS. When tool is usedoutdoors, use only
extension cords intended for use outdoors and
so
marked.
17.
STAY ALERT. Watch what you are doing, usecommon sense. Don't operate
tool when you are tired.
18.
CHECK DAMAGED PARTS. Before further use of the tool, a guard or other
part that is damaged should be carefully checked to determine that
it
will
operate properly and perform itsintended function. Check for alignment of
moving parts, binding
of
moving parts, breakage of parts, mounting, and
any other conditions that may affect its operation. A guard or other part
that is damaged should be properly repaired or replaced by an authorized
service center unless otherwise indicated elsewhere in this instruction
manual.Have defective switchesreplaced by authorized service center. Don't
use tool
if
switch does not turn
it
on
and off.
19.
GUARD AGAINST ELECTRIC SHOCK. Prevent body contact with grounded
surfaces. For example; pipes, radiators, ranges, refrigerator enclosures.
20.
REPLACEMENT PARTS. When servicing, useonly identical replacementparts.
VOLTAGE WARNING: Before connecting the tool toa power source (receptacle,
outlet, etc.) be sure the voltage supplied is the same
as
that specified on the
nameplate of the tool. A power source with voltage greater than that specified
for the tool can result
in
SERIOUS INJURY
to
the user
-
as well as damage to
the tool. If in doubt, DO NOT PLUG IN THE
TOOL.
Using a power source with
voltage less than the nameplate rating is harmful to the motor.
3
I
M
PO
RTANT
Length of Cord (Feet)
AWG Size of Cord
SAFETY
25
50
100 150
18 18 18 16
1.
2.
3.
4.
5.
6.
7.
8.
9.
10.
11.
12.

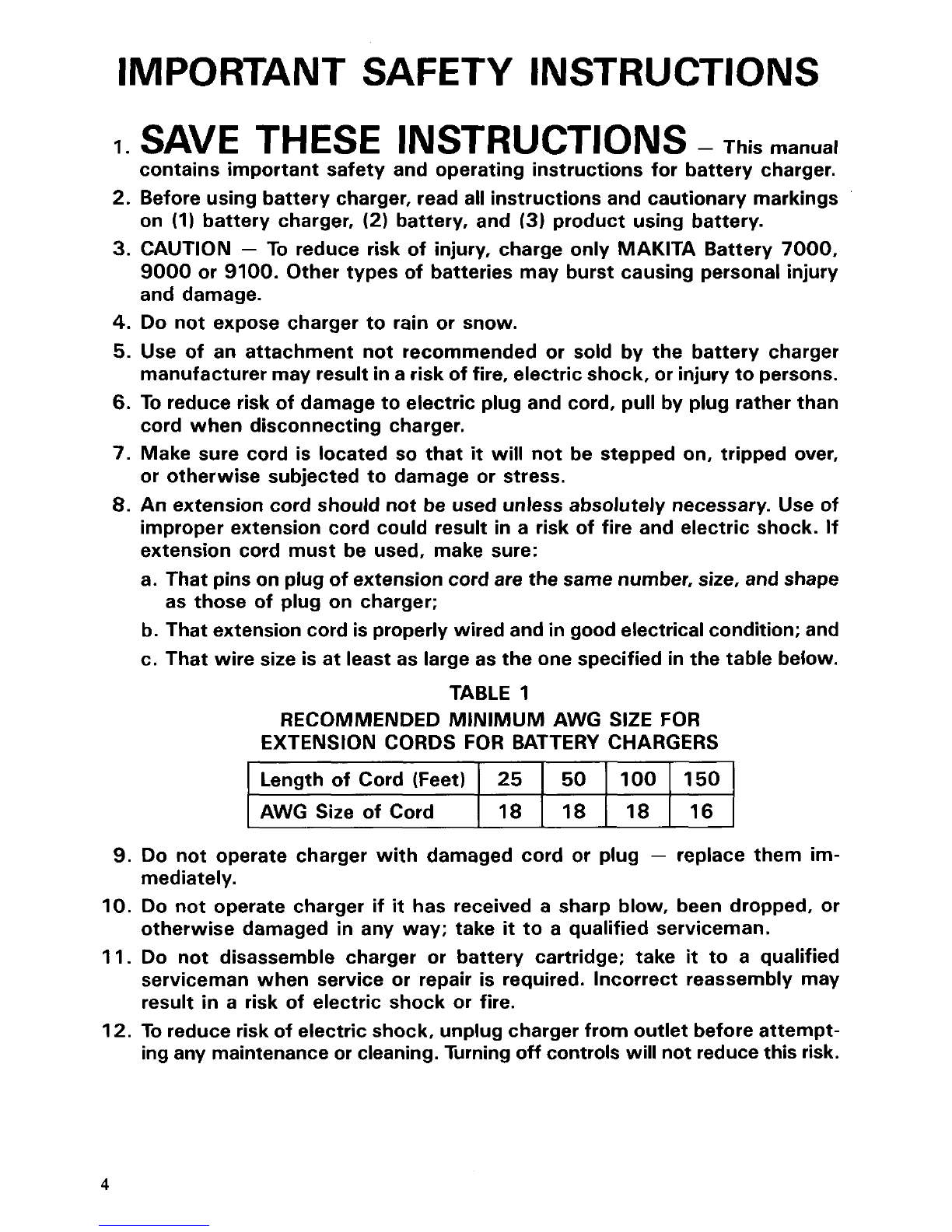

SAVE
THESE
INSTRUCTIONS
-
This manual
contains important safety and operating instructions for battery charger.
Before using battery charger, read all instructions and cautionary markings
on
(11
battery charger,
(2)
battery, and
(3)
product using battery.
CAUTION
-
To reduce risk of injury, charge only MAKITA Battery
7000,
9000
or
9100.
Other types of batteries may burst causing personal injury
and damage.
Do not expose charger to rain or snow.
Use of an attachment not recommended or sold by the battery charger
manufacturermay result
in
a risk of fire, electric shock, or injury topersons.
To reduce risk
of
damage to electric plug and cord, pull by plug rather than
cord when disconnecting charger.
Make sure cord is located
so
that
it
will not be stepped on, tripped over,
or otherwise subjected to damage or stress.
An extension cord should not be used unless absolutely necessary. Use of
improper extension cord could result in a risk of fire and electric shock.
If
extension cord must be used, make sure:
a. That pins on plugof extensioncordare the same number, size, and shape
b. That extension cord isproperly wired and ingood electrical condition; and
c. That wire size is at least as large as the one specified inthe table below.
TABLE
1
RECOMMENDED MINIMUM AWG SIZE FOR
EXTENSION CORDS
FOR
BATTERY CHARGERS
as those of plug on charger;
Do not operate charger with damaged cord or plug
-
replace them im-
mediately.
Do not operate charger if
it
has received a sharp blow, been dropped, or
otherwise damaged in any way; take
it
to a qualified serviceman.
Do not disassemble charger or battery cartridge; take
it
to a qualified
serviceman when service
or
repair is required. Incorrect reassembly may
result
in
a risk of electric shock or fire.
To reduce risk of electric shock, unplug charger from outlet beforeattempt-
ingany maintenanceor cleaning. Turningoff controls will not reducethis risk.
4
ADDITIONAL SAFETY RULES
FOR CHARGER
&
BATTERY CARTRIDGE
1.
Do
not charge Battery Cartridge when temperature
is
BELOW 10°C
(5OOF)
2.
Do
notattempttouse a step-uptransformer, anengine generator or
DC
power
3.
Do
not allow anything to cover or clog the charger vents.
4.
Always cover the battery terminals
with
the battery cover when the battery
5.
Do
not short the battery cartridge:
or
ABOVE 4OoC (104OF).
receptacle.
cartridge
is
not used.
(1)
Do
not touch the terminals
with
any conductive material.
(2)
Avoid storing battery cartridge
in
a container
with
other metal objectssuch
(3)
Do
not expose battery cartridge to water or rain.
as nails, coins, etc.
A batteryshort can cause a large current flow, overheating, possible burns
and even a breakdown.
6.
Do
not storethe tool and Battery Cartridge
in
locations where the tempera-
7.
Do
not incinerate the Battery Cartridge even if
it
is severely damaged or is
ture may reach or exceed
5OoC
(122OF).
completely worn out. The battery cartridge can explode
in
a fire.
5
ADDITIONAL SAFETY RULES
1.
Always wear safety goggles or safety glasses with side shield, and a full
face shield when needed.
2.
Do
not pointthe ejection port at anyoneinthe vicinity (especially his face).
Keep hands and feet away from the ejection port area.
3.
Always removethe battery cartridgebeforeloading the staples, adjustment,
inspection, maintenance or after operation is over.
4.
Make sure noone is nearbybefore operation. Never attempt todrive staples
from boththe inside and outside of wall at the same time. Staples may rip
through and/or fly off, presenting a grave danger.
5.
Watch your footing and maintainyour balancewiththe tool. Make sure there
is no one below when working in high locations.
6.
Check walls, ceilings, floors, roofing and the like carefully toavoid possible
electrical shock, gas leakage, explosions, etc. caused by stapling into live
wires, conduits or gas pipes.
7.
Useonly staplesspecified
in
this manual. The use of any other staples may
cause malfunction of the tool.
8.
Do
nottamper withthe tool or attempt to use
it
for otherthan drivingstaples.
9.
Do
notoperate thetoolwithout staples.
It
shortens the service life of thetool.
IO.
Stop driving operations immediately
if
you notice something wrong or out
of the ordinary with the tool.
11.
Never staple into any materials which may allow the staple topuncture and
fly through as a projectile.
12.
Never actuate the trigger switchand safety leverat the same time untilyou
are prepared tostaple workpieces. Allow the workpiece todepressthe safety
lever. Never defeat its purpose by securing the safety lever back or by
depressing
it
by hand.
13.
Never tamper with the safety lever. Check the safety lever frequently for
proper operations.
SAVE THESE INSTRUCTIONS.
6
Installingor removing battery cartridge
Always switch off the tool before insertion
0
To
remove the battery cartridge, pull out
the
set
plate on the tool and grasp both
sides of the cartridge while withdrawing
itfrom the tool.
*To insert the battery cartridge, align the
tongue on
the
battery cartridge with the
groove in the housing and slip
it
into
place. Snap the
set
plate back into place.
Be sure to close the
set
plate fully before
usingthe tool.
or removal of the battery cartridge.
I
Batterv
cartridqe
0
Do
not use force when insertingthe battery cartridge.
If the cartridge does not slide in easily, it
is
not being insertedcorrectly.
Charging
Plug the fast charger into your power
source. Insert the battery cartridge
so
that
the plus and minus terminals on the bat-
tery cartridge are on the same sides
as
their
respective markings on the fast charger.
Insert the cartridge fully into the port
so
that
it
rests on the charger port floor.
Press the start button (red). The charging
light will come on and chargingwill begin.
k
Start
button
If the charging light does not come on, press the reset button (yellow)first, then the start
button (red). If the charging light goes out within
10
seconds even after pressingthe reset
buttonand start button
a
couple of times, the battery cartridge is dead. (CAUTION
:
Wait
for more than
5
seconds after the charginglight goes out topress the reset buttonagain.)
Replace
it
with
a
new one. When the charging light goes out after about one hour, you
may removethe fully charged battery cartridge.
After charging, unplugthe charger fromthe power source.
CAUTION
:
0Your new battery cartridge
is
not charged. You will needto charge
it
before use.
.Do
not keep the button pressed in with tape,
etc.
or the circuit will not function pro-
perly. Also,
a
malfunction
of
the charger may result possibly causing overheating,
etc.
If you try to charge
a
cartridge from
a
just-operated tool, sometimes the charging light
will not come on. If this occurs, let the cartridge cool off for
a
while. Then re-insert
it
and try to charge
it
once more.
0
When you charge
a
new battery cartridge or
a
battery cartridge which has not been used
for
a
long period,
it
may not accept
a
full charge. This
is
a
normal condition and does
not indicate
a
problem. You can recharge the battery cartridge fully after discharging
it
almost completely
a
couple of times.
0
If you wish to charge two battery cartridges, allow
15
minutes between chargings on the
fast charger.
7
Safety
system
Make sure
all
safety systems are inworking
order before operation. The tool must not
operate if only the trigger
is
pulled or if
only the safety lever
is
pressed against the
wood.
It
must work onlywhen bothactions
are performed. Test for possible faulty
operation with
a
toolunloaded and pointed
well away from yourself or any bystanders.
NOTE
:
There
is
a
possibility that the tool may operate for an instant when only the trigger
is
pulled. This
does
not indicate
a
problem.
If
this occurs, point the tool well away from
yourself or any bystanders.
Release
and pull the trigger again to make sure the safety
systems are inworking order.
Loading
staples
CAUTION:
Always removethe battery cartridge before loadingthe staples into the
tool.
Press the
plate
spring on the rear of the
backward.
sub-magazine and slide the sub-magazine
Plate
spring
Load staples into the main magazine with
staple ends facing up
as
illustrated
at
right.
8
To
secure the sub-magazinein place, push
the sub-magazine while pressing the plate
springon the rear
of
the sub-magazine.
CAUTION
:
0
Always secure the sub-magazineinplace, or the staples can drop out and cause problems.
With the magazine loaded,
if
the tool
is
held downward and the sub-magazine
is
opened,
the staples can fall out and present
a
danger to anyone or anything below. Keep this in
mindespecially when working inhigh locations.
Depth
adjustment
If the staples are driven too deep or too
shallow, adjust the driving depth by turn-
ing the nut on the bottom
of
the tool. For
deeper driving of staples, turn the nut
clockwise. For shallower driving, turn the
nut counterclockwise. Please note the nut
must be turned in increments
of
180"
(1/2
turn)
so
that the groove on the nut runs
parallelto the magazine.
NOTE
:
If
the distance between the
tool
end
(A)
and the material to be fastened
is
more
than
2
mm
(5/64"),
the tool will not
operate because the safety lever
is
not
pressed enough to operate the tool.
I
hlllf
I
i
9
Driving staples
Place the toolon the materialto befastened
so
that the front and the rear of the tool
contact the material flat.
Do
not tip the
tool to the right or left side.
Hold
the tool
firmly against the material, Then pull the
trigger to drivethe staples.
If the staples are driven too shallow, press
the tool head
as
shown in the figure and
drive the staples.
If
the staples
are
still
driven too shallow,
adjust the driving depth by turning the nut
clockwise. Refer to"Depth adjustment".
CAUTION
:
Do
not operate the tool without staples. It
shortens the service life of the tool.
If the tool becomes jammed, do
as
follows. First, removethe battery cartridge. Open the
sub-magazineand remove the stuck stapleusing
a
screwdriveror the like.
Sight window
There
is
a
convenient sight window on the
tool side. Use this sight window to check
if there are staples in the magazine. When
staples are not visible through the window,
loadstaples intothe magazine.
Staples
0
Handle the staples and their box carefully. If the staples have been handled roughly,
.Avoid storing the staples in
a
very humid or hot place or place exposed to direct sun-
0
Do
not attempt
to
use staples that appear to
be
damaged, bent, rusty or corroded.
they may be bent out of shape, causing poor staplefeed or jamming.
light.
10
MAINTENANCE
CAUTION
:
Always remove the battery cartridge before attempting to perform inspection
or
main-
tenance.
To
maintain product SAFETY and RELIABILITY, repairs, maintenance or adjustment
should
be
performed by Makita Authorized or Factory Service Centers, always
using
Makita replacementpartsonly.
11
ACCESSORIES
CAUTION
:
These accessories or attachments are recommended for use with your Makita tool specified in this
manual. The use
of
any other accessories or attachments might present
a
risk
of
injury to persons.
The accessoriesor attachmentsshouldbe usedonly in the proper and intended manner.
Staples
A
1
hour fast charger
Model
DC9700
Part
No.
113103-2
5,000
798377-2
I
10
(13/32")
I
22 (7/8")
I
1
hour fast automotive charger
Model
DC
91
12
Part No. 113110-5
Battery cartridge
9100
Part
No.
192019-4
Plasticcarrying case
Part
No. 182403-1
Battery cover
Part
No.
414938-7 15
minute fast charger
Model
DC9015
Part No. 113106-6
12
Jan
-21-
92
US

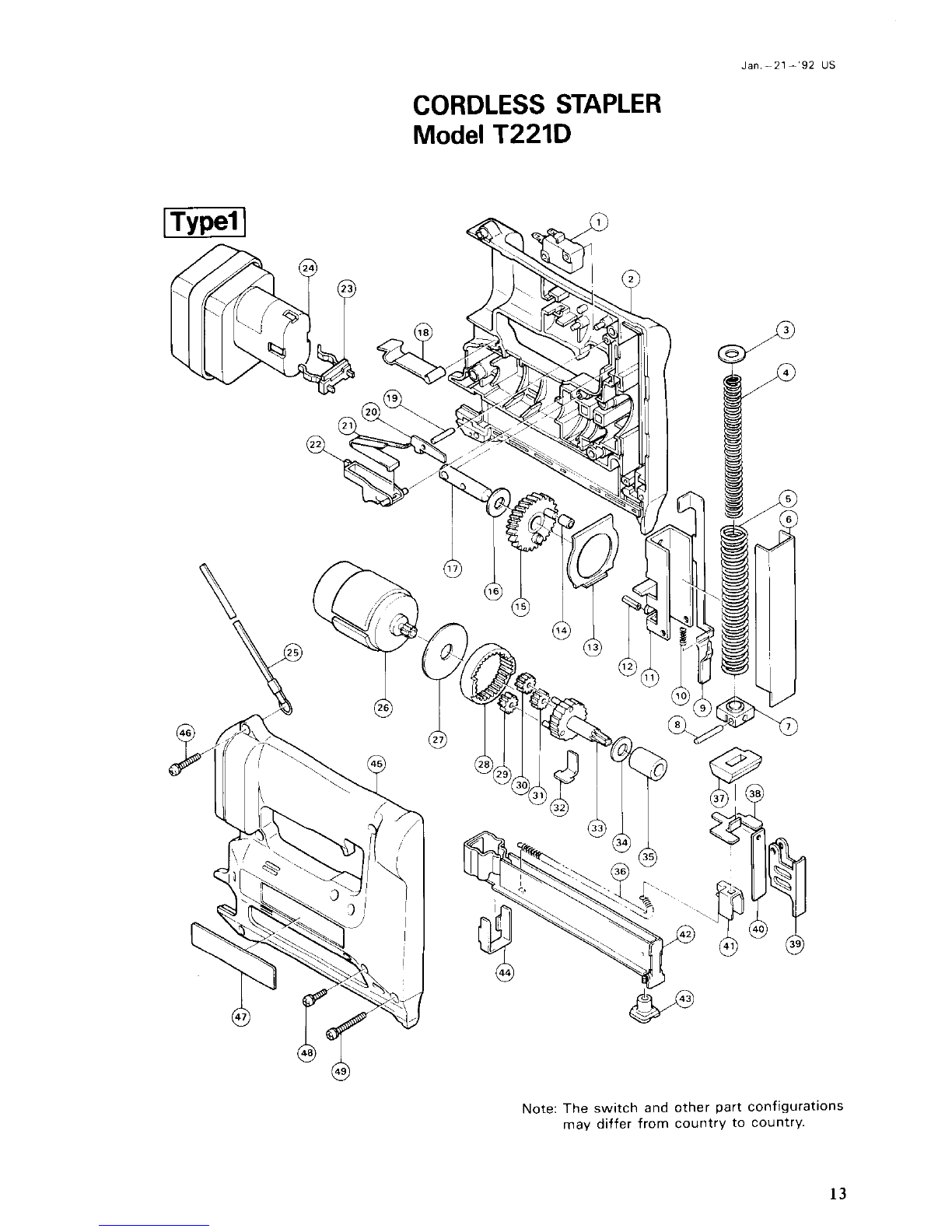

CORDLESS STAPLER
Model
T221D
Note: The switch and other part configurations
may differ from country
to
country.
13
MODEL T221D Jan.-21--'92
US
__
26
1
27 1
28 1
29 1
30
1
31
1
32
1
33
1
34
1
35
1
36
1
37 1
38
1
39 1
40 1
41 1
42 1
43
1
44 1
45
1
46
6
47 1
48 3
49
2
I
'i\M
DESCRIPTION
'L5M
AtD
DESCRIPTION
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
31
41
51
61
71
61
91
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
Switch
Housing
Set iWlth Item 451
Flat Washer
9
Compression Spring
9
Compression
Spring
13
Guide
Plate
Driver
Lock
P,n
4
Safety
Lever
Compression Spring 3
Hammer
Spring
Pin
4-14
Plate
Sleeve
4
Helical
Gear
53
Flat Washer
10
P,"
10
set
Plate
P,"
3
Release
Plate
Leaf
spring
Switch
Lever
Battery
Holder
Hand
Strao
Battery 9100
D
C
Motor
9
6
V
Flat Washer
12
Infernal
Gear
69
Spur
Gear
21
Spur
Gear
27
Spur
Gear
27
Leaf
sprtng
Helical
Gear
7
Flat Washer 10
Plane
Bearing
10
Tenslo"
Sprrng 4
Cushion
Pusher
Guide
Driver
Guide
Dwer
Pusher
Sub
Magalme
Nut M4
Magazine
Lock
Housing
Set
(With
Item
21
I
Pan
Head
Screw
M4x22 IWith Waaherl
Name
Plale
Pan
Head
Screw
M4x14 (WithWasher1
Pan
Head
Screw
M4x30 (WithWasher1
I
Note The switch
and
other part
specofcattons
may
differ
from country to country
14

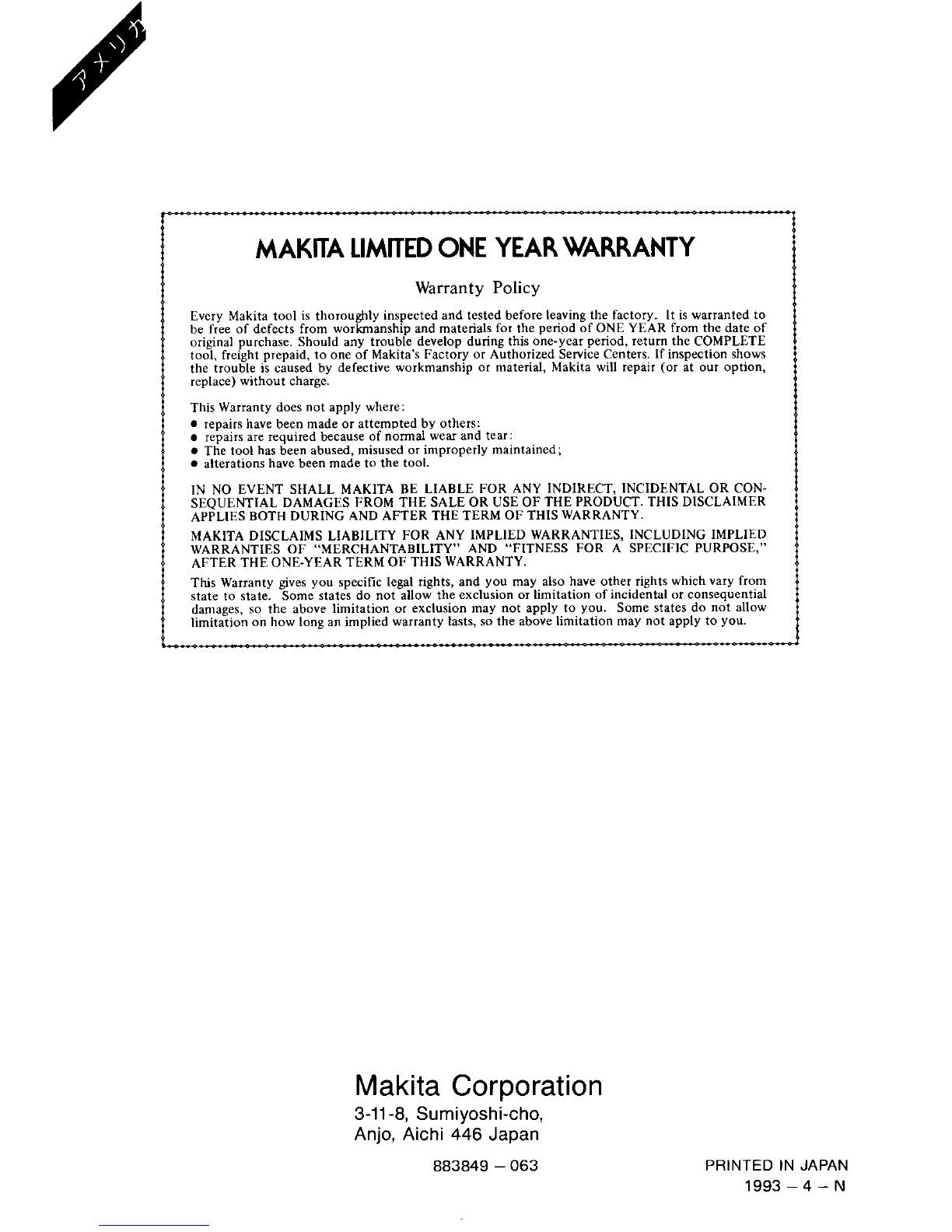

MAKITA LIMITED
ONE
YEAR WARRANTY
Warranty
Policy
Evcry Makita tool is thoroughly inspected and tested before leaving the factory. It is warranted to
be free of defects from workmanship and materials for the period of ONE YEAR from the date of
original purchase. Should any trouble develop during this one-year period, return the COMPLETE
tool,
freight prepaid, toone of Makita’s Factory or Authorized Service Centers.
If
inspection shows
the trouble is caused by defective workmanship or material, Makita will repair (or at our option,
replace) without charge.
This Warranty does not apply where:
repairs have been made
or
attempted by others:
repairs are required because of normal wear and tear:
The tool has been abused, misused
or
improperly maintained;
alterations have been made to the tool.
IN
NO EVENT SHALL MAKITA BE LIABLE FOR ANY INDIRECT, INCIDENTAL OR CON-
SEQUENTIAL DAMAGES FROM THE SALE OR USE
OF
THE PRODUCT. THIS DISCLAIMER
APPLIES BOTH DURING AND AFTER THE TERM
OF
THIS WARRANTY.
MAKITA DISCLAIMS LIABILITY FOR ANY IMPLIED WARRANTIES, INCLUDING IMPLIED
WARRANTIES
OF
“MERCHANTABILITY” AND “FITNESS FOR A SPECIFIC PURPOSE,”
AFTER THE ONE-YEAR TERM
OF
THIS WARRANTY.
This Warranty gives you specific legal rights, and you may also have other rights which vary from
state to state. Some states do not allow the exclusion or Limitation of incidental
or
consequential
damages,
so
the above limitation
or
exclusion may not apply to you. Some states do not allow
limitation on how long an implied warranty lasts,
so
the above limitation may not apply to you.
Makita Corporation
3-11
-8,
Sumiyoshi-cho,
Anjo, Aichi
446
Japan
883849
-
063
PRINTED IN JAPAN
1993-4-N
Other manuals for T221D
3
This manual suits for next models
1
Table of contents
Other Makita Staple Gun manuals
