Manhattan 176675 User manual

DVB-T LCD
CONVERTER/
TUNER
USER
MANUAL
MODEL 176675
MAN-176675-UM-1107-01

INTRODUCTION
Thank you for purchasing the MANHATTAN
®
DVB-T LCD Converter/Tuner, Model 176675.
This device brings full-screen, high-resolution and home entertainment-quality viewing to
existing LCD/CRT monitors, plasma displays and projectors. The easy-to-follow instructions
in this user manual help make setup and operation quick and simple, so you’ll also soon be
enjoying the benets of all these popular features:
• Built-in tuner receives & displays DVB-T broadcasts on LCD/CRT/plasma monitor or projector
• Directly connects to monitor or projector — no computer, software or driver required
• Delivers clear, stable images with up to 800 x 600 resolution
• Easy installation and full-function remote control with automatic channel scanning and
programming and multi-language on-screen display
• Lifetime Warranty
Package Contents
• DVB-T LCD Converter/Tuner with stand
• Remote control (batteries included)
• 8-pin to HD15 and audio cables
• DVB-T antenna
• Power adapter
• User manual
CONNECTIONS
The face and side connector
panels of the DVB-T LCD
Converter/Tuner are shown at
right, with conguration details
on the following page. Tips for
making initial connections:
• Use the power adapter
(included) to plug the unit
into an AC power source.
• Use the included DVB-T
antenna for optimal
reception of digital-channel
signals. (Older indoor or
roof-mount antennas may
receive only a limited
number of channels.)
NOTE: Do not place any
Converter/Tuner components
near any heat source, nor in
any location where they can
be exposed to excessive
moisture or humidity. Do not
attempt to repair this device: If
damage occurs, contact your
local distributor for assistance.
3
CONNECTIONS

4
CONNECTIONS

5
INSTALLATION/SETUP
INSTALLATION/SETUP
Remote Control
Press the latch to remove the cover of the battery compartment on the back of the remote
control and insert the two AAA batteries (included) as indicated on the unit.
Once the DVB-T LCD Converter/Tuner is ready for operation, the following controls and
commands can be operated remotely.
1
7
8
6
2
4
3
5
9
10
11
12
15
13
18
17
19
20
21
14
16
1 Switches the DVB-T between
Operation and Standby modes.
20-9 on the numeric keypad
select channels and specic
menu options.
3Displays the menu on screen or
returns to the previous menu
from a sub-menu.
4Displays the electronic program
guide (EPG), if available.
5Changes to the next higher
channel in Viewing mode; moves
the cursor up in Menu mode.
6Raises the volume in Viewing
mode; raises the volume setting
in Menu mode.
7Changes to the next lower
channel in Viewing mode; moves
the cursor down in Menu mode.
8Returns to the previous menu
or screen.
9 Shows thumbnail previews of up
to 9 programs.
10 FAV displays the list of favorite
channels; FAV+ and FAV- move
up and down the on-screen
display.
11 Selects the Video Output mode.
12 Selects the TV/Radio mode.
13 Enables/disables the audio.
14 Moves to the last channel being
viewed/listened to.
15 Displays the program information
box on screen.
16 Conrms choices/selections
highlighted on the menu.
17 Lowers the volume in Viewing
mode; lowers the volume setting
in Menu mode.
18 Shows transmitted teletext, if available.
19 Sets the output for the speaker(s).
20 Freezes the picture currently on screen.
21 Selects PAL, NTSC or Auto.

First-Time Installation
Prior to the initial operation of the MANHATTAN DVB-T LCD Converter/Tuner, the First-Time
Installation procedures need to be followed to establish settings and preferences that will be
used to optimize the quality and maximize the enjoyment of all the device’s features.
Selections are made with the remote control. To prepare for the First-Time Installation:
• Ensure the two AAA batteries are installed in the
remote control.
• Connect the included DVB-T antenna to the LCD
Converter/Tuner.
• Use the included audio cable to connect the LCD
Converter/Tuner to your TV. (Refer to the preceding
conguration images if needed.)
• Turn the power on to the TV and LCD Converter/Tuner.
The LCD Converter/Tuner will automatically run the First-Time Installation wizard. NOTE: The
wizard will not run again once the First-Time Installation is completed. A display of the program
list indicates that the installation has already been done.
Start
Press3or4to position the yellow cursor on “Yes” to
begin the First-Time Installation procedure or “No” to
cancel. Press the “OK” button to effect your selection.
NOTE: The “OK” button (16 on the Remote Control
reference chart) is in the center of the arrow array on
the remote control.)
Country
Press3or4to select your country. NOTE: You can
move among the setups on this screen by pressing
5/6.
Language for on-SCreen DiSpLay
Press3or4to select your preferred language for all
on-screen displays. NOTE: You can move among the
setups on this screen by pressing5/6.
time Zone
Press3or4to select your local time zone. NOTE:
You can move among the setups on this screen by
pressing5/6.
6
INSTALLATION/SETUP
The 4 arrows below are used throughout the
First-Time Installation procedure to indicate
the corresponding buttons on the remote
control (see the Remote Control section).
 5 5CH+
 4 6VOL+
 6 7CH-
 3 17 VOL-
Do you want to start first time
installation wizard?
NoYes
First Time Installation
BACK
Country
Langauage
Time Zone
Antenna Power
England
English
GMT+00:00
OFF
NEXT
First Time Installation(1)
BACK
Country
Language
Time Zone
Antenna Power
England
English
GMT+00:00
OFF
NEXT
First Time Installation(1)
BACK
Country
Language
Time Zone
Antenna Power
England
English
GMT+00:00
OFF
NEXT
First Time Installation(1)
Daylight Saving
Daylight Saving
Daylight Saving

DayLight Saving
Press3or4to set the time with or without Daylight
Saving taken into account. NOTE: You can move among
the setups on this screen by pressing5/6.
Advance to the next setup screen by pressing3or4to
move the yellow cursor to “Next” and then pressing “OK.”
(“Back” returns to the previous setup screen.)
auto SearCh — aCtivation
Press3or4to move the yellow cursor to “Yes,” then
press “OK” to automatically start searching for — and
saving — available program channels. (“Back” returns to
the previous setup screen; “No” cancels Auto Search and
returns to the main menu.) NOTE: Once the First-Time
Installation procedure is completed, subsequent Auto
Search activations can delete the current program list.
auto SearCh — StatuS
A status screen like this displays while Auto Search is in
progress, indicating the search status.
auto SearCh — aCquiSition
A status screen like this displays when Auto Search nds
a viable channel, indicating the channel’s frequency.
auto SearCh — CompLete & Saving
This message displays when Auto Search has nished
acquiring channels and proceeds to save them to create
a new program list.
Additional Setup Options
Once an initial program list has been automatically created with the First-Time Installation
procedure, additional setup screens present many more options for making listening and
viewing easier and more enjoyable.
Press “OK” on the remote control to display the main
menu. NOTE: A menu tree is included at the end of this
Installation/Setup section as a quick reference for menu
navigation.
7
INSTALLATION/SETUP
BACK
Country
Language
Time Zone
Antenna Power
England
English
GMT+00:00
OFF
NEXT
First Time Installation(1)
Daylight Saving
First Time Installation(1)
Do you want to start auto search?
Previous channel list will be
replaced.
NoYesBACK
Automatic Search
Progress
Channel No
Frequency
40%
000 Music List: 000
30
456MHz
Automatic Search
Progress
Channel No
Frequency
62%
003 Music List: 000
40
730.0MHz
Data Saving
Please Wait
Message
System Setting
Parental Control
Program Search
Program List
Personal Style
Accessory
Game
Main Menu

regionaL Setting (to upDate firSt-time inStaLLation
SettingS)

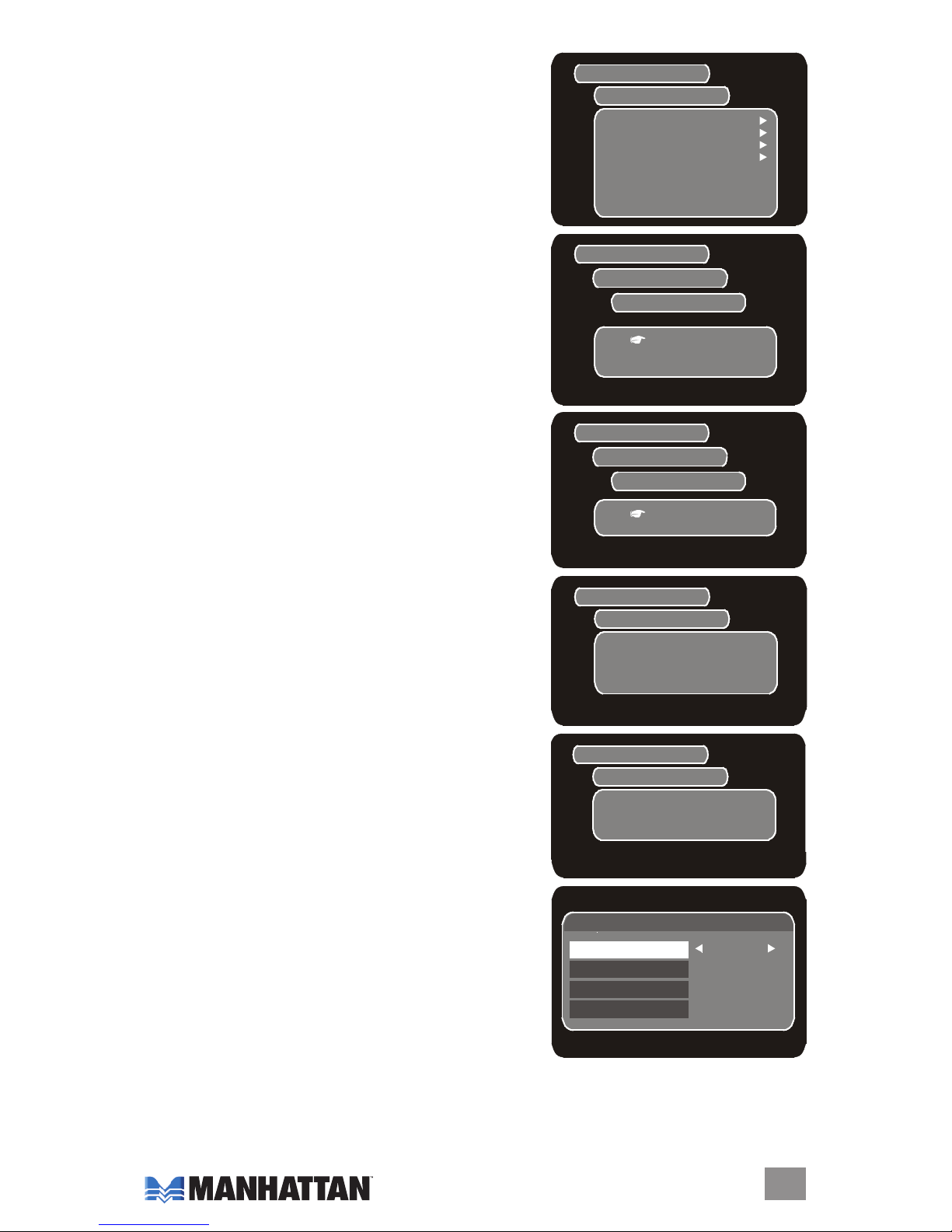

On the main menu, highlight “System Setting”
and press “OK”; then highlight “Regional Setting”
and press “OK.” To update/change the country,
language, time zone and/or Daylight Saving
settings, press3or4to make your selections.
(Refer to First-Time Installation if/as needed.)
Press “OK” to return to the main menu.
program SearCh
On the main menu, highlight “Program Search” and
press4. An “Enter PIN” prompt displays. Enter the PIN
(the default is 8888) and press “OK.” NOTE: To set a
new PIN, see Main Menu Functions/ Parental Control.
automatiC SearCh / manuaL SearCh
To initiate the Auto Search to nd a program, highlight
“Automatic Search” and press “OK.” NOTE: The Manual
Search option should be selected only by users familiar
with all the available options and settings.
When the rst warning prompt — “Do you want to start
Auto Search?” — displays, press “OK.”
When the second warning prompt — “Do you want to
erase your previous channel list?” — displays, select
either “Yes” or “No” to start Auto Search. “Yes” will delete
the previous program list before Auto Search begins;
“No” will retain the previous program list and then initiate
Auto Search. Once started, Auto Search displays a
status screen to indicate its progress.
When programs are found in Auto Search, the channel
details are displayed for reference.
Antenna Power
Video output
Display Type
TV Standard
Time Setting
System Schedule
Language
Regional Setting
Main Menu
System setting
Country
Language
Time Zone
England
English
GMT+00:00
Regional Setting
Message
Enter PIN
****
OK
Manual Search
Automatic Search
Main Menu
Program Search
Warning
Do you want to start Auto Search?
Cancel
OK
Warning
Do you want to erase your
previous channel list?
NoYes
Automatic Search
Progress
Channel No
Frequency
40%
000 Music List: 000
30
456MHz
Automatic Search
Progress
Channel No
Frequency
62%
003 Music List: 000
40
730.0MHz
8
INSTALLATION/SETUP

When Auto Search is nished, the program list is
automatically updated and saved.
An image appears on the TV screen/monitor, indicating
that the superior quality of high-resolution digital video
broadcasts is now available for your viewing pleasure.
TV Viewing & Browsing
program LiSt
Press “OK” to display the Program List screen. Highlight
a program on the list you want to view and press “OK.”
A specic program channel can also be selected directly
by pressing/entering the channel number and then
pressing “OK.”
muLtiviDeo preview
The DVB-T LCD Converter/Tuner can display up to nine
preview program images as thumbnails. To switch one
of the thumbnails to a full-screen image for viewing,
highlight it and press “OK.”
teLetext
To display teletext on screen, press “TEXT.” Select
“ENG” to proceed/engage or “OFF” to deactivate the
function; then press “OK.”
With the teletext screen displayed, use the numerical
buttons (0-9) to enter a page number. Press “EXIT” to
return to the standard TV play/view mode. NOTE: If
closed captioning/subtitles is available on your broadcast,
press “Sub” to activate/de-activate.
Data Saving
Please Wait
Message
TV 350 Moving Picture LR
TV Program List
No
1
2
3
Program List
Color Bar
Monoscope
Moving Picture
350
Teletext
ENG
OFF
9
INSTALLATION/SETUP

eLeCtroniC program guiDe (epg)
If your broadcast service makes this function available,
press “EPG” to navigate through all the programs you
have saved.
Convenient options are available such as a program
“parade,” which presents program images in sequential
order. Press5or6to browse through the program list.
To return to the previous menu level, press “EXIT” or 3.
To see additional information about the selected program,
press 4.
Main Menu Functions
To display the main menu, press “MENU” on the remote control. Refer to this menu “tree” to
become familiar with the navigation of the entire series of setup screens and programming
and viewing options.
TV Program List
No
1
2
3
Program List
Color Bar
Monoscope
Moving Picture
Moving Picture
11:00-14:00
Moving Picture
14:00-17:00
TV Program List
No
1
2
3
Program List
Color Bar
Monoscope
Moving Picture
2006/04/15 Moving Picture
11:00
14:00 Moving Picture
14:00
17:00 Moving Picture
THE AMAZING RACE
2006/04/15 13:30-16:30
Desoription:
As teams continue to make their way through
Budapest, infighting among teammates proves to
be more challenging than the tasks they compete
in, while a food task proves to be a major
roadblock for many.
Main Menu
TV Program List
Music Program List
Sort
Automatic Search
Manual Search
Channel Lock
Parental Settings
Change PIN
TV Standard
Display Type
Video Output
Antenna Power
Regional Settings
Language
Time Settings
System Schedule
Mine
Tetris
Gomoku
Calendar
System Information
Factory Default
System Update
Menu Color
Transparency Level
Border Pattern
Entry Animation
Program List
Program Search
Parental Control
System Settings
Games
Accessories
Personal Style
By Name
By Service ID
By Channel No.
Yes
No
PAL
NTSC
Auto
4:3 PS
4:3 LB
16:9
CVBS+S-Video
VGA
No
Yes
10
INSTALLATION/SETUP

program LiSt
On the main menu, press5or6to highlight “Program
List,” then press4to enter the sub-menu, which presents
two options: “TV Program List” and “Music Program List.”
NOTE: The following directions apply to either option.
Move the cursor to highlght the option you want to edit
and press “OK.”
The Program Edit Table displays. You can mark favorite
programs on this screen with a heart icon: Press “FAV”
on the remote control to enable the favorite program
function, then use 5/6to move among programs
designated as favorites. To disable the favorite program
function, press “FAV” again.
program SearCh
The Program Search conducts an auto search during the
First-Time Installation procedure. Should your broadcast
service change or add to your local channel assignments,
you’ll need to initiate the Program Search again.
From the main menu, highlight “Program Search” and
press to enter the sub-menu.
As mentioned previously in the Additional Setup Options
section, selecting “Auto Search” subsequent to the First-
Time Installation procedure can delete the current
program list. Follow the instructions in the earlier section,
and respond to the warning prompts carefully.
If you prefer to specify your program search parameters,
move the cursor to highlight “Manual Search” and
press “OK.” Use 3/4to select the channel you want to
process and press “OK” to initiate the manual search.
Use 5/6to view and select specic options.
While conducting a manual search, you can press any
key to end and exit the process.
System Setting
Parental Control
Program Search
Program List
Personal Style
Accessory
Game
Main Menu
Manual Search
Sort
Automatic Search
Main Menu
Program Search
TV Program List
Music Program List
List
Program edit tablbe
NO Program Name Favor Move Del
1 Color
2 Monoscope
3 Moving Picture
Edit Table
System Setting
Parental Control
Program Search
Program List
Personal Style
Accessory
Game
Main Menu
Manual Search
Sort
Automatic Search
Main Menu
Program Search
Program edit table
Channel No 06
Frequency
Bandwidth 7 MHz
Strength 46%
Quality 89%
OK
Manual Searching
Please Wait
Press Any Key to Exit
Message
11
INSTALLATION/SETUP

Once a manual search is complete, the program that’s
been found is displayed on the screen/monitor.
To return to normal play/viewing status, press EXIT.”
Any changes/additions to the program list will be saved
automatically.
parentaL ControL
On the main menu, press5or6to highlight “Parental
Control,” then press4to enter the sub-menu, which lets
you block programs from being viewed. This is a popular
feature among parents/guardians who want to prevent
children from watching shows considered inappropriate.
Enter the 4-digit PIN to continue with the setting of the
controls. (The default is 8888.) NOTE: To set a new
personal identication number (PIN), see the Change PIN
option and instructions below.
Press “OK.”
Highlight and select one of three setup options: Channel
Lock, Parental Setting and Change PIN.
To enter a new PIN (personal identication number),
highlight and select “Change PIN.” Enter the old/previous
PIN (or 8888 if the default PIN is still current), then enter
a new 4-digit PIN. Enter the new PIN a second time in
the “Conrm New PIN” eld. Press “OK.”
SyStem SettingS
On the main menu, press5or6to highlight “System
Settings,” then press4to enter the sub-menu.
Manual Search
Sort
Automatic Search
Main Menu
Program Search
Data Saving
Please Wait
Message
System Setting
Parental Control
Program Search
Program List
Personal Style
Accessory
Game
Main Menu
12
INSTALLATION/SETUP
Message
Enter PIN ****
OK
Change Parental PIN
OK
Old PIN
New PIN
Config New PIN
Conrm New PIN
System Setting
Parental Control
Program Search
Program List
Personal Style
Accessory
Game
Main Menu
Parental Setting
Change PIN
Channel Lock
Main Menu
Parental Control
Parental Setting
Change PIN
Channel Lock
Main Menu
Parental Control

System Settings encompasses several sub-menus:
• TV Standard lets you set the signal for video output.
- Select “PAL” if it’s the primary TV broadcast system
used in your locale (Europe, Australia, etc.).
- Select “NTSC” if it’s the primary TV broadcast
system used in your locale (U.S., Japan, Korea, etc.).
- Select “Auto” if you’re using a multi-system TV that’s
compatible with both PAL and NTSC standards.
• Display Type lets you select the aspect ratio that best
suits your screen: 4:3 PS (pan/scan), 4:3 LB (letterbox)
or 16:9.
• Video Output lets you select between “CVBS+S-Video”
and “VGA,” whichever suits your viewing platform
better.
• Additional sub-menus let you select options for country,
language (including on-screen display, rst and second
audio, and subtitles), time options (including time zone
and Daylight Saving settings), system updates and more.
gameS
On the main menu, press5or6to highlight “Games,”
then press4to display the options. NOTE: Use the
remote control to play the featured games.
aCCeSSorieS
On the main menu, press5or6to highlight “Accessory,”
then press4to display the options. NOTE: Remember
that selecting the option “Restore Factory Default” in the
Factory Default sub-menu will clear any settings you have
made or changed previously.
perSonaL StyLe
On the main menu, press5or6to highlight “Personal
Style,” then press4to display the options.
13
INSTALLATION/SETUP
Antenna Power
Video output
Display Type
TV Standard
Time Setting
System Schedule
Language
Regional Setting
Main Menu
System setting
16:9
4:3LB
4:3PS
Main Menu
System setting
Display Type
Main Menu
System setting
Video output
CVBS+S-Video
VGA
Main Menu
Game
Mine
Tetris
Gomoku
Calendar
Main Menu
Accessory
System Information
Factory Default
System update
Main Menu
System setting
Video output
CVBS+S-Video
VGA
Main Menu
System setting
Video output
CVBS+S-Video
VGA
Main Menu
System setting
Video output
CVBS+S-Video
VGA
Menu Color
Transparency Level
Border Pattern
Entry Animation
Blue
6
Round
Right
Personal Style

TROUBLESHOOTING
The display on the front panel does not light up.
• Check that the power cord is plugged into the wall outlet.
• Check that the Power switch is on.
No picture.
• Make sure that the product is in Operation mode.
• Make sure that the A/V cable is correctly connected to the TV.
• Make sure the TV is in A/V mode.
• Make sure that antenna cable is correctly connected to the device.
• Check the brightness level of the TV.
• Check the channel that is on air.
A “No signal” or “Bad signal” message appears.
• Check the connected device.
• Re-position the antenna.
No sound or poor sound.
• Check the volume level of the TV.
• Check the Mute status of the TV and the converter/tuner.
• Press the Audio button.
Poor picture and sound quality.
• Re-position the antenna (which can correct a screen image
like that shown at right due to a weak signal or bad connection).
• Make sure no frequency-generating devices are nearby.
• Use 75 Ohm coaxial cable to connect the TV and antenna.
• The DVB-T LCD Converter/Tuner is a standard denition
receiver: Viewing high-denition channels can result in a
poor image and sound.
• Check that the correct TV standard is selected (PAL or
NTSC). The wrong setting can produce an image like that
shown at right.
The remote control doesn’t work.
• Make sure the remote is aimed at the receiver’s IR sensor.
• Check the batteries.
SPECIFICATIONS
Standards and Certications
• Video standards: NTSC/PAL
• FCC, CE
General
• Resolution output: 640 x 480, 800 x 600
• Monitor support: VGA/SVGA (VGA input
port required)
• Input ports (rear):
- 7.5 – 12 V / 0.75 – 1 A DC power input
- audio
- RS232
- 8-pin DIN connection (VGA)
- RF input
• Output ports (rear):
- audio
- RS232 (same as input)
- RF loop through
• Output ports (front):
- composite video
- audio
- S-video
Dimensions
• 10 x 18 x 2.8 cm (3.9 x 7.1 x 1.1 in.)
• 277.8 g (9.8 oz.)
PIN Code Error
Message
Ok
No Signal
Warning
14
TROUBLESHOOTING/SPECIFICATIONS

Copyright © MANHATTAN
All products mentioned are trademarks or registered trademarks of their respective owners.
www.manhattan-products.com
MANHATTAN®offers a complete line
of PC Components, Peripherals, Cables and Accessories.
Ask your local computer dealer for more information
or visit us online at
