MantelMount MM855 User manual

Please read this entire manual before you begin.
Do not unpack any contents until you verify all requirements on PAGE 3.
If you have any questions, visit MantelMount.com or call (800)897-9755.
This product contains small parts that can be a
choking hazard. Do not let children play with any of
these small parts! Keep children away from the work
area during installation.
Do not use this product in any way, or for any
purpose, that is not specifically described in these
instructions. MantelMount is not responsible for
damage or injury caused by incorrect installation
or improper use.
MantelMount has three different adjustments
that must be made after the installation is
complete in order to operate properly.
IMPORTANT:
This product is intended to be installed by
professional installation contractors, or persons
familiar with the tools and methods required for
this installation. If you are not sure about your
ability to perform this installation, you must
contact a professional. MantelMount is not
responsible for damage or injury caused by
incorrect installation or improper use.
!
CAUTION:
!
CAUTION:
!
WARNING!
Do not let children operate, pull on, or hang from
MantelMount.
Do not operate MantelMount when anyone is near or
behind the mount. MantelMount is very strong and can
result in crushing injuries.
!
WARNING!
!
WARNING!
Exceeding the weight capacity can result in
serious personal injury or damage to equipment!
The combined weight of all components must not
exceed 125 lbs (57 kg).
MantelMount must be installed to a wall or structure
that is able to hold five times the combined weight of
all equipment. If you are unsure about your structure,
a contractor must evaluate your installation.
!
WARNING!
MM8 Installation Instructions
IMPORTANT SAFETY INSTRUCTIONS - SAVE THESE INSTRUCTIONS
MantelMount MM8 PAGE 1
www.MantelMount.com

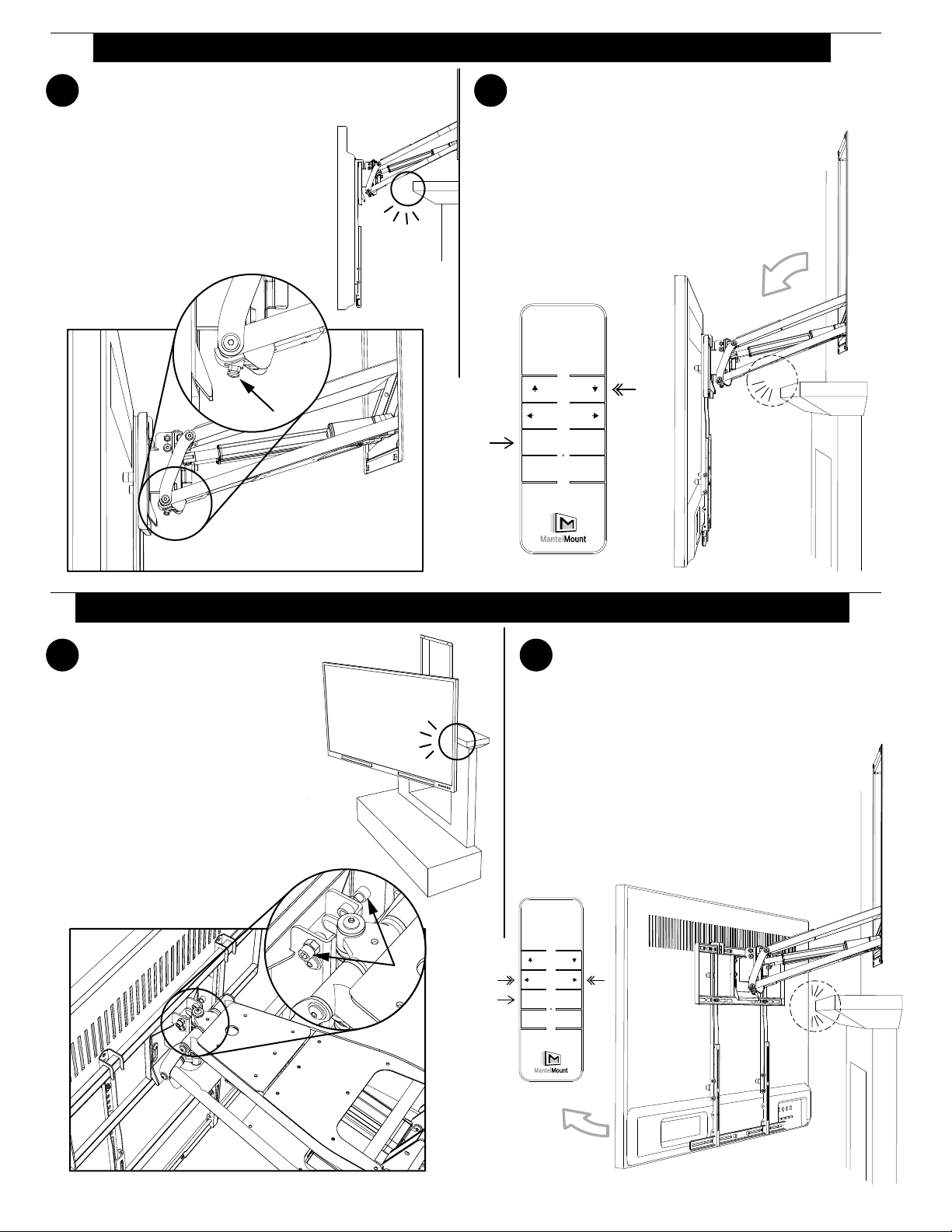

The bottom travel stop is adjusted
with two screws and locknuts so
the TV and mount do not lower all
the way into the mantel.
Tilt is removed with one screw
inside the swivel mechanism. The
TV should always be vertically
parallel to the wall
The side-to-side swivel stops are
adjusted with two screws and
locknuts so that the TV does not
swivel into the mantel.
U.S. Pat. No. 8,864,092

PAGE 2 MantelMount MM8
Required Tools
7/32” 10-14mm
4-5mm
Before you begin, please verify that all components are included and undamaged. If any parts
are missing or damaged, contact MantelMount. Never proceed with missing or damaged parts!
Lay out all components and make sure you identify that each one has a match in the diagram.
Some of the parts included will not be used during installation. Do not proceed if you do not
understand and identify all of the components.
{02} x4
M5x30
{01} x4
M5x12
{10} x4
M5-M6
{11} x12
M8
{12} x8
Spacer
{18} x6
M6x12
{19} x4
M6x40
{03} x4
M5x40
{05} x4
M6x30
{04} x4
M6x16
{06} x4
M6x40
{08} x4
M8x25
{07} x4
M8x15
{09} x4
M8x45
{13} x4
Lag Bolt
{16} x4
Locknut M6
{17} x4
Locknut M8
{14} x4
Anchor
{15} x8
Cable Ties
{20} x8
M8x16
{27} x2
Vertical
Brace
{28} x2
Brace
Extender
{26} x1
TV Frame
{57} x1
Remote
Control
{30} x1
Lift Housing
{25} x6
Wall Cover
{53} x4
Stud Bracket
{29} x1
Horizontal
Brace, TV
{31} x2
Horizontal
Brace

MantelMount is designed for use only with decorative
fireplaces that are not the primary heat source for a
house. Temperature at the front edge of mantle should
never exceed 110° F.
AB
C
E
D

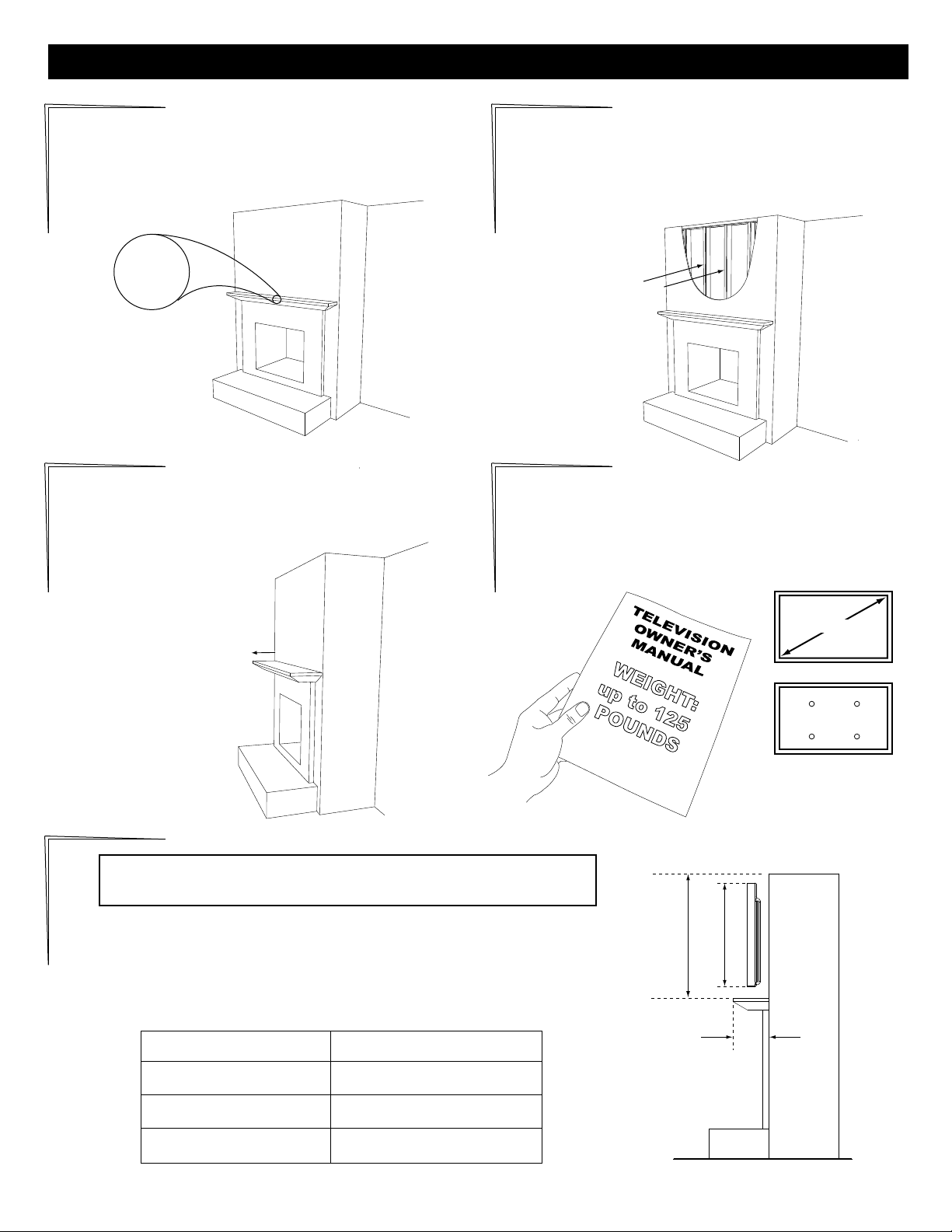

Mantle must not extend from mounting surface
more than 19 inches (22 inches for non-recessed
installations). MantelMount can not extend past a mantel
larger than 19 inches. Larger mantels will also reduce the
amount of side-to-side swivel.
The space above the mantle must be taller than the TV. The required space
depends on how far out the mantle extends. Refer to chart below and add this
additional height to the TV height to determine if space is tall enough.
Wall must be WOOD STUD FRAME only. There must be at
least 2 studs available for mounting. Wall covering must
not exceed 5/8 inch thick.
For other types of walls or other types of installations
please visit the FAQ section at www.MantelMount.com.
TELEVISION REQUIREMENTS:
1. Weight must be below 125 pounds (56 Kg).
2. Screen size larger than 50 diagonal inches.
3. Mounting screw holes are VESA compliant.
For non-VESA hole patterns, please visit the
FAQ section at www.MantelMount.com.
110°F
MAX.
19 inches
MAXIMUM
2 STUDS
If mantle extends:
Less than 10 inches
10 - 14 inches
14 - 16 inches
16 - 19 inches
This is required space height:
TV height plus 6 inches
TV height plus 8 inches
TV height plus 10 inches
TV height plus 15 inches
TV height
Mantle
Extends:
Space height
larger than 50”
VESA
Width: 200-600mm
Height: 100-600mm
MantelMount MM8 PAGE 3
Note: This is not an installation step, only a verification.
Do not use these dimensions during installation.
Please verify that your installation meets all of these CRITICAL requirements:

Use a Vertical Brace {27} to determine if your television
is a flat back or an irregular back. An irregular back will
require spacers and longer screws to fill any spaces
between the Vertical Brace and the TV.
The Braces must be parallel to your television screen.
Choose the correct screw diameter and length for the TV.
Hand-thread screw combination into the TV to ensure
there is adequate thread engagement without hitting the
bottom of threaded insert. Use only minimum amount of
spacers (if required).

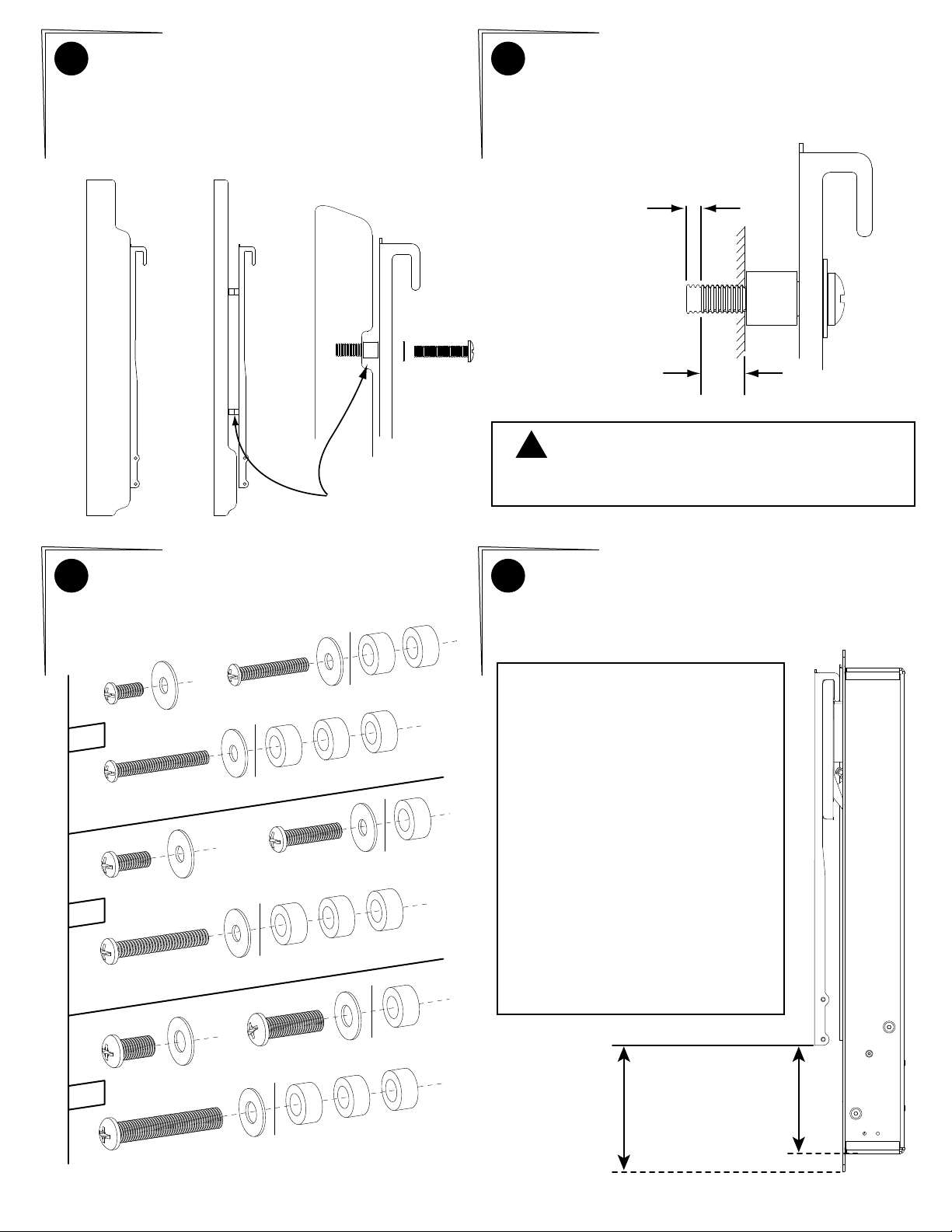

Possible Screw Combinations shown with maximum
spacer usage (if spacers are required).
Flat Back Irregular Back Irregular Back
(Recessed Threads)
Spacers
Must leave a gap
in threaded
TV insert
7-10 threads
minimum
engagement
!
CAUTION:
Do Not use screws that are too long for the threaded
inserts of Television. This can damage internal components.
{02}
{01} {10}
{10}
{10}
{10}
{11}
{11}
{11}
{12}
{12}
{10} {12}
{10} {12}
{12}
{12} {12}
{12} {12}
{12} {12}
{12}
{12}
{03}
{05}
{04}
{06}
{08}
{07}
{09}
7.5 INCHES
to Flange edge
6 INCHES
to housing
or cutout
M5
M6
M8
PAGE 4 MantelMount MM8
IMPORTANT INFORMATION: The Vertical Braces {27} are
a fixed distance higher than the bottom of the Lift Housing
Frame {30}. This relationship can be used to calculate
most mounting situations such as centering the TV in an
alcove or mounting the TV at a specific height on the wall.
If you measure the distance from the
bottom of your TV (or Sound Bar) to the
bottom of the Vertical Braces {27} (see:
Page 5) you will automatically know the
distance from the bottom of your TV to the
bottom of the Lift Housing {30}.
You can use this information to install the
Lift Housing on the wall in order to locate
your TV to any specific height you desire.
Example: If the Vertical Braces are
attached 10 inches from the bottom of the
TV, then the bottom of the cutout opening
should be 4 inches higher than where you
want the bottom edge of the TV on the
wall (10” - 6” = 4”).
If you are installing above a mantel, then
your installation must still have the
additional clearance for downward motion
stated in the chart in Step 9
5152
5354

The Vertical Braces {27} are always mounted higher than
the bottom of the TV. However, the Brace Extenders {28}
will be mounted one of two ways:
Without a Sound Bar, if needed - The Brace Extenders
are installed slightly above the bottom of the TV. Use the
Extenders for holes that are low on the TV.
With a Sound Bar - The Brace Extenders are installed
below the TV with enough room to install the Sound Bar
onto the Horizontal Brace {29}.

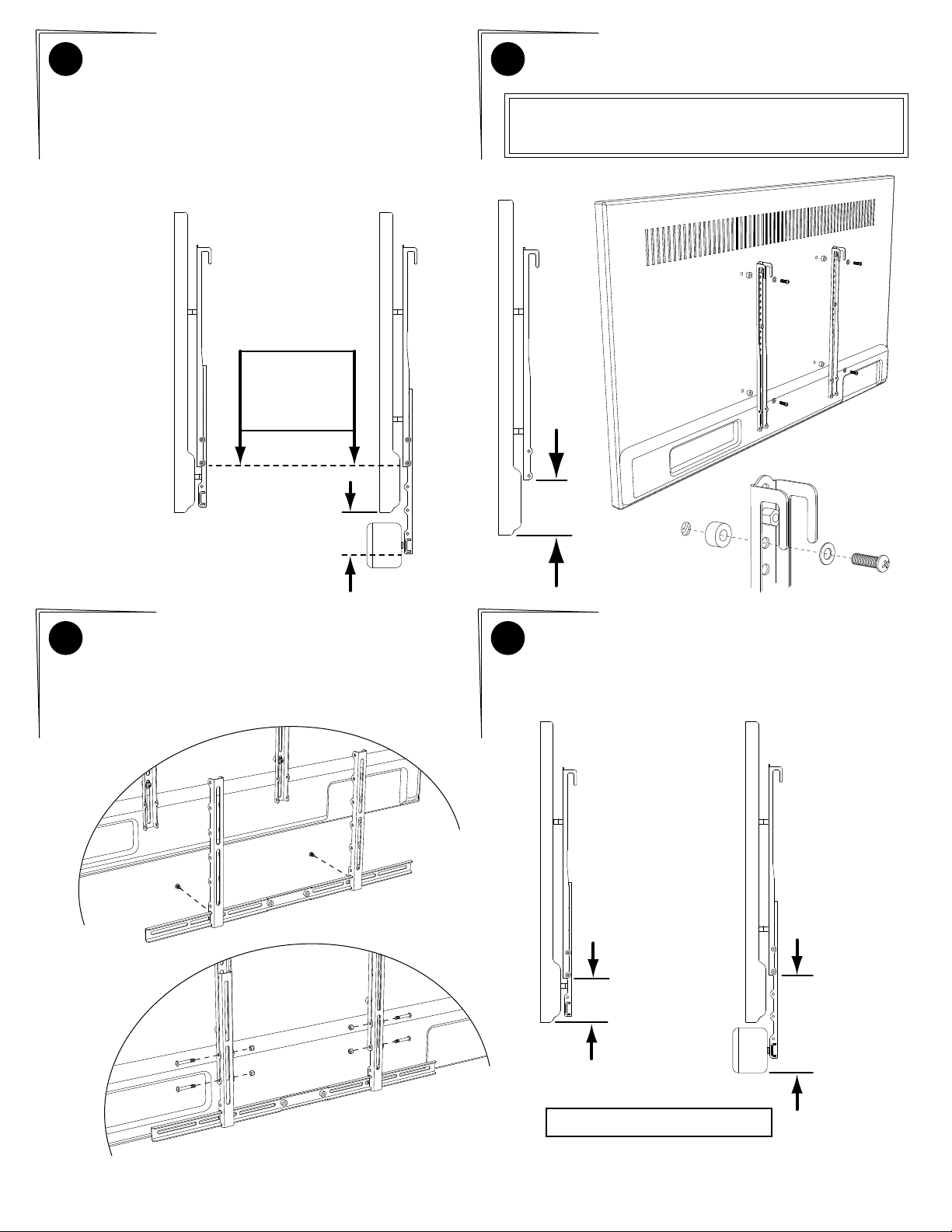

Attach the Vertical Braces {27} to the TV so the bottoms of
the Vertical Braces are at least seven inches higher than the
bottom of the TV (so that the TV covers the Recess Frame).
NOTE: If all the screws for the back of the TV can fit into the
TV Vertical Braces {27}, and a soundbar is not being used,
then the Brace Extenders {28} do not need to be installed.
Attach the TV Horizontal Brace {29} with Screws {18}.
Use the Vertical Braces to align the Extenders for
tightening if the TV is going to block access to the screws.
Then attach the Extenders to the Vertical Braces using
Screws {19} and Nuts {16}.
Measure the distance from the bottom of the Vertical
Braces {27} (not the Extenders) to the bottom of
television or Sound Bar.
Write down this distance to use in Step 9.
Use this distance in Step 9
Without
Sound Bar:
Extenders are
only needed for
TV holes that
are close to the
bottom of the TV
Vertical Braces:
Always higher
than the bottom
of the TV
With
Sound Bar:
Extenders are
a few inches
below the TV
7 to 10
INCHES
{16}
{19}
{28}
{27}
Bottom of
Vertical Brace
Bottom of
Vertical Brace
Bottom of TV
Bottom of
Sound Bar
{18}
{29}
MantelMount MM8 PAGE 5
5556
5758

PAGE 6 MantelMount MM8
If mantle extends:
10 - 14 inches
14 - 16 inches
16 - 19 inches
Required Clearance:
Less than 10 inches Add 5 inches
Add 7 inches
Add 9 inches
Add 14 inches
MANTEL
ADD THIS CLEARANCE
FROM THE CHART
MEASURE THIS DISTANCE
(with or without soundbar)
see: Step 8
The result will be the correct
height above the mantel to
install the Housing
USE THIS DISTANCE
for Step 12
SUBTRACT
SIX INCHES
Determine the Vertical Position of the Housing:
This image at right shows that the further out a mantle extends, the more it will
interfere with the arc of the lowering TV. The chart below gives clearance heights
from the bottom of the TV to the top of various mantel sizes.
However, the MM8 Lift Housing {30} is often located even higher on the wall
than the TV. To locate the TV so it has enough clearance and doesn’t hit the
mantel, you will need to know how much higher the Housing is than the bottom
of the TV. Then you can locate the Housing on the wall.
NOTE: If there is extra space available, due to a high ceiling for example, then
these heights are only minimum requirements.
59

Down Button:
Opens the Mount
MantelMount MM8 PAGE 7
UP DOWN
RIGHT
LEFT
HOME
SET
M 2
M 1
Integration Module
installs here (MM850 only)
Lay MantelMount on a flat, stable surface. Press and hold
the DOWN button on the Remote until the arm is
perpendicular to the Housing. Install the Module according
to the Instructions included with the Module.
FRONT BACK
P2
Also see STEP 24:
OPTIONAL:
Installing the MM85Integration Module
a. Press any button on the Remote to verify the blue light works.
b. Slide the back cover down and lift off the cover.
c. Locate the P2 Button at the upper left corner of the large
battery, as shown.
d. Have a pointy device ready such as a pen or paper clip.
e. Plug MantelMount into a wall outlet and within 5 seconds
press the P2 button. The remote is now paired.

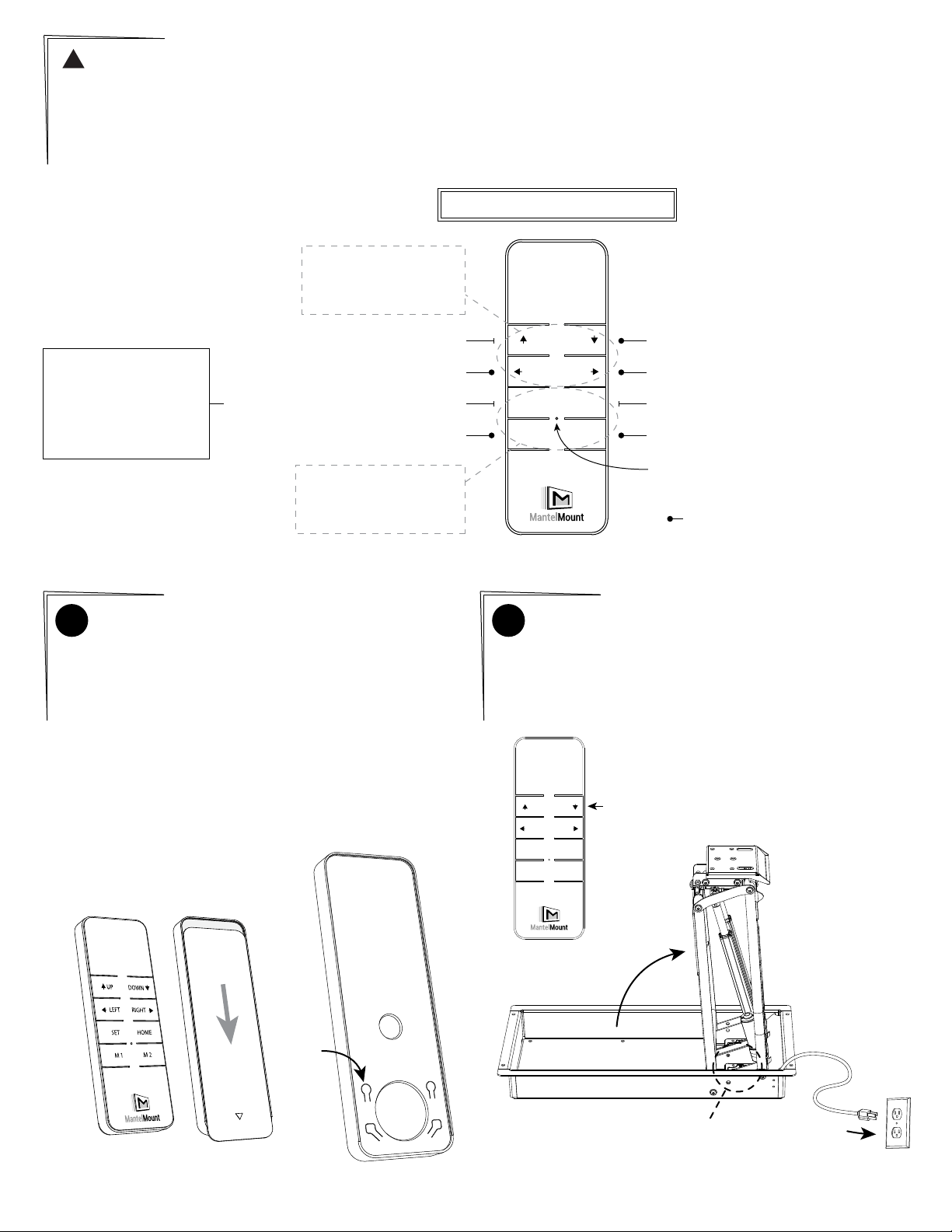

Pairing the Remote to MantelMount:
To start using the MantelMount MM8, the Remote Control
must be linked to the mount. This process is called “Pair”.
To pair the Remote, follow these steps:
MantelMount RF Remote Control
MantelMount MM8 comes with an RF Remote Control. This Remote does not need to be
pointing at the mount in order to control the mount; in fact, the Remote will send commands to
the mount even from other rooms in the house. It is very important to operate the Remote only
when the mount is in sight. Otherwise, always store the Remote in a safe place away from
children.
Press any button to immediately stop mount movement
UP DOWN
RIGHT
LEFT
HOME
SET
M 2
M 1
Hold to Swivel Left
Set Soft Stops and Memory Positions
Hold to Raise the Mount
Press for Memory 1 Position
Hold to Swivel Right
Can be programmed
with the SET button
Press to Fully Raise the Mount
Hold to Lower the Mount
Press for Memory 2 Position
Blue Indicator Light
!
CAUTION:
JOGGING BUTTONS:
Press and HOLD any of
these four buttons for
continuous movement.
“Set” button only works
within 2 seconds.
If the SET button is
accidentally pressed, wait
2 seconds before pressing
any other button.
PRESS BUTTONS:
Single-Press any of these
four buttons for
automated function.
10 11

FIG. C
(view facing the wall)
FIG. B
(view from inside the wall)
FIG. A
(view from inside the wall)
This unique MantelMount feature will allow the mount to lower
to the the Memory 1 position whenever the TV is turned on,
and return home when the TV is turned off. The mount will do
this automatically without needing to use the Remote Control.
If the TV is plugged into the socket located onboard the MM800
instead of a wall outlet, MantelMount can monitor the power to
the TV and determine when it is turned on or off.
If this feature is not desired, simply plug the TV into a wall
outlet and operate the MM800 with the Remote Control.
PAGE 8 MantelMount MM8
Auto Lowering Power Sensor (ALPS):
opening
OPTIONAL:
MM800 has a rear access hole that accepts threaded fittings for
standard 1/2” aluminum conduit. A licensed electrician can
hard wire the mount by splicing into the power cord.
Contact MantelMount for more information.
Hard Wire Conduit Access:
OPTIONAL:
MM800 includes brackets that make it easier to install horizontal 2x4 bracing inside the
wall. This is because all the attachment holes in the brackets can be reached for drilling
and screwing through the opening that is cut for the Lift Housing {30}, see FIG. A.
Notes: If the bracket is near the cutout opening, make sure to orient the attaching
hardware away from the opening so they do not interfere with the Housing. This
hardware is attached before the braces are installed into the wall, see FIG. B.
When cutting a center stud, measure 1.5” above and below the template mark before
the opening is cut out. Plunge cut through the stud at both locations and attach the cut
ends to the cross braces when they are installed, see FIG. C.
Adapter Brackets for 2x4 bracing:
OPTIONAL:
ALPS Socket for TV
1.5”
1.5”

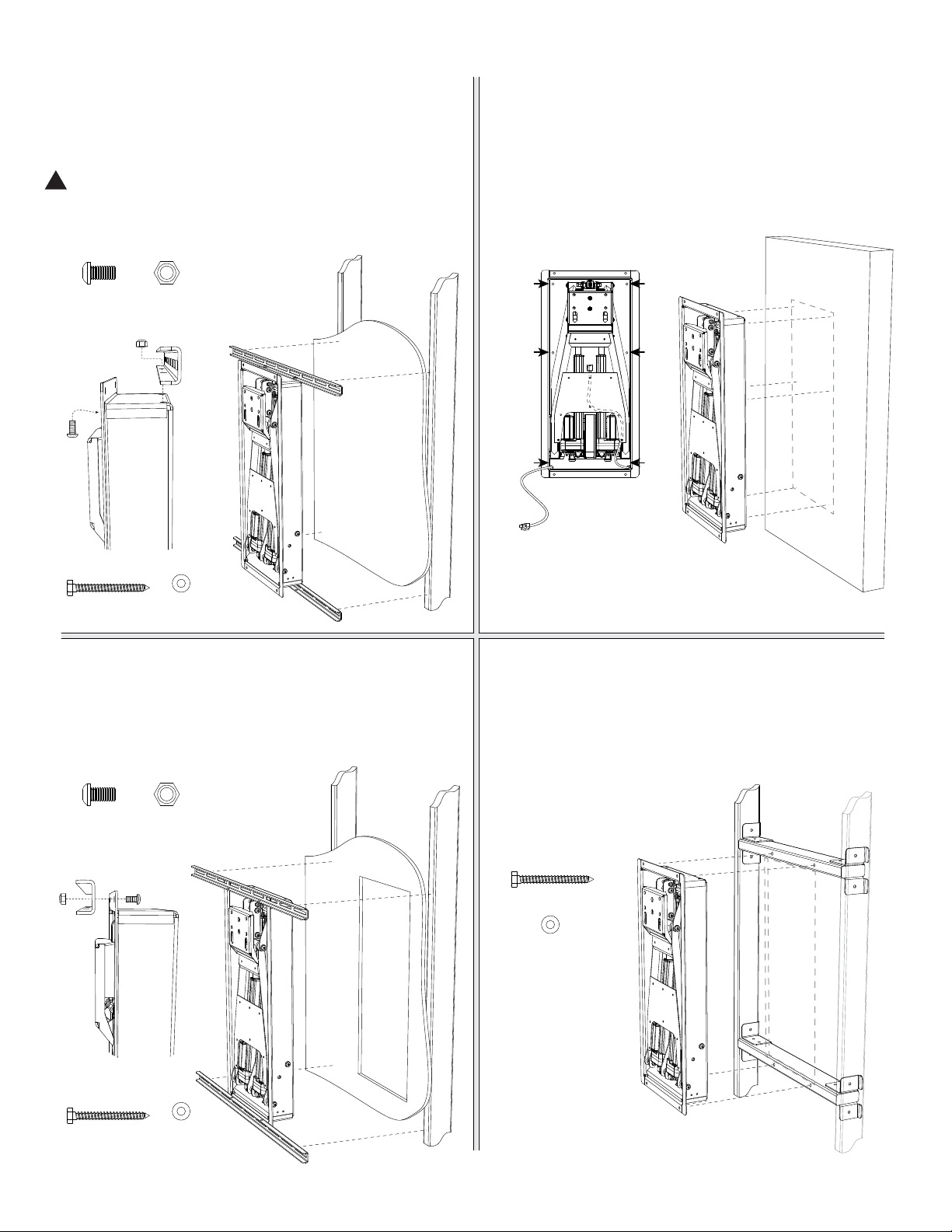

SURFACE MOUNT (non-recessed) installation using the
Horizontal Braces {31} to attach to existing wall studs:
The Horizontal Braces can reach studs that are up to
34 inches (875mm) apart. They attach flush to the back of the
Lift Housing {30}.
RECESSED installation using the Horizontal Braces {31} to
attach to existing wall studs:
The Horizontal Braces attach to the flange on the front of the
Lift Housing {30}. Use the included Template to mark the
location to cut the drywall. This installation is easiest when
there is no center stud that needs to be cut to make room.
SURFACE MOUNT (non-recessed) installation onto stone or
concrete walls using the six holes in the back of the Recess
Frame {30}. The lower Access Cover {32} must be removed to
access the lower holes.
The wall must be solid stone or concrete that can hold five times
the weight of all combined equipment. This surface must not be a
facade or non-structural material.
Use concrete anchors (not included) to attach mount to surface.
RECESSED installation using the included 2x4 Stud Brackets {53}.
When studs are far apart, when a center stud needs to be cut, or
when the cleanest look is desired, sections of horizontal 2x4 can
be installed through the cutout. They provide a solid structure for
the mount without the need for the Horizontal Braces. The mount
is attached with Lag Bolts through the holes in the front flange of
the Lift Housing {30}. Any studs that were cut can be reattached
to the new sections of 2x4.
Do Not overtighten Lag Bolts {13}. Tighten only until the
washers are firmly against the wall plate. Damage due to
overtightening can cause property damage or injury.
MantelMount MM8 PAGE 9
{20} {17}
{13} {11}
{20} {17}
{13} {11}
{13}
{11}
Concrete Anchoring Hardware
Not Included
Installation Options:
!
CAUTION:

!
WARNING:
DO NOT put hands into Lifting Mechanism while operating
the mount with the Remote Control.
After the Lift Housing is installed and power is connected,
press and hold the DOWN button on the Remote to lower
the Arm to horizontal. DO NOT lower past horizontal in
order to avoid hitting the mantel.
Hang the TV onto the TV Frame. Some older TVs are not weight
balanced. If the TV is much heavier on one side, slide the TV
slightly sideways to balance and level the TV.
Attach with 4 Screws {18}.
Install the TV Frame {26} using 4 Screws {20} and
Washers {11}. These screws can also be used to fine
tune level the TV. Always remember to tighten.
THIS STEP REQUIRES TWO PEOPLE
Install the Lift Housing {30}
PAGE 10 MantelMount MM8
{11}{20}
{18}
DOWN Button:
Lowers the Mount
RECESSED: Trace the Cardboard Template vertically onto
the wall about the centerline at the correct height from
Step 9. Use a level to ensure the cutout is plumb.
NON-RECESSED: Use the Cardboard Template to mark
the location of the Housing. MantelMount is located in the
same spot for all installations.
C
L
Crush Hazard
CAUTION
Stay clear of area
between wall and
TV during operation
Distance from
mantel to opening
from Step 9
12 13
14 15

MantelMount MM8 PAGE 11
UP DOWN
RIGHT
LEFT
HOME
SET
M 2
M 1
UP DOWN
RIGHT
LEFT
HOME
SET
M 2
M 1
Adjusting the Hard Bottom
Stop Position:
Jog the mount to the maximum safe
downward position. Do not swivel the
mount sideways. The mount may stop
on its own due to the internal limit.
Loosen the Locknuts and adjust the
Bottom Stop screws to this position.
Tighten both locknuts after the
adjustments are made.
Adjusting the Soft Side Swivel
Stop Position:
Once the hard stop is set, jog the mount inward
slightly from the Hard Stop. This will ensure the
mount does not hit the Hard Stop.
Within 2 seconds apart, press the “SET” button on
the Remote, and then immediately press either the
“LEFT” or “RIGHT” button that matches the side.
The Soft Stop should be set for that side.
Return to Step 18 for other side.
Tighten both locknuts after the adjustments are
made.
Adjusting the Soft Bottom Stop
Position:
Once the hard stop is set, jog the mount up
slightly from the Hard Stop. This will ensure
the mount does not hit the Hard Stop.
Within 2 seconds apart, press the “SET” button
on the Remote, and then immediately press
the “DOWN” button.
The Soft Stop should be set.
Adjusting the Hard Side Swivel
Stop Positions:
Jog the mount to the maximum safe
side position. Do not raise or lower the
mount.
Loosen the Locknut and adjust the
Swivel Stop screw to the desired
stopping position. Note: The locknut can
be moved to the other side of the Swivel
Bracket to increase the thread length.
Proceed to Step 19 to set the Soft Stop.
Repeat for other side.
Adjusting the Downward Hard and Soft Travel Stops - FIRST:
Adjusting the Side Swivel Hard and Soft Travel Stops - SECOND:
16 17
18 19

PAGE 12 MantelMount MM8
UP DOWN
RIGHT
LEFT
HOME
SET
M 2
M 1
Never allow children to play around, hang from,
or operate MantelMount. Property damage or
personal injury can occur.
Removing unwanted Tilt:
The TV should be fairly vertical in the up position and
parallel to the wall. If the TV is tilted slightly downward,
back out the adjustment screw slightly as shown.
Tighten the locknut after the adjustment is made.
This unique safety feature of the MantelMount MM8 will
monitor the temperature above your fireplace at all times and
raise the mount automatically if the heat behind the TV rises
above 130ÛF (54ÛC).
The Thermocouple is located inside the
Upper Arm. Be careful not to disturb the
small wire attached to the underside of
the Arm.
Setting the Memory Positions:
Once all of the Hard Stops and Soft Stops are set,
jog the mount to the desired viewing position.
Within 2 seconds apart, press the “SET” button on
the Remote, and then immediately press the “M1”
button. The Memory Position should be set.
Repeat for second viewing position if desired, using
the “M2” button.
Auto Raising Heat Monitor (ARHM):
!
CAUTION:
20 21
22

If the Auto Lowering Power Sensor (ALPS) feature is used, attach the
TV Power Cable as shown. The cable is plugged into the onboard
socket and quickly looped back away from the pinching area of the
TV Frame and the swivel portion of the mount. The socket must stay
centered between the two motor actuators. The cable can then be
looped again toward the TV with enough extra play to allow full
swivel to each side.
Keep all Cables
below pinch area
Lower hole through Access Cover
Rear Access for Hard-Wiring
Rear Access for Hard-Wiring
Ethernet Port
Reference Only: This is one possible configuration for the signal
cables. Each segment of the cables has extra length so that the
cables are not stressed or kinked when the mount is moved.
Ensure that cables do not get pulled or pinched between brackets
when the mount is raised.
MM85Integration Module Cable:
An Ethernet Cable must be plugged into
the Module for integration. There are two
access holes in the Housing for the cable
depending on the type of installation.
MantelMount MM8 PAGE 13
Cable Ties
{15}
Anchor
{14}
TV
Power Cable
To 110v
Wall Outlet
Attaching the TV Power Cable:
TV Power Cable using ALPS:
23
24

PAGE 14 MantelMount MM8
29
18
18
19
16
27
11
20
59
01 02 03
04 05 06
07 10 11 12 15 57
13
08 09
Additional Installation Parts
14
44
43
44
23
26
42
46
50
58
37 36
21
34
52
38
43
22
48
20
11
23
22
20
39
11
30
42
41
11
20
53
20
20
20
28
20
40
45
35
32
33
55
18
17
25
11
11
47
49
45
54
54
20
17
16
24 51
31
56

MantelMount MM8 PAGE 15
ITEM NO. PART NUMBER DESCRIPTION QTY. ITEM NO. PART NUMBER DESCRIPTION QTY.
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25
30
31 32 33 34
35 36 37 38 39 40 41 42 43 45 44 46 47 48 49 50
26 27 28 29
51 52 53 54 55 56 58 59 57
12189 4 12190 4 12191 4 12193 12194
4 4
M5 x 12 M5 x 30 M5 x 40 M6 x 16 M6 x 30
12197 4 12198 4
4
12199 12195 4
M8 x 15 M8 x 25 M8 x 45 M6 x 40
12166 4 14126 26 12122 8 14137 4
Washer M6 Washer M8 x 2 Spacer
14110 12162 12
6
Round Screw M6 x 12
12183 6 12187 6
Lag Bolt M8 x 60
4
12176 24
Cable Tie Anchor
3
Locknut M8
21050 TV Frame, Welded 14038 Vertical Brace
1
Cable Tie
2 3
12186
2
Nut M8
14056 2
Brace Extender
14060 1
TV Horizontal Brace
21039 2Horizontal Brace
21140 6Wall Cover
21155 1Power Supply Module
21166 1Control Module
21170 4Pivot Shaft
21168 4
21151 2
Clip Actuator
21060 1 21045 1
Swivel Tilt Bracket, Welded
21033 1Axle
21119 4
21037 2
Bushing Axle
21092 Washer M8 x 3 x 24 21121 4
2
Bushing
12255
10
21088
Round Screw M6 x 40
12178
Socket Cap Screw M8 x 25
21178 Round Screw M6 x 15
Locknut M6
21015 1Recess Frame, Welded
21035 2Axle
Anchor, Actuator21165 4
21063 1Bottom Pivot 21054 Top Pivot 21081 1Lower Arm, Welded
21018 1Upper Arm, Welded
4
21183 1Thermocouple
21160 Access Cover
21163
1
Set Screw M5 x 15 2
21185 Round Screw M8 x 50 2 21158 Cable Cover 1
21200 Remote Control 1
1 1 1
21190 Cardboard Template 735 x 335mm 15023 Stud Bracket
MM800M Instruction Manual
21175 Flat Screw M4 x 10 4
21041 2
Connector Brace
Round Screw M8 x 16

PAGE 16 U.S. Pat. No. 8,864,092 01Jan2018 MantleMount MM8
Customer Service:
(800)-897-9755
www.MantelMount.com
20.5 Max
Recessed Clearance
17.5 Min
Recessed Clearance
30.0
Maximum Drop
31.5
1.8
Thickness
35.4
27.8
725mm
Soundbar
13.3
Full Manufacturer Warranty:
MantelMount will replace or repair any product or part
that proves defective due to improper workmanship
or material during the warranty period.
Visit www.MantelMount.com for details.
This Installation Manual is available for download as a PDF
document at www.MantelMount.com. The PDF version can be
used to see larger images or to zoom in for much greater detail.
28.75
3.6
Recess Depth
25°R
25°L
Auto-Lowering Power Sensor (ALPS)
Monitors when the TV is turned on or
o and operates MantelMount
automatically
Exclusive MantelMount Features!
Patent Pending
Patent Pending
Patent Pending
Auto-Raising Heat Monitor (ARHM)
Monitors the temperature and raises
the TV automatically if the temp.
behind the TV is above 130°F
DƵůƟͲdžŝƐŽŶƚƌŽů,Ƶď;D,Ϳ
One unit with six degrees of
articulation that controls both the
vertical and horizontal movement
