Mantiz Saturn Pro Thunderbolt 3 User manual

Mantiz Saturn Pro guide
With the Saturn Pro Thunderbolt™ 3 external desktop graphics docking station, you can
add external or AMD Radeon™ or NVIDIA® GeForce®, NVIDIA® Quadro® graphics
cards* to transform your laptop into a desktop gaming platform . The product has a
rated power of 750W, which not only power the graphics card, but also provide 100W
power output for compatible notebook via Thunderbolt™ 3. This ultimate external
graphics solution gives you powerful performance and at your convenience.
Table of Contents
1. Package contents/system requirements........................................................................................... 2
2. Technica specifications ..................................................................................................................2
3. Equipment layout.........................................................................................................................3-4
4. Set up and install Saturn Pro........................................................................................................5-8
5. Safety and maintenance..................................................................................................................9
6. Legal notice...............................................................................................................................9-10

1.Package contents/system requirements
What's in the package
▪Saturn Pro external graphics docking
station
▪Thunderbolt™ 3 (USB-C™) cable*0.7M
▪Power cord
▪Important product information guide
System Requirements
▪A notebook that supports Thunderbolt 3™ external graphics card
▪PCI-E graphics card compatible with Saturn Pro
▪Windows® 10 64-bit (or higher)
You will get:
▪One-year limited manufacturer's warranty.
▪Free online technical support.
2.Technical specifications
▪Model: MZ 03
▪Connect to notebook: Thunderbolt™ 3/USB-C™ (up to 40Gbps) cable
▪GPU type: single double-width, full-length, PCI-Express x16 graphics card
▪Graphic card Max Dimension: 12.99 inches/340 mm (length*) x 6.29
inches/160 mm (height) x 2.36 inches/60 mm (width)
*Height refers to the distance from the top of the PCIe connector to the bottom of the wedge lock block
▪Built-in power supply: 750 watts
▪Power output provided to laptop: up to 100 watts via Thunderbolt™
Approximate size and weight
▪Length: 14.5 inches/370 mm
▪Height: 8.7 inches/220 mm
▪Width: 6.7 inches/170 mm
▪Weight: 6.46KG

3.Equipment layout
A
C
B
D
E
GF
H
I
B. Power Connector C. Air Vent
E. USB 3.0 Port F. LAN Port
A. Power Switch ON/OFF
D. GPU Output
G. THUNDERBOLT 3 PORT H. USB 3.0 Port I. SD Card Slot
CCC
C

K. PCI-E Slot L. PCI-E Release Lever M. Cooling Fan
N. SSD Bracket
K
L
M
N

P
P. Turn to Unlock Mantiz eGPU
Q
P. Pull to Open Mantiz eGPU Internal Structure
4.Set up and install Saturn Pro

R

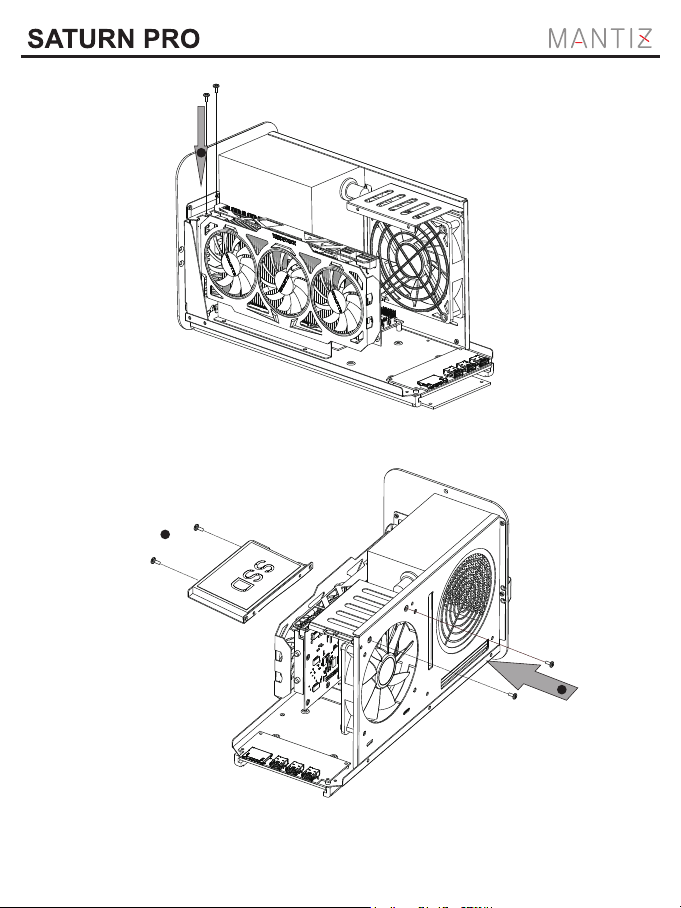

R. Remove PCI-E Cover and Locking Screw
S
S. Install a Compatible GPU onto the PCI-E Slot and connect 12V and
Connect to GPU Power Slot

T. Tighten the Screw for GPU
T
U
V
U. Tighten SSD on the Slot, Connect to SATA Cable V. Tighten SSD Bracket

W

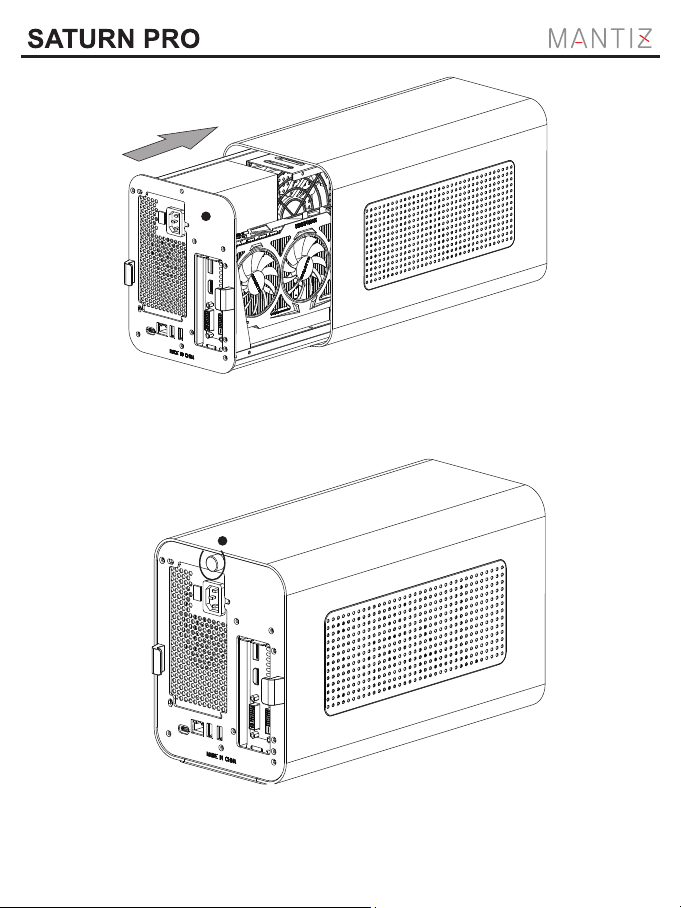

W. Push in Mantiz eGPU Internal Structure
X
X. Tighten up the Screw, Connect to PSU, Turn on the System,
Use Thunderbolt 3 Cable available and connect to Mantiz eGPU and Laptop
Remark: Without connecting to Thunderbolt 3 laptop. Mantiz Saturn Pro eGPU will
not work or activate .

5. Safety and maintenance
Important safety instructions
Warning: Failure to follow these safety instructions may result in fire, electric
shock, or other injuries or injuries. To operate the computer safely and try to
avoid injury caused by high temperature, please follow the guidelines below:
▪If you find that the device is operating abnormally and the fault cannot be
resolved, please unplug the device and call the Mantiz service hotline or
visit the Mantiz store for support.
▪Under no circumstances should you repair the equipment yourself.
▪Ensure that the equipment operating temperature is between 0°C (32°F)
and 40°C (104°F). If the temperature exceeds this range, please unplug
and turn off the device to stabilize the temperature to the optimal level.
▪Ensure that Saturn Pro is on a stable desktop and does not affect the
ventilation around the computer.
▪Do not use or install the device on water or wet surfaces. Do not use the
device around swimming pools, bathtubs, or other wet surfaces.
▪Do not use or install the equipment near any heat or open flame sources.
Do not use the device around radiators, stoves, candles, or other heated
surfaces.
▪Power and voltage warning. This device should only be powered by the
type of power source marked on the device. If you are not sure about the
type of power source where the equipment is used, please consult your
local power company or qualified technicians.
▪Do not block the ventilation grids or vents. Install according to the
manufacturer's instructions.
▪Please unplug the device before cleaning. Do not use spray or liquid
cleaners.
▪During the operation of the device, do not place any objects on the power
adapter. Do not place the device on any unstable cart, stand or table. The
device may fall, causing personal injury and property damage (including
the product itself).
▪In the event of thunder and lightning or if it is not used for a long time,
please unplug the device from the power supply to further protect the
device.
▪Protect the power cord from being walked on or pinched, especially at
plugs, sockets, or the point where they exit from the equipment.
▪Do not insert or push any foreign objects into the opening of the product.
▪Do not overload wall outlets, extension cords, and plugs, as this may
cause a fire or electric shock.
▪Ask qualified maintenance personnel to perform all maintenance operations. For
any reason, if the device is damaged, it should be repaired. For example, the power
cord or plug is damaged, liquid has spilled on the device, objects have fallen on the
device, the device has been exposed to rain or wet, cannot be used normally, or
Fell to the ground. Do not attempt to repair the equipment yourself. There is a risk
of electric shock when the cover is removed.

▪Do not disassemble the device (doing so will invalidate the 30-day
warranty), and do not use the device when the current load is abnormal.
▪Do not allow the device to come into contact with liquids. If the product is in such
conditions, electric shock may occur.
▪Do not place the device under open flames such as stoves, candles or fireplaces.
▪Please follow your local environmental laws and guidelines when disposing of this
product.
▪If any cables are damaged or the wires are exposed, do not use this product,
otherwise electric shock may occur.
▪Only use the power adapter provided with the product to avoid system short circuit.
▪Do not tamper with or abuse the product; including but not limited to dropping,
shaking, crushing, excessive bending, puncturing, tearing or inserting foreign
objects into the device.
▪Do not expose the device to fine solid objects such as dust, dirt and sand.
▪Avoid placing this product near devices that emit radio waves, such as mobile
phones, radio transmitters, and Wi-Fi routers, as they may be affected by magnetic
interference.
6.Legal notice
Copyright and intellectual property information
Mantiz may own copyrights, trademarks, trade secrets, patents, patent applications or
other intellectual property rights (both registered and unregistered) related to the
products of this advanced user guide. This advanced user guide does not grant you
license rights for such copyrights, trademarks, patents, or other intellectual property
rights. Saturn Pro is hereinafter referred to as "Production
Product”) may be different from the pictures on the packaging or other places, please
refer to the actual product. Mantiz is not responsible for such differences or possible
errors. The information contained in this advanced user guide is subject to change
without notice.
Limited product warranty
For the latest and current terms of the limited product warranty, please consult before
purchasing.
Limitation of Liability
Mantiz is not responsible for any loss of profit, loss of information or data, special,
accidental, indirect, punitive, causal or incidental damage caused by the distribution,
sale, resale, use or inability to use the product. Under no circumstances will Mantiz's
liability exceed the retail price of the purchased product.
General conditions
These terms shall be governed by the laws of the country/region where the product was
purchased and will be interpreted in accordance with the laws of that country/region. If
any clause in this advanced user guide is invalid or unenforceable, such clause (invalid
clause or unenforceable clause) shall be designated as invalid or deemed invalid as the
remaining clause and be excluded. Mantiz reserves the right to amend any terms at any
time without notice.
